OWP OPTIMA LED 595 (50) IP54/IP54 EM 4000K mat

OWP OPTIMA LED 595 (50) IP54/IP54 EM 4000K mat
add to favorites
52 Wluminaire power
5800 lmlight flow
112 lm/Wenergy efficiency
code1372000380
color temperature4000
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. IP protected
  6. OWP OPTIMA LED
  7. OWP OPTIMA LED 595 (50) IP54/IP54 EM 4000K mat
options
свернуть все
electricalconstructionalcommonilluminatingemergency
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-264 V
luminaire power
52 W
power factor
> 0,95
supply voltage
230 V
electrical
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-264 V
luminaire power
52 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
material
Сталь
housing color
Белый
length, mm
595 mm
width, mm
595 mm
height, mm
80 mm
weight
8.3 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ2*
installation length, mm
425 mm
installation width, mm
425 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
service life, hour
50 000 h
code
1372000380
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
5800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
112 lm/W
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
7% lm
model files
model files
CAD/BIM files
CAD model 3DS17.7 kB
model 3dMax272 kB

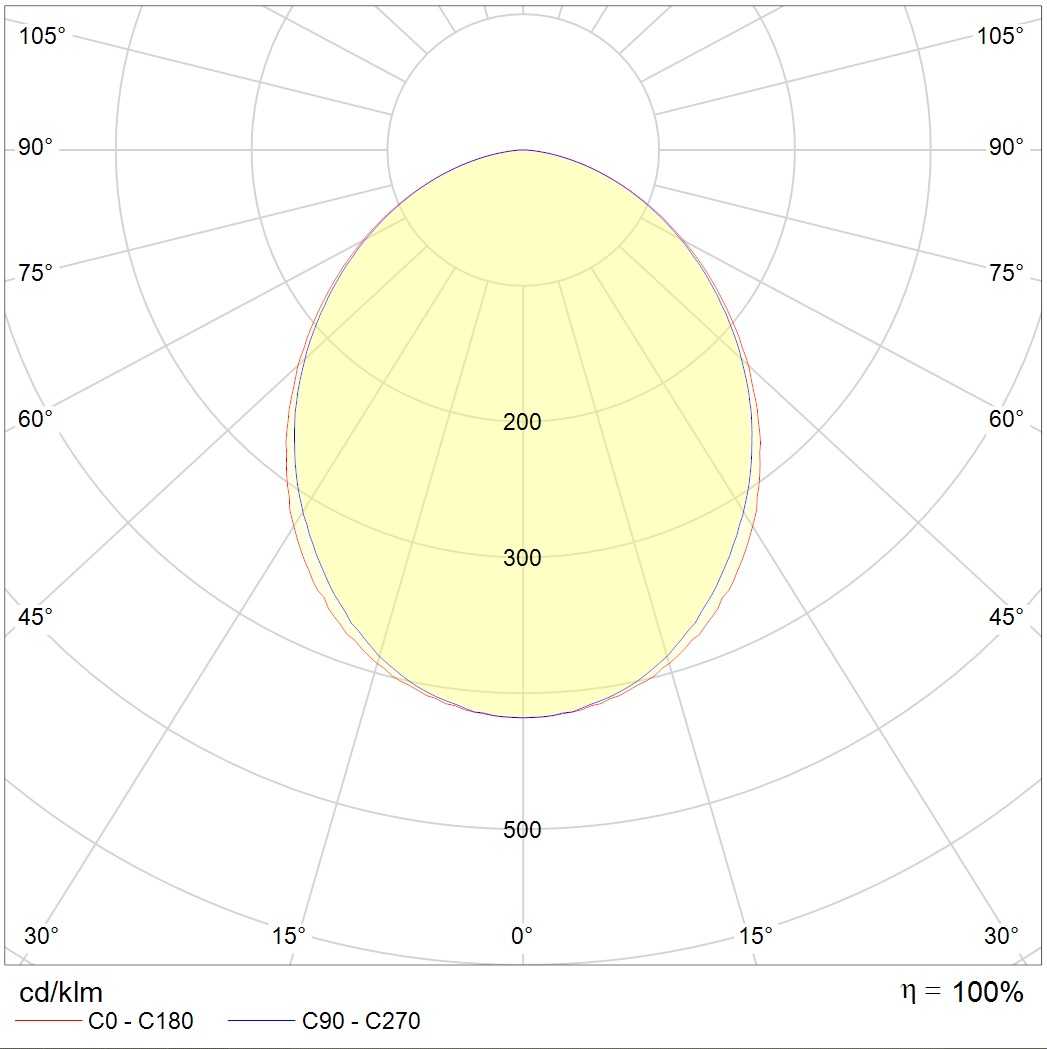

photometric files
ies134.1 kB
jpg122 kB
ldt83.3 kB
csv440 B
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS17.7 kB
model 3dMax272 kB
photometric files
ies134.1 kB
jpg122 kB
ldt83.3 kB
csv440 B
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Решетка 595х595 OWP OPTIMA LED3.2kgarticle: 2372000080
