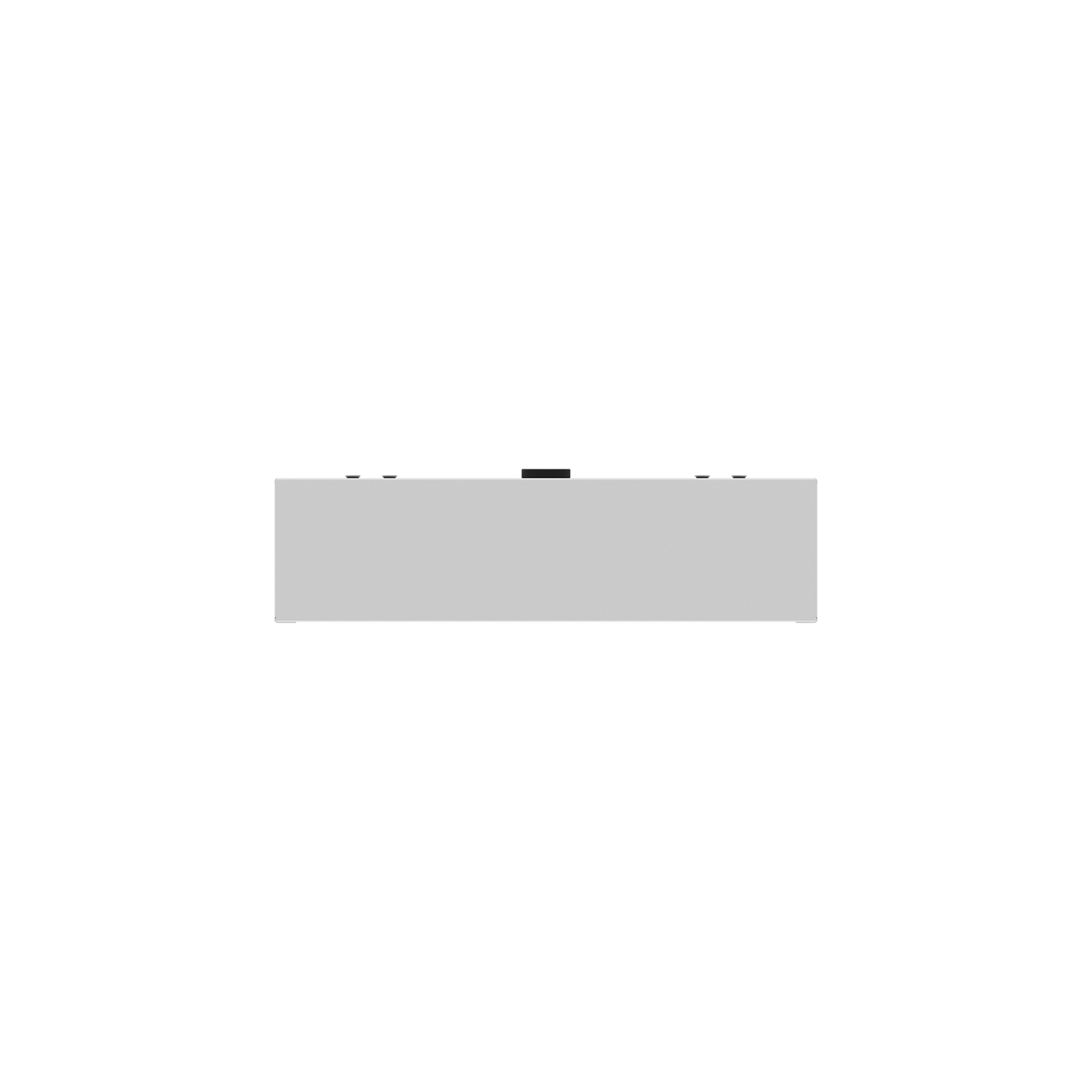

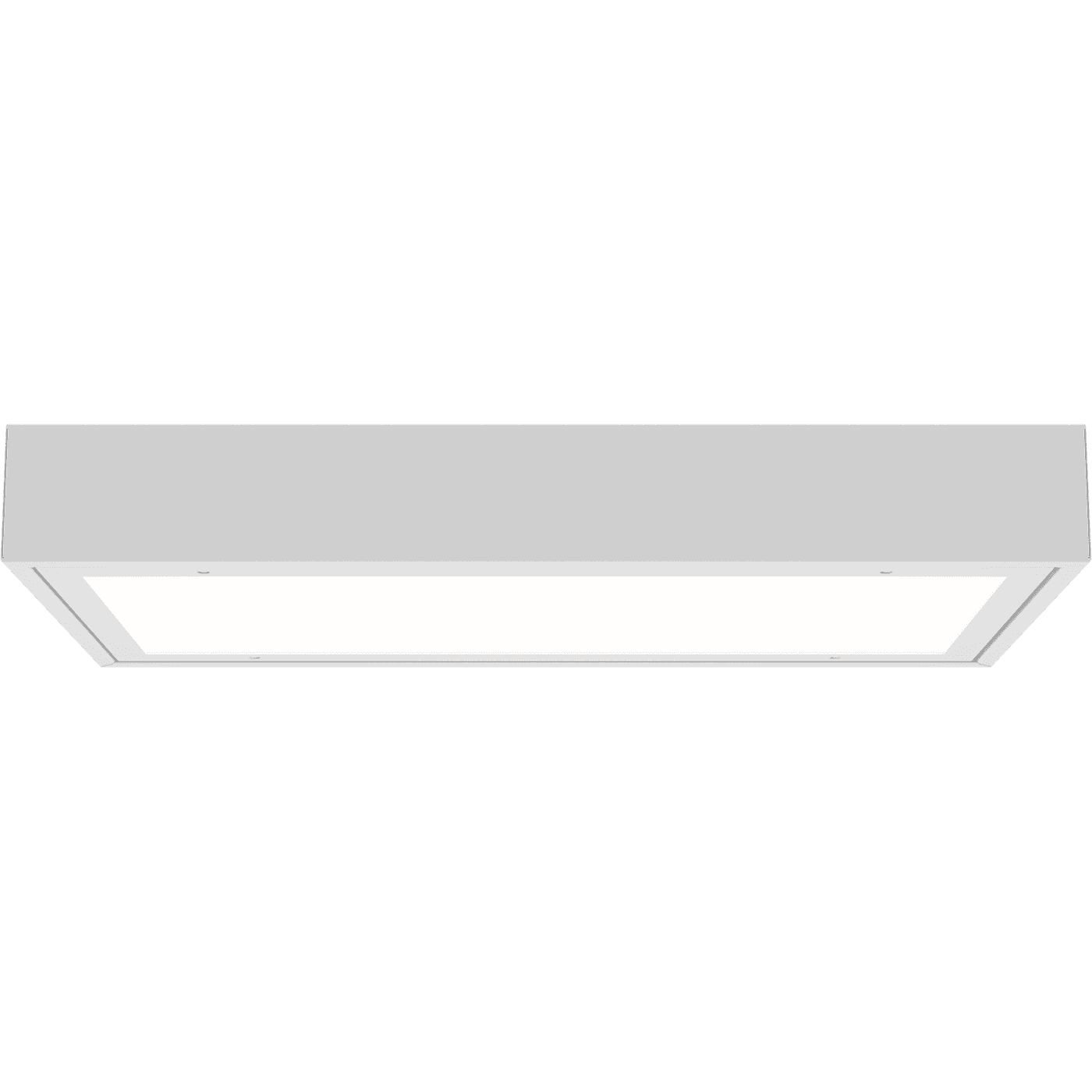

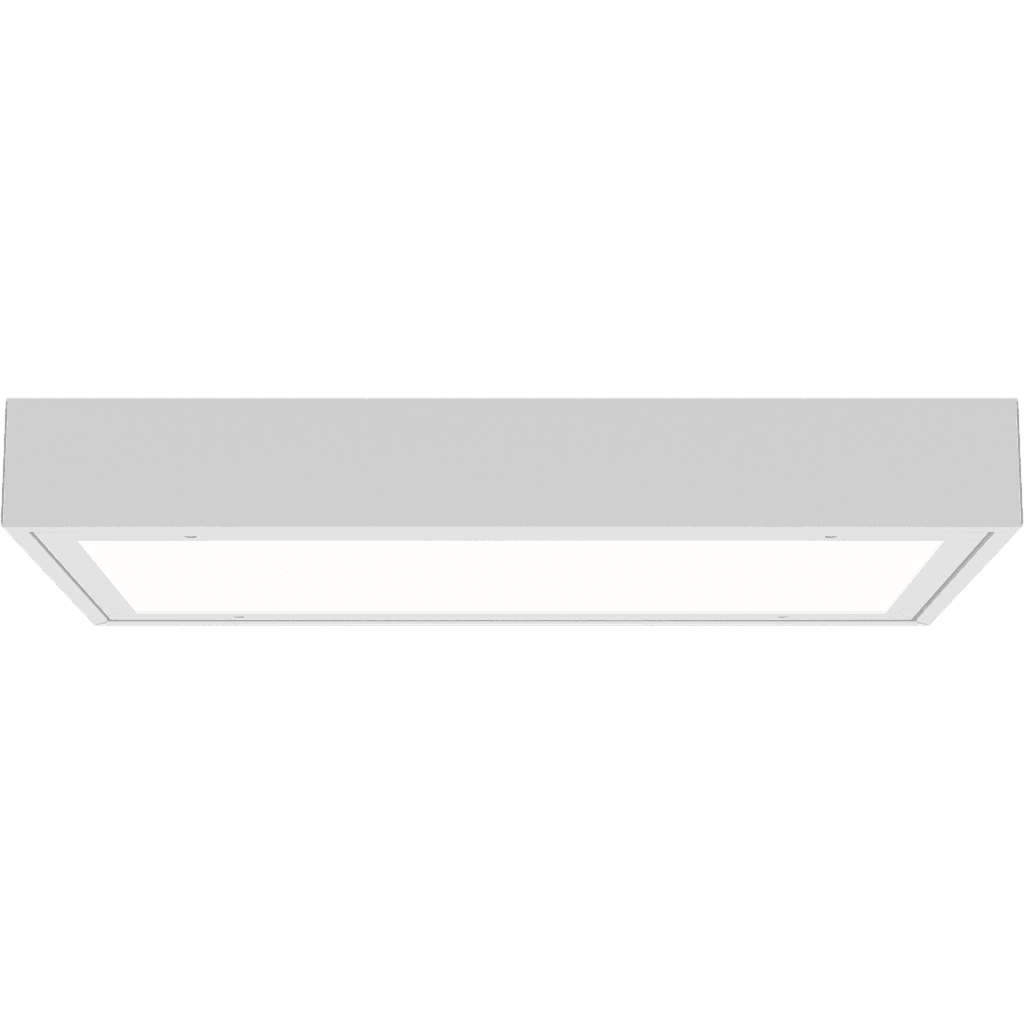

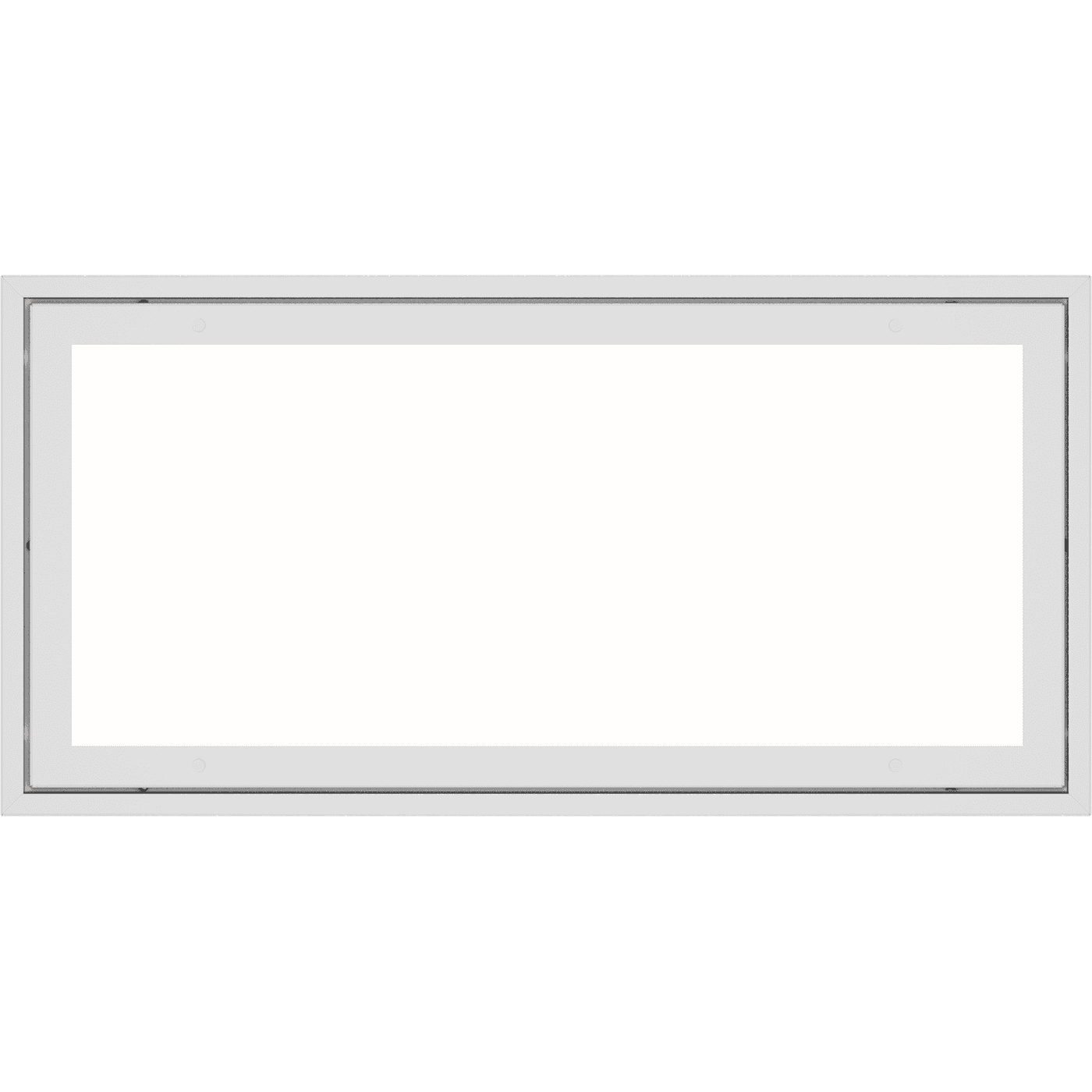

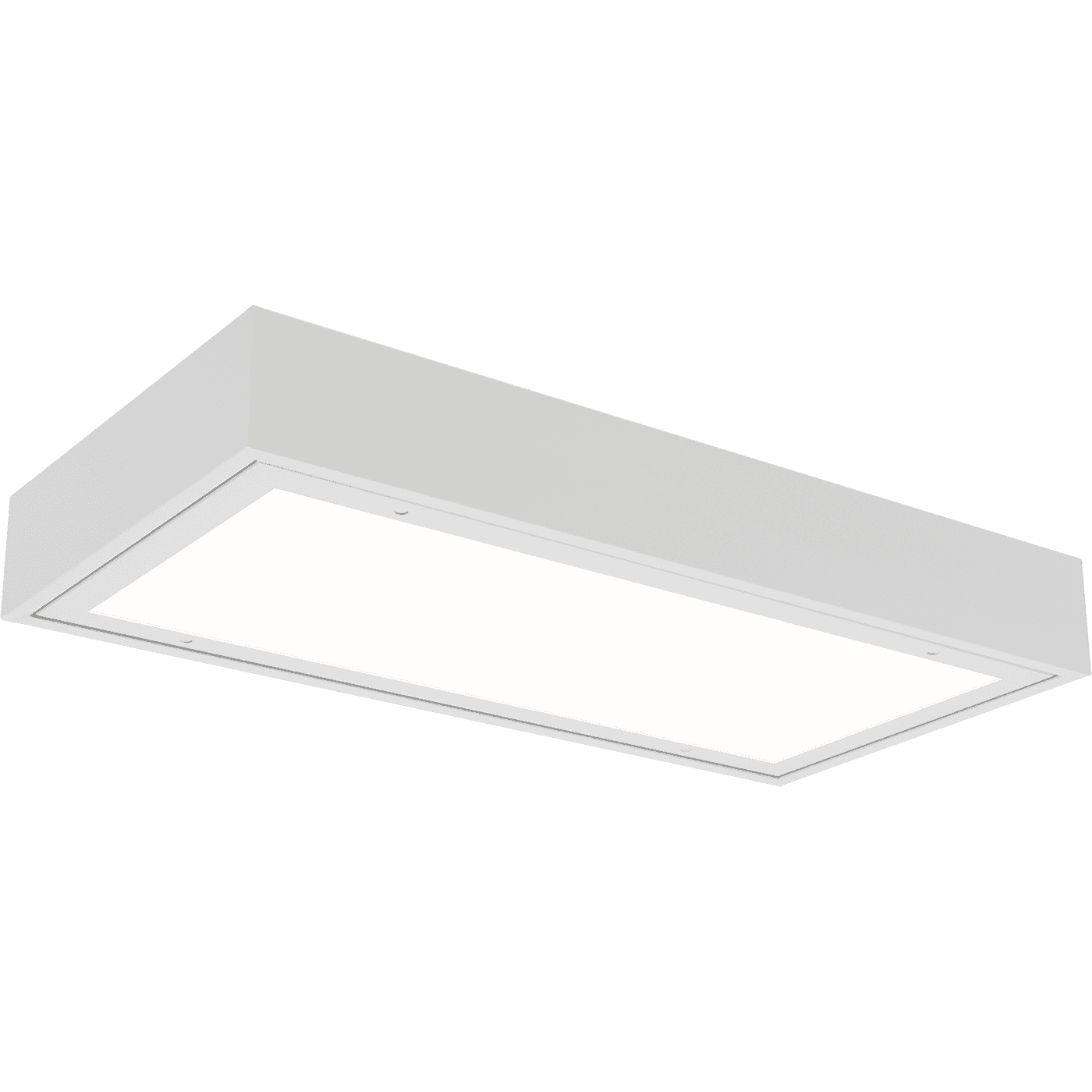

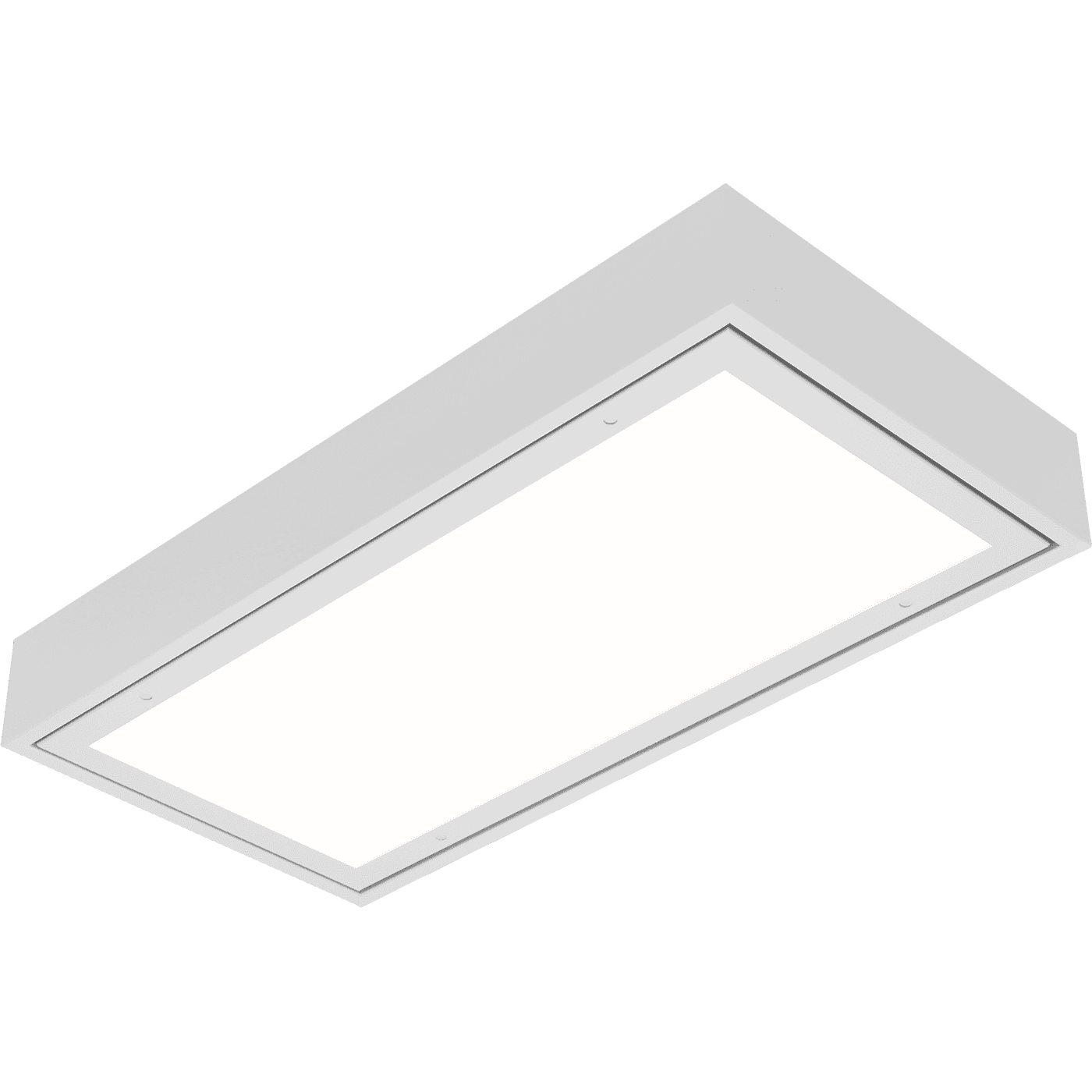

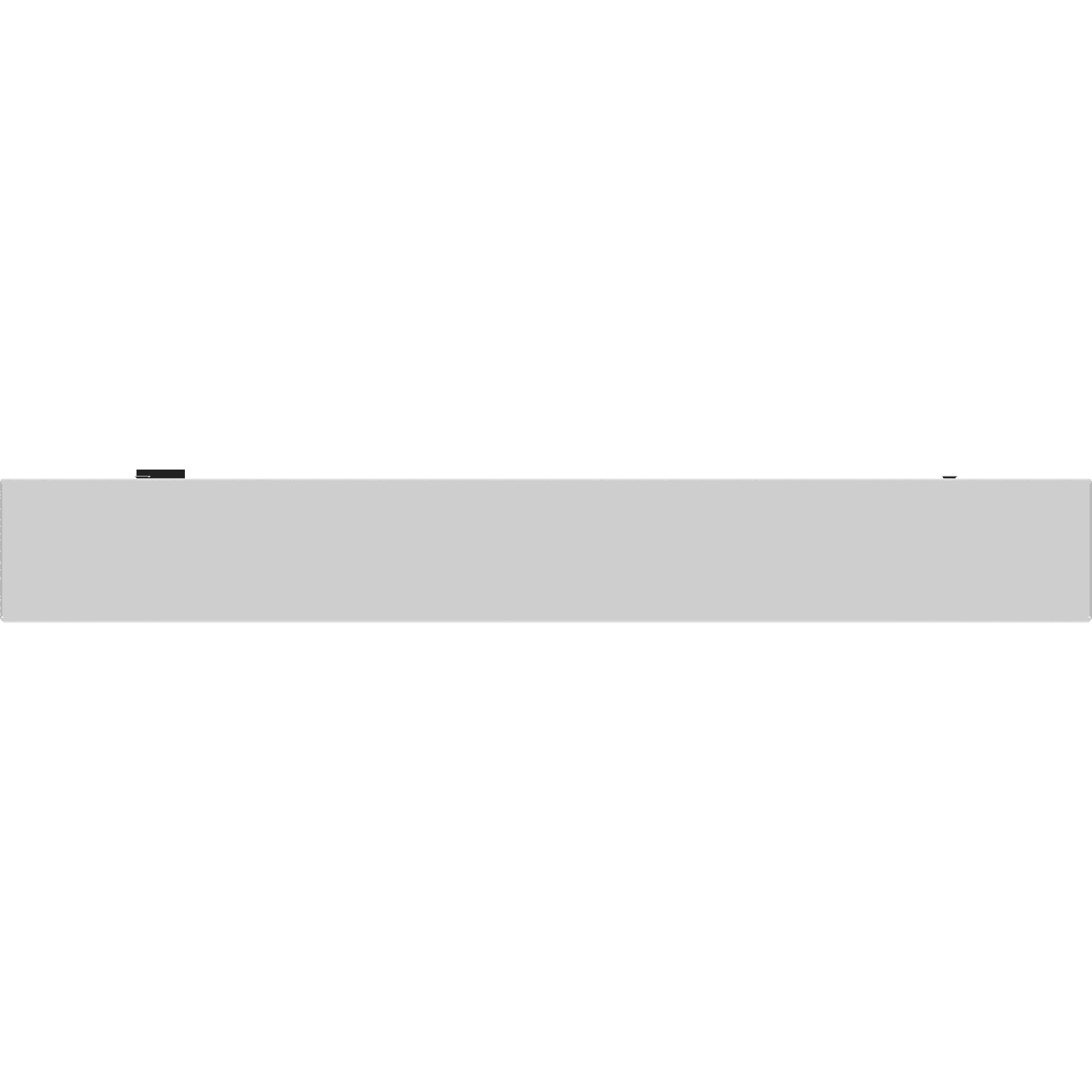

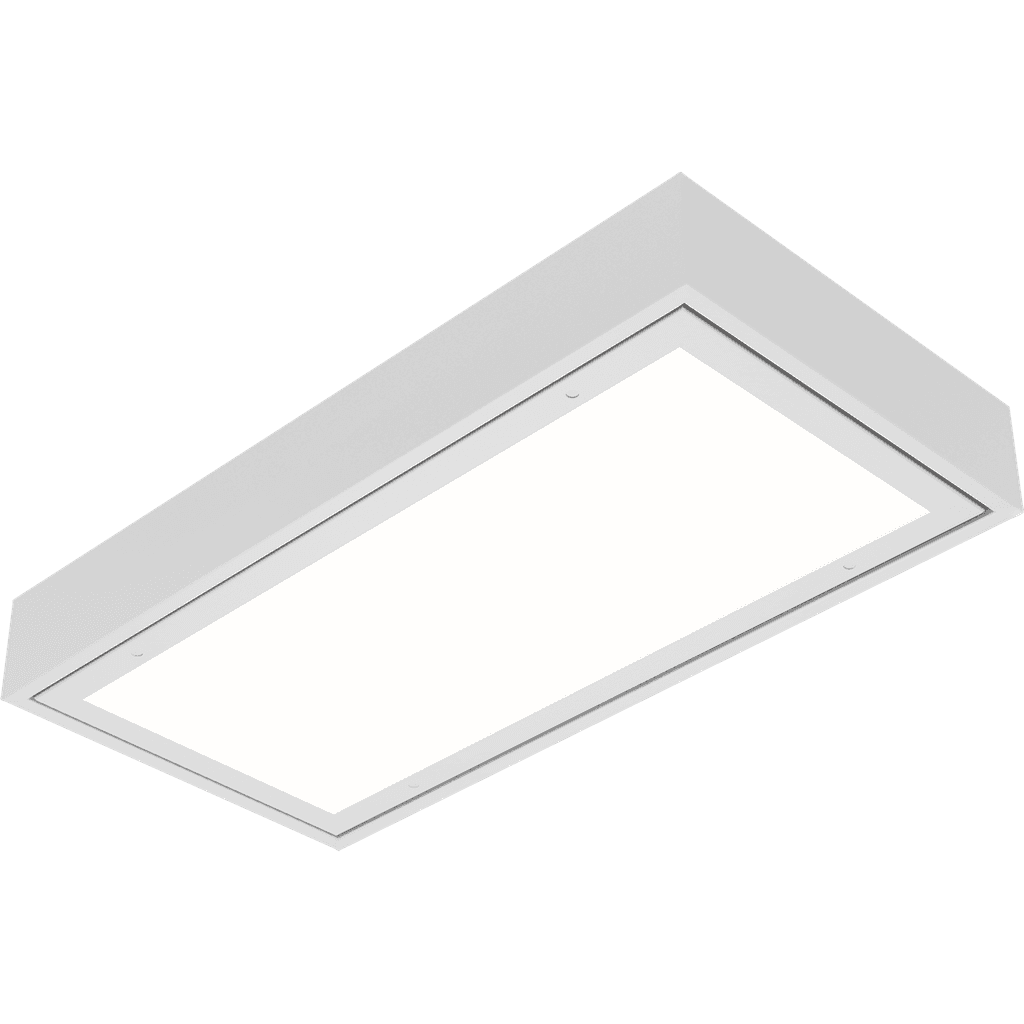

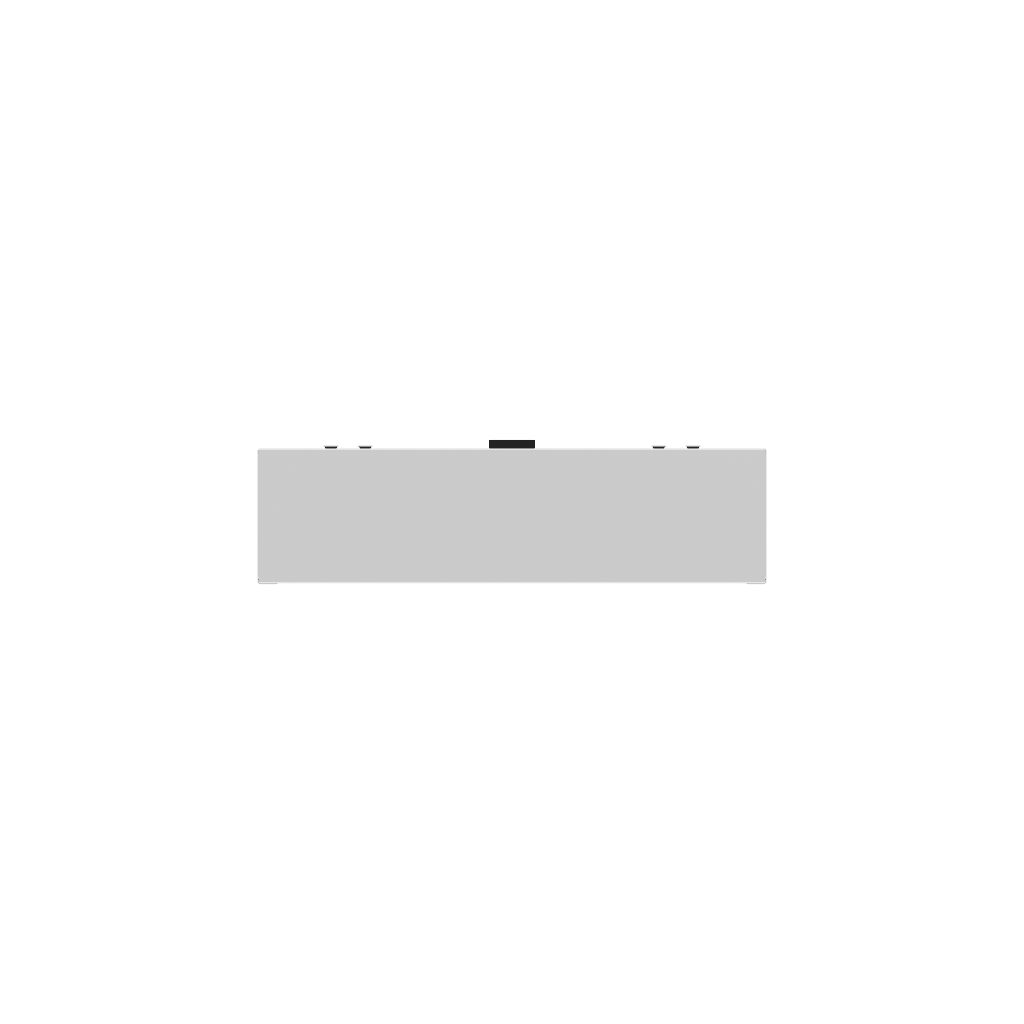

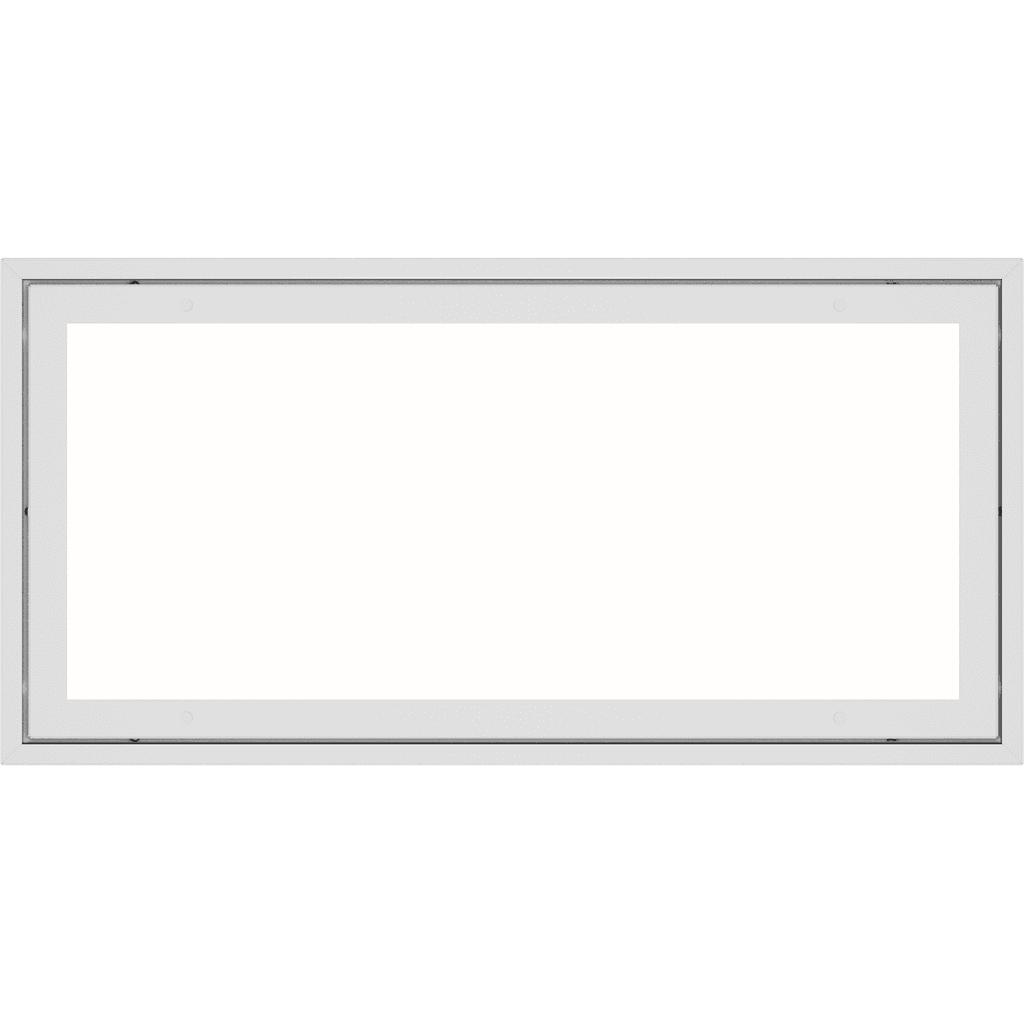

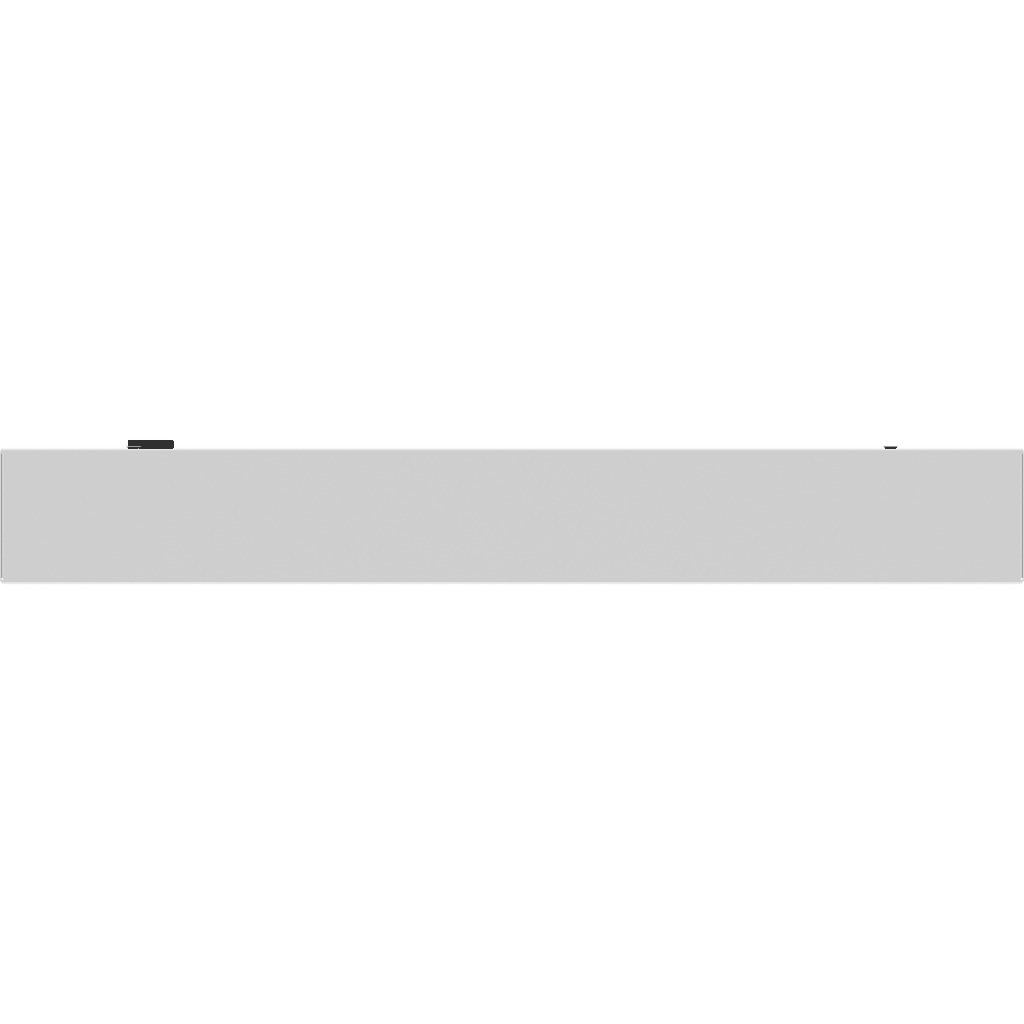

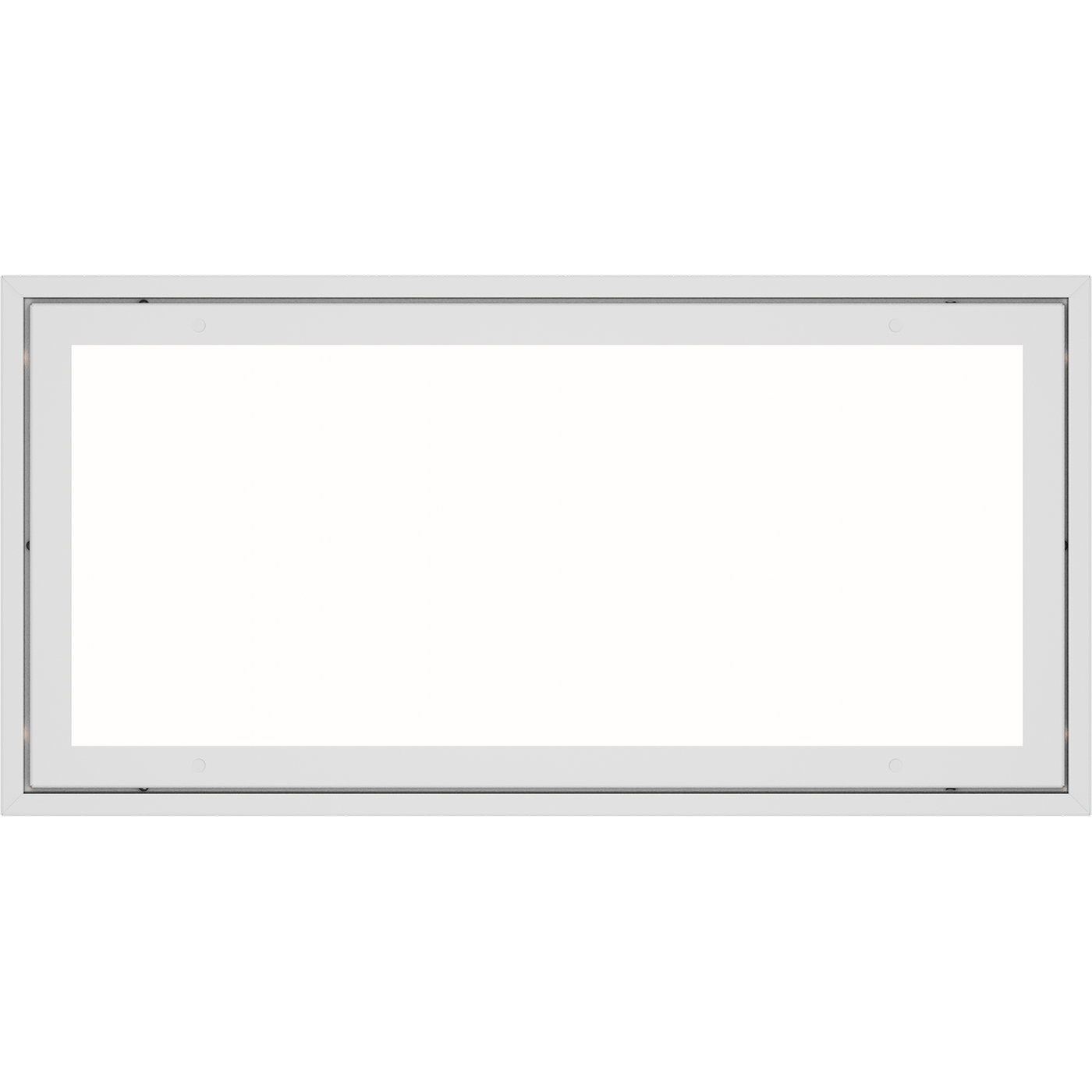

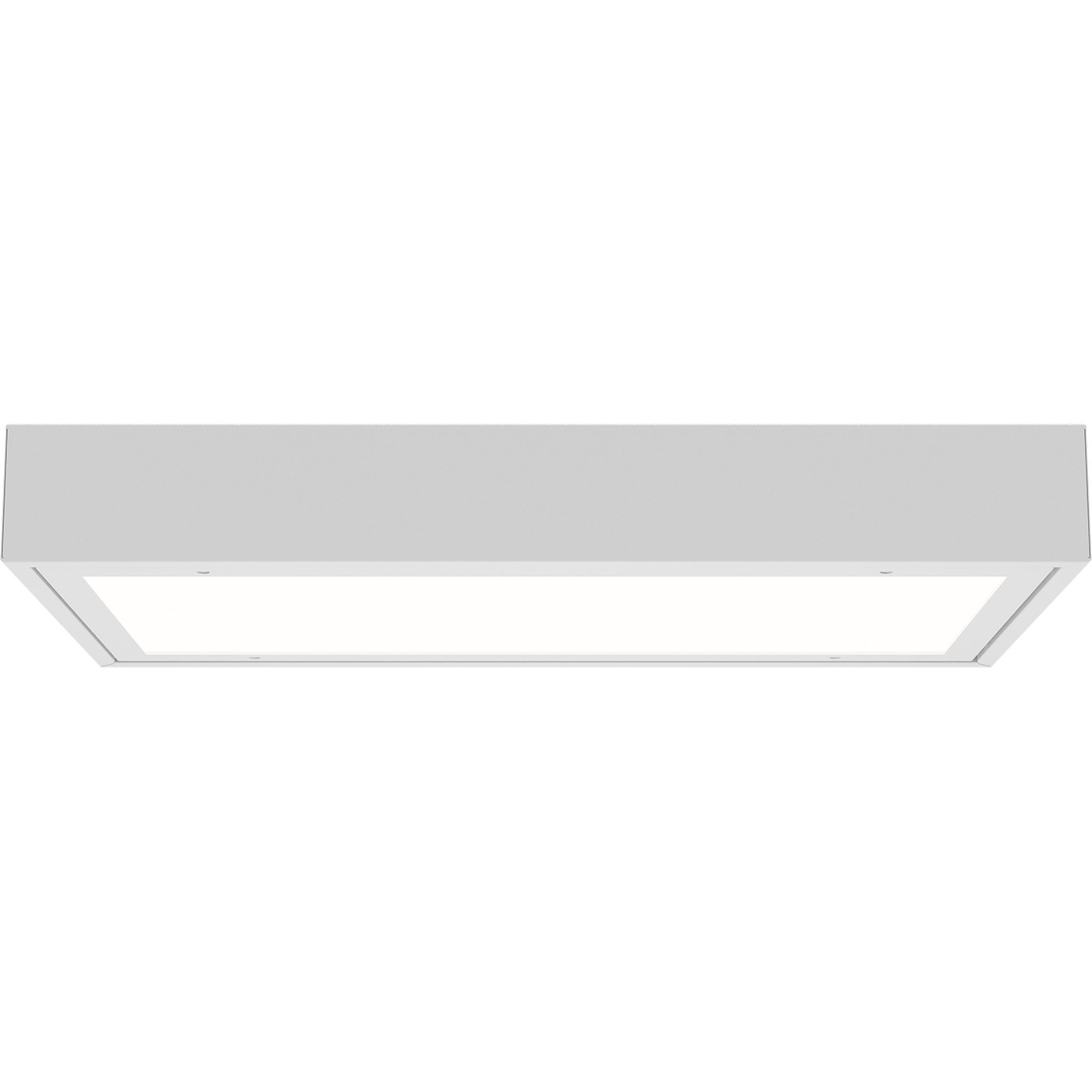

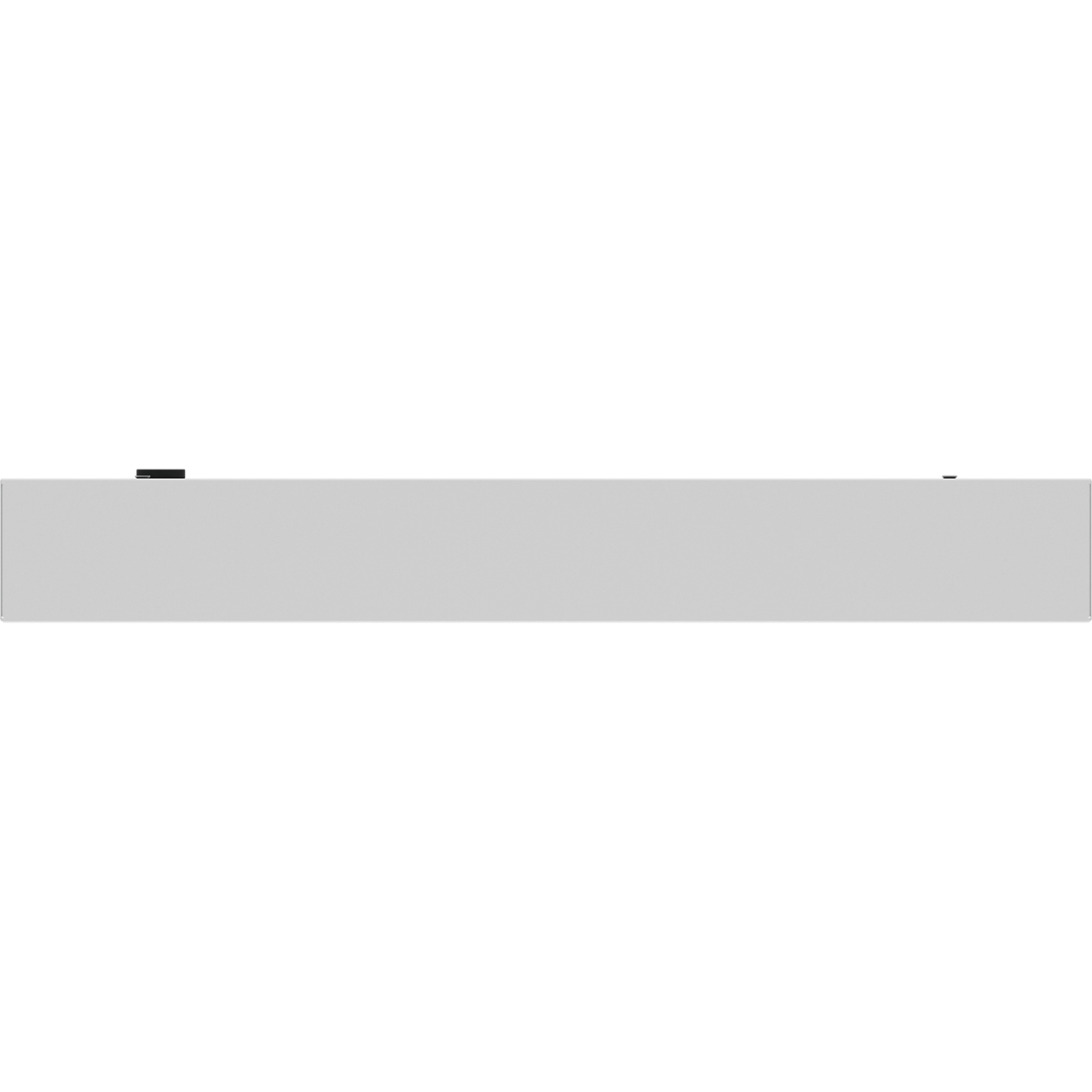

OWP OPTIMA LED 300 IP54/IP54 EM 4000K

OWP OPTIMA LED 300 IP54/IP54 EM 4000K
add to favorites
16 Wluminaire power
1400 lmlight flow
88 lm/Wenergy efficiency
code1372001060
color temperature4000
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. IP protected
  6. OWP OPTIMA LED
  7. OWP OPTIMA LED 300 IP54/IP54 EM 4000K
options
свернуть все
electricalconstructionalcommonilluminatingemergency
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
16 W
power factor
> 0,95
supply voltage
230 V
electrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
16 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
material
Сталь
housing color
Белый
length, mm
595 mm
width, mm
295 mm
height, mm
80 mm
weight
3.9 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ2*
installation length, mm
440 mm
installation width, mm
170 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
service life, hour
50 000 h
code
1372001060
energy efficiency class
A
illuminating
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
88 lm/W
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
19% lm
