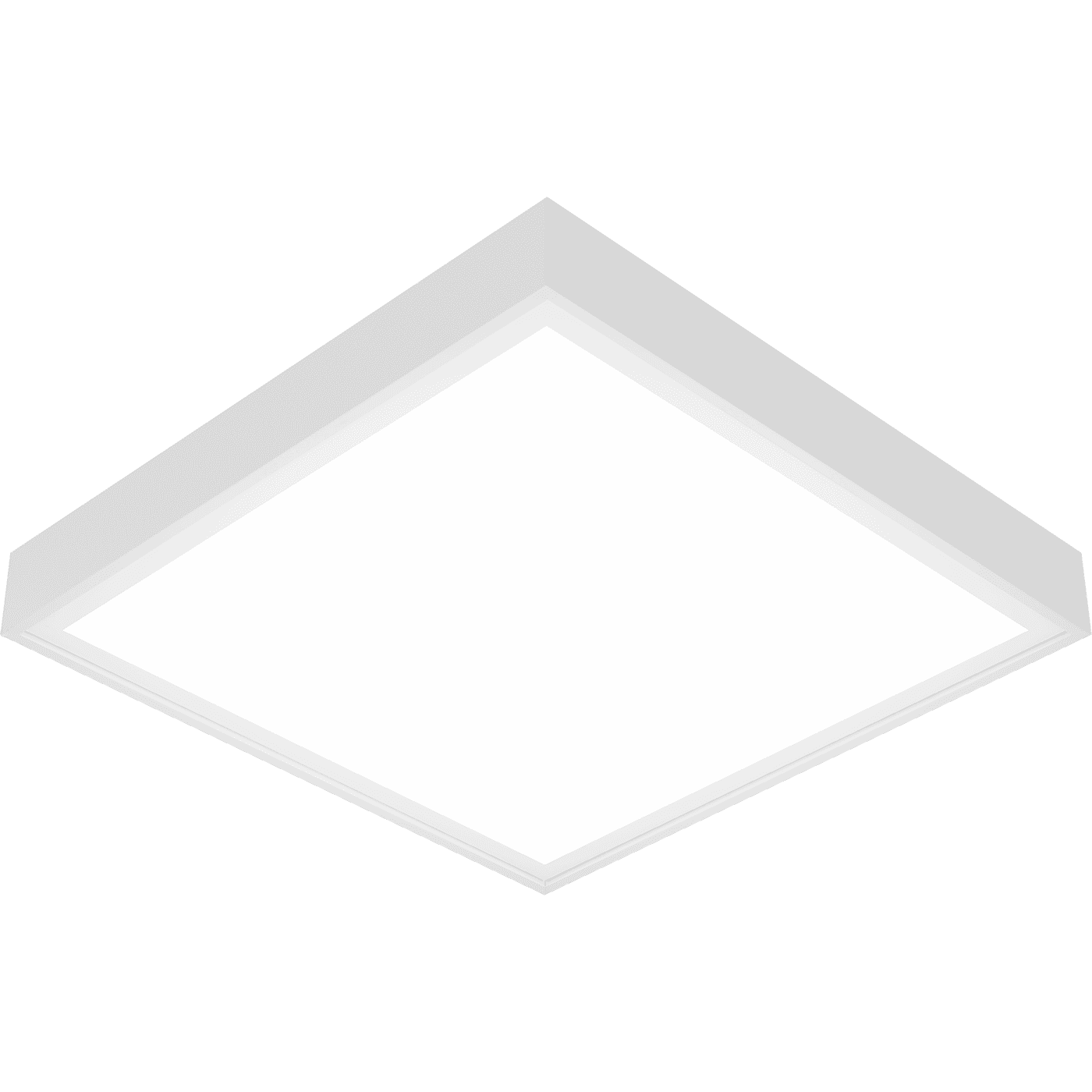

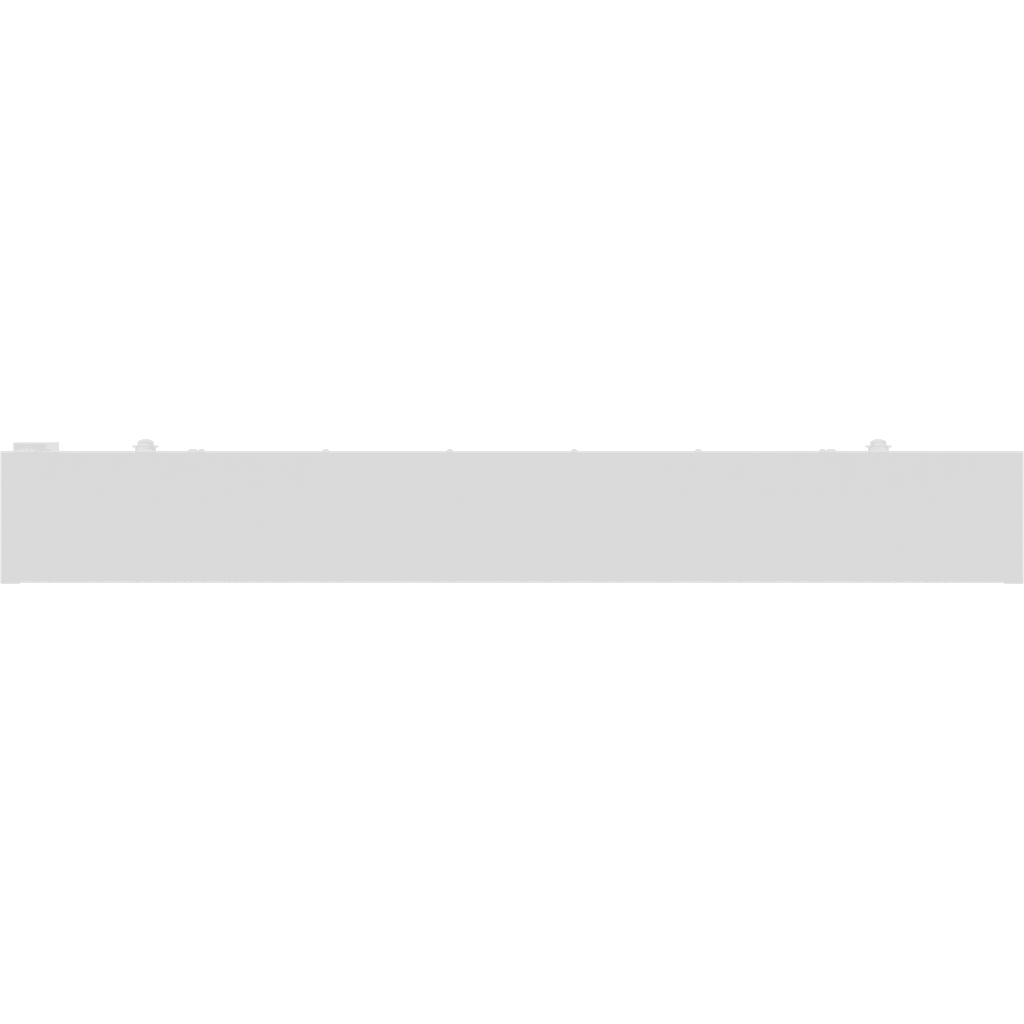

OWP OPTIMA LED 600 IP54 4000K with magnet frame
archive
archive
OWP OPTIMA LED 600 IP54 4000K with magnet frame
30 Wluminaire power
4400 lmlight flow
147 lm/Wenergy efficiency
code1166001420
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
30 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54/IP40
climatic performance
УХЛ4*
material
Сталь
weight
5.2 kg
length, mm
600 mm
width, mm
600 mm
height, mm
63 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1166001420
illuminating
color rendition index (CRI)
>85
light flow
4400 lm
flickering factor
<1%
energy efficiency
147 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
documents
сертификаты
documents
passport705.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
