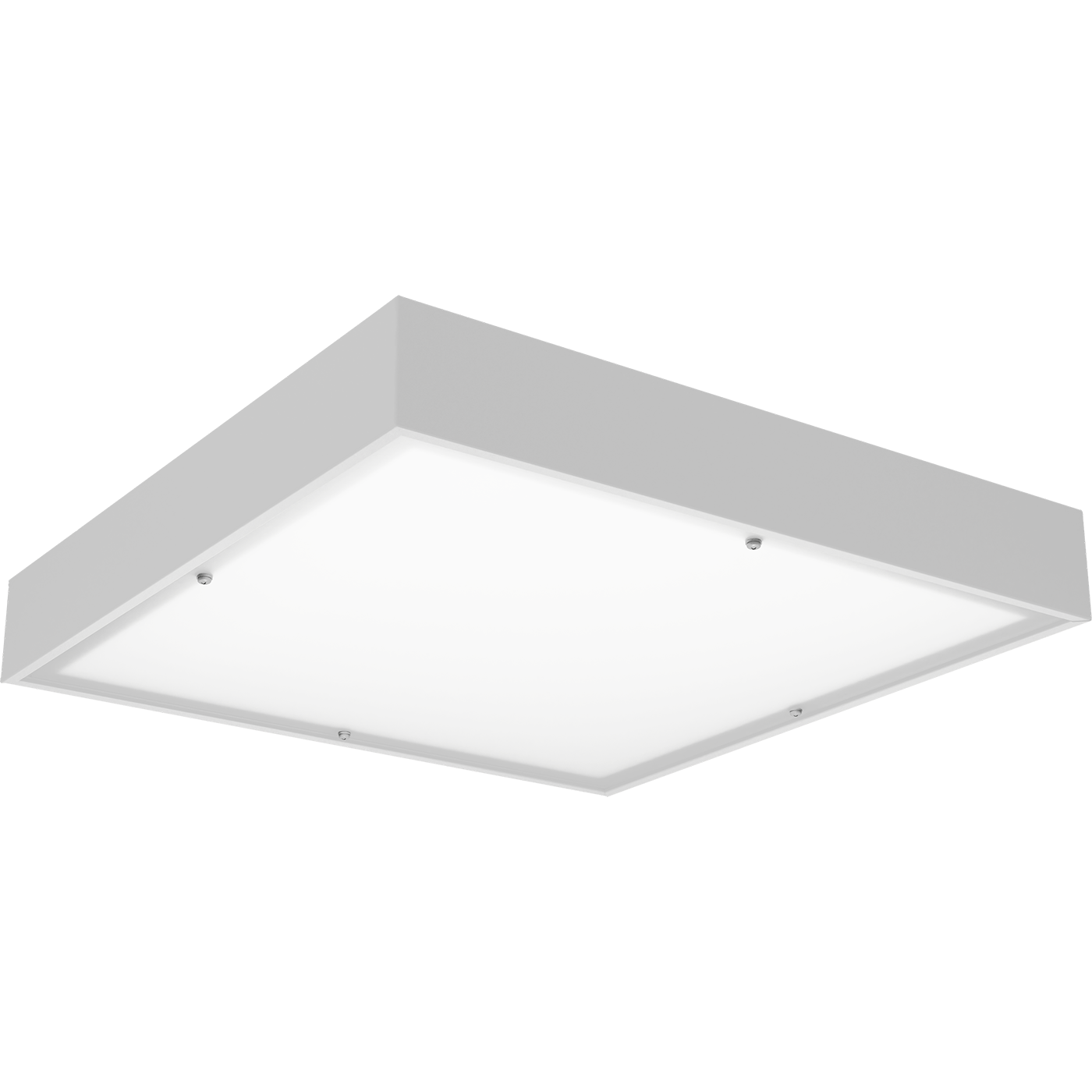

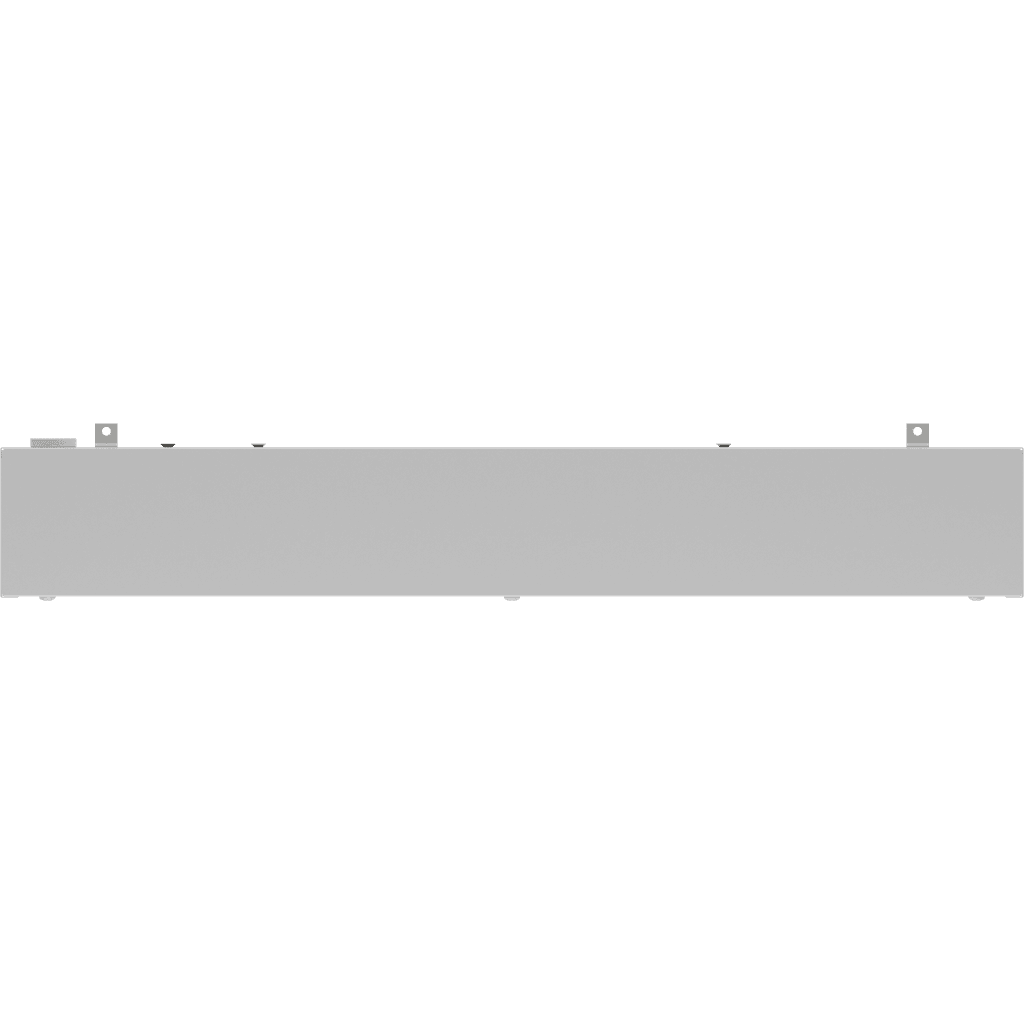

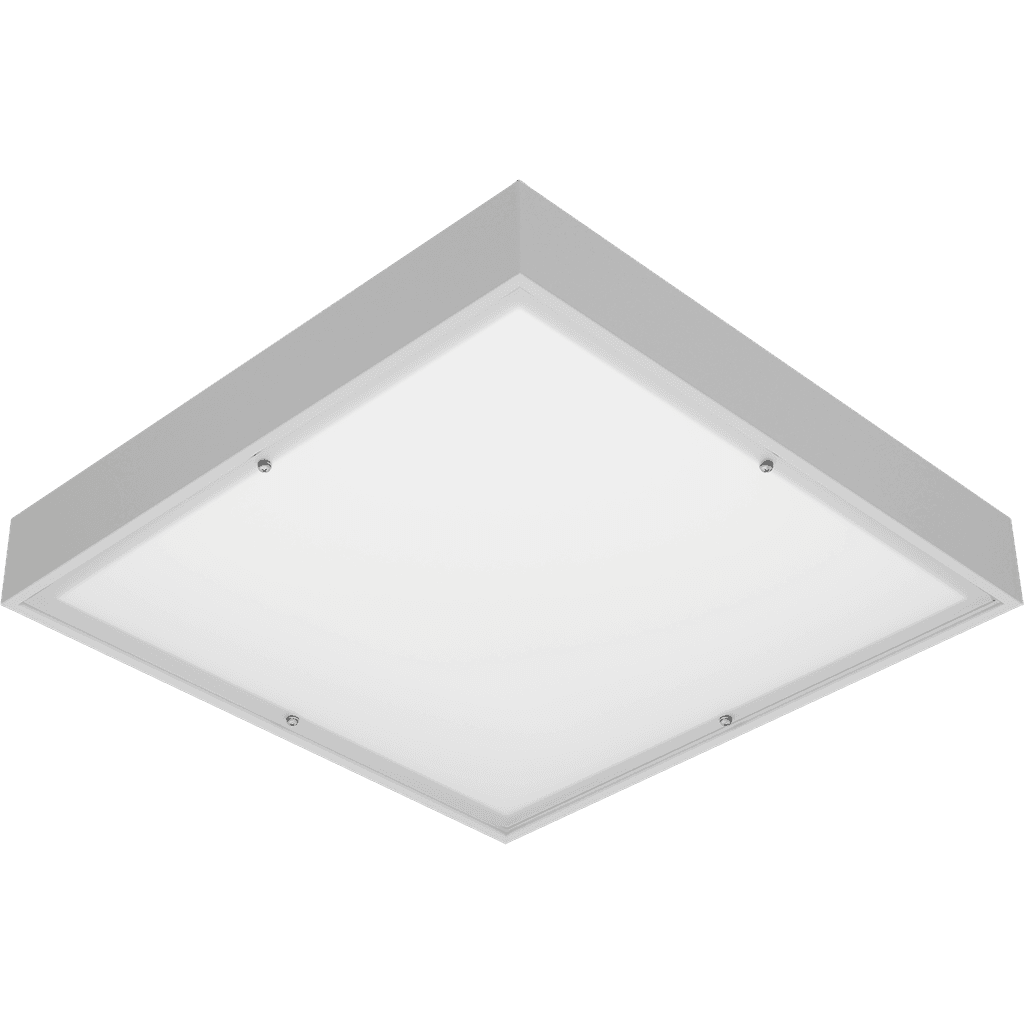

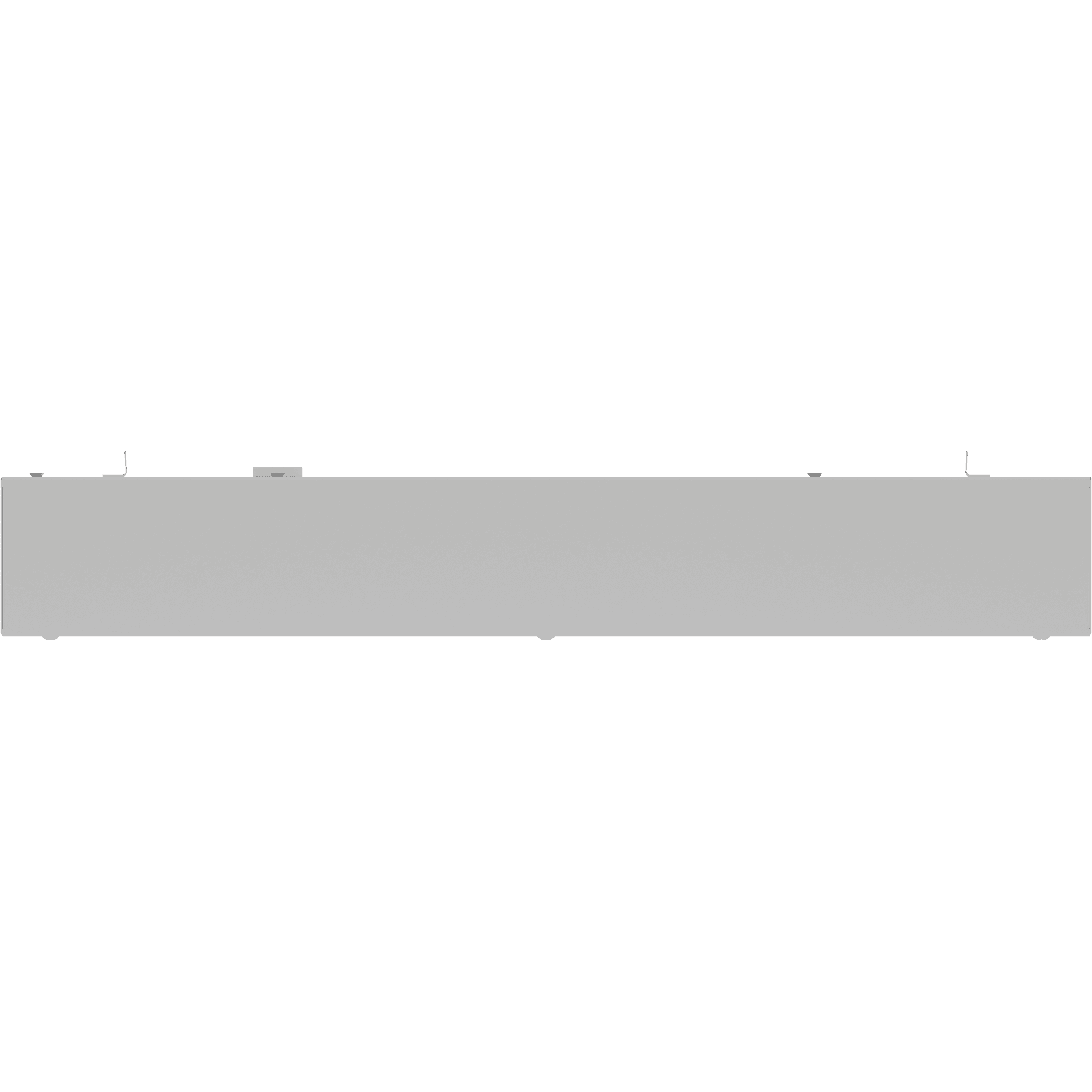

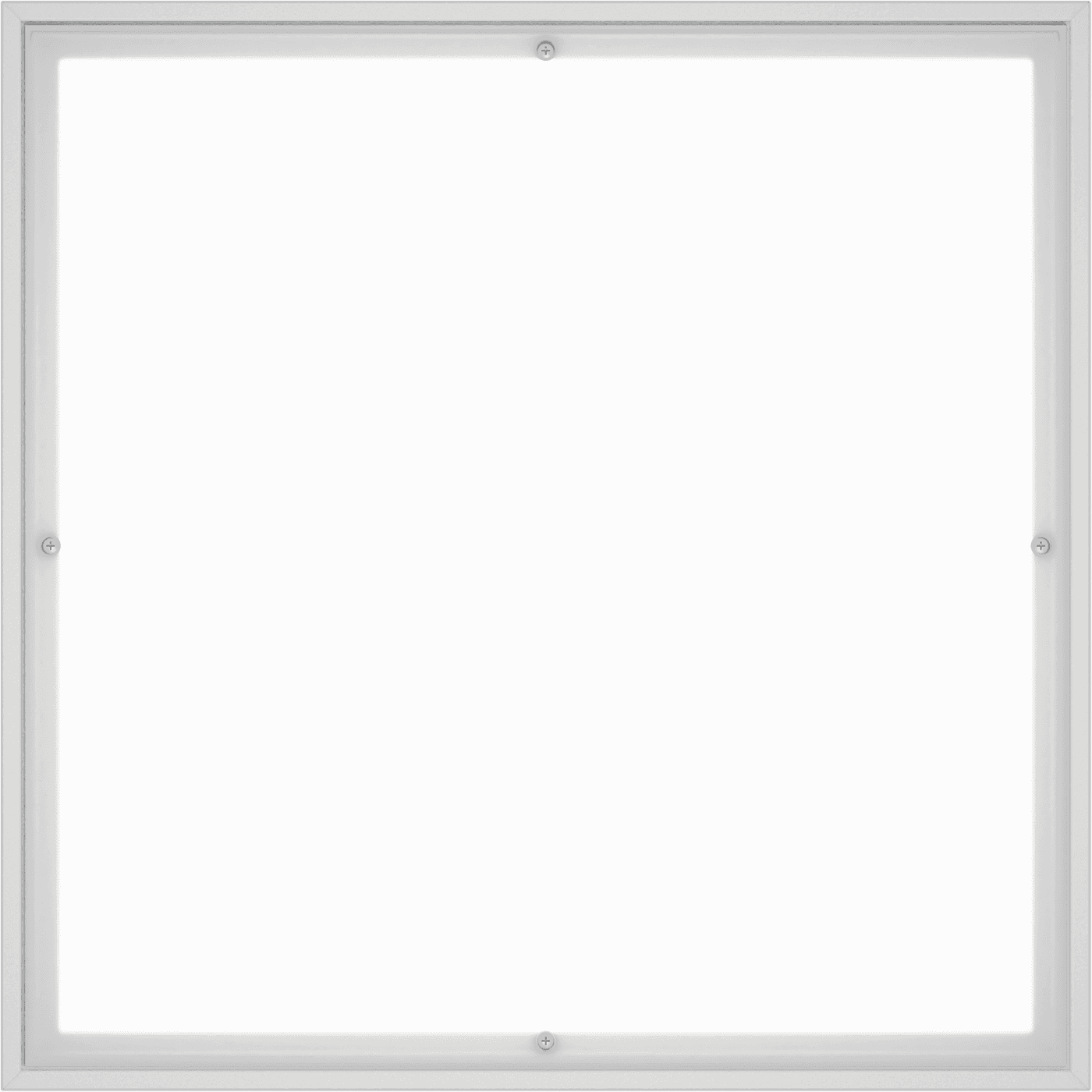

OWP ECO LED 595 IP54/IP54 HFD EM 4000K mat

OWP ECO LED 595 IP54/IP54 HFD EM 4000K mat
32 Wluminaire power
3300 lmlight flow
103 lm/Wenergy efficiency
code1372000850
color temperature4000 K
beam angleD120
performance factor100
weight5.9 kg
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommon
energy efficiency
103 lm/W
color rendition index (CRI)
>80
light flow
3300 lm
flickering factor
<5%

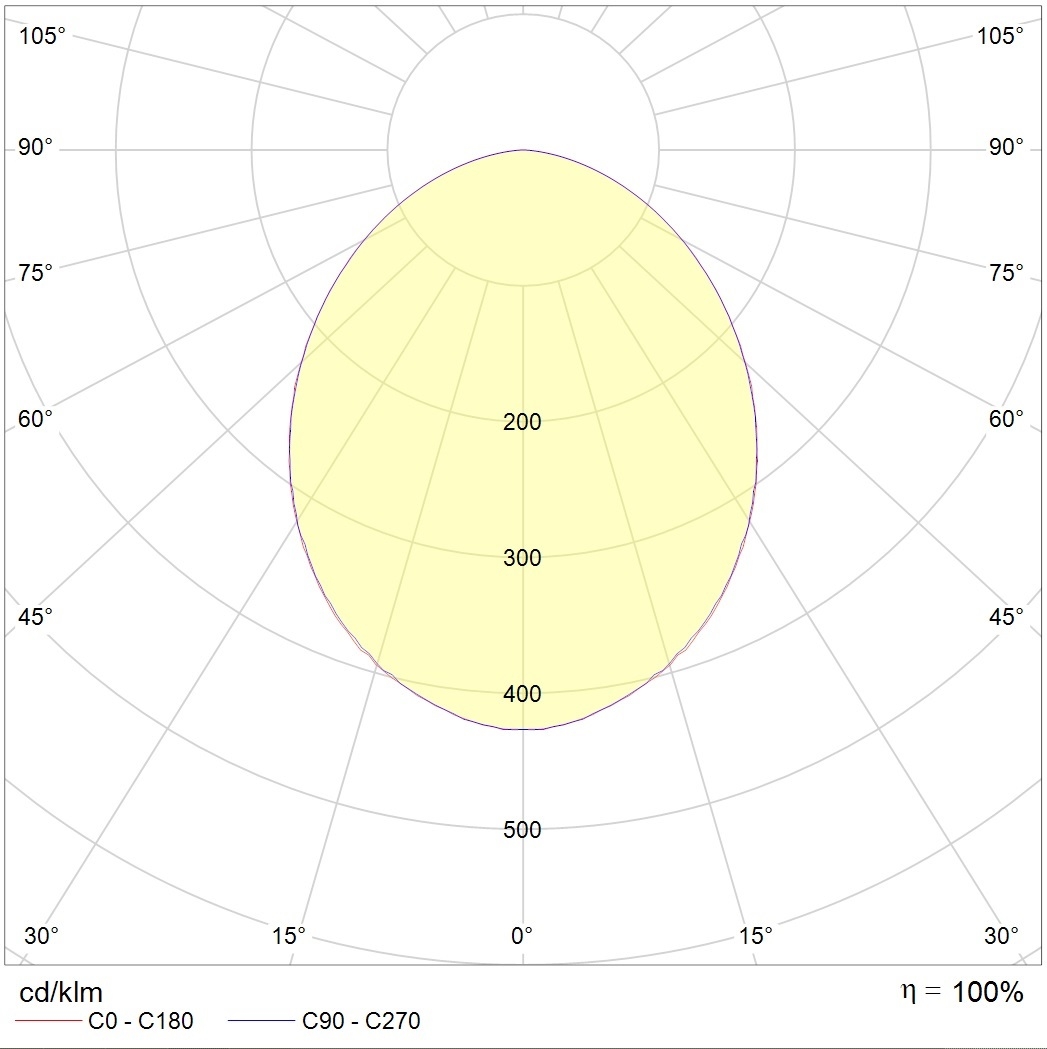

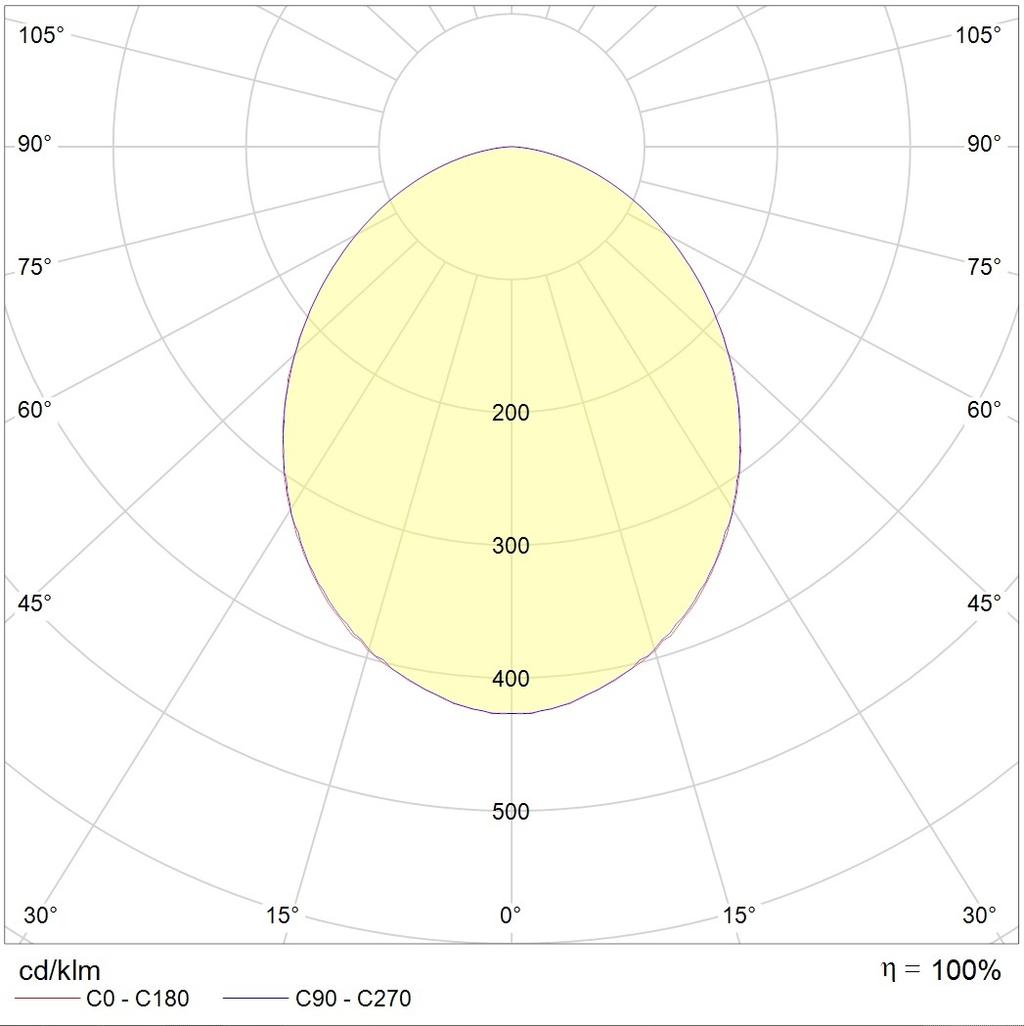

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
103 lm/W
color rendition index (CRI)
>80
light flow
3300 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
maximum number of luminaires in a line
1
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
595 mm
width
595 mm
height
95 mm
installation length
575 mm
installation width
575 mm
weight
5.9 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIa,ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
10% lm
battery / battery Ni-Cd
6,0 V 1,2 А*h
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1372000850
