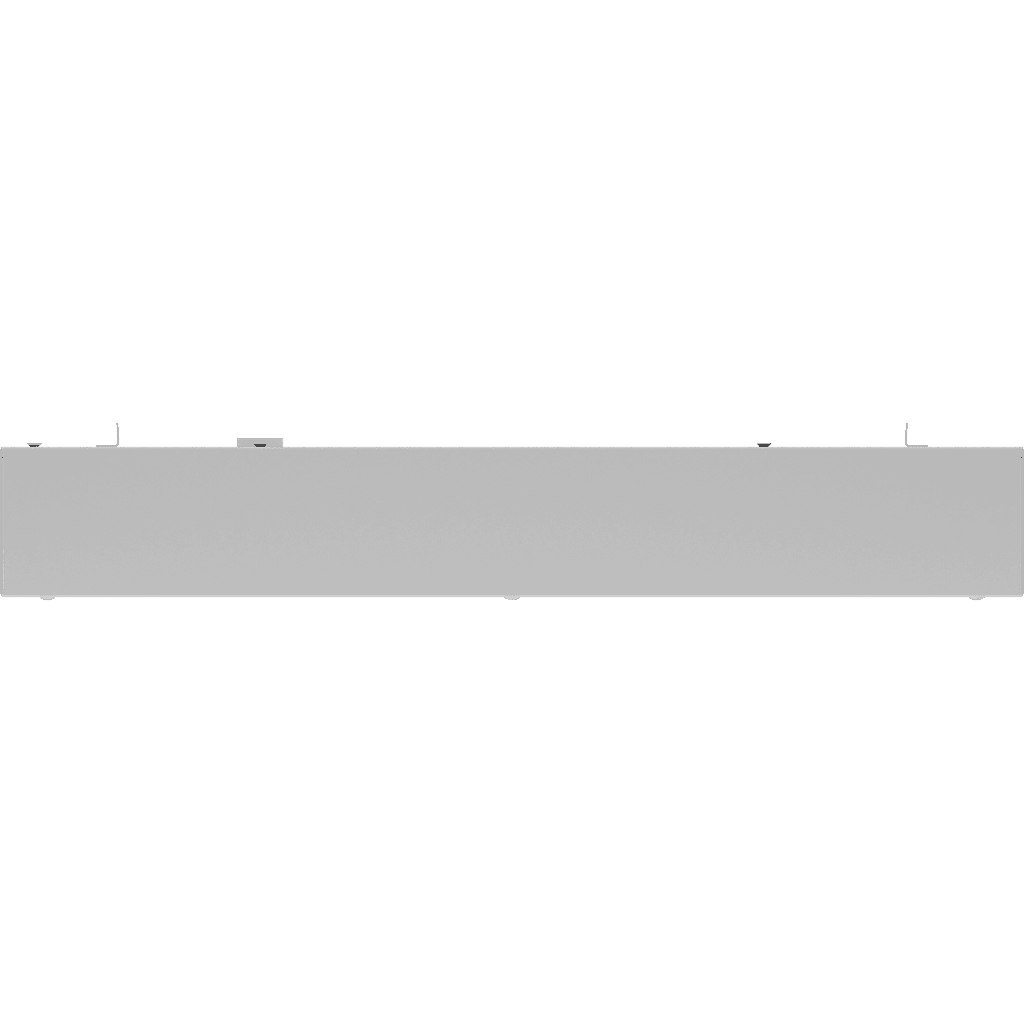

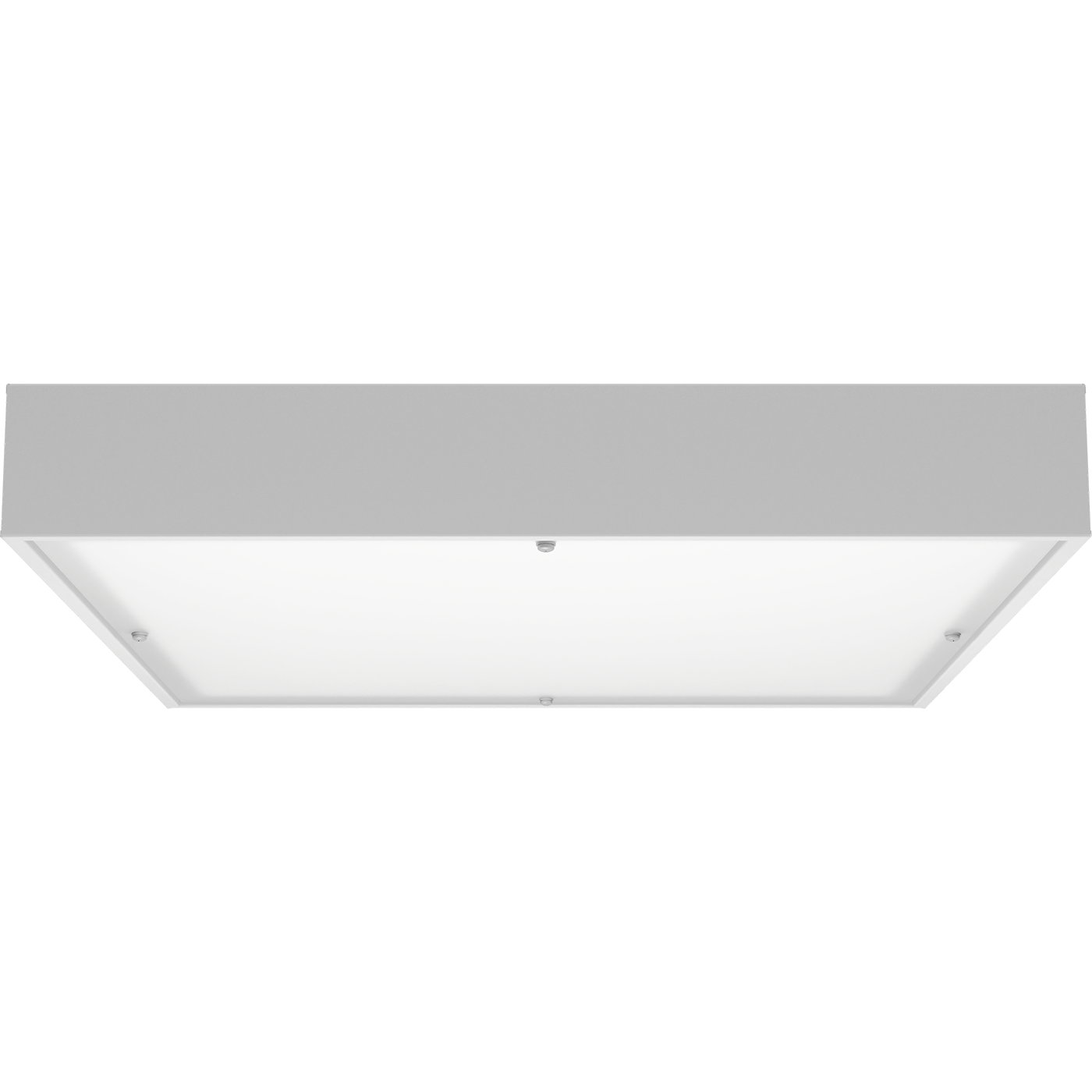

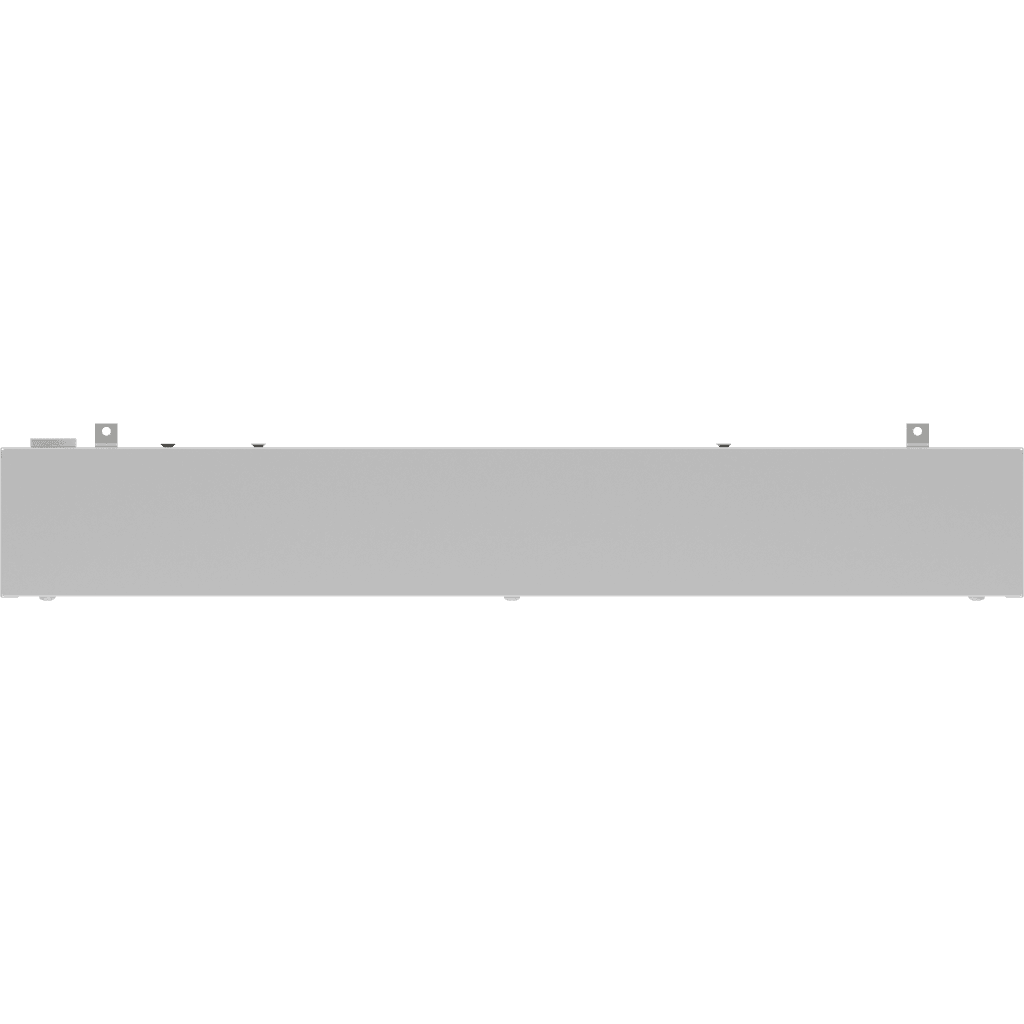

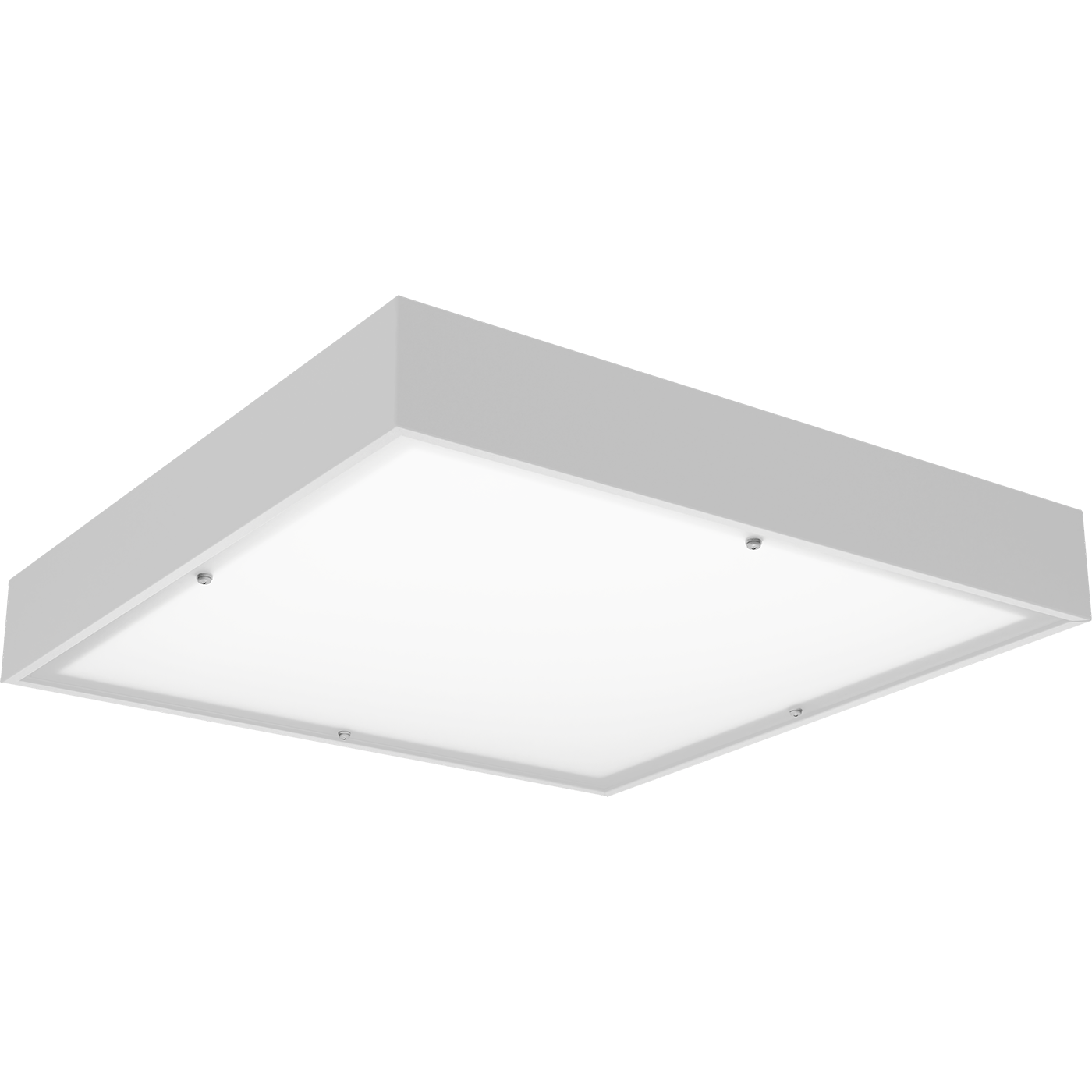

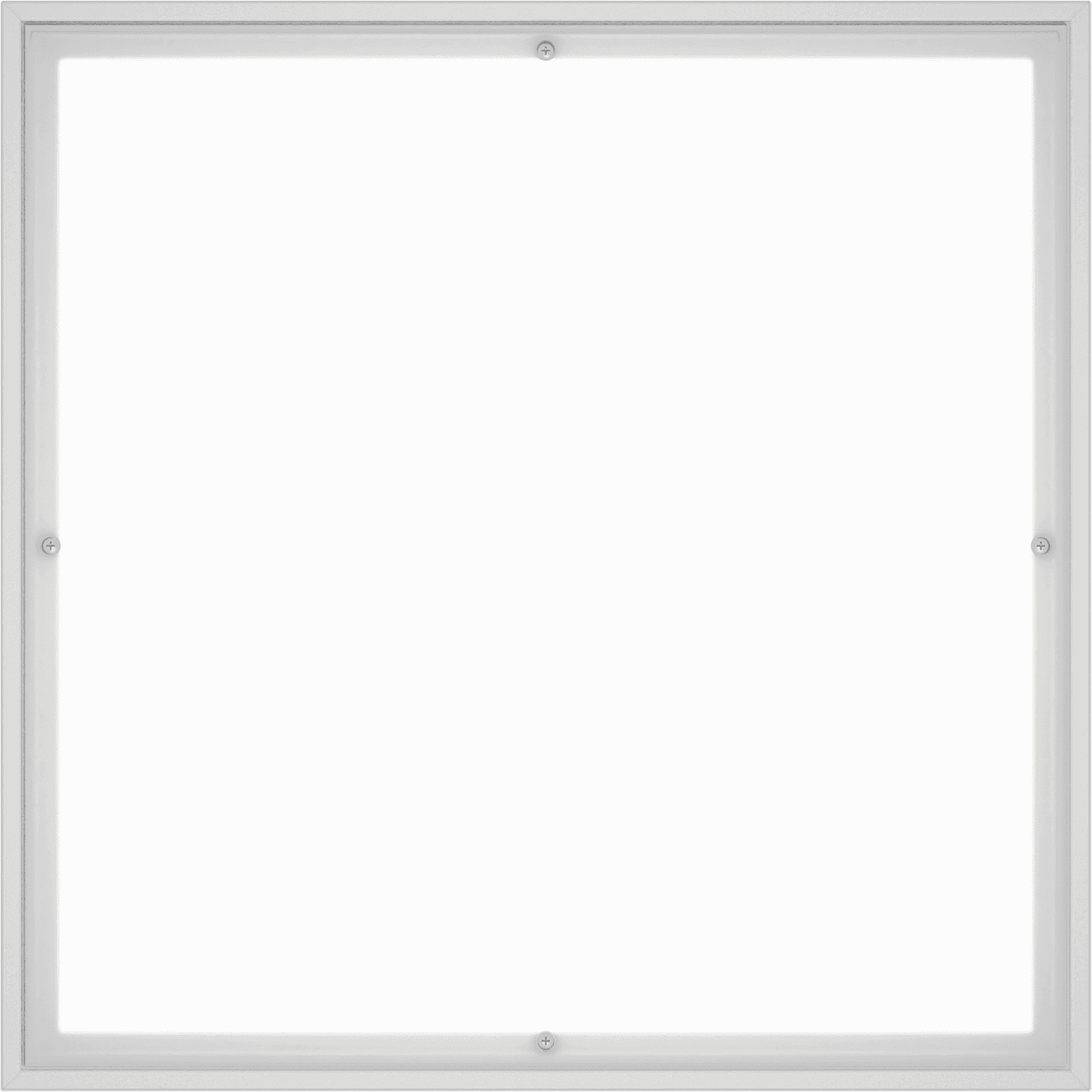

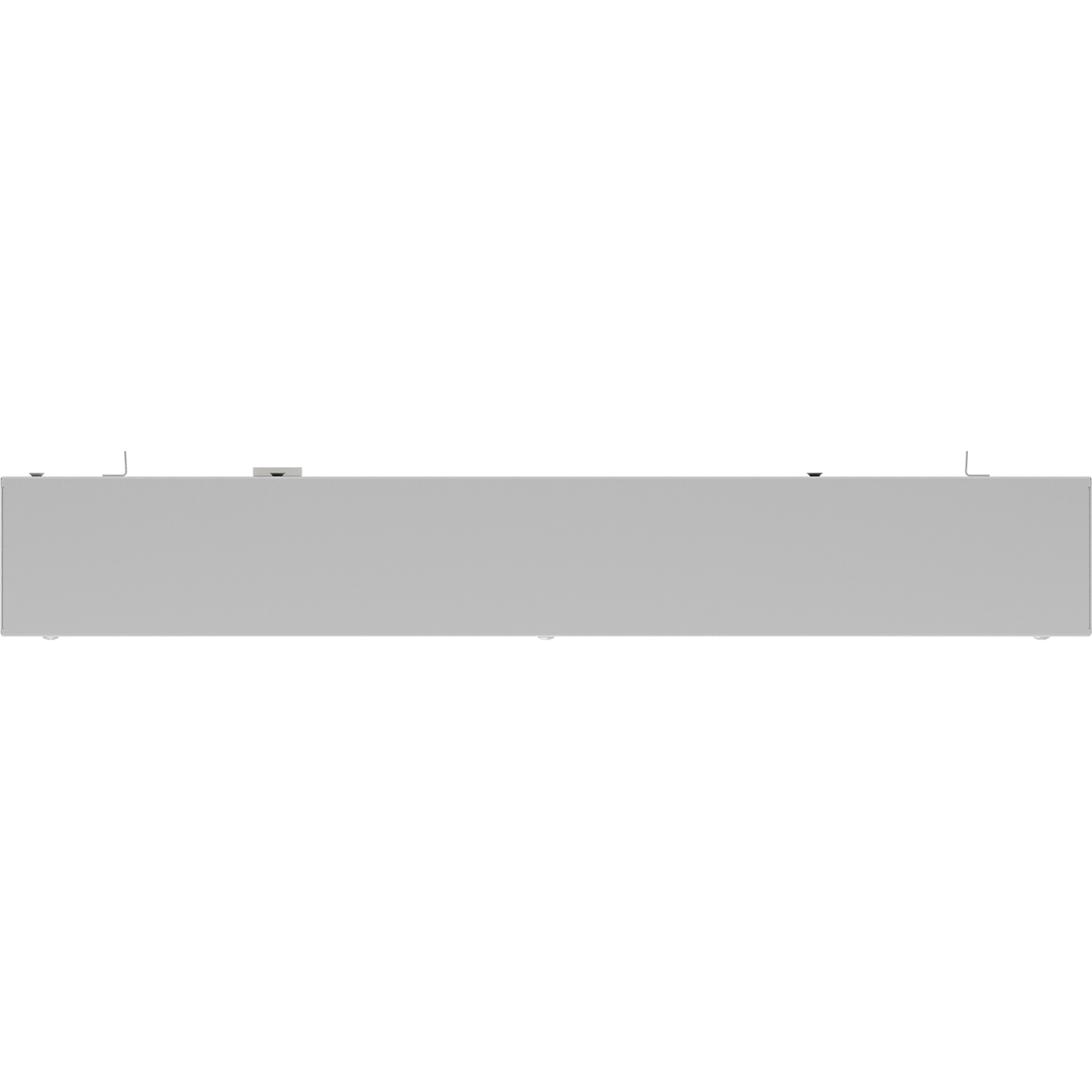

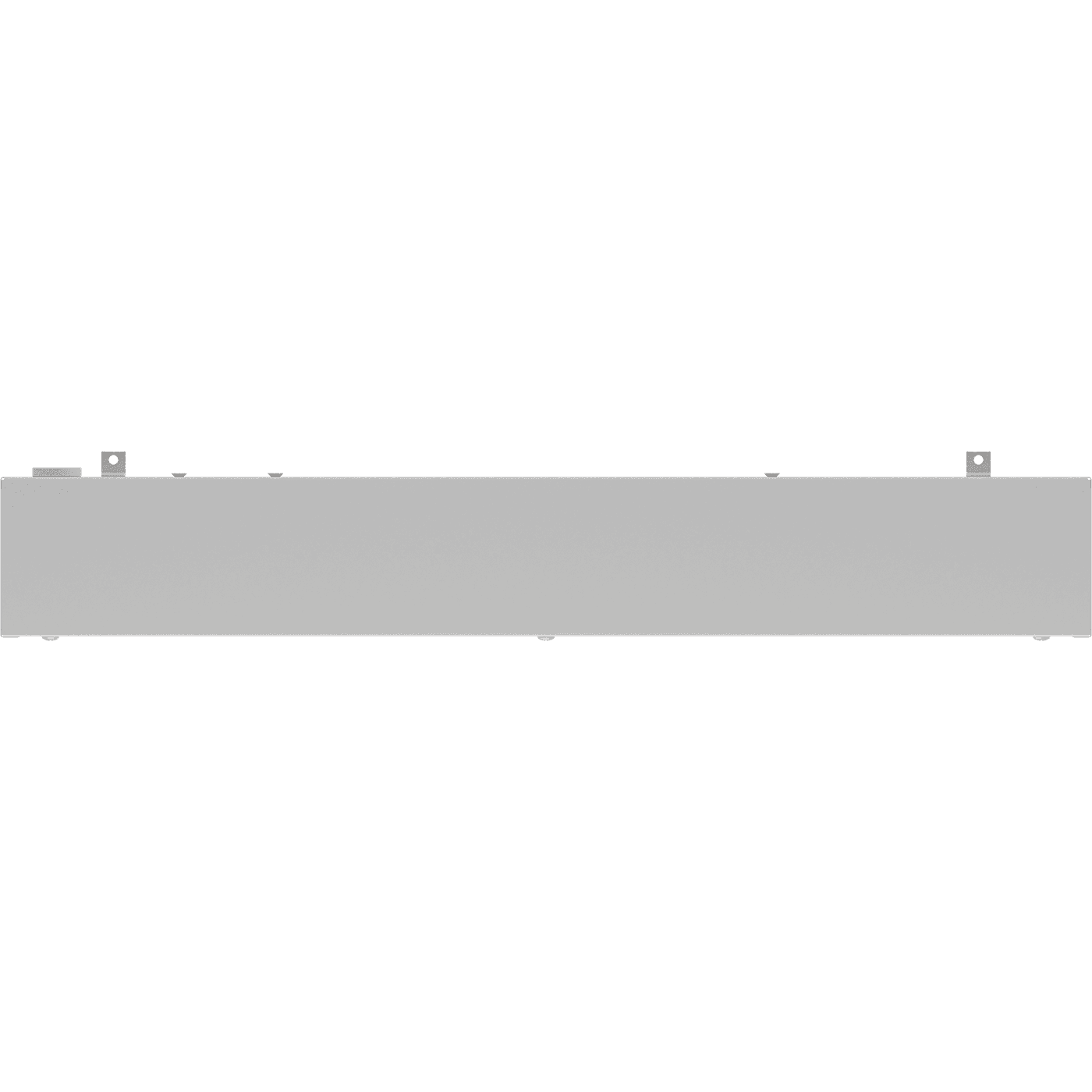

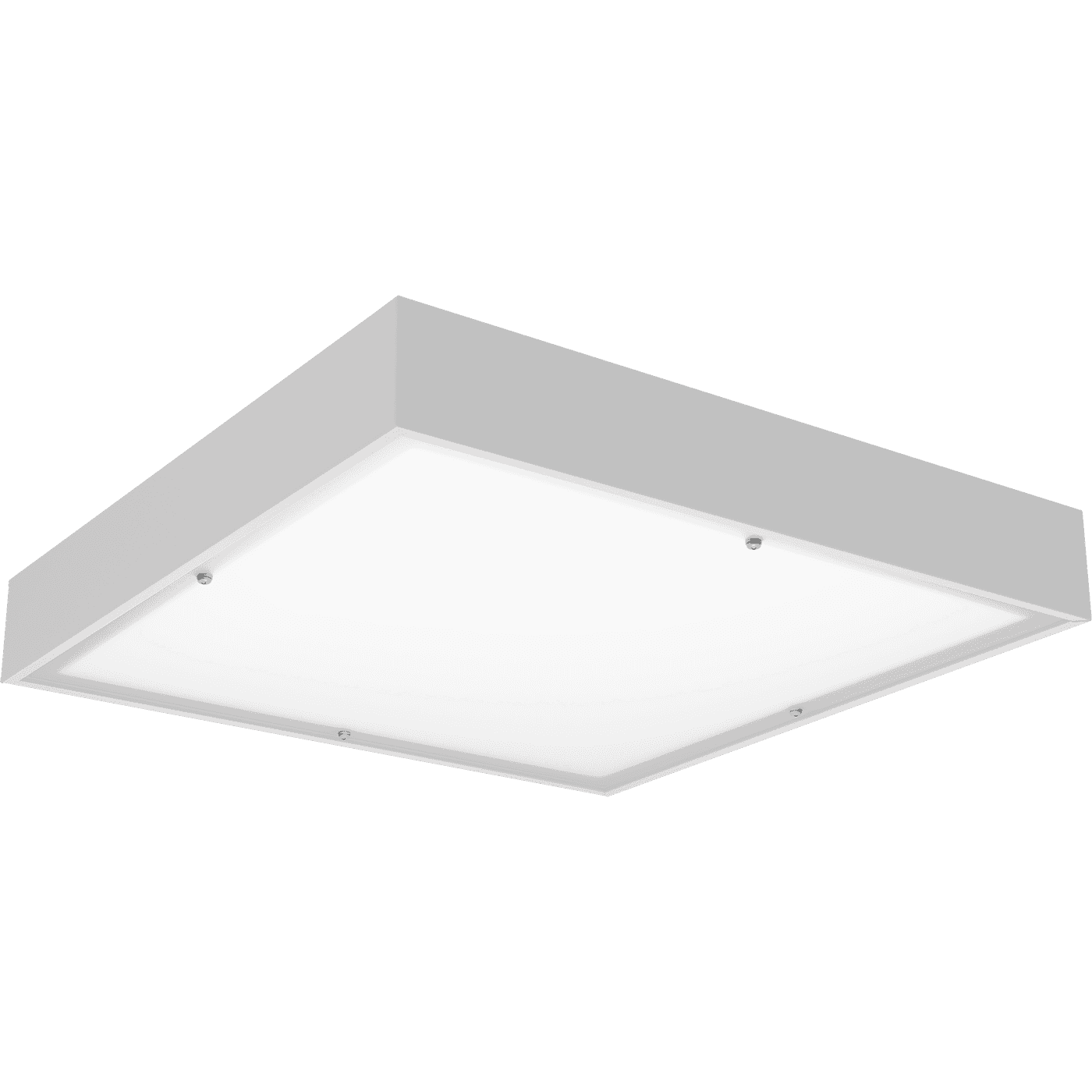

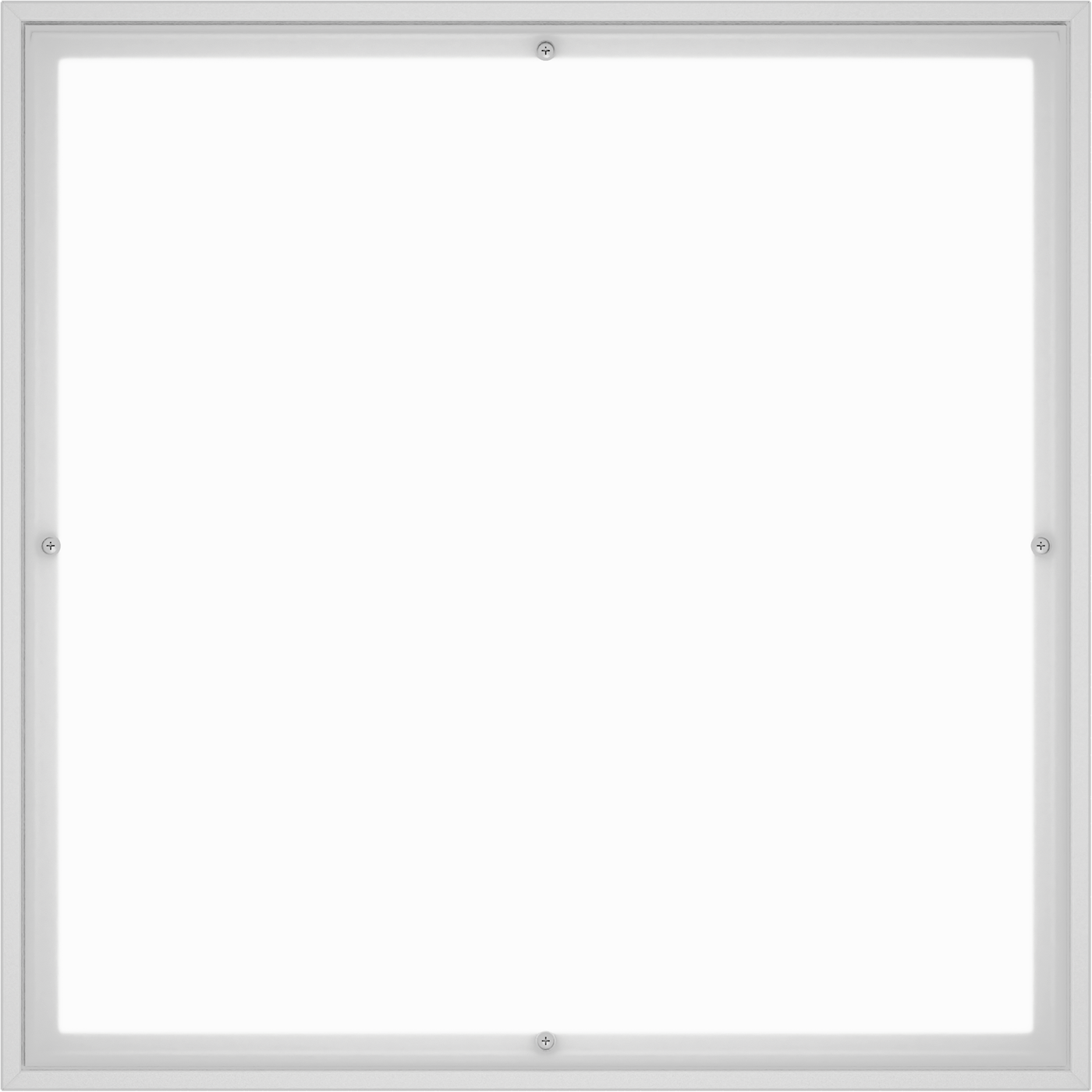

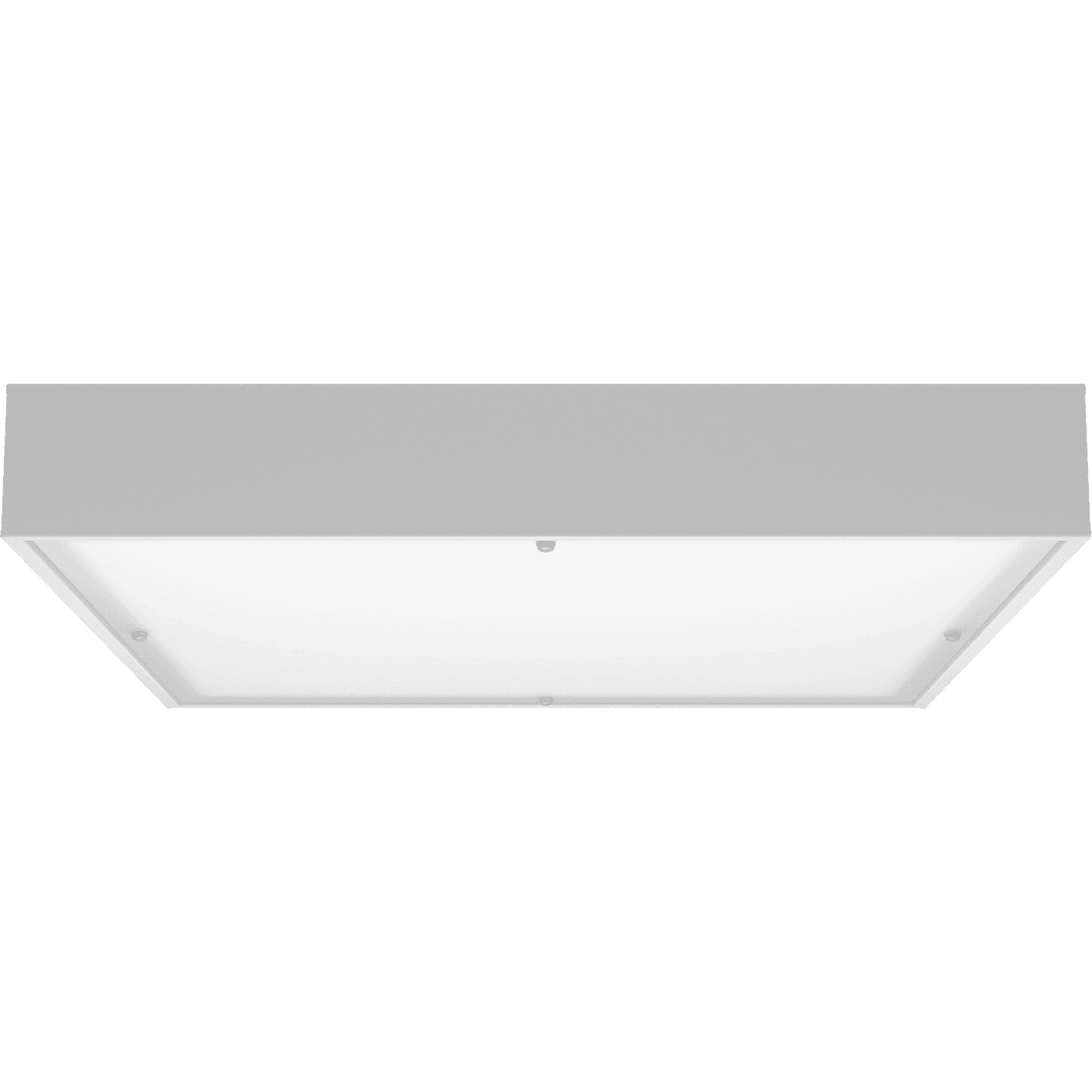

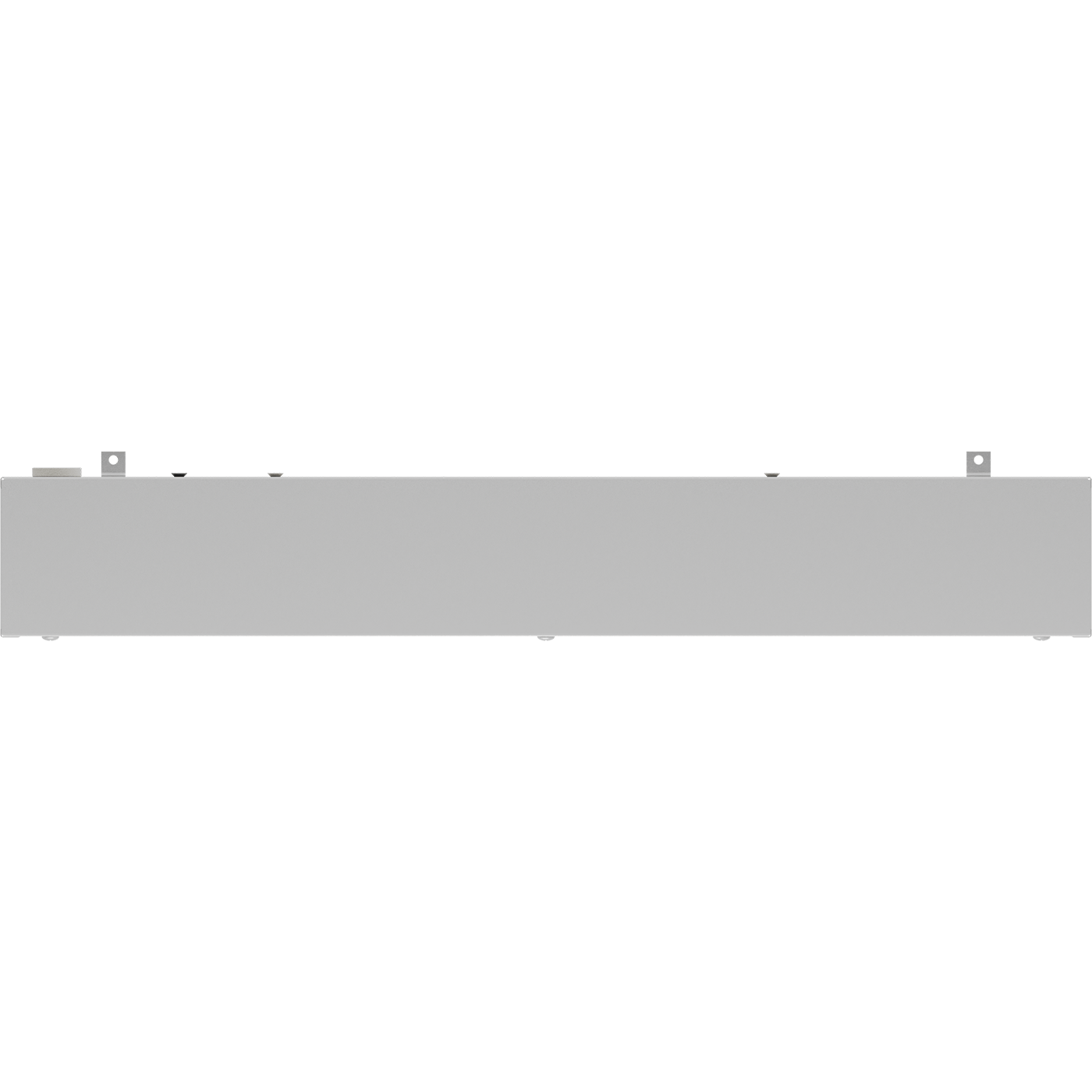

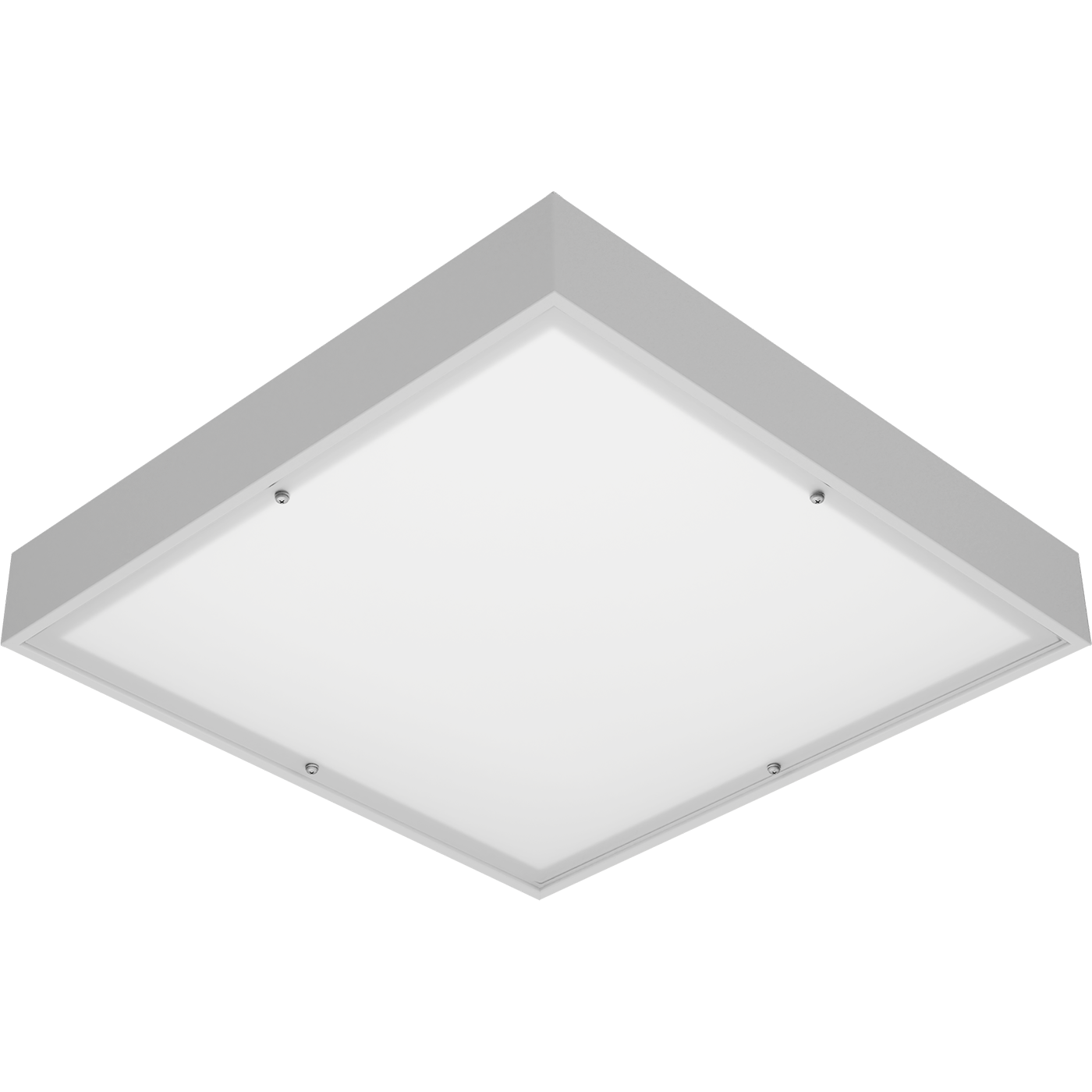

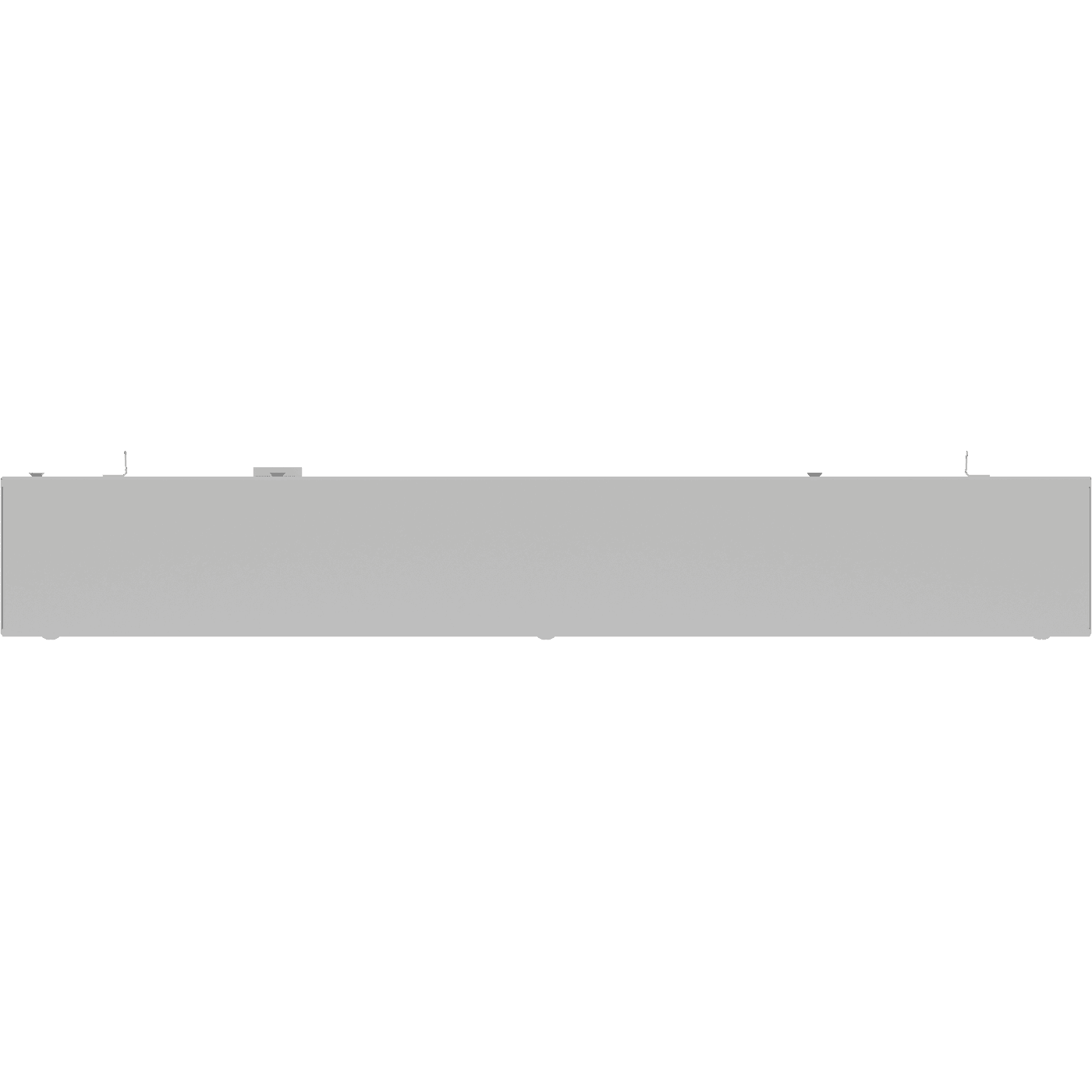

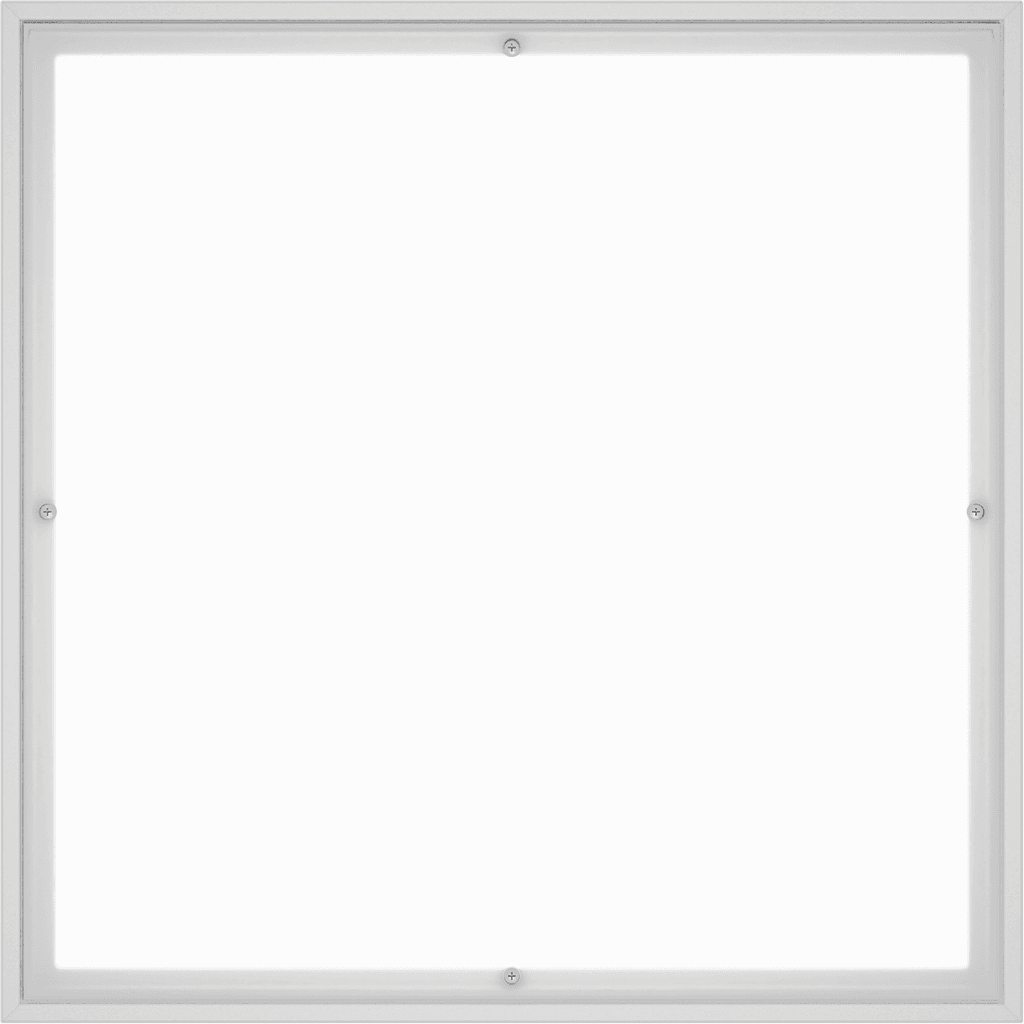

OWP ECO LED 300 IP54/IP40 4000K
OWP ECO LED 300 IP54/IP40 4000K
16 Wluminaire power
1400 lmlight flow
88 lm/Wenergy efficiency
code1372000180
color temperature4000 K
beam angleD120
performance factor100
weight2.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
88 lm/Wcolor rendition index (CRI)
>80light flow
1400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
88 lm/W
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,85
luminaire power
16 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
220 V
rated supply voltage
200-240 V
starting current
25 A
constructional
length
595 mm
width
295 mm
height
60 mm
installation length
344 mm
installation width
200 mm
weight
2.5 kg
ingress protection (IP)
IP54/IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -20 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A
code
1372000180
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax580 kB
photometric files
ies134.1 kB
jpg115.5 kB
ldt83.3 kB
csv
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
