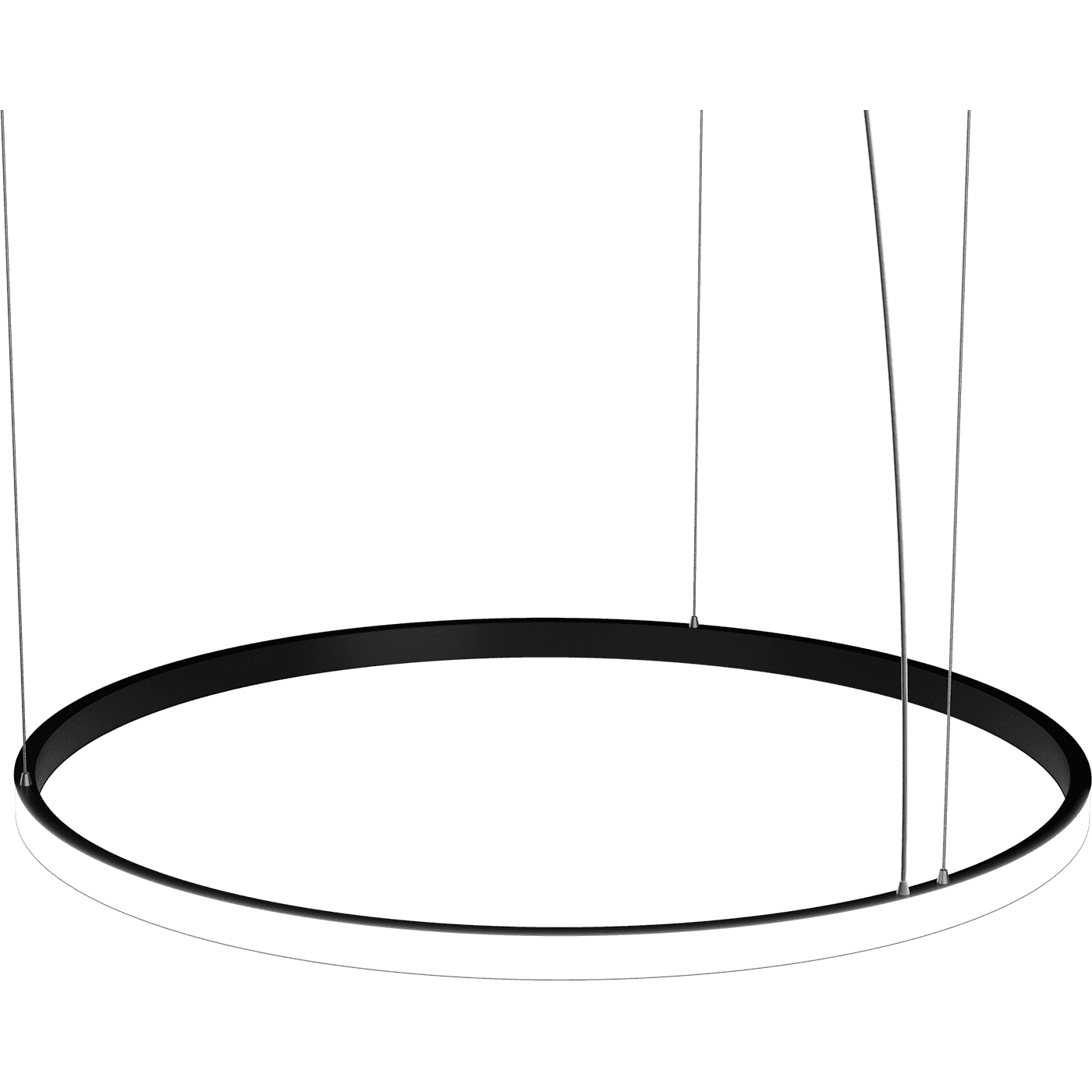

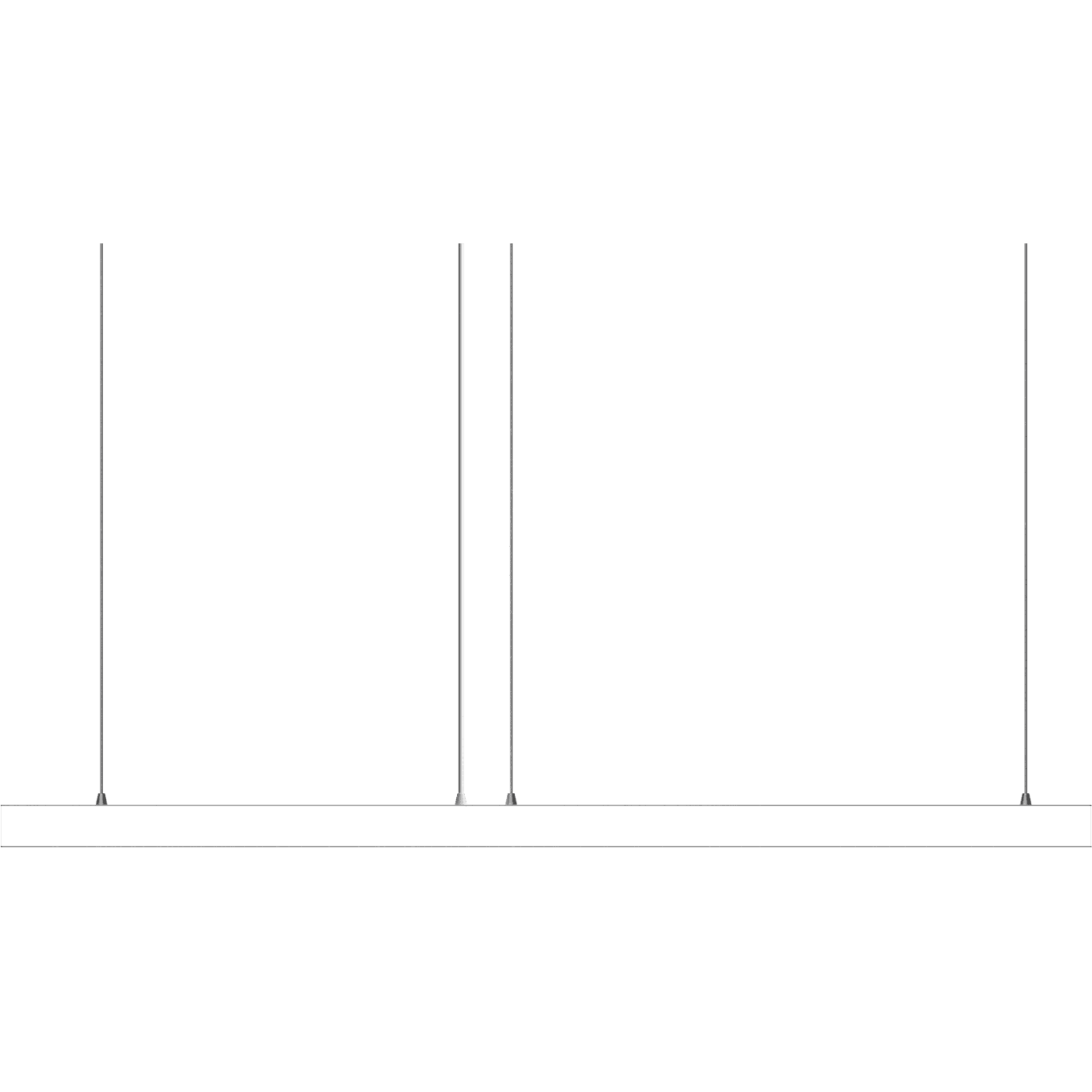

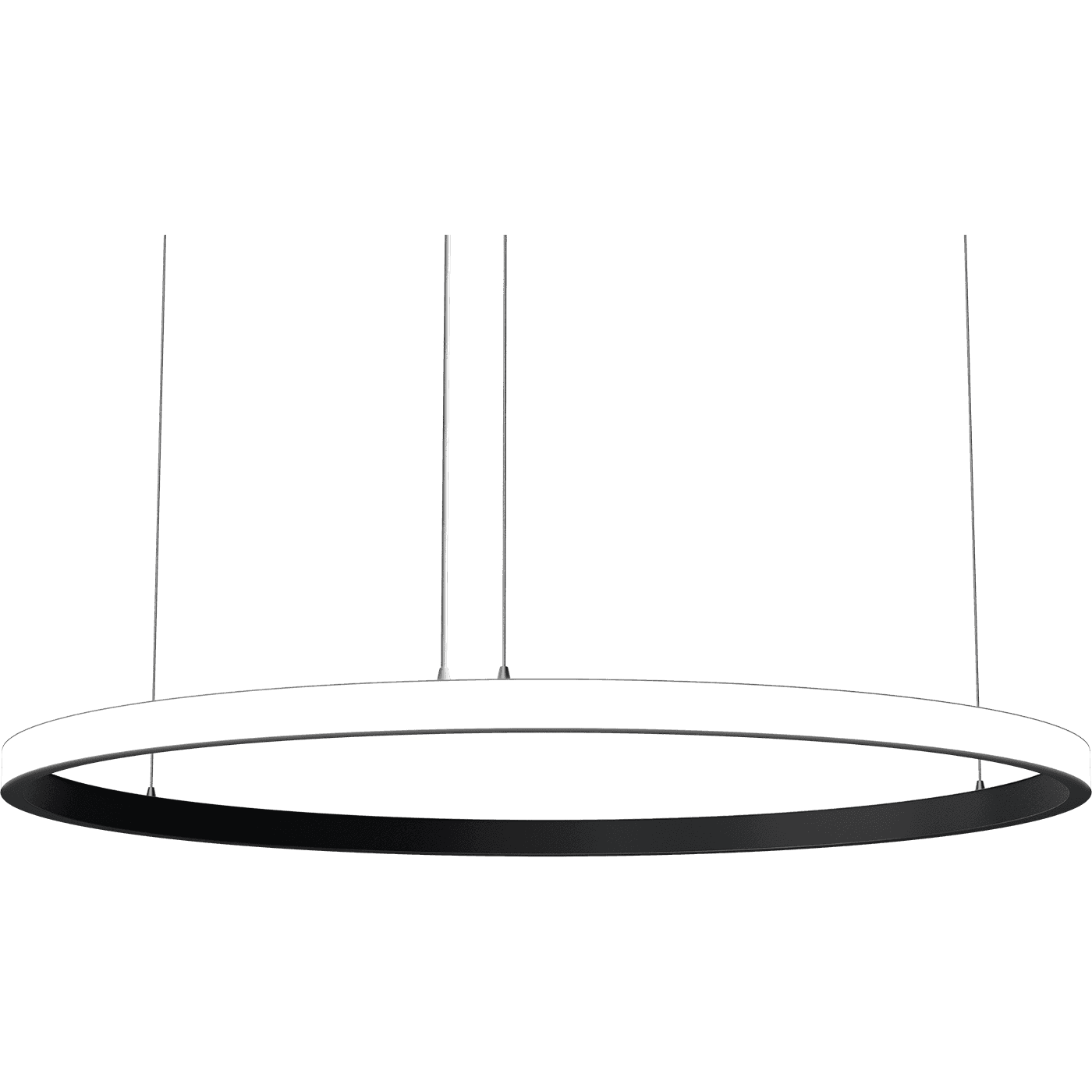

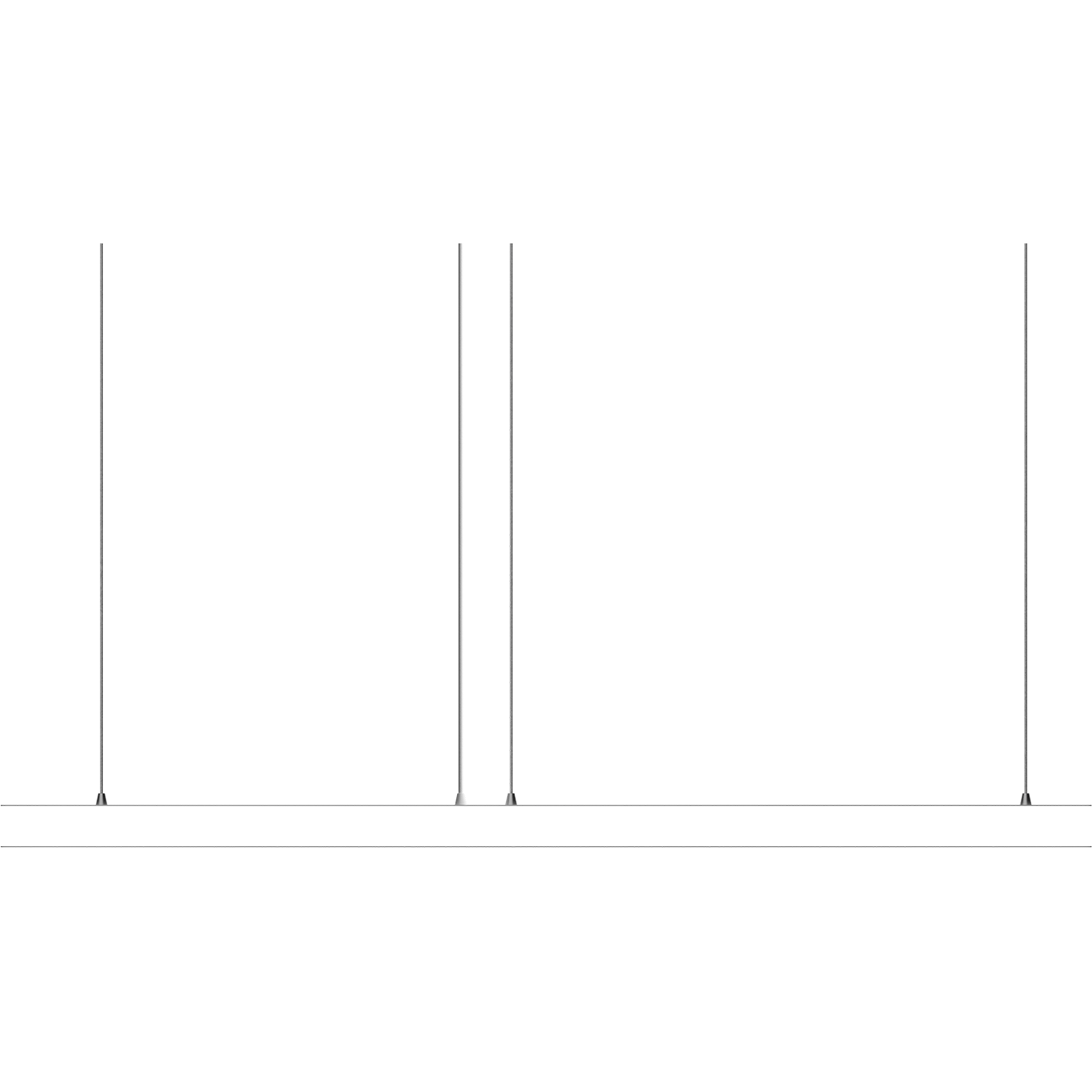

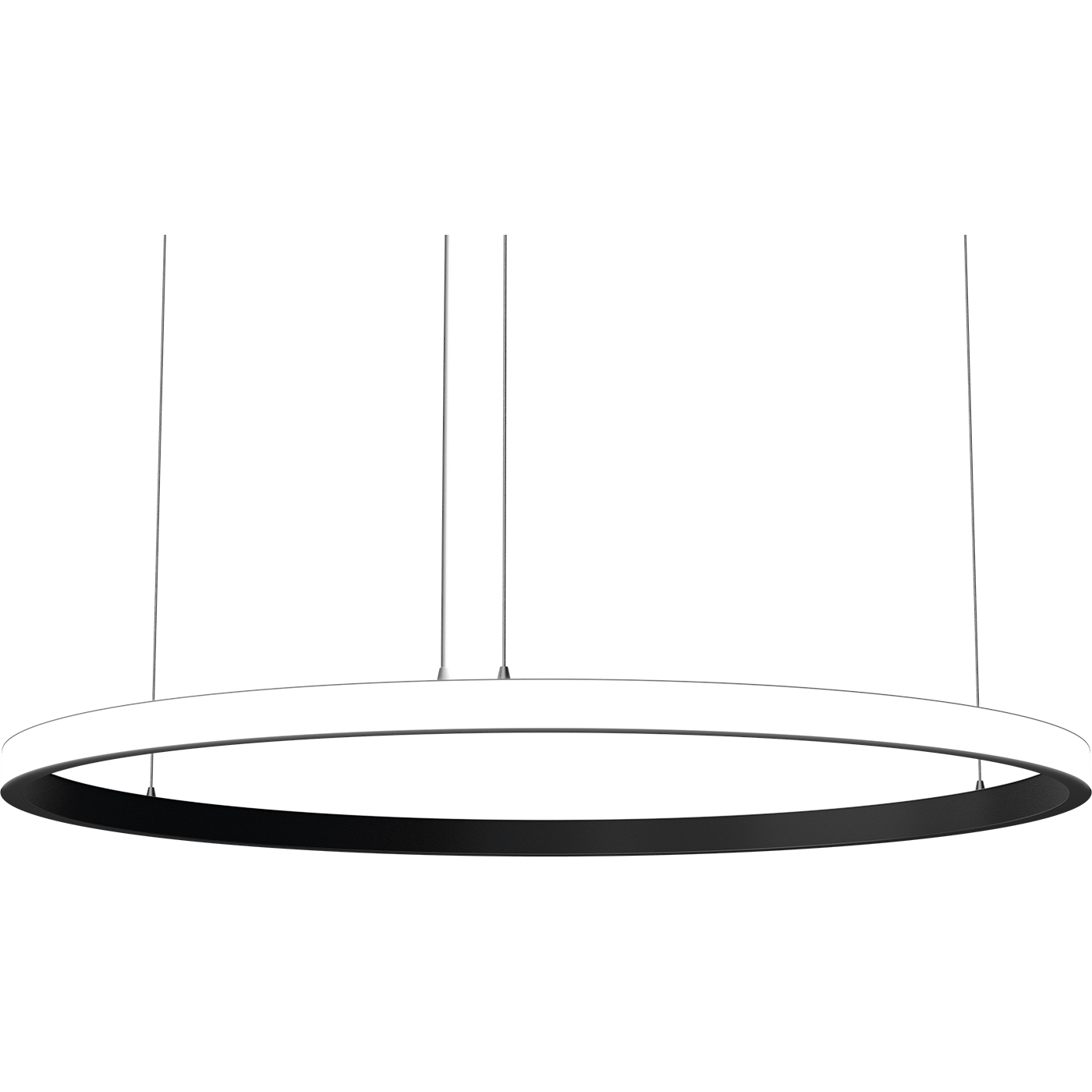

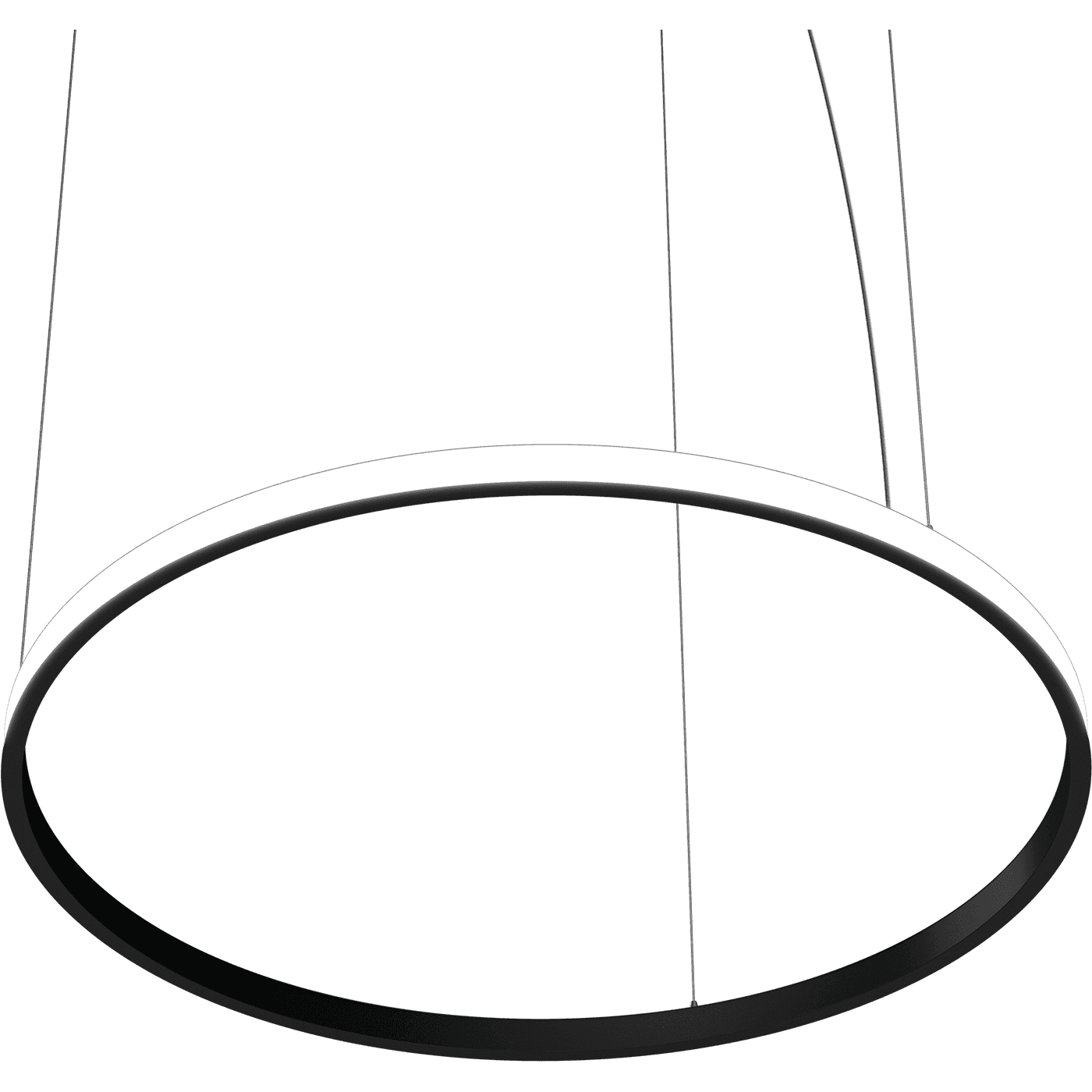

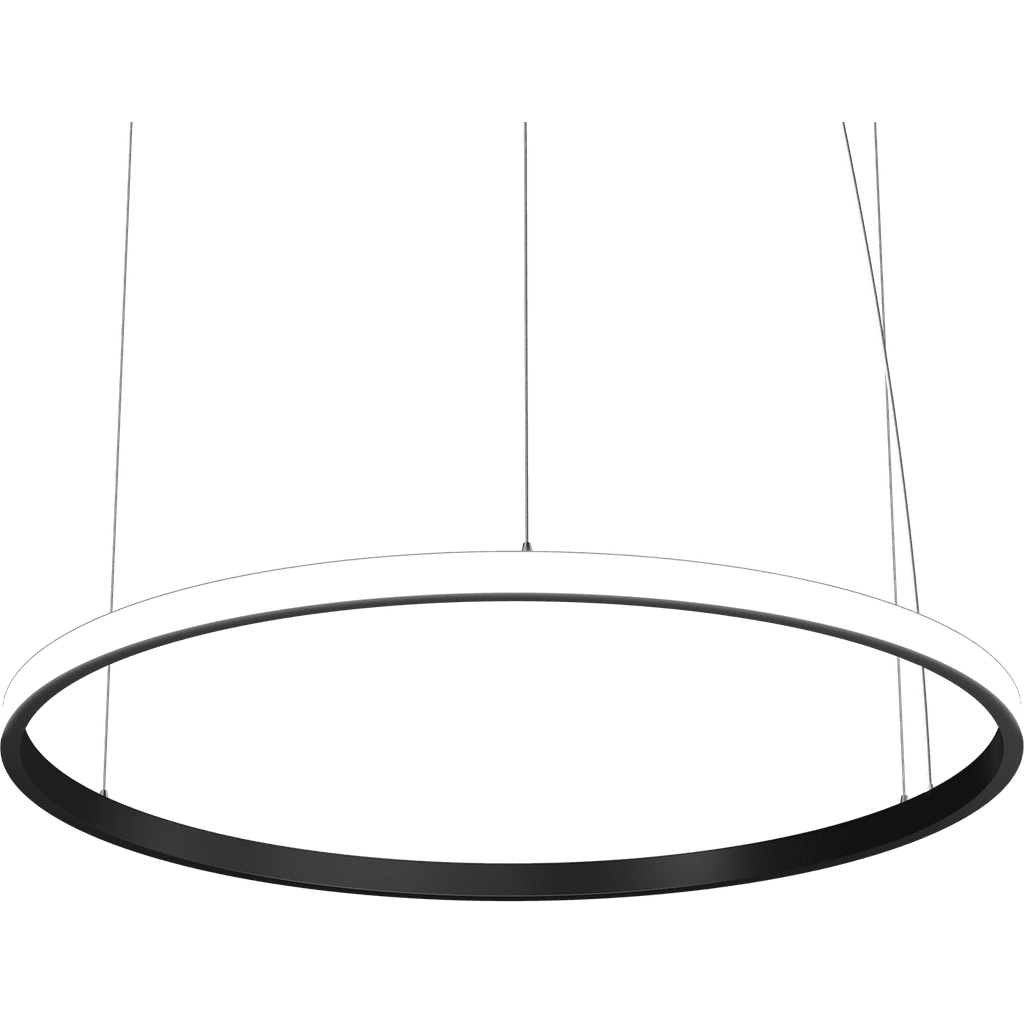

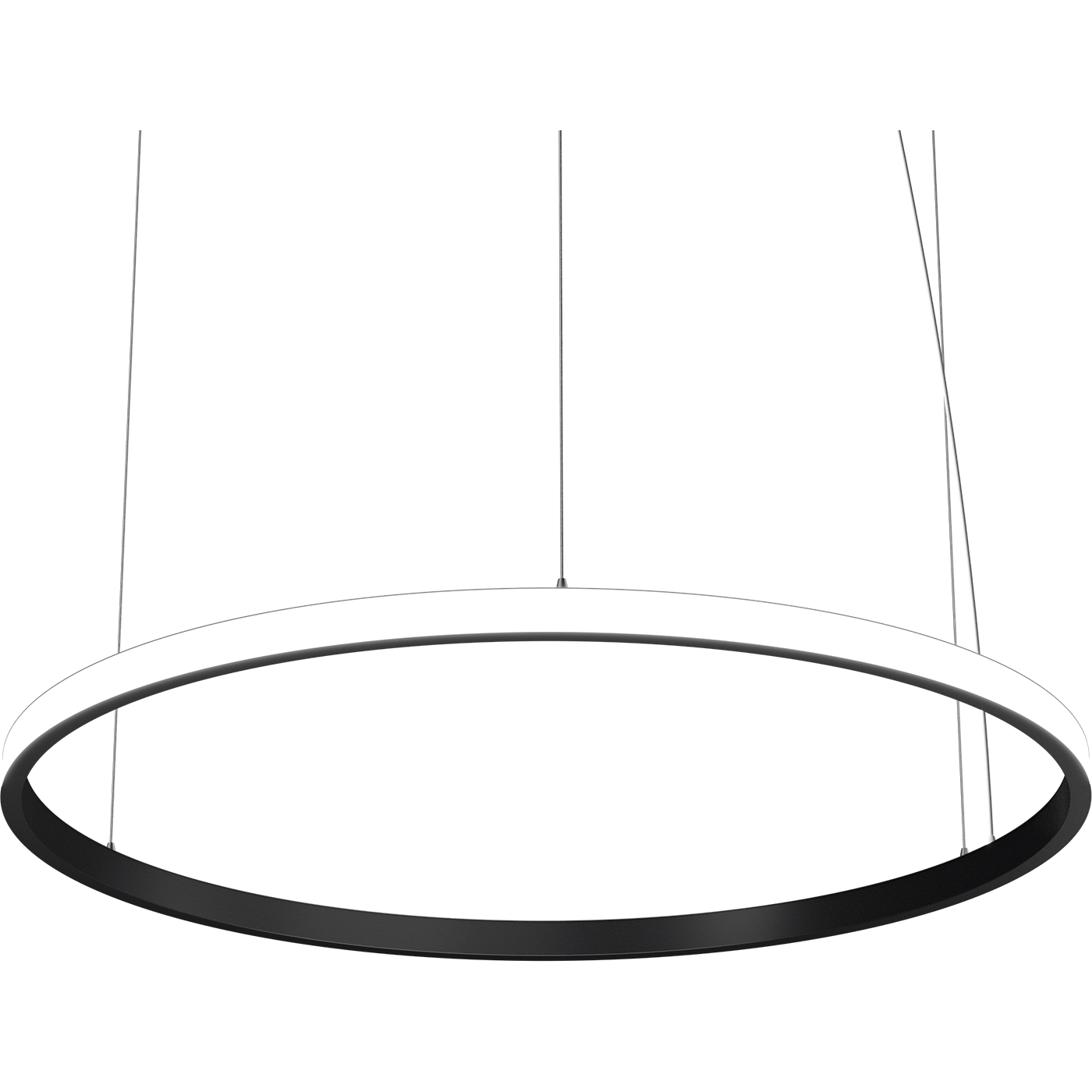

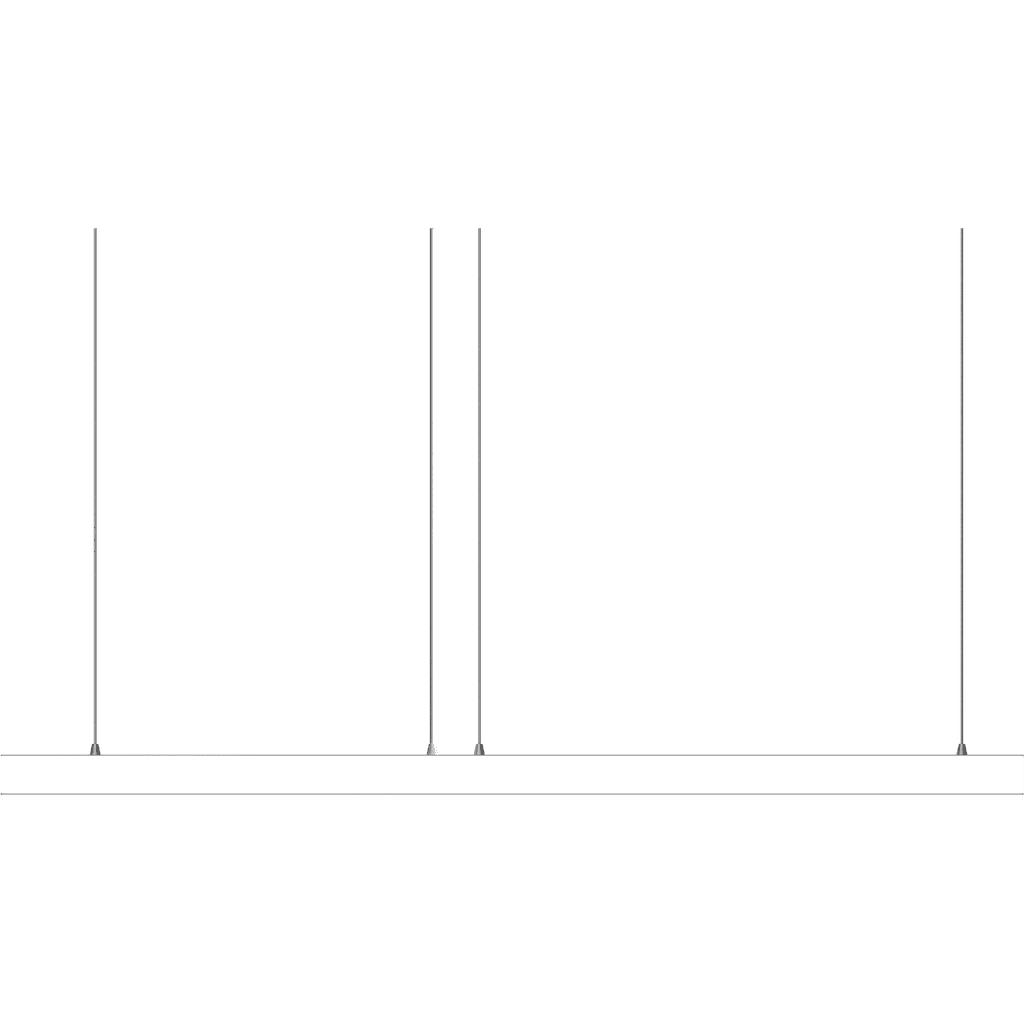

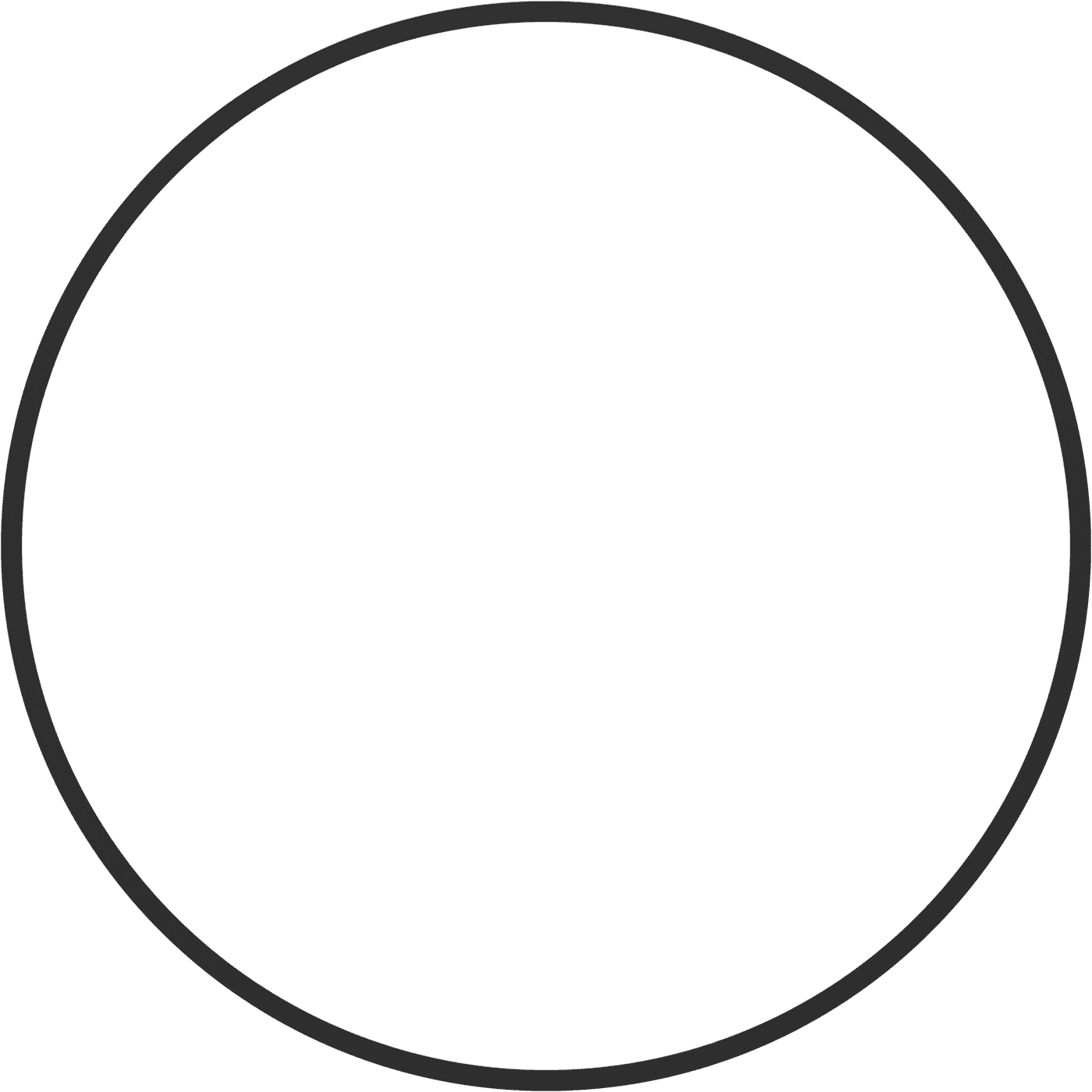

OREOL OUT ADT/P (1000) 42W 840 WH
OREOL OUT ADT/P (1000) 42W 840 WH
42 Wluminaire power
2200 lmlight flow
52 lm/Wenergy efficiency
code1813002690
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
52 lm/Wcolor rendition index (CRI)
>80light flow
2200 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
52 lm/W
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
254 µs
electric shock protection
I
luminaire power
42 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
22 A
constructional
diameter
1000 mm
height
50 mm
installation length
639 mm
installation width
834 mm
weight
4.2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
B
ETIM class
Светильник подвесной
code
1813002690
model files
model files

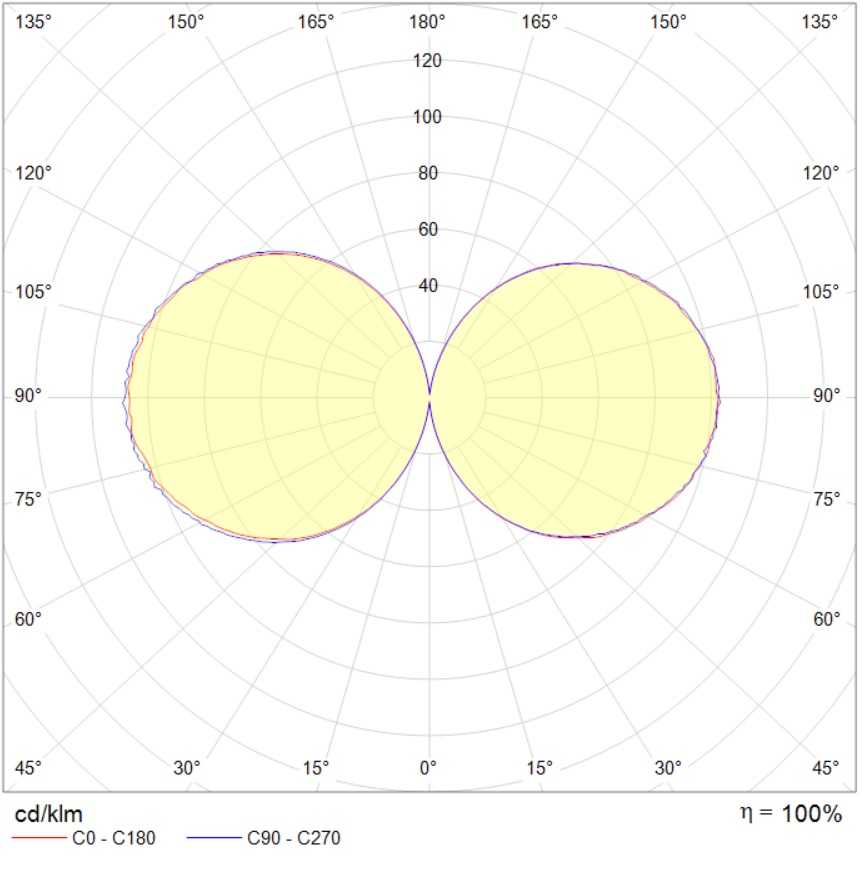

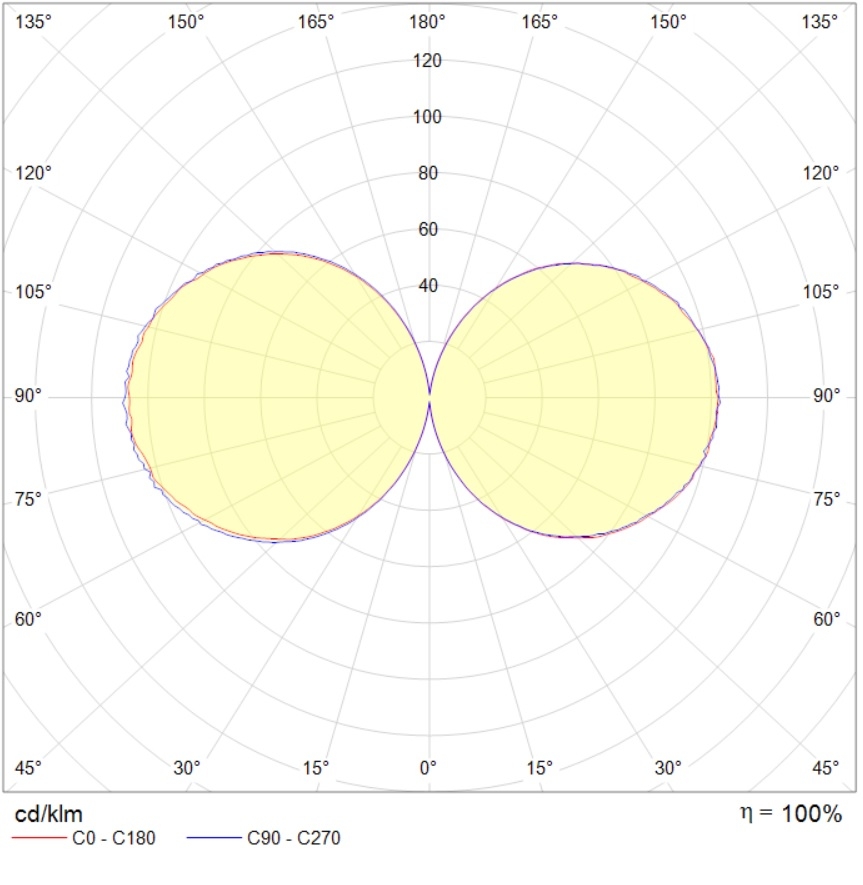

photometric files
сертификаты
photometric files
ies656 kB
jpg108.6 kB
ldt453.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
