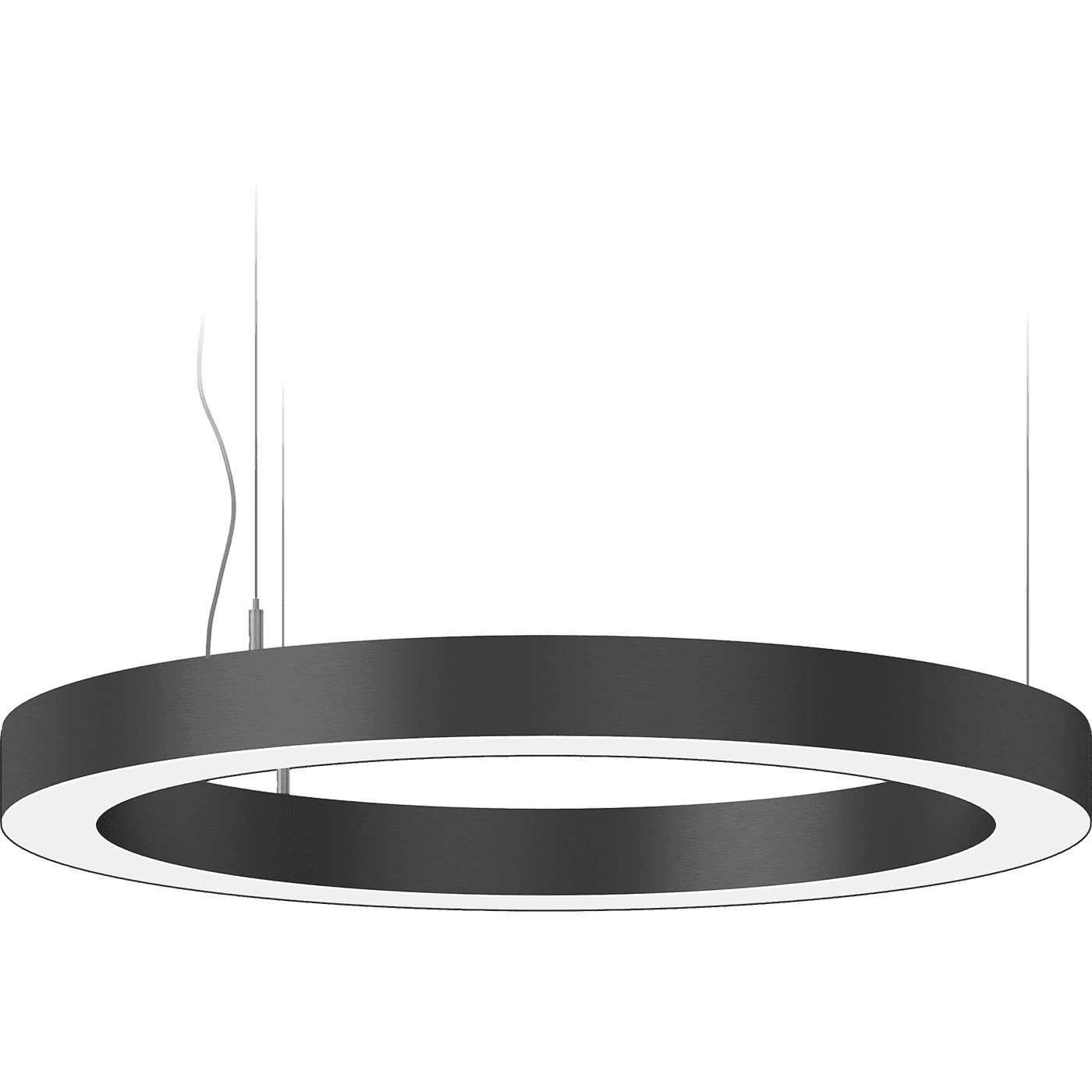

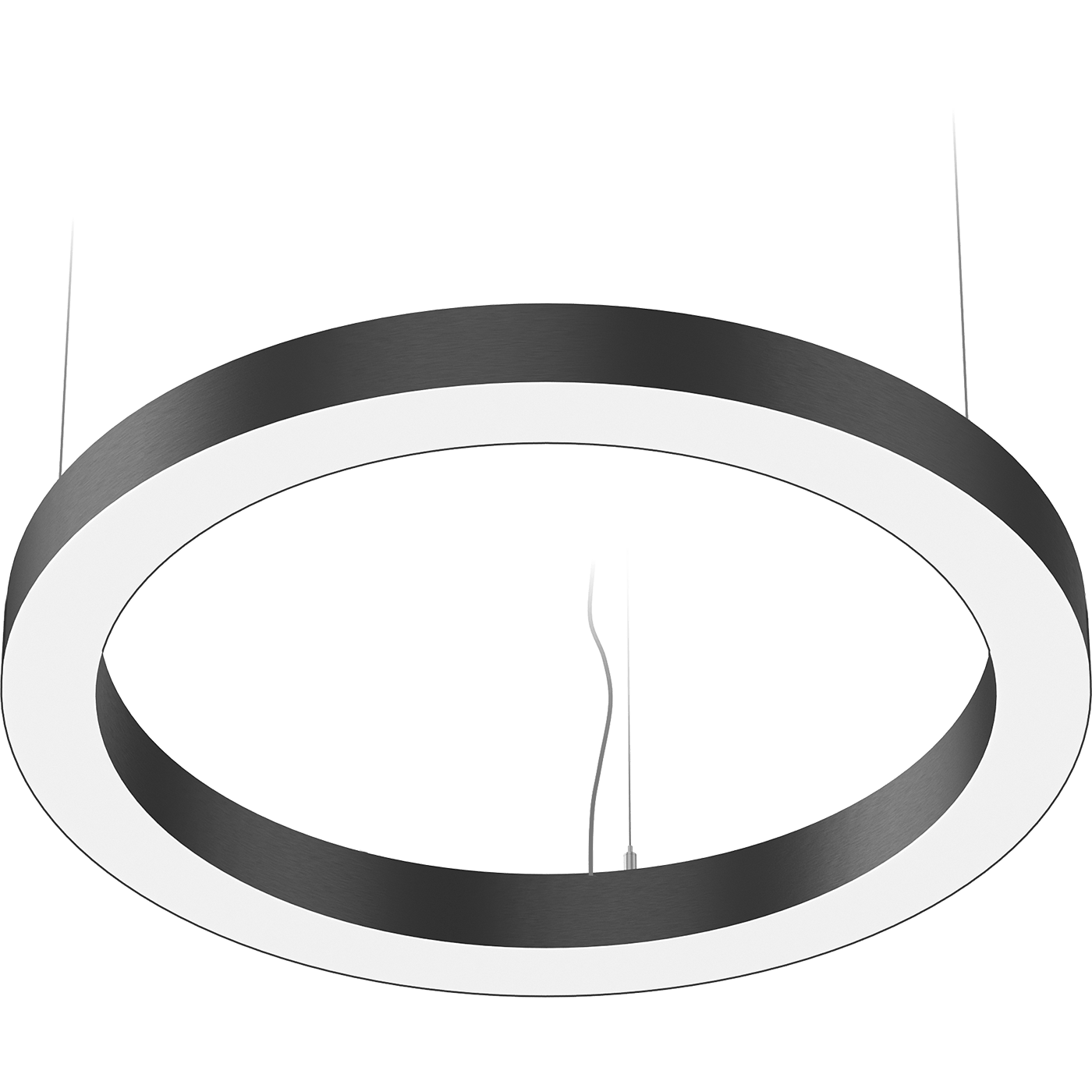

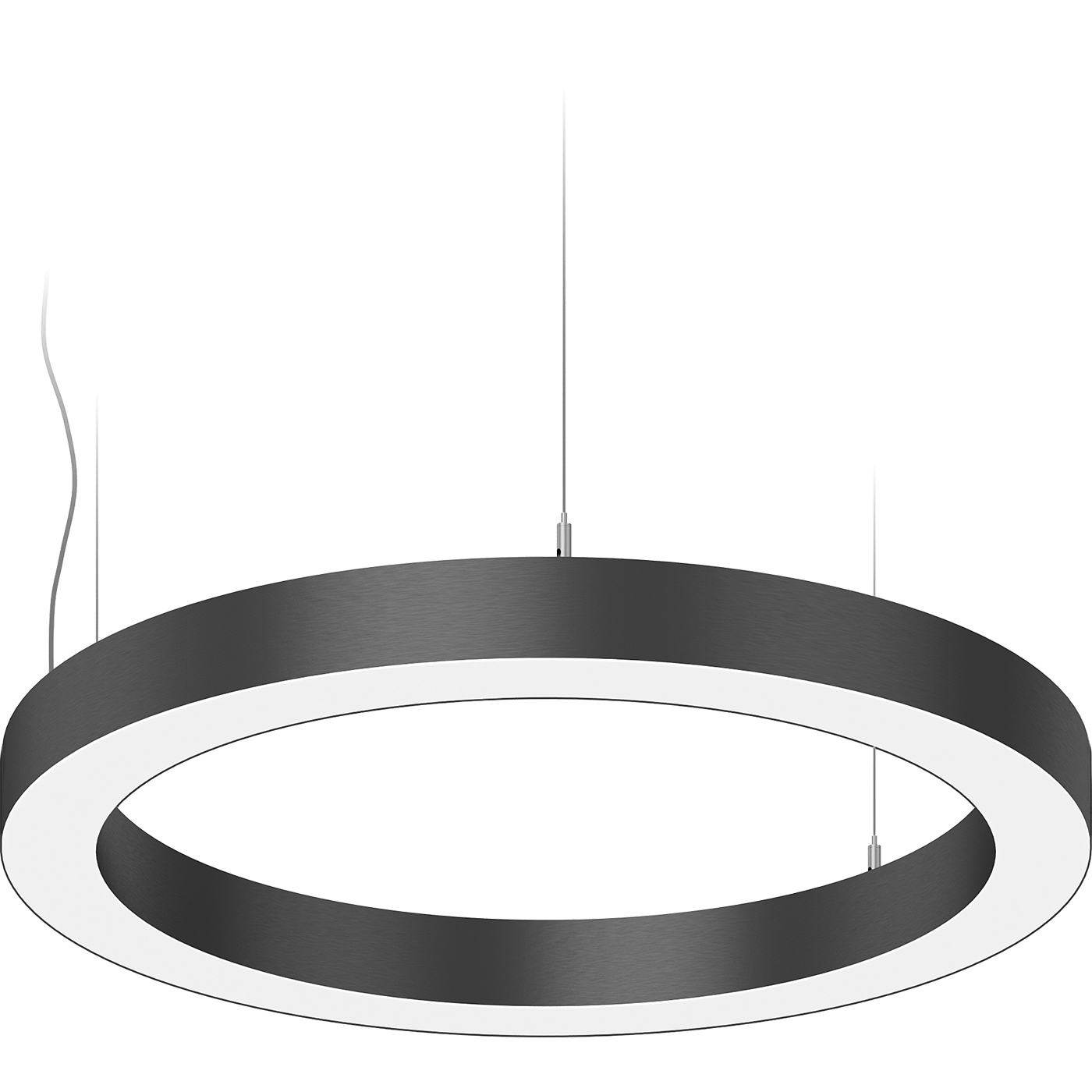

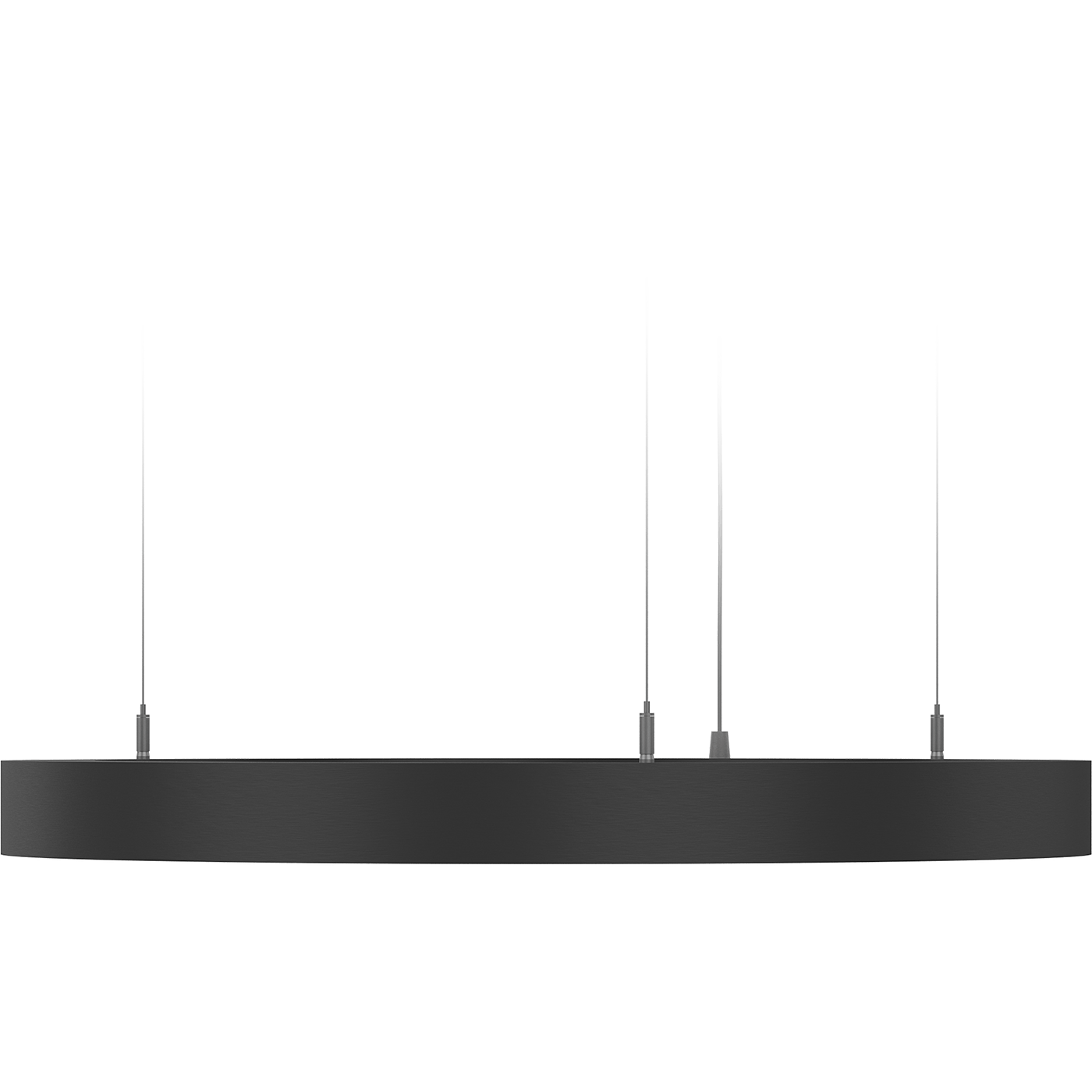

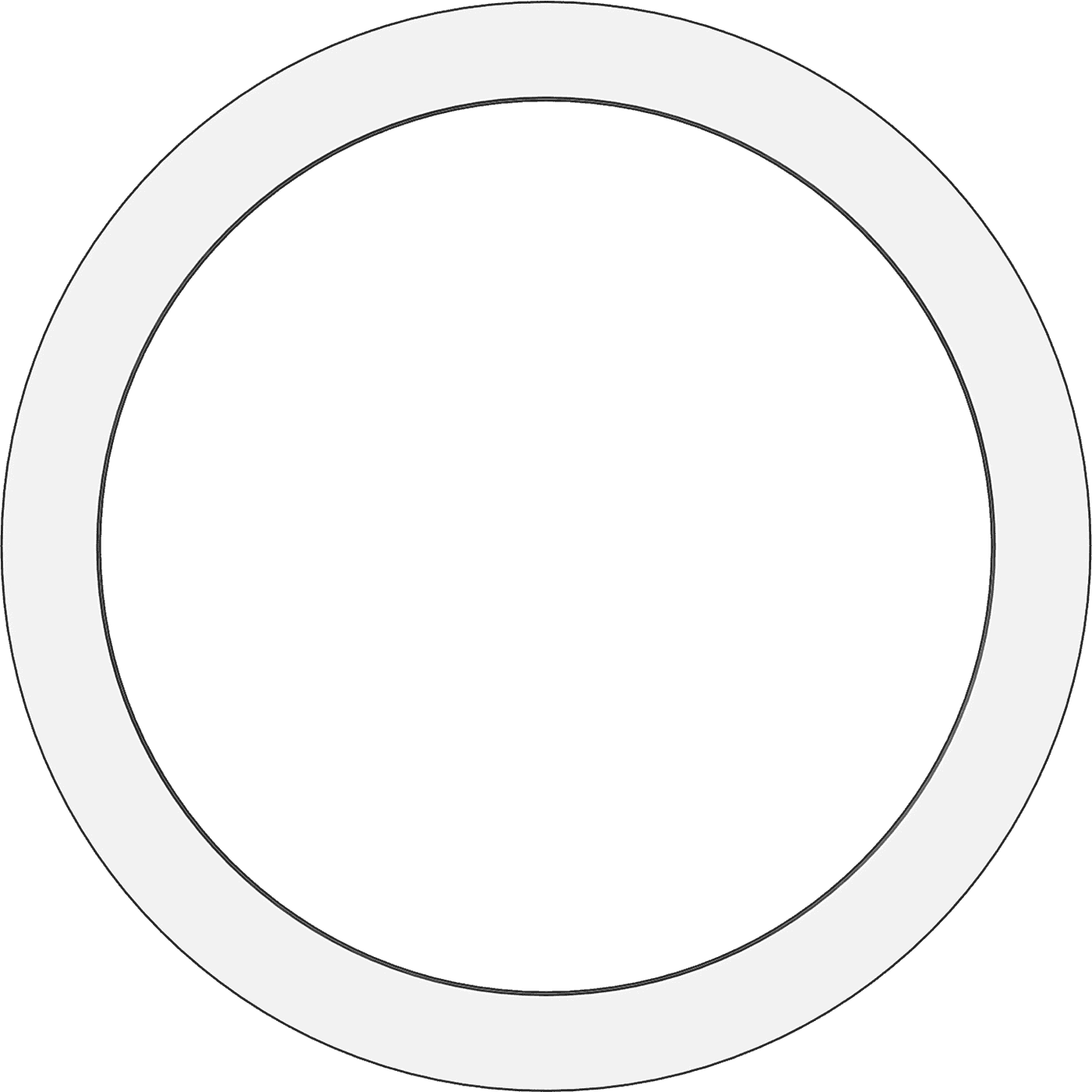

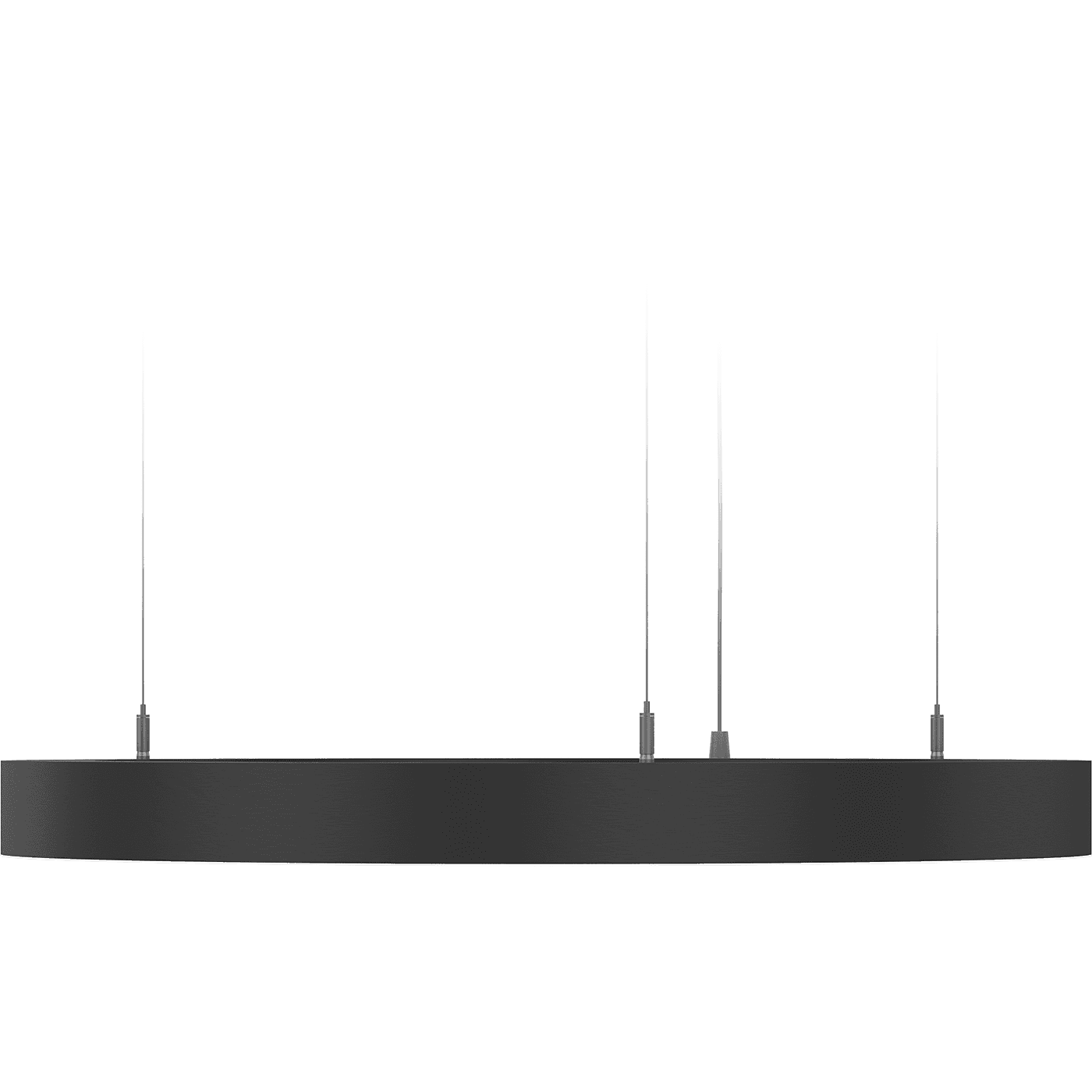

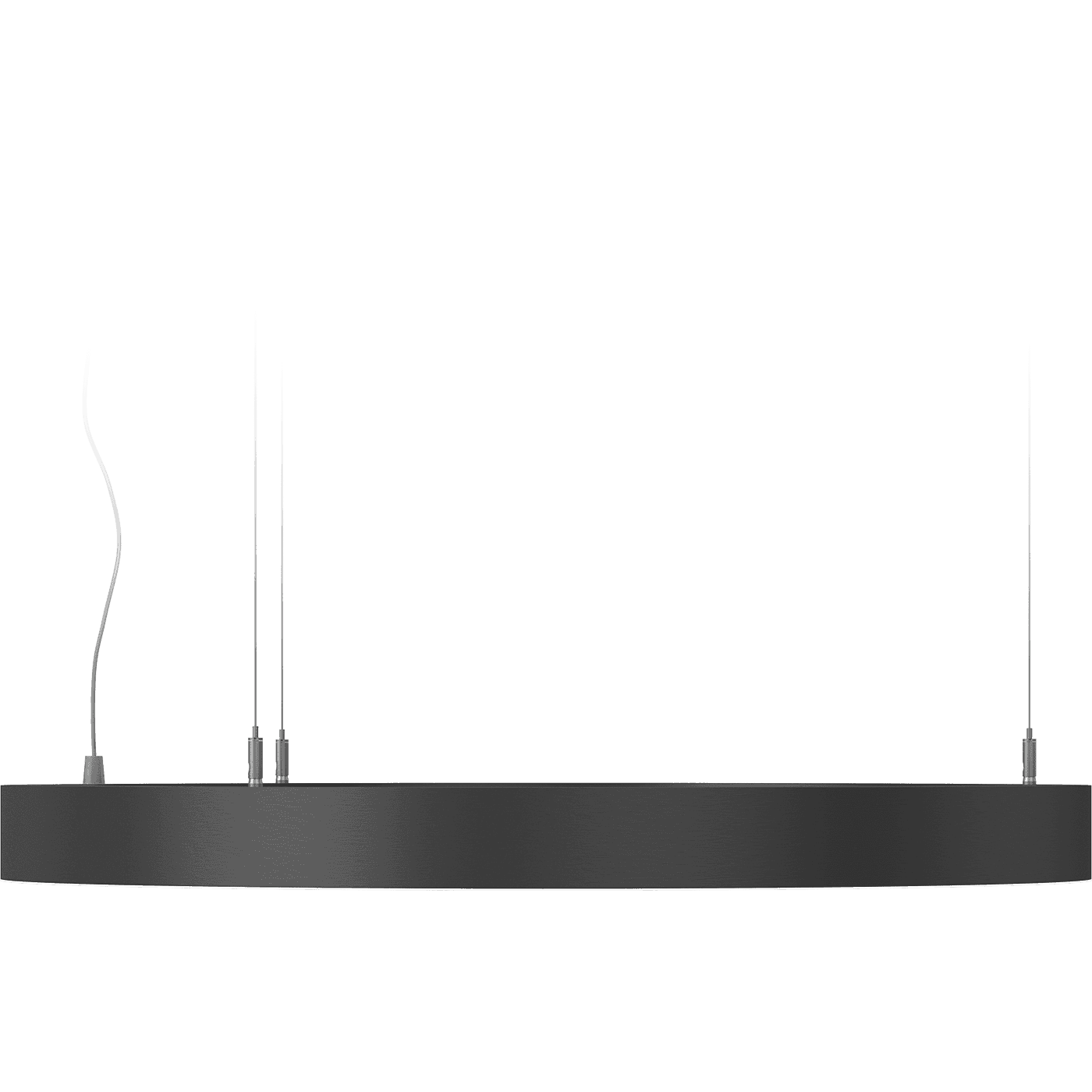

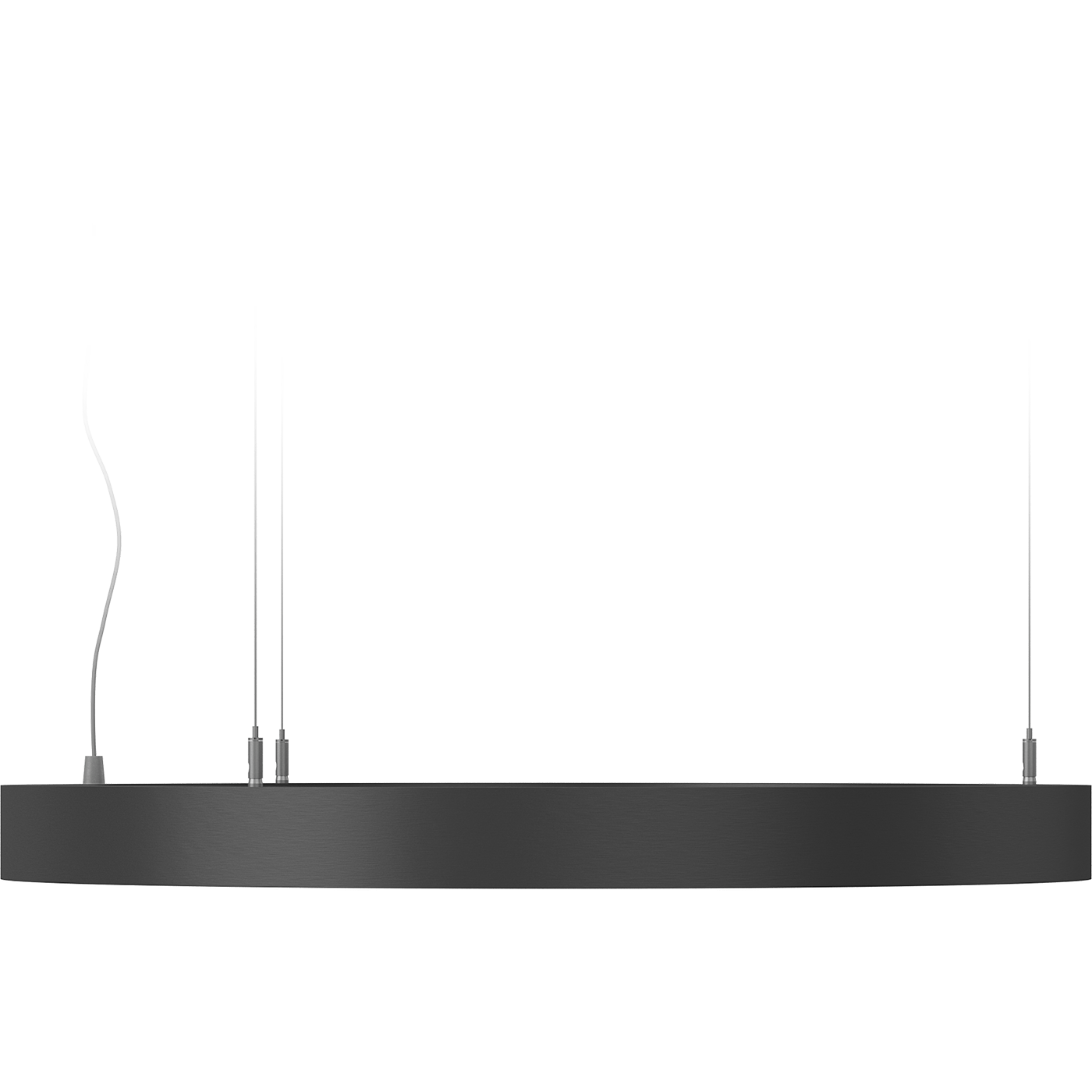

OREOL FLD/P (850) 840 BL DALI
OREOL FLD/P (850) 840 BL DALI
52 Wluminaire power
4400 lmlight flow
85 lm/Wenergy efficiency
code
1813001310
color temperature
4000 K
beam angle
D120
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommon
energy efficiency
85 lm/Wcolor rendition index (CRI)
>80light flow
4400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
85 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
270 µs
power factor
> 0,95
luminaire power
52 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
300 V
starting current
20 A
constructional
diameter
850 mm
height
40 mm
installation length
528 mm
installation width
706 mm
weight
3.7 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
mounting type
Подвесной
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
Type roof
основной (опорный)
emergency
emergency power supply
Нет
LMS options
dimming
DALI
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Светильник подвесной
warranty
36 month
energy efficiency class
A
code
1813001310
model files
model files
photometric files
documents
сертификаты

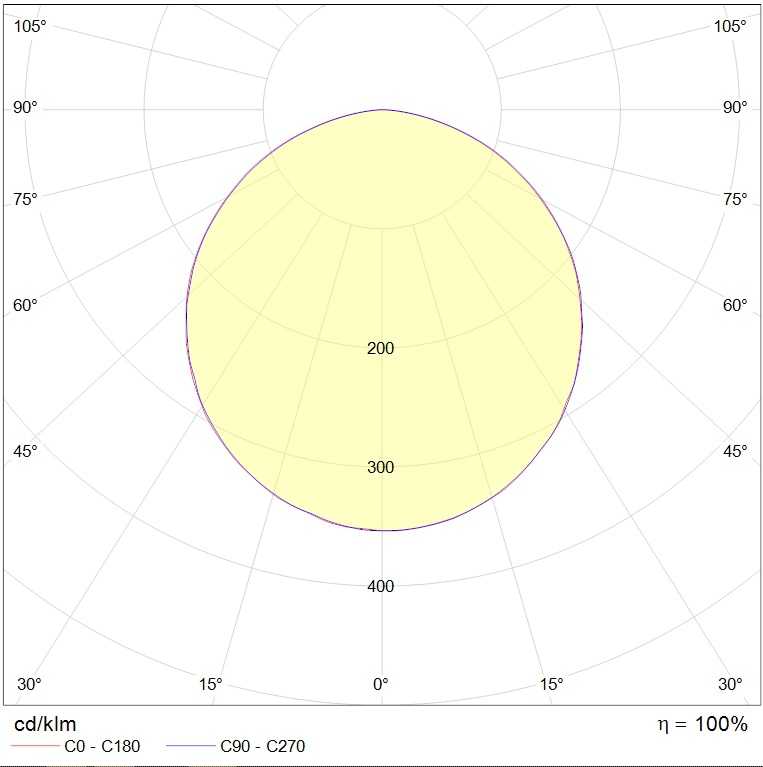

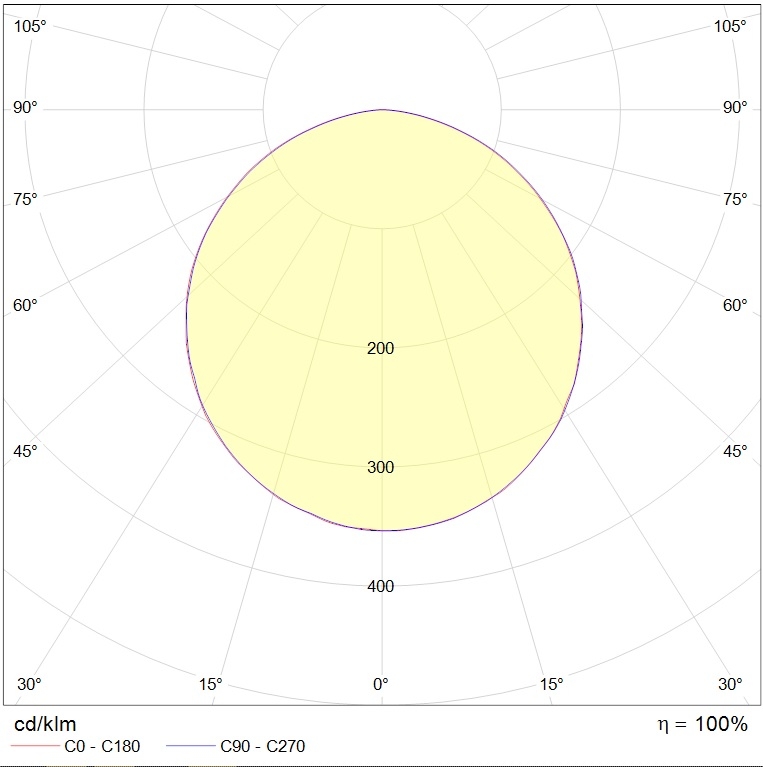

photometric files
ies107.1 kB
jpg75.8 kB
ldt67.3 kB
documents
passport2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB
