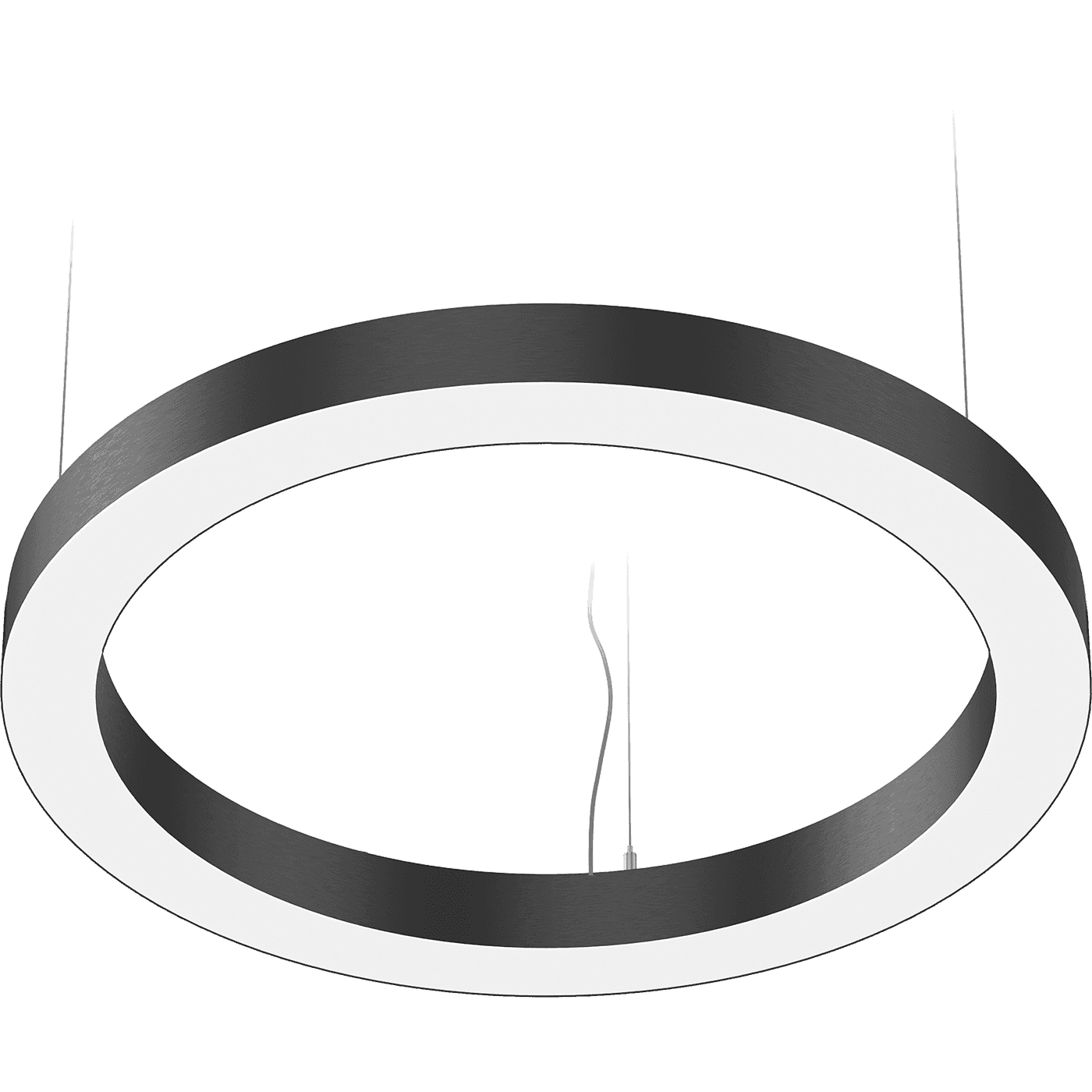

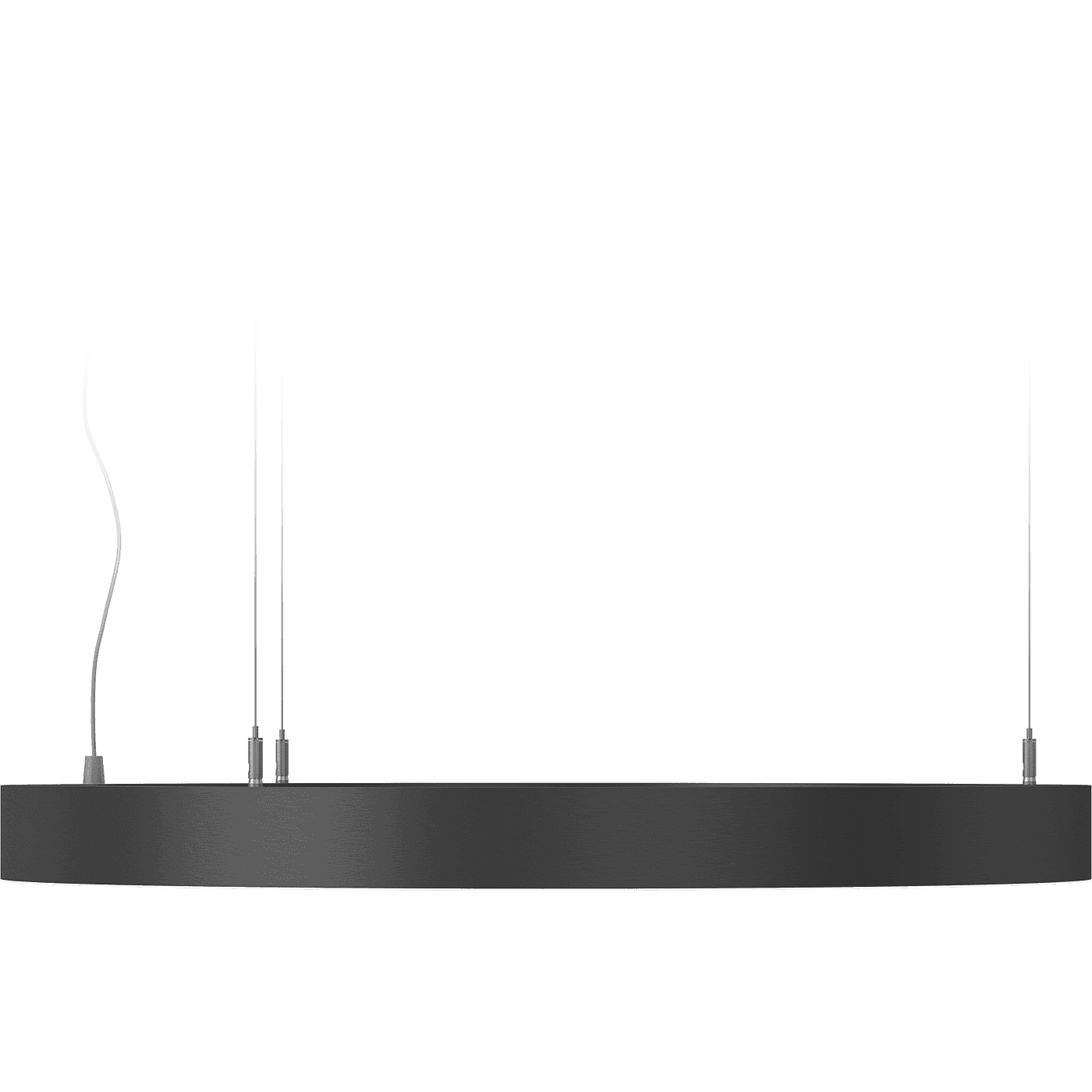

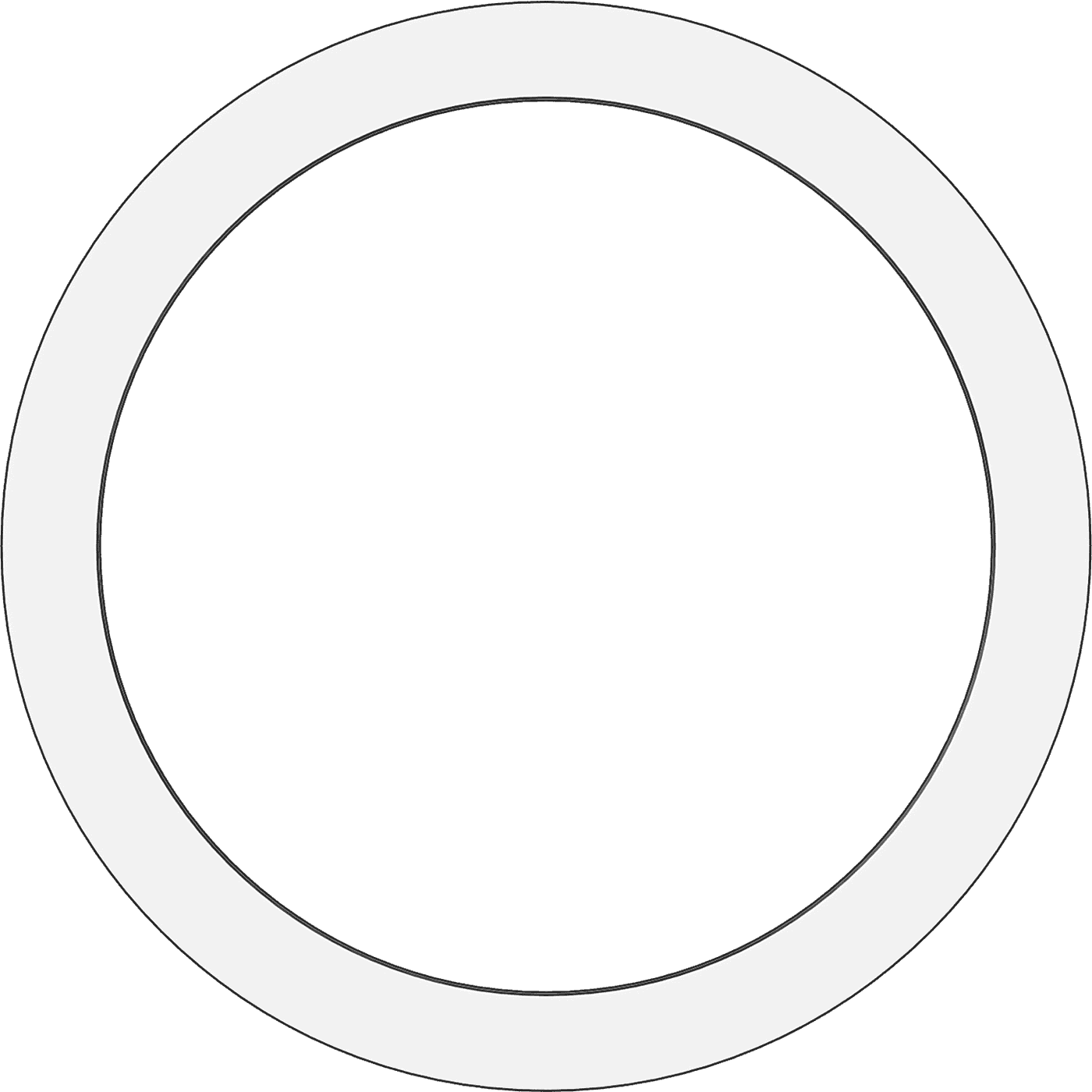

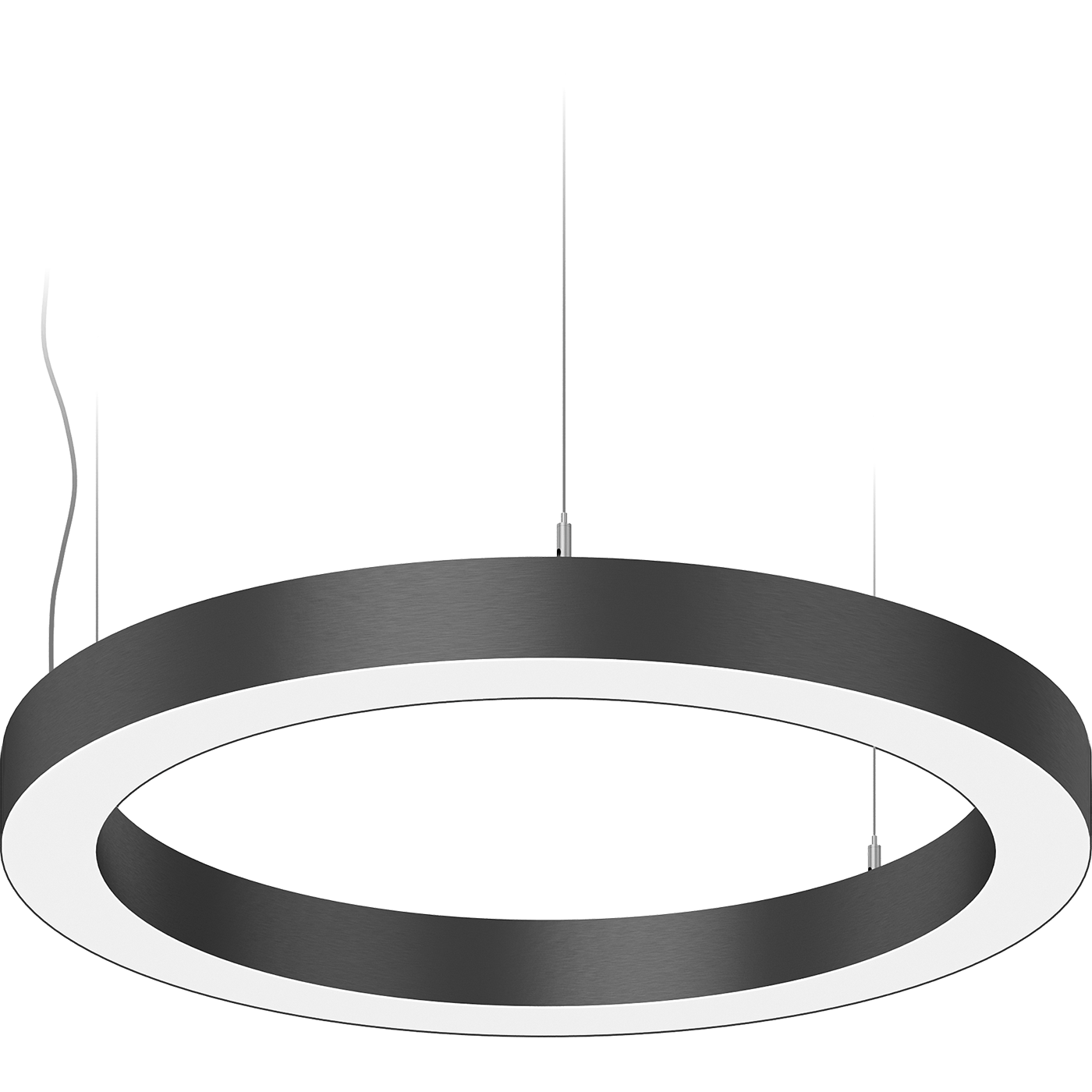

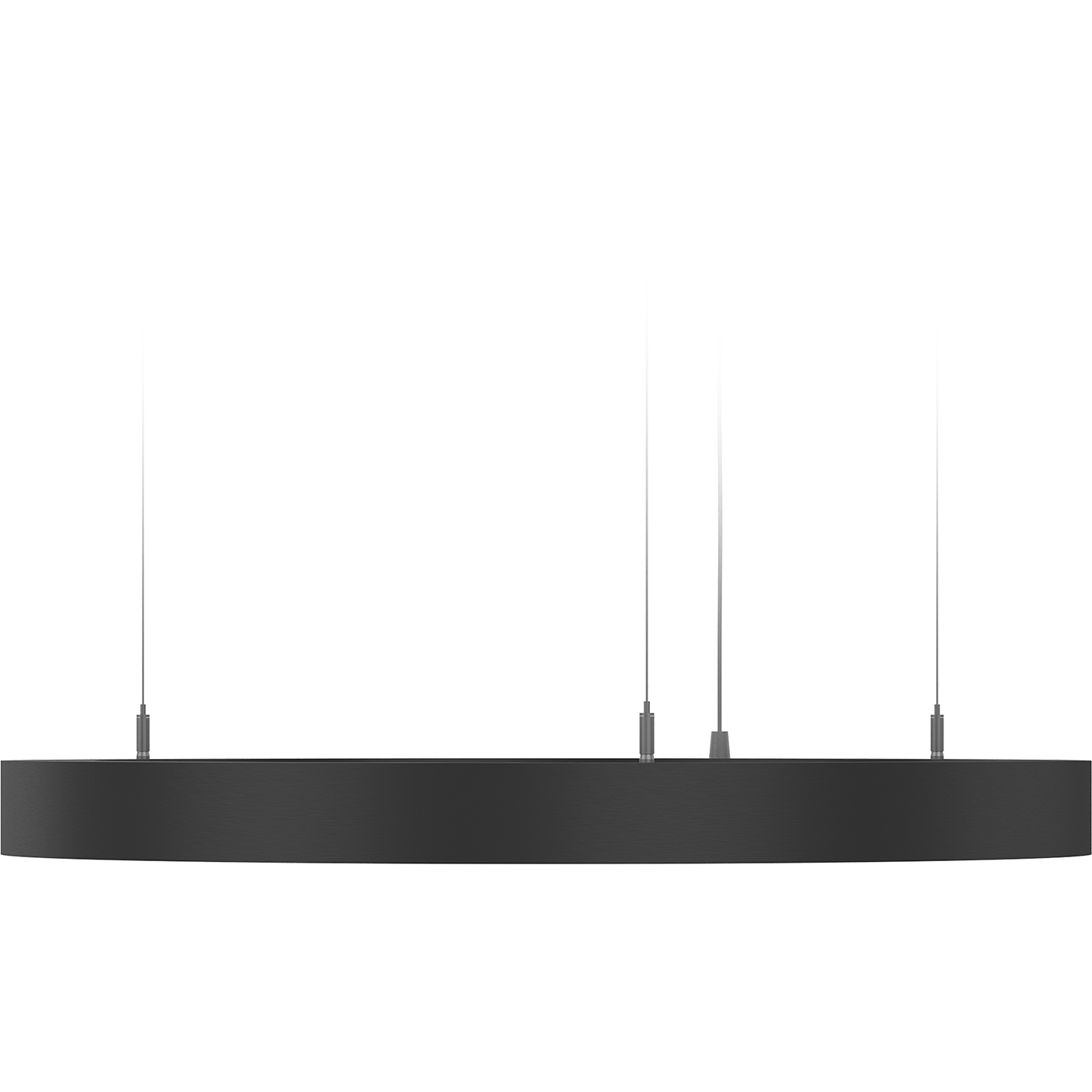

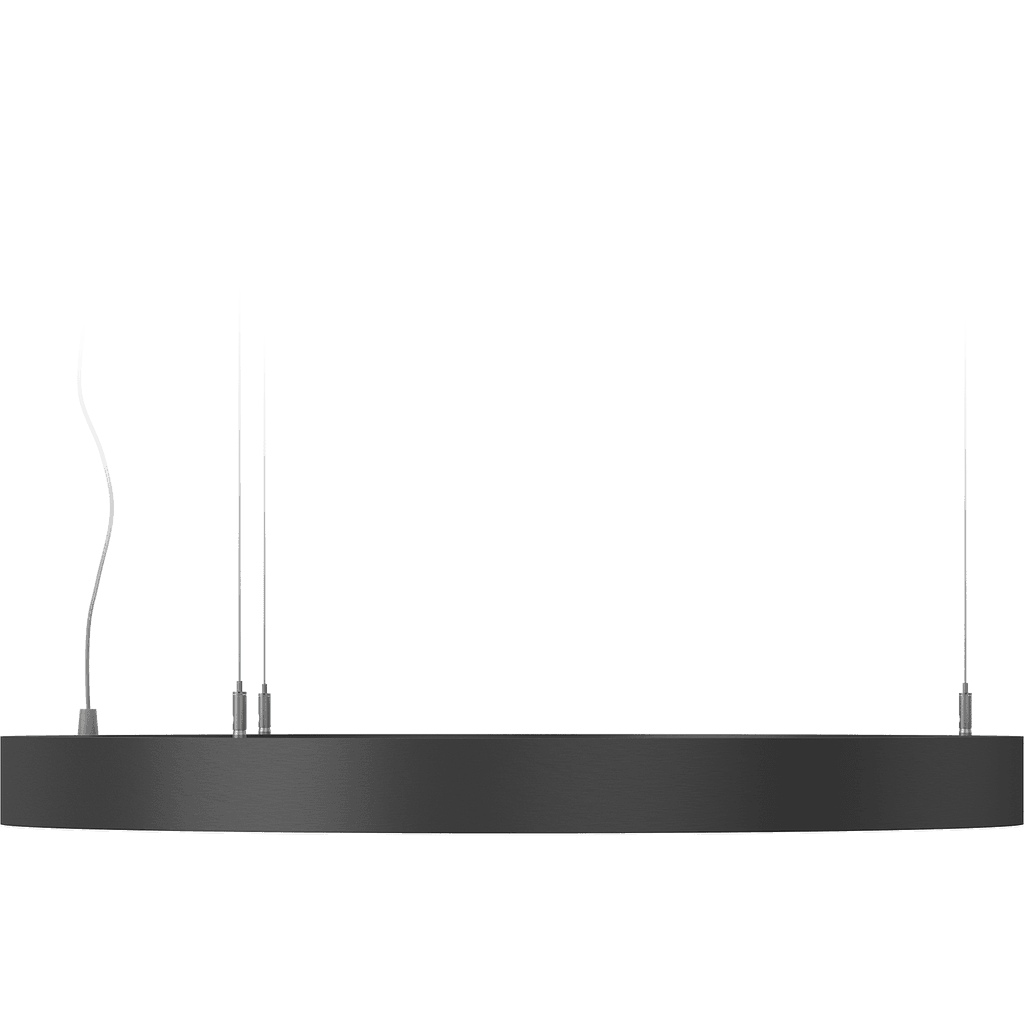

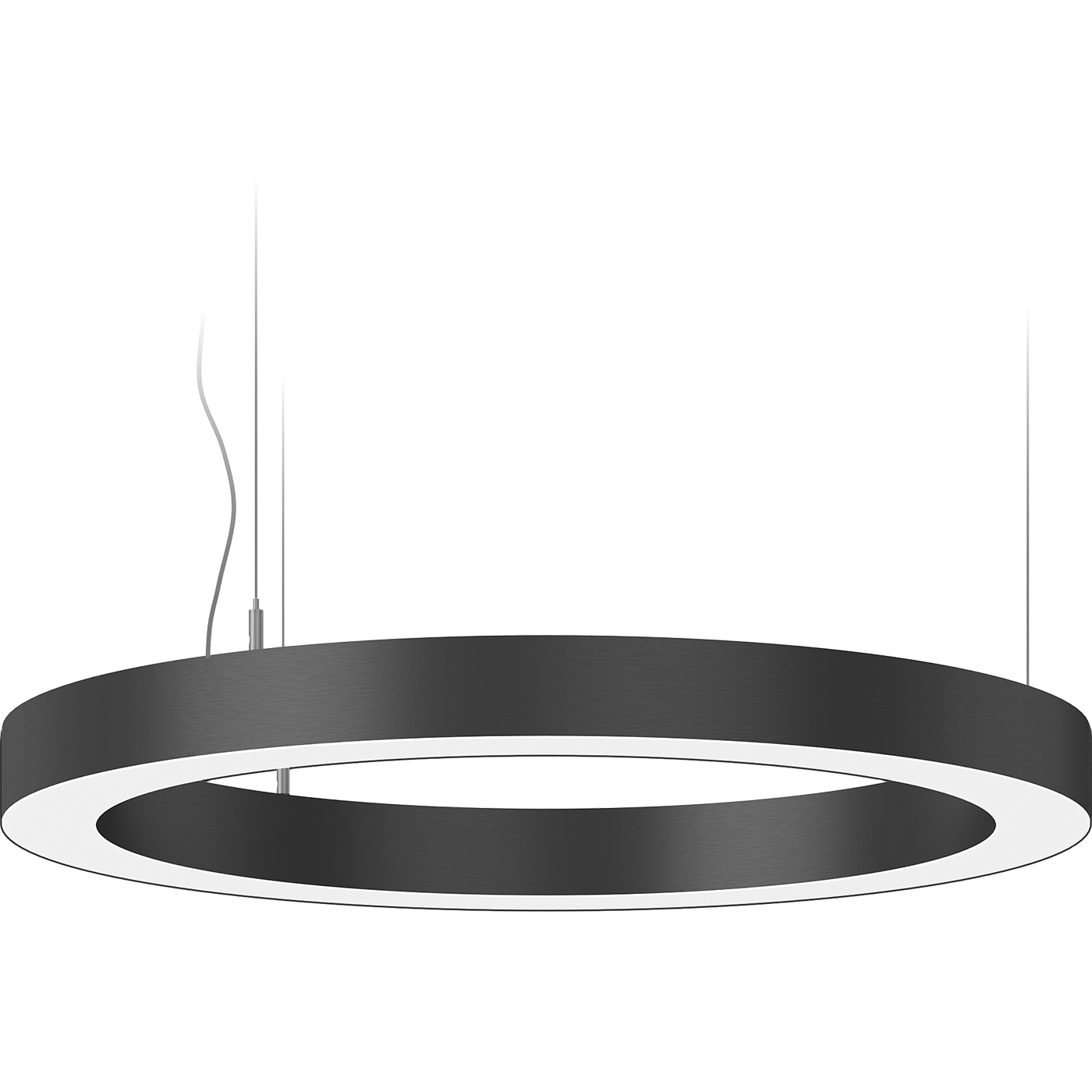

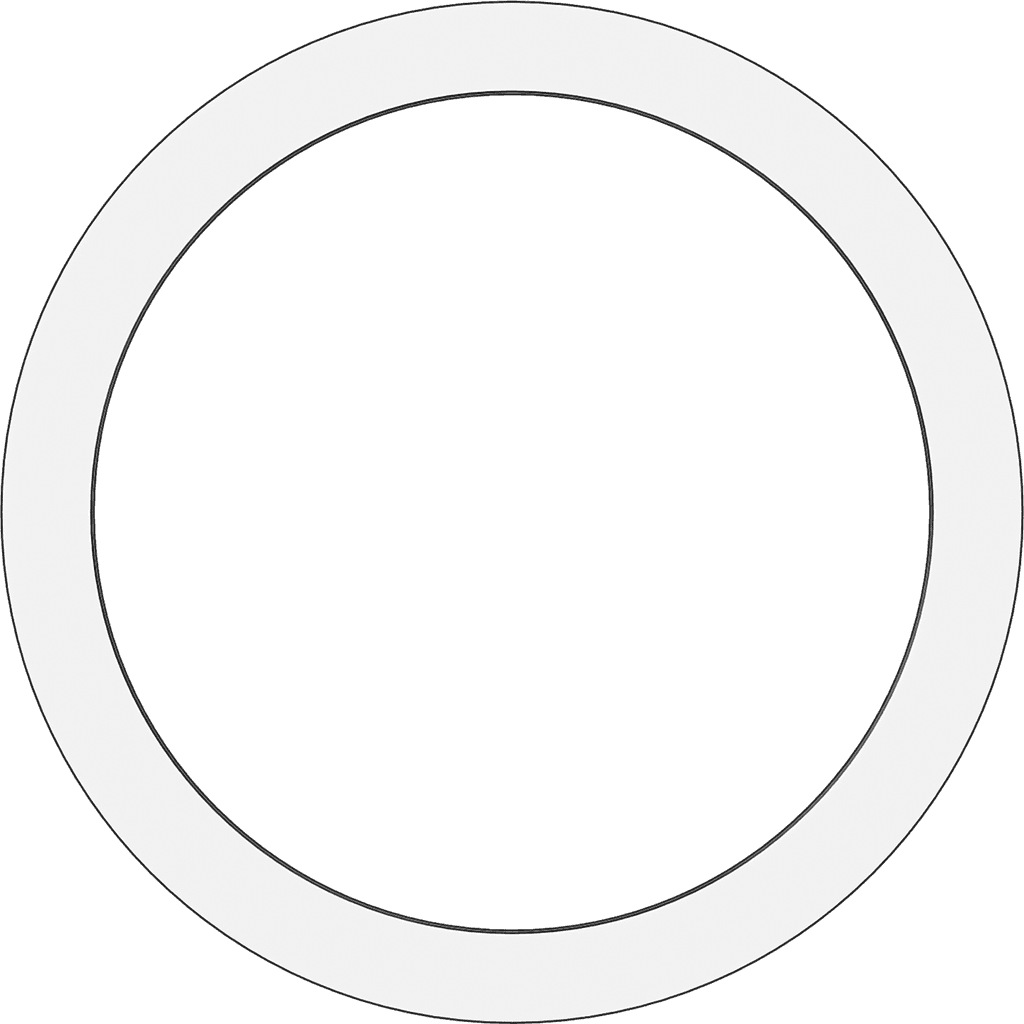

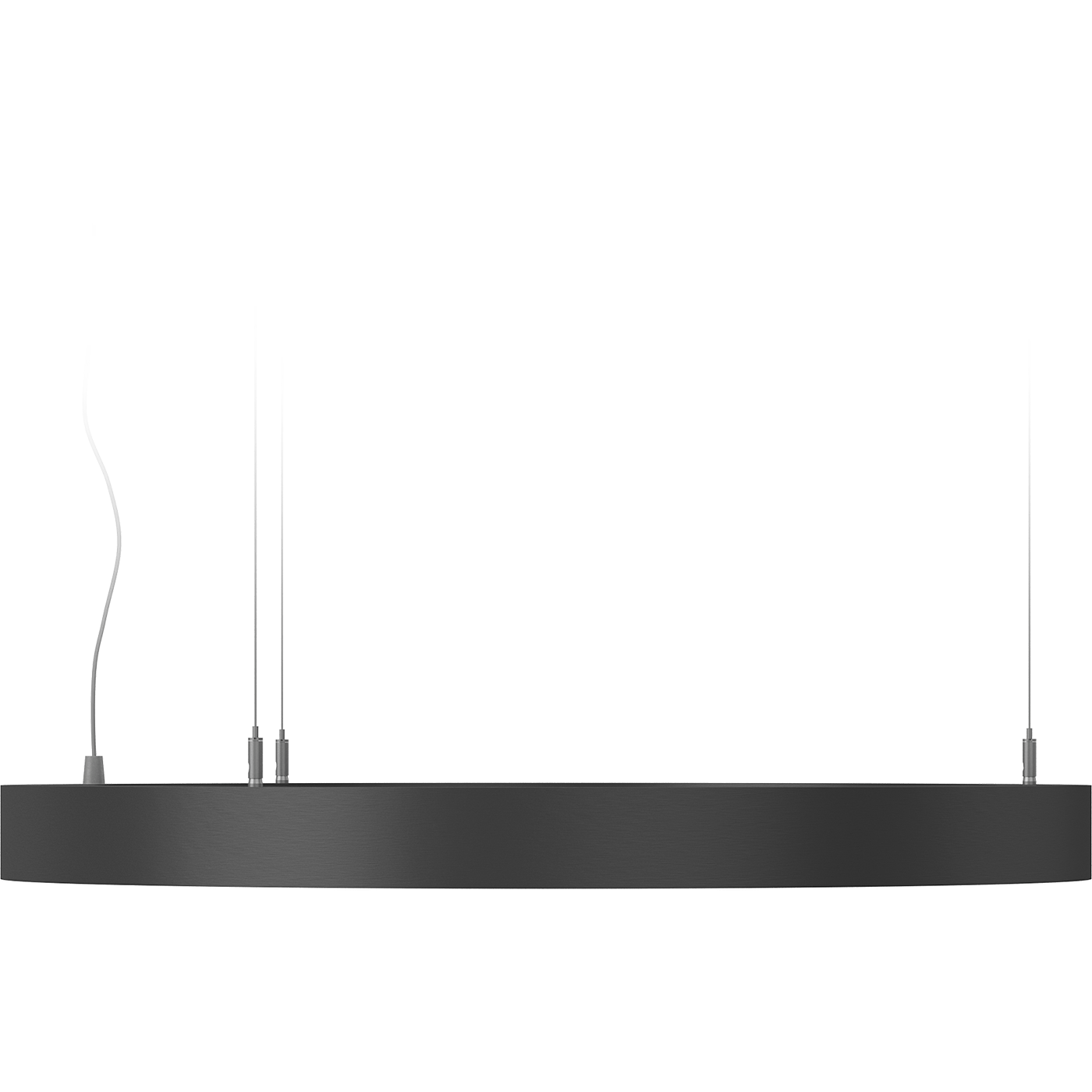

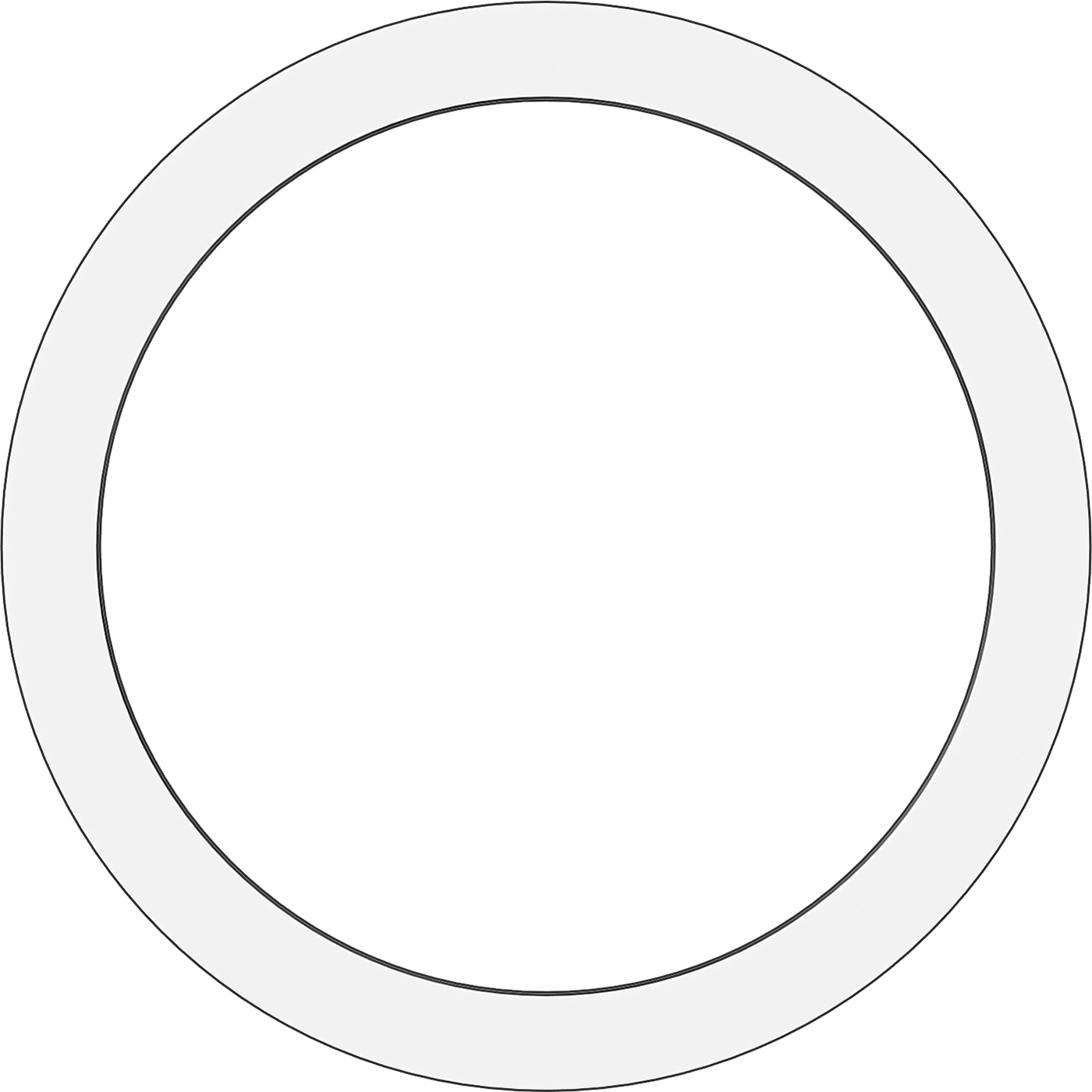

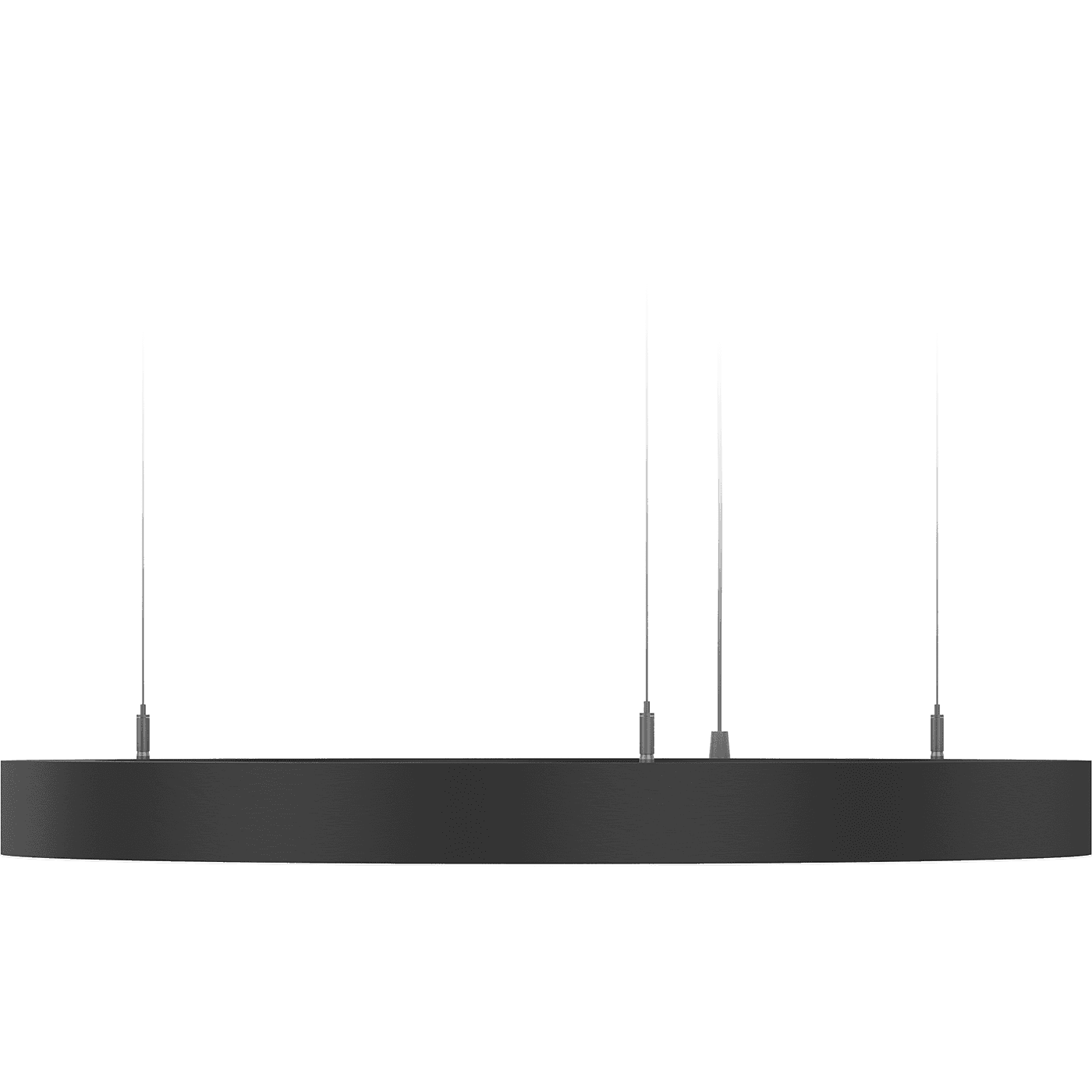

OREOL FLD/P (850) 840 BL
_840_bl.jpg&w=1920&q=100)
_840_bl.jpg&w=1024&q=75)
OREOL FLD/P (850) 840 BL
52 Wluminaire power
4400 lmlight flow
85 lm/Wenergy efficiency
code1813000050
color temperature4000
beam angleD120
old nameOREOL/P 850 FLD BL 4000K m01
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
85 lm/Wcolor rendition index (CRI)
>80light flow
4400 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
85 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
85 mks
electric shock protection
I
luminaire power
52 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
diameter
850 mm
height, mm
60 mm
installation length, mm
528 mm
installation width, mm
706 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1813000050
model files
model files

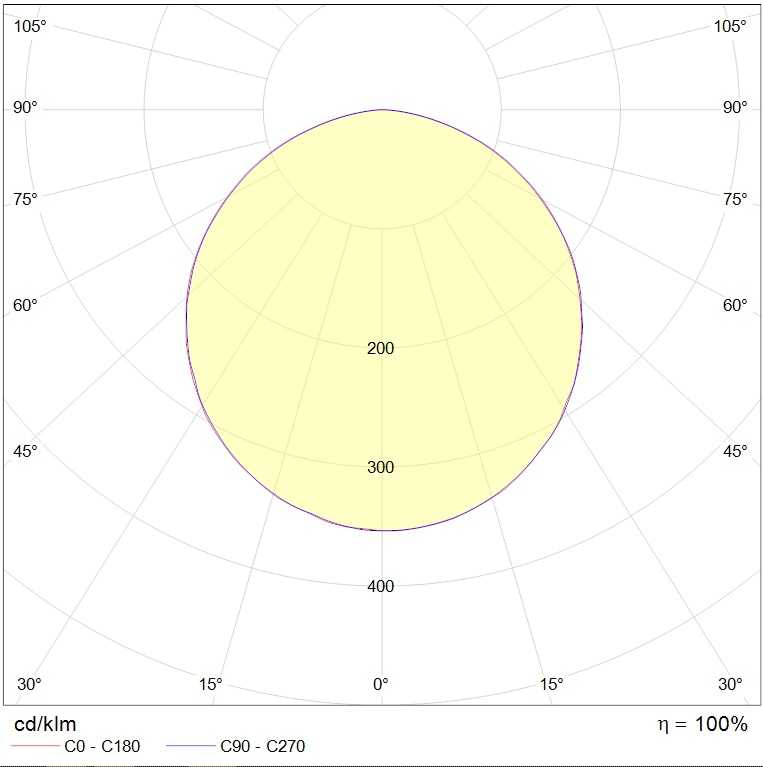

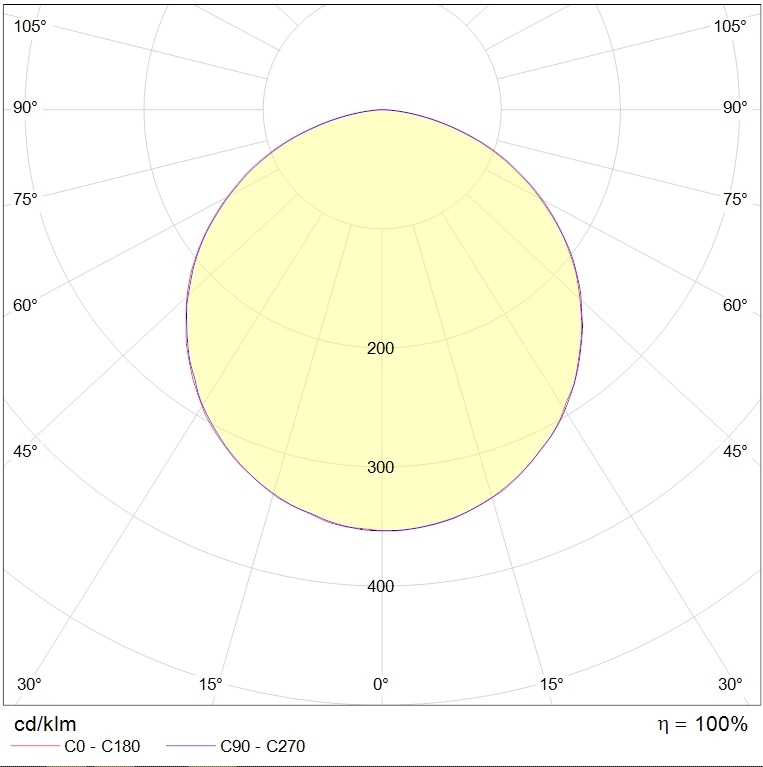

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg75.8 kB
ldt67.3 kB
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB
