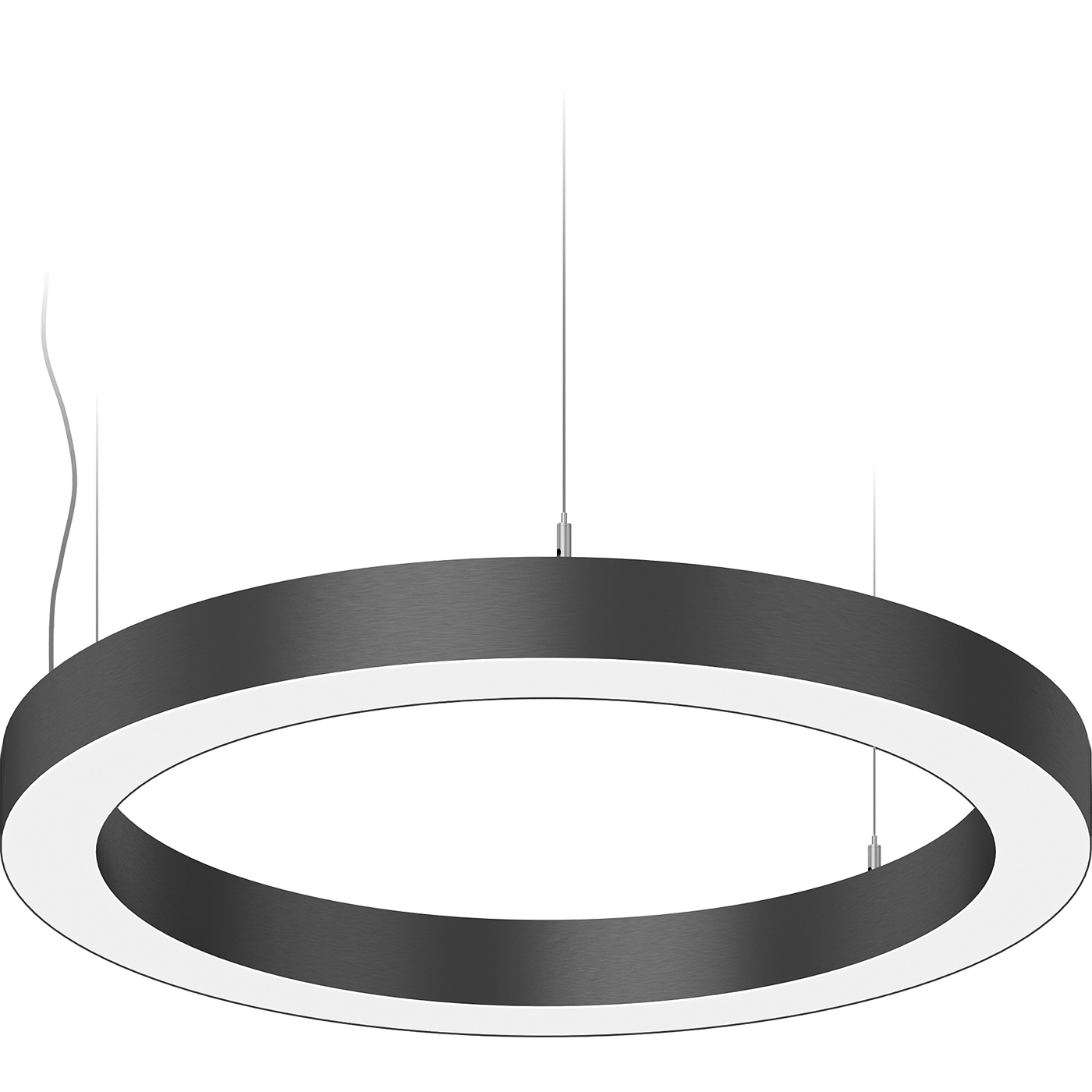

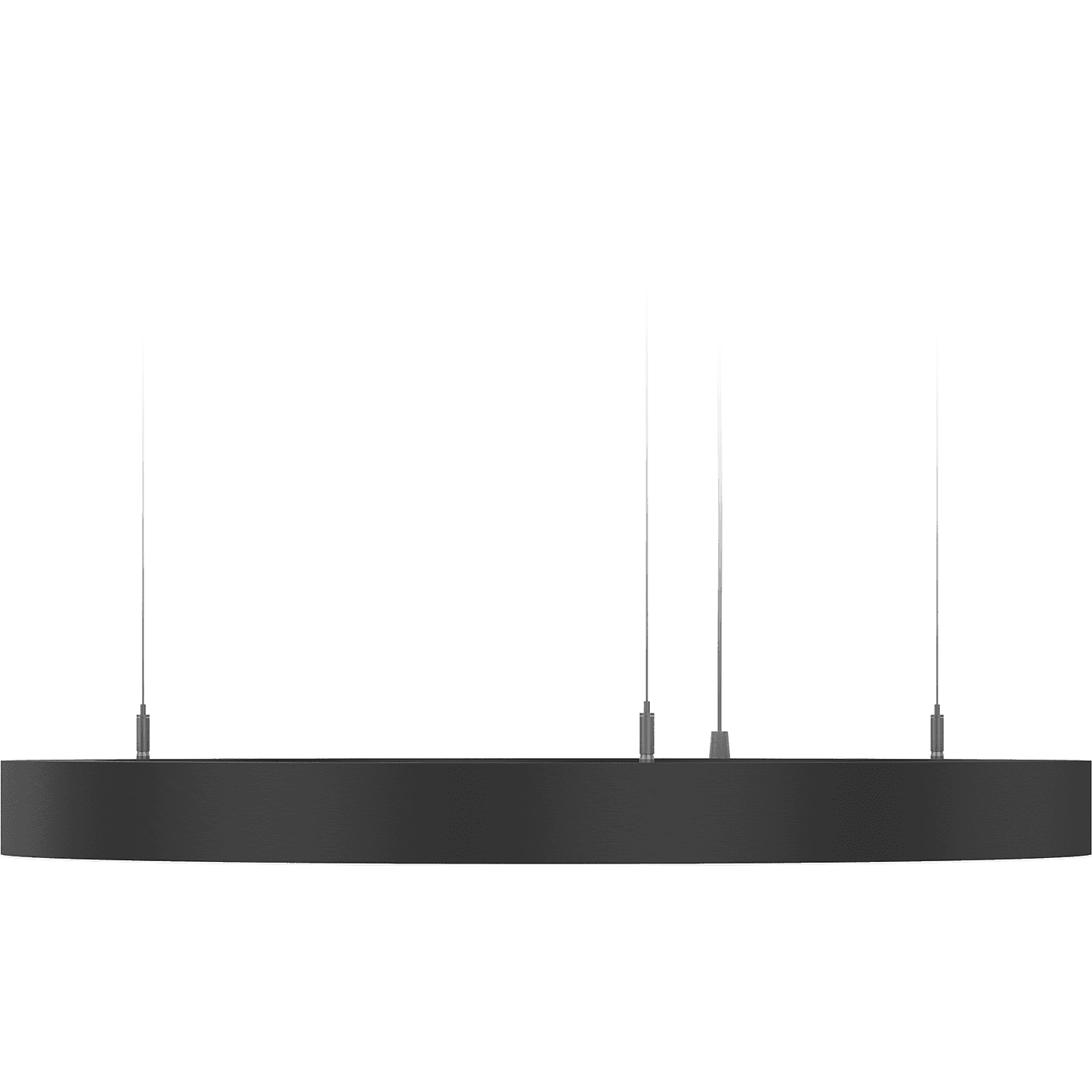

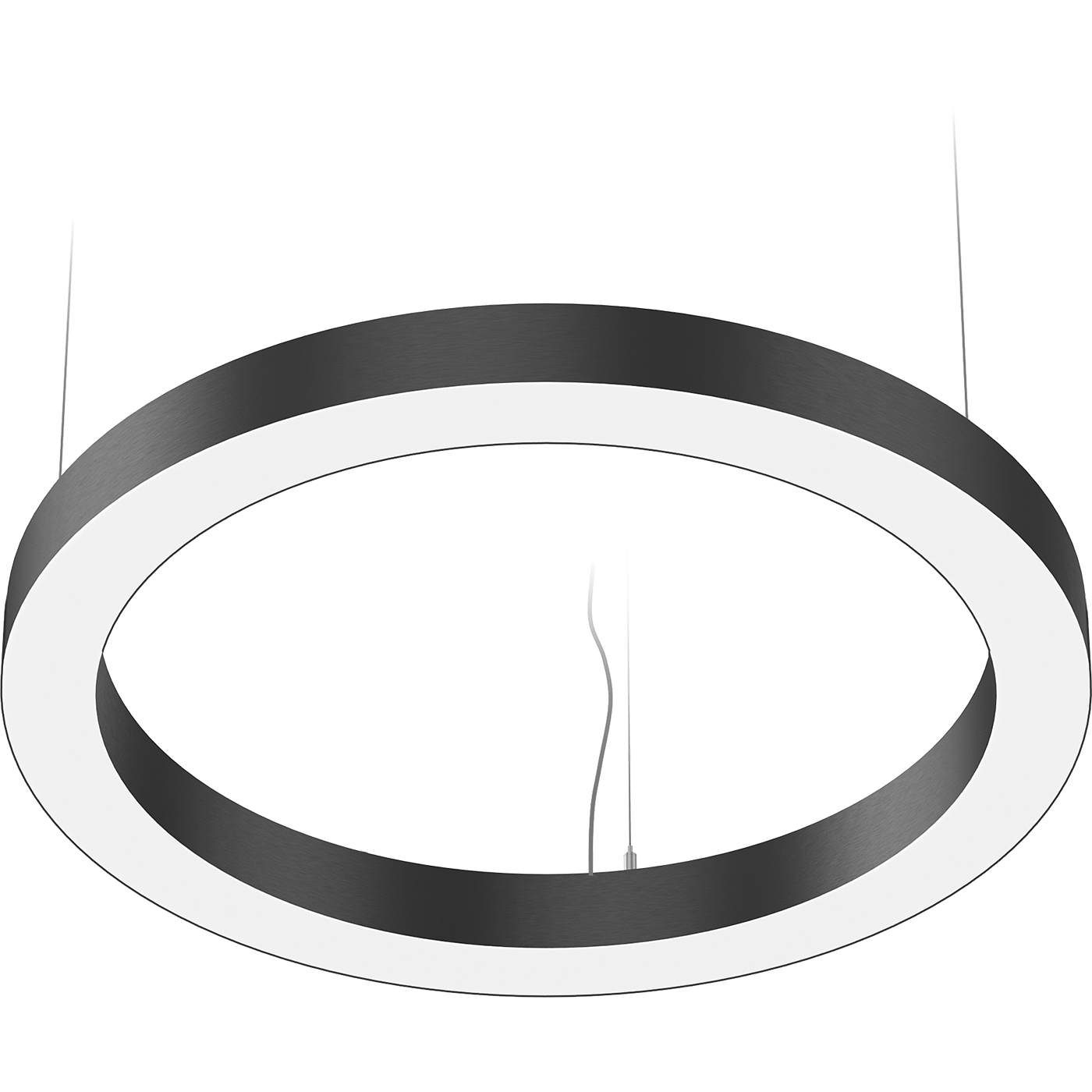

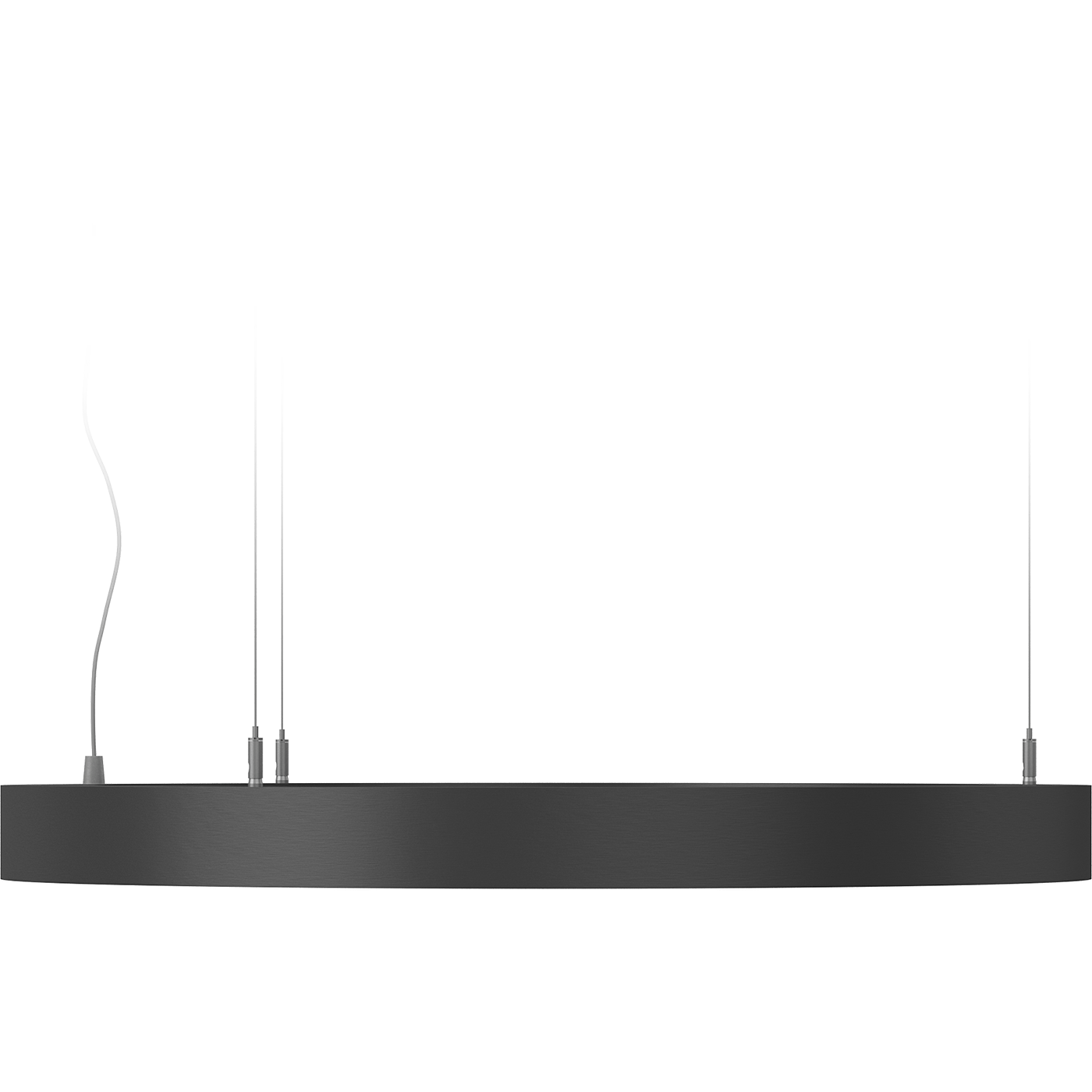

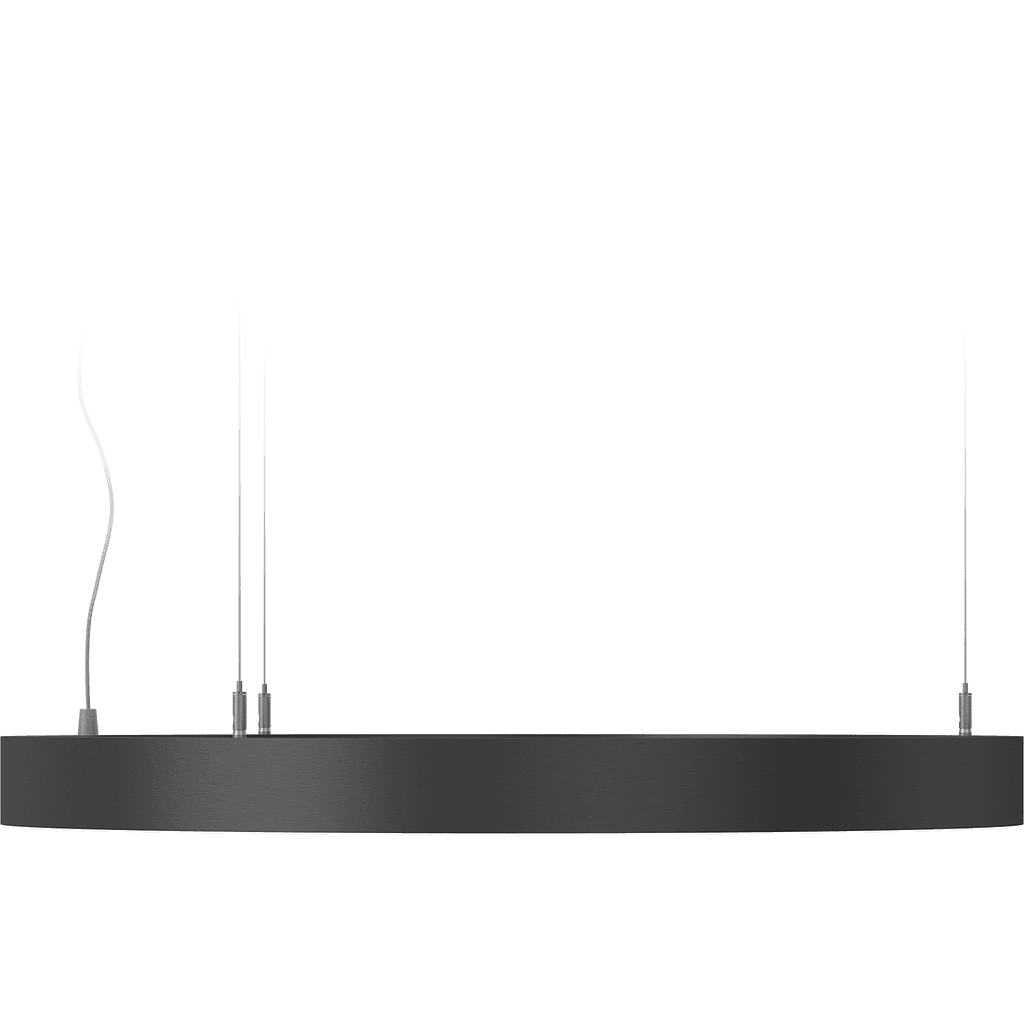

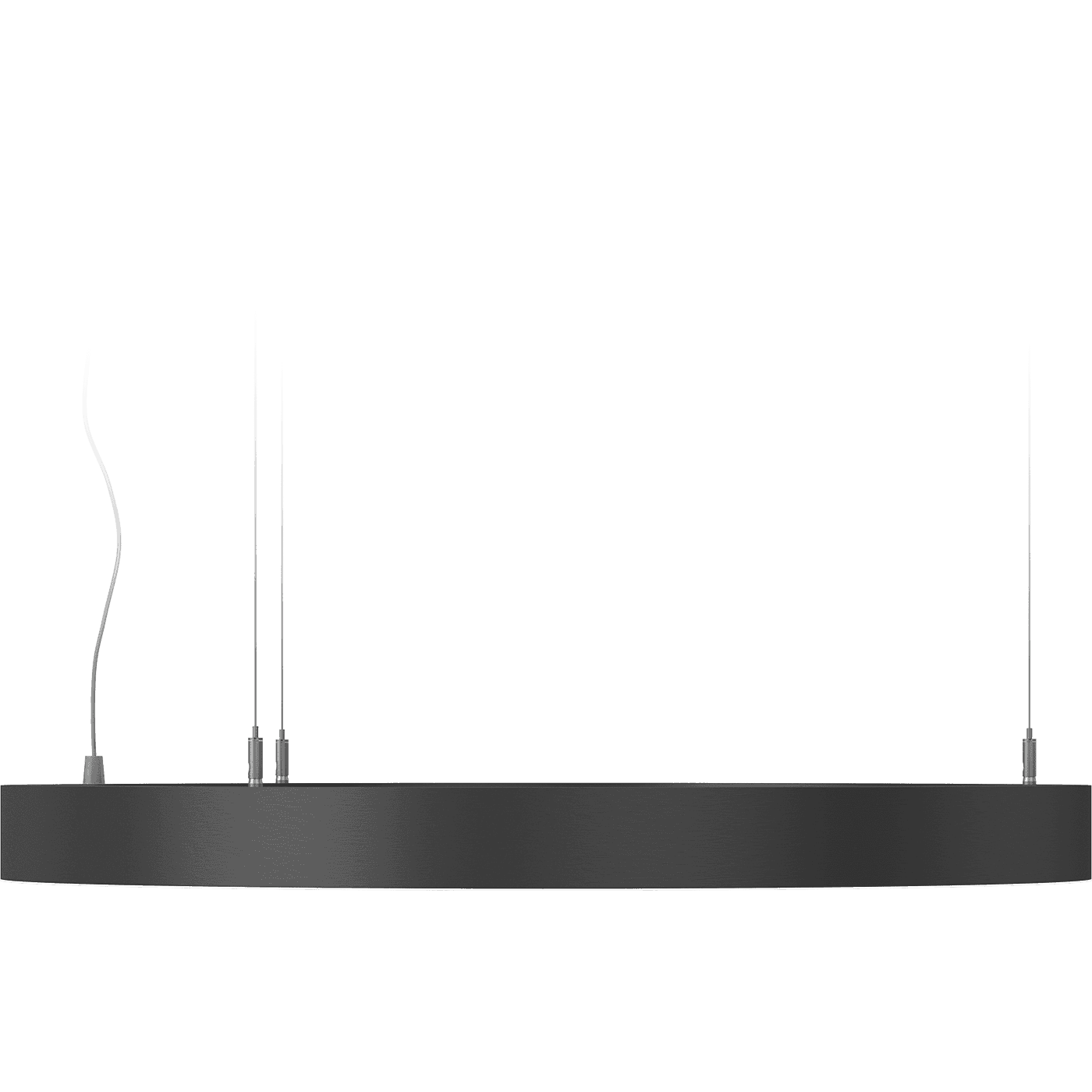

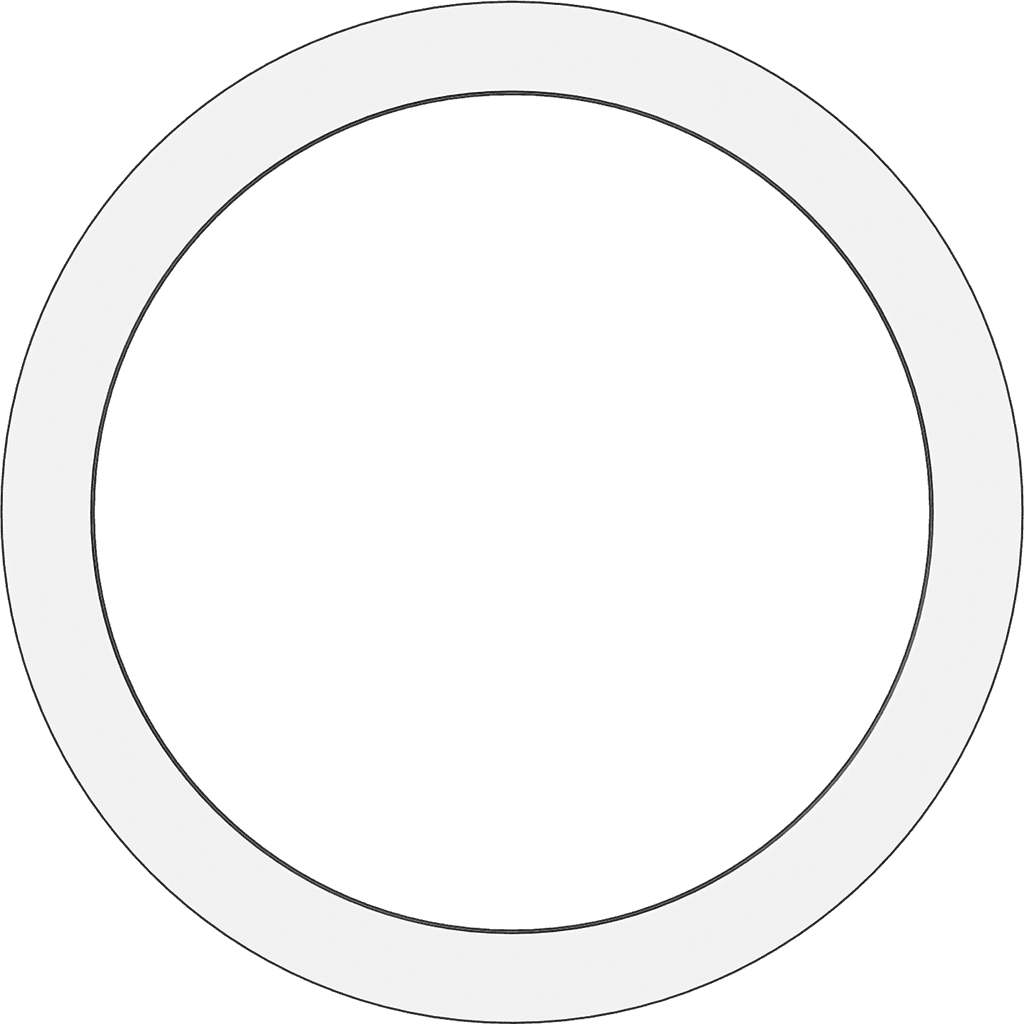

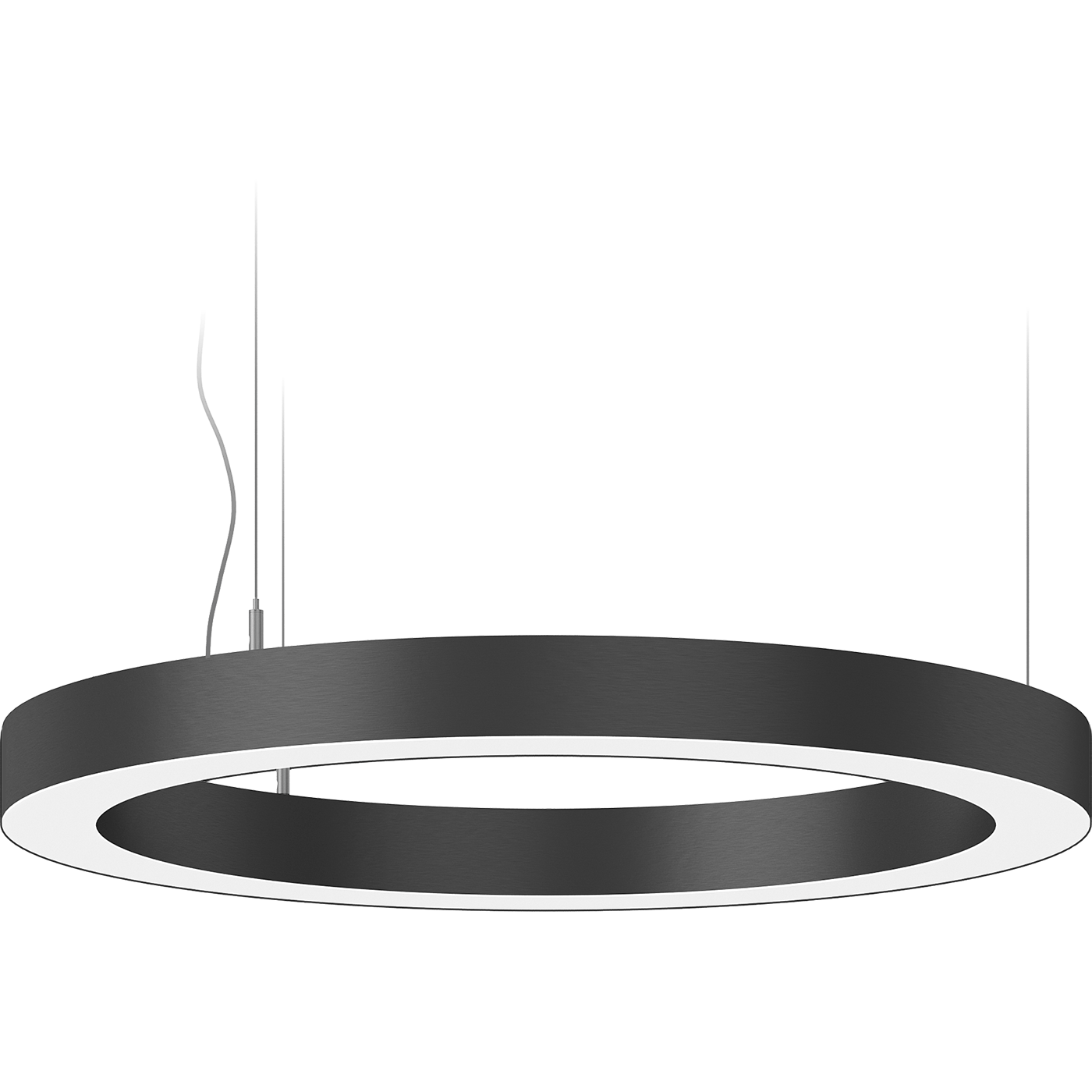

OREOL FLD/P (550) 830 BL

OREOL FLD/P (550) 830 BL
30 Wluminaire power
2400 lmlight flow
80 lm/Wenergy efficiency
code1813001320
color temperature3000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A
constructional
diameter
550 mm
height
60 mm
installation length
307 mm
installation width
442 mm
weight
2.8 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1813001320
model files
model files

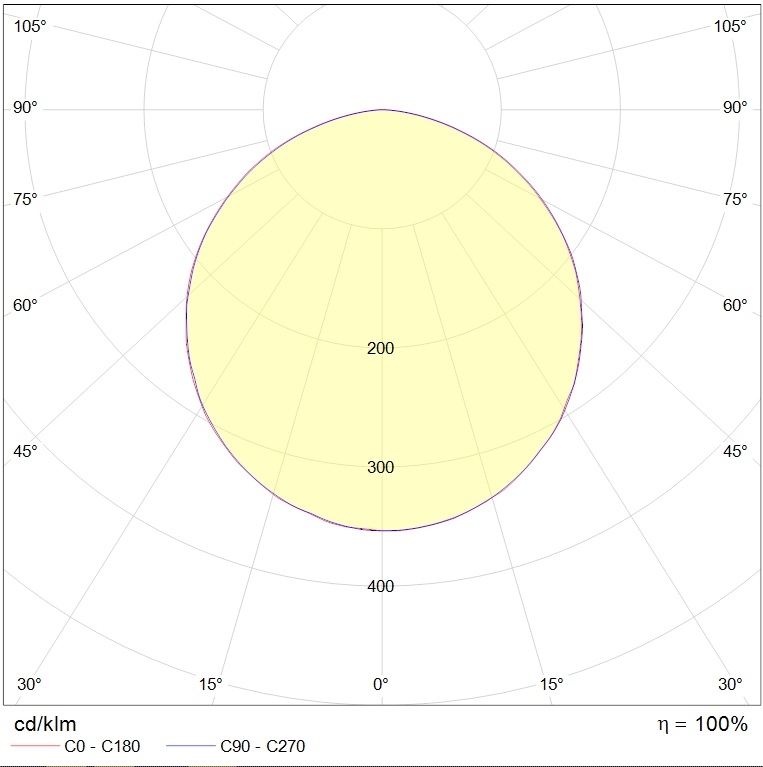

photometric files
ies107 kB
jpg75.8 kB
ldt67.2 kB
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB

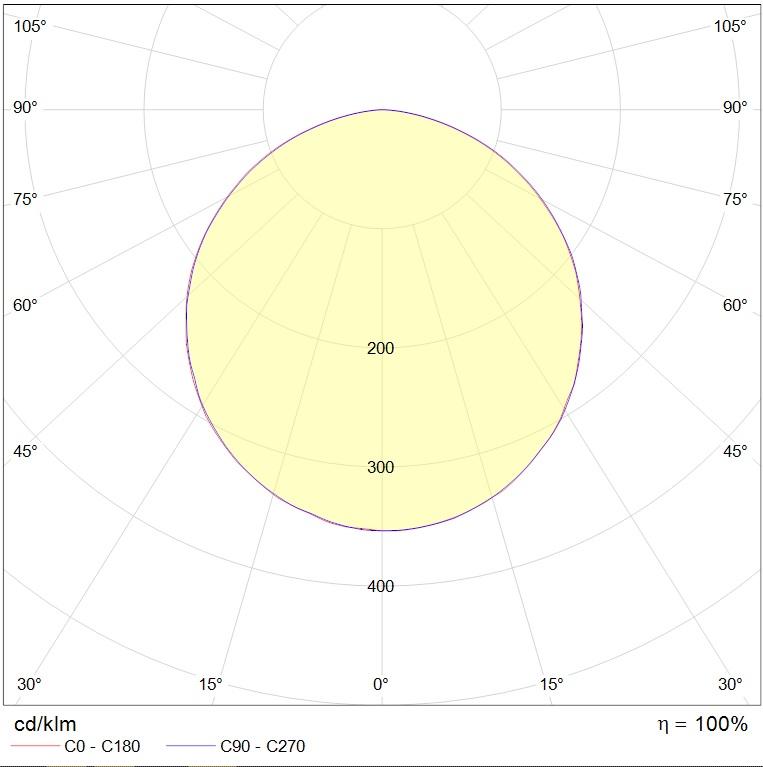

photometric files
