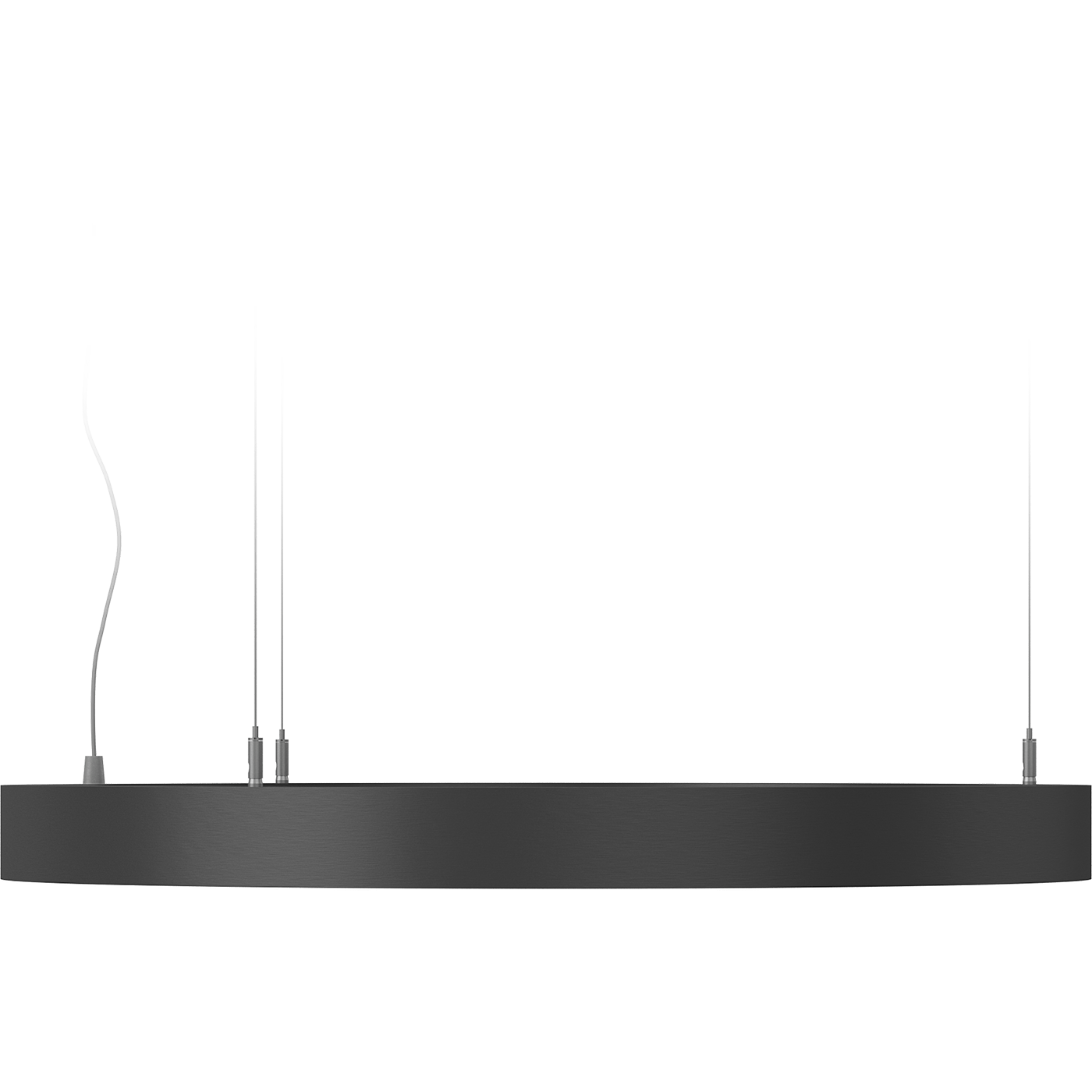

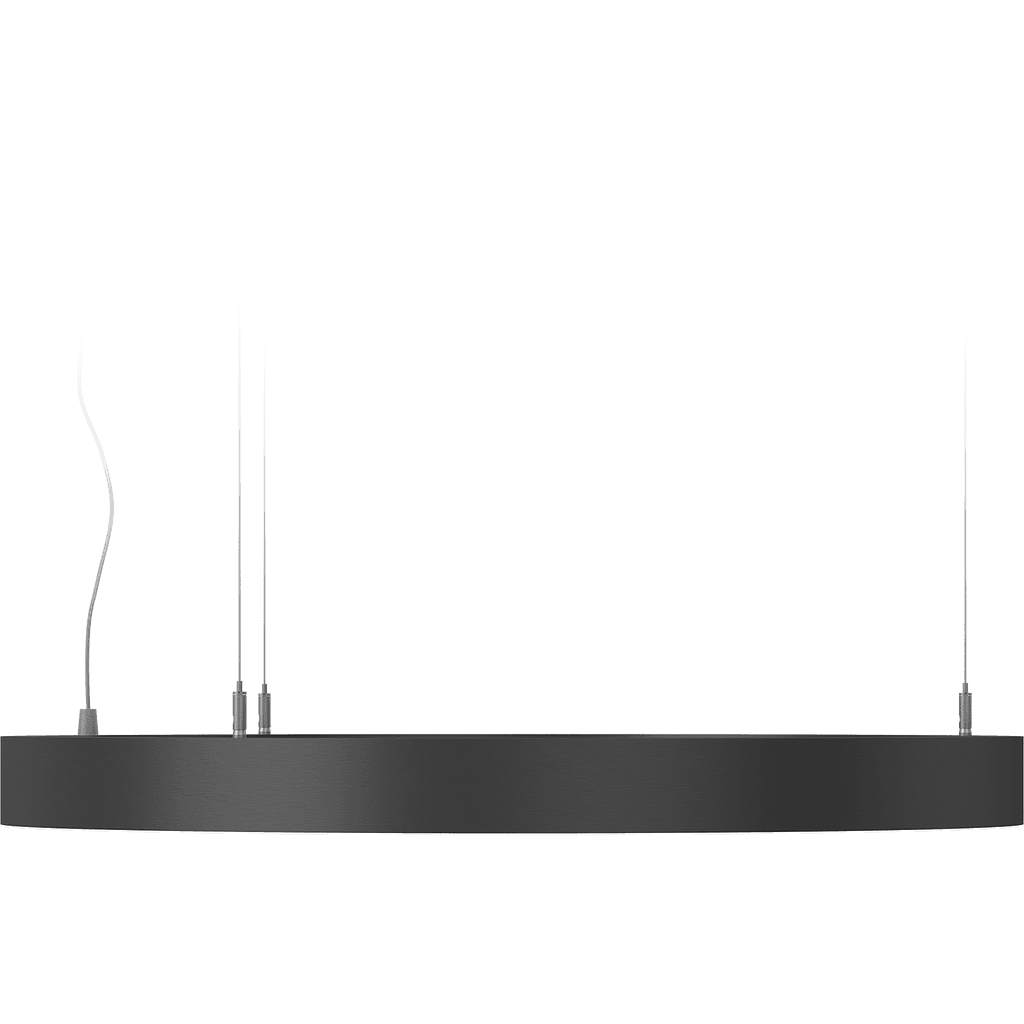

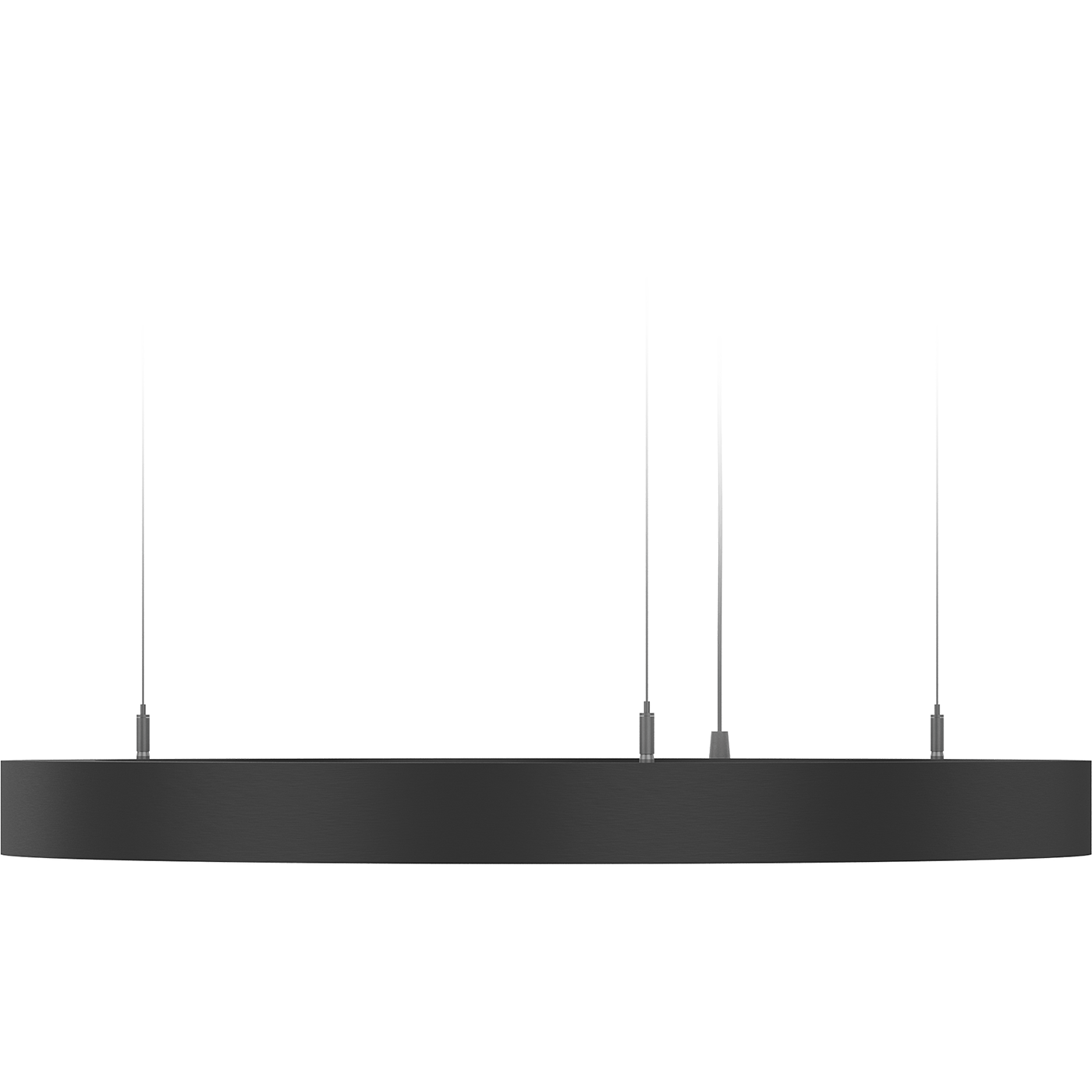

OREOL FLD/P (2000) 840 WH
_840_wh.jpg&w=1920&q=100)
_840_wh.jpg&w=1024&q=75)
OREOL FLD/P (2000) 840 WH
128 Wluminaire power
10800 lmlight flow
84 lm/Wenergy efficiency
code1813001130
color temperature4000 K
beam angleD120
old nameOREOL/P FLD (2000) 840 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80energy efficiency
84 lm/Wlight flow
10800 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
energy efficiency
84 lm/W
light flow
10800 lm
flickering factor
<5%

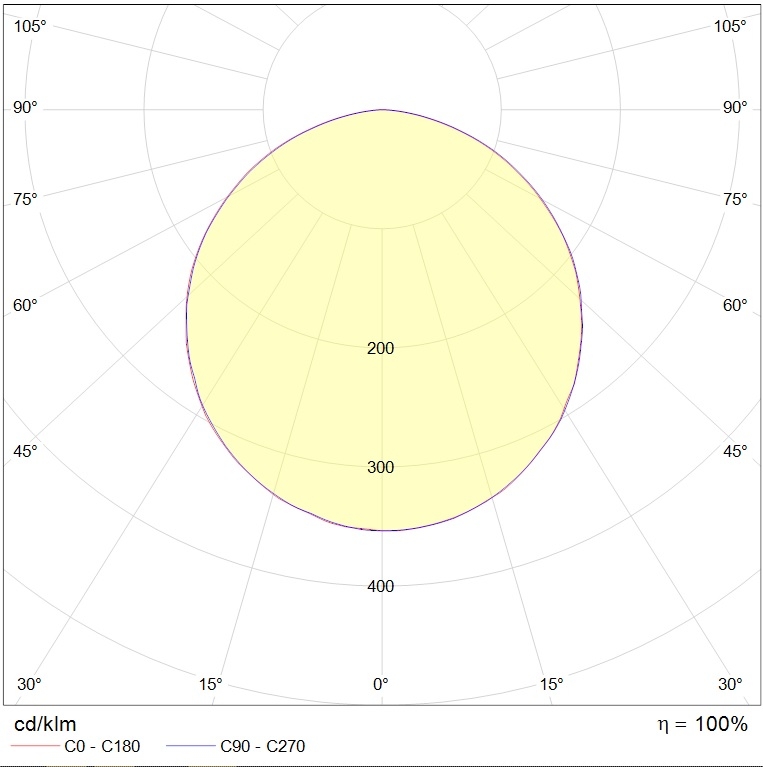

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
85 µs
electric shock protection
I
luminaire power
128 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage
230 V
starting current
25 A
rated supply voltage, alternating current
230 V
constructional

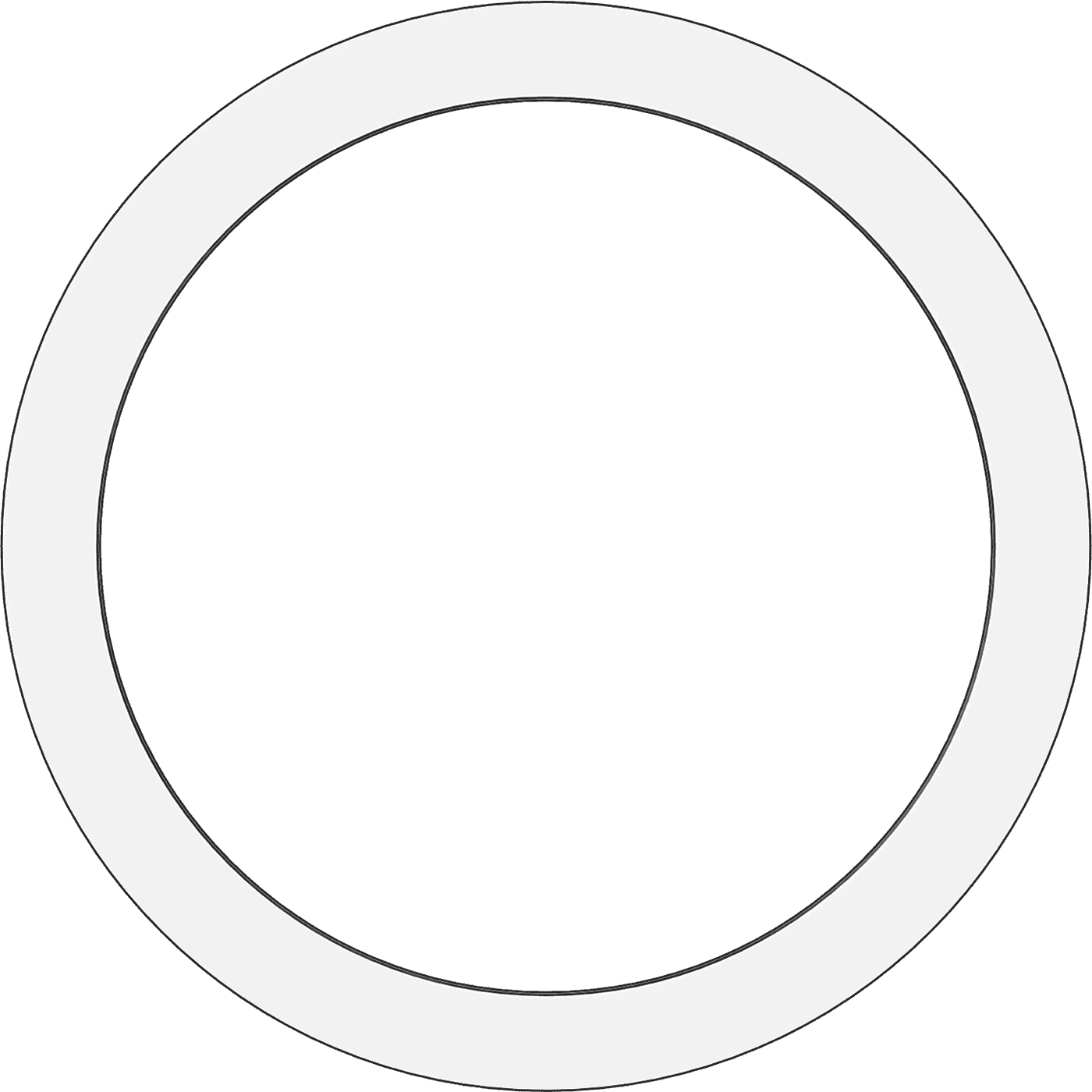

diameter
2000 mm
height
60 mm
installation length
1319 mm
installation width
1455 mm
weight
7.6 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
36 month
energy efficiency class
A
service life
50 000 h
temperature range
от +5 до +35 C
code
1813001130
model files
model files
photometric files
documents
сертификаты

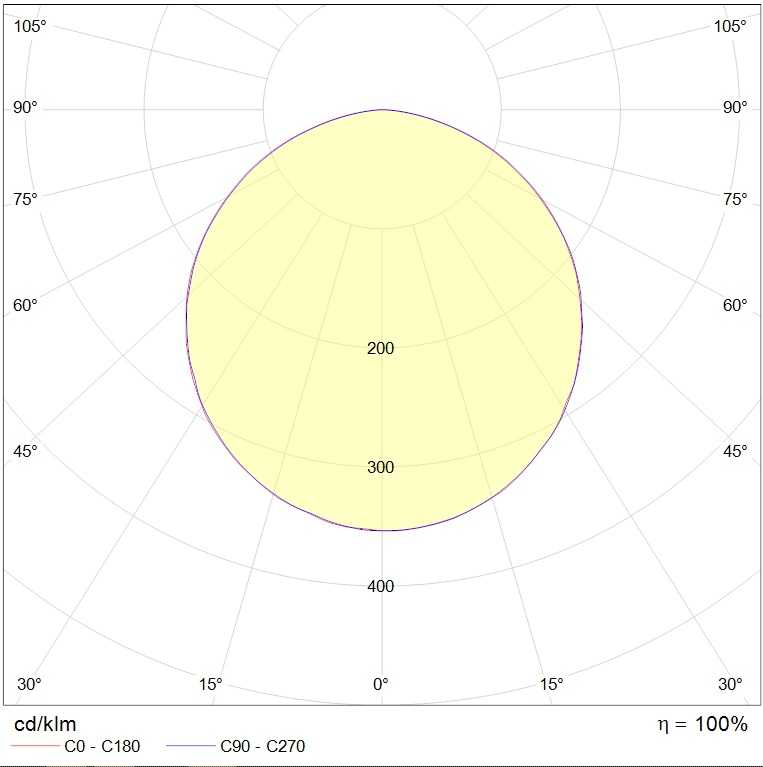

photometric files
ies107 kB
jpg75.8 kB
ldt67.2 kB
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB
