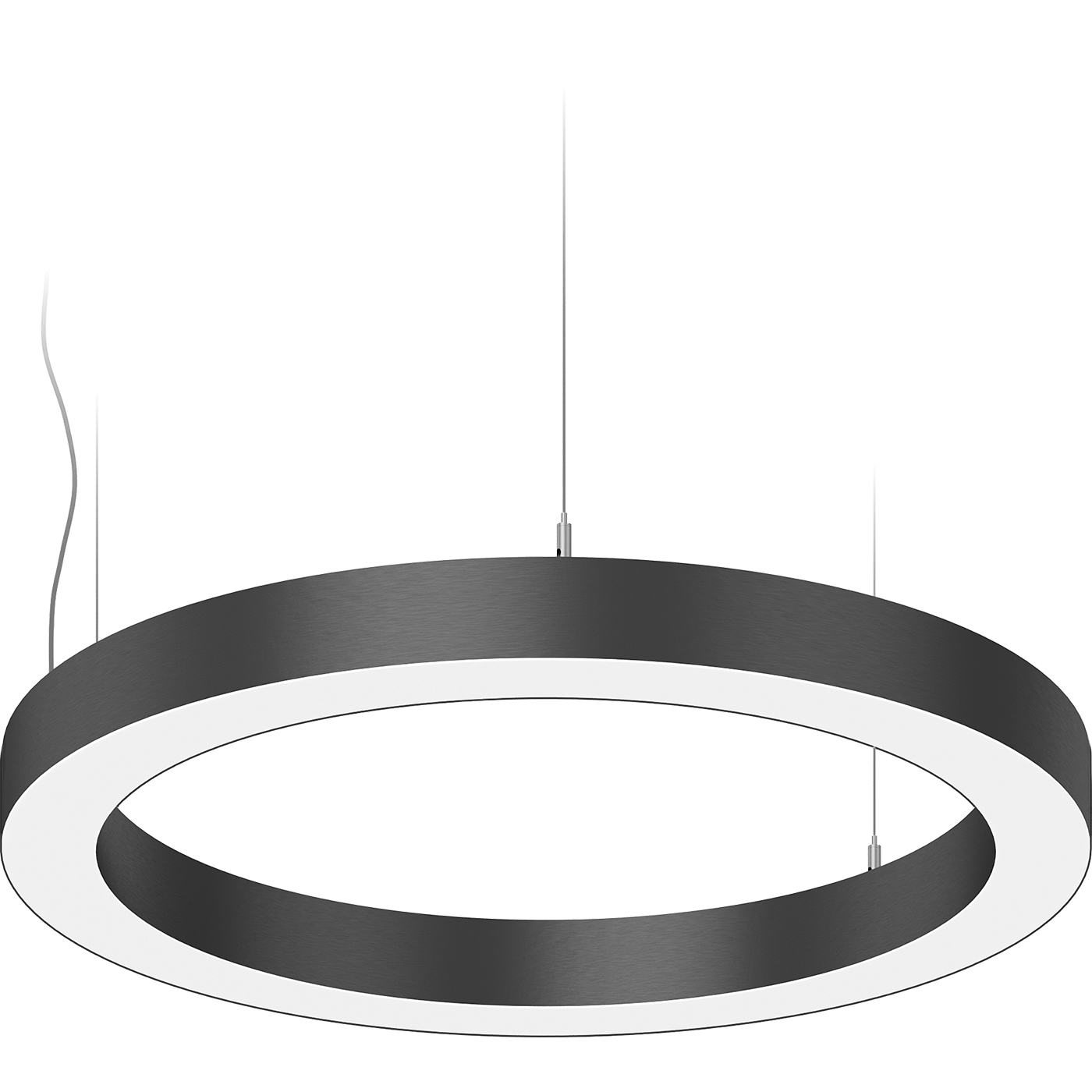

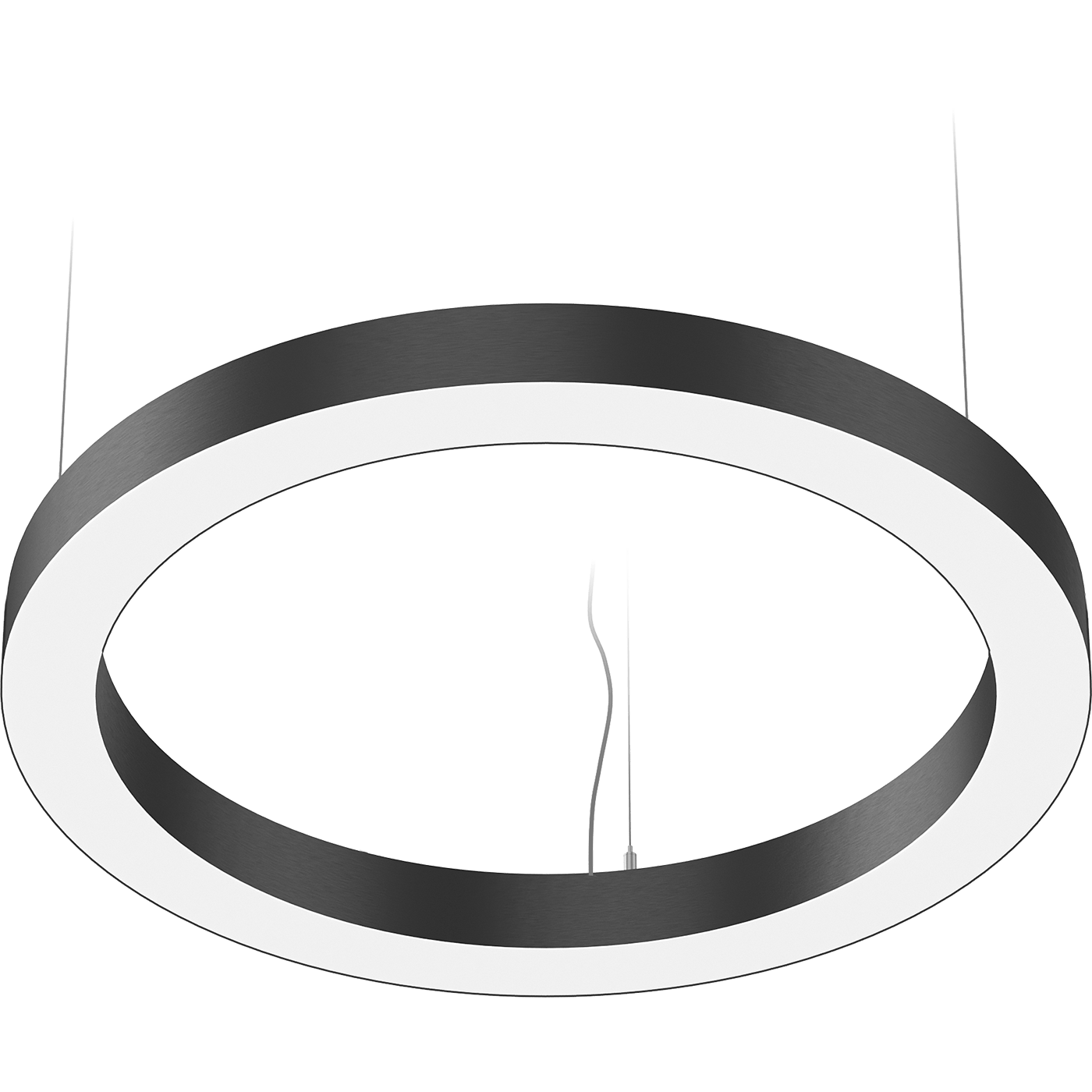

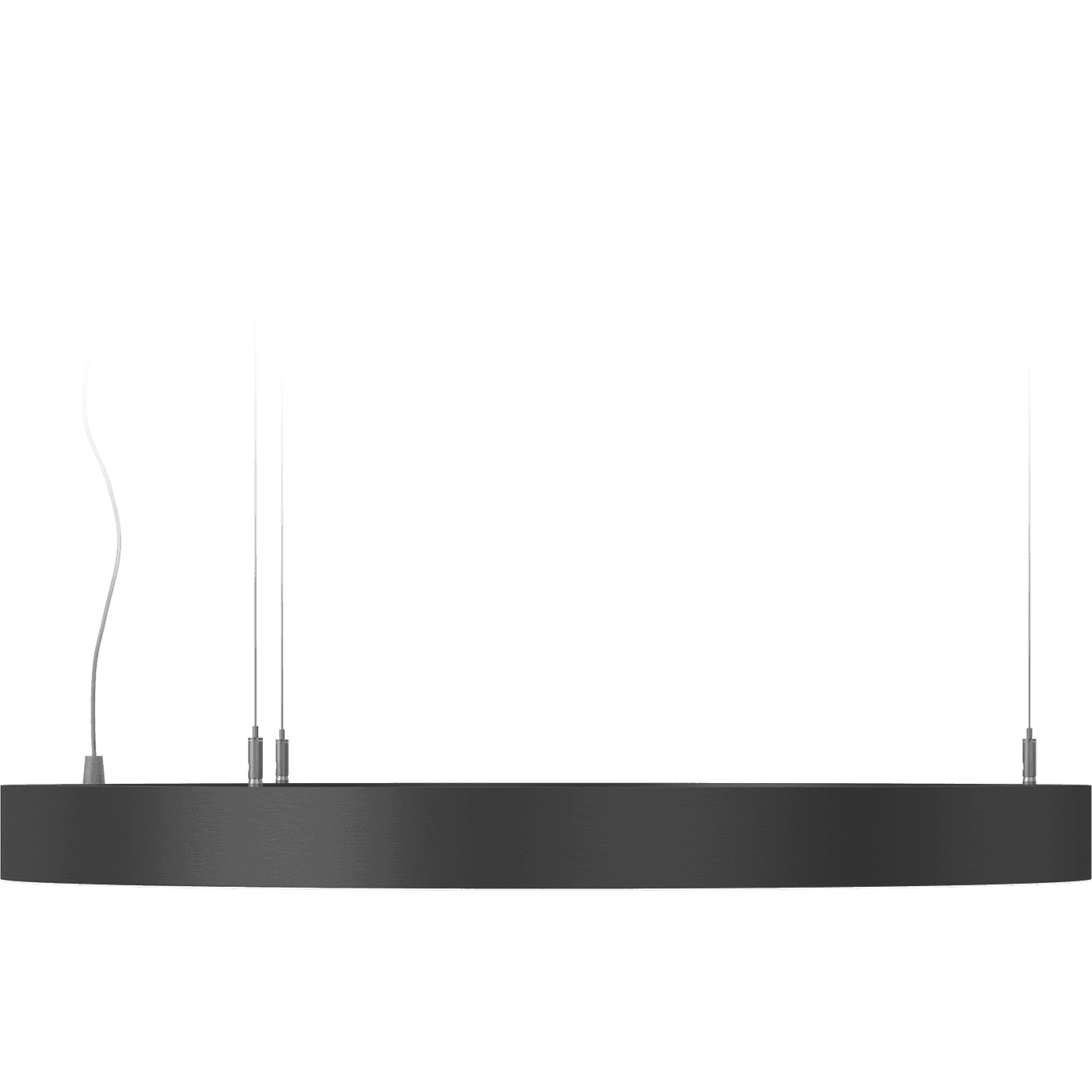

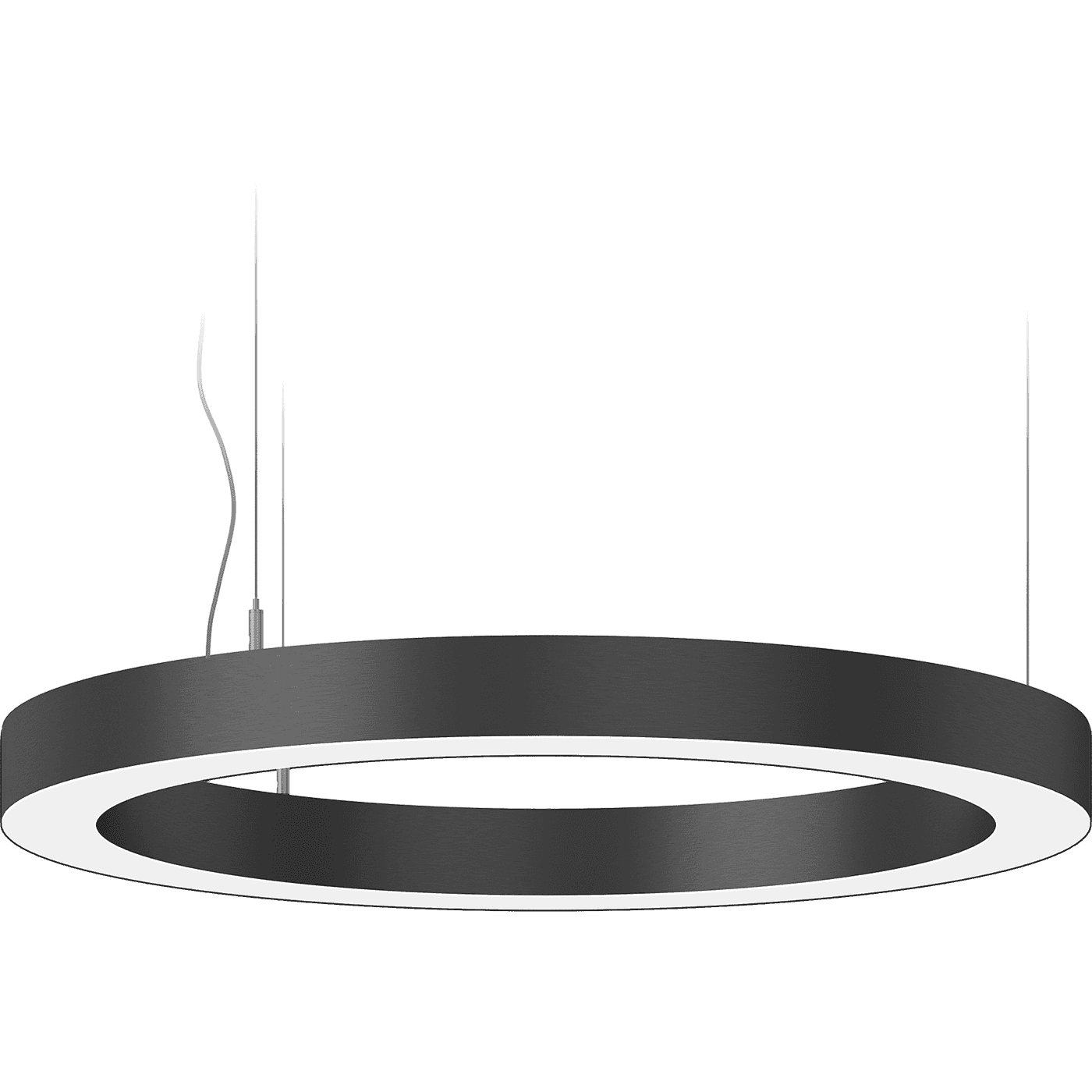

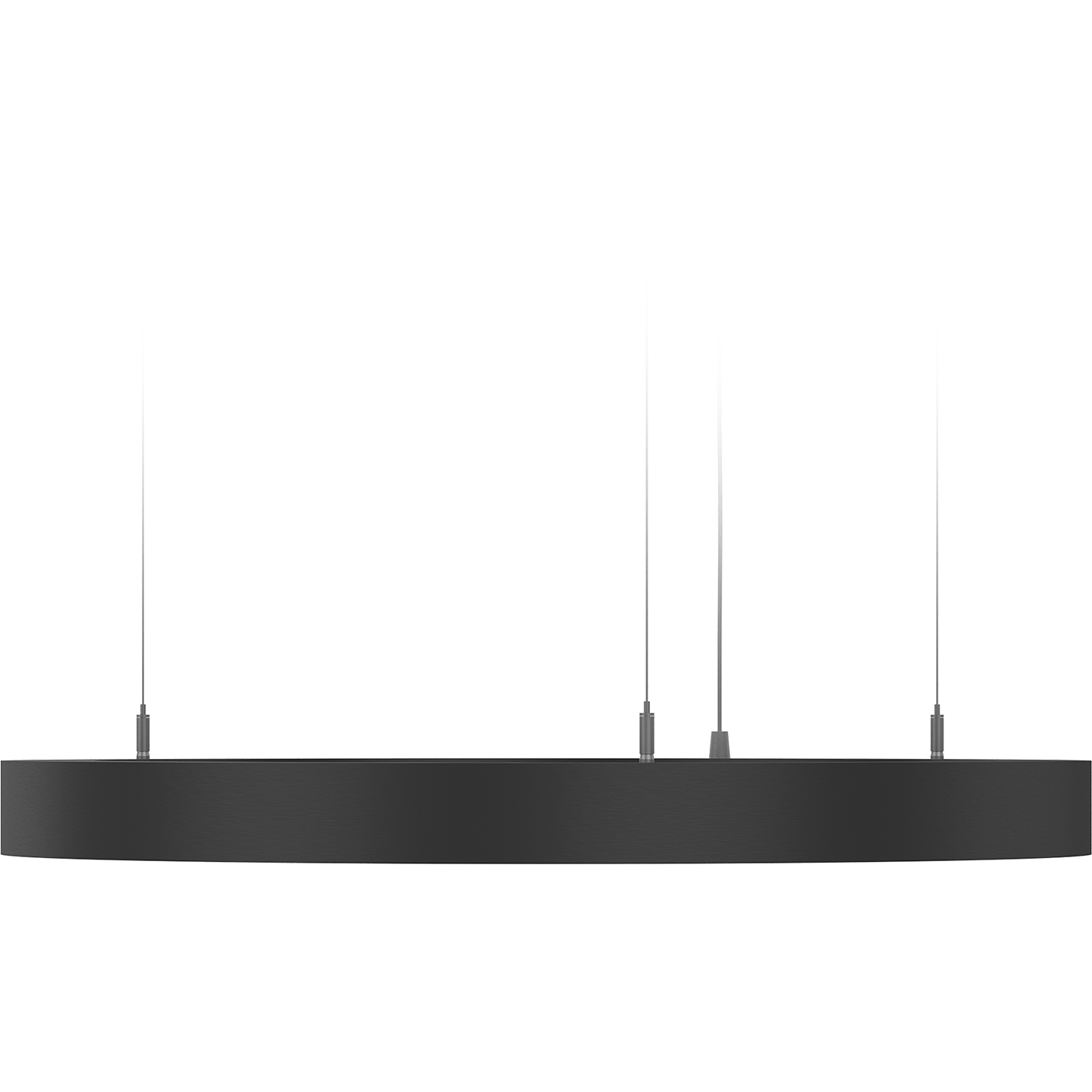

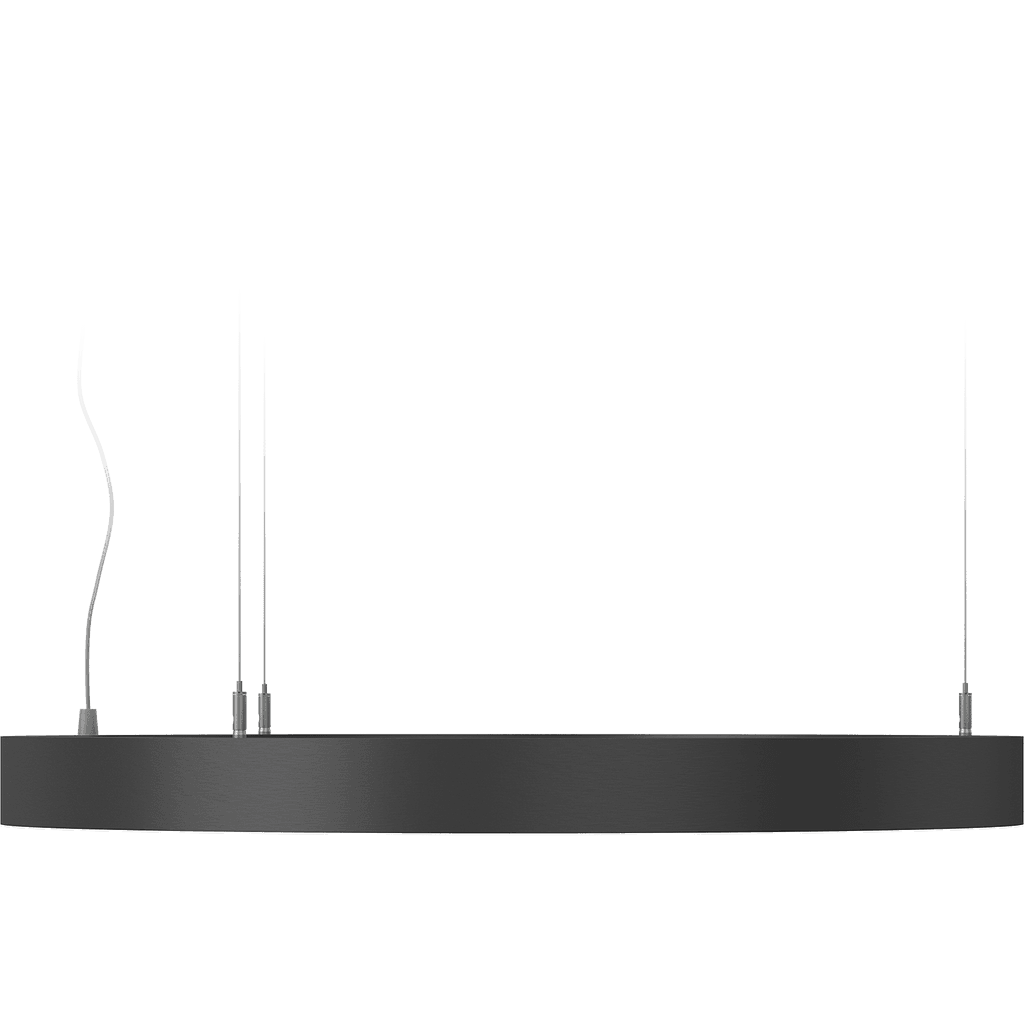

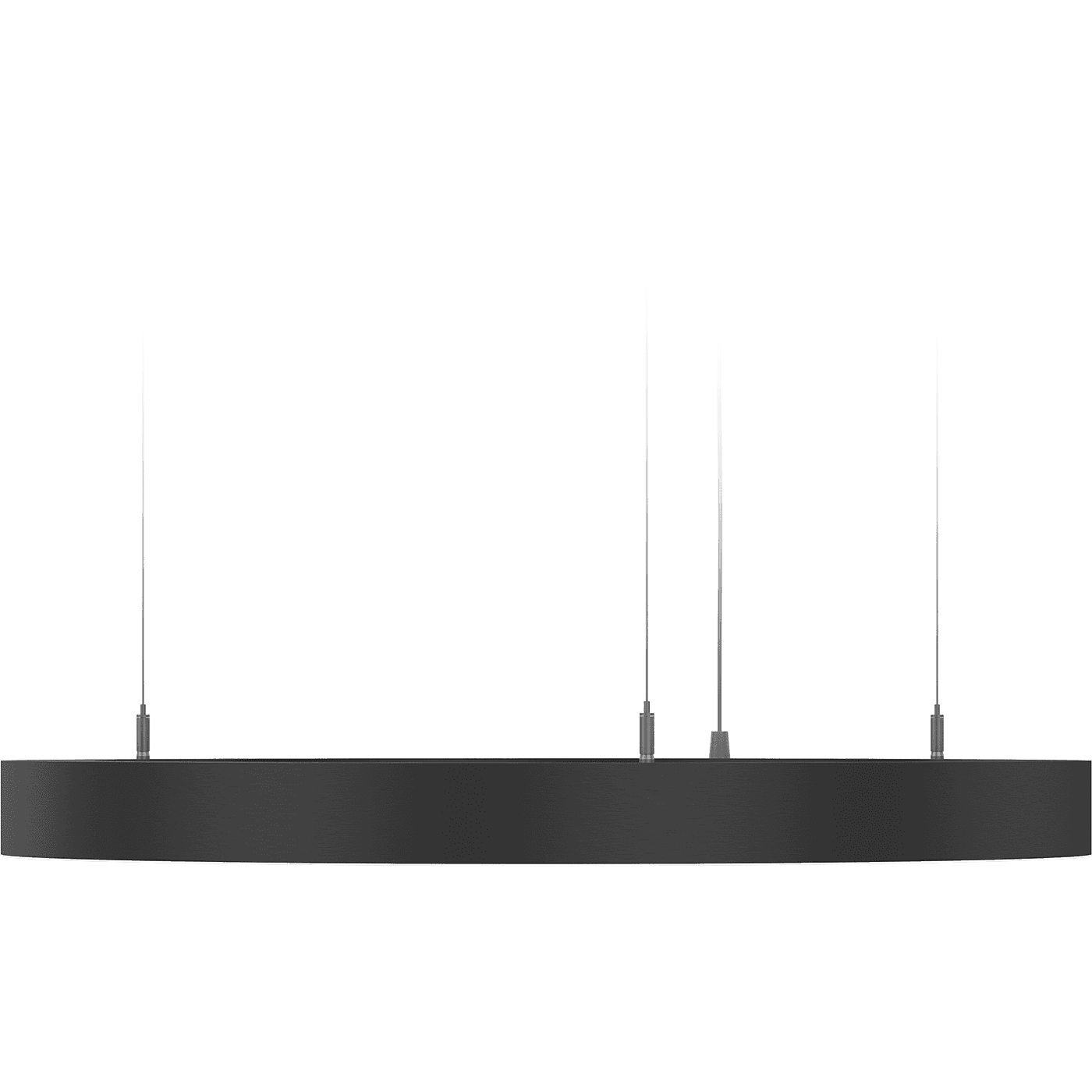

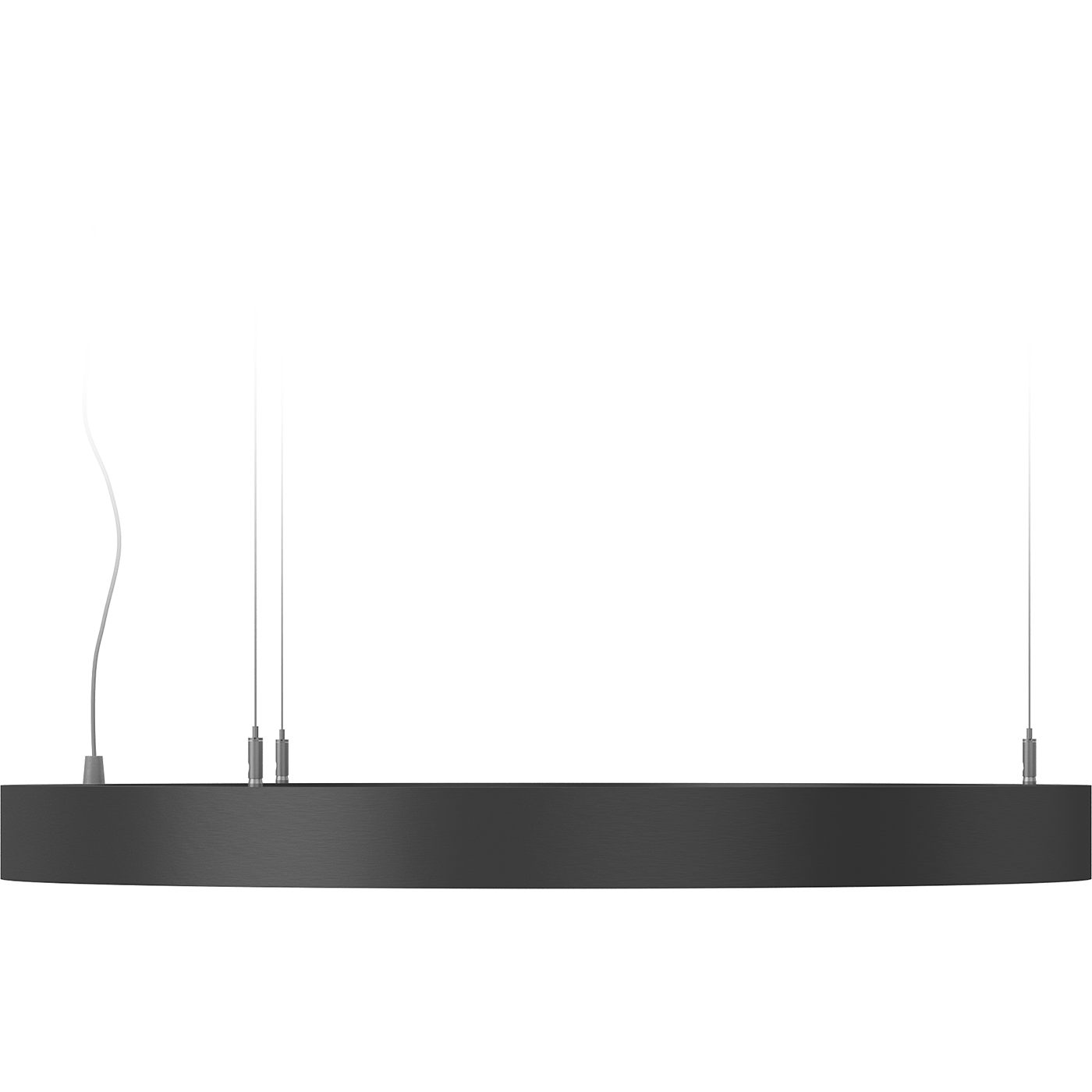

OREOL FLD/P (1750) 840 BL
OREOL FLD/P (1750) 840 BL
112 Wluminaire power
9600 lmlight flow
86 lm/Wenergy efficiency
code
1813001140
color temperature
4000 K
beam angle
D120
old name
OREOL/P FLD (1750) 840 BL
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- suspended
- circles and rings
- frameless
- OREOL FLD/P
- OREOL FLD/P (1750) 840 BL
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
86 lm/Wcolor rendition index (CRI)
>80light flow
9600 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
86 lm/W
color rendition index (CRI)
>80
light flow
9600 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
112 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
diameter
1750 mm
height
60 mm
installation length
1159 mm
installation width
1239 mm
weight
6.5 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Светильник подвесной
warranty
36 month
energy efficiency class
A
code
1813001140
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Комплект подвесов - 1 шт.
model files
model files

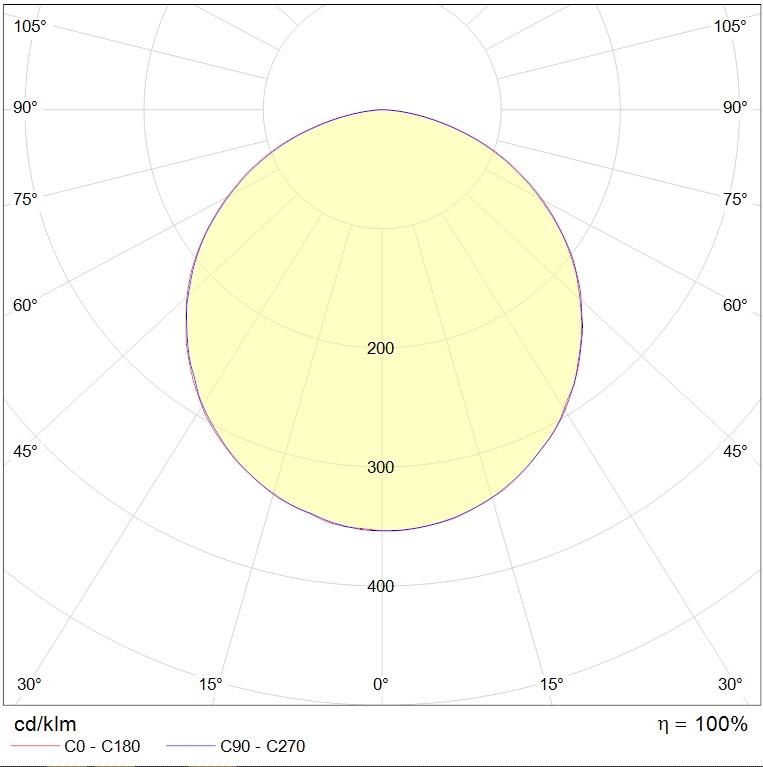

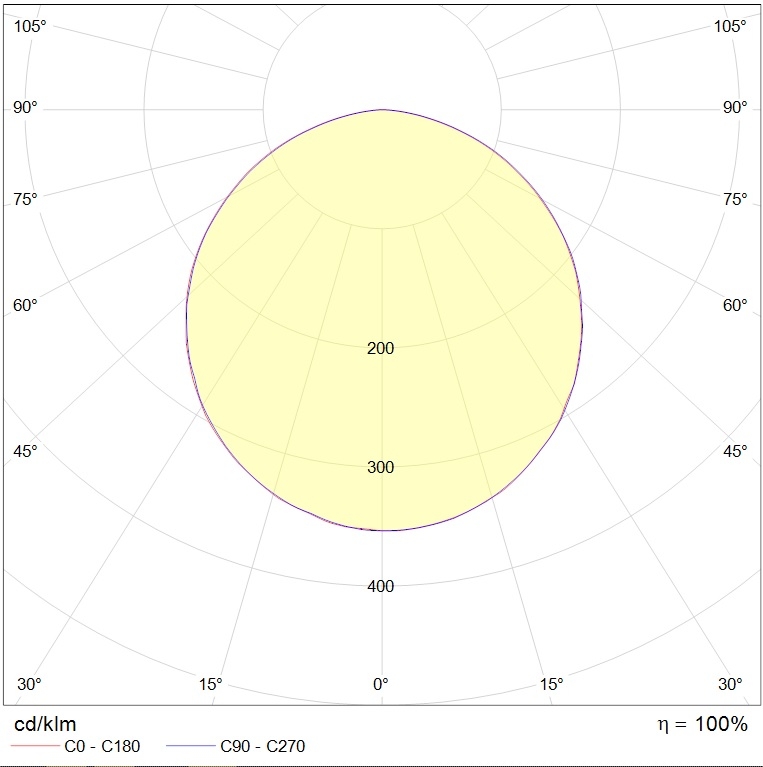

photometric files
сертификаты
photometric files
ies107 kB
jpg75.8 kB
ldt67.2 kB
csv430 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
