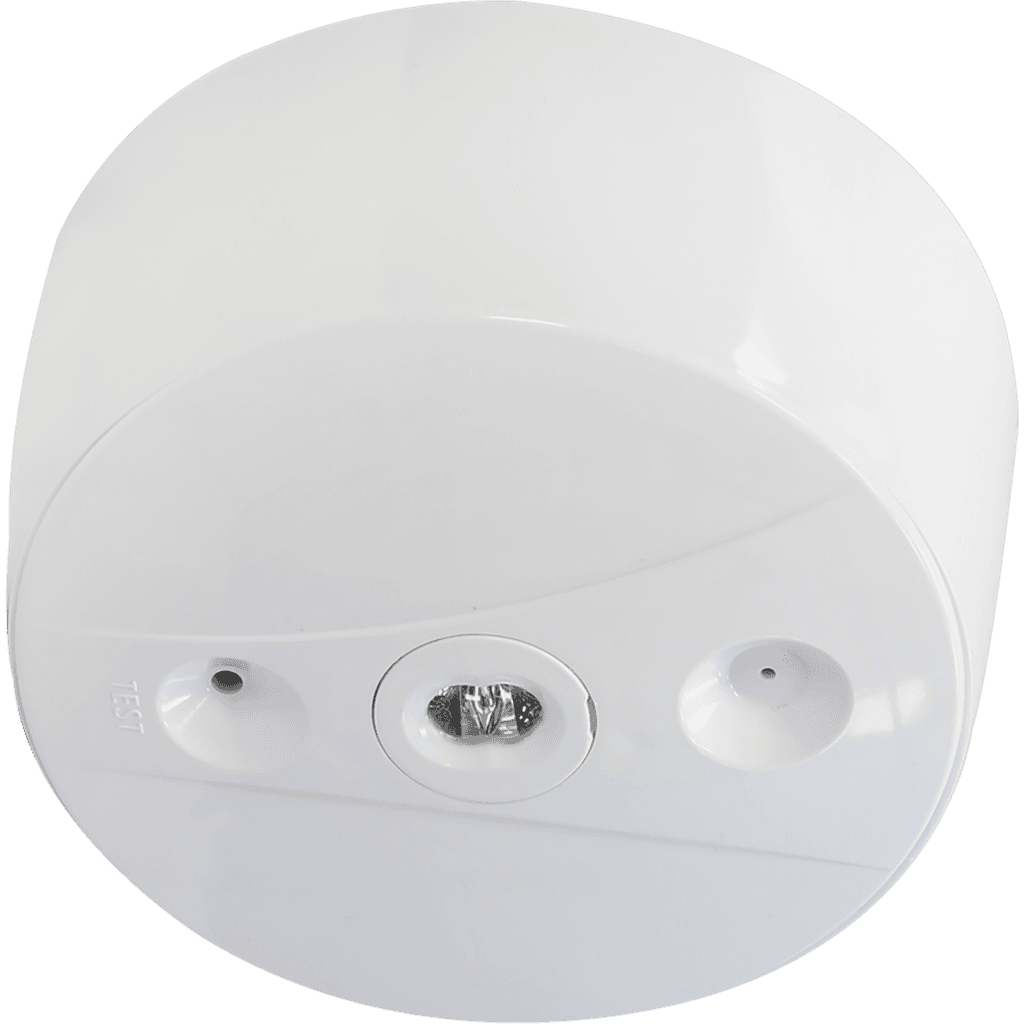

ORBIT 2000-2 LED 24V
ORBIT 2000-2 LED 24V
2 Wluminaire power
Нет аккумулятора battery / battery Ni-Cd
централизованного электропитания type of operation / type of operation of the emergency luminaire
code4502003740
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
200 lmbeam angle
D120light source type
LEDenergy efficiency
100 lm/Wemission color
Белыйilluminating
light flow
200 lm
beam angle
D120
light source type
LED
energy efficiency
100 lm/W
emission color
Белый
electrical
electric shock protection
II
luminaire power
2 W
lamp power
2 W
power factor
> 0,75
supply voltage
24 V
constructional
material
Пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
weight
0.2 kg
diameter
130 mm
installation diameter
100 mm
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
emergency
battery / battery Ni-Cd
Нет аккумулятора
type of operation / type of operation of the emergency luminaire
централизованного электропитания
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A++
code
4502003740
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg79.4 kB
ldt173.9 kB
documents
passport306.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016291.1 kB
