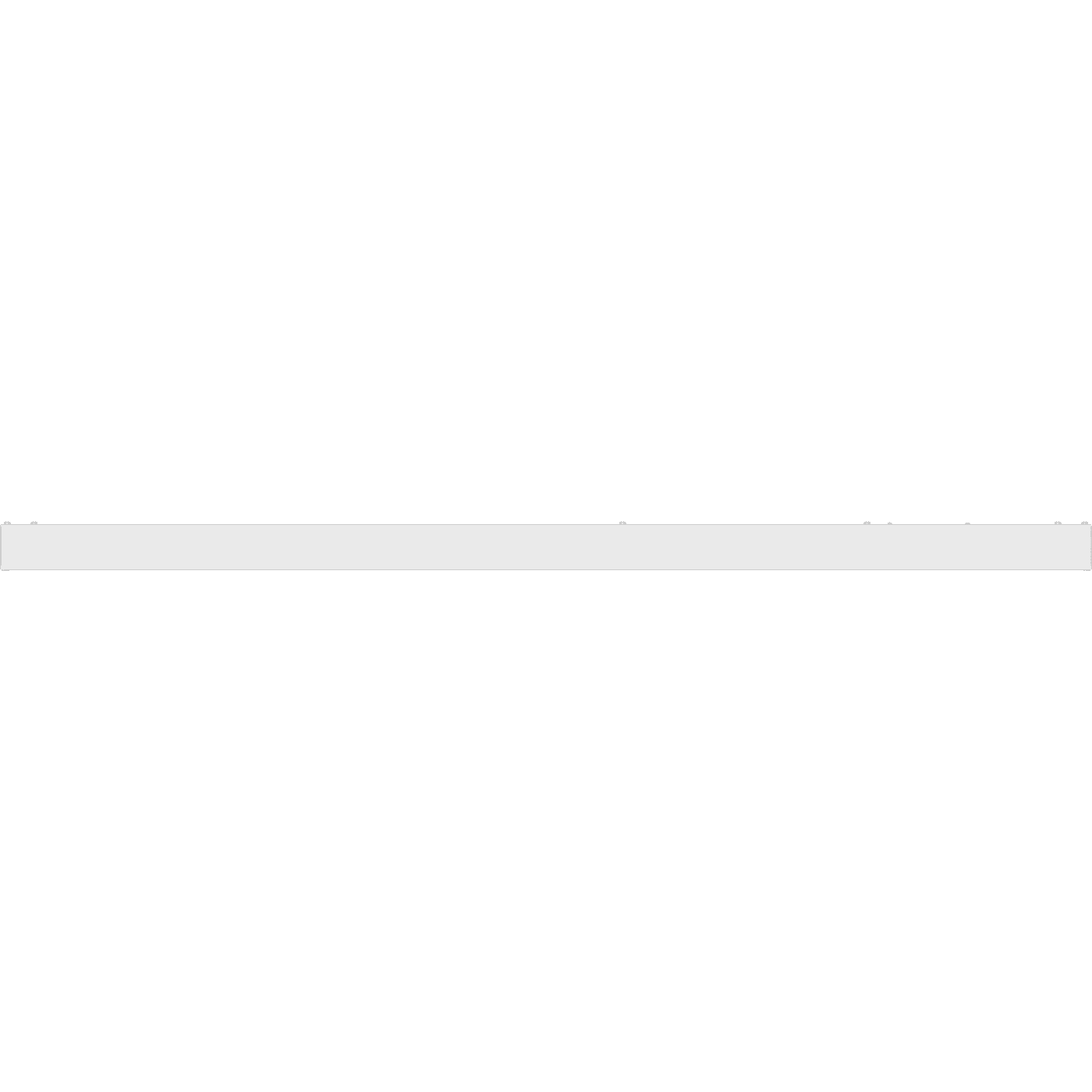

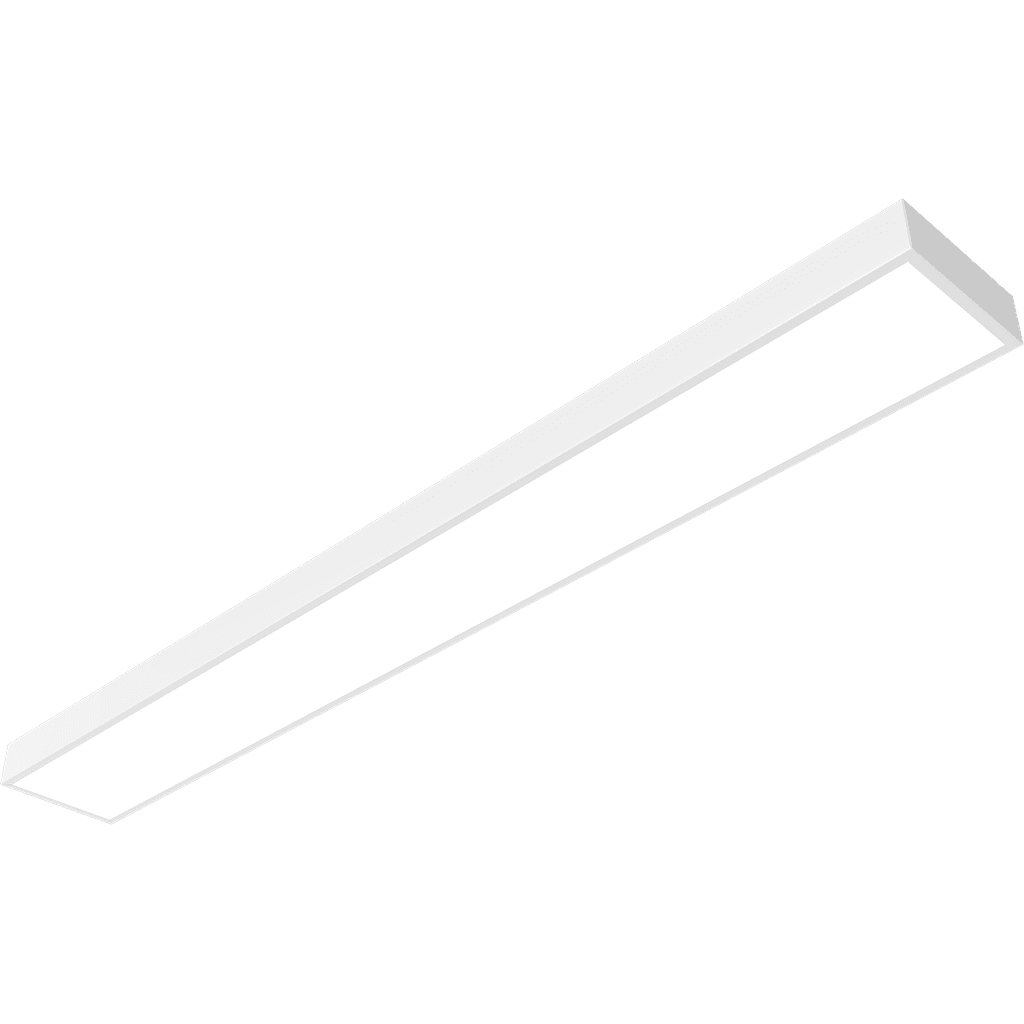

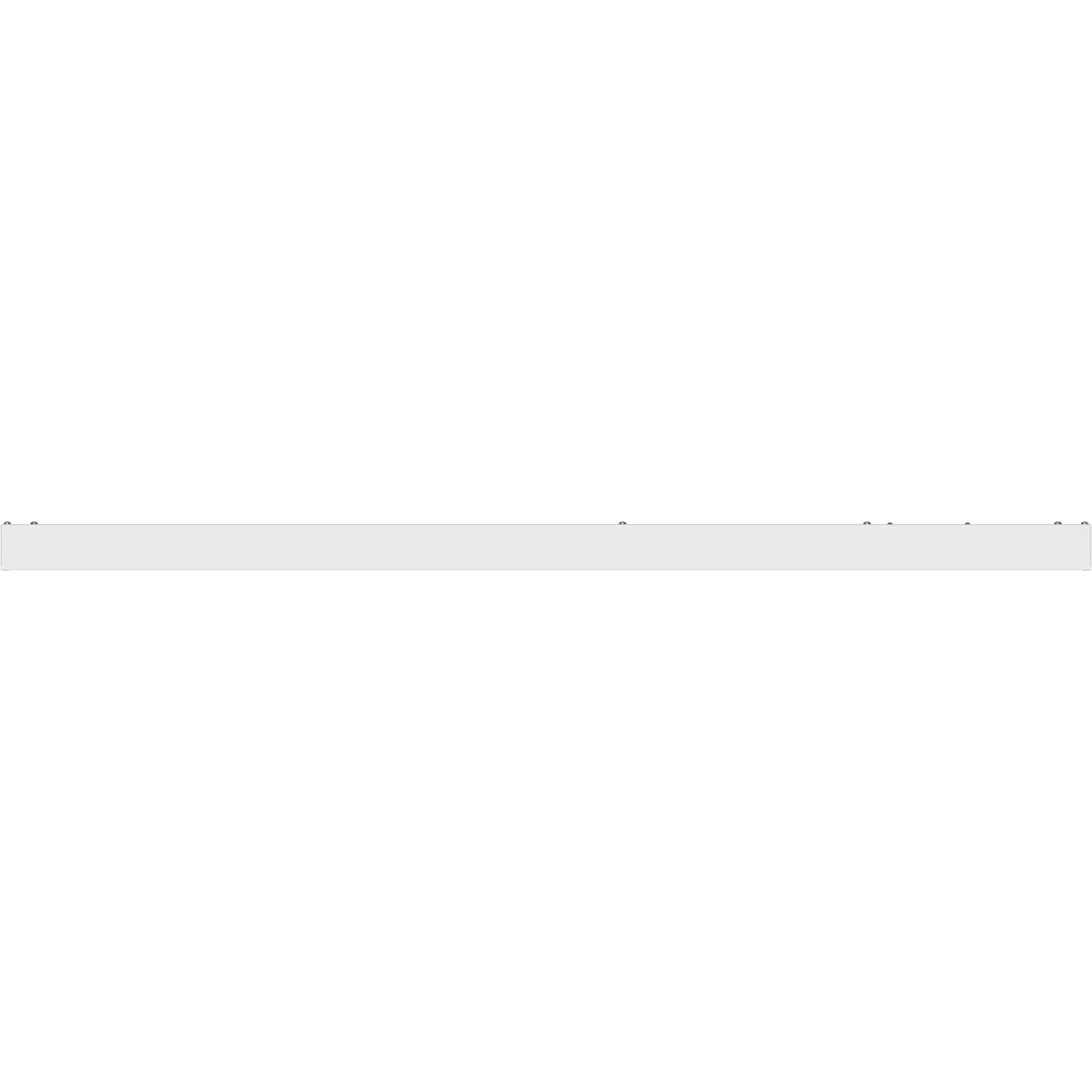

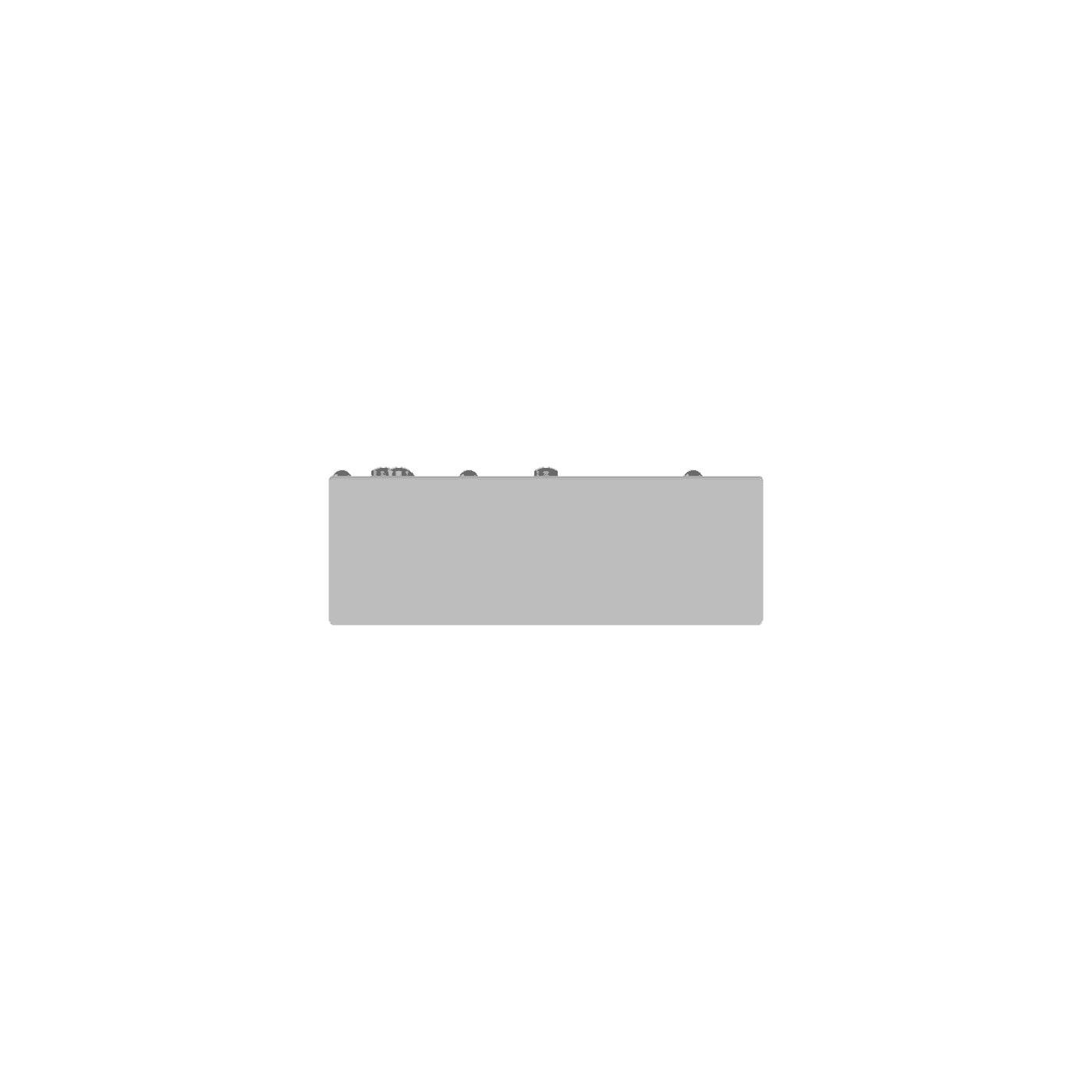

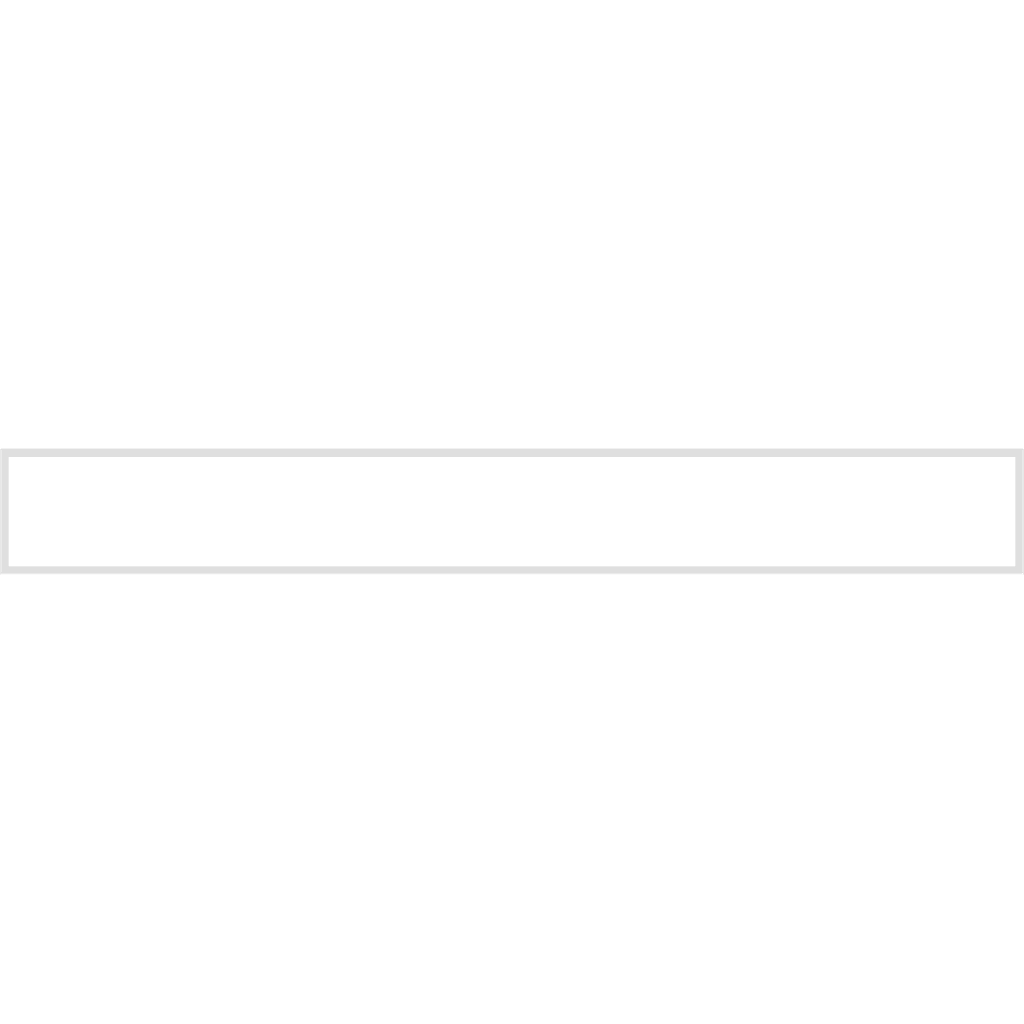

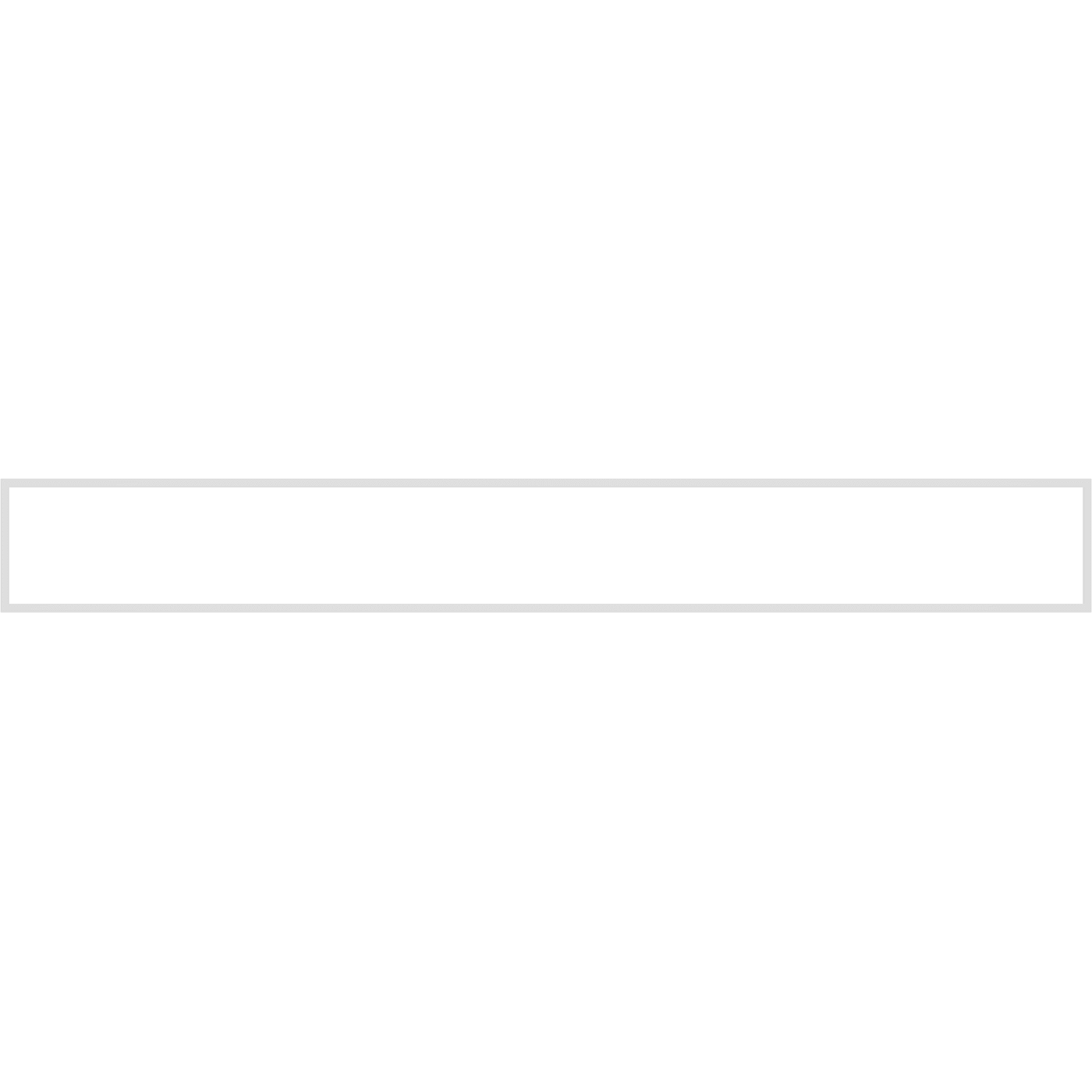

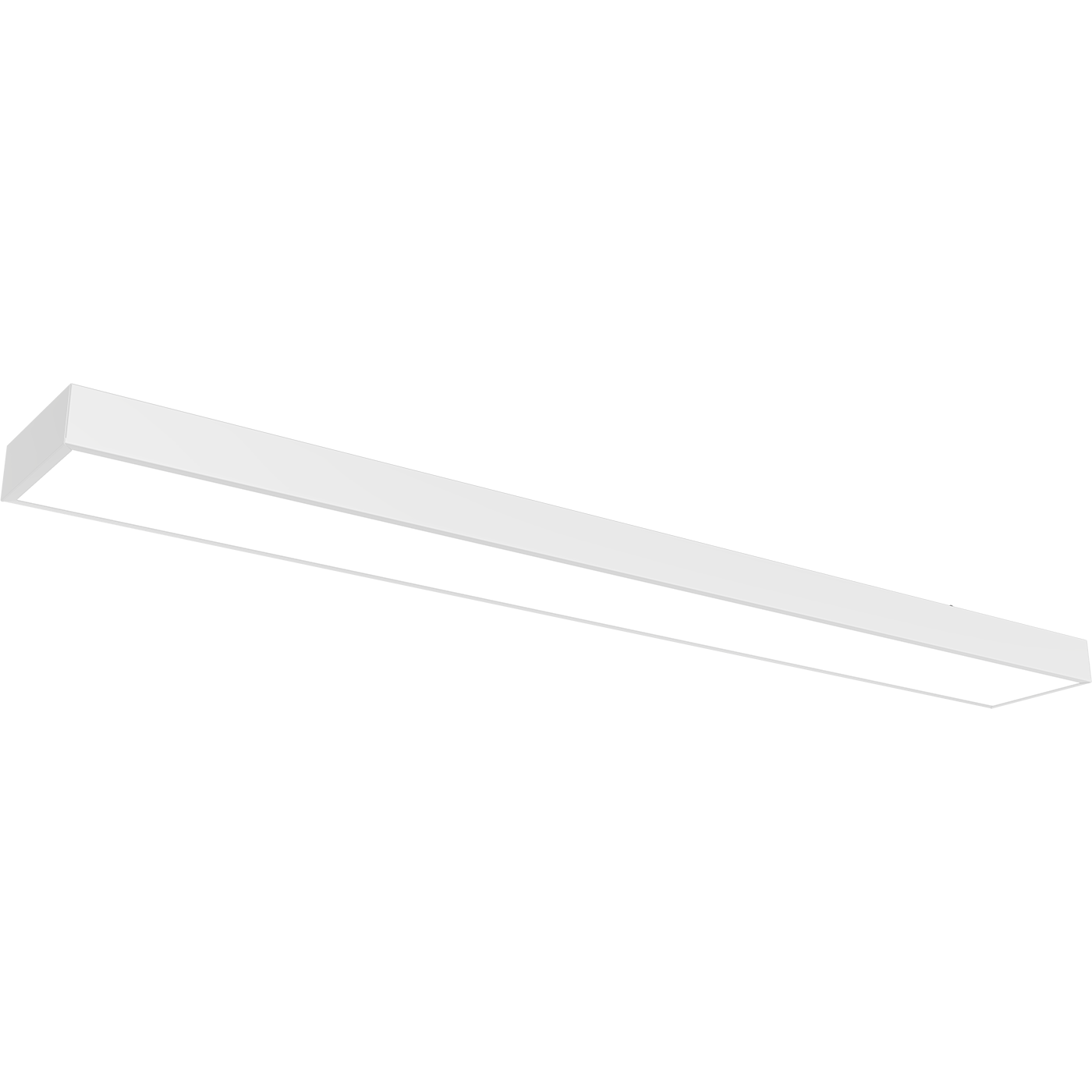

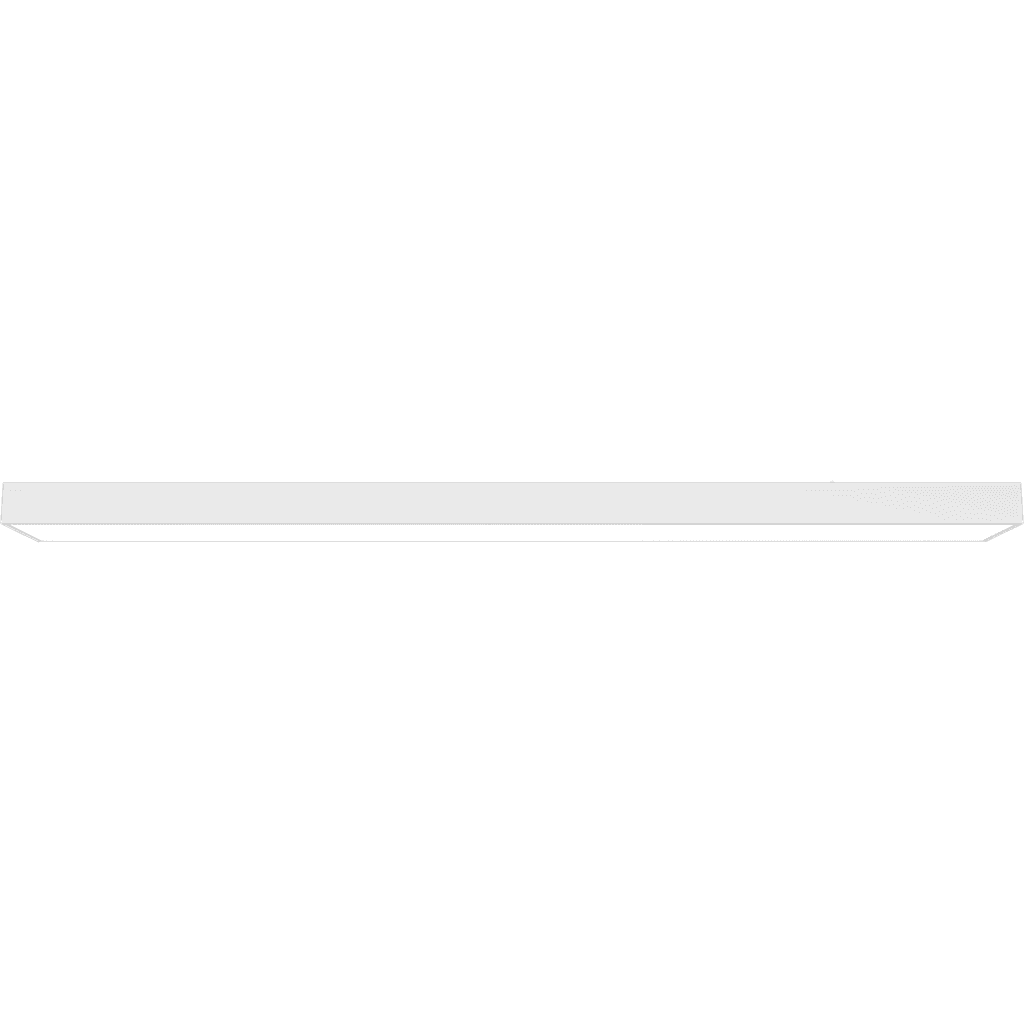

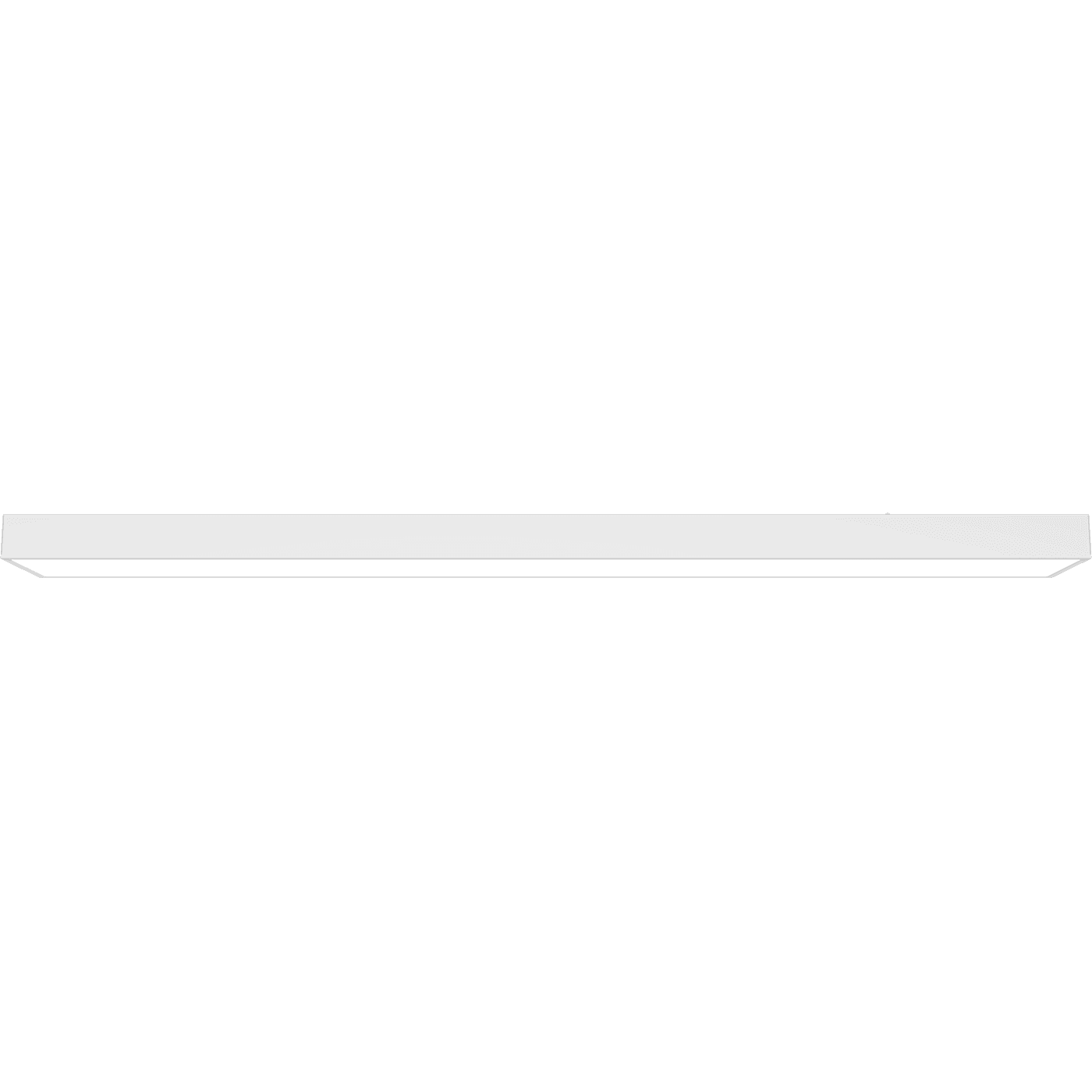

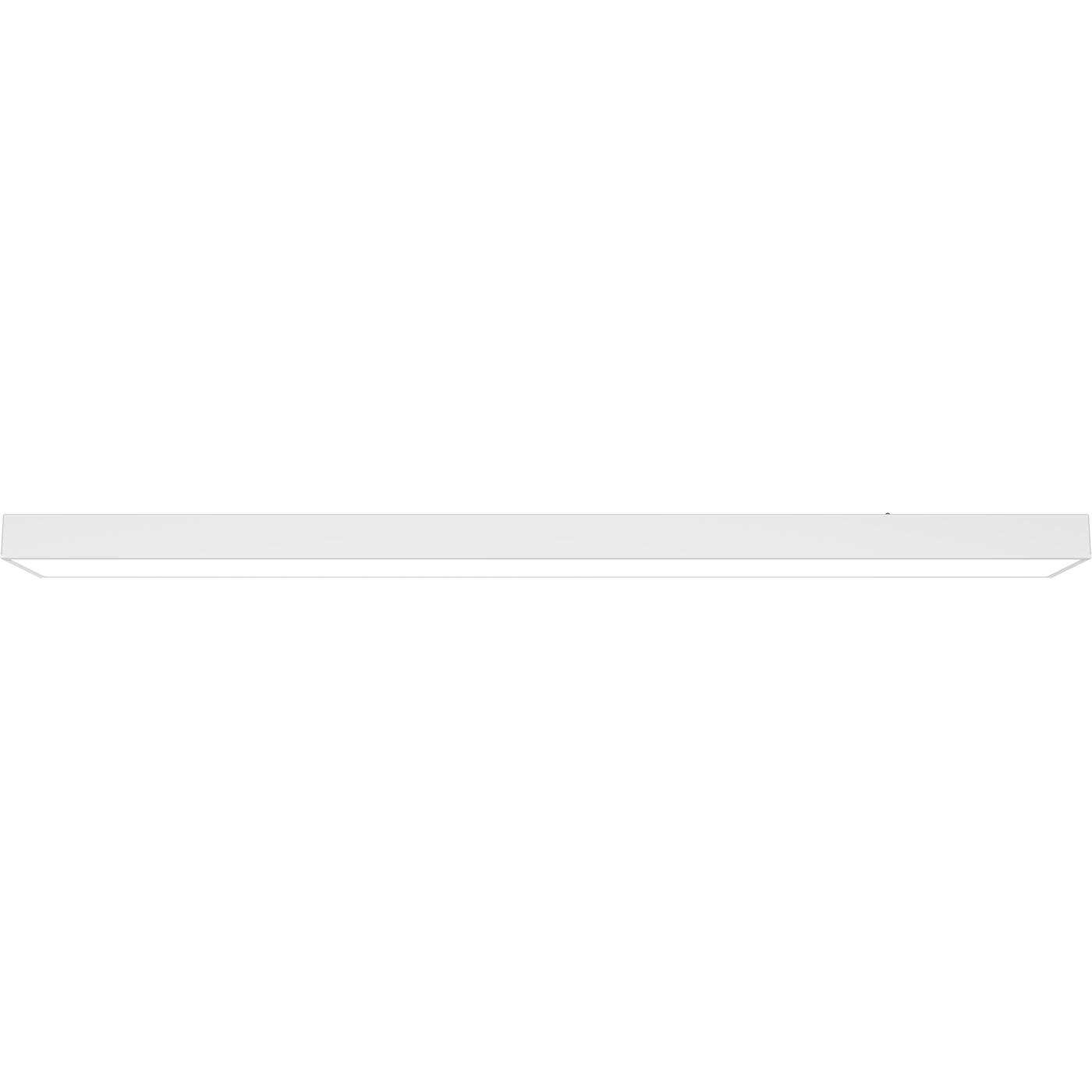

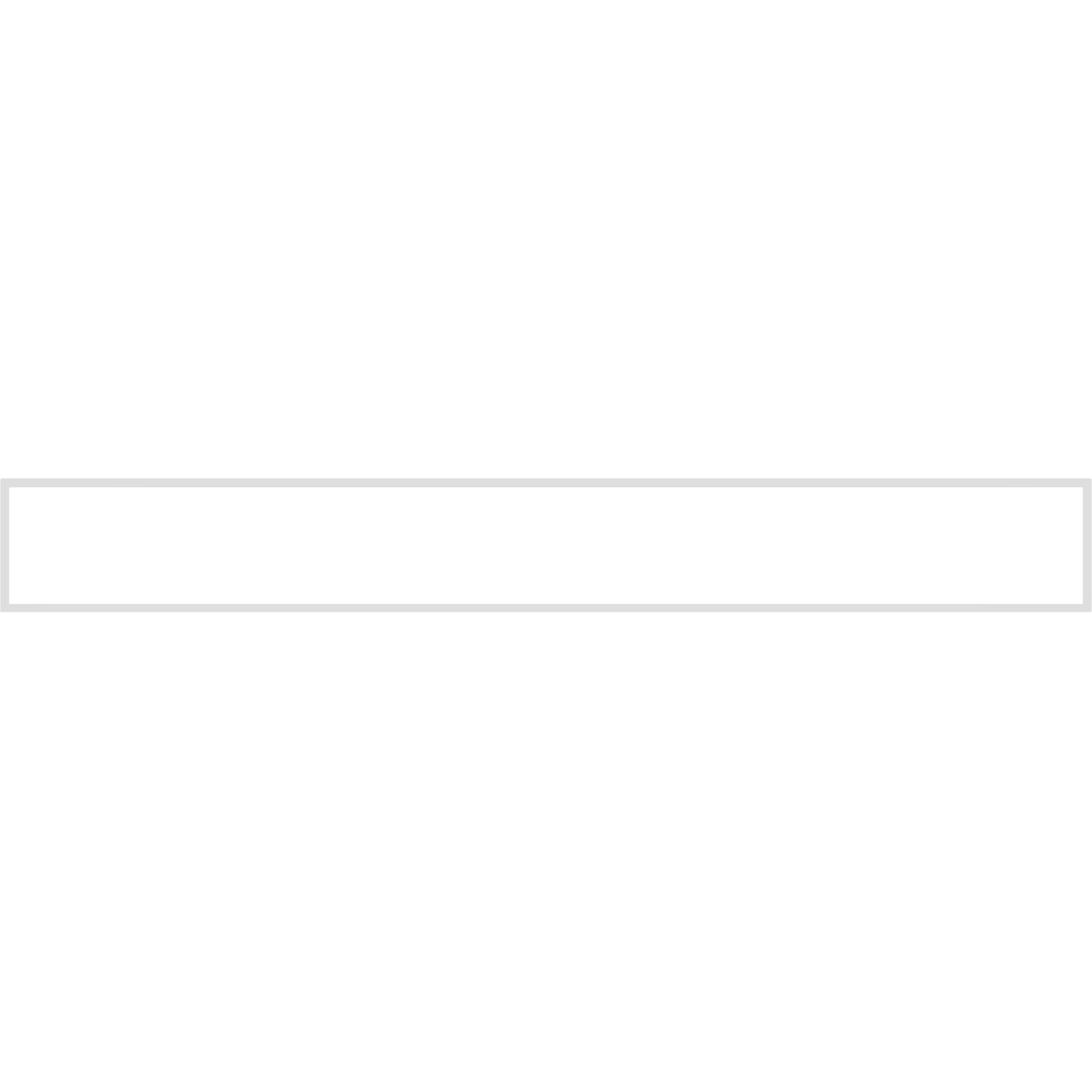

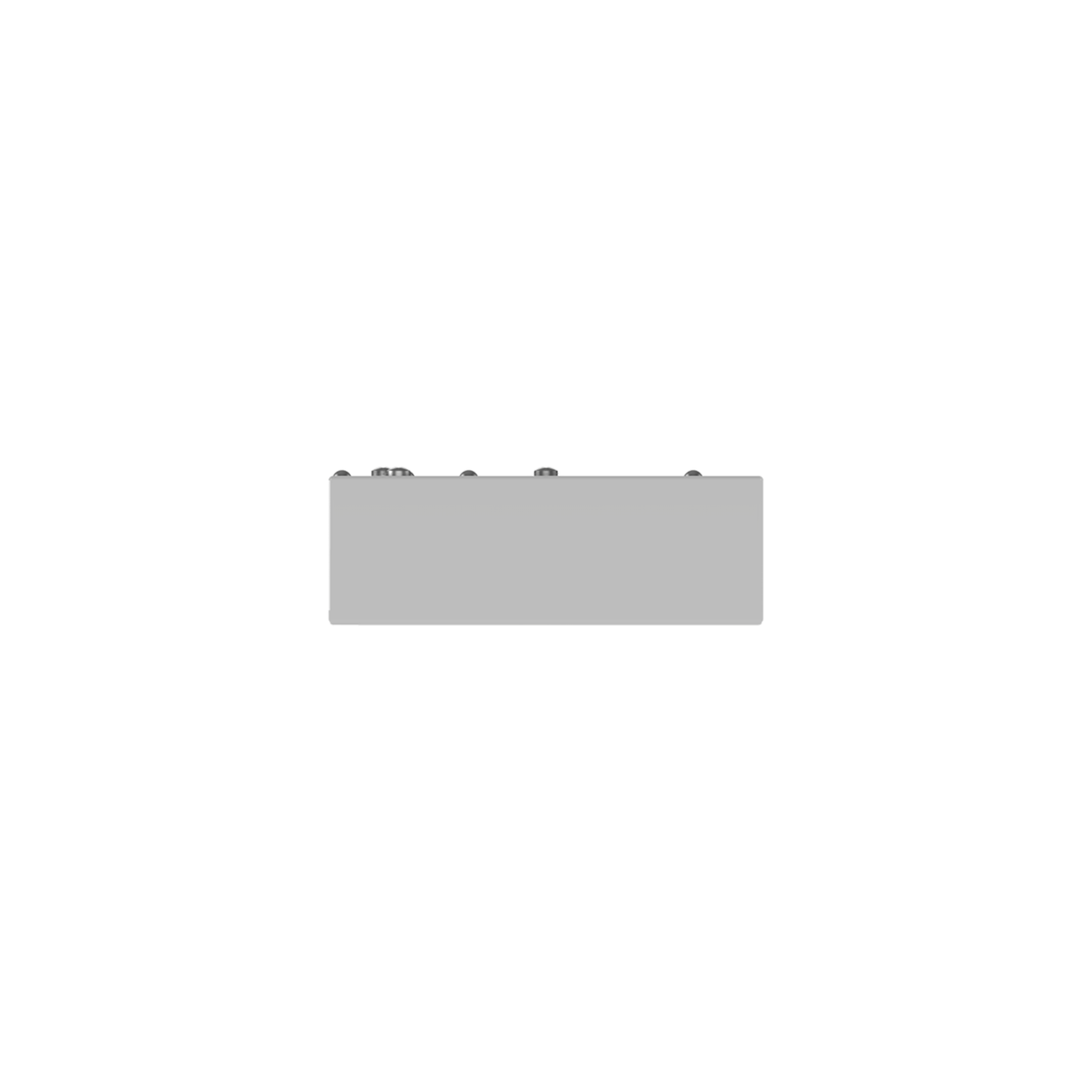

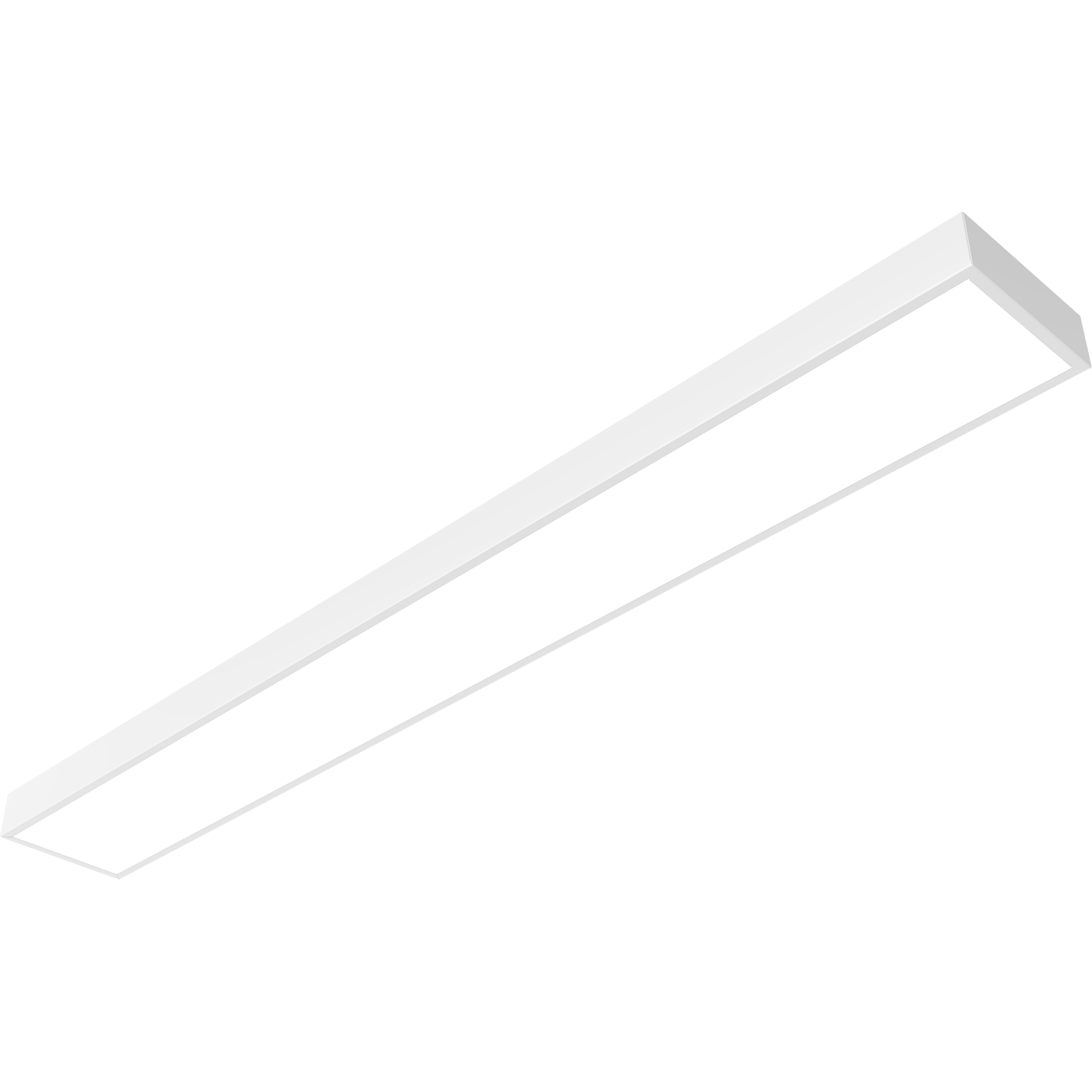

OPTIMA.OPL ECO LED 1200x100 4000K

зарегистрирована в реестре российской промышленной продукции
OPTIMA.OPL ECO LED 1200x100 4000K
add to favorites
18 Wluminaire power
2000 lmlight flow
111 lm/Wenergy efficiency
code
1166000850
number from the register of Russian industrial products
10746835
color temperature
4000 K
beam angle
D120
performance factor
100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. without IP protection
  7. OPTIMA ECO LED
  8. OPTIMA.OPL ECO LED 1200x100 4000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
111 lm/W
color rendition index (CRI)
>80
light flow
2000 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
111 lm/W
color rendition index (CRI)
>80
light flow
2000 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
luminaire power
18 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1197 mm
width
96 mm
height
51 mm
installation length
1140 mm
weight
2.1 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
material
Сталь
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
battery / battery Ni-Cd
Нет аккумулятора
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1166000850
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт. Опора пластиковая RTX - 1 компл.
model files
model files

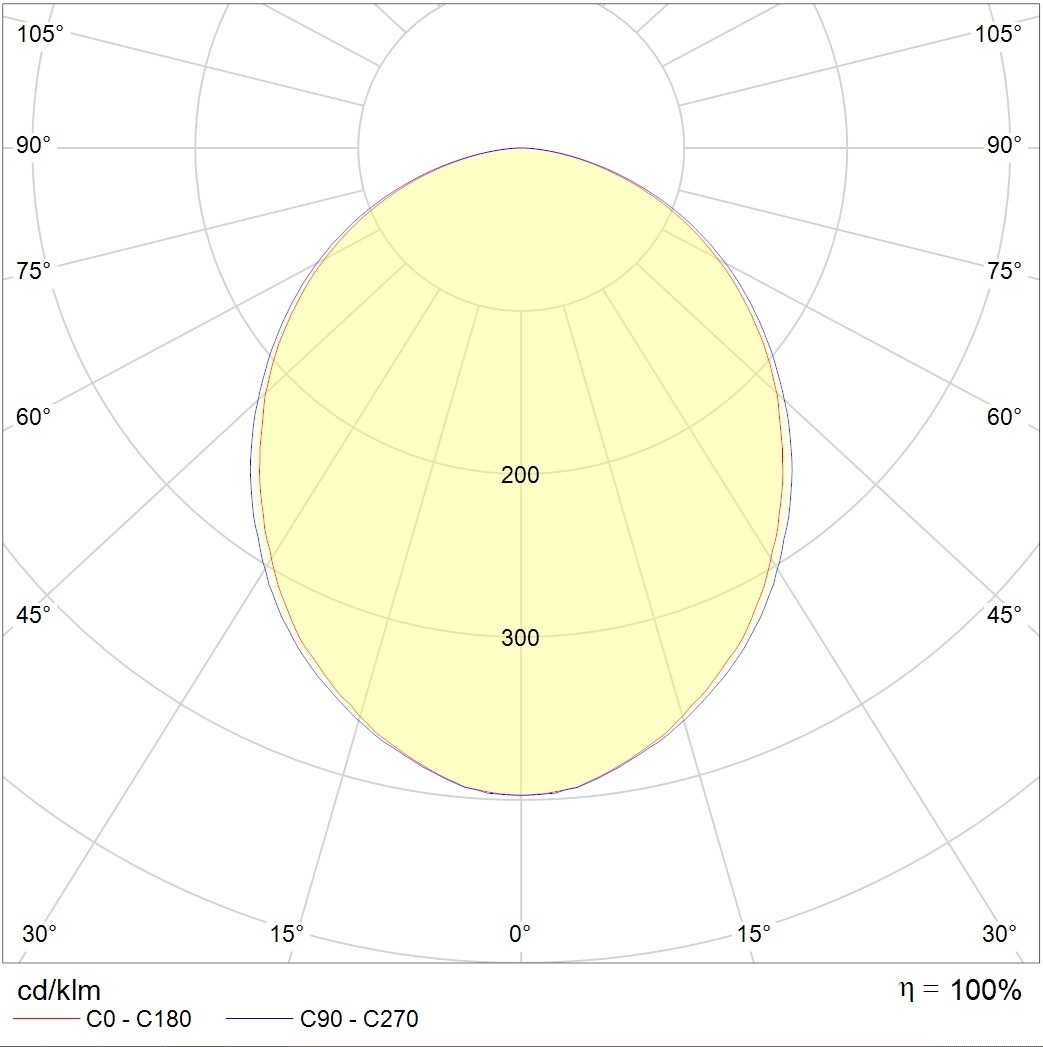

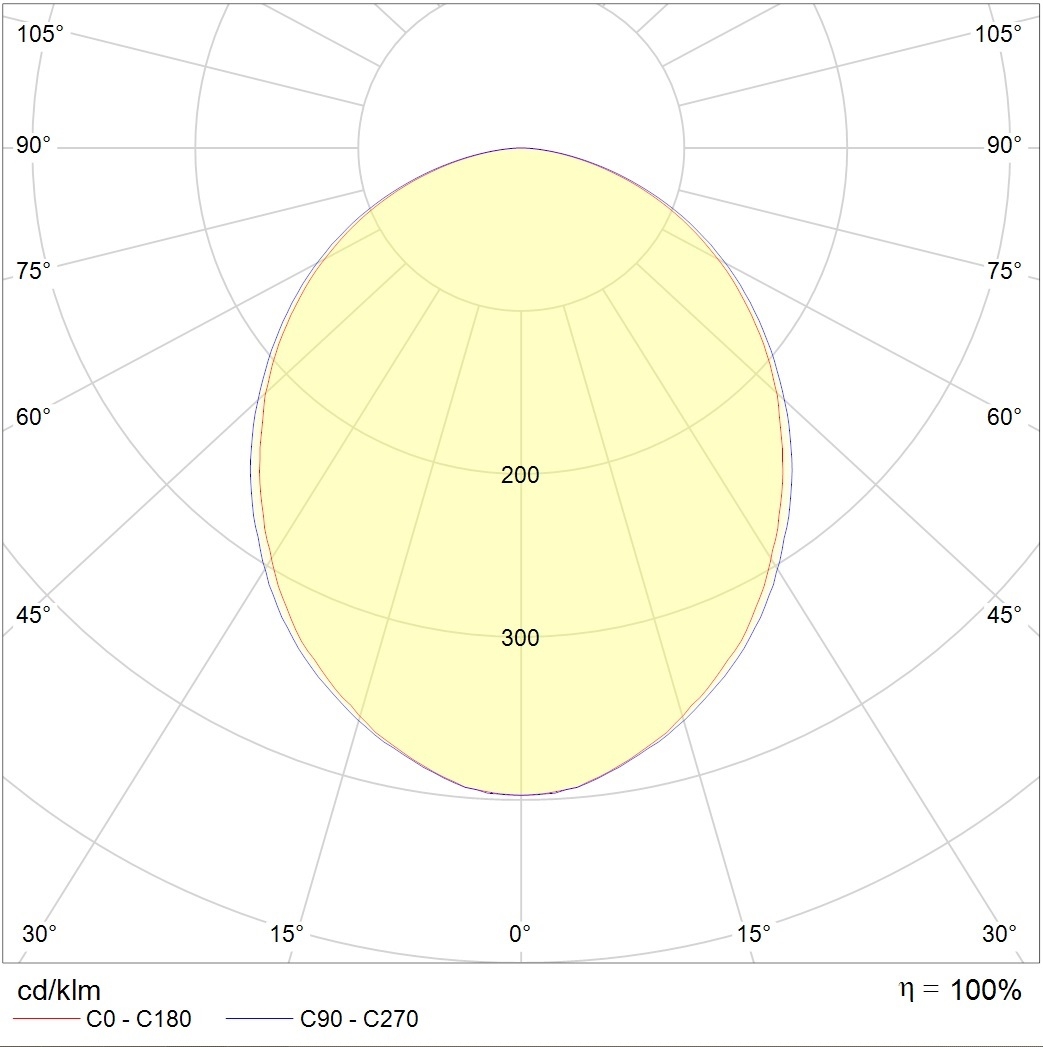

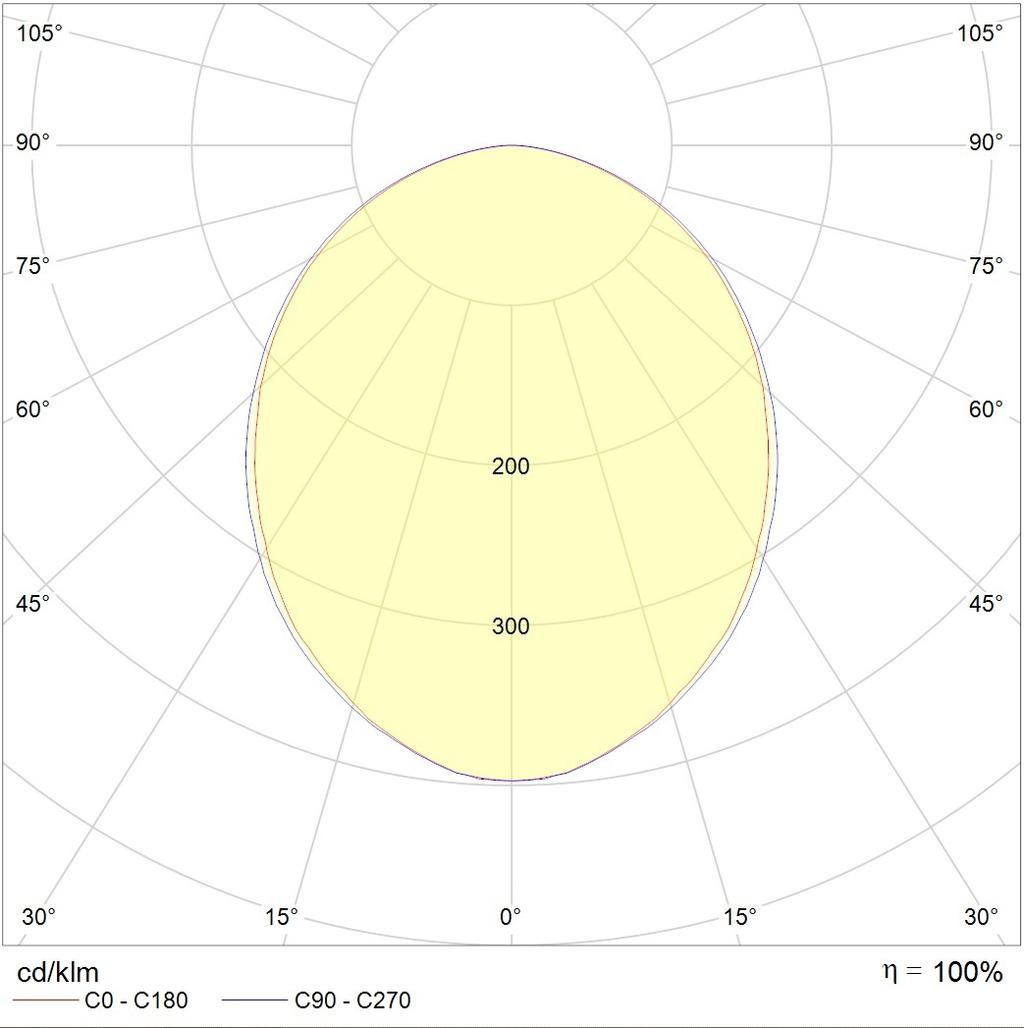

photometric files
ies134.1 kB
jpg118.1 kB
ldt83.4 kB
csv441 B
documents
passport1.5 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011506.8 kB
Declaration of Conformity EAEU TR 037/2016500.4 kB
photometric files
ies134.1 kB
jpg118.1 kB
ldt83.4 kB
csv441 B
documents
passport1.5 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011506.8 kB
Declaration of Conformity EAEU TR 037/2016500.4 kB
