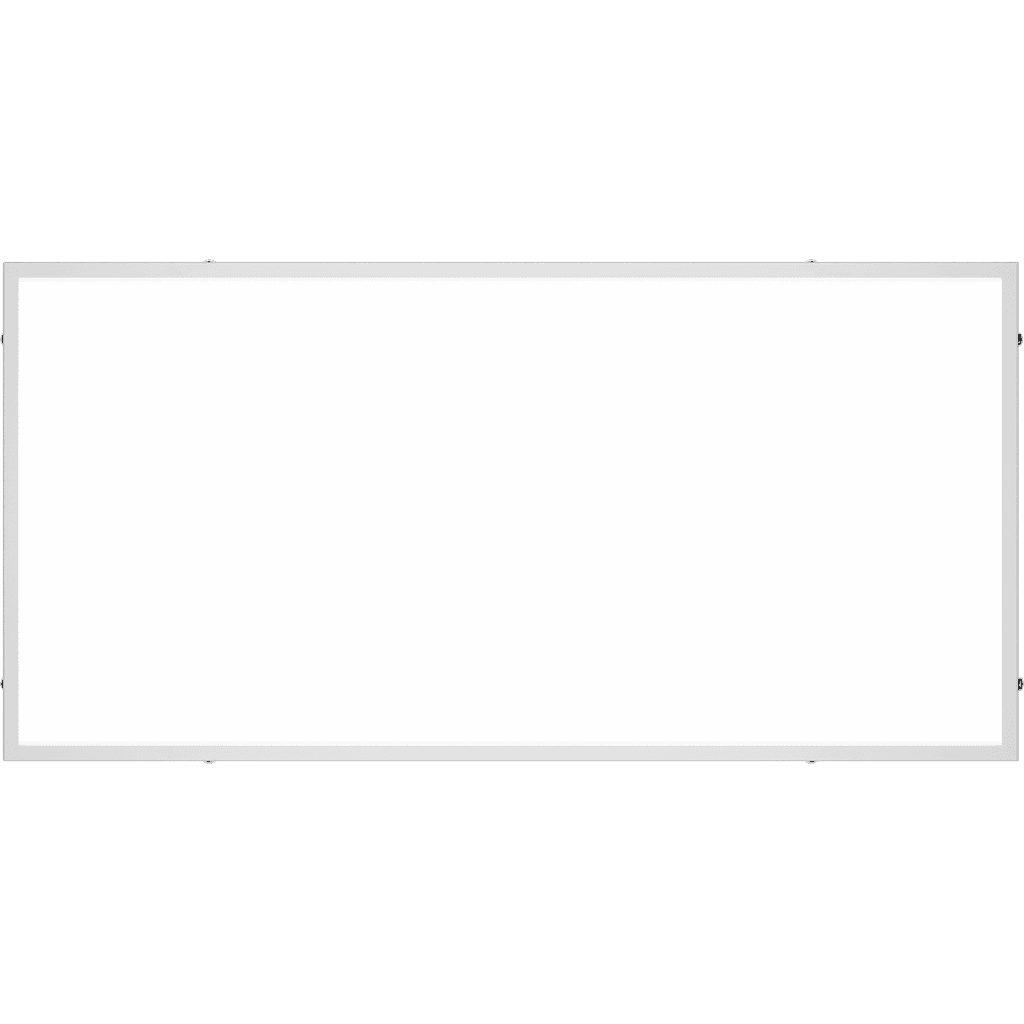

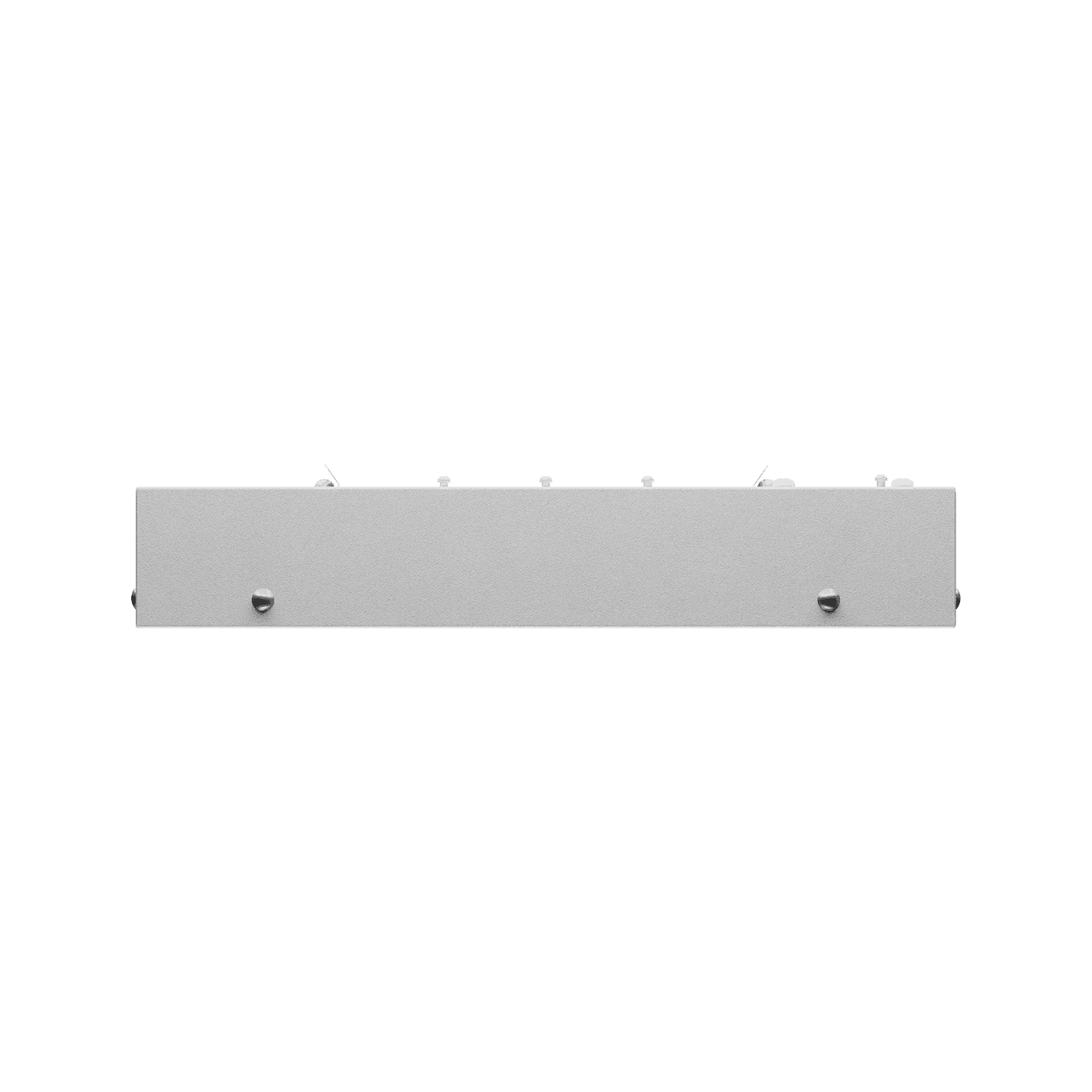

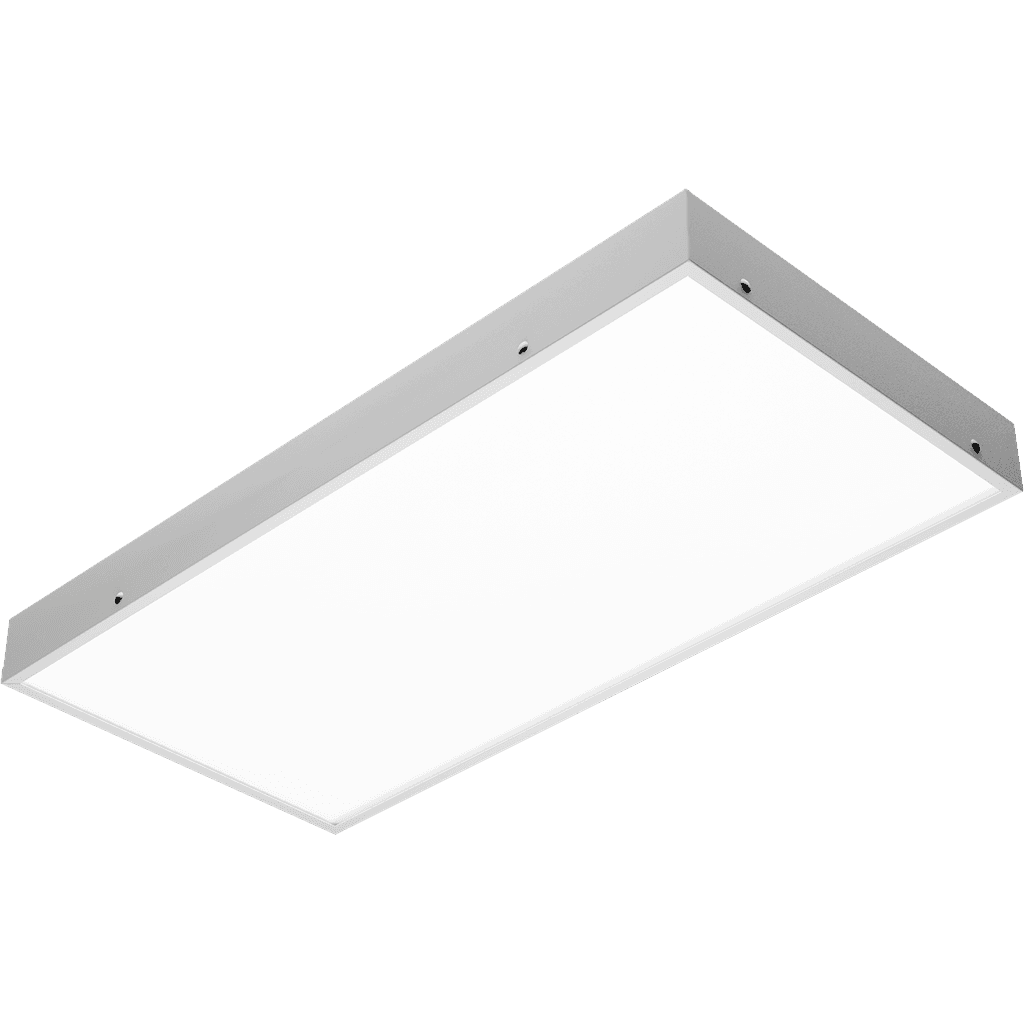

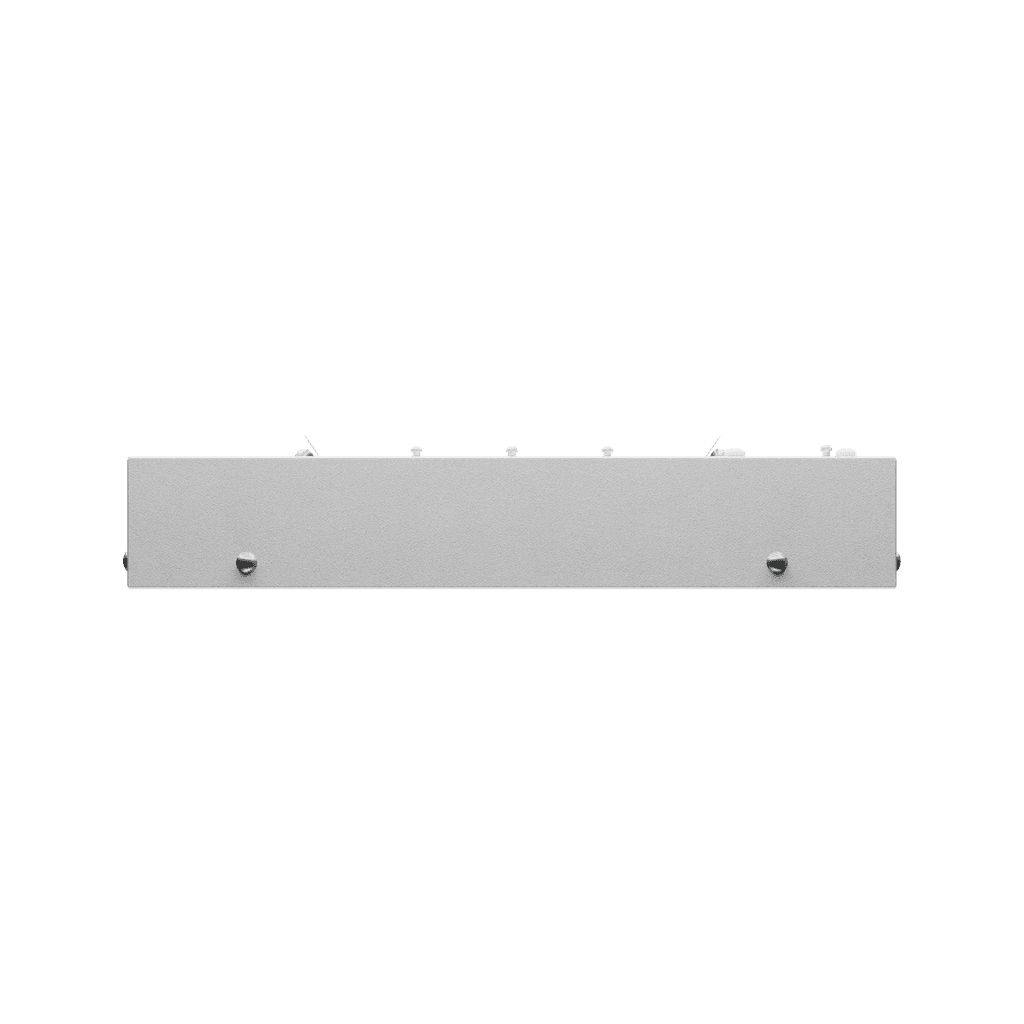

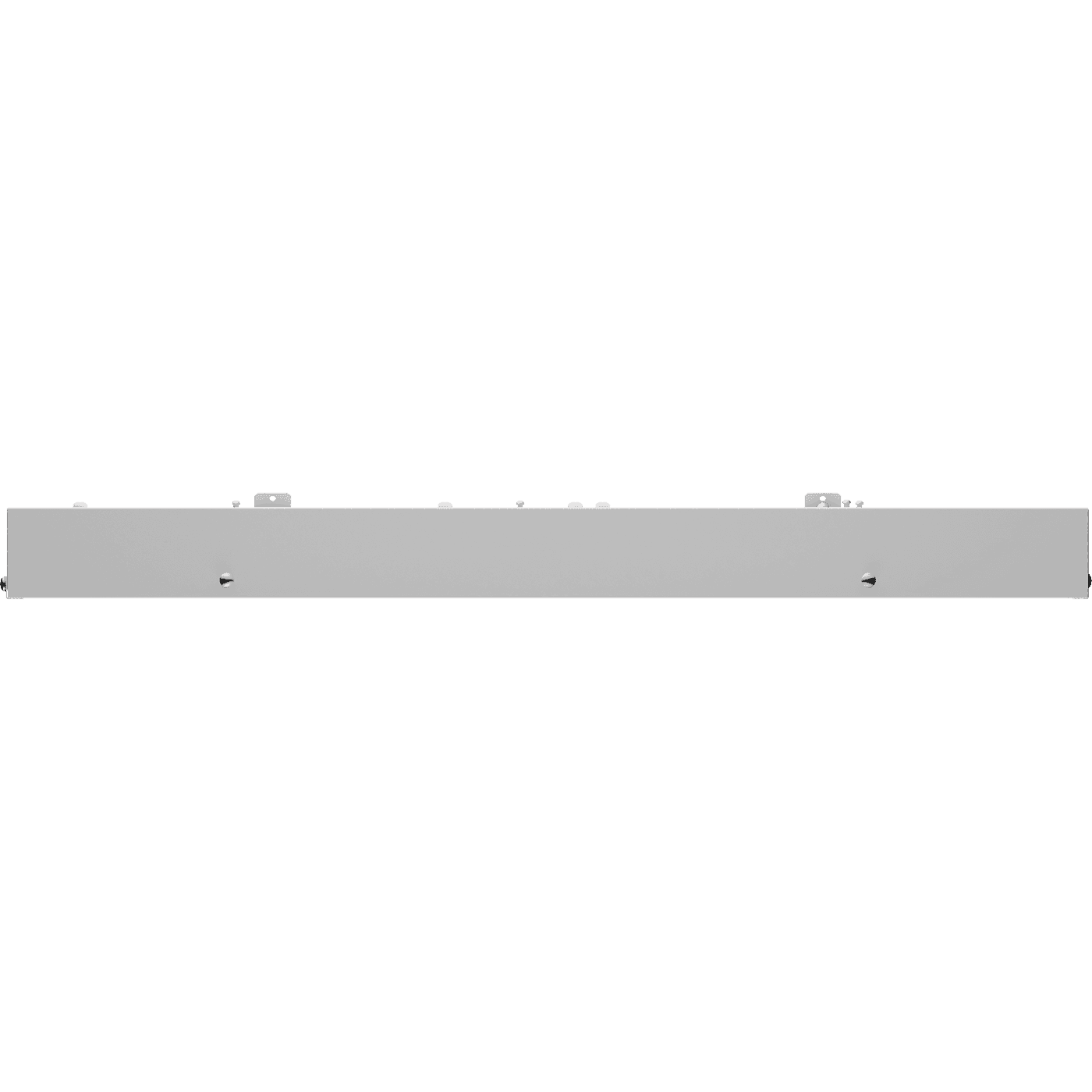

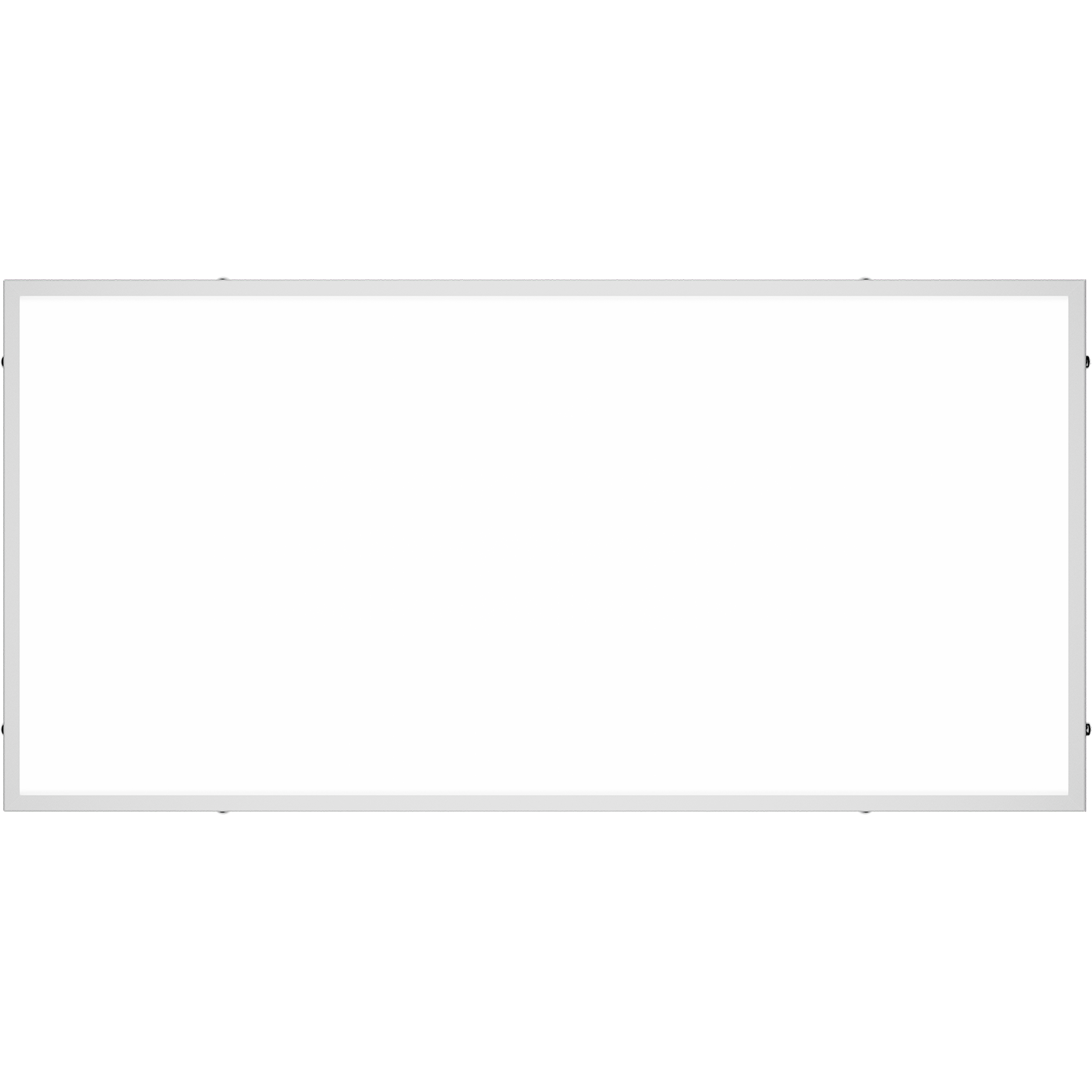

OPTIMA.OPL ECO LED 300 4000K CRI90 SCHOOL
OPTIMA.OPL ECO LED 300 4000K CRI90 SCHOOL
18 Wluminaire power
1800 lmlight flow
100 lm/Wenergy efficiency
code1166002140
color temperature4000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
18 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
18 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
material
Сталь
housing color
Белый
length, mm
596 mm
width, mm
296 mm
height, mm
50 mm
weight
2.3 kg
climatic performance
УХЛ4*
installation length, mm
456 mm
installation width, mm
50 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1166002140
energy efficiency class
A+
illuminating
color rendition index (CRI)
>90
light flow
1800 lm
flickering factor
<1%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
100 lm/W
model files
model files

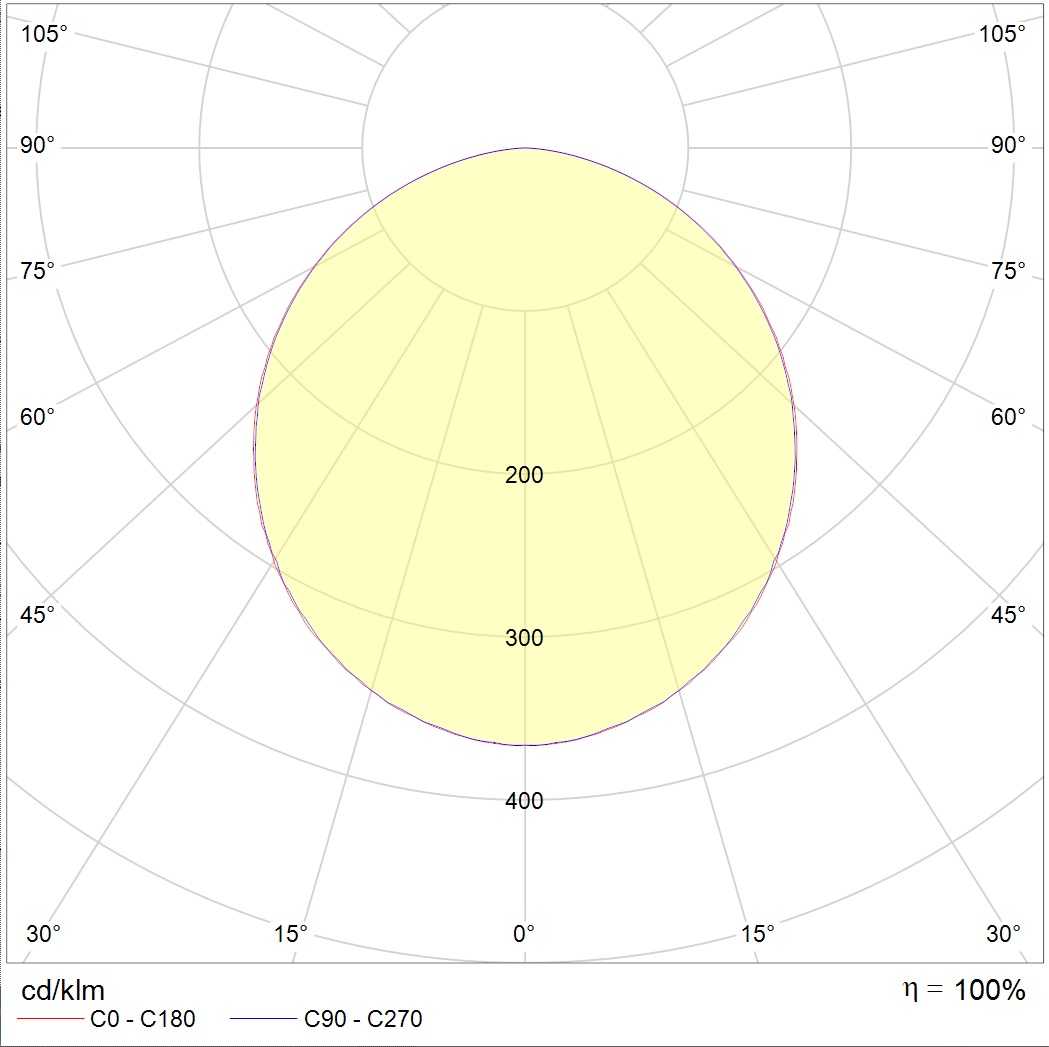

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg122.1 kB
ldt83.5 kB
csv435 B
documents
passport1.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
