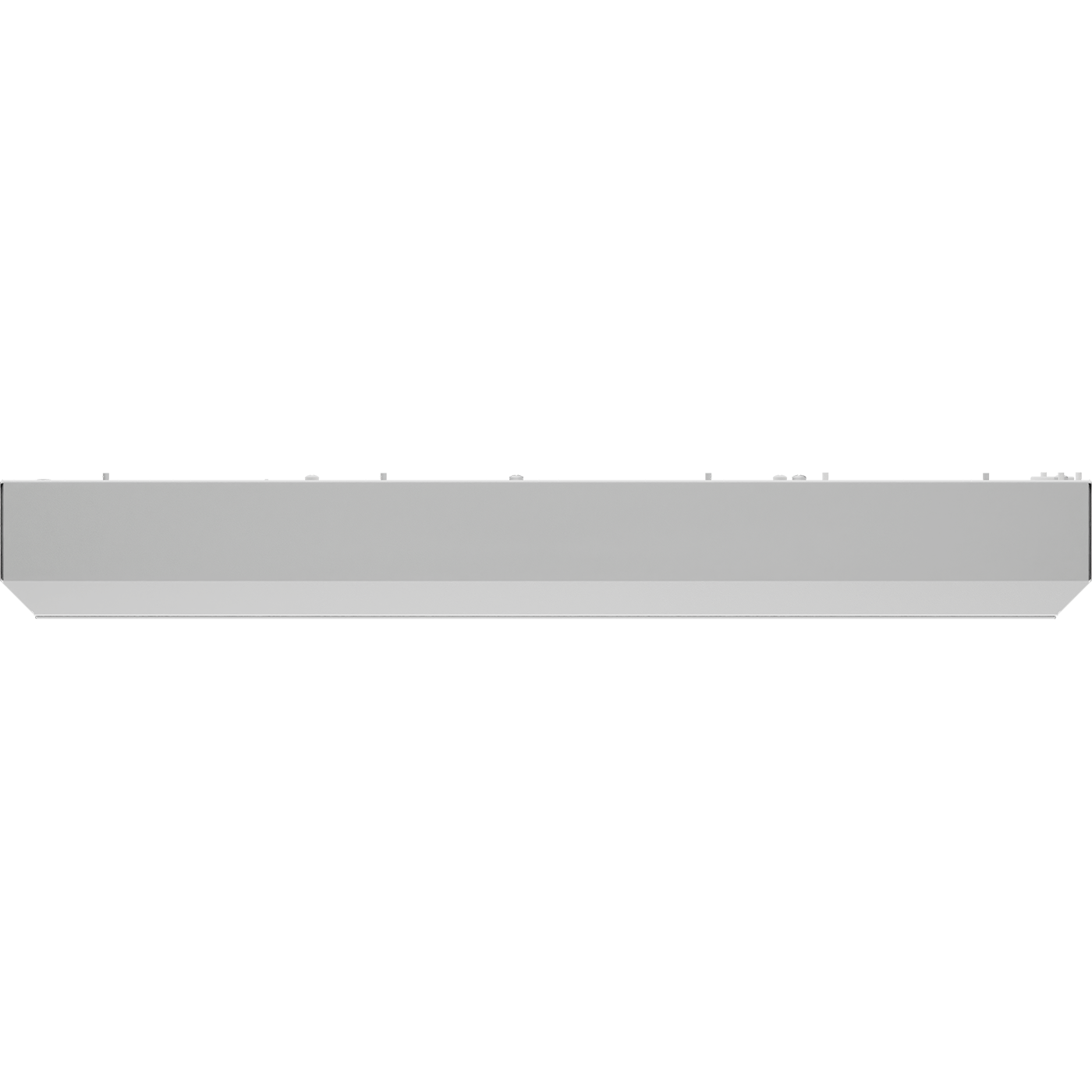

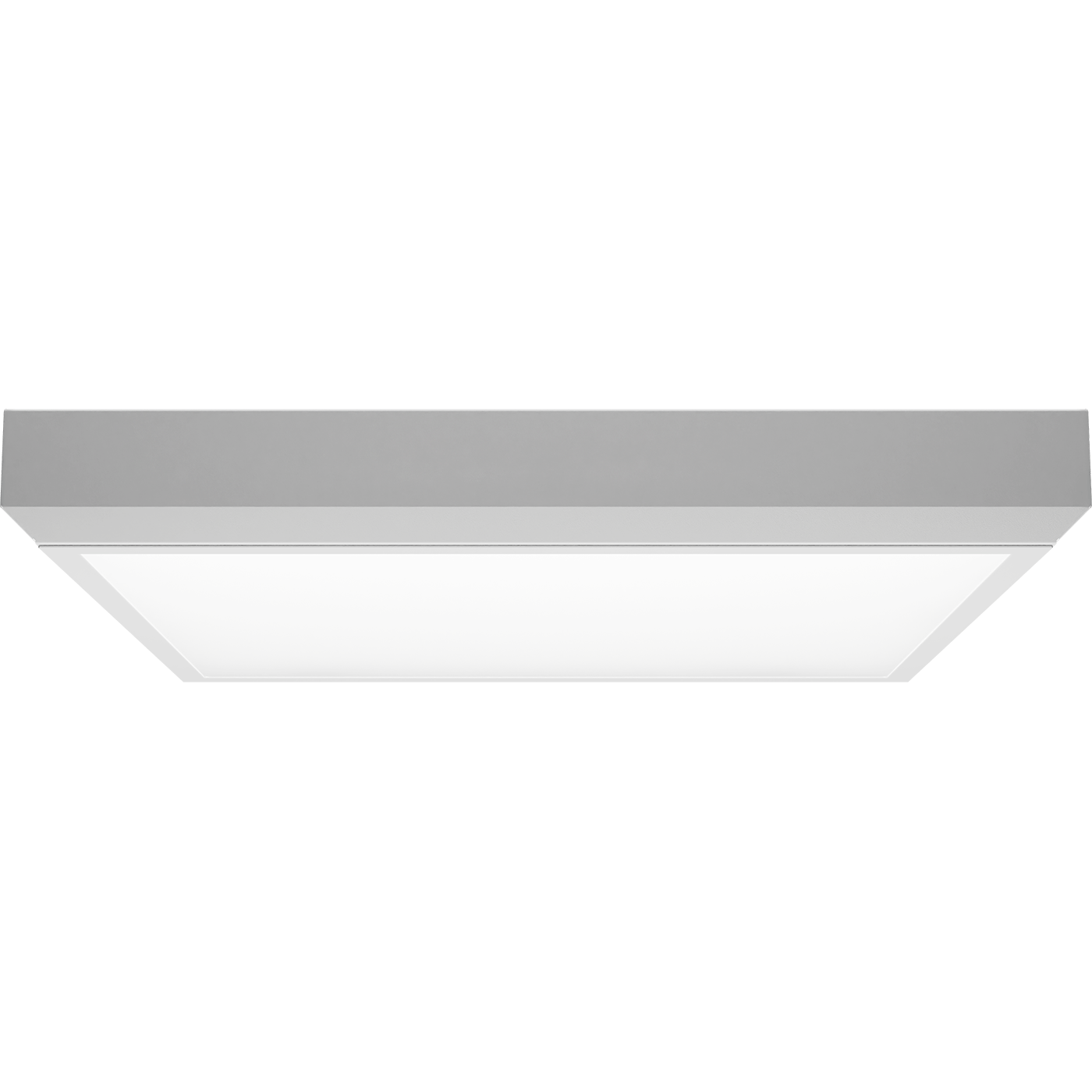

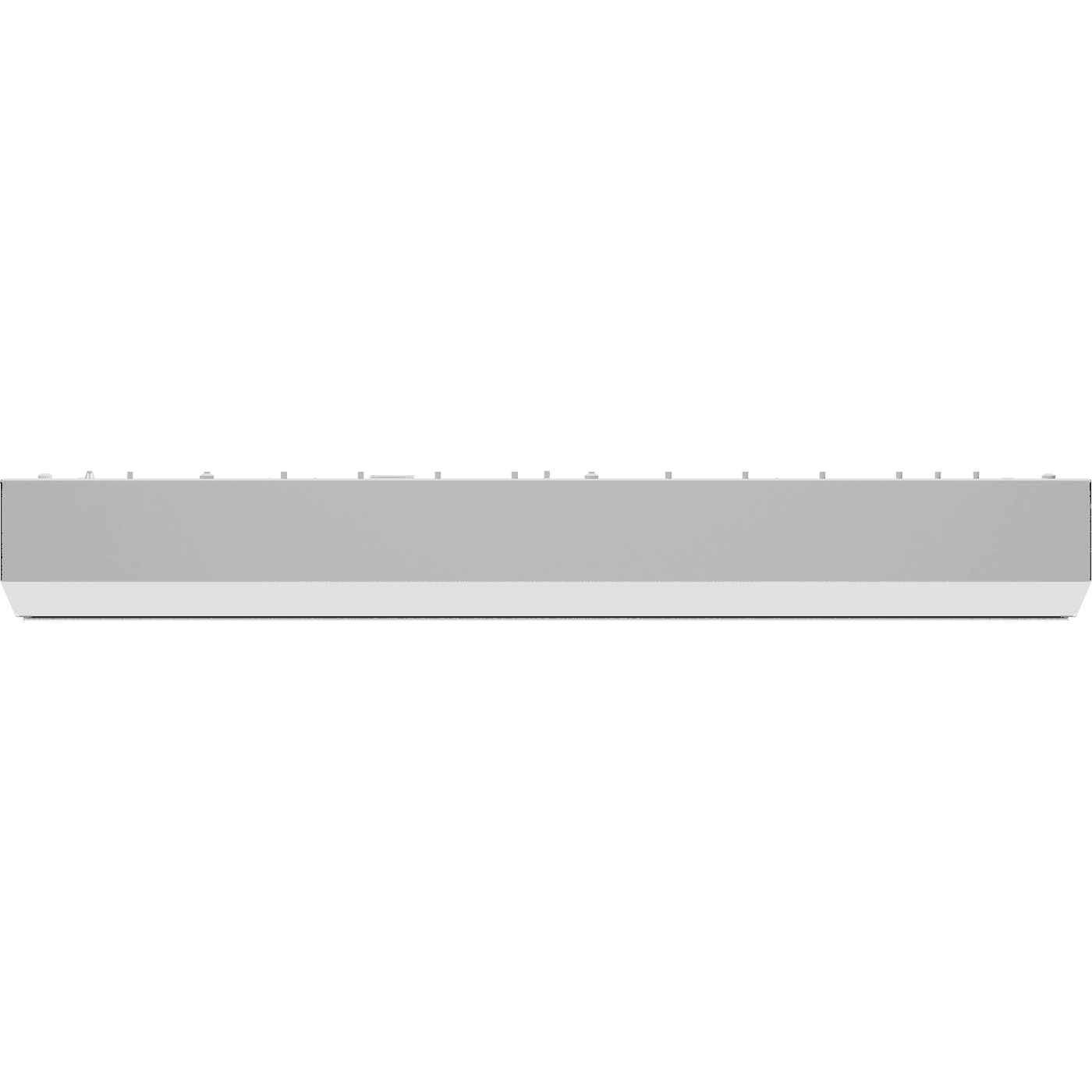

OPL/S 418 (w/o driver)
archive
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
archive
OPL/S 418 (w/o driver)
72 Wluminaire power
1350 lmlight flow
36 lm/Wenergy efficiency
code1057000800
number of lamps4
performance factor48
options
свернуть все
electricalconstructionalcommonilluminating
starting current
10 Aluminaire power
72 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
10 A
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
4.4 kg
length, mm
625 mm
width, mm
610 mm
height, mm
80 mm
housing color
Белый
installation length, mm
420 mm
installation width, mm
420 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
4
ballast
Без драйвера
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
30 000 h
code
1057000800
illuminating
light flow
1350 lm
flickering factor
<5%
energy efficiency
36 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files

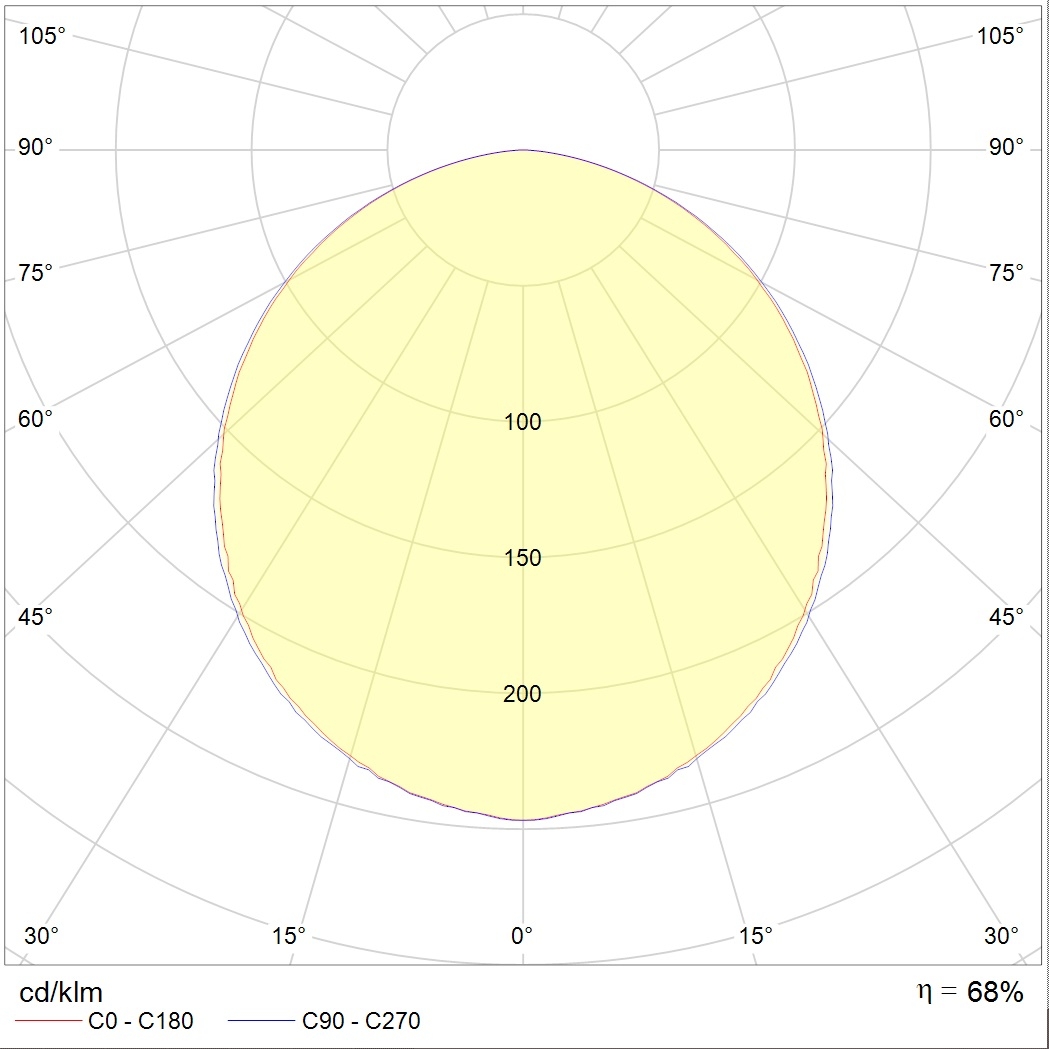

photometric files
сертификаты
photometric files
ies134.1 kB
jpg131.3 kB
ldt89.6 kB
csv403 B
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
