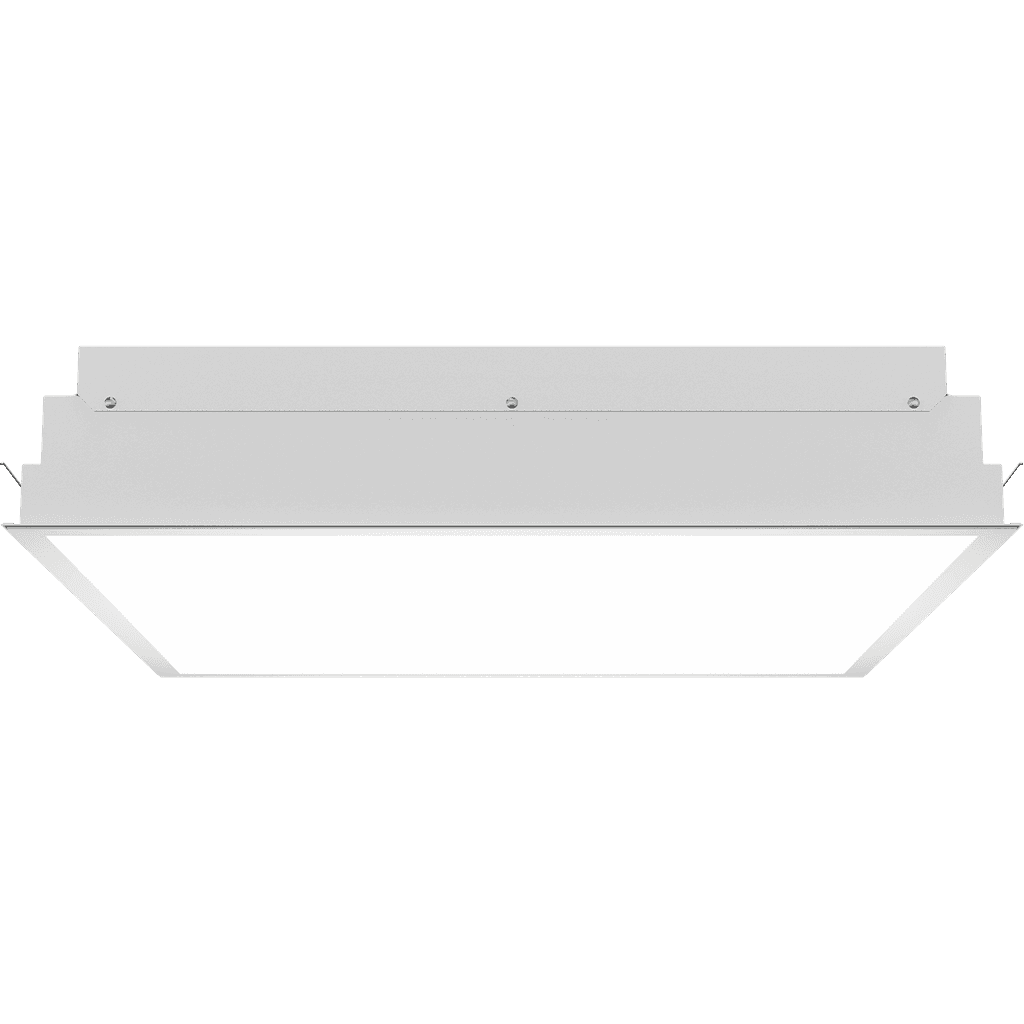

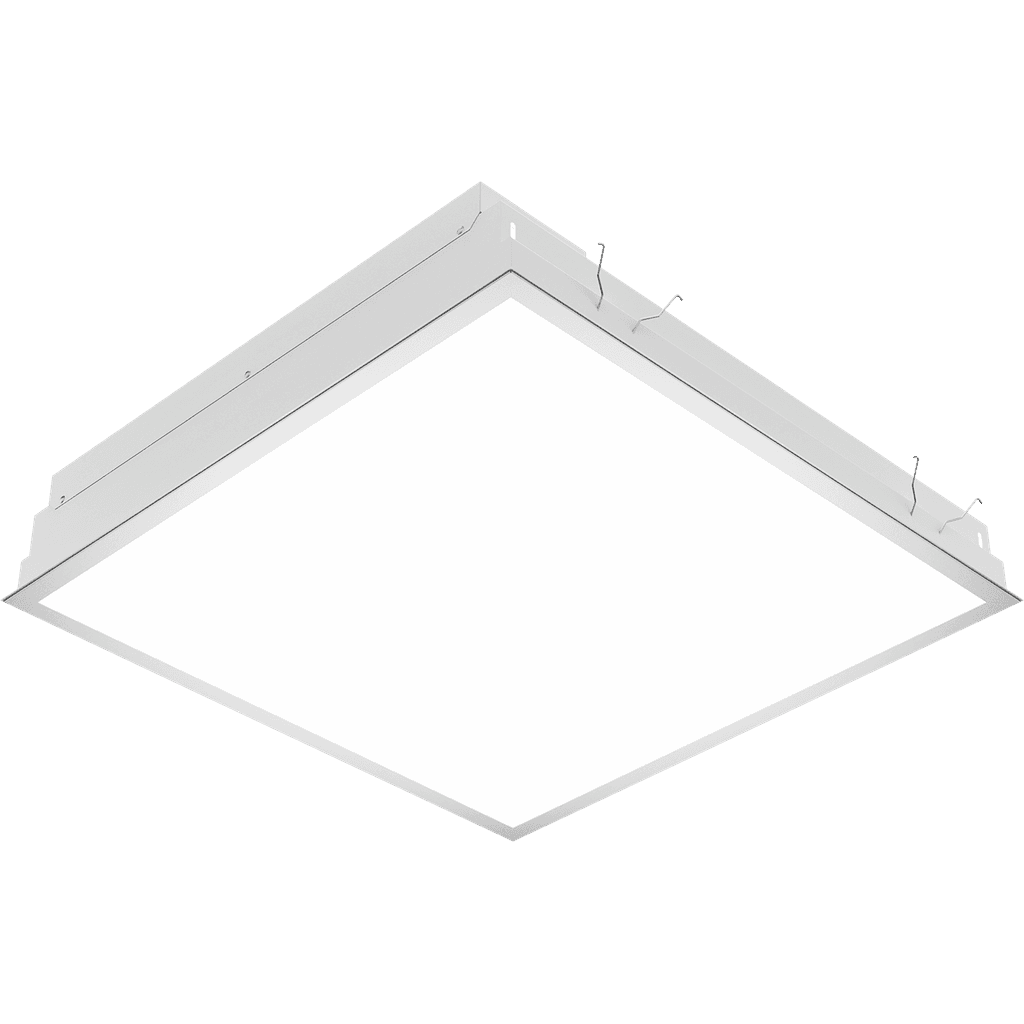

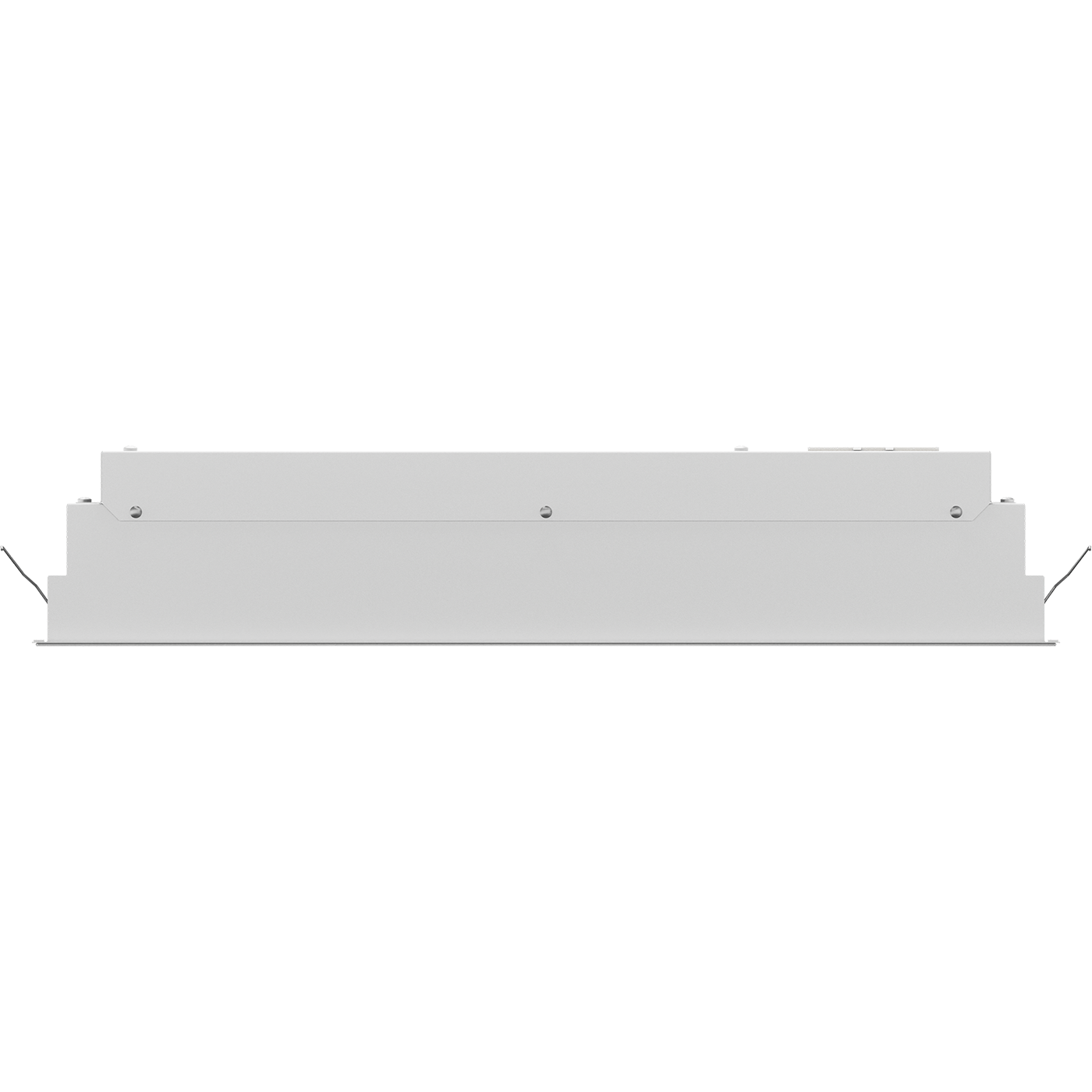

OPL/R 436 /595/ HF
_hf.jpg&w=1920&q=50)
_hf.jpg&w=1024&q=50)
OPL/R 436 /595/ HF
144 Wluminaire power
3250 lmlight flow
43 lm/Wenergy efficiency
code1027000400
number of lamps4
performance factor48
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
144 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
144 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
8.3 kg
length, mm
1195 mm
width, mm
595 mm
height, mm
81 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
1175 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
4
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
30 000 h
code
1027000400
illuminating
light flow
3250 lm
flickering factor
<5%
energy efficiency
43 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.5 kB
model 3dMax392 kB

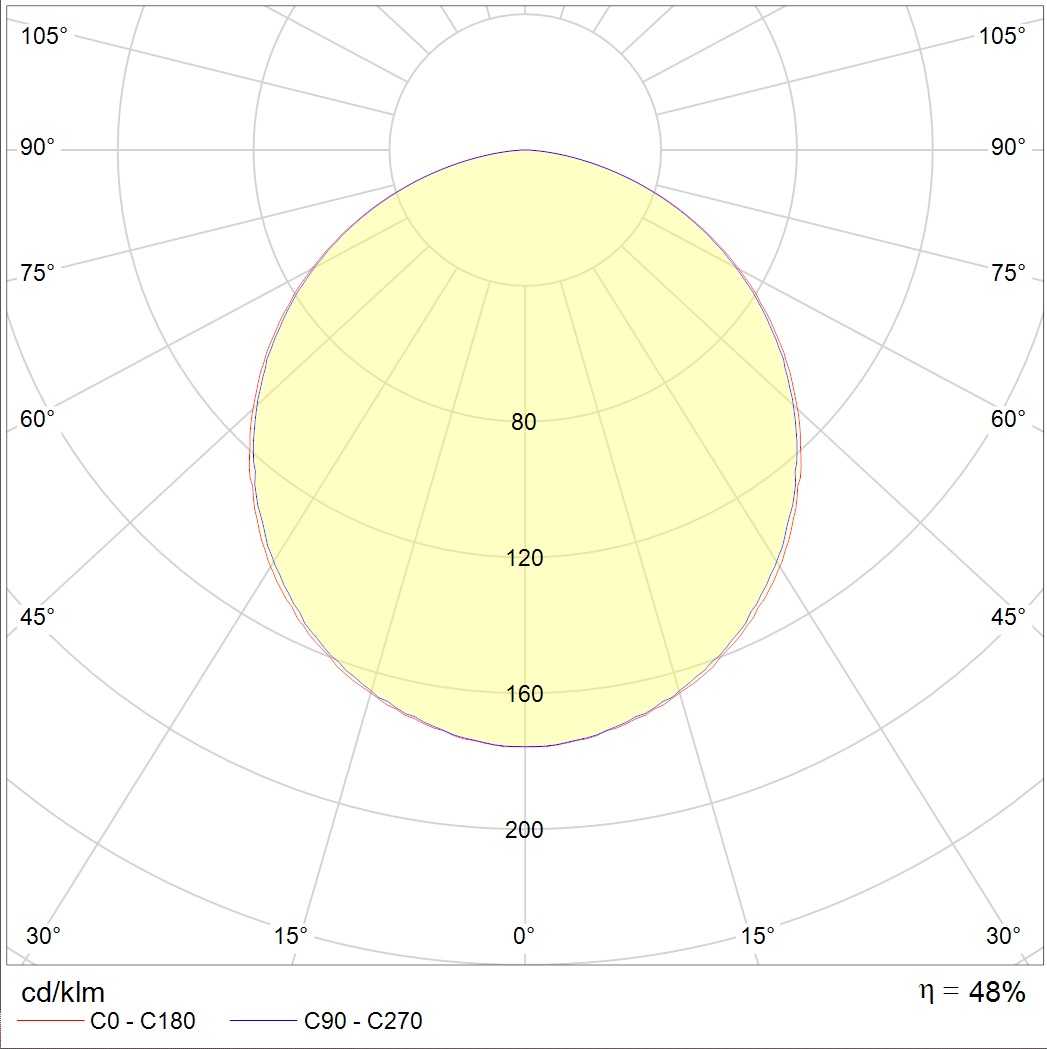

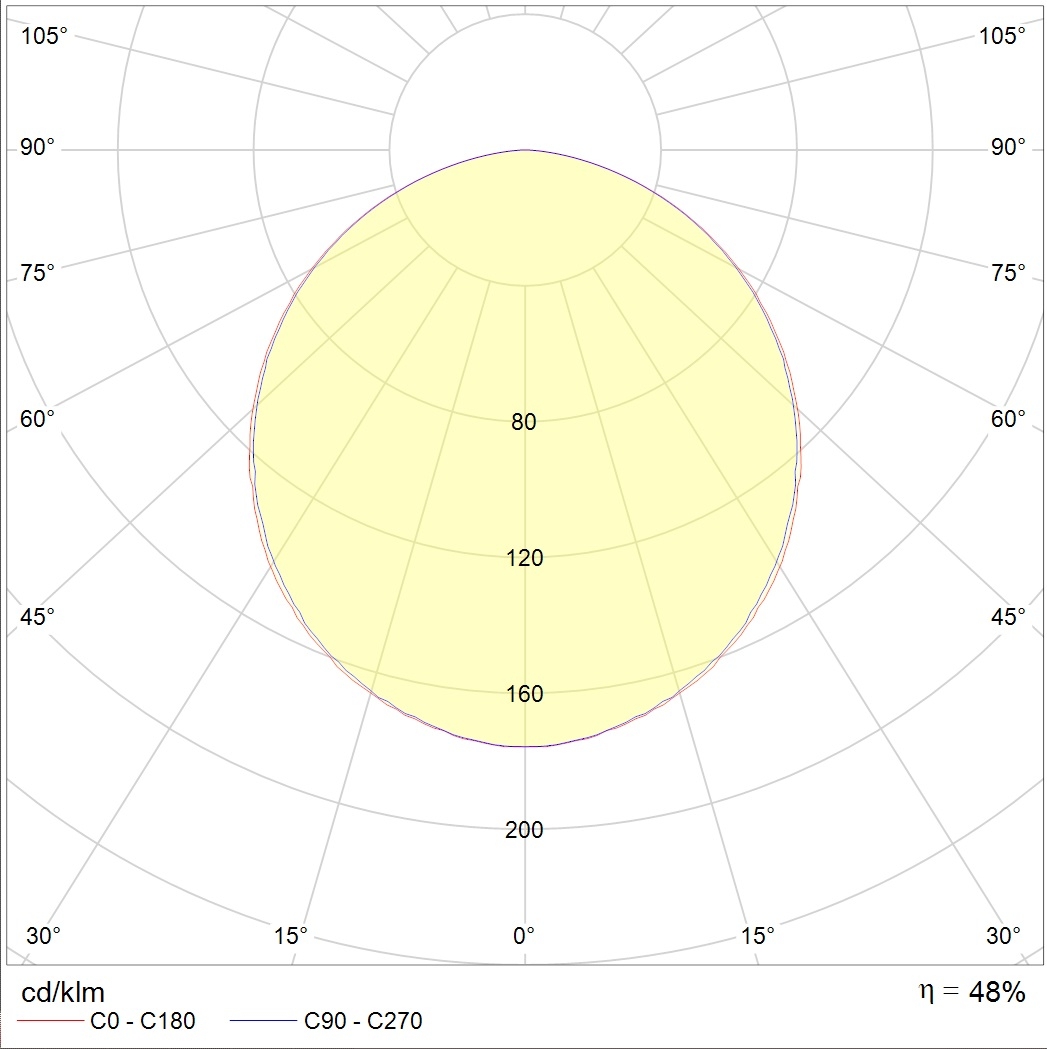

photometric files
ies134.1 kB
jpg125.2 kB
ldt69.2 kB
csv397 B
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
