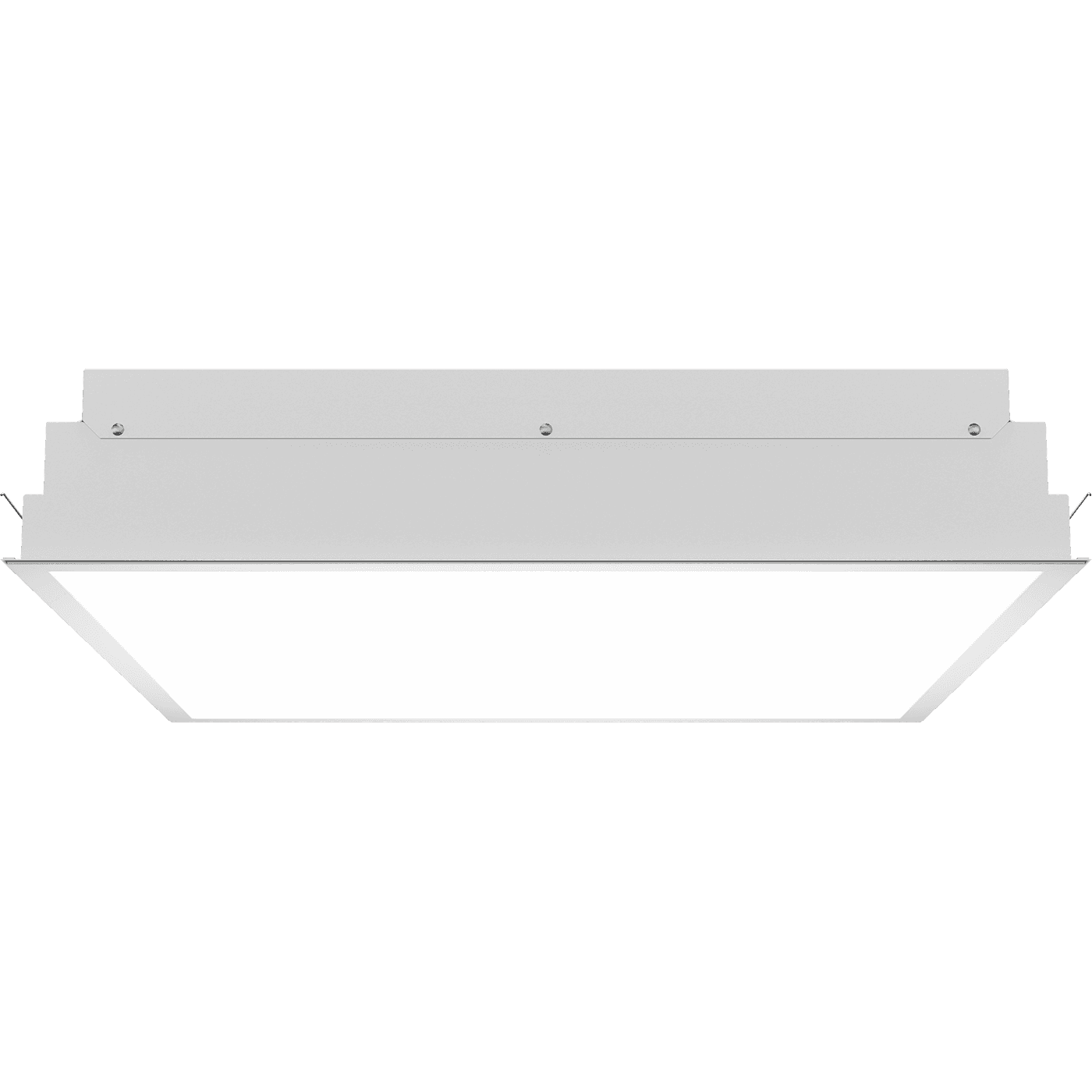

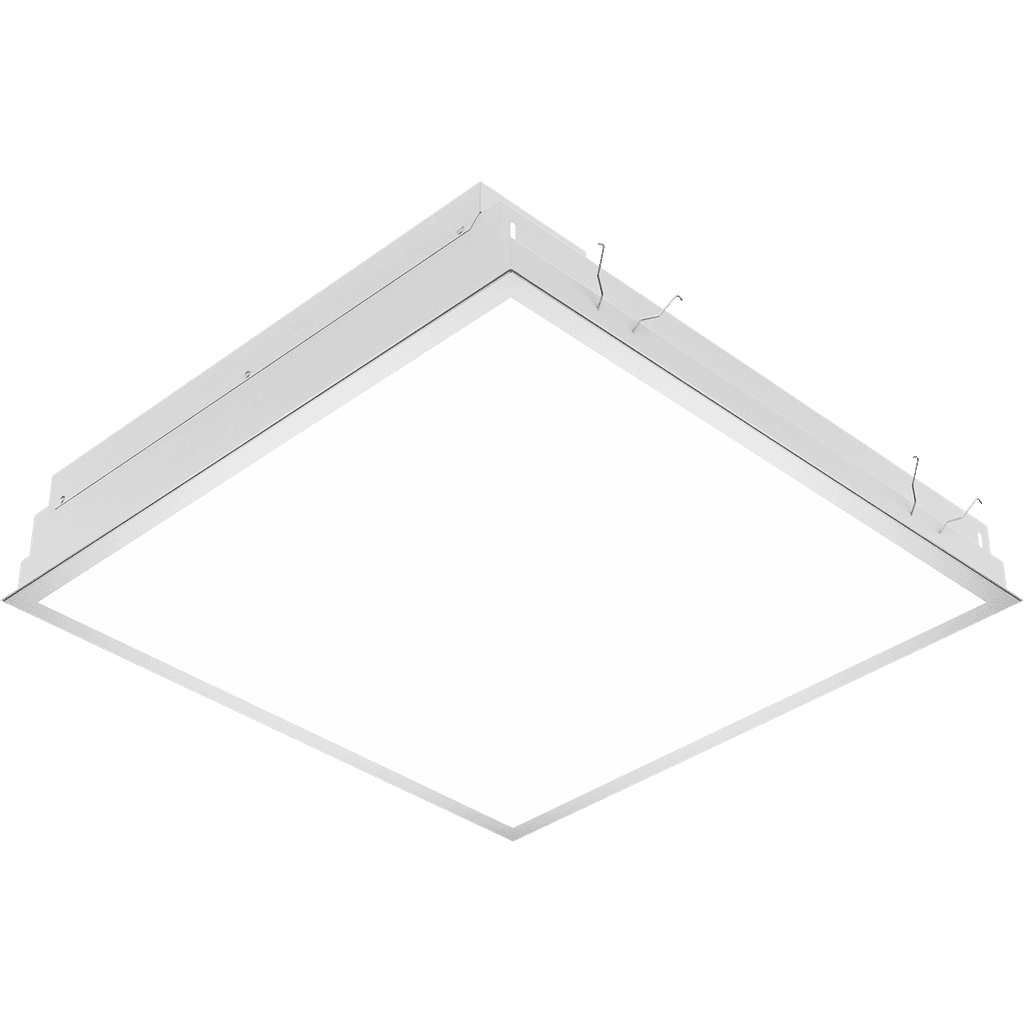

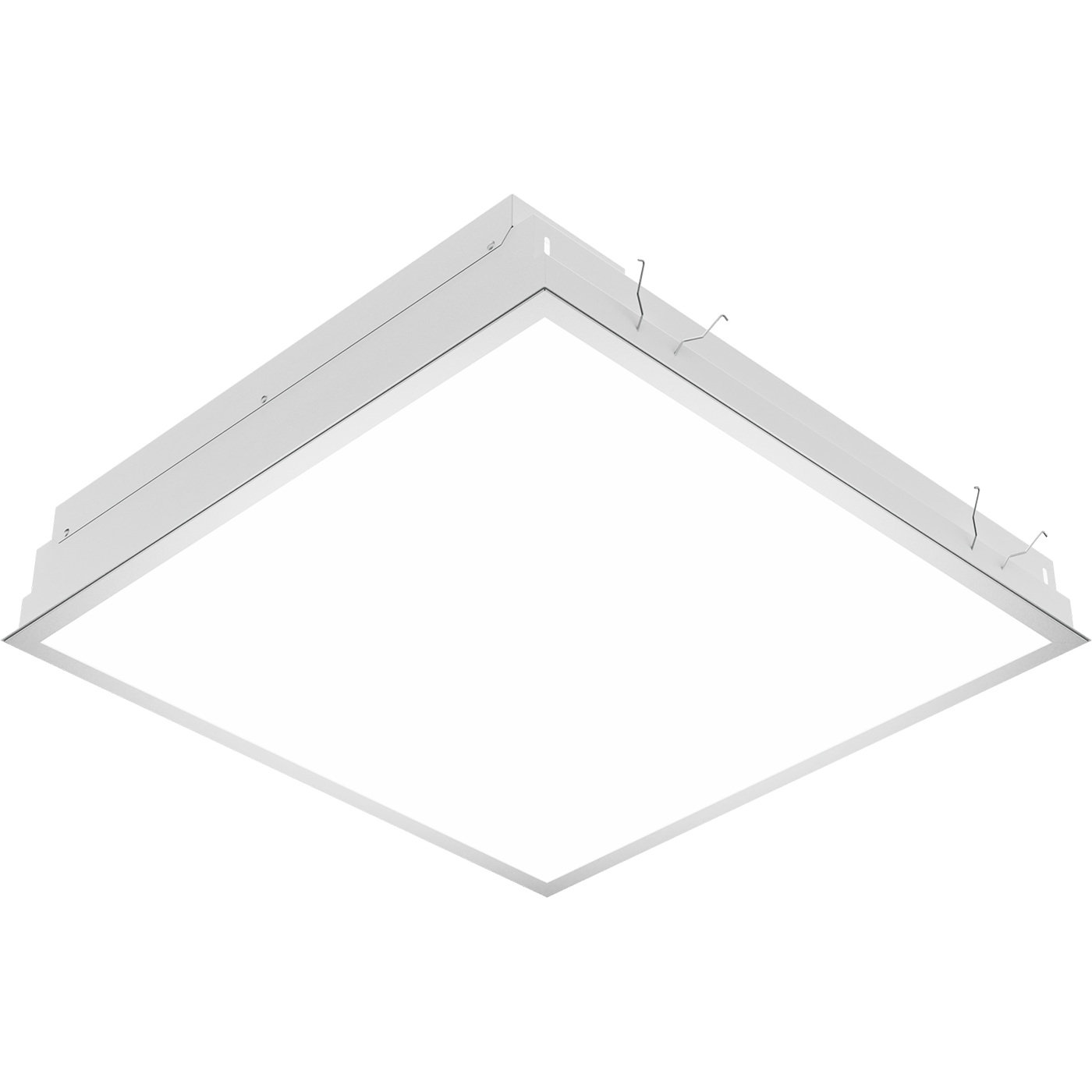

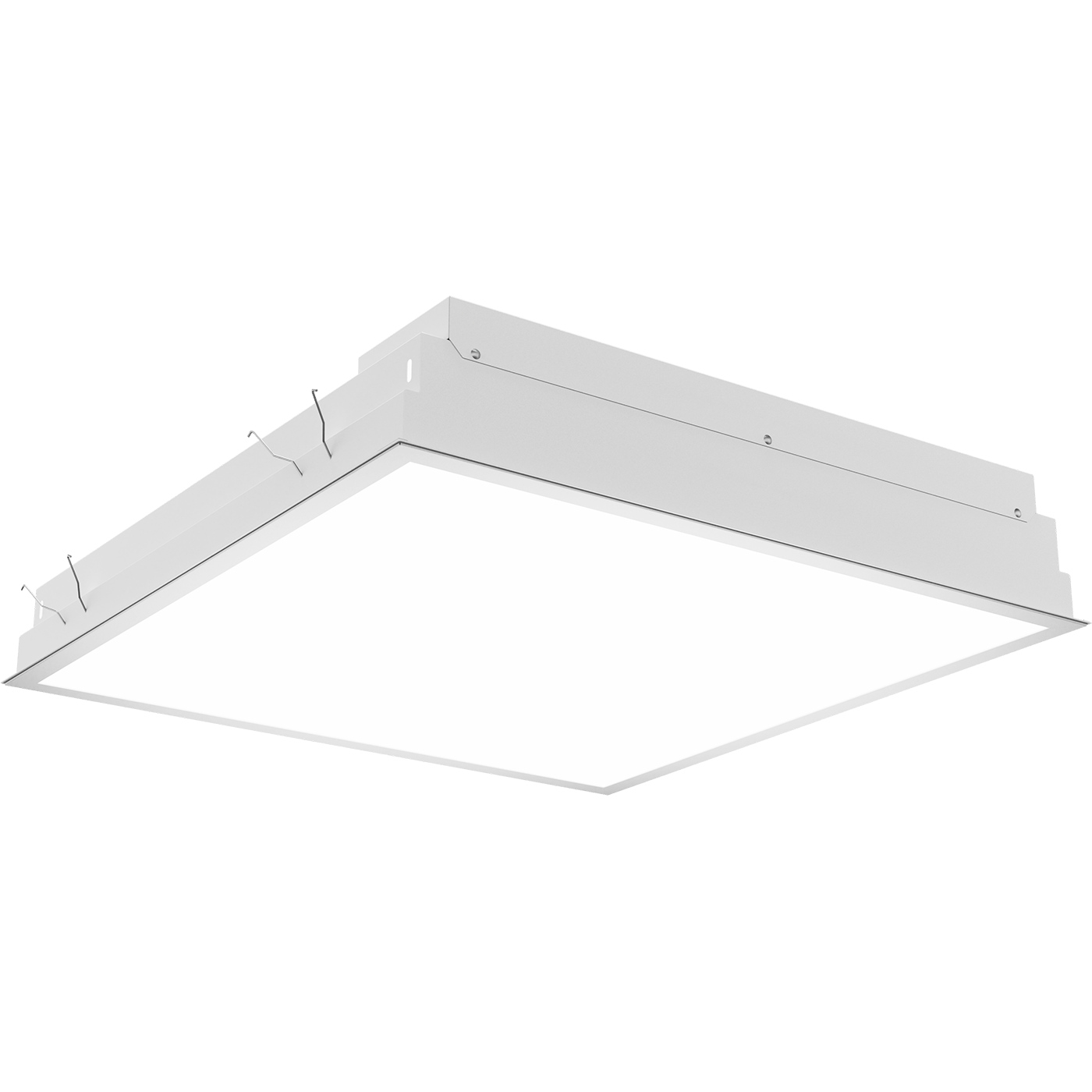

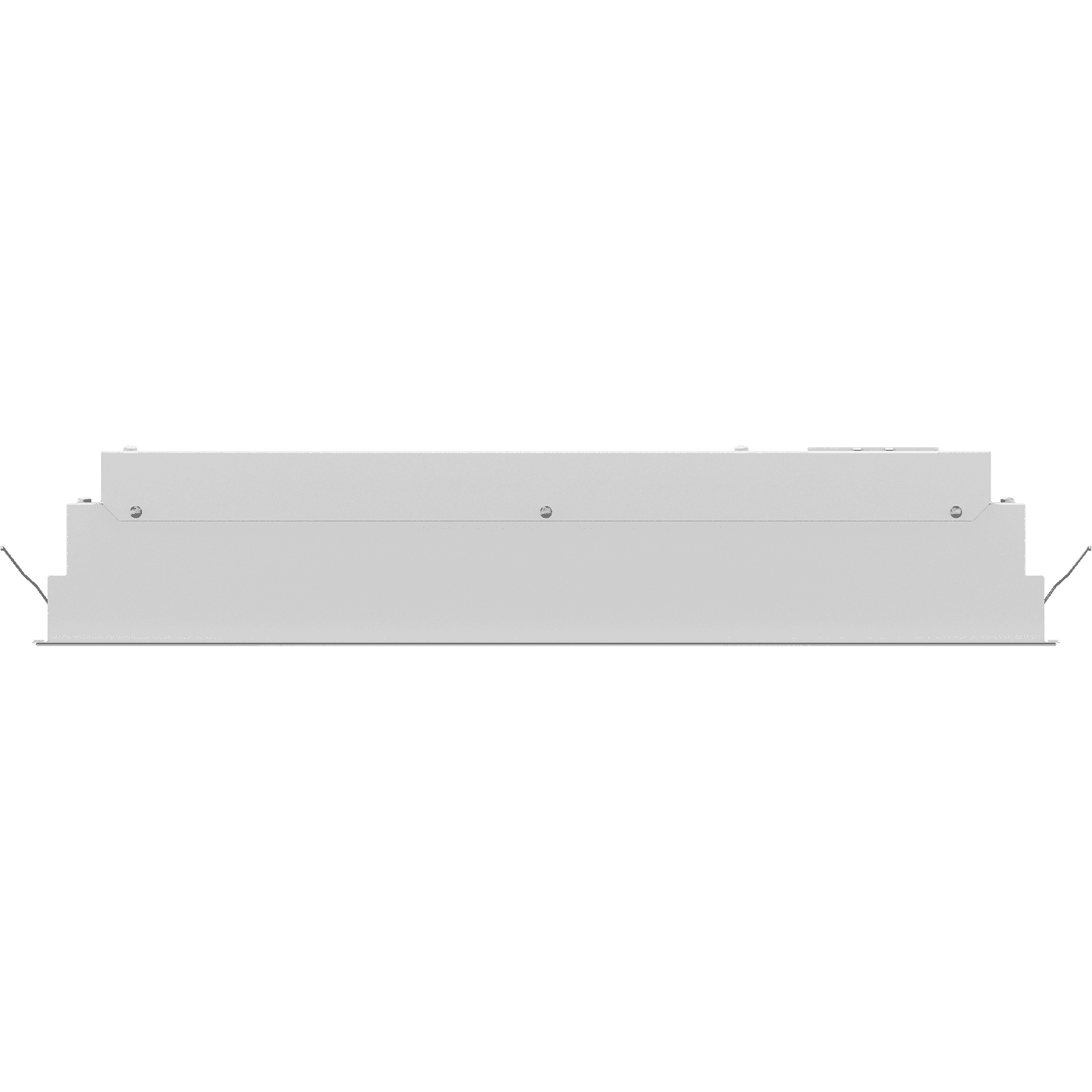

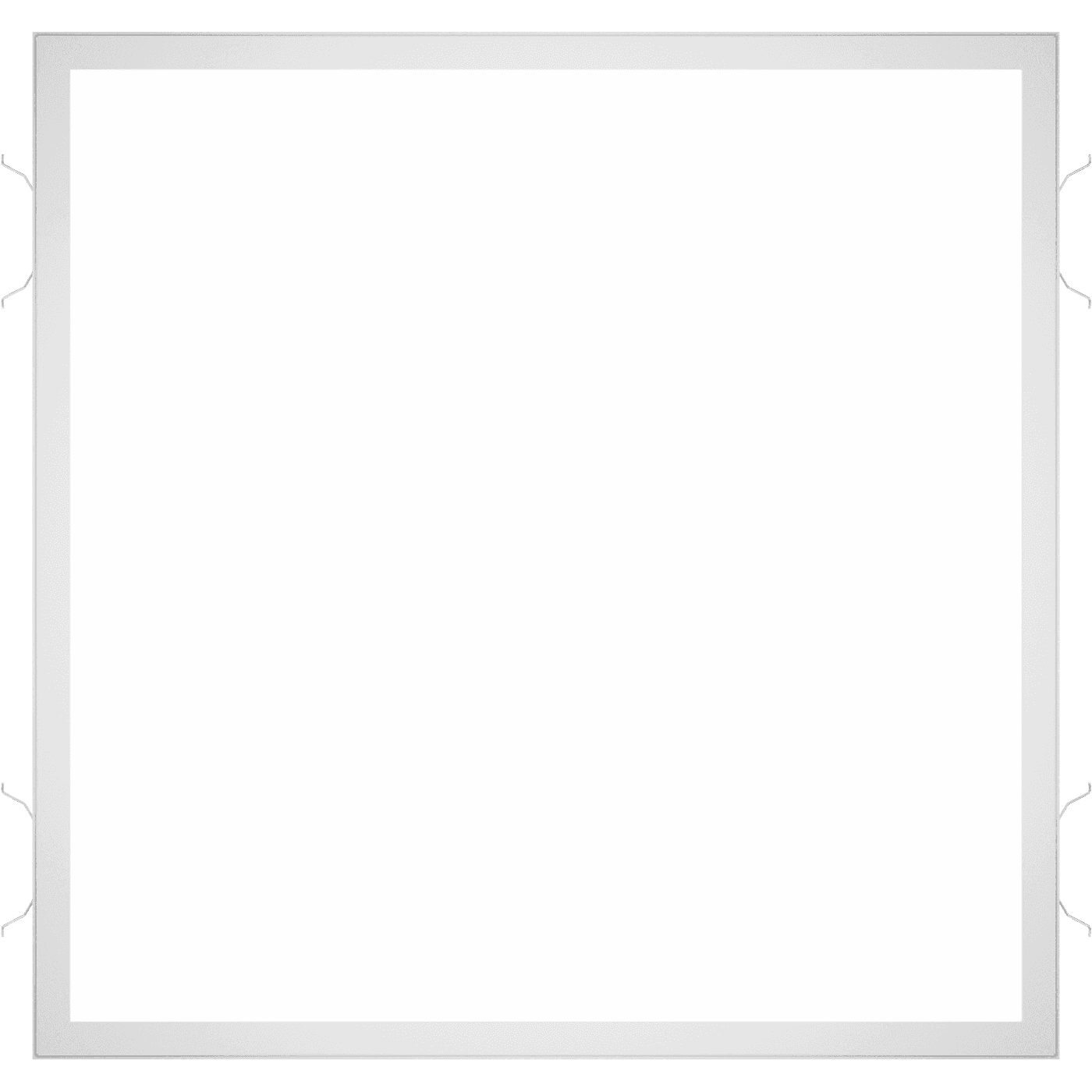

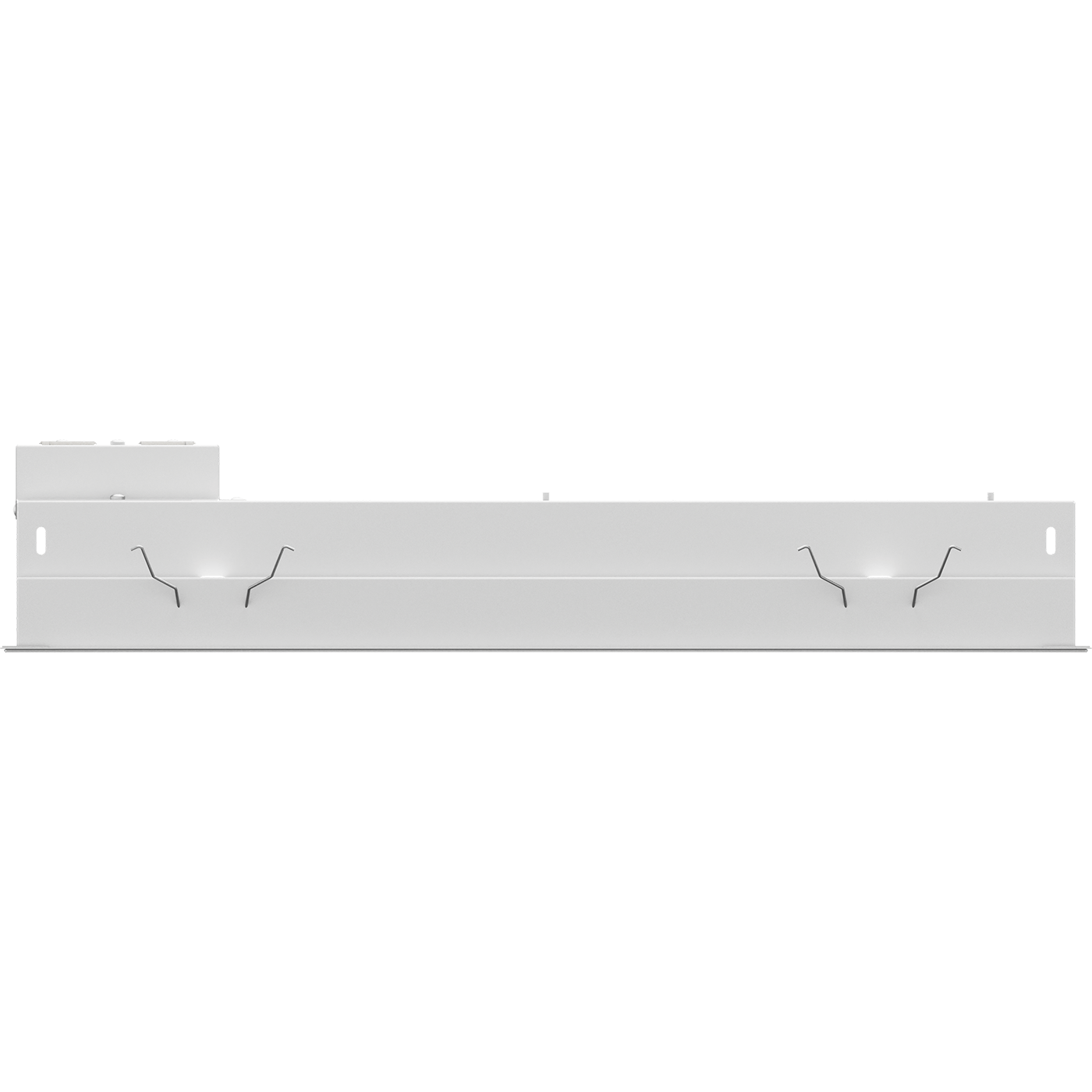

OPL/R 418 /595/ HF ES1

OPL/R 418 /595/ HF ES1
add to favorites
72 Wluminaire power
1350 lmlight flow
36 lm/Wenergy efficiency
code1027000210
number of lamps4
performance factor48
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. OPL/R
  7. OPL/R 418 /595/ HF ES1
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
4.55 kg
length, mm
595 mm
width, mm
595 mm
height, mm
81 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
4
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
30 000 h
code
1027000210
illuminating
light flow
1350 lm
flickering factor
<5%
energy efficiency
36 lm/W
light source type
ЛЛ
emission color
Белый
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
12% lm
model files
model files
CAD/BIM files
CAD model 3DS2.5 kB
model 3dMax392 kB

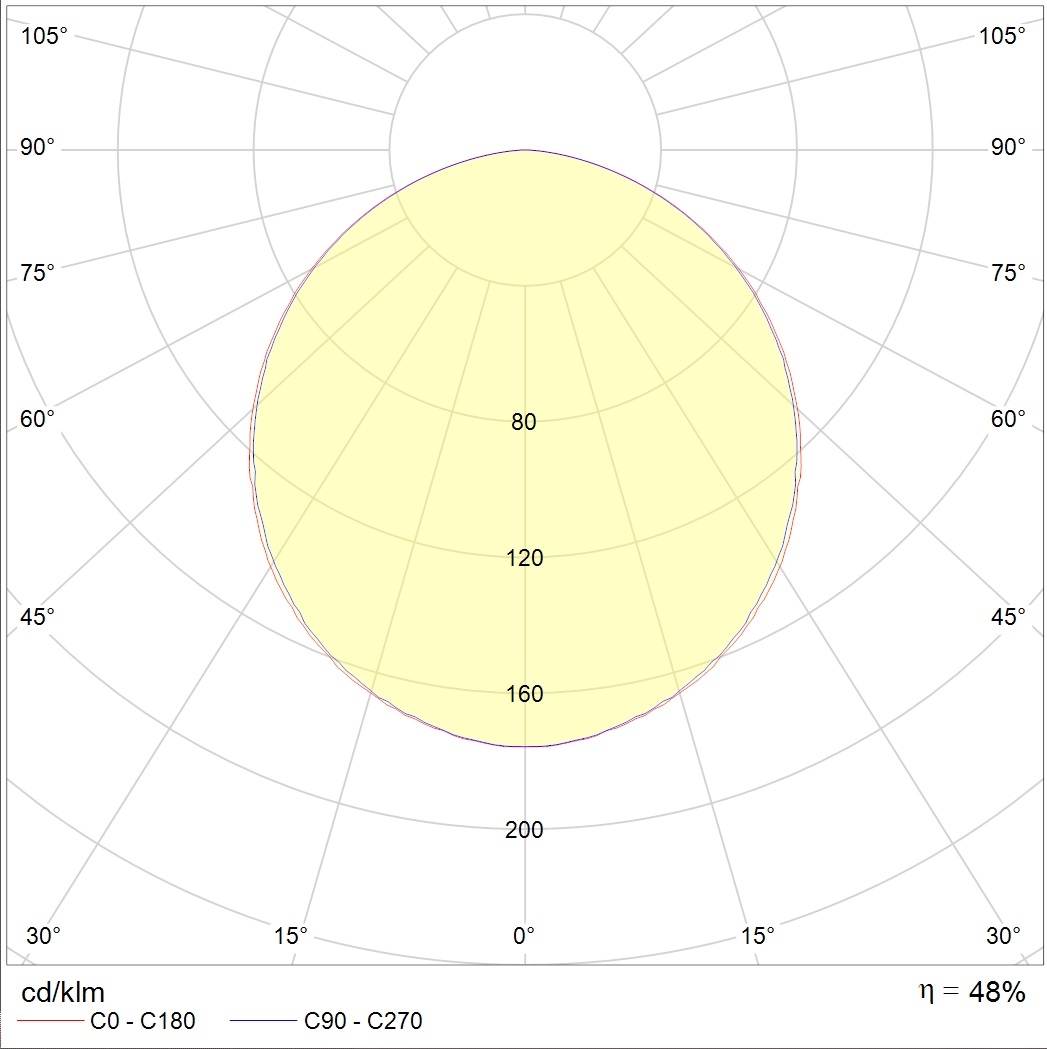

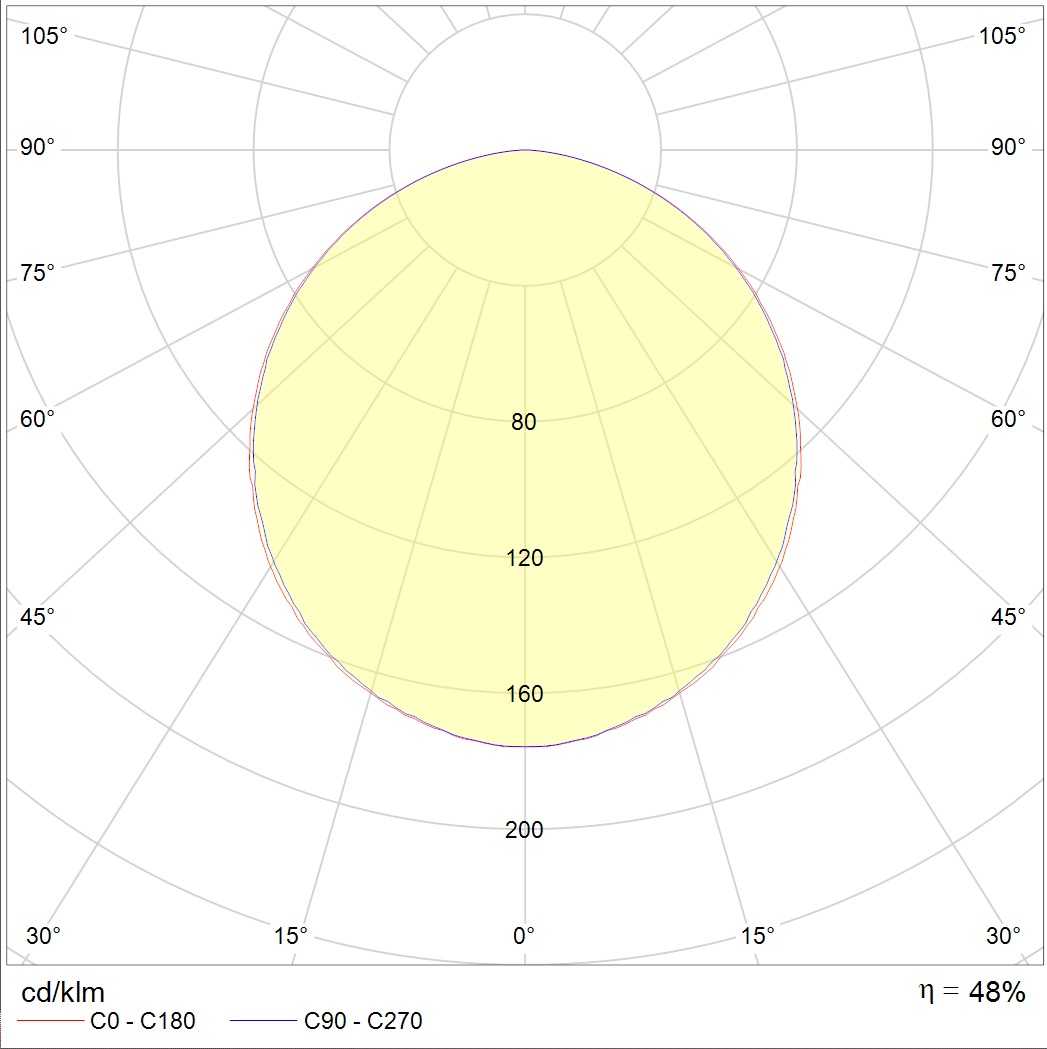

photometric files
ies134.1 kB
jpg125.2 kB
ldt89.5 kB
csv401 B
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS2.5 kB
model 3dMax392 kB
photometric files
ies134.1 kB
jpg125.2 kB
ldt89.5 kB
csv401 B
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
