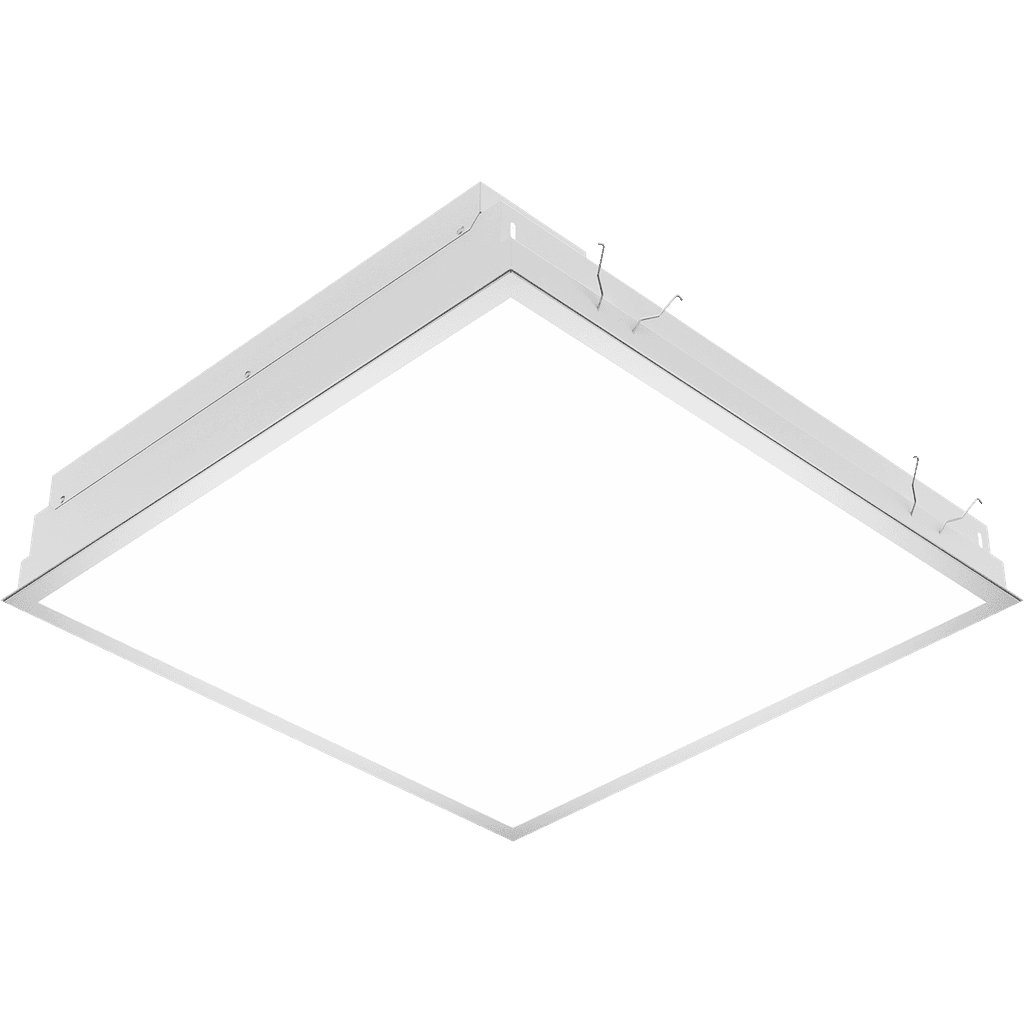

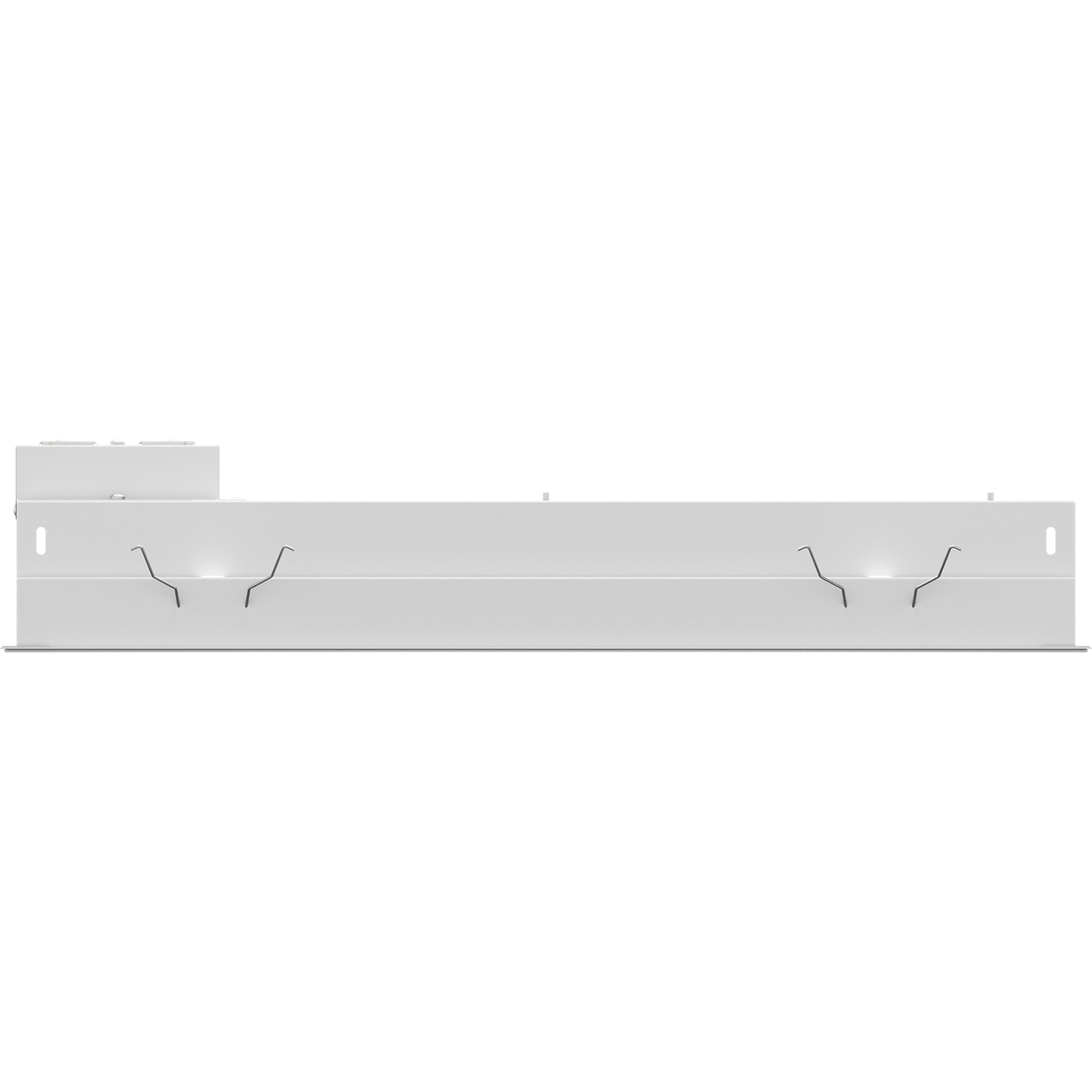

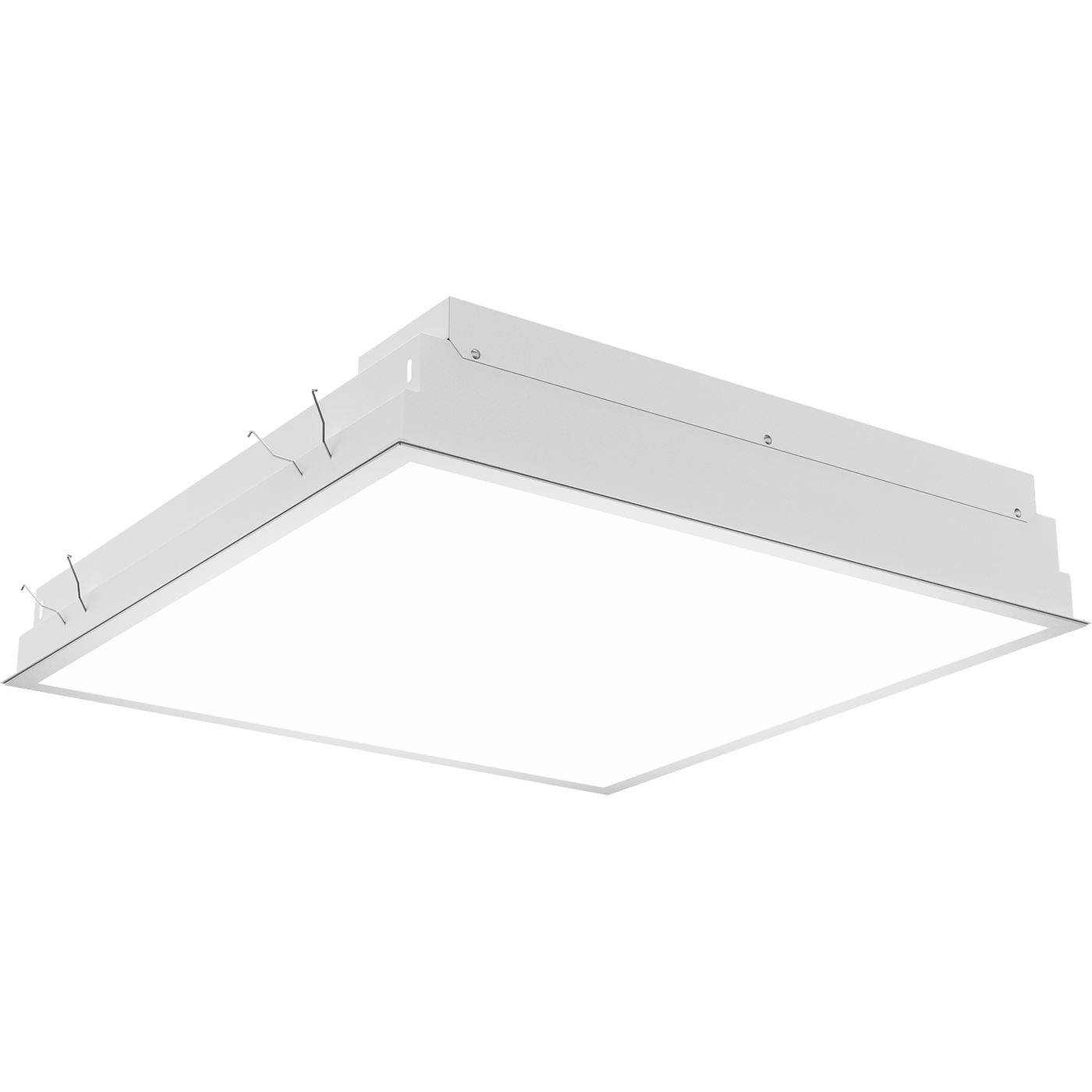

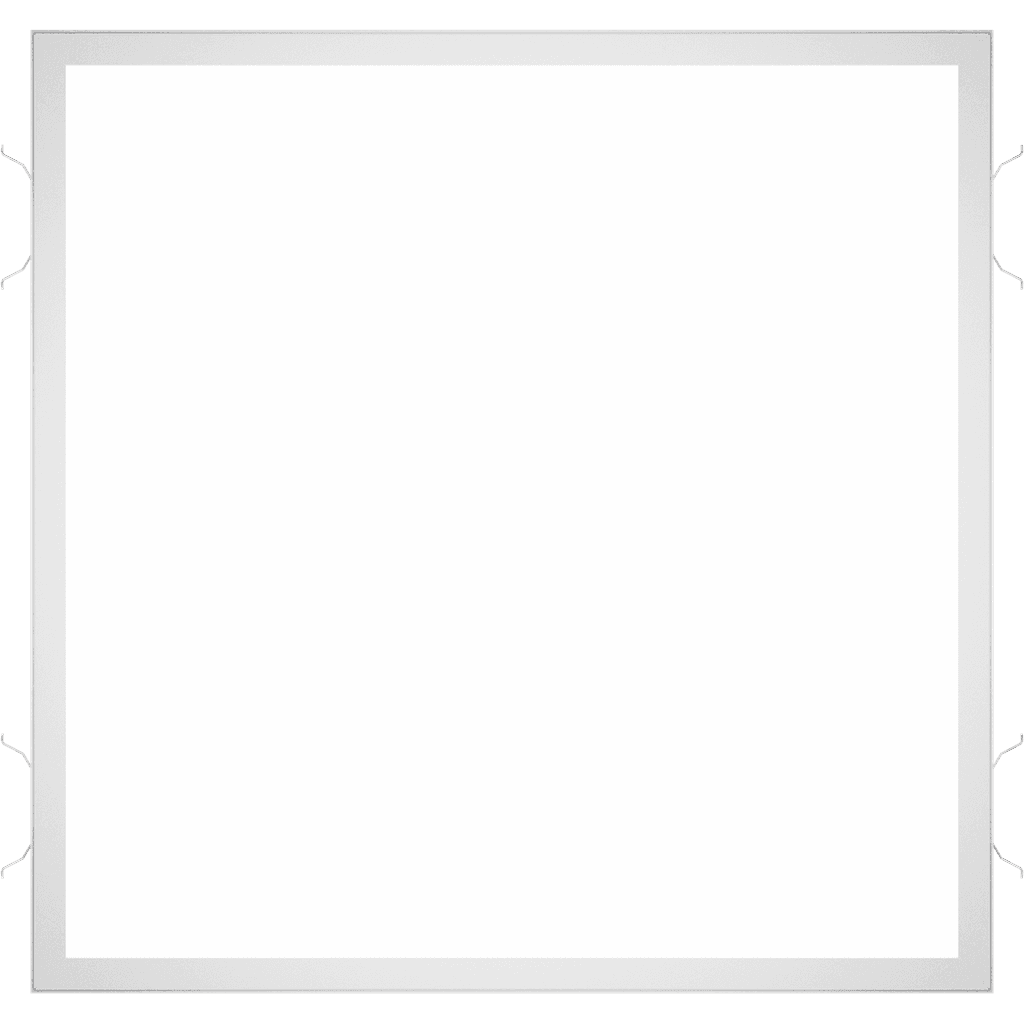

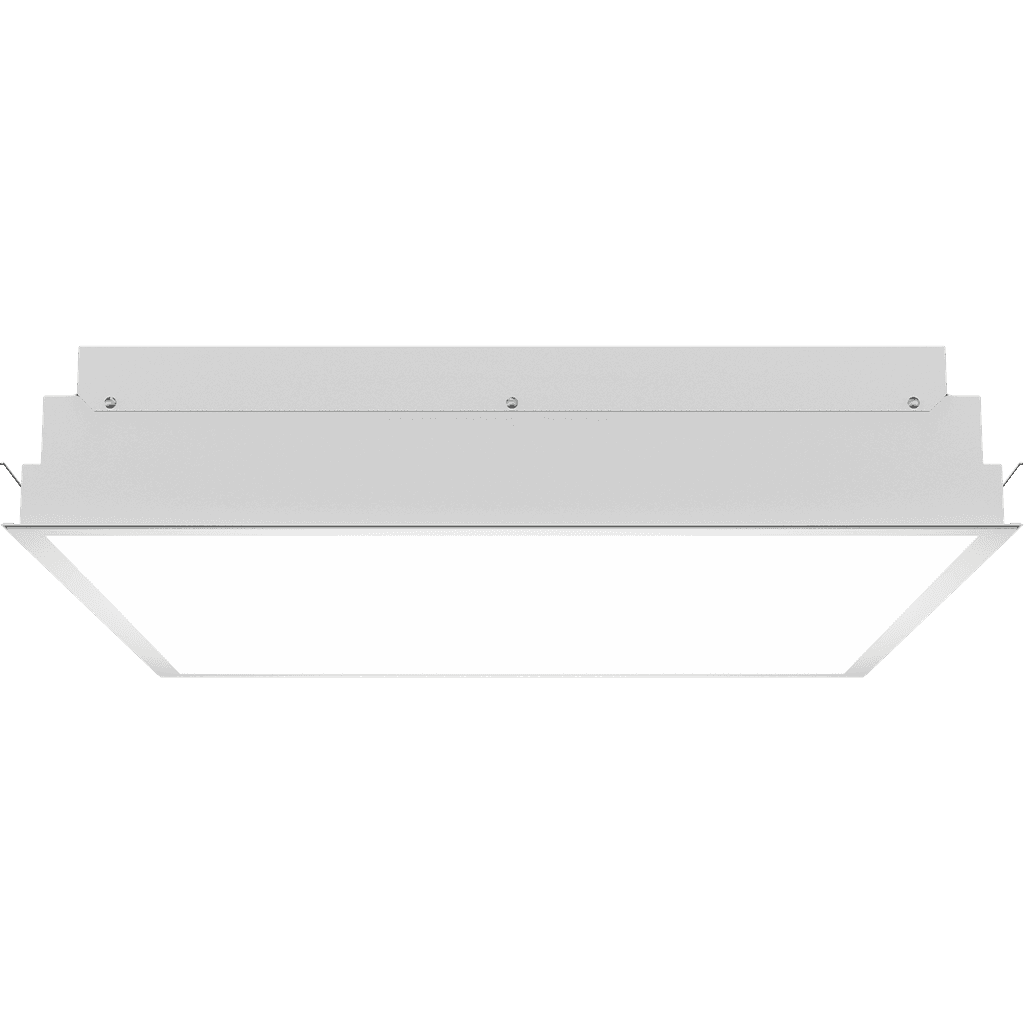

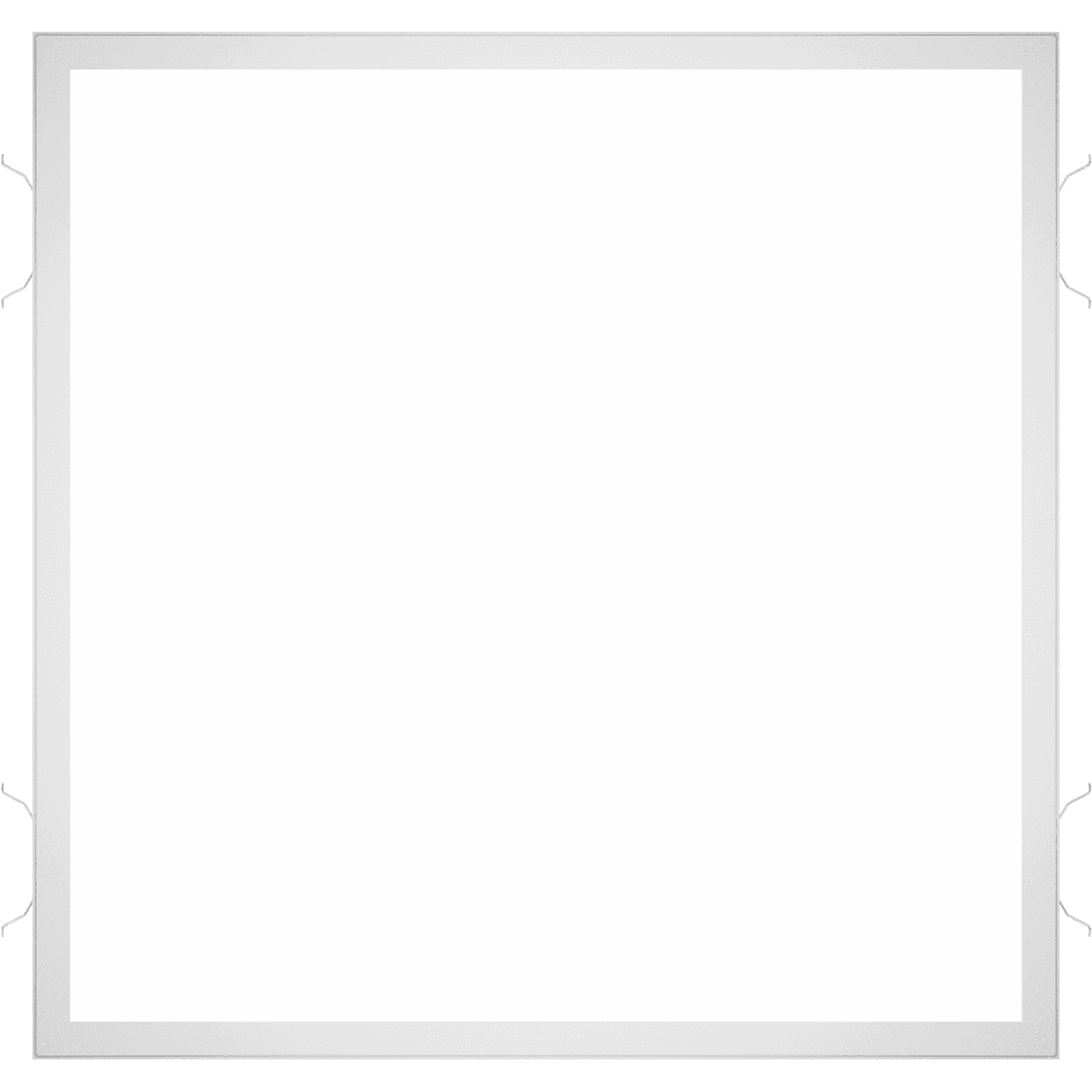

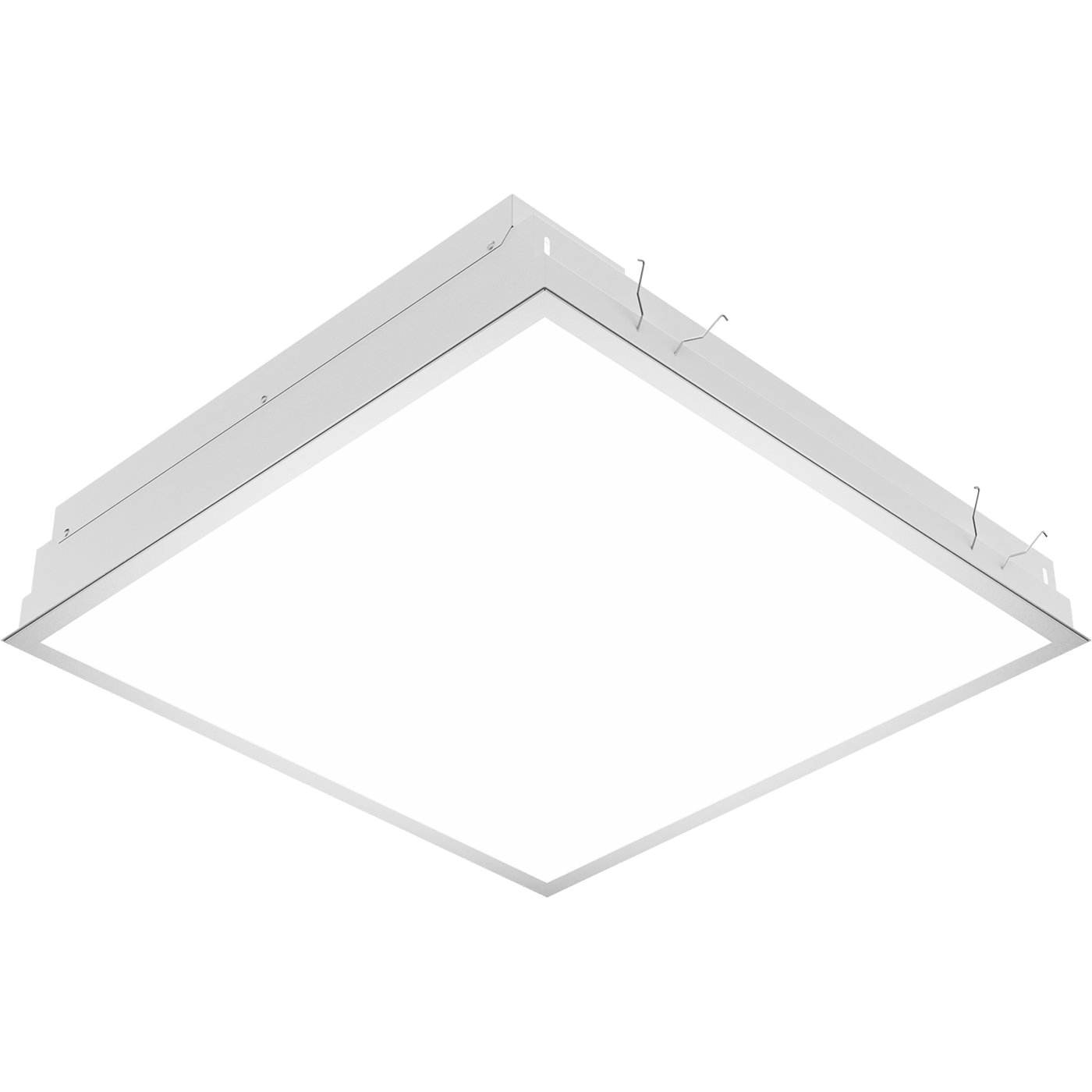

OPL/R ECO LED 595 3000K Edge 24-05

OPL/R ECO LED 595 3000K Edge 24-05
add to favorites
32 Wluminaire power
3400 lmlight flow
106 lm/Wenergy efficiency
code1028001280
color temperature3000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. OPL/R ECO LED Edges
  7. OPL/R ECO LED 595 3000K Edge 24-05
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
4.7 kg
length, mm
595 mm
width, mm
615 mm
height, mm
85 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1028001280
illuminating
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<1%
energy efficiency
106 lm/W

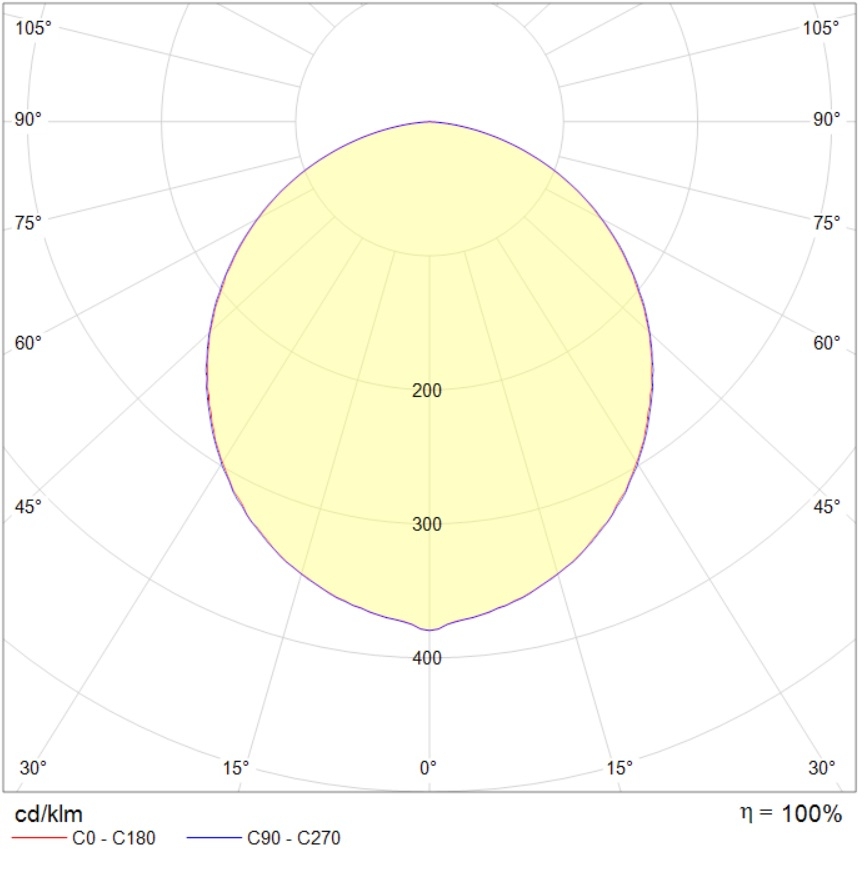

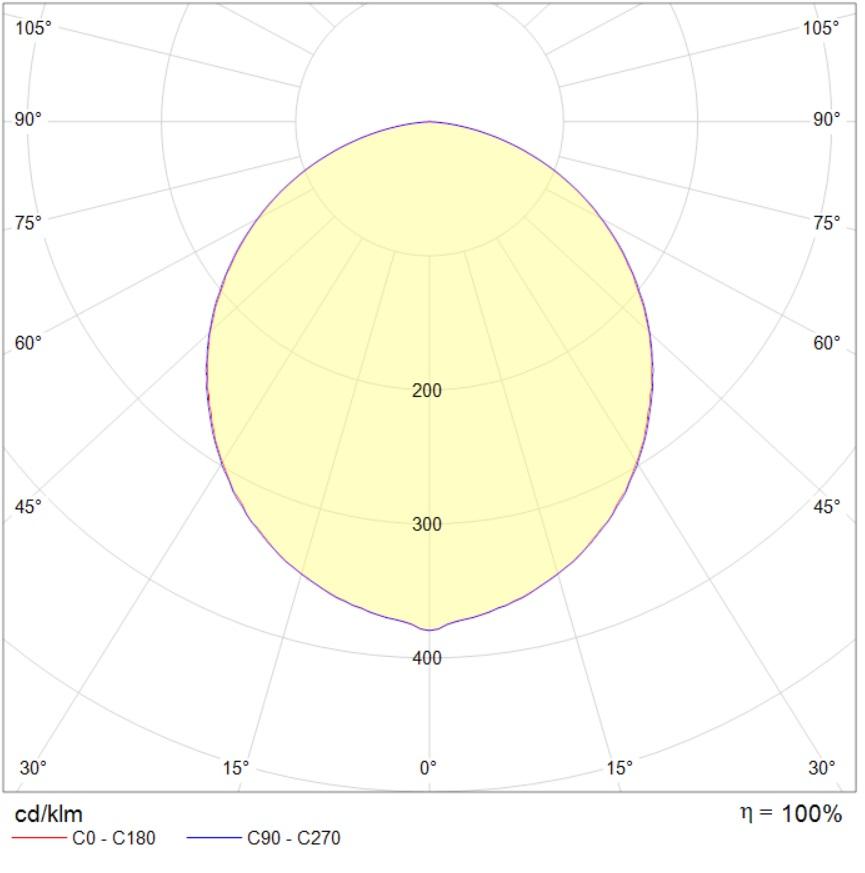

beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
model files
model files

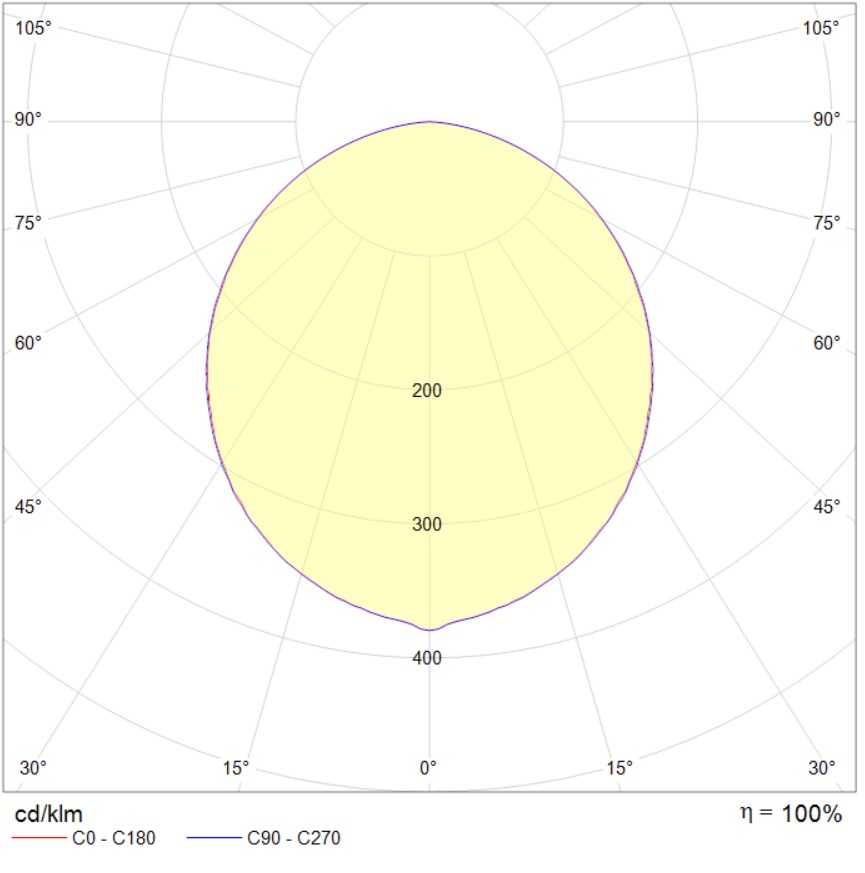

photometric files
