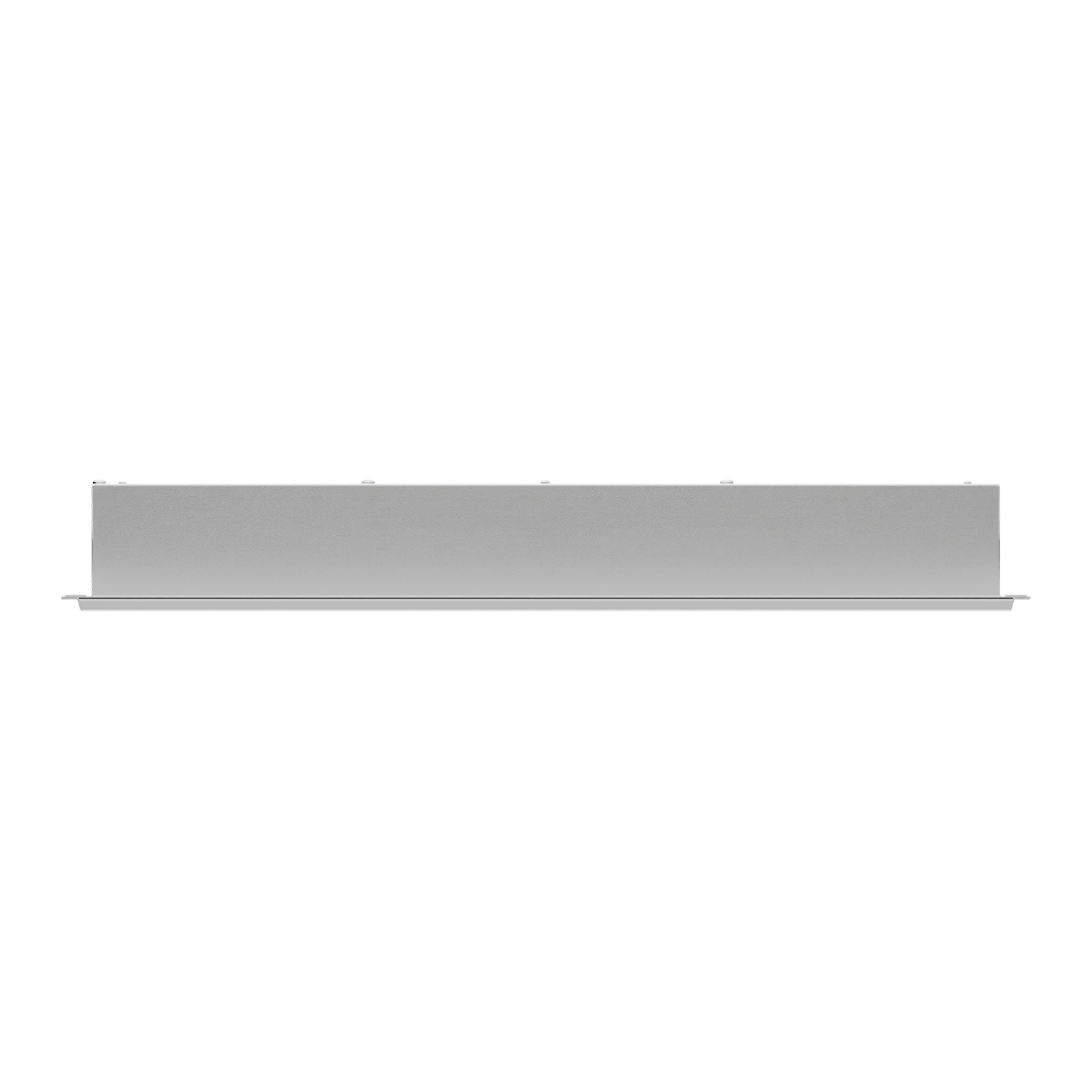

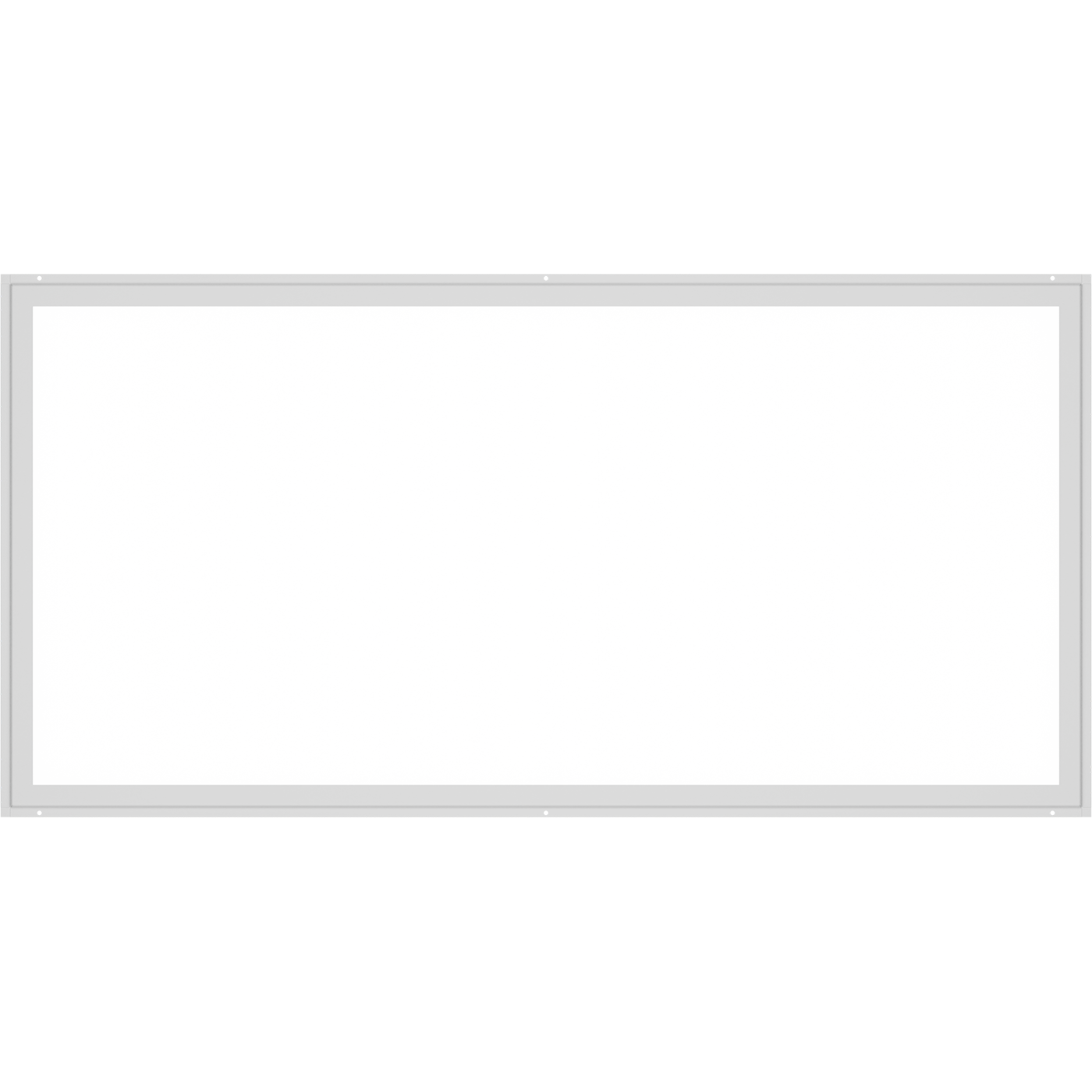

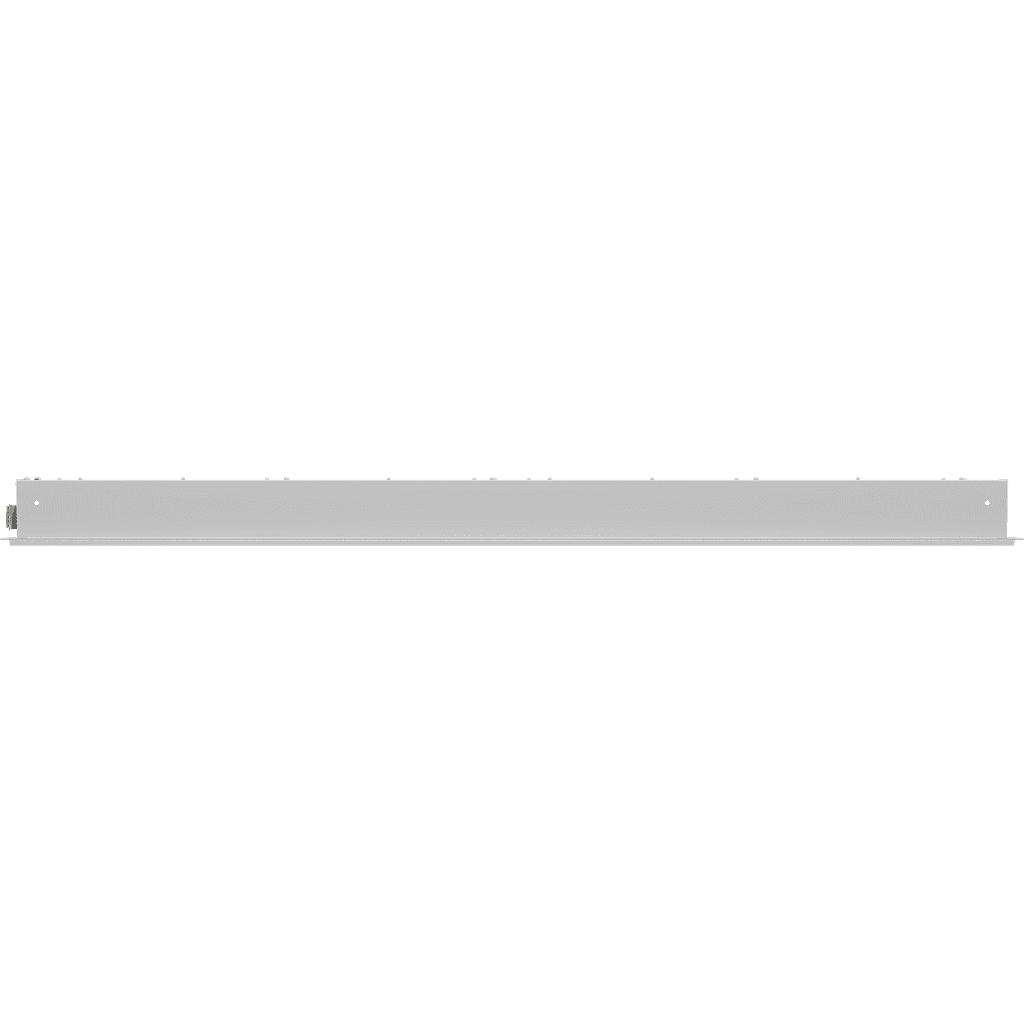

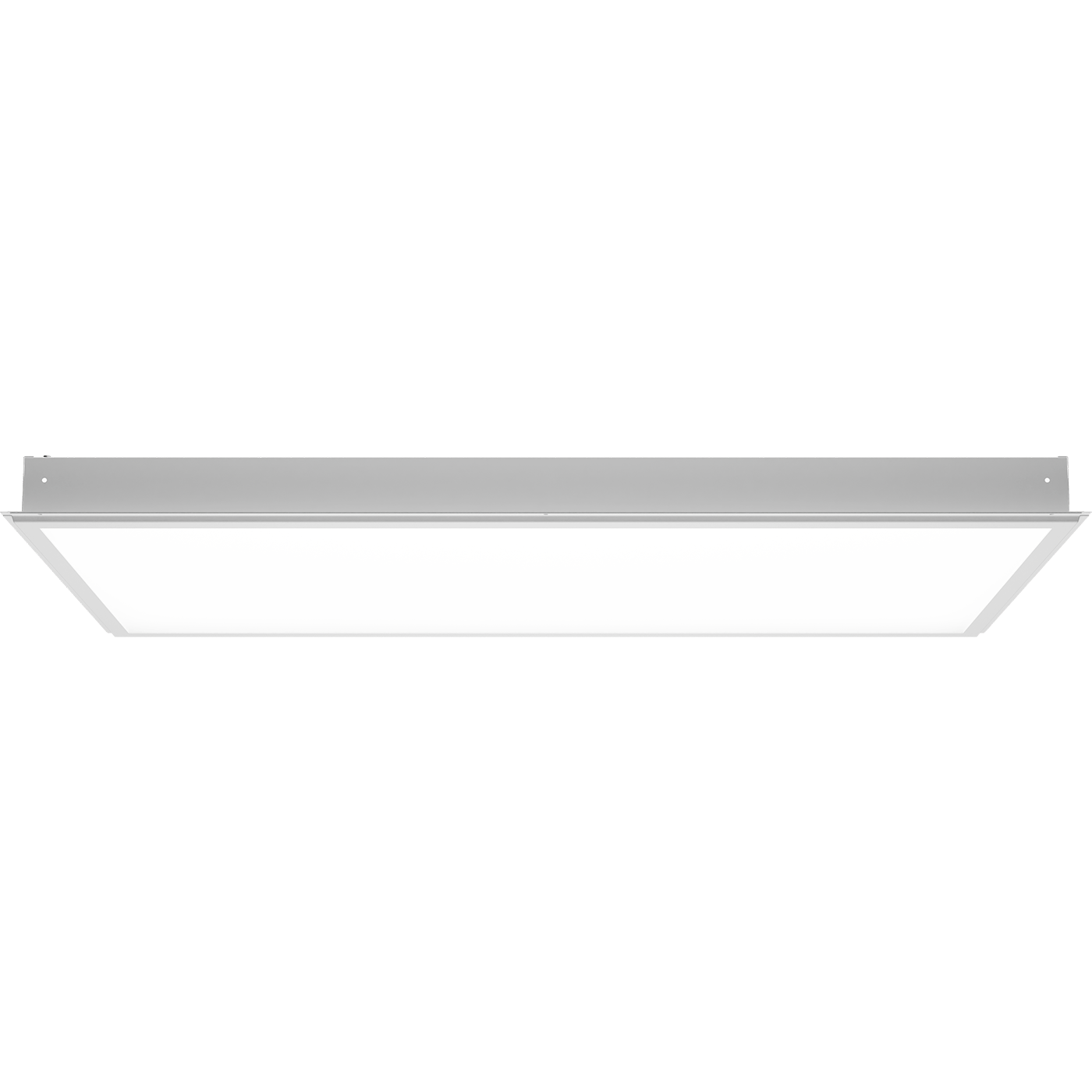

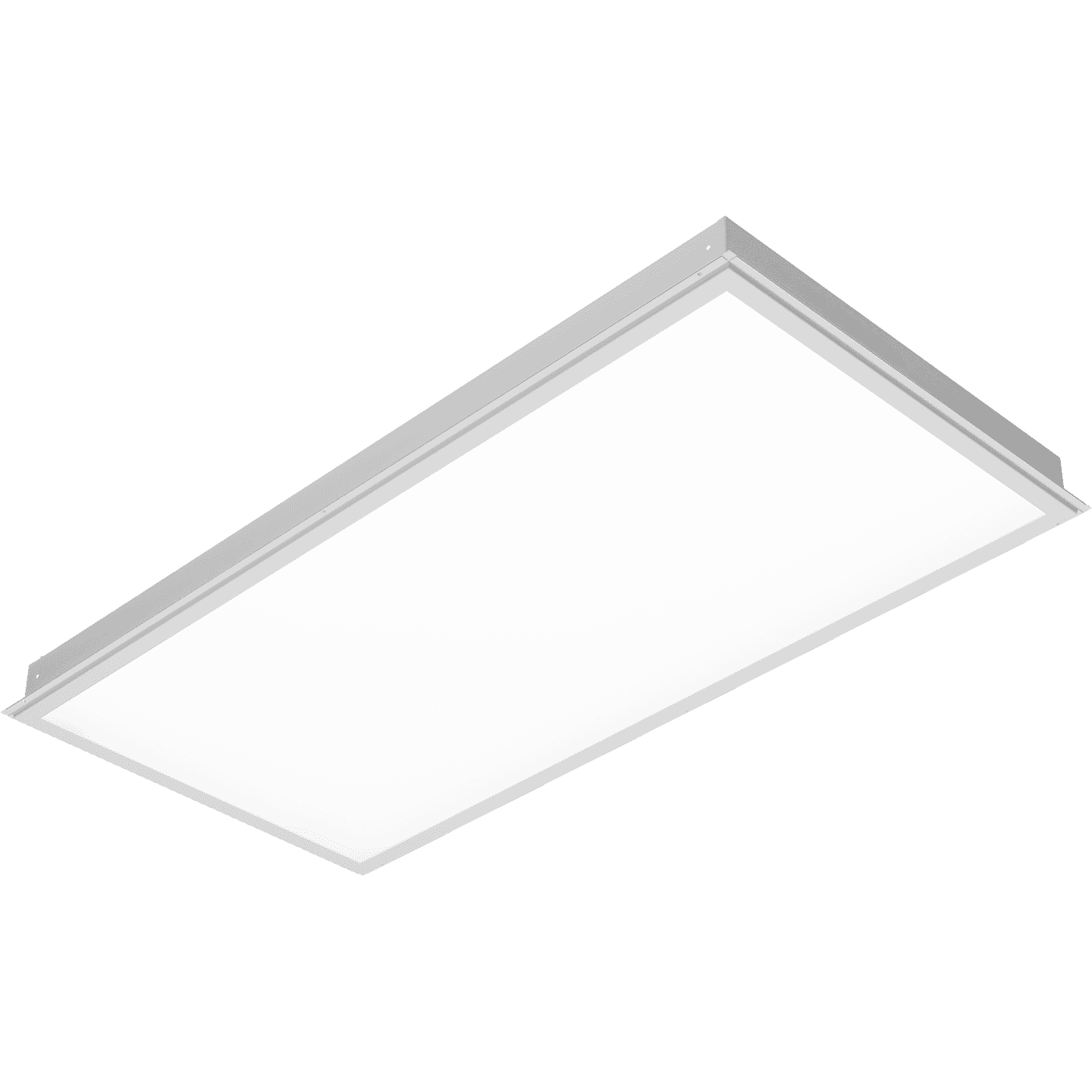

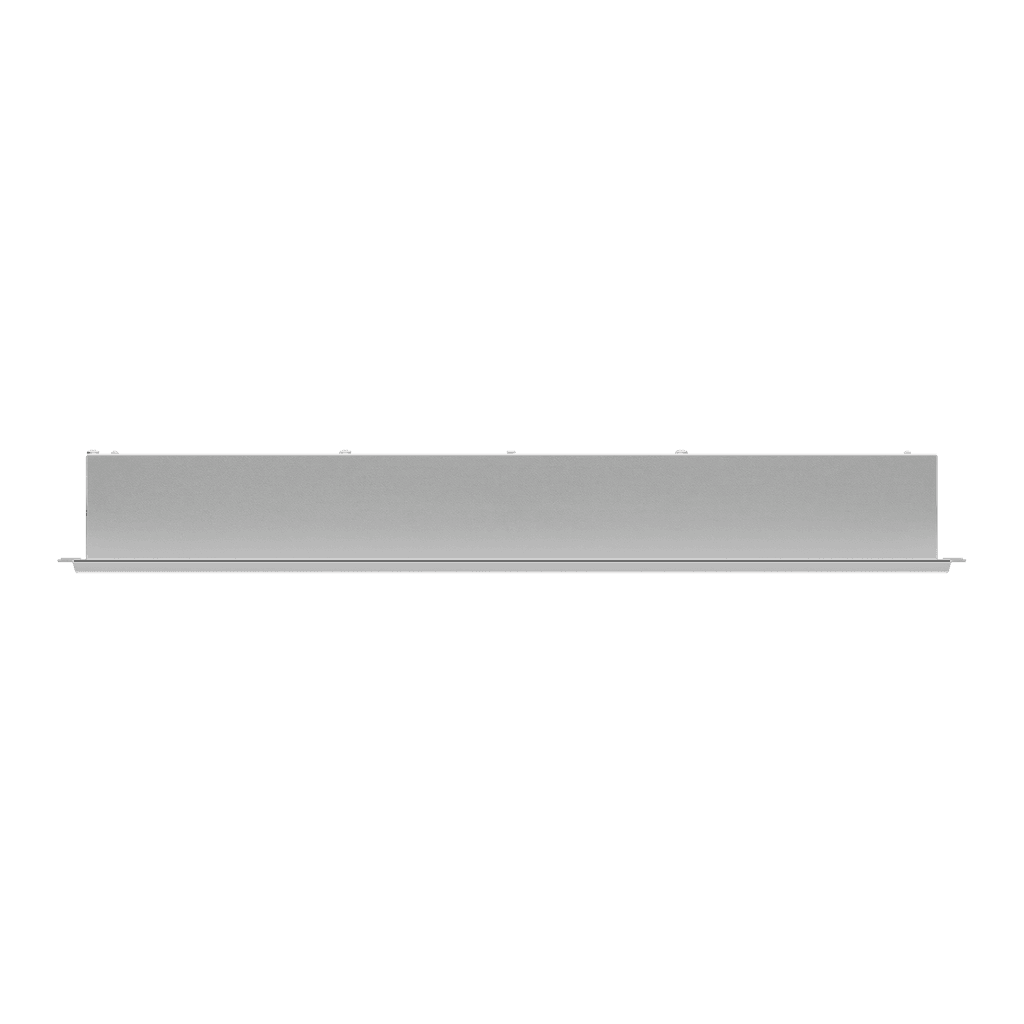

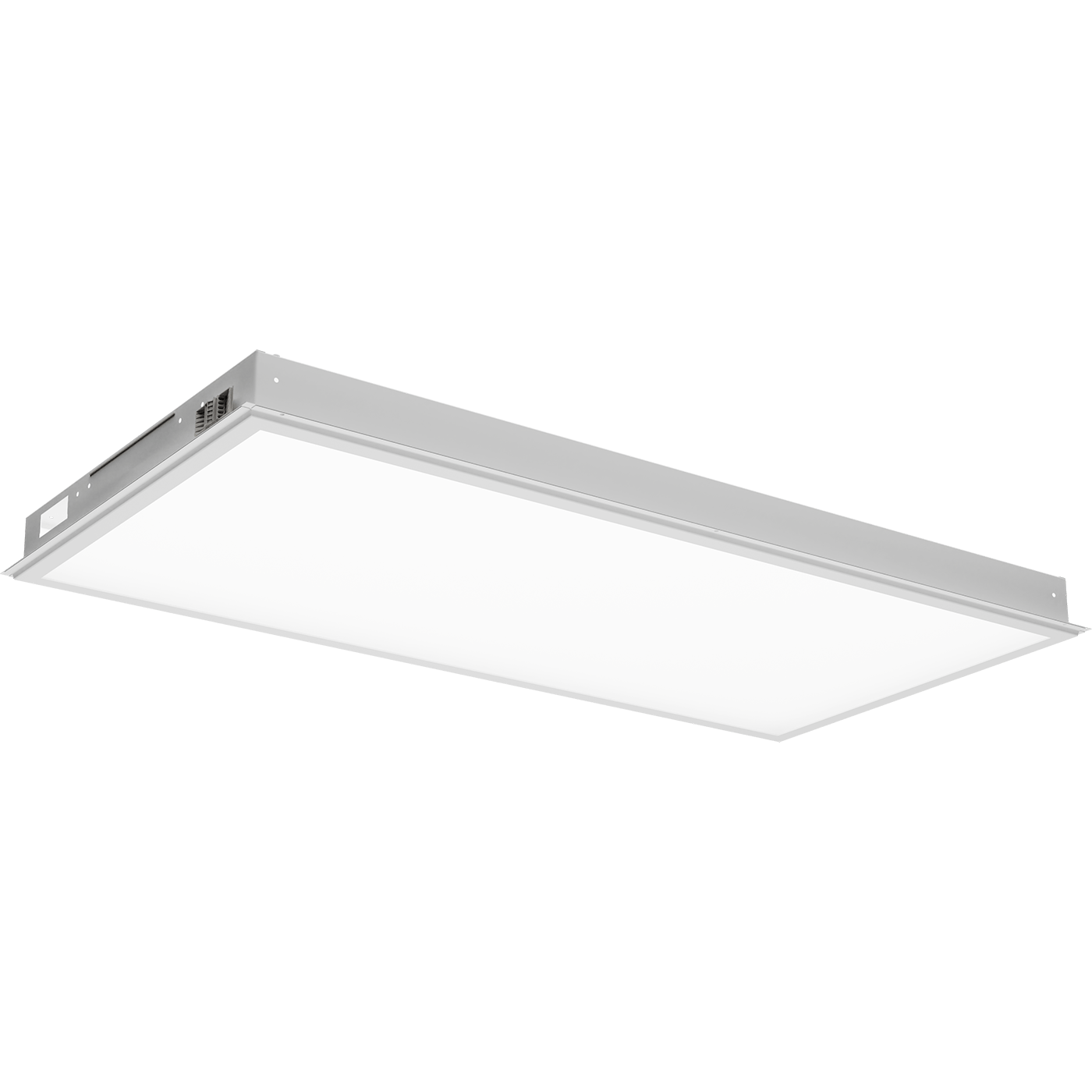

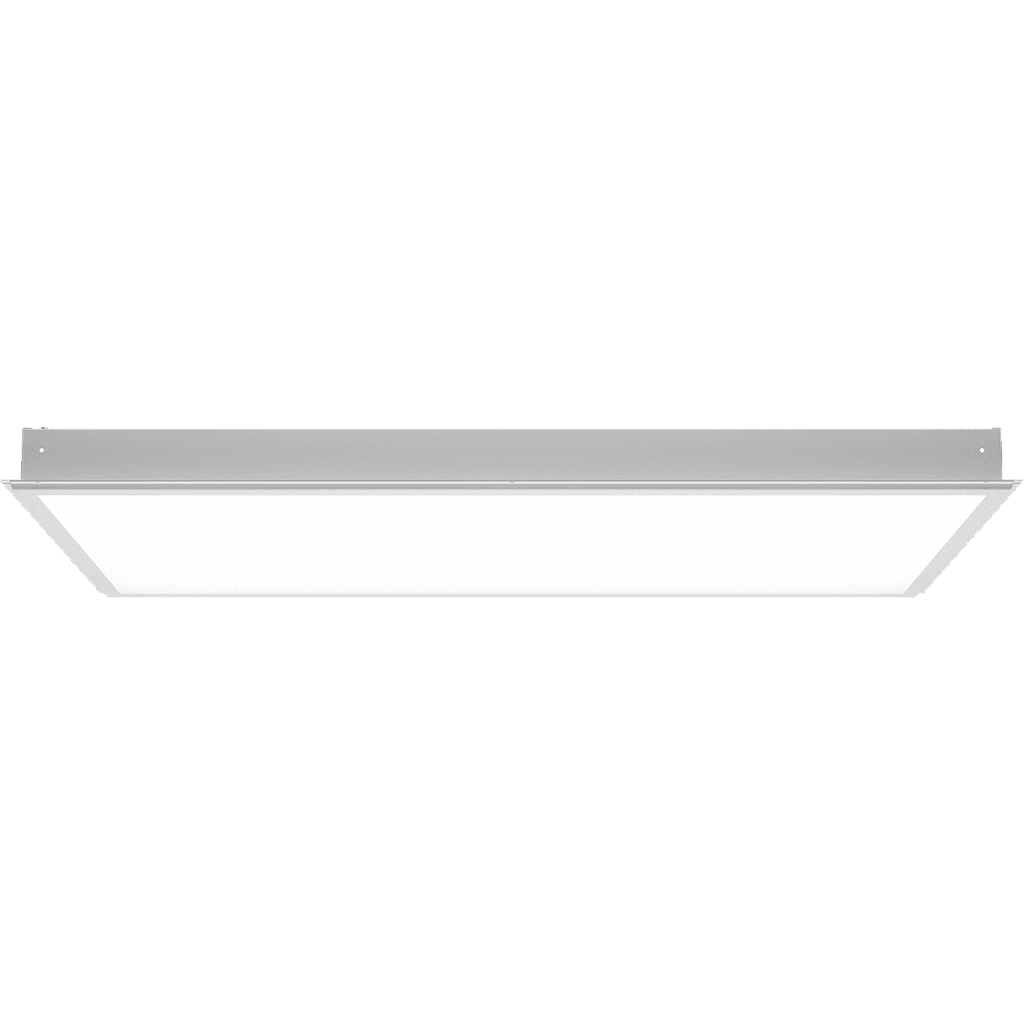

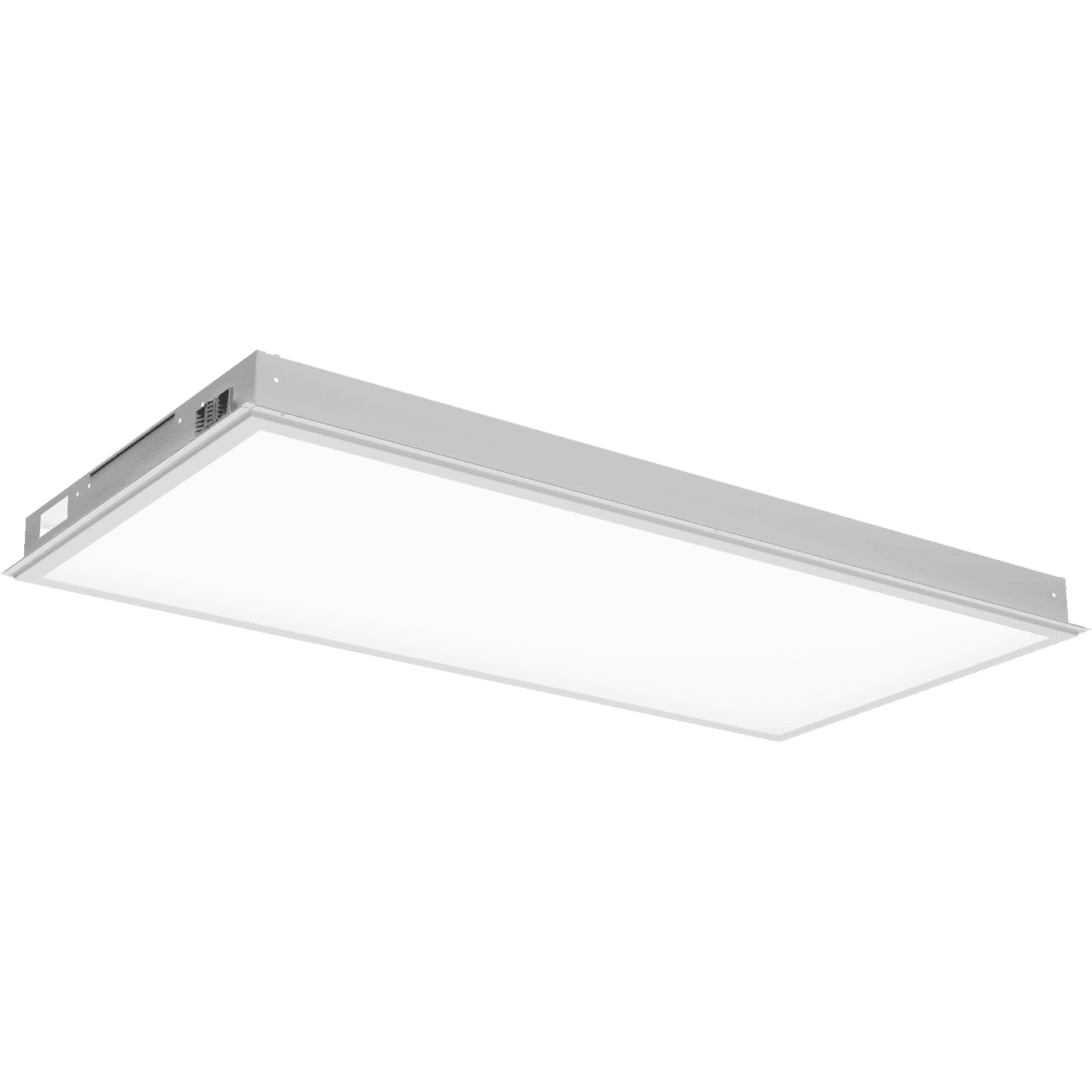

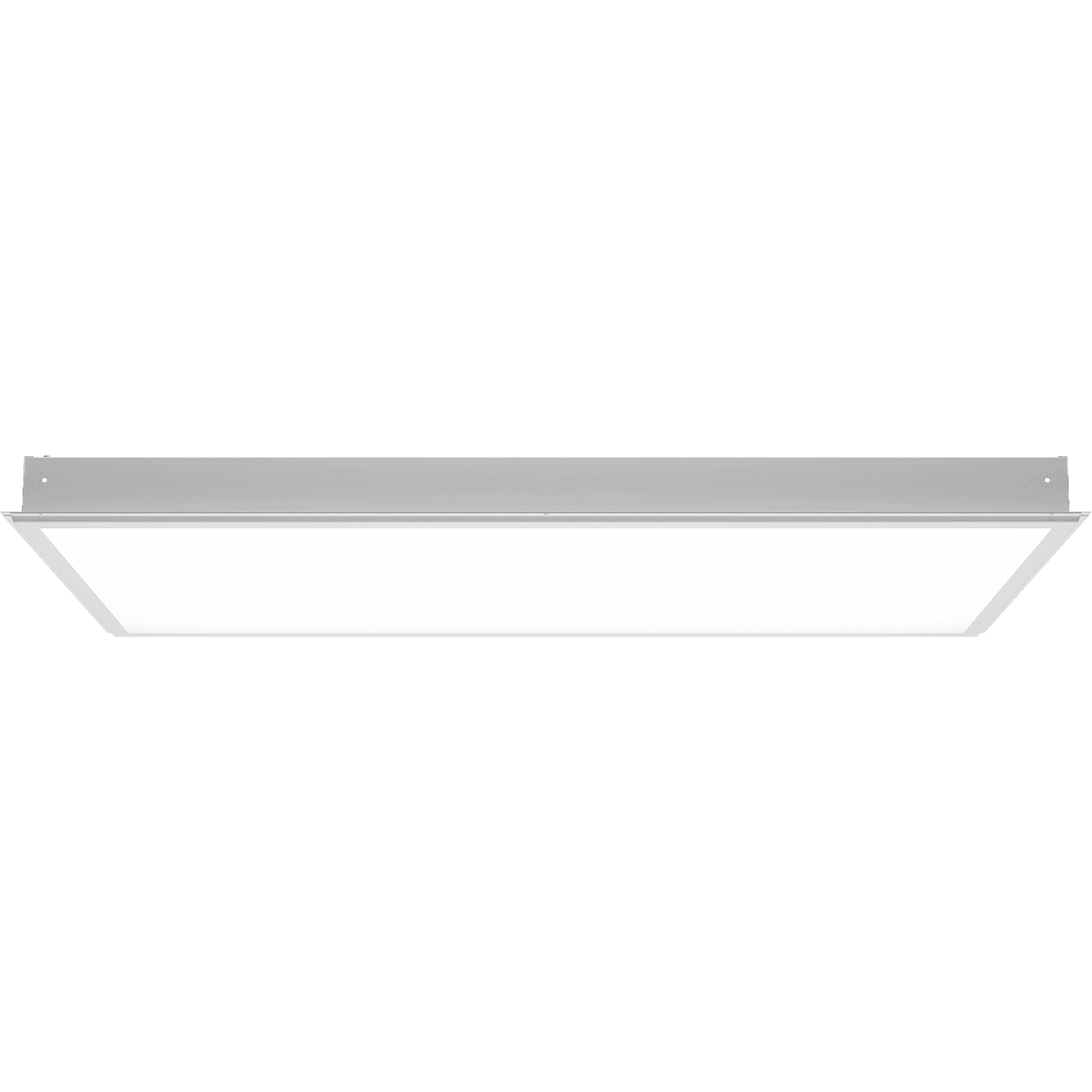

OPL/R ECO LED 1200x600 4000K Edge 24-04

OPL/R ECO LED 1200x600 4000K Edge 24-04
add to favorites
70 Wluminaire power
7200 lmlight flow
103 lm/Wenergy efficiency
code1028000460
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. OPL/R ECO LED Edges
  7. OPL/R ECO LED 1200x600 4000K Edge 24-04
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
70 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
70 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
7.6 kg
length, mm
1200 mm
width, mm
600 mm
height, mm
70 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1028000460
illuminating
color rendition index (CRI)
>80
light flow
7200 lm
flickering factor
<5%
energy efficiency
103 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS2.1 kB
model 3dMax392 kB

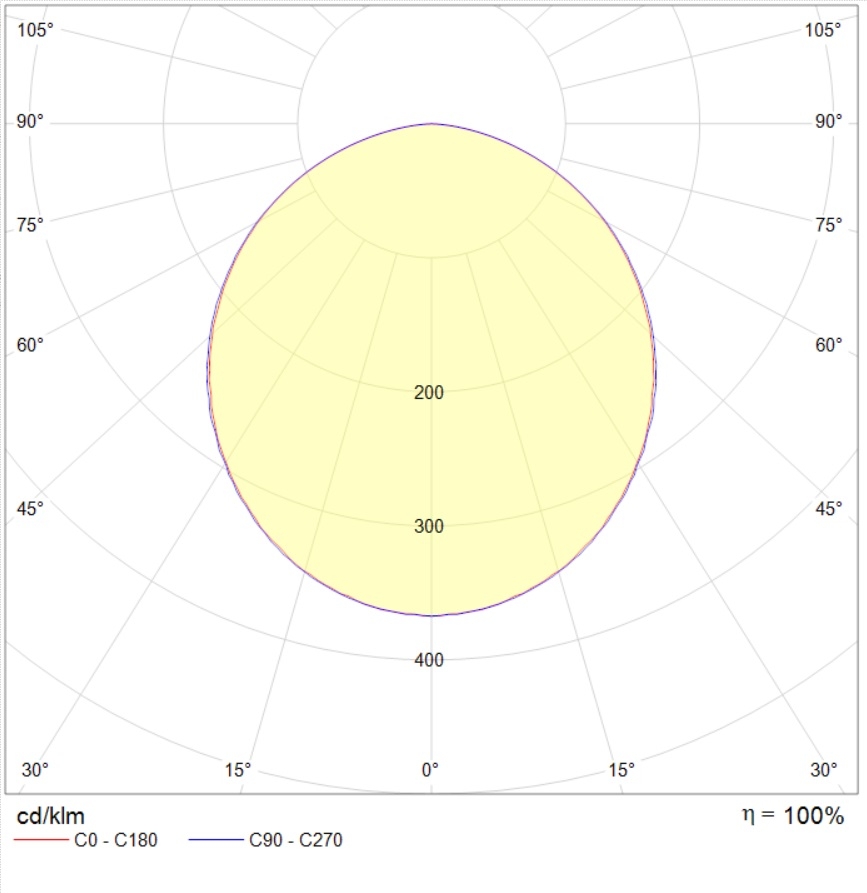

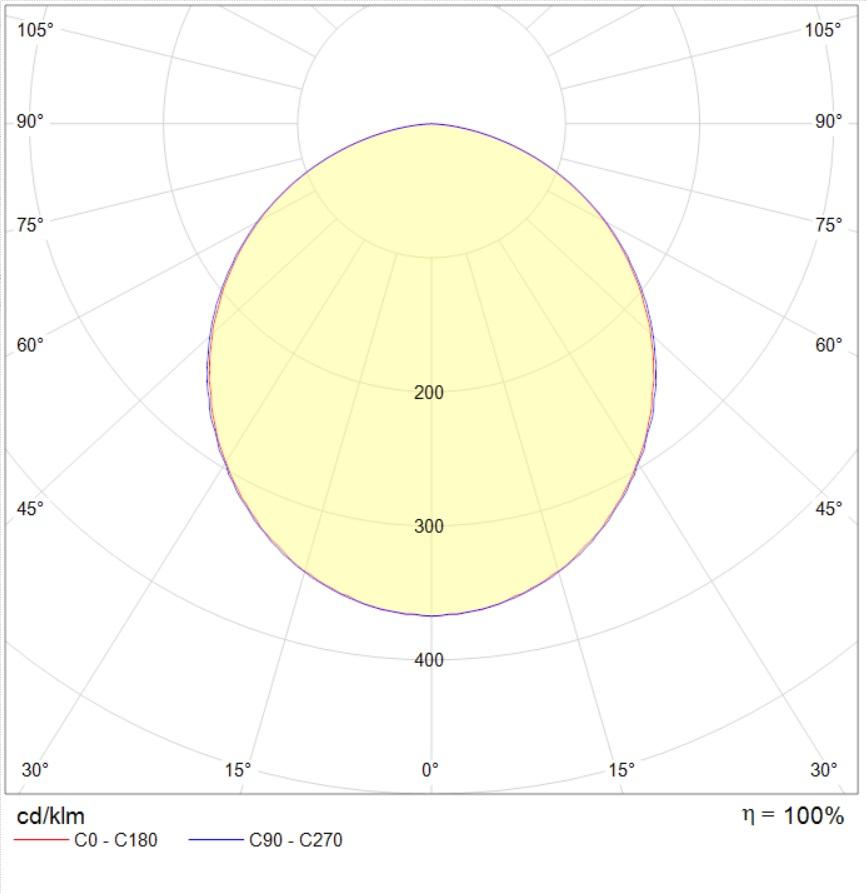

photometric files
ies263.2 kB
jpg78.9 kB
ldt162.9 kB
csv432 B
documents
passport3.1 mB
сертификаты
Russian origin551.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS2.1 kB
model 3dMax392 kB
photometric files
ies263.2 kB
jpg78.9 kB
ldt162.9 kB
csv432 B
documents
passport3.1 mB
сертификаты
Russian origin551.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
