OPL/R ECO LED 595 CH CF GRILIATO
OPL/R ECO LED 595 CH CF GRILIATO
35 Wluminaire power
3200 lmlight flow
91 lm/Wenergy efficiency
code1028001420
color temperature2700-5700 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
91 lm/Wcolor rendition index (CRI)
>80light flow
3200 lmflickering factor
<5%beam angle
D120color temperature
2700-5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
91 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
beam angle
D120
color temperature
2700-5700 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
290 µs
electric shock protection
I
luminaire power
35 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
17 A

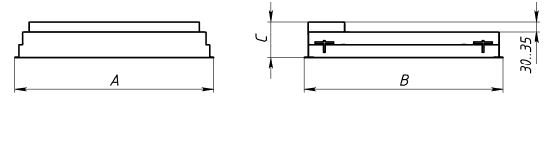

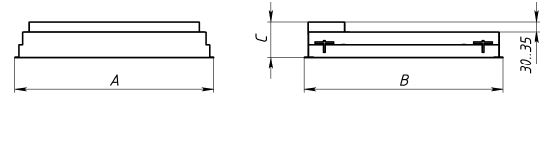

constructional
length
590 mm
width
590 mm
height
119 mm
installation length
590 mm
installation width
590 mm
weight
5.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI DT8
LMS options
dimming
DALI DT8
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1028001420
model files
model files
photometric files
documents
сертификаты

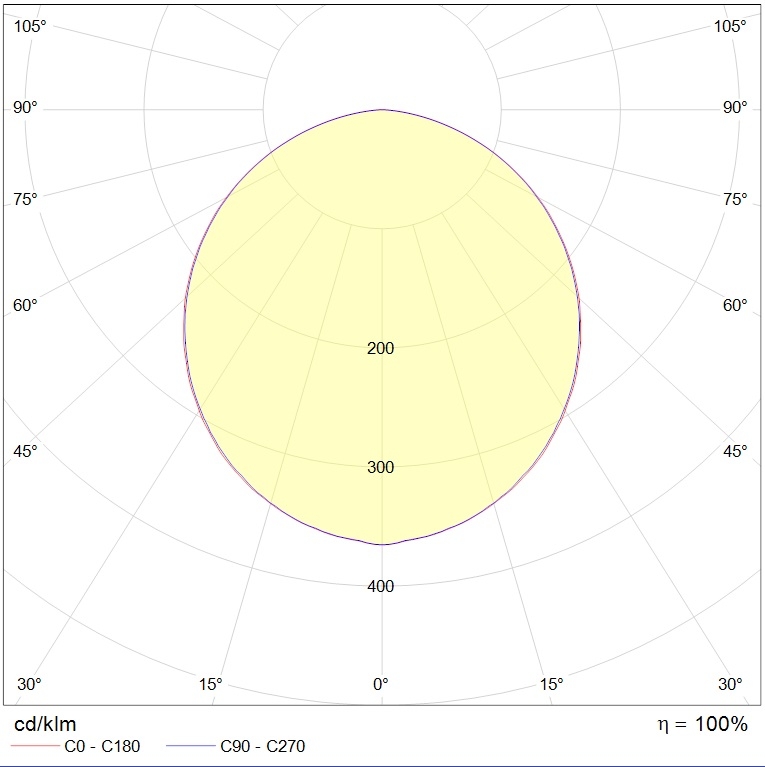

photometric files
ies134.1 kB
jpg76.3 kB
ldt83.4 kB
csv426 B
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
