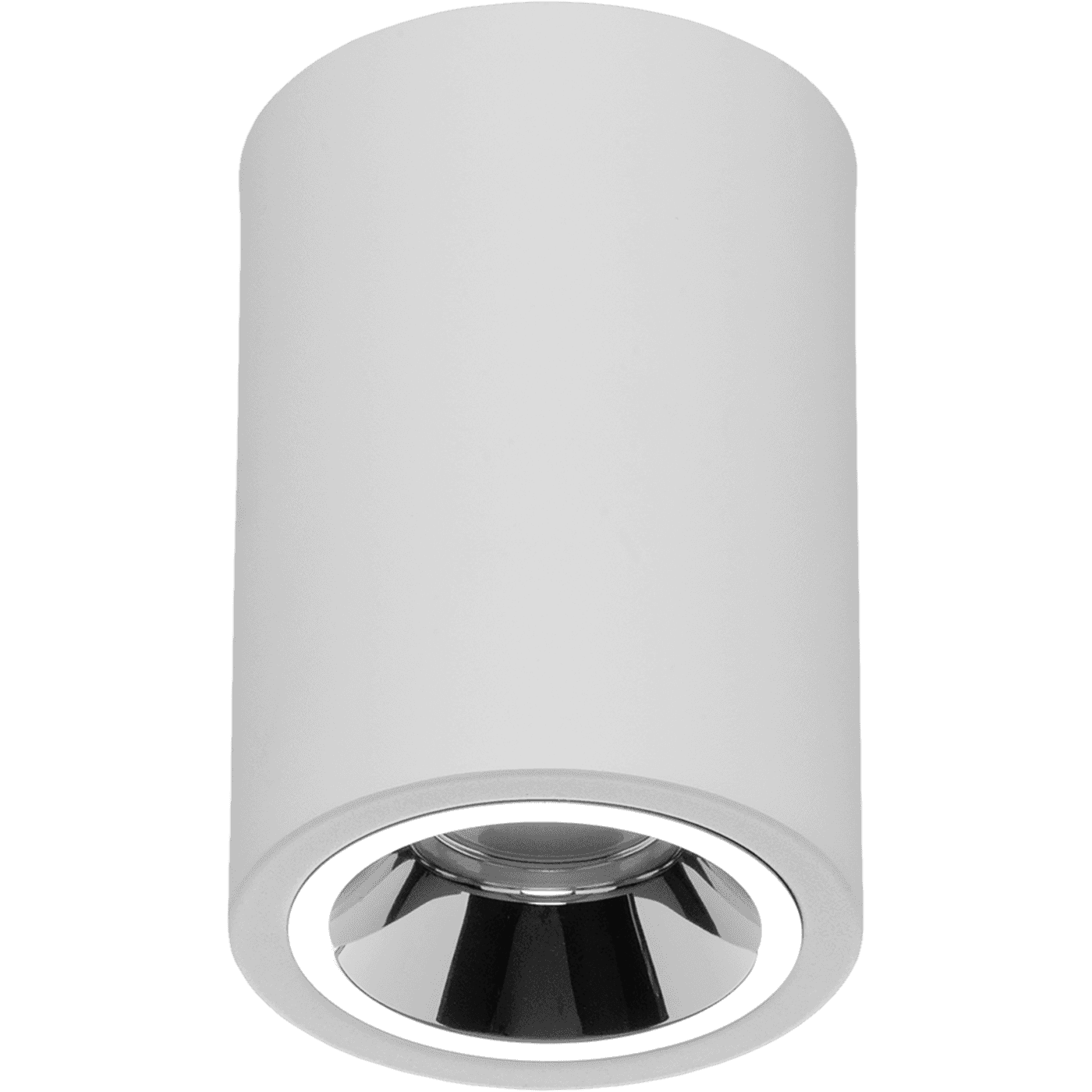

OKKO S 38 WH 3000K

model is discontinued
model is discontinued
OKKO S 38 WH 3000K
40 Wluminaire power
3800 lmlight flow
95 lm/Wenergy efficiency
code1235000650
color temperature3000 K
beam angleD70
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
95 lm/W
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
beam angle
D70
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
95 lm/W
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
beam angle
D70
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
60 A
constructional
diameter
230 mm
height
281 mm
weight
2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1235000650
model files
model files
CAD/BIM files
model 3dMax460 kB

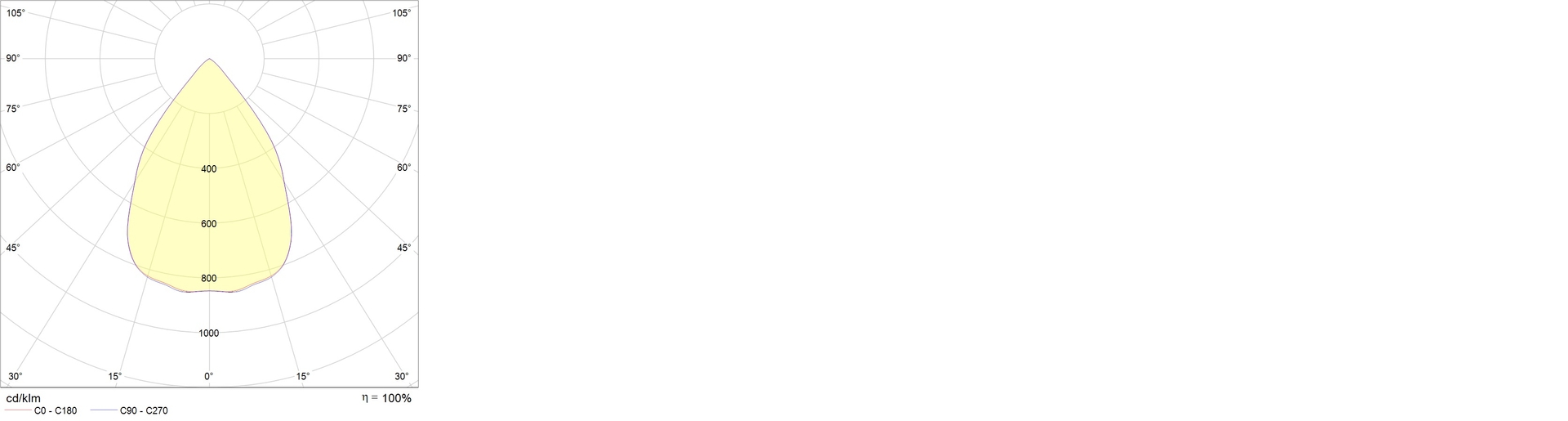

photometric files
ies68.6 kB
jpg132.5 kB
ldt40.8 kB
documents
passport1.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax460 kB
photometric files
ies68.6 kB
jpg132.5 kB
ldt40.8 kB
documents
passport1.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
