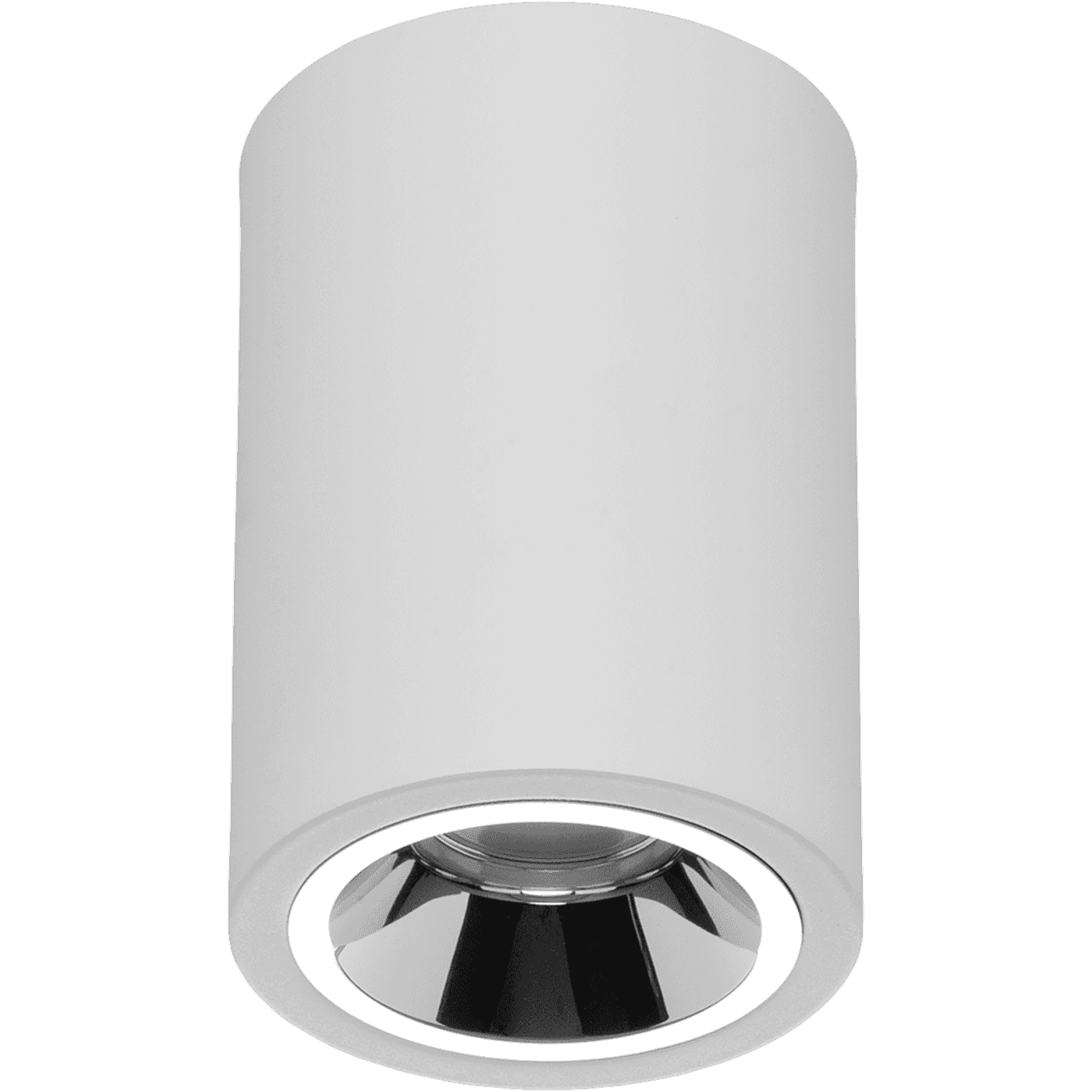

OKKO S 18 BL 3000K DALI
OKKO S 18 BL 3000K DALI
22 Wluminaire power
1850 lmlight flow
84 lm/Wenergy efficiency
code1235000880
color temperature3000
beam angleD70
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
84 lm/Wcolor rendition index (CRI)
>80light flow
1850 lmflickering factor
<5%beam angle
D70color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
84 lm/W
color rendition index (CRI)
>80
light flow
1850 lm
flickering factor
<5%
beam angle
D70
color temperature
3000
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
22 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
10 A
constructional

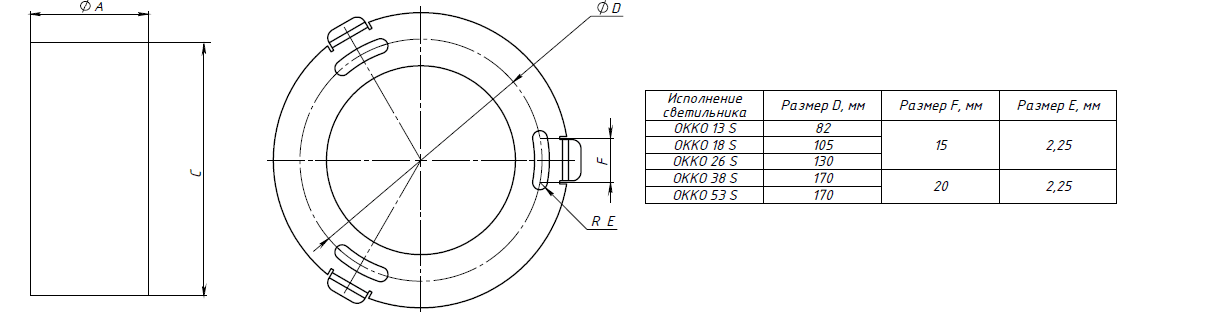

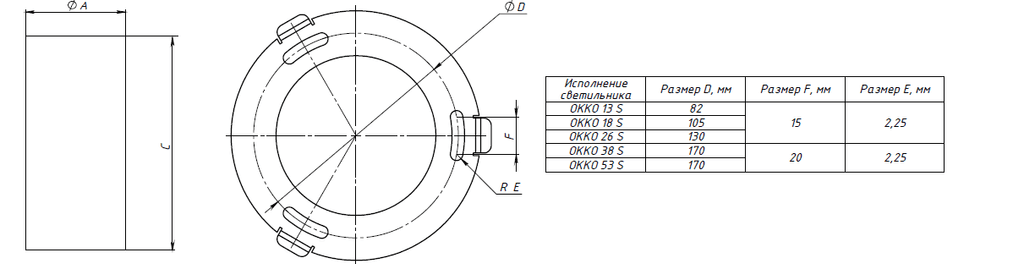

diameter
150 mm
height, mm
201 mm
weight
1.1 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1235000880
model files
model files
CAD/BIM files

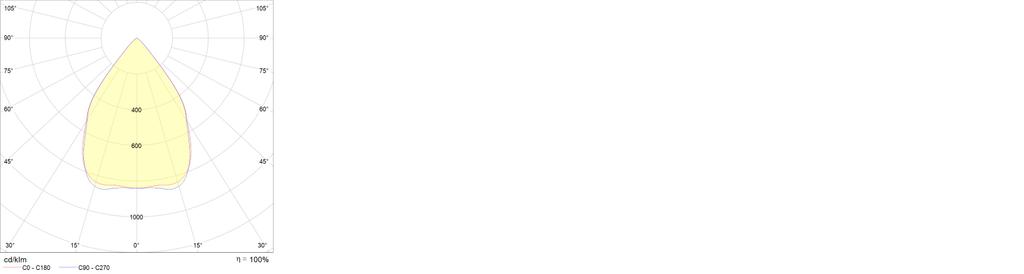

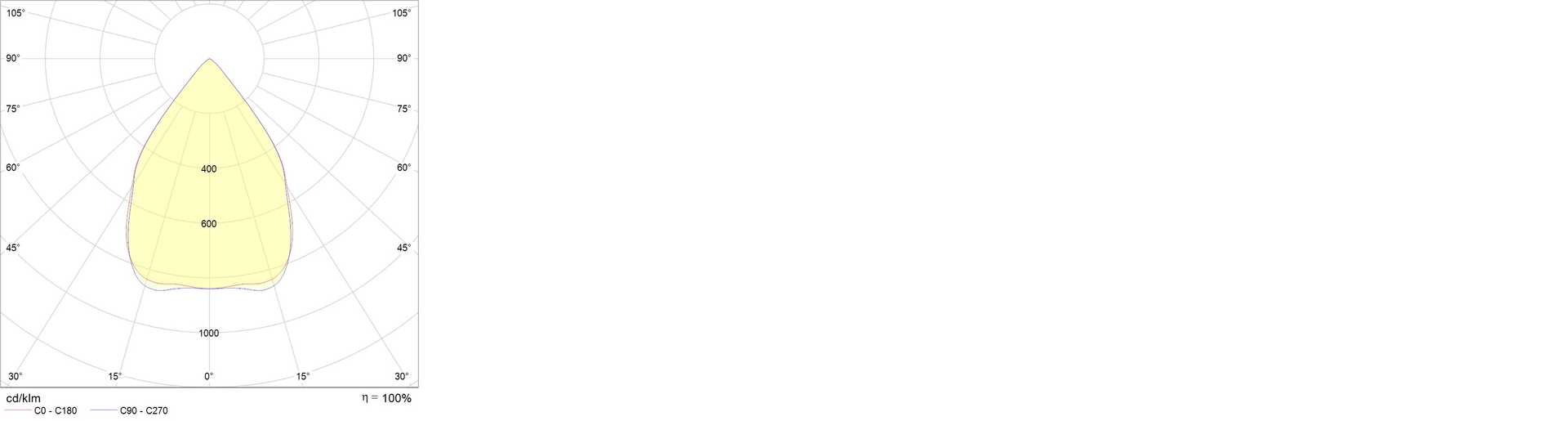

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax460 kB
photometric files
ies68.6 kB
jpg133.5 kB
ldt40.8 kB
documents
passport1.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
