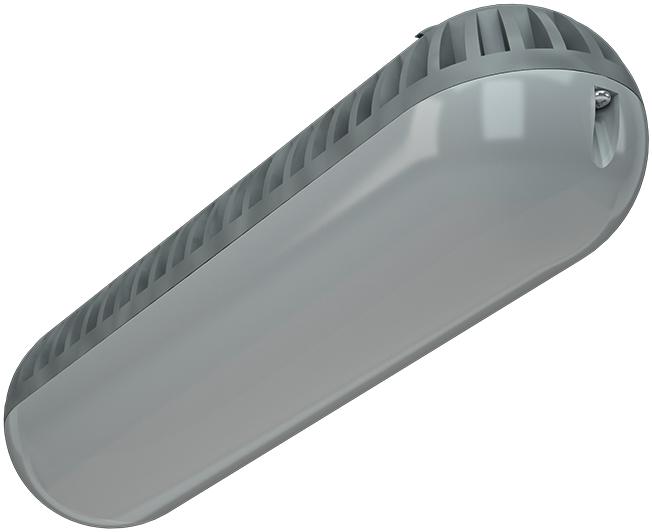

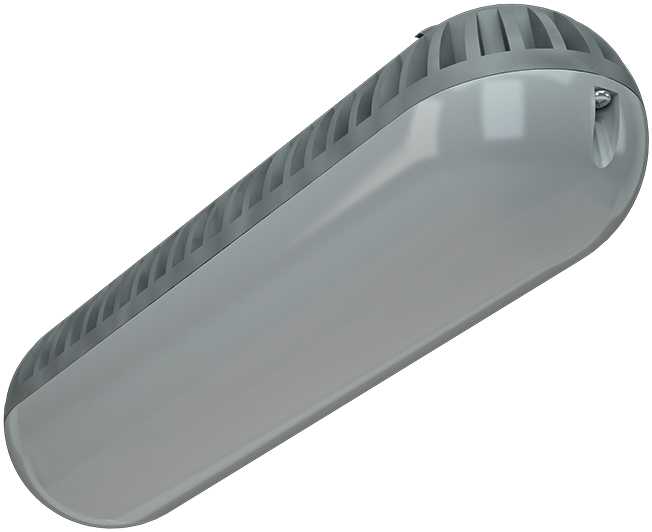

OD DIALOG 6500-12 LED

model is discontinued
model is discontinued
OD DIALOG 6500-12 LED
add to favorites
12 Wluminaire power
централизованного электропитания type of operation / type of operation of the emergency luminaire
code1142000100
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. emergency lights
  6. OD DIALOG
  7. OD DIALOG 6500-12 LED
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
1200 lm
flickering factor
100%
beam angle
D120
light source type
LED
energy efficiency
100 lm/W
emission color
Белый
illuminating
light flow
1200 lm
flickering factor
100%
beam angle
D120
light source type
LED
energy efficiency
100 lm/W
emission color
Белый
electrical
maximum cross-section of the connected cable
1.5 mm2
electric shock protection
II
luminaire power
12 W
lamp power
12 W
power factor
> 0,95
supply voltage
230 V
starting current
15 A
starting current pulse time
130 µs
constructional
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
weight
0.75 kg

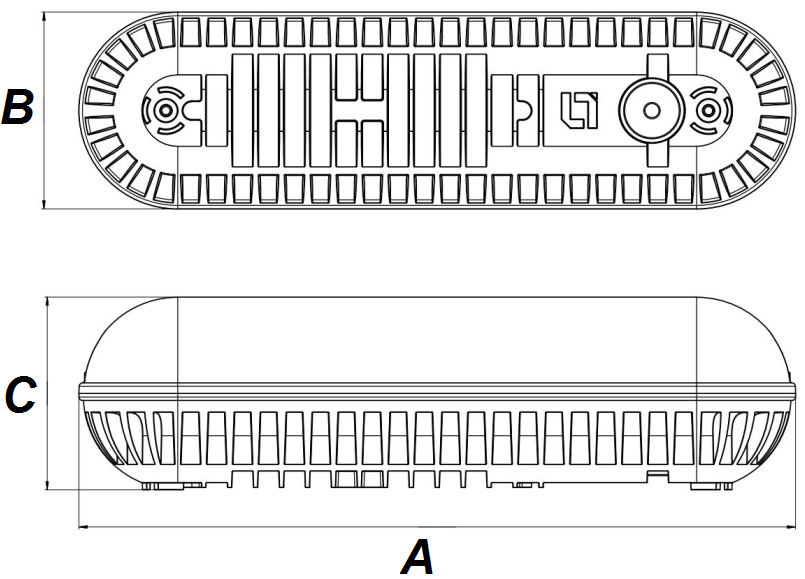

length
304 mm
width
84 mm
fire safety class
П-I,II,ІІІ
installation length
230 mm
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
emergency
type of operation / type of operation of the emergency luminaire
централизованного электропитания
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
code
1142000100
model files
model files

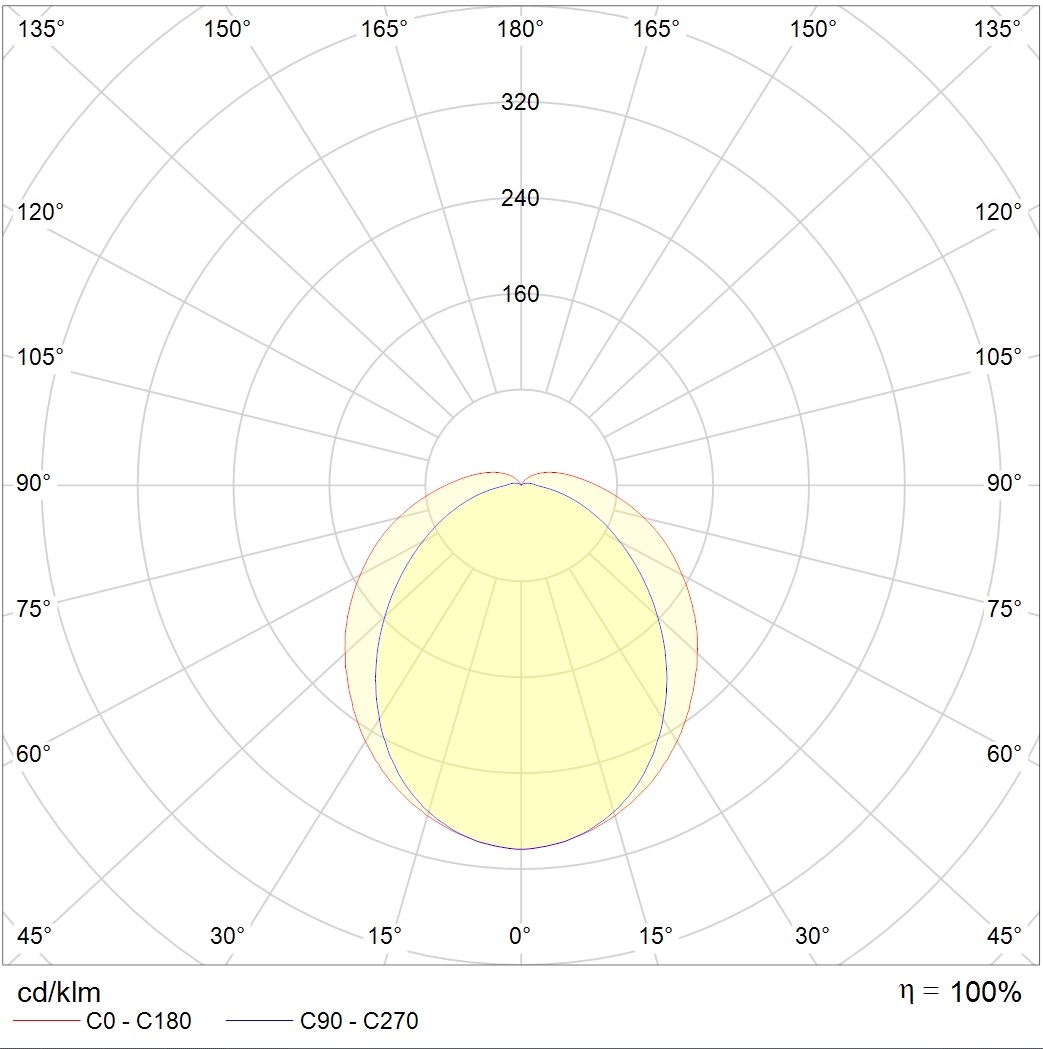

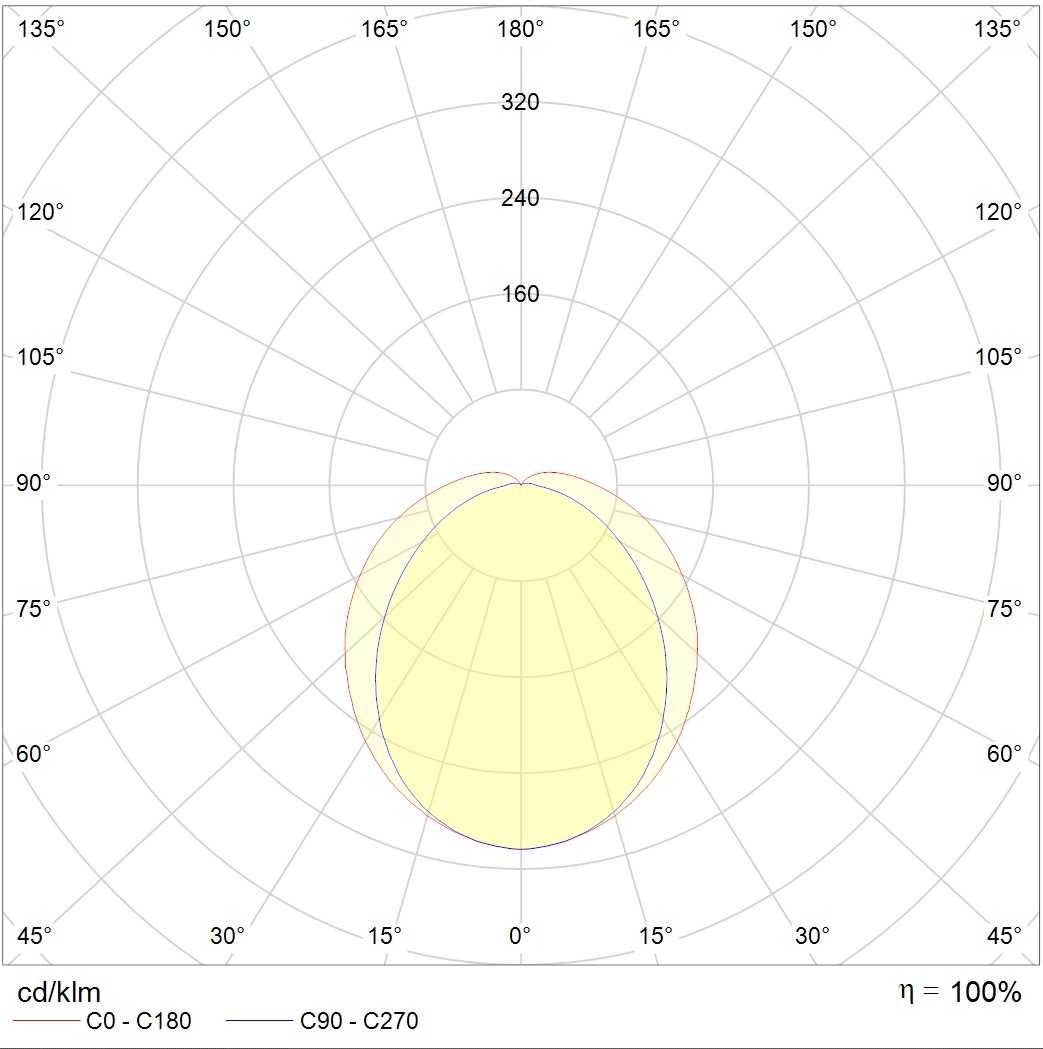

photometric files
