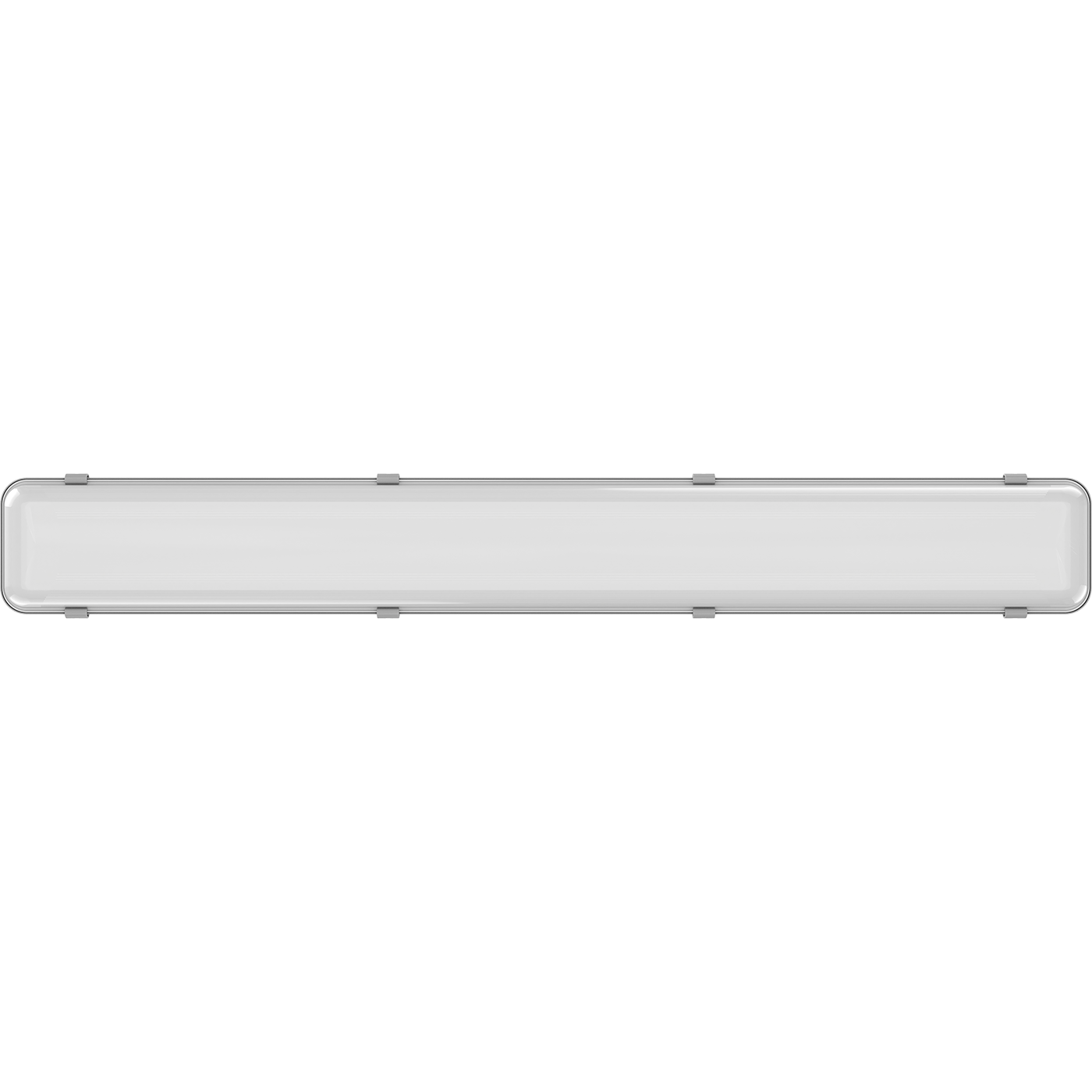

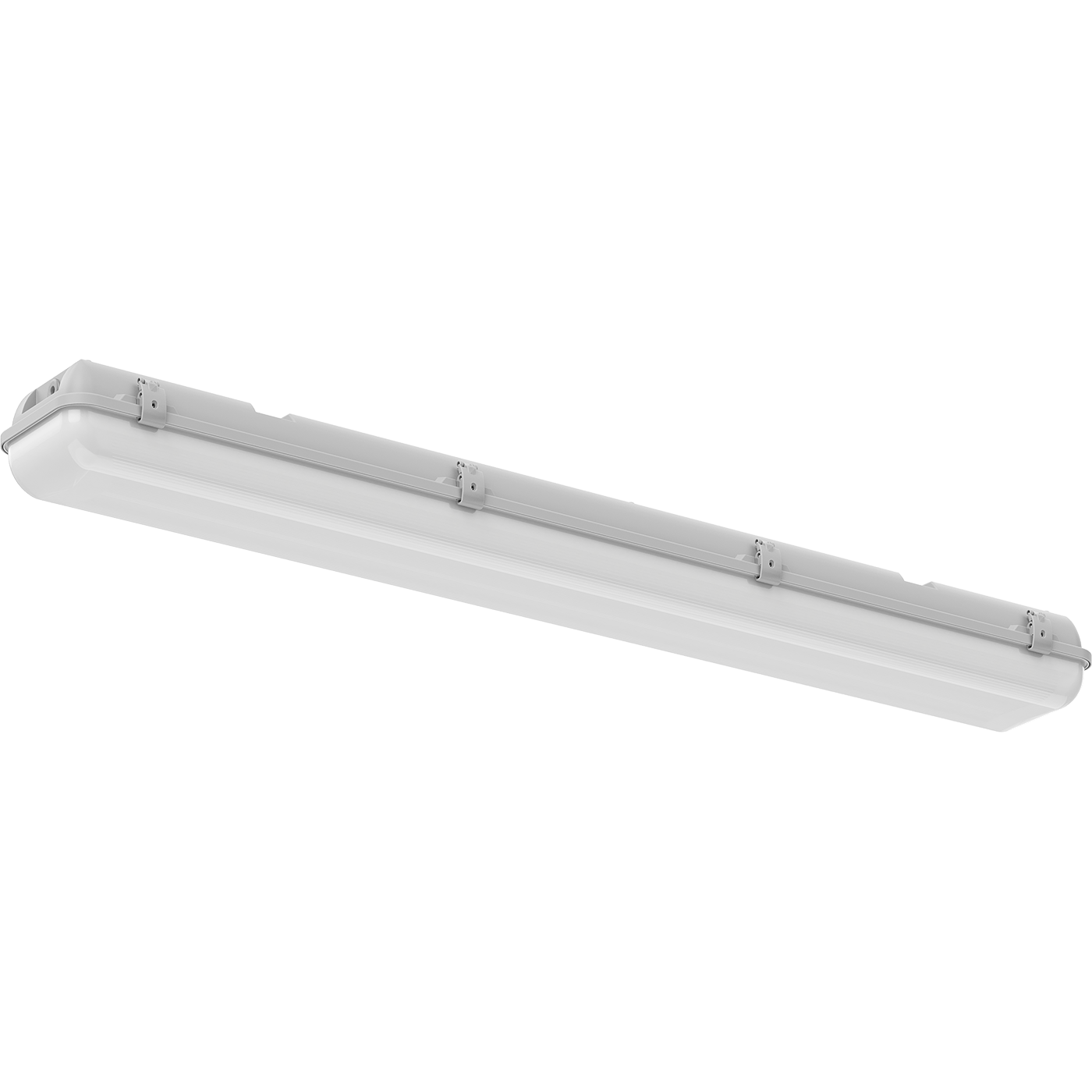

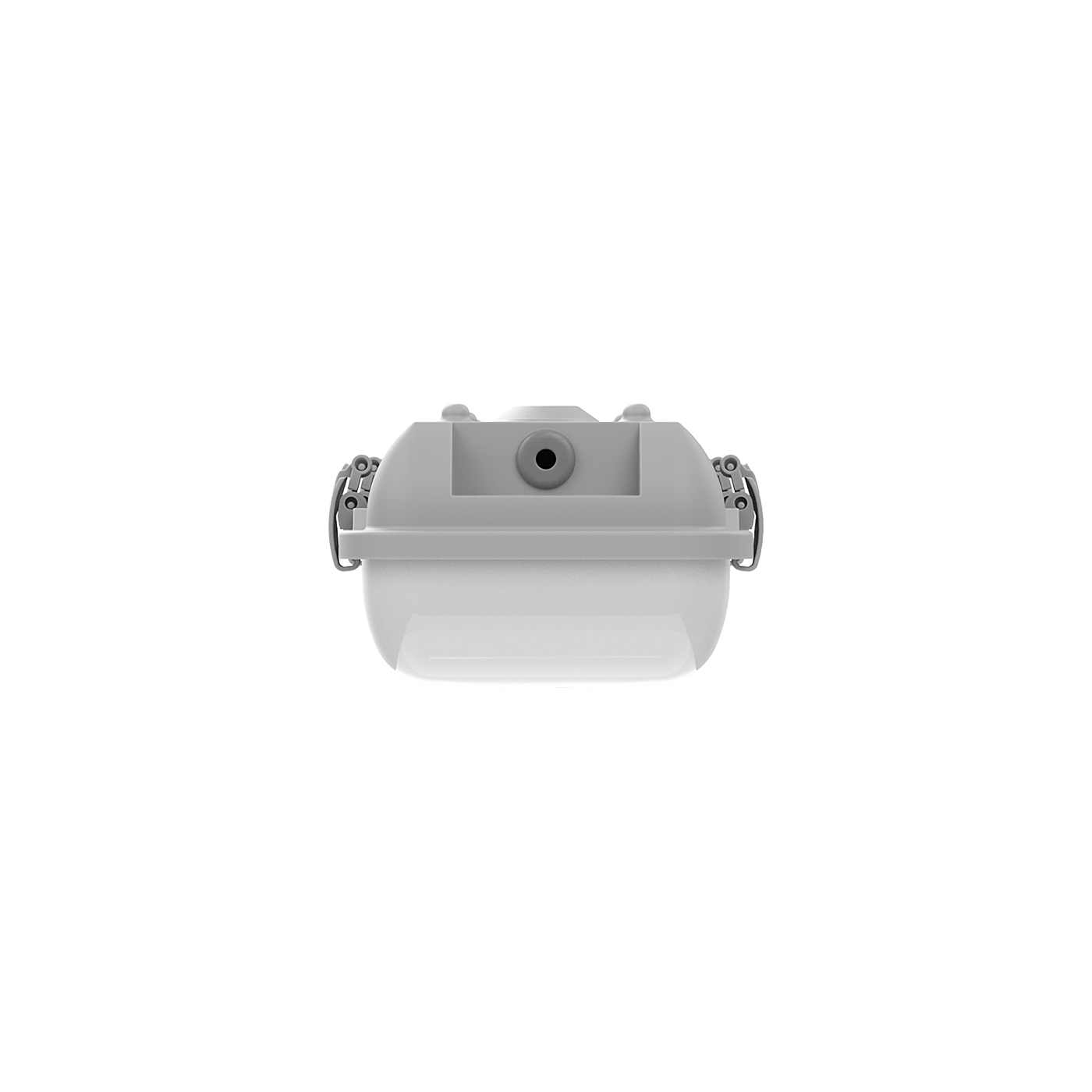

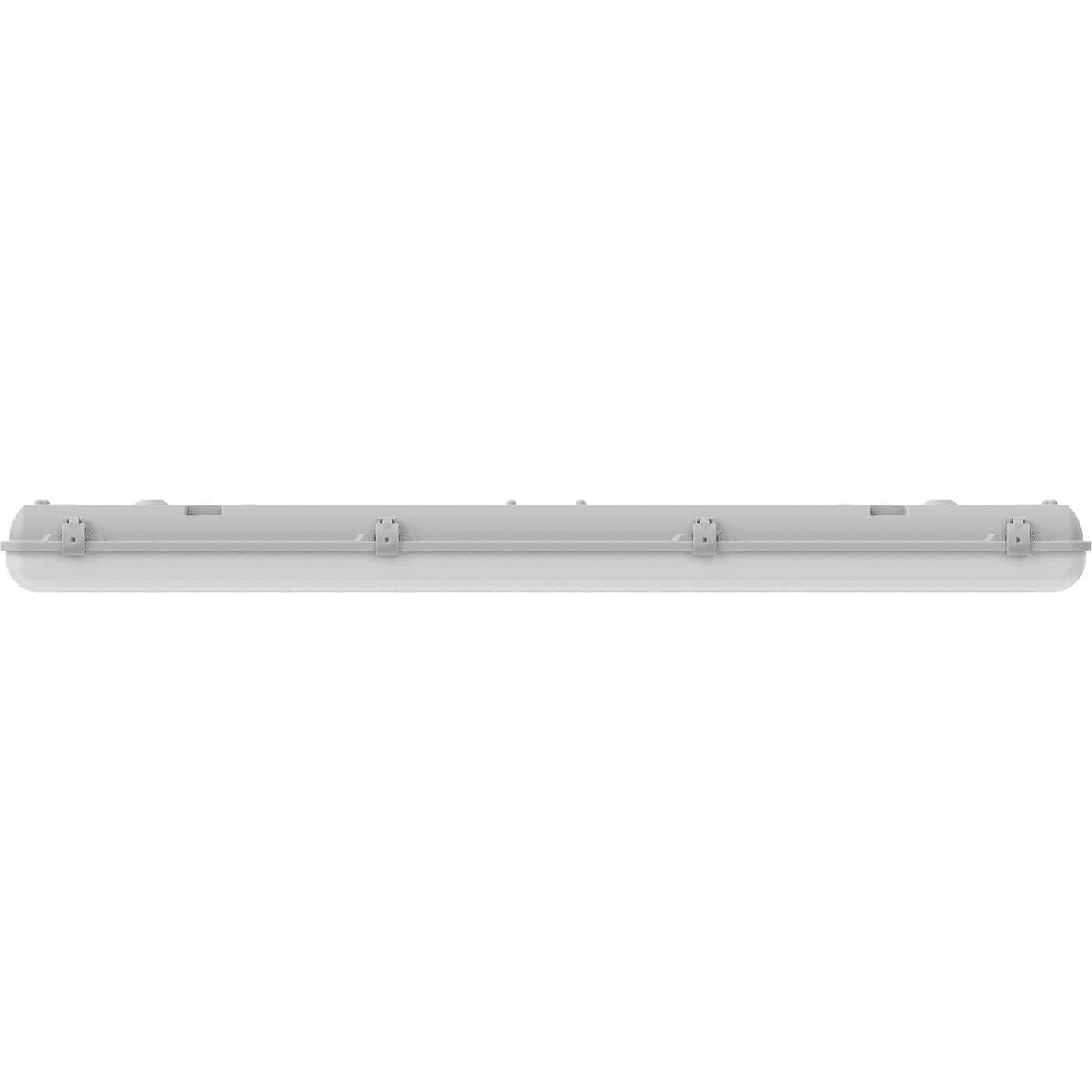

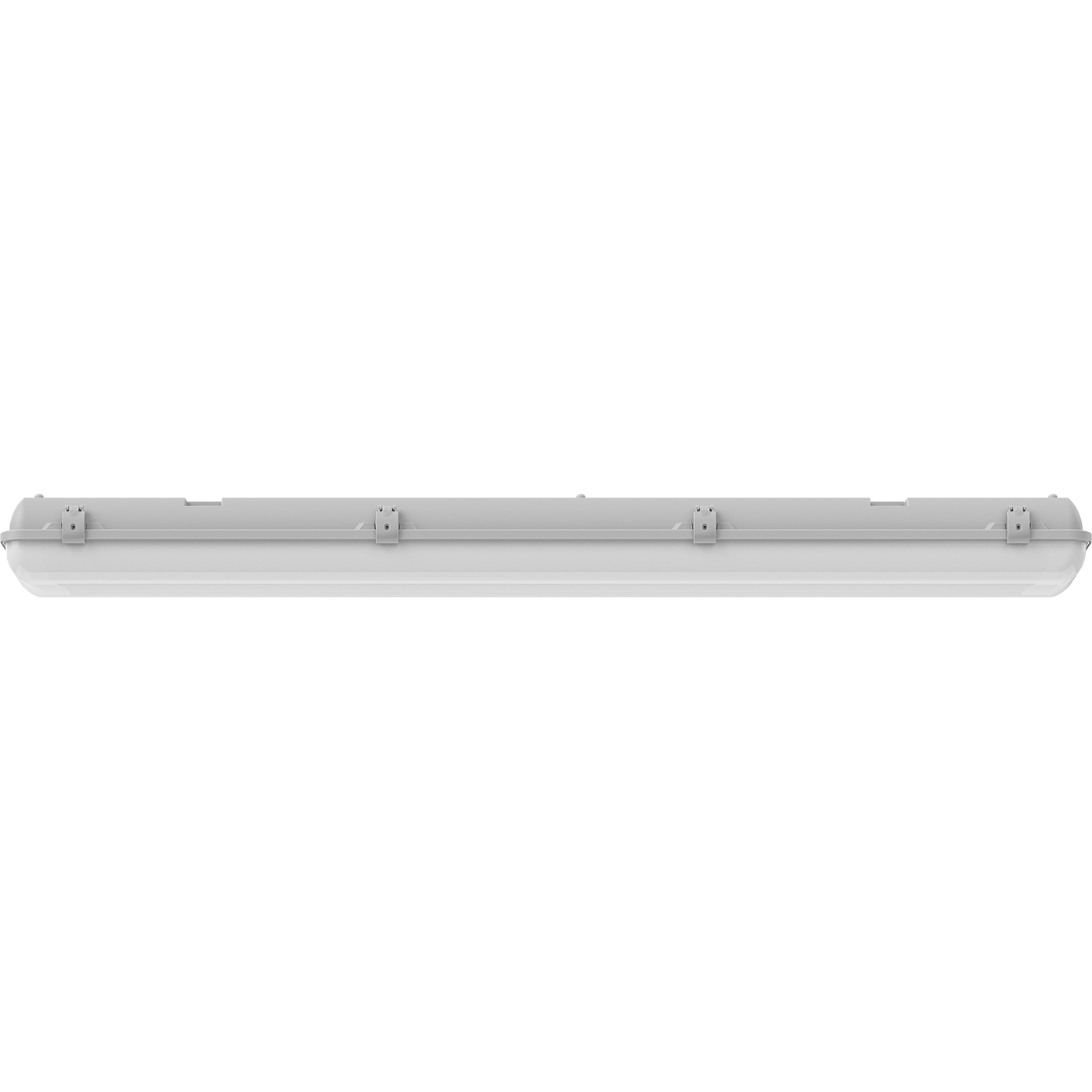

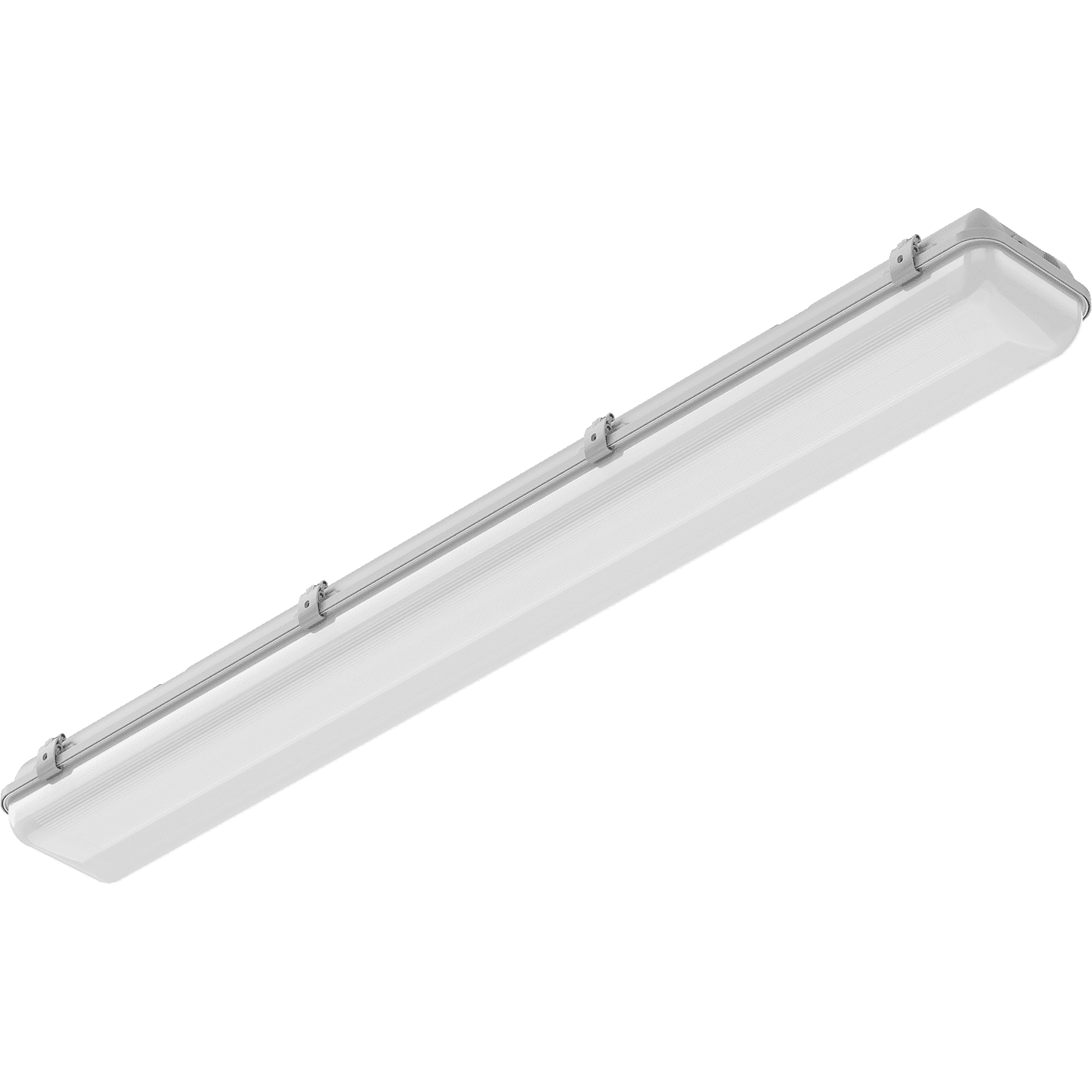

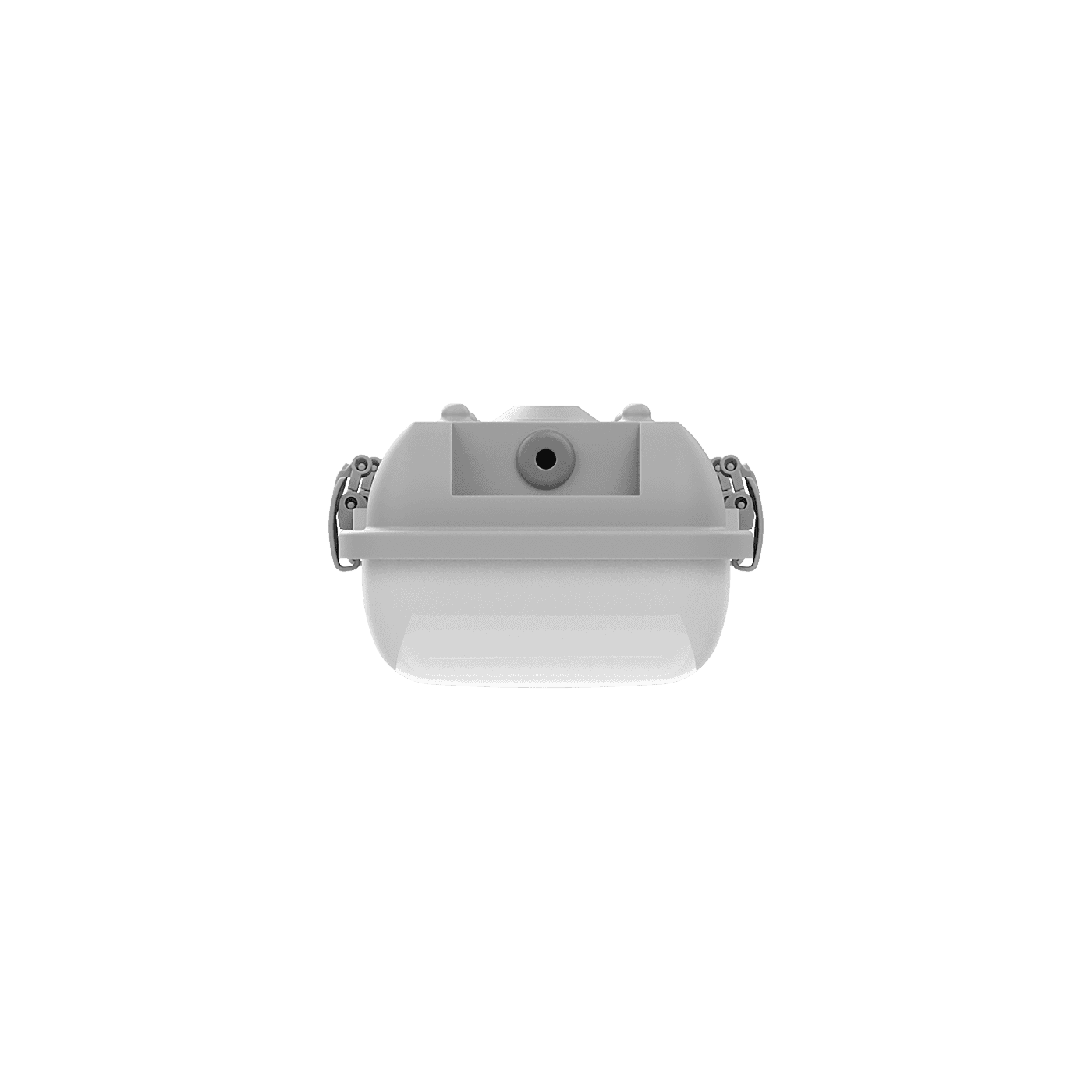

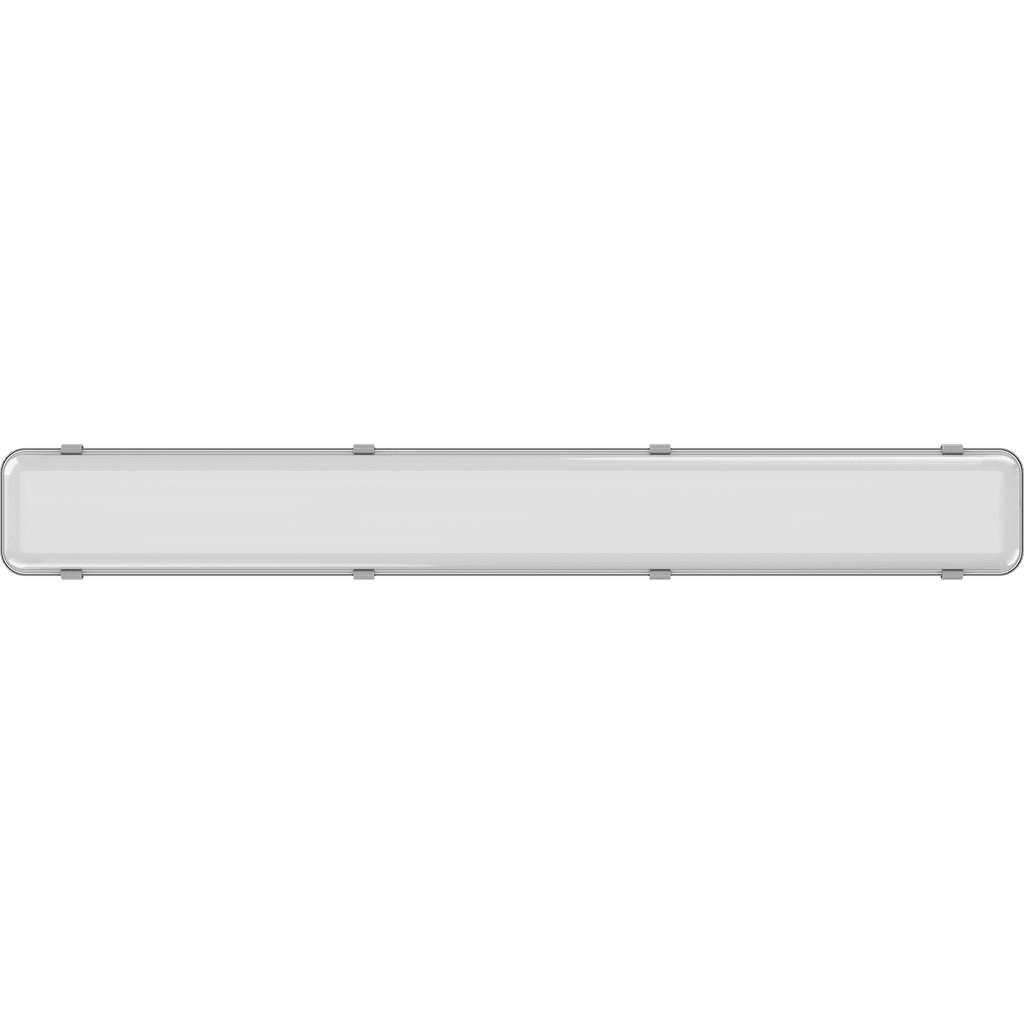

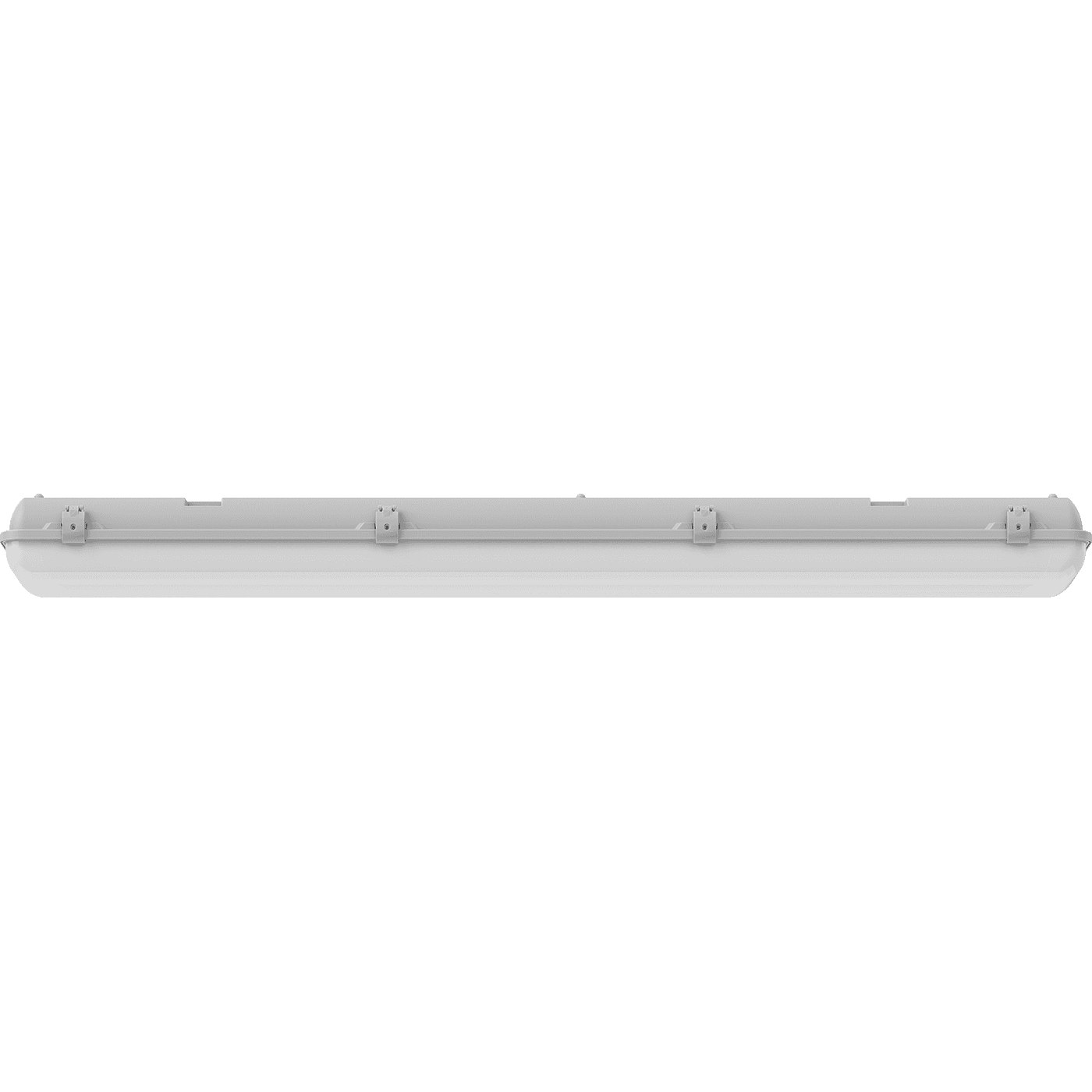

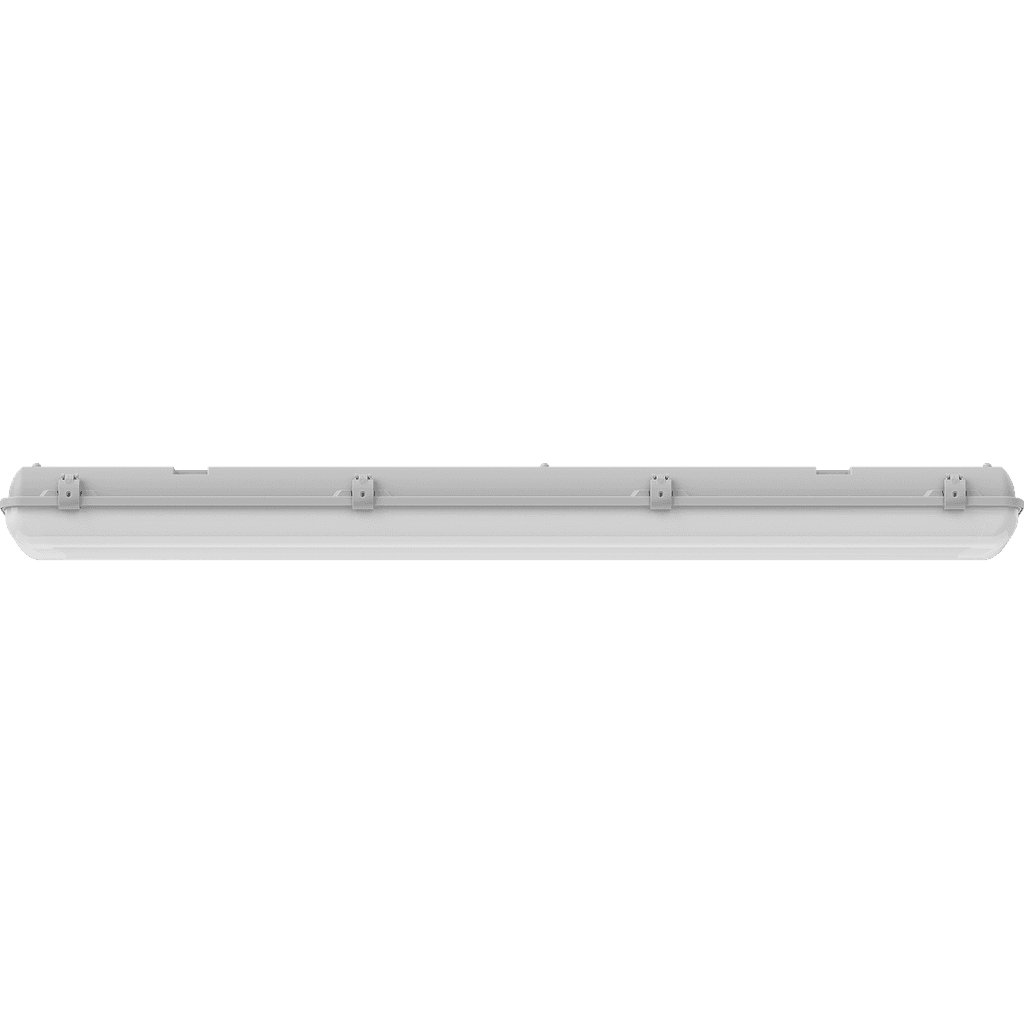

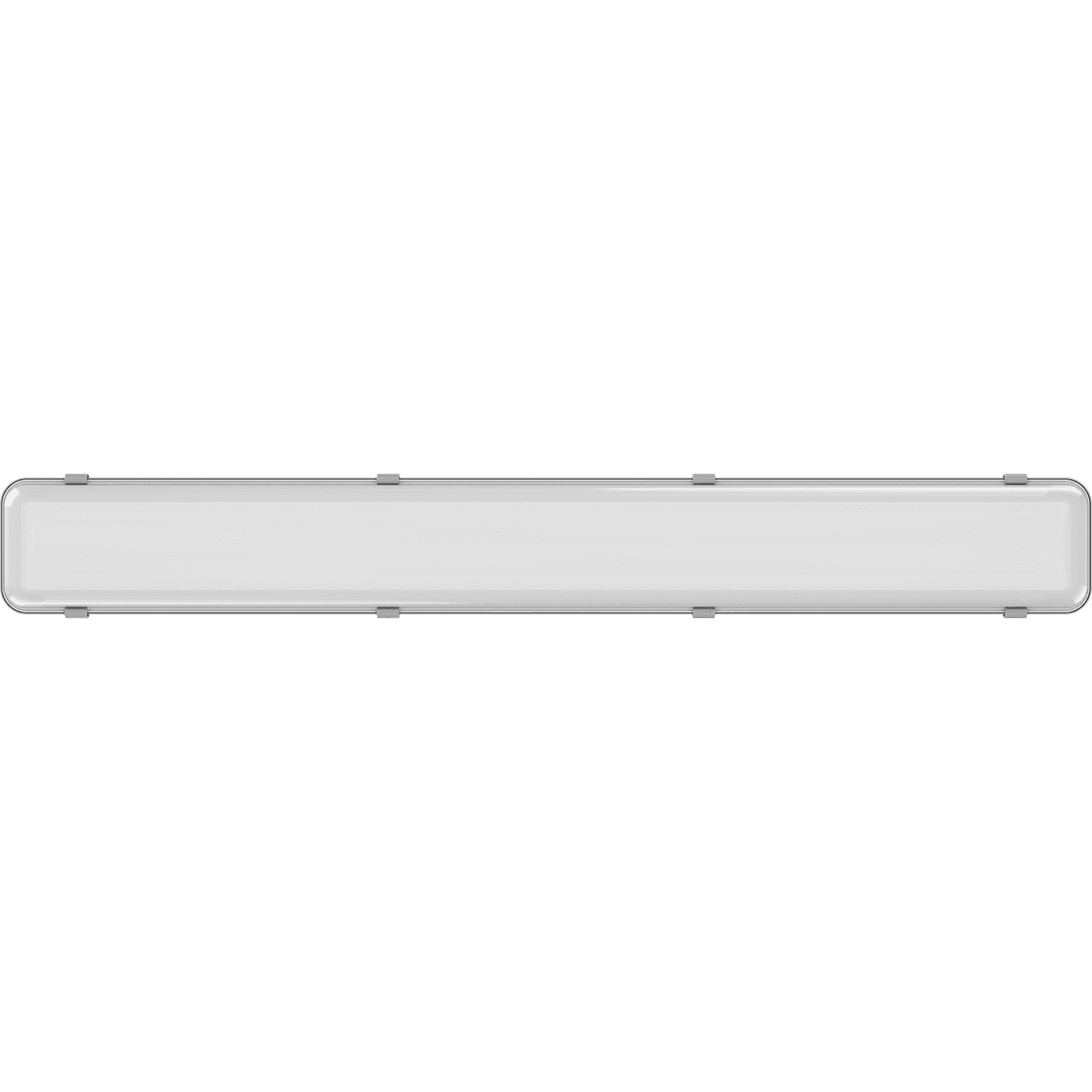

NORTH 1500 5000K
NORTH 1500 5000K
60 Wluminaire power
7400 lmlight flow
123 lm/Wenergy efficiency
code1499000110
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
7400 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
123 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
7400 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
123 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
60 W
electric shock protection
II
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
length
1572 mm
width
173 mm
height
103 mm
material
Поликарбонат
housing color
Серый
weight
4.9 kg
common
code
1499000110
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от -30 до +40 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2.2 mB

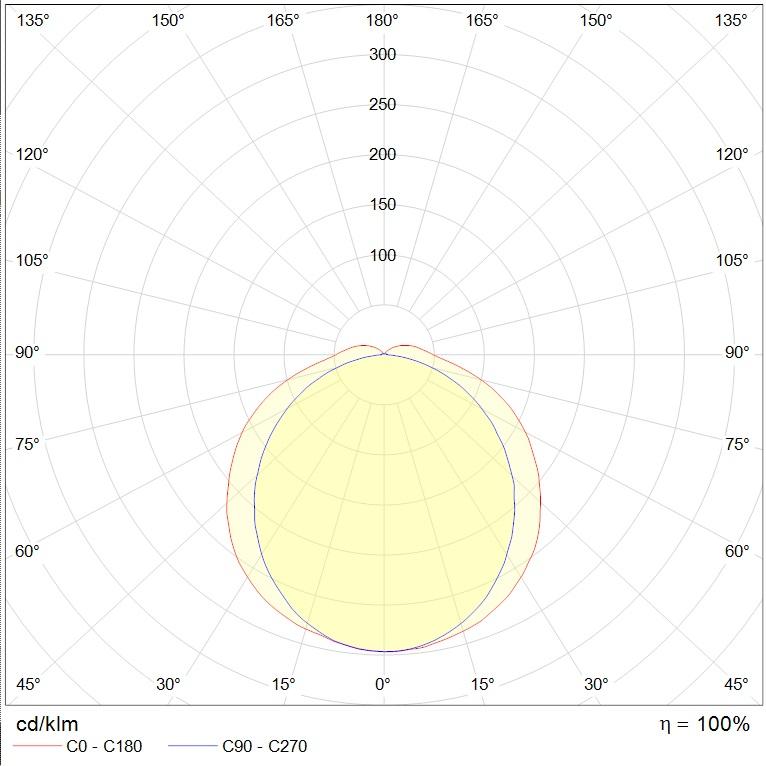

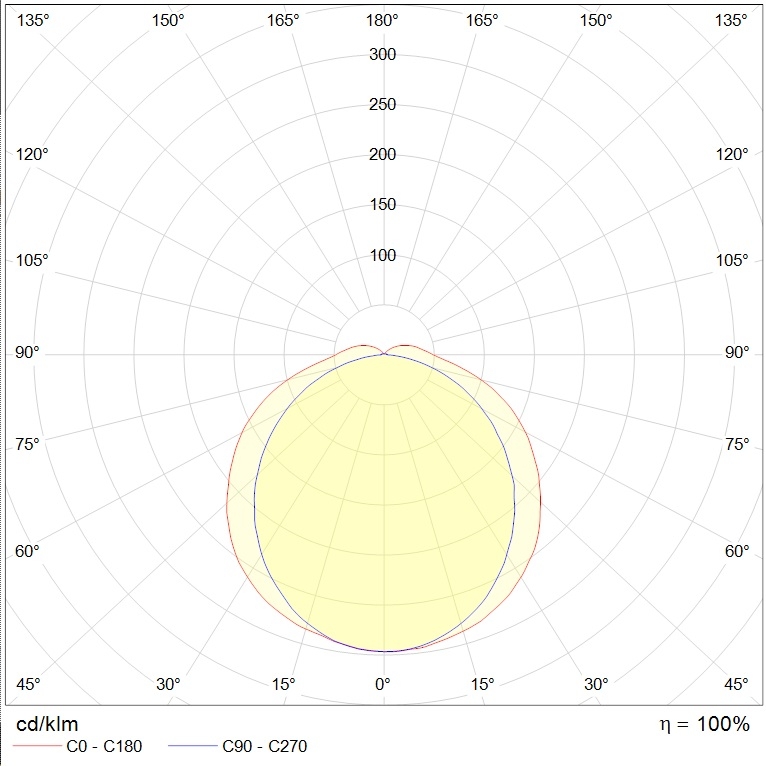

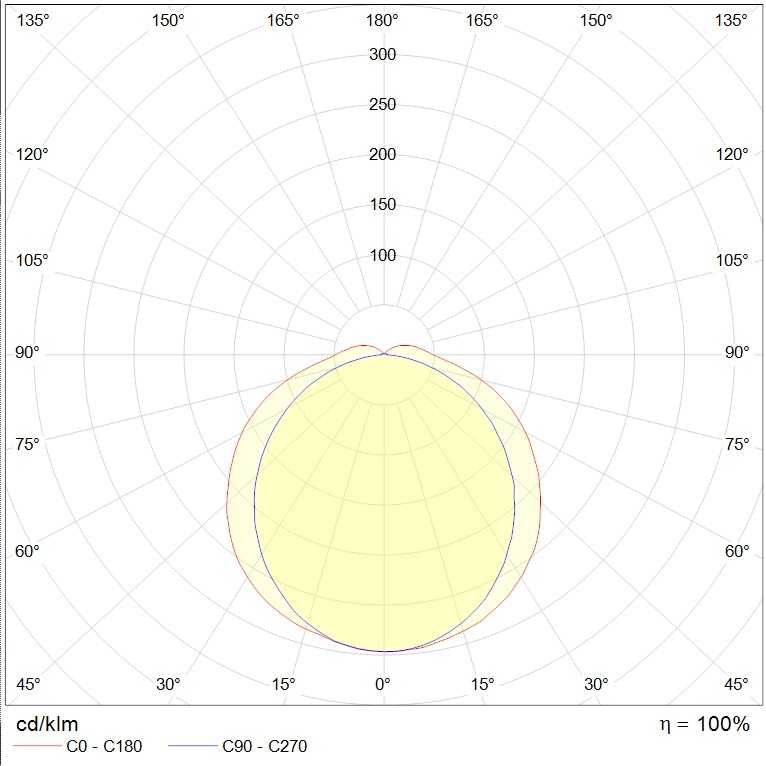

photometric files
ies107 kB
jpg109.9 kB
ldt83.8 kB
documents
passport696 kB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
