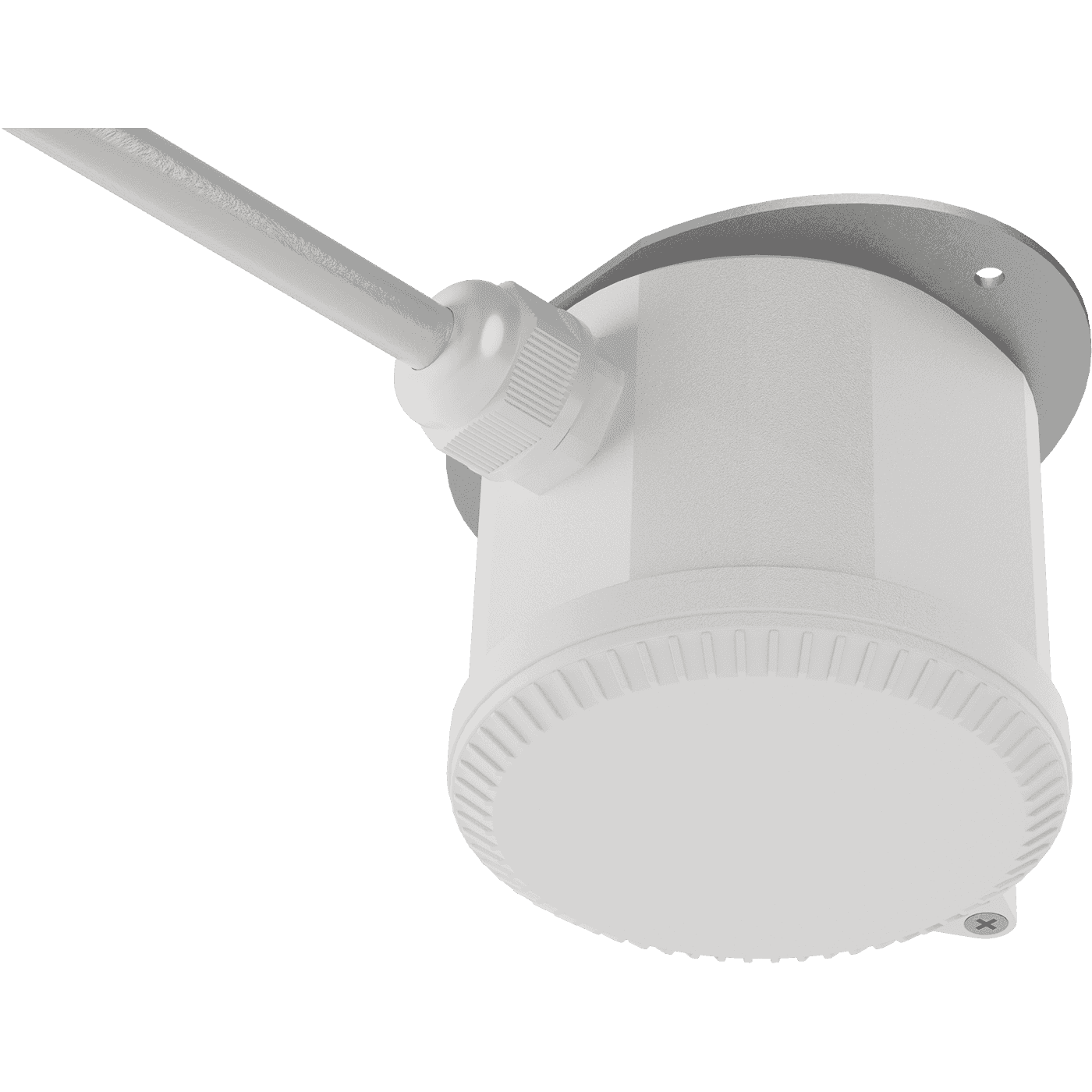

Датчик движения микроволновый MS784
Датчик движения микроволновый MS784
10-20м, настраивается mdetection zone
5с - 30мин delay time
от -20 до +70 Ctemperature range
code4911010120
ingress protection (IP)IP65
temperature rangeот -20 до +70 C
switched loadдо 2000 Вт (лампы накаливания), до 1000 Вт (люминесцентные лампы, LED)
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
viewing angle
360illuminance level
2-2000 lxilluminating
viewing angle
360
illuminance level
2-2000 lx
electrical
electric shock protection
II
supply voltage
230 V
switched load
до 2000 Вт (лампы накаливания), до 1000 Вт (люминесцентные лампы, LED)
constructional
height
44 mm
width
36 mm
length
36 mm
weight
0.216 kg
material
Пластик
mounting type
На поверхность
ingress protection (IP)
IP65
climatic performance
УХЛ4
housing color
Серый
LMS options
detection type
MW
detection zone
10-20м, настраивается m
delay time
5с - 30мин
control interface
1-10В
common
code
4911010120
ETIM class
Датчик движения/присутствия в сборе
warranty
36 month
temperature range
от -20 до +70 C
model files
model files
documents
сертификаты
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011723.6 kB
