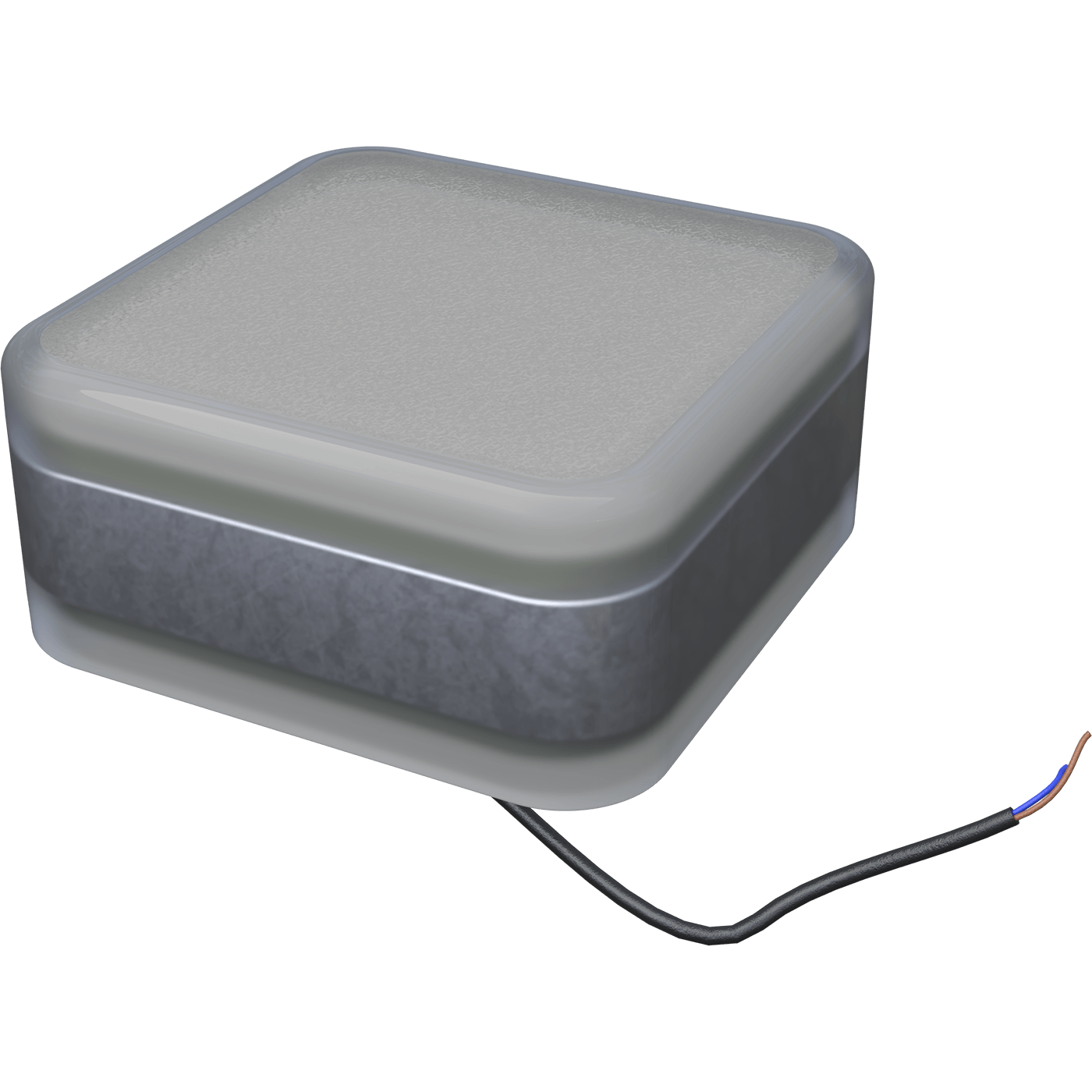

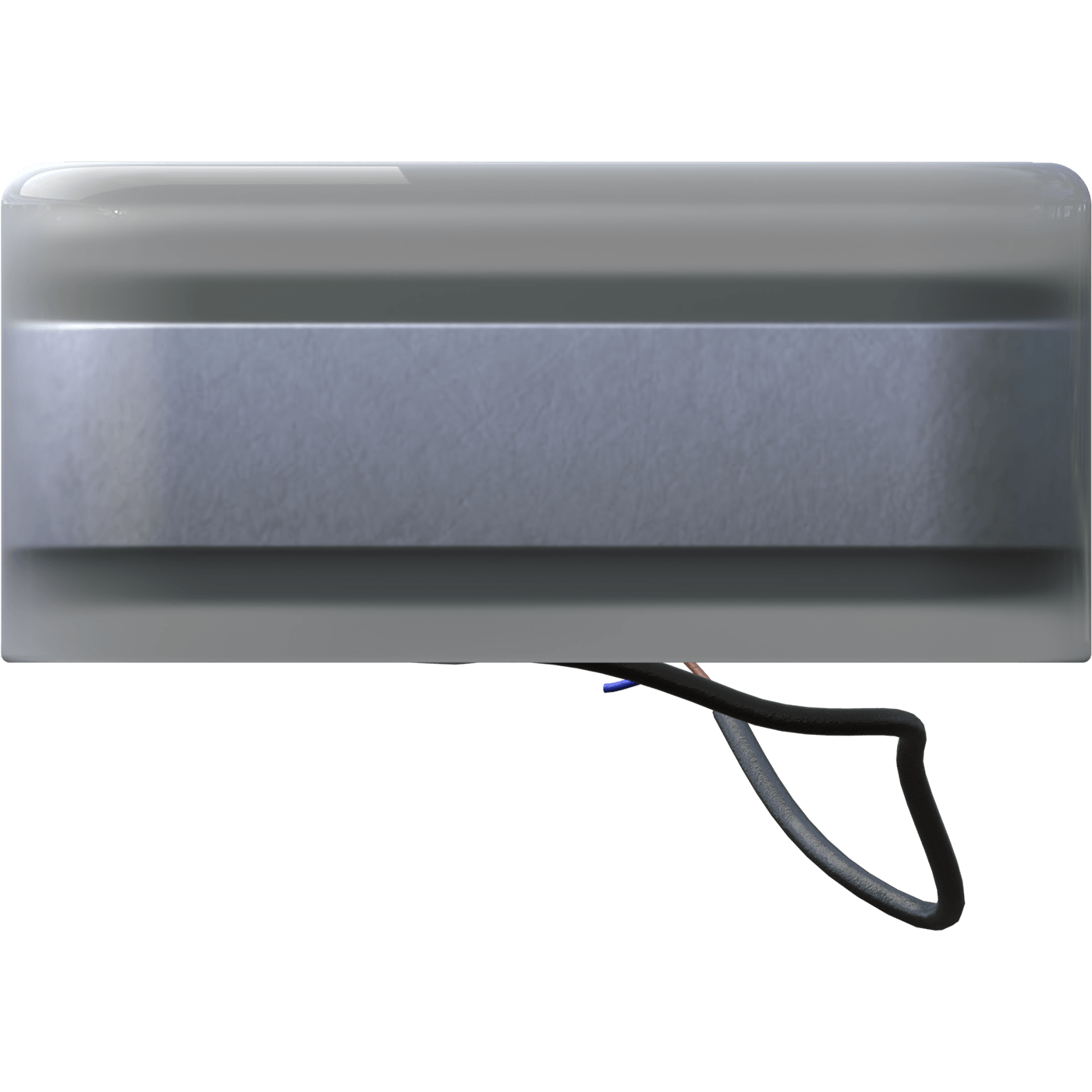

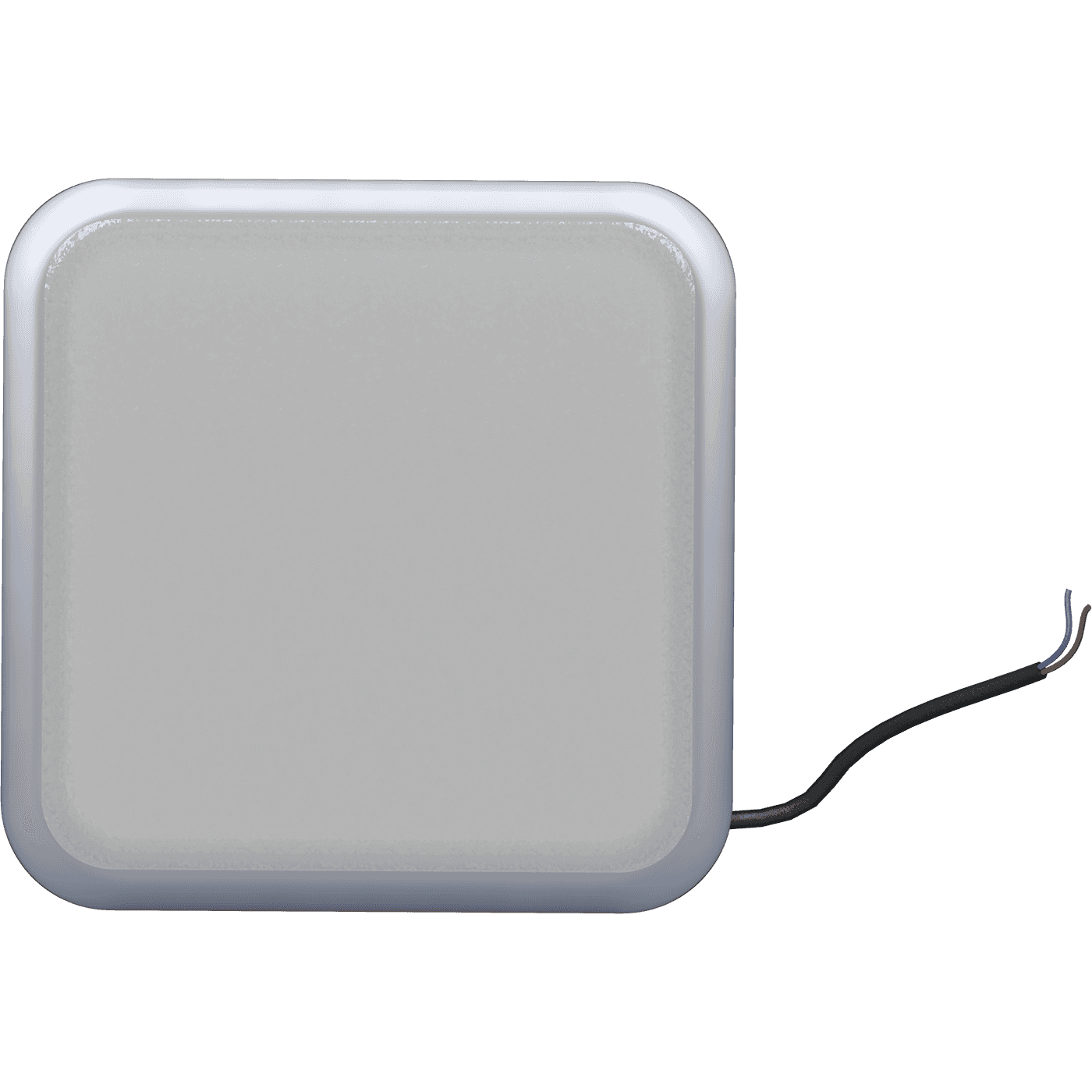

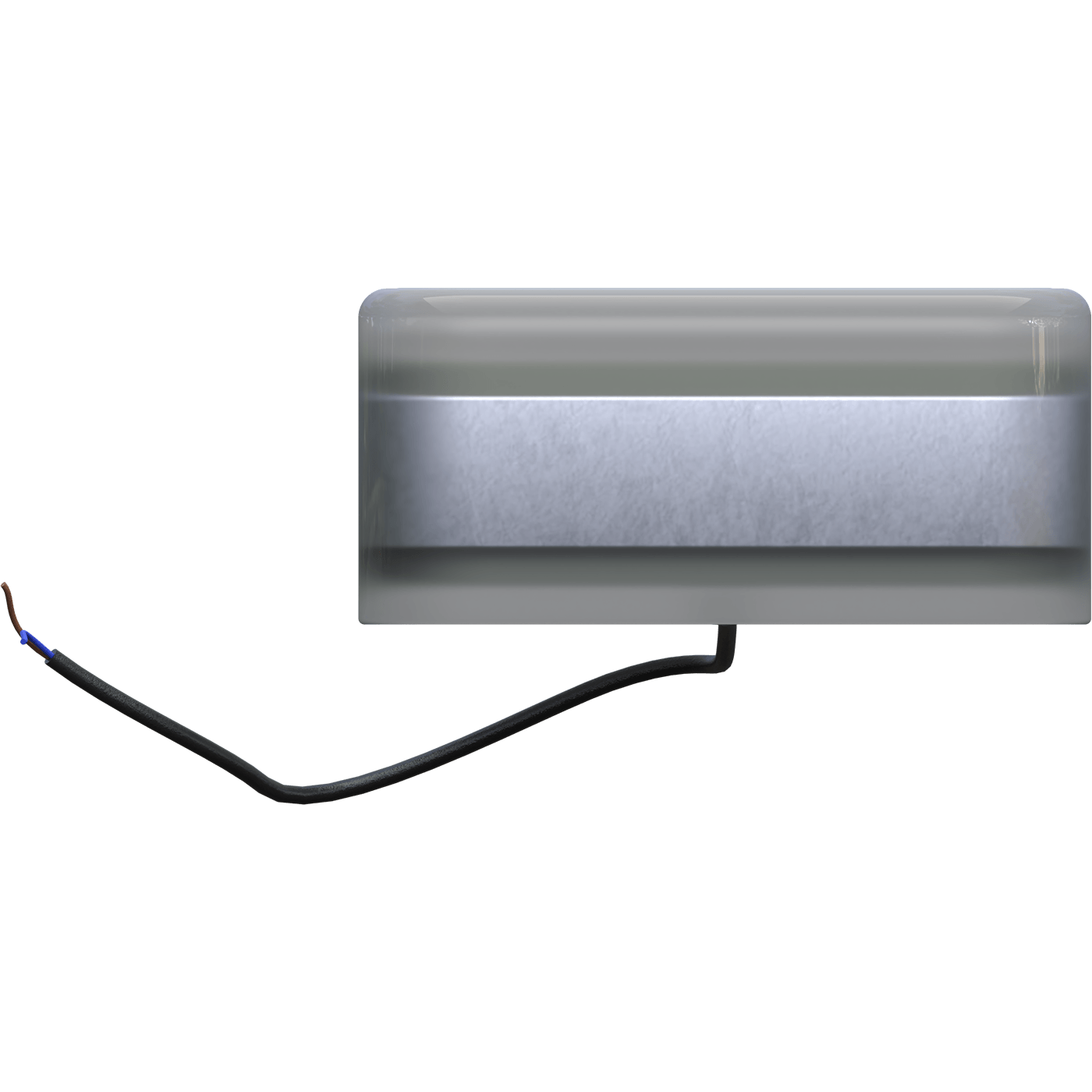

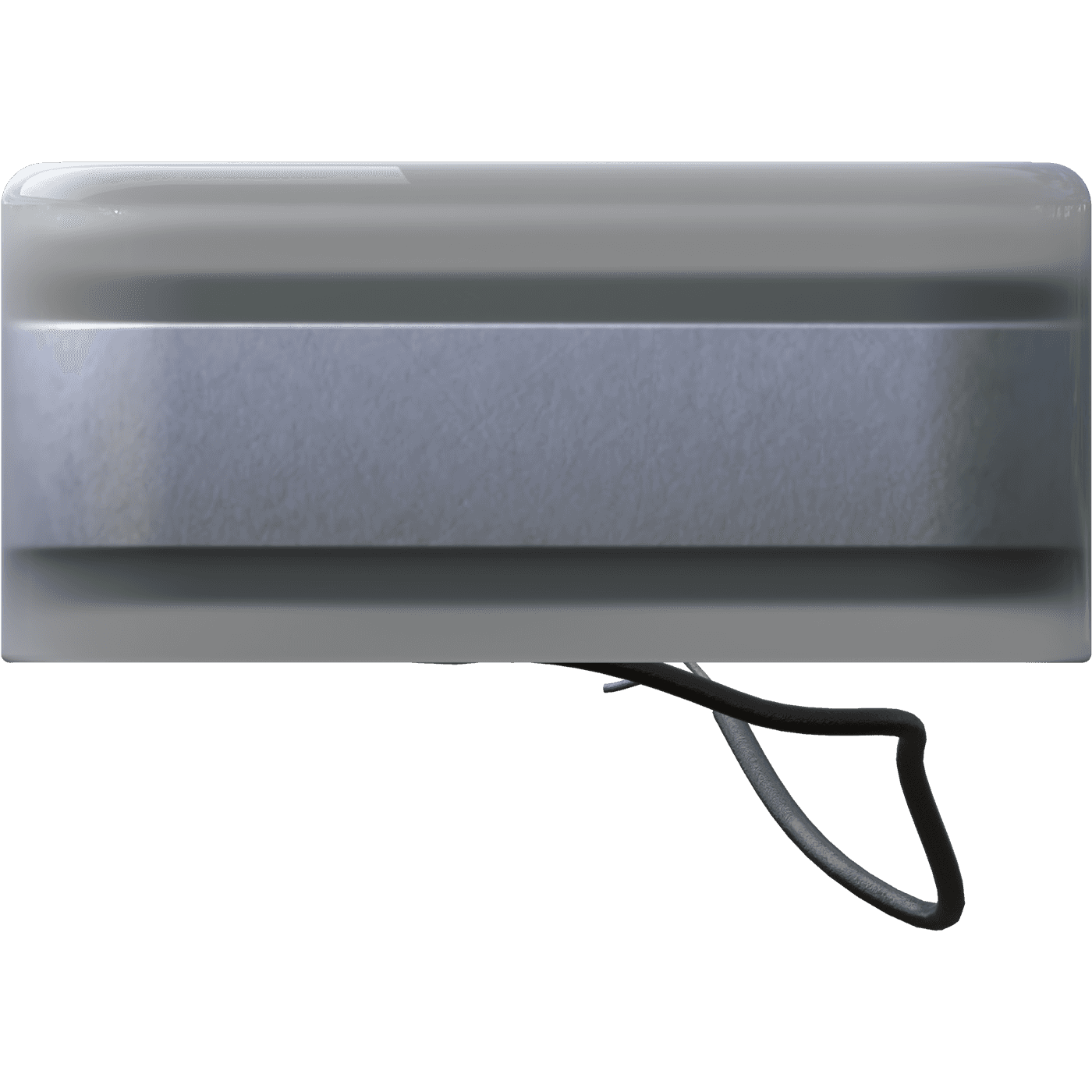

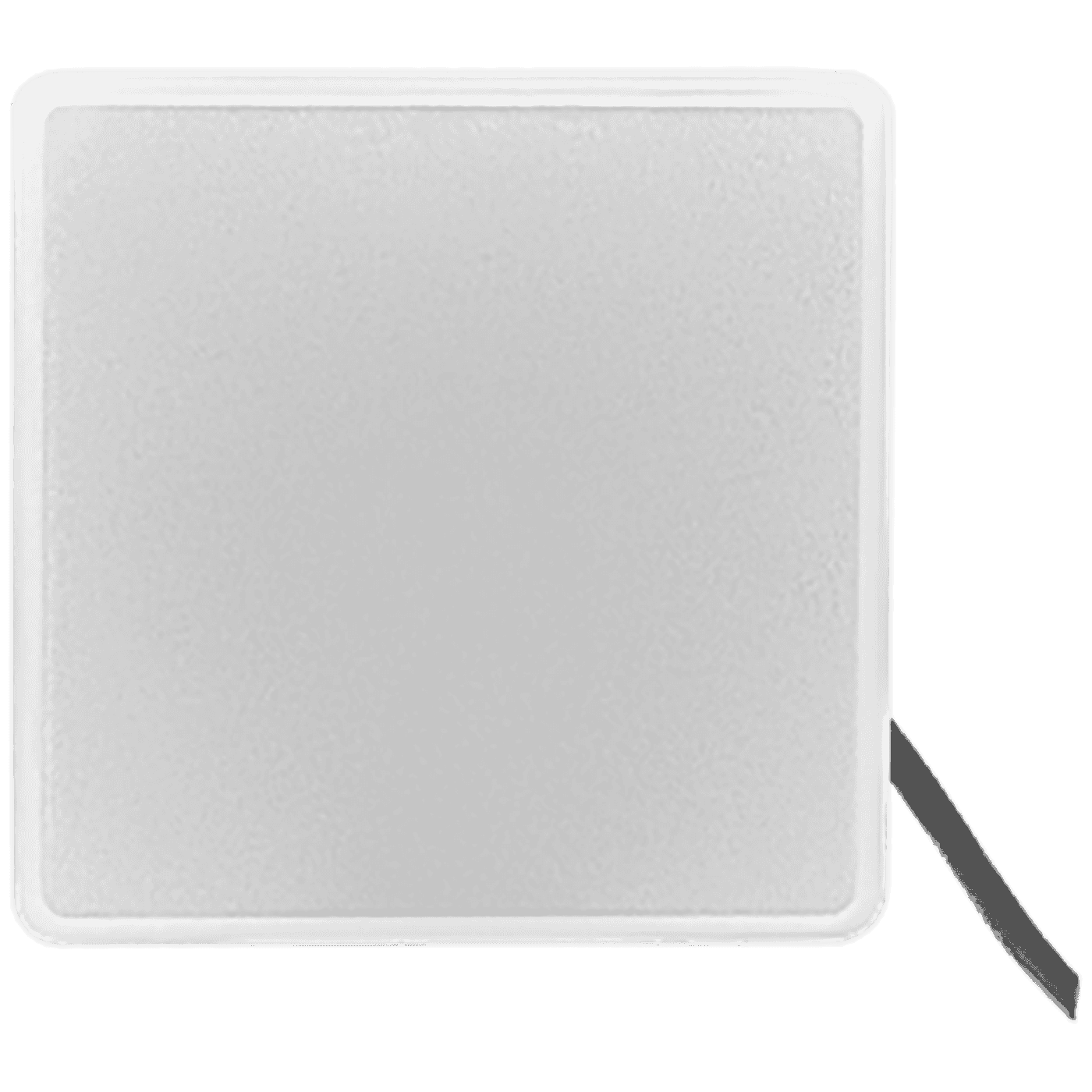

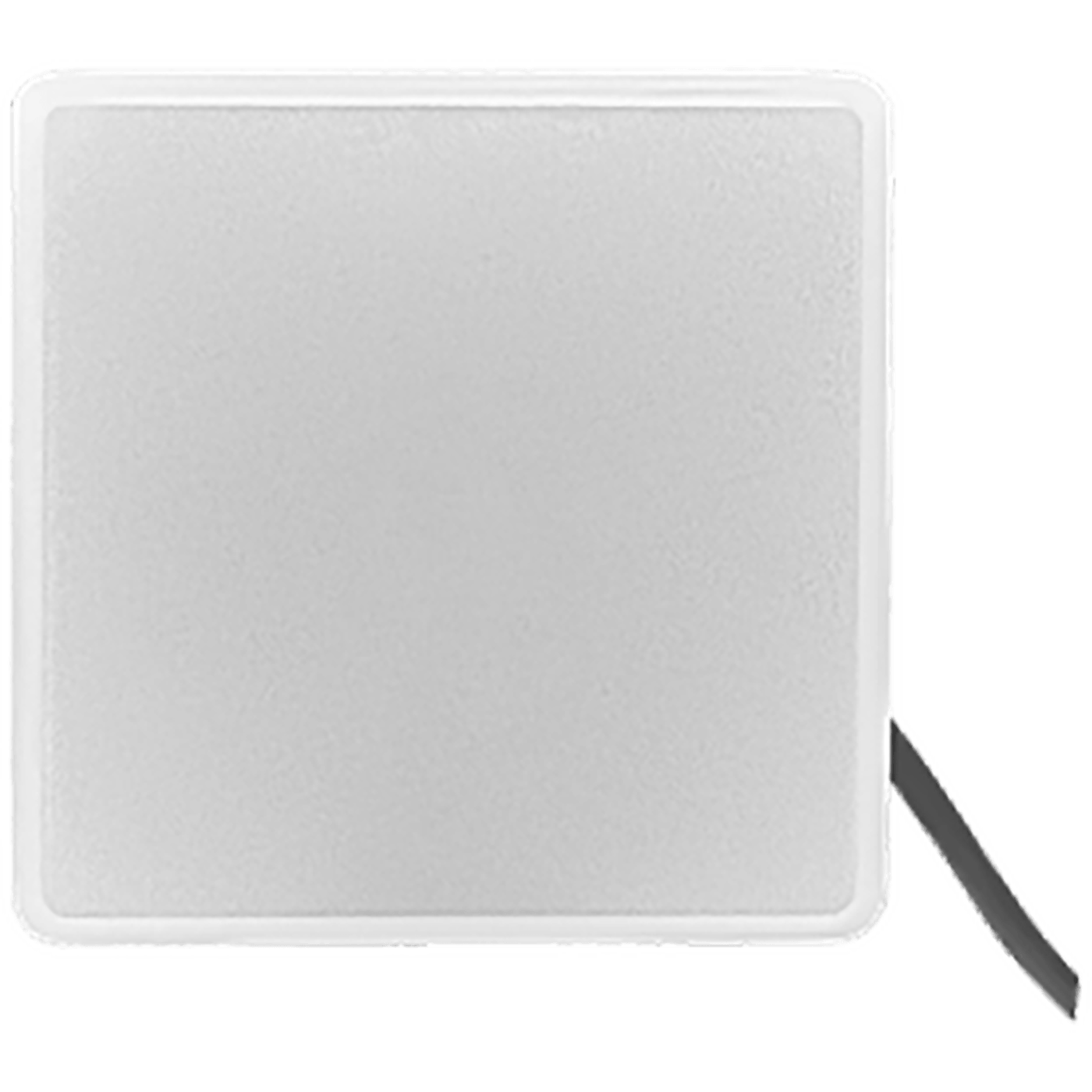

MOONWALK LED (120х120) 3W RGB WH
_3w_rgb_wh.jpg&w=1920&q=50)
_3w_rgb_wh.jpg&w=1024&q=50)
MOONWALK LED (120х120) 3W RGB WH
3 Wluminaire power
150 lmlight flow
50 lm/Wenergy efficiency
code1866000060
beam angleD120
weight1.1 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
3 Welectric shock protection
Ipower factor
> 0,80supply voltage
24 Velectrical
luminaire power
3 W
electric shock protection
I
power factor
> 0,80
supply voltage
24 V
constructional
ingress protection (IP)
IP67
material
Материал полимерный матовый
weight
1.1 kg
length, mm
120 mm
width, mm
120 mm
height, mm
55 mm
housing color
Белый
climatic performance
УХЛ1
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1866000060
ETIM class
Светильник грунтовый
warranty
36 month
temperature range
от -30 до +35 C
energy efficiency class
A
illuminating
energy efficiency
50 lm/W
light flow
150 lm
flickering factor
<1%
beam angle
D120
light source type
LED
emission color
RGB
model files
model files

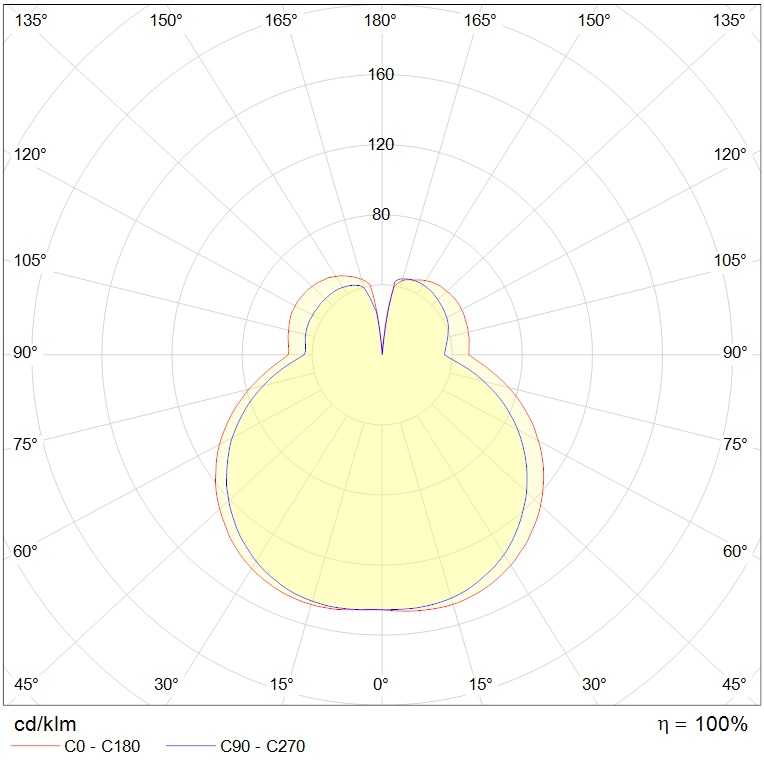

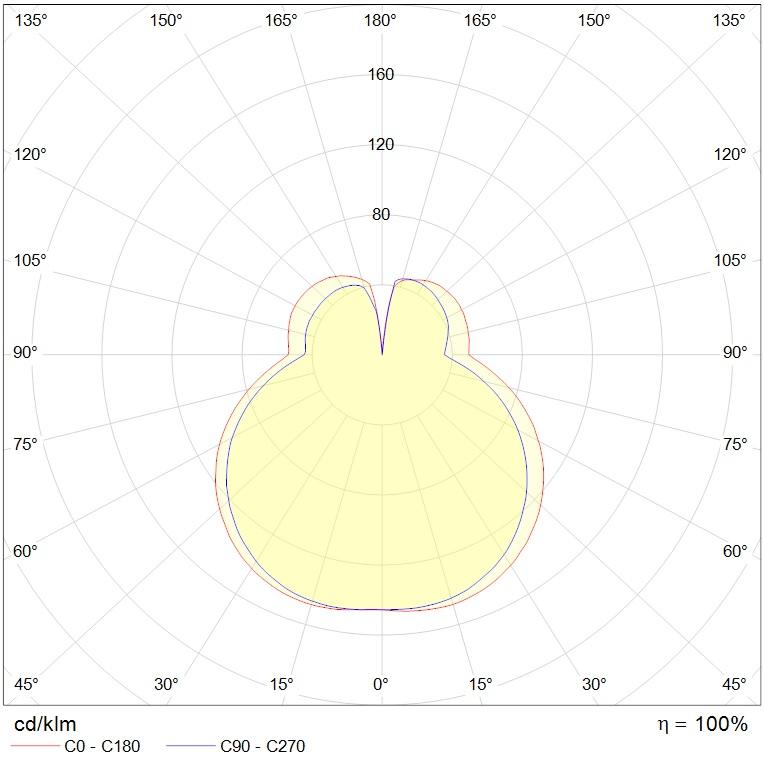

photometric files
сертификаты
photometric files
ies107 kB
jpg96.2 kB
ldt95.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011677.5 kB
Declaration of Conformity EAEU TR 037/2016287.3 kB
