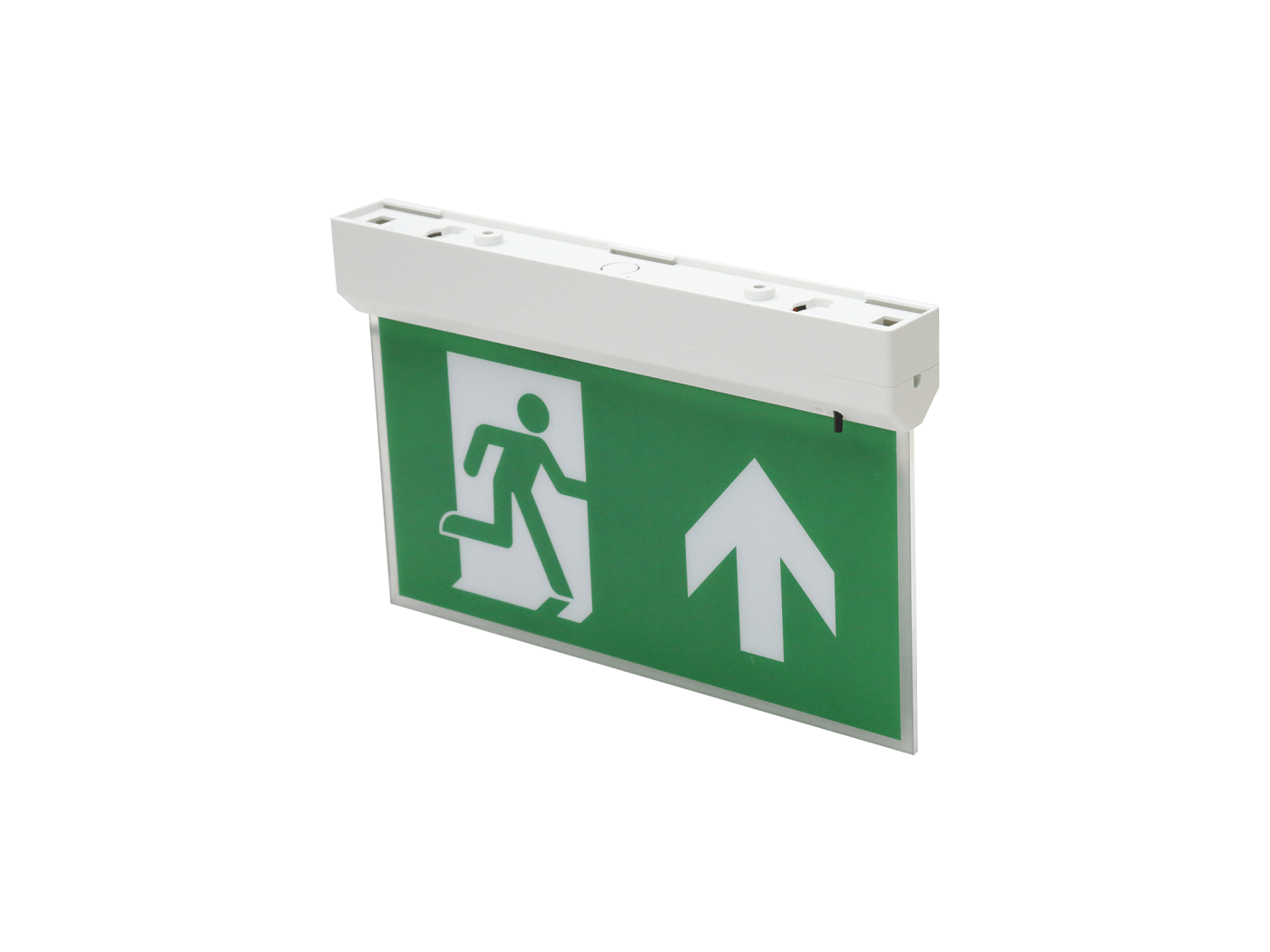

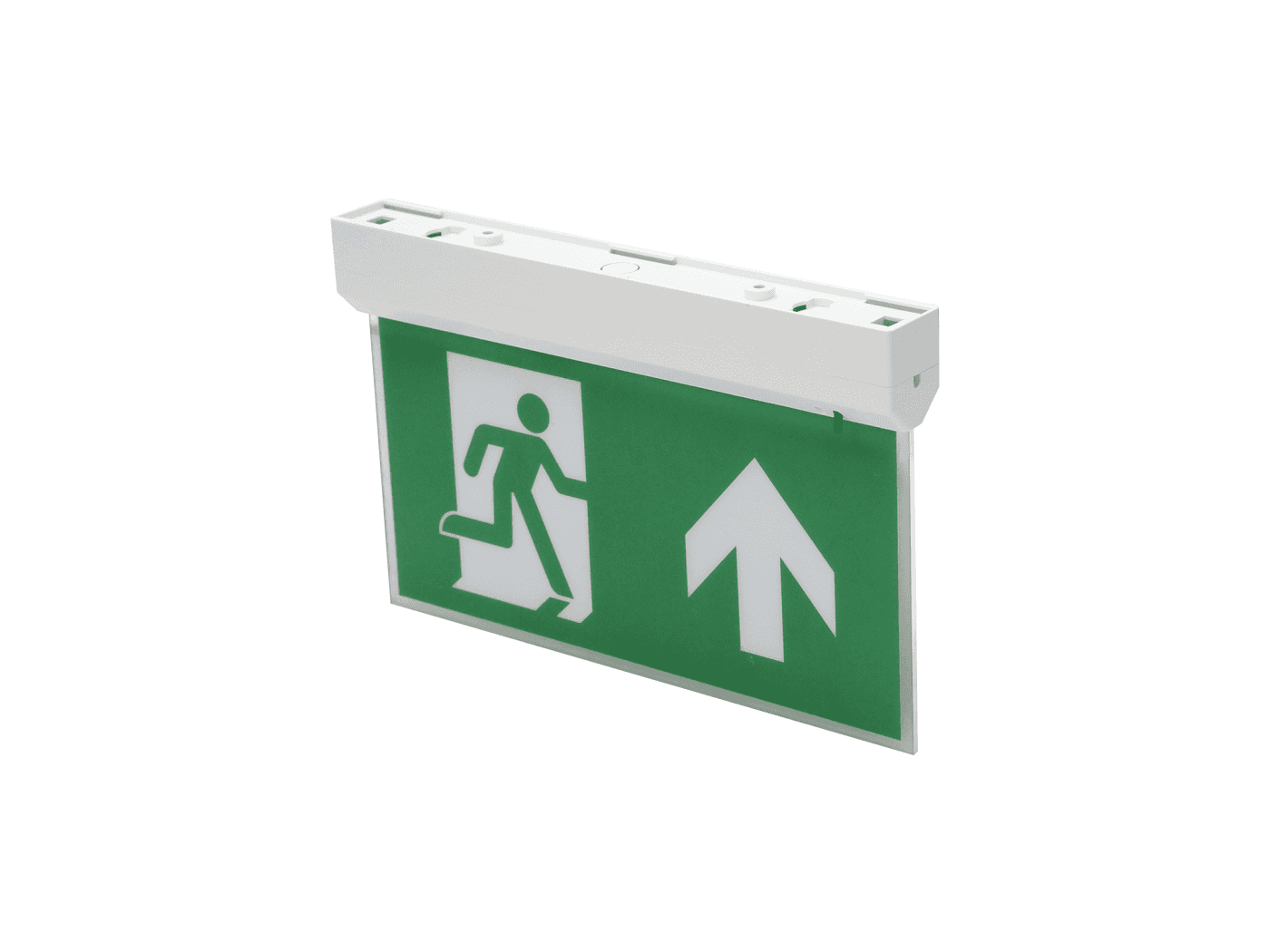

MIZAR 2023-2 LED AT

зарегистрирована в реестре российской промышленной продукции
MIZAR 2023-2 LED AT
add to favorites
2 Wluminaire power
50 kd/m2average luminance
code
1502000830
number from the register of Russian industrial products
10820820
operating time in emergency mode
3 h
battery / battery Ni-Cd
RB 3,2 V 0,6 A*h LiFePo4
type of operation / type of operation of the emergency luminaire
постоянного действия
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. MIZAR LED STANDARD
  7. MIZAR 2023-2 LED AT
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
average luminance
50 kd/m2
light source type
LED
emission color
Белый
illuminating
average luminance
50 kd/m2
light source type
LED
emission color
Белый
electrical
supply voltage
230 V
supply voltage, alternating current
230 V
constructional
material
Поликарбонат
ballast
Без драйвера
weight
0.4 kg
length
268 mm
width
35 mm
height
170 mm
материал рассеивателя
Поликарбонат
ingress protection (IP)
IP20
mounting type
Настенный накладной
climatic performance
УХЛ4*
shock resistance (IK)
IK02/0,2 Дж
emergency
operating time in emergency mode
3 h
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 3,2 V 0,6 A*h LiFePo4
emergency power supply
Нет
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
code
1502000830
model files
model files
photometric files
ldt227.5 kB
documents
passport1.2 mB
сертификаты
Russian origin329.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20114.2 mB
Declaration of Conformity EAEU TR 037/2016510.1 kB
photometric files
ldt227.5 kB
documents
passport1.2 mB
сертификаты
Russian origin329.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20114.2 mB
Declaration of Conformity EAEU TR 037/2016510.1 kB
