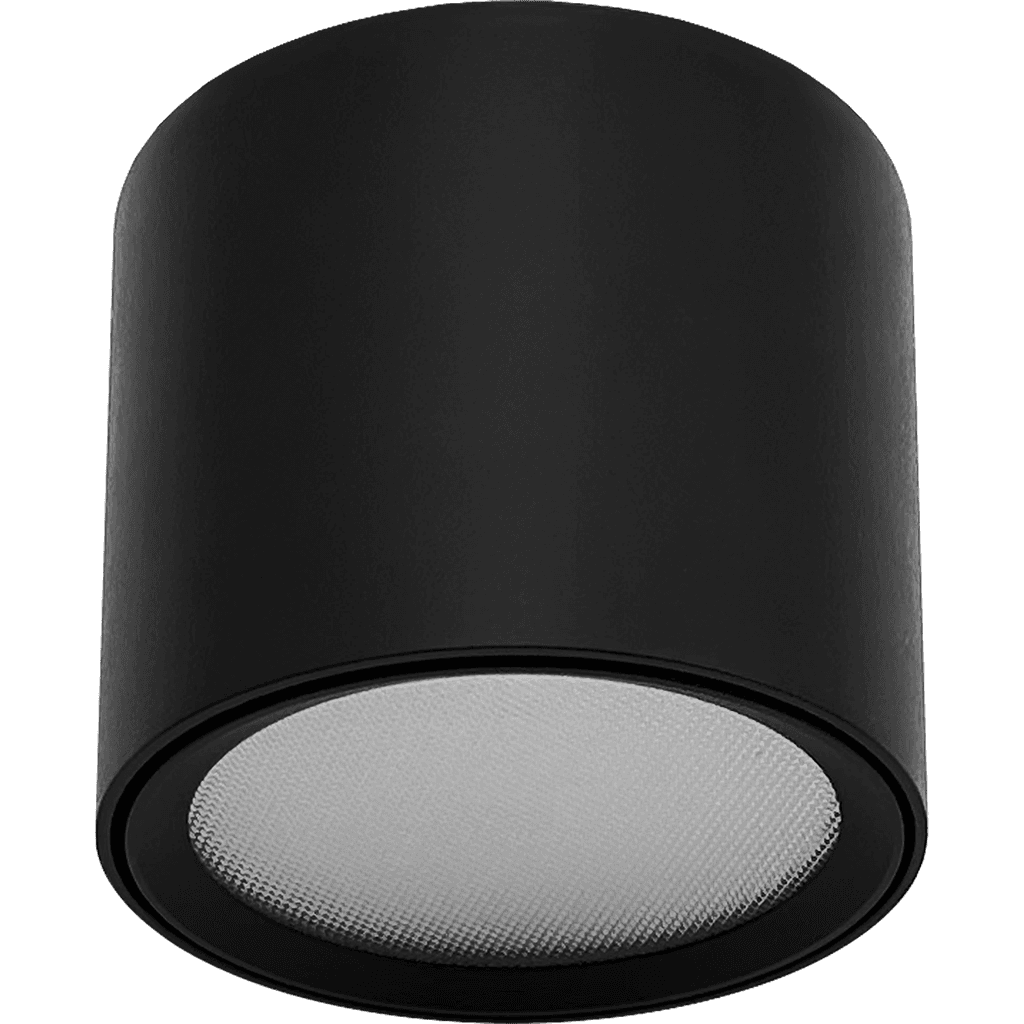

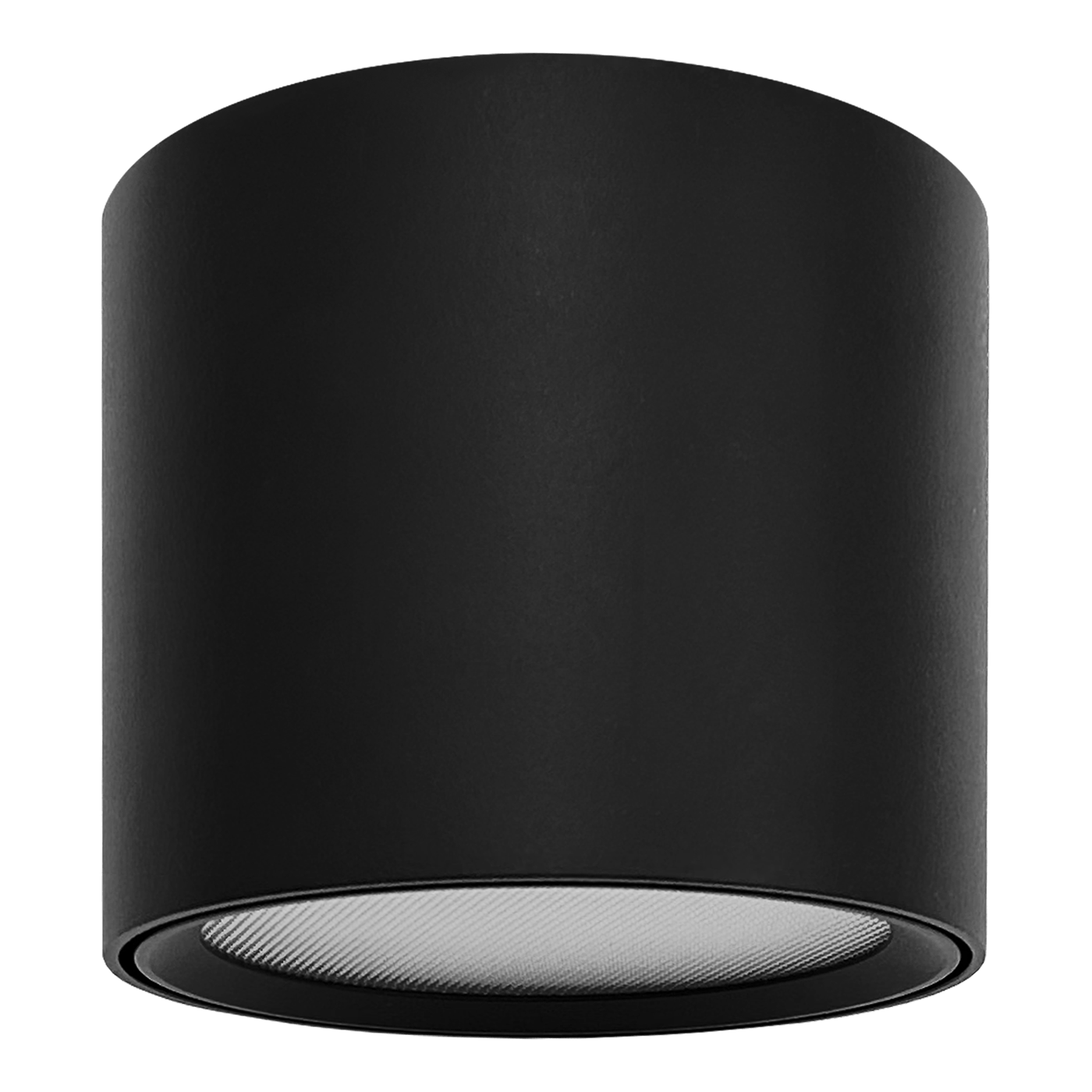

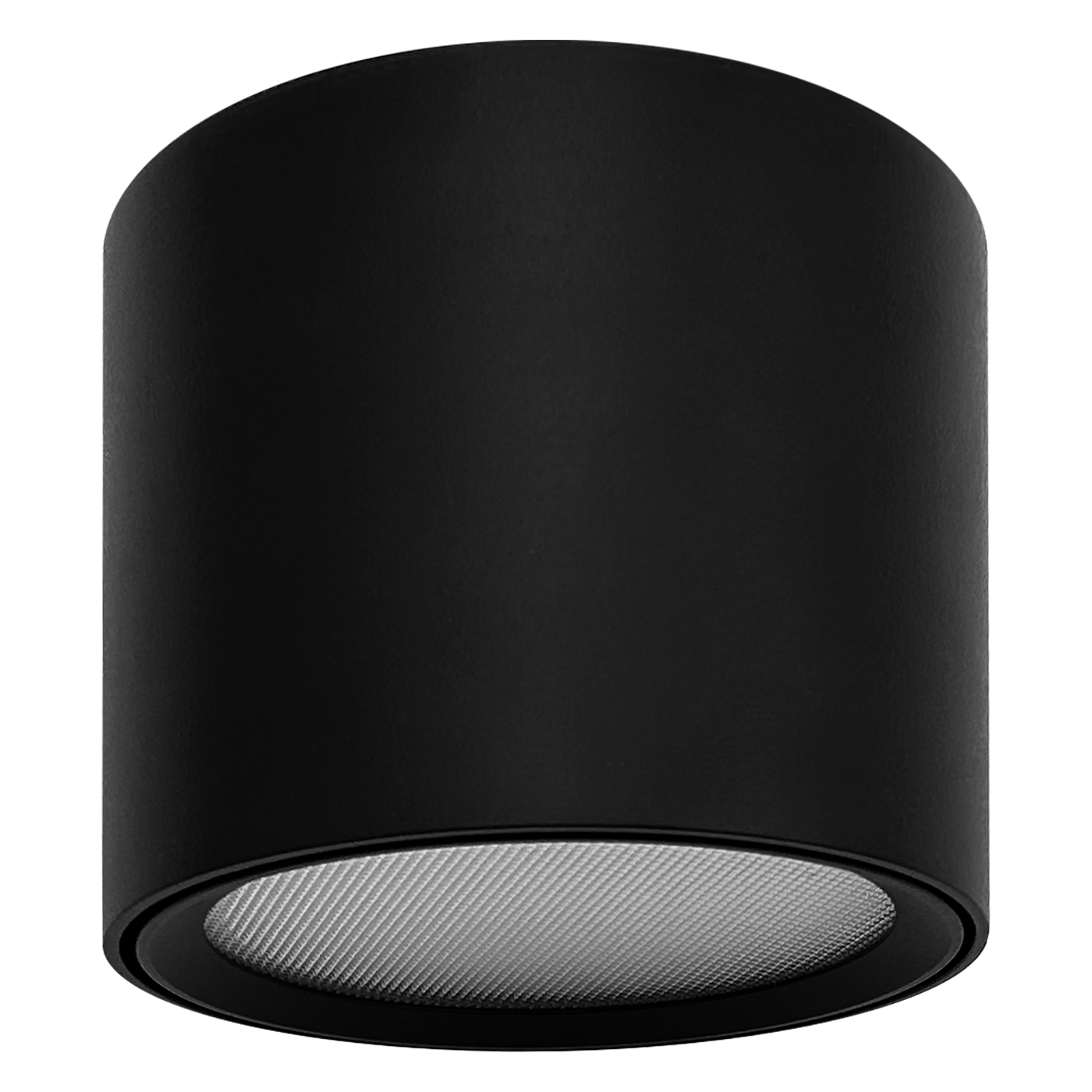

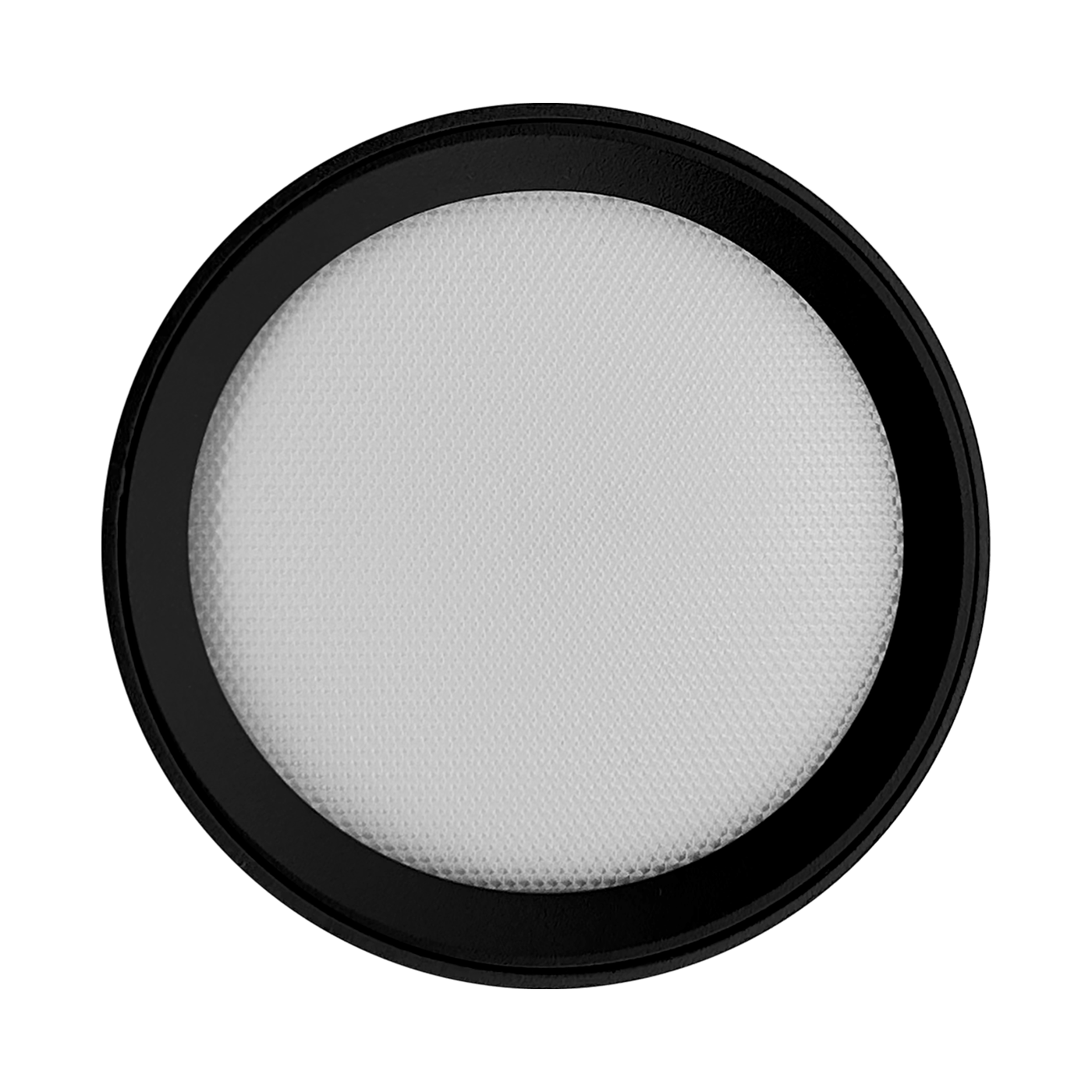

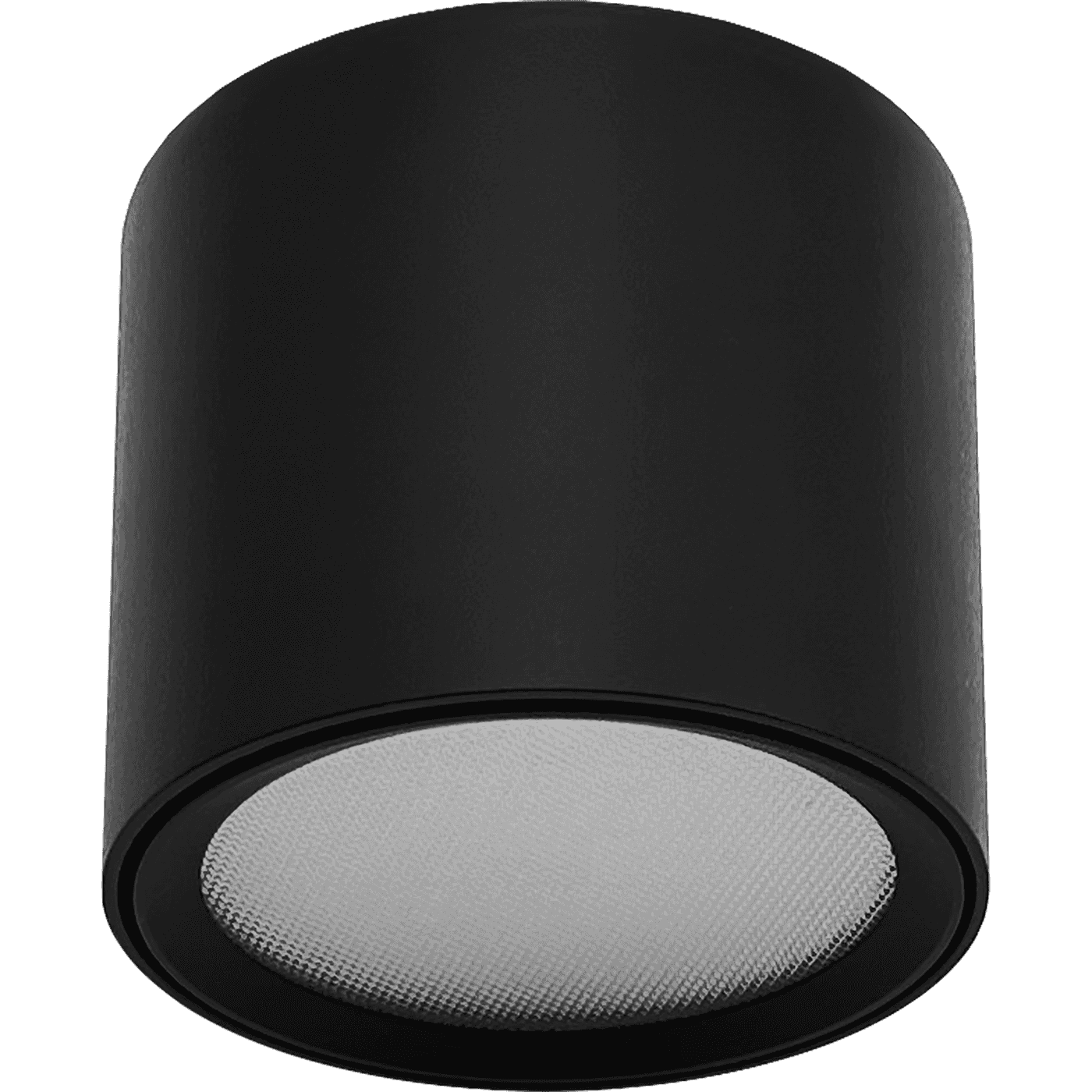

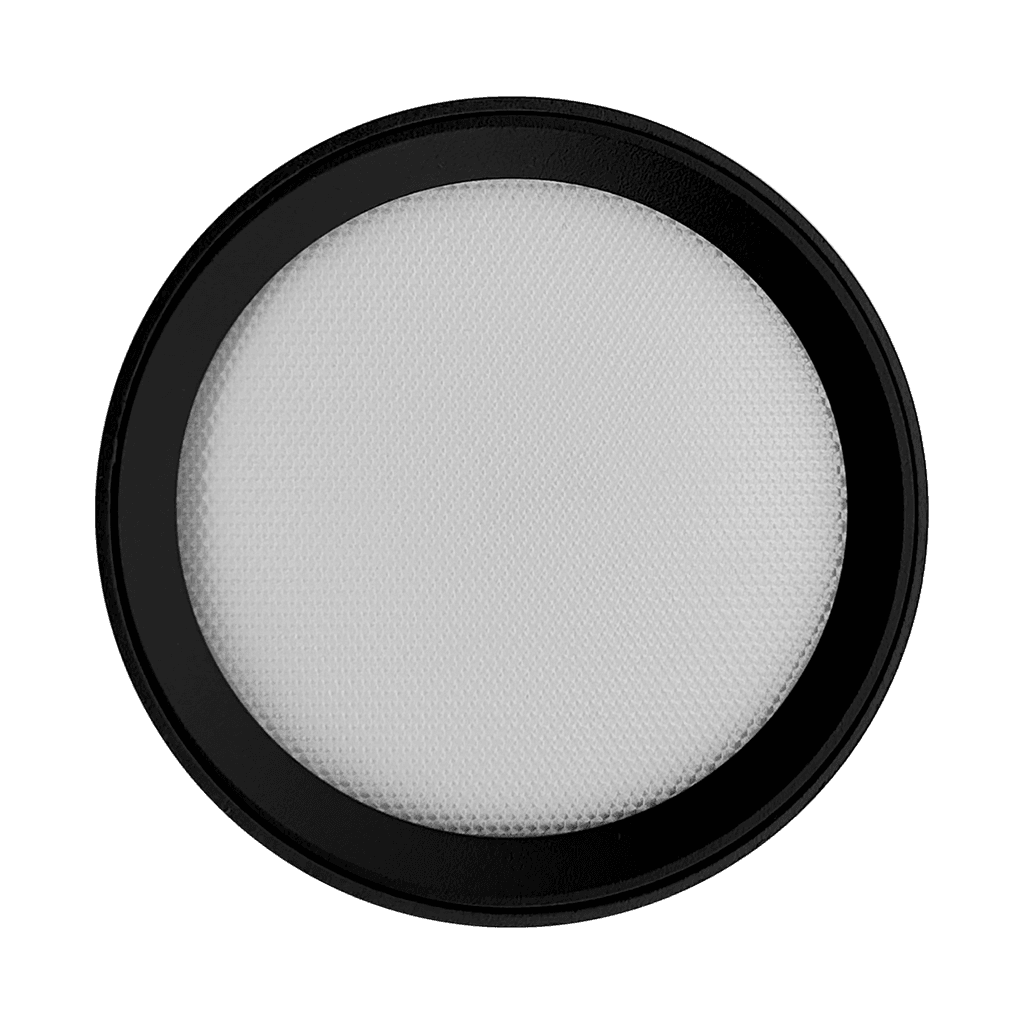

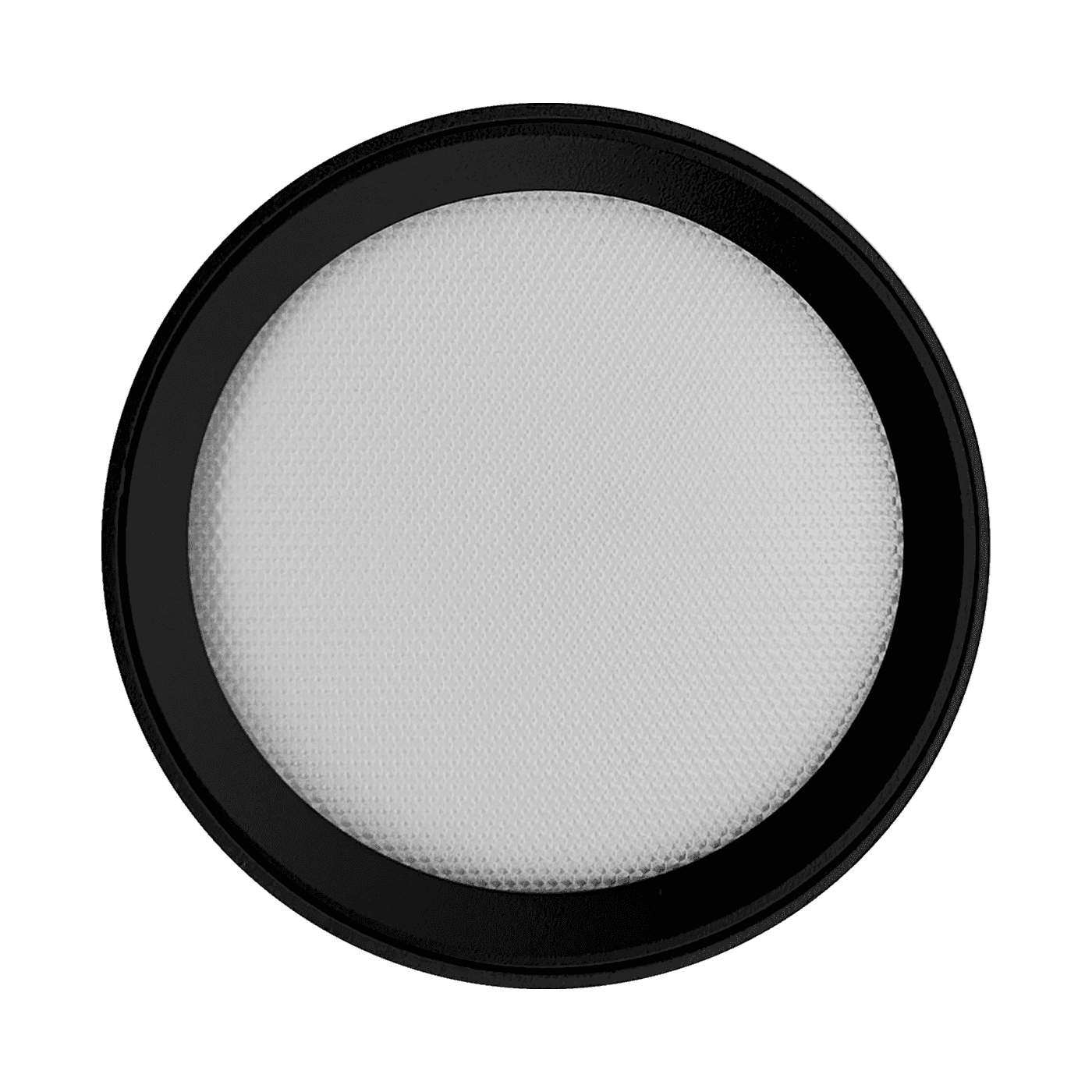

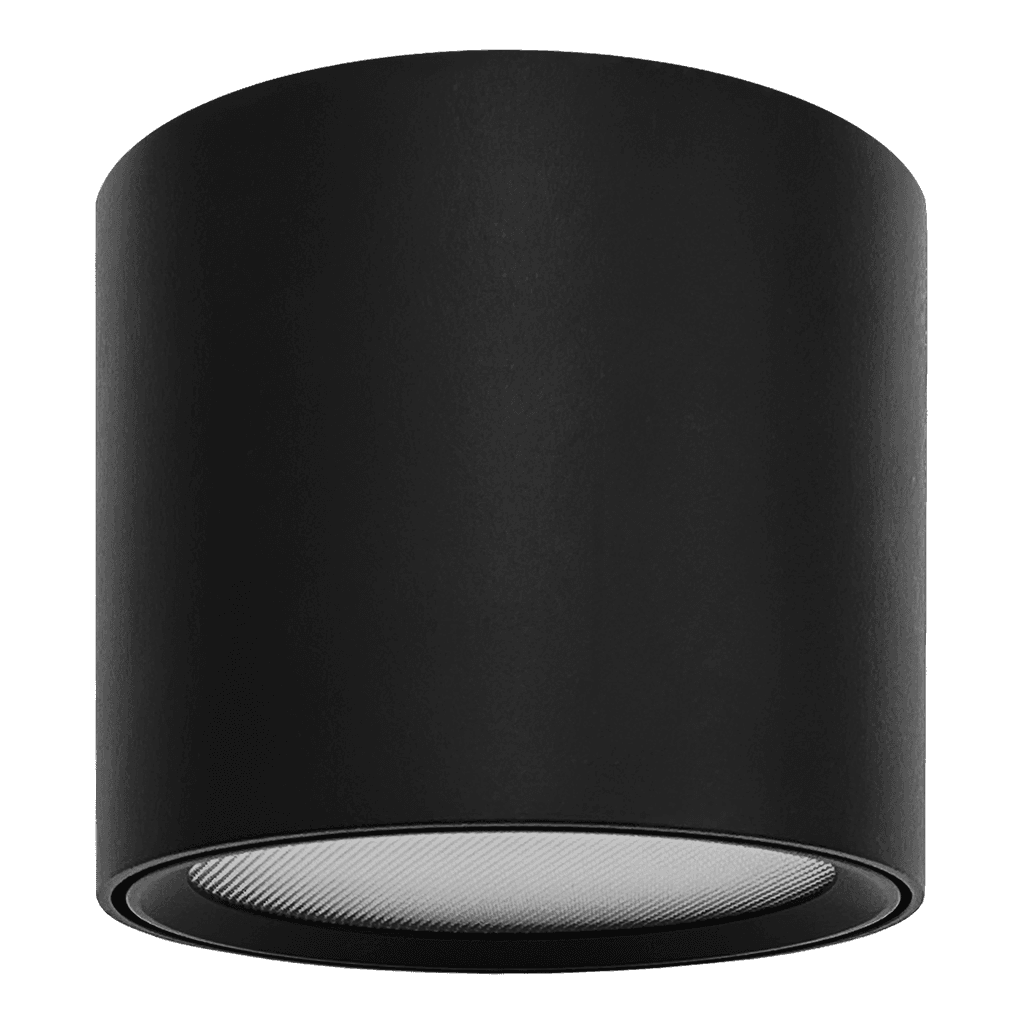

MINITUBUS 15W OPL 940 BK IP54
MINITUBUS 15W OPL 940 BK IP54
15 Wluminaire power
1500 lmlight flow
100 lm/Wenergy efficiency
code1925000030
color temperature4000 K

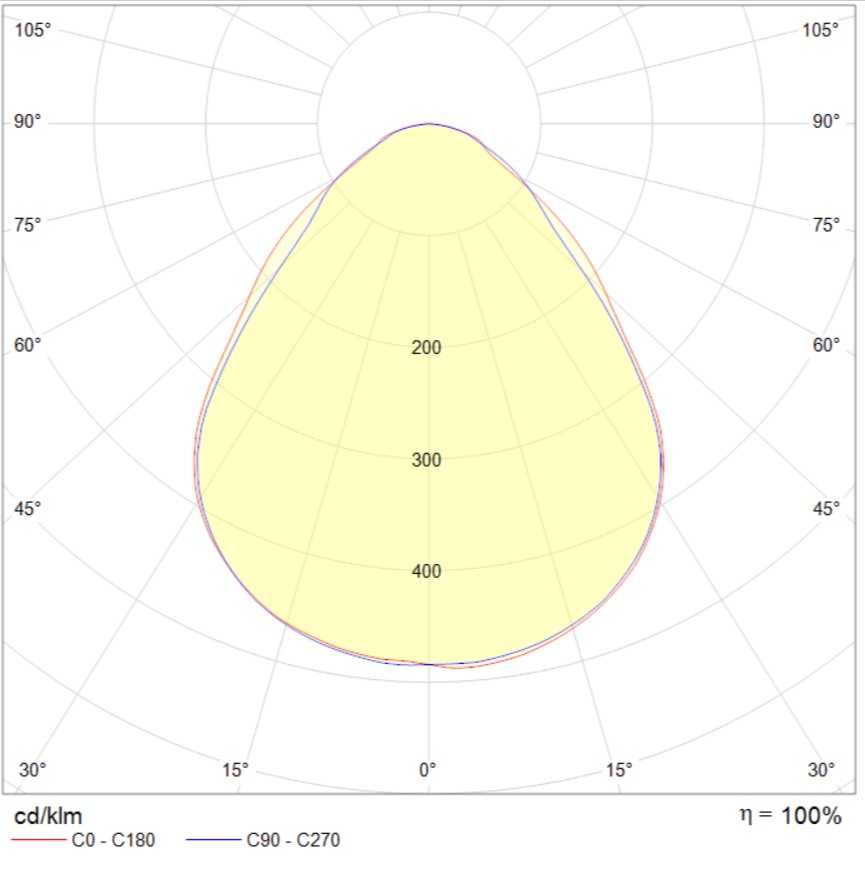

beam angleD60
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>90light flow
1500 lmflickering factor
<1%beam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
1500 lm
flickering factor
<1%
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,90
luminaire power
15 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
constructional
diameter
110 mm
height
92 mm
installation diameter
110 mm
weight
0.7 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
energy efficiency class
A+
code
1925000030
model files
model files

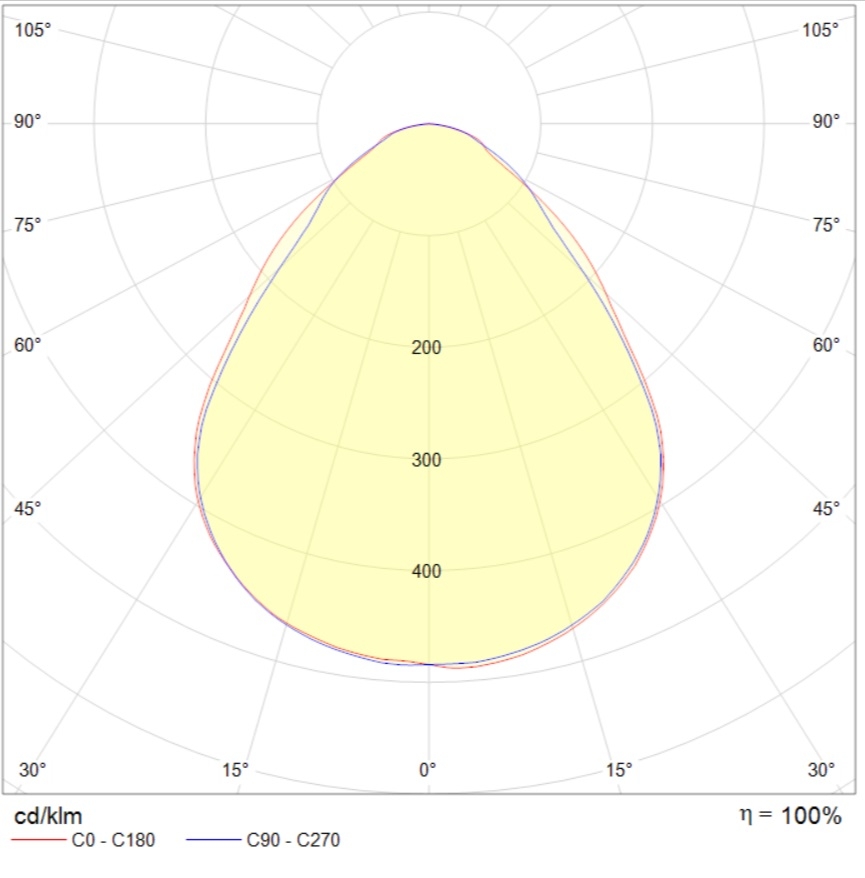

photometric files
