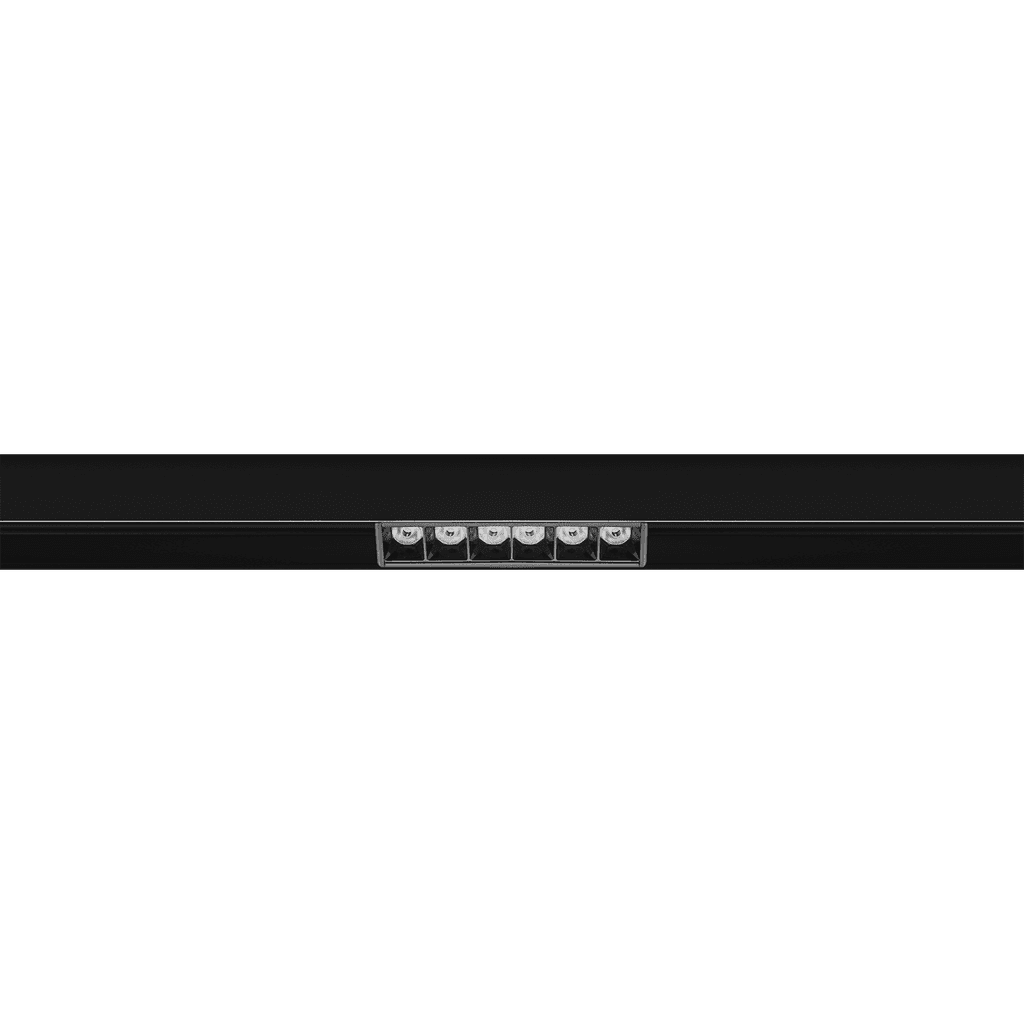

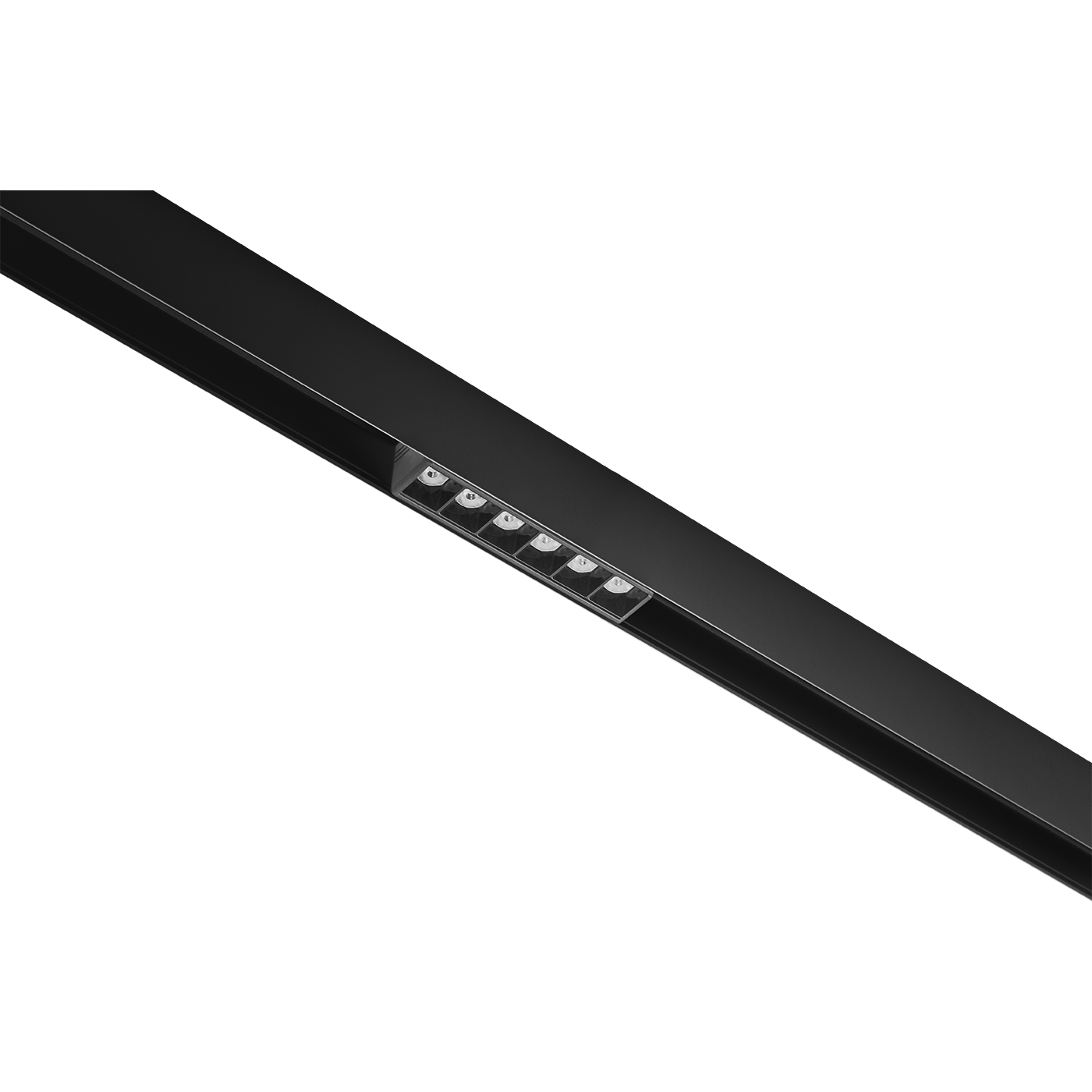

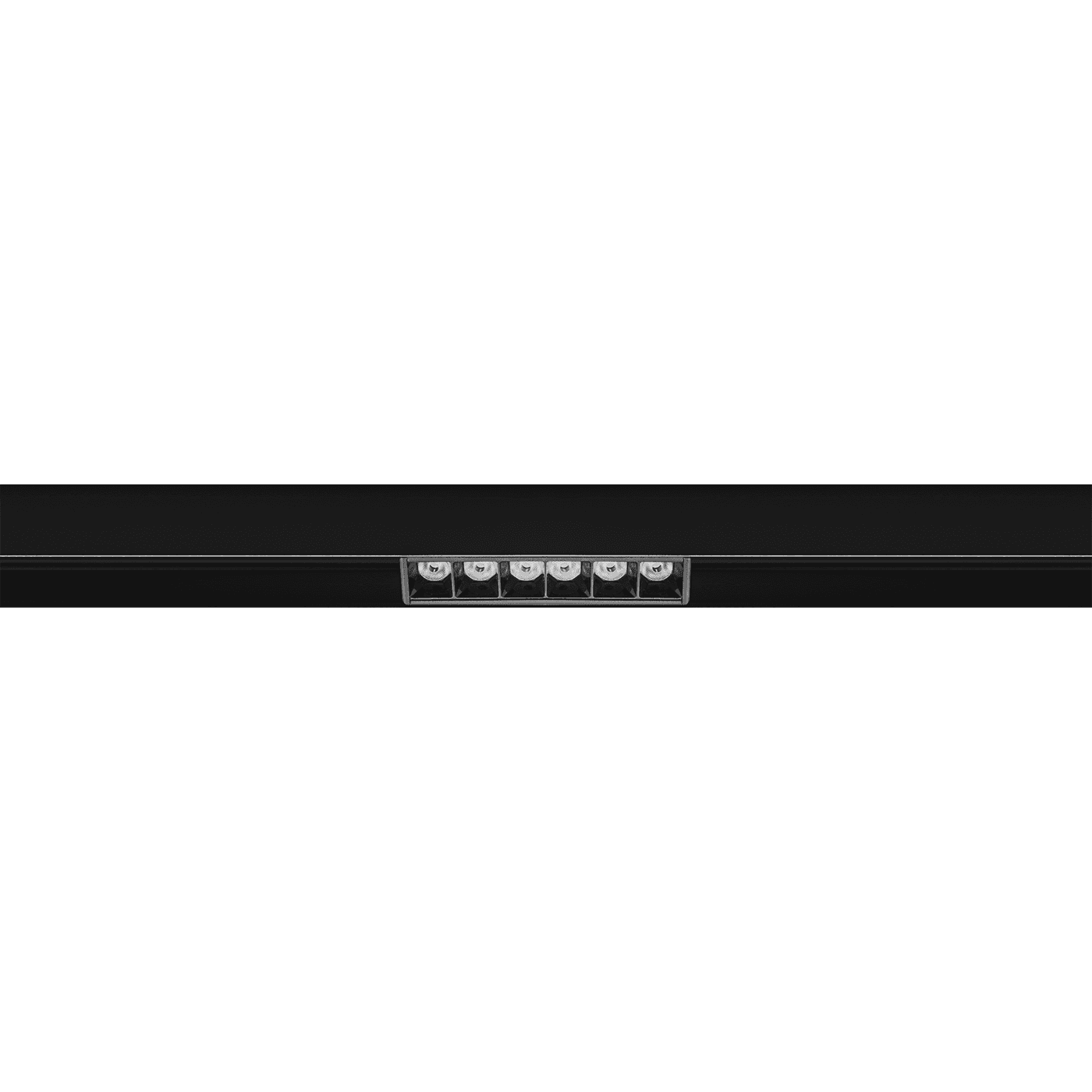

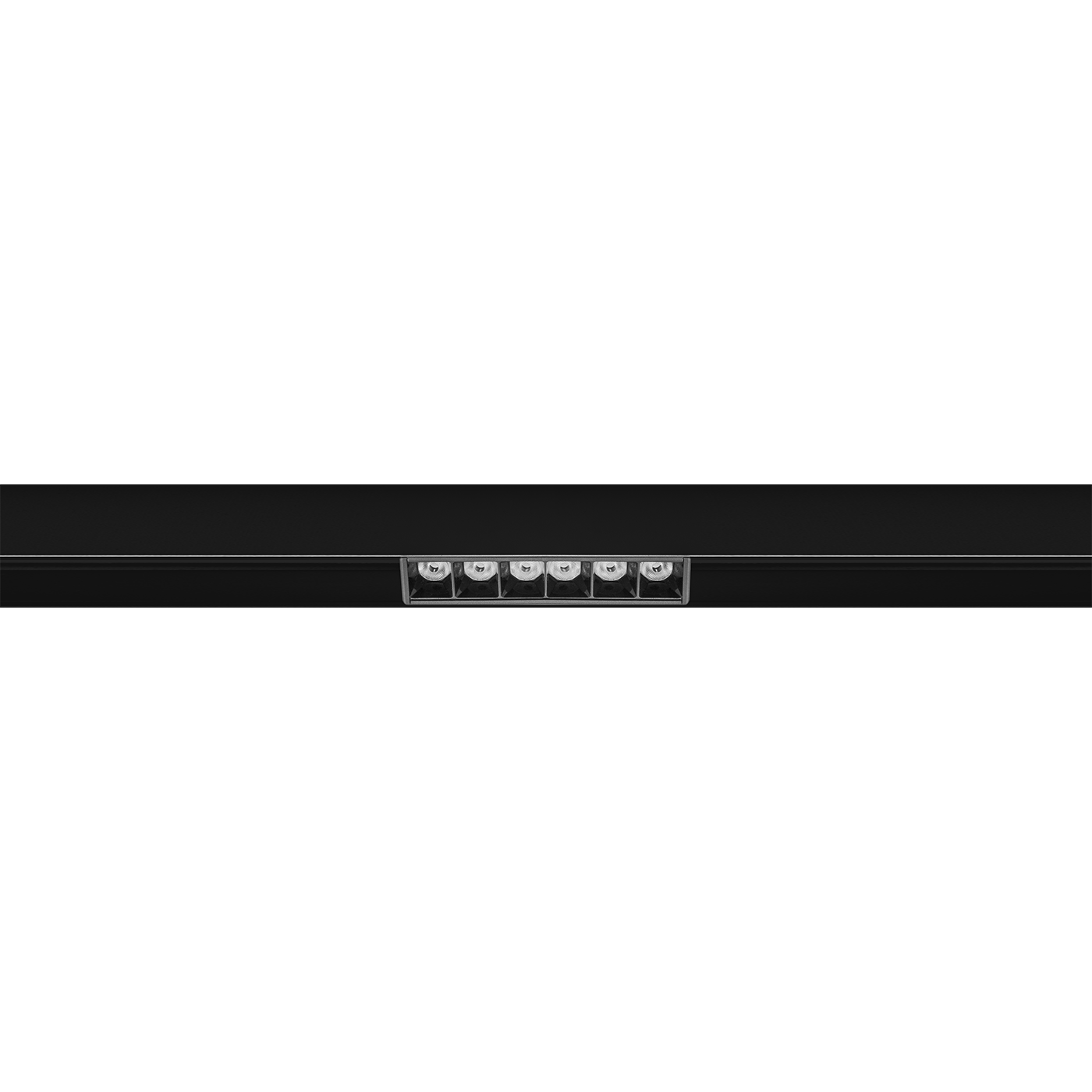

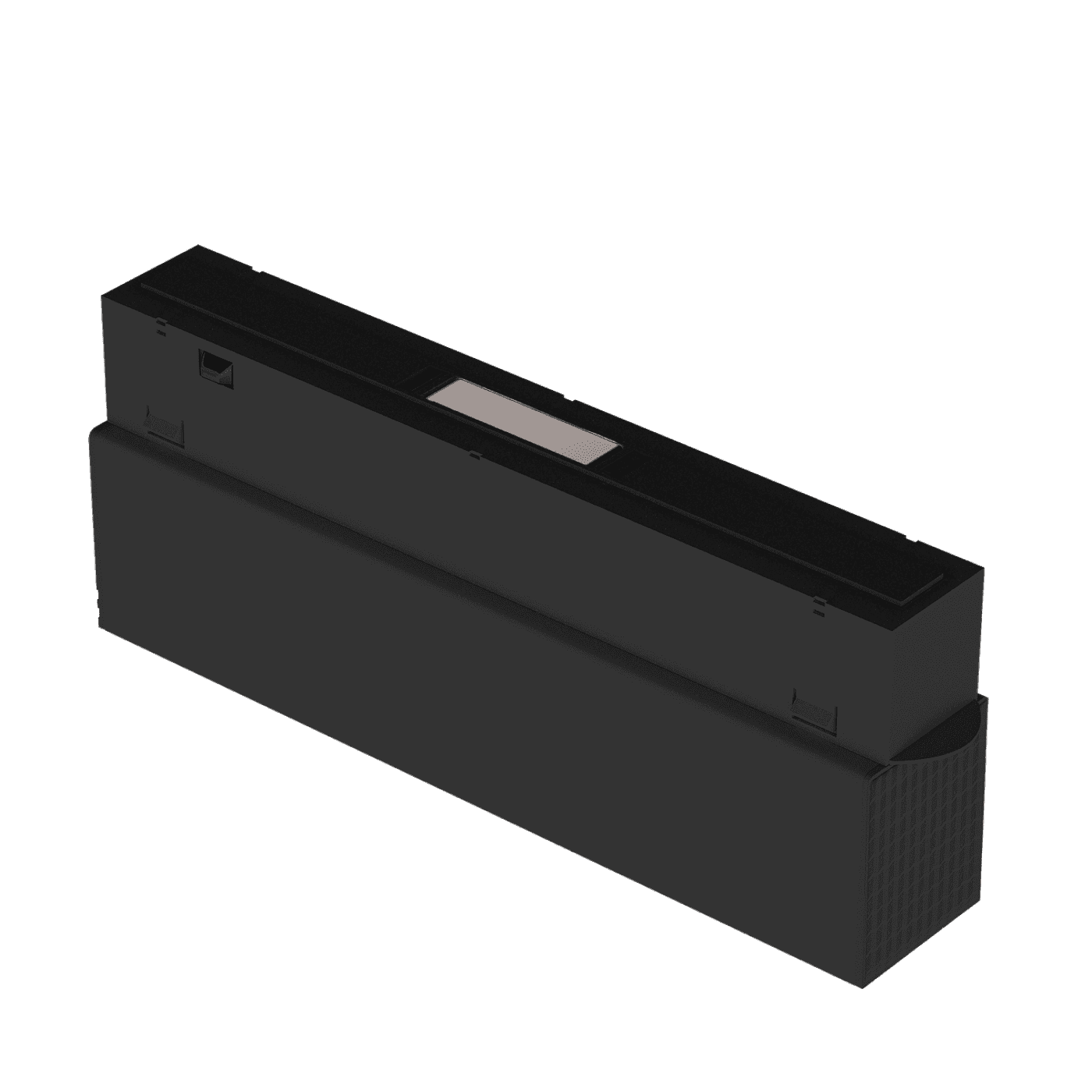

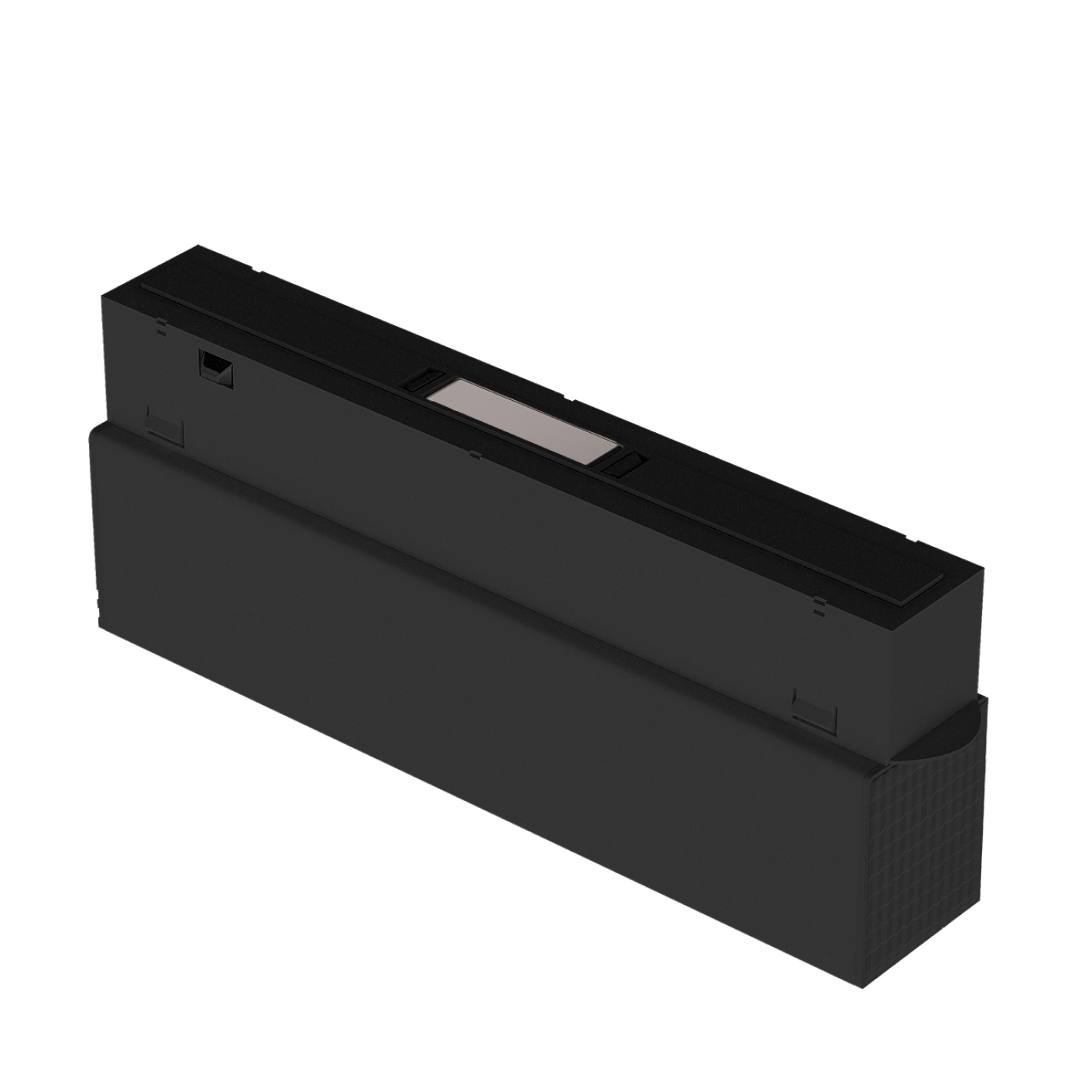

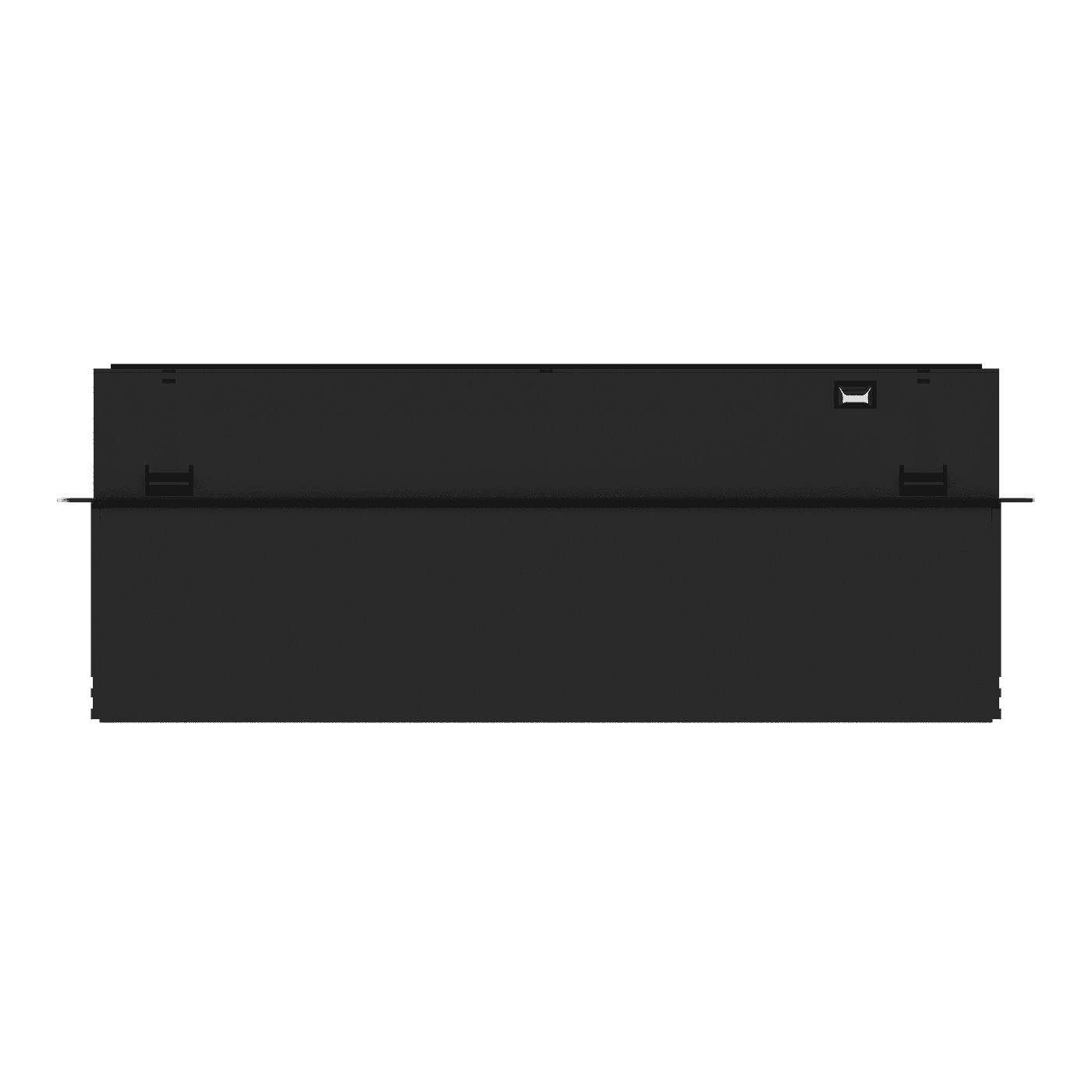

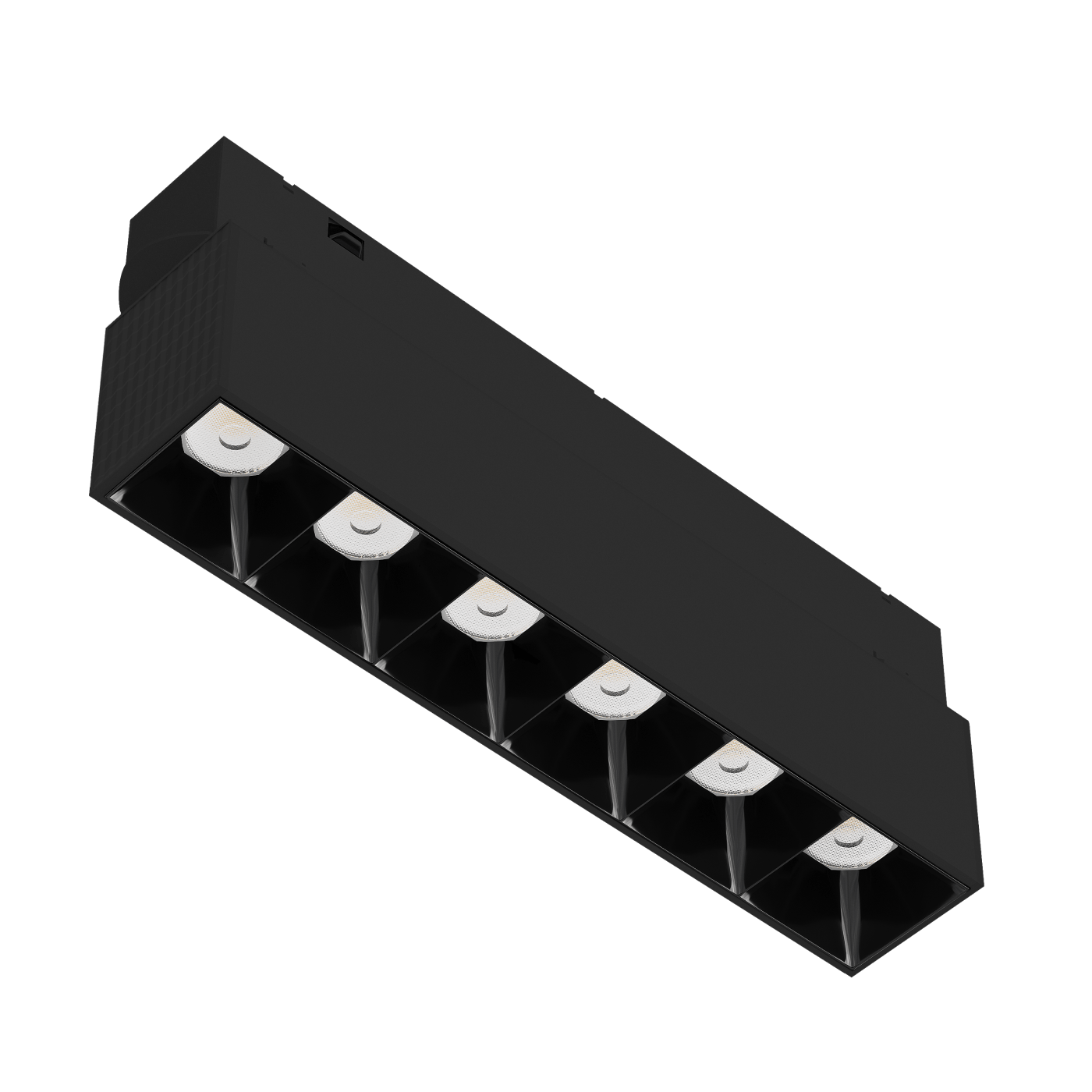

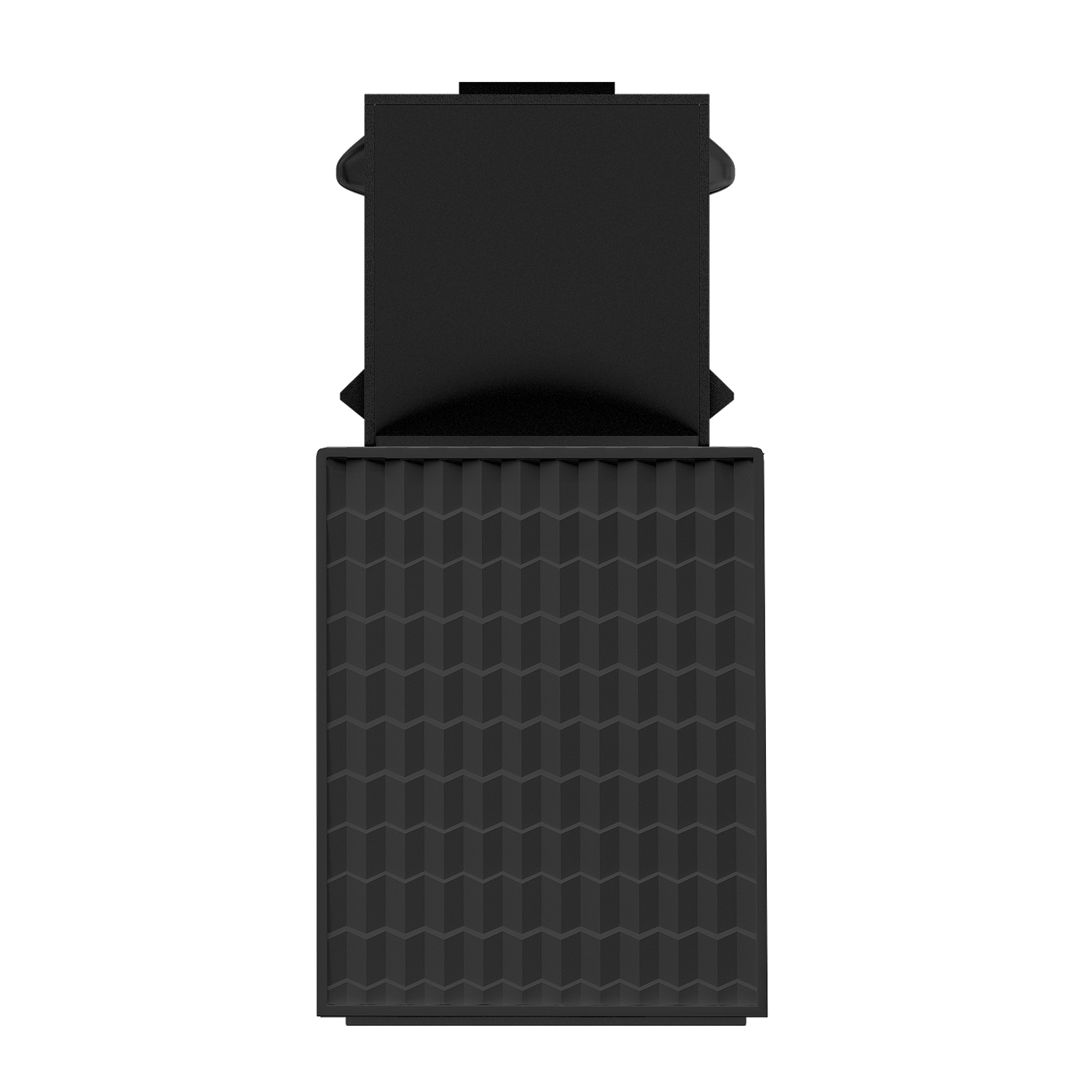

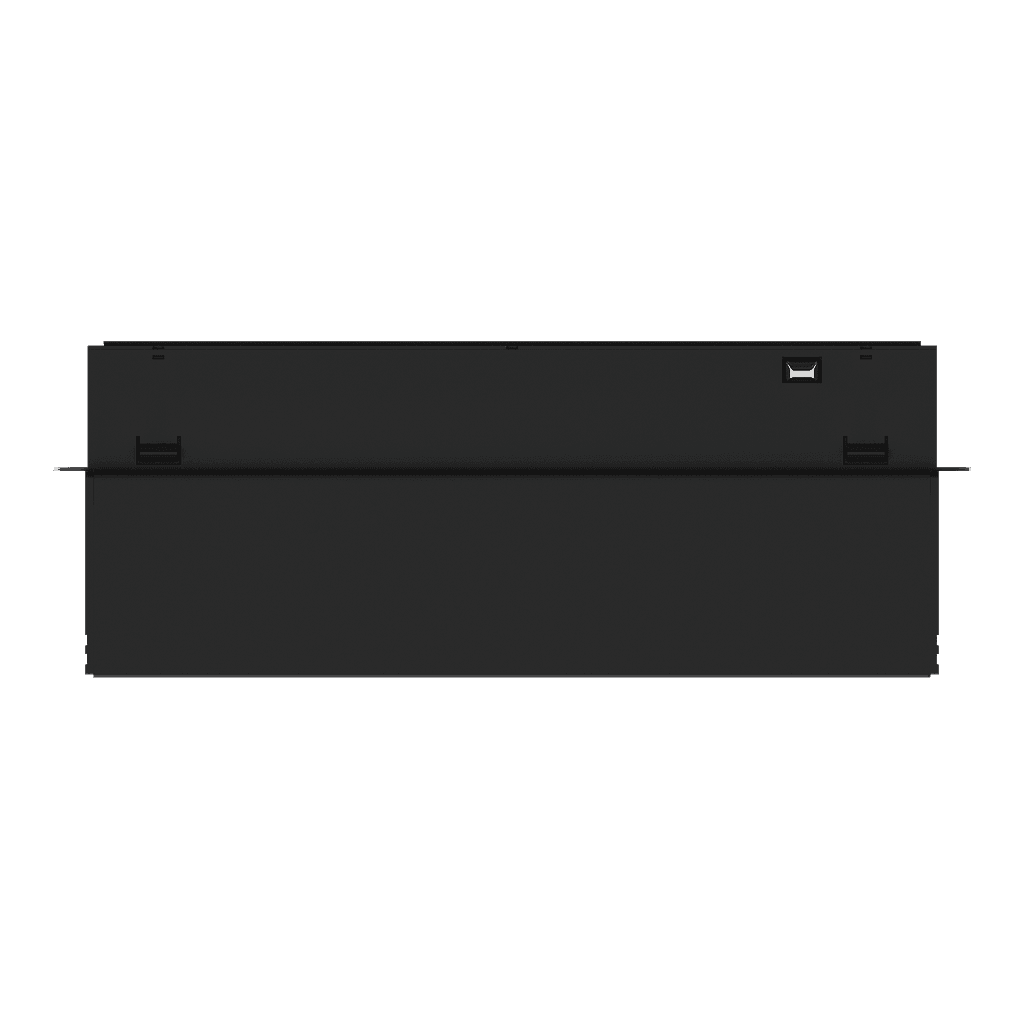

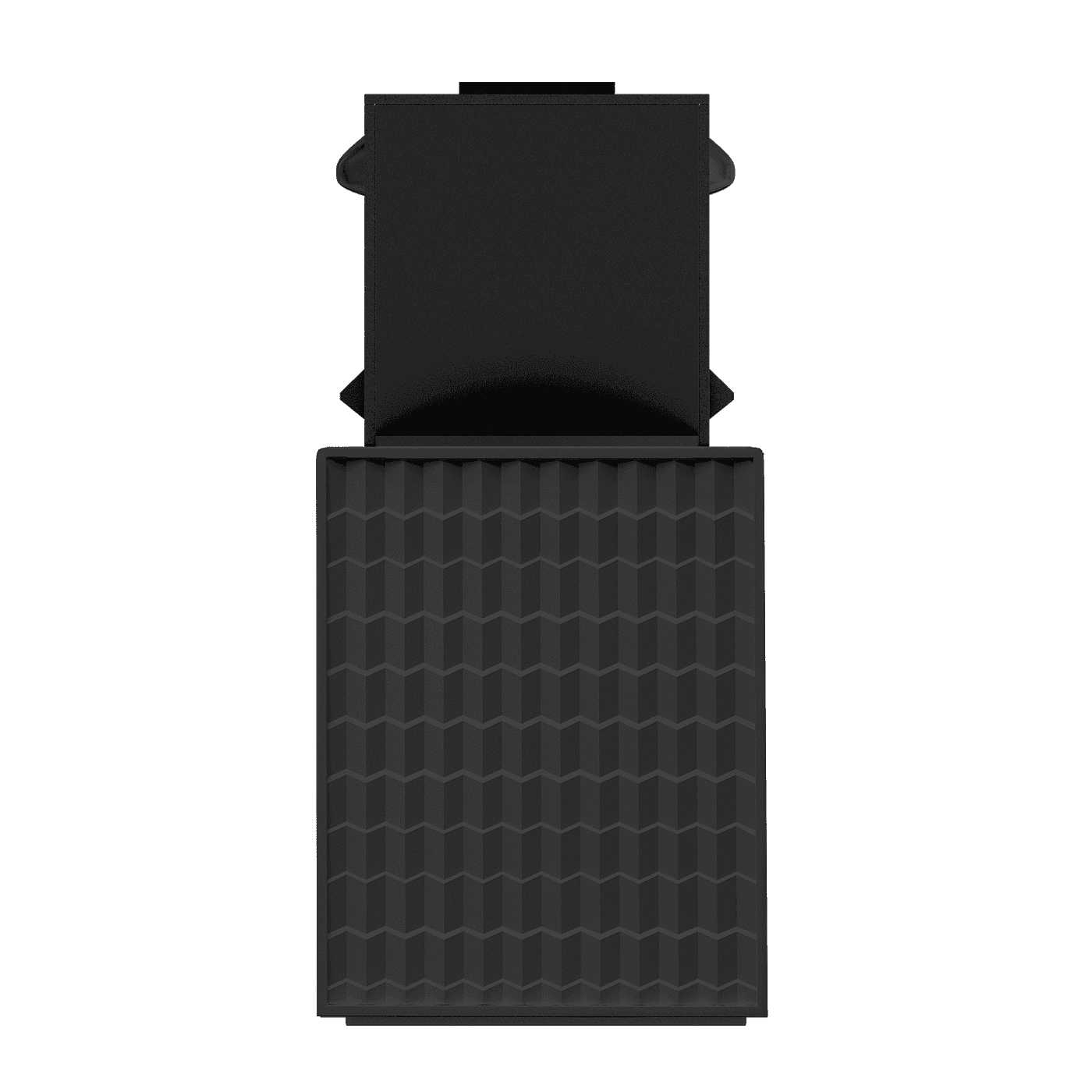

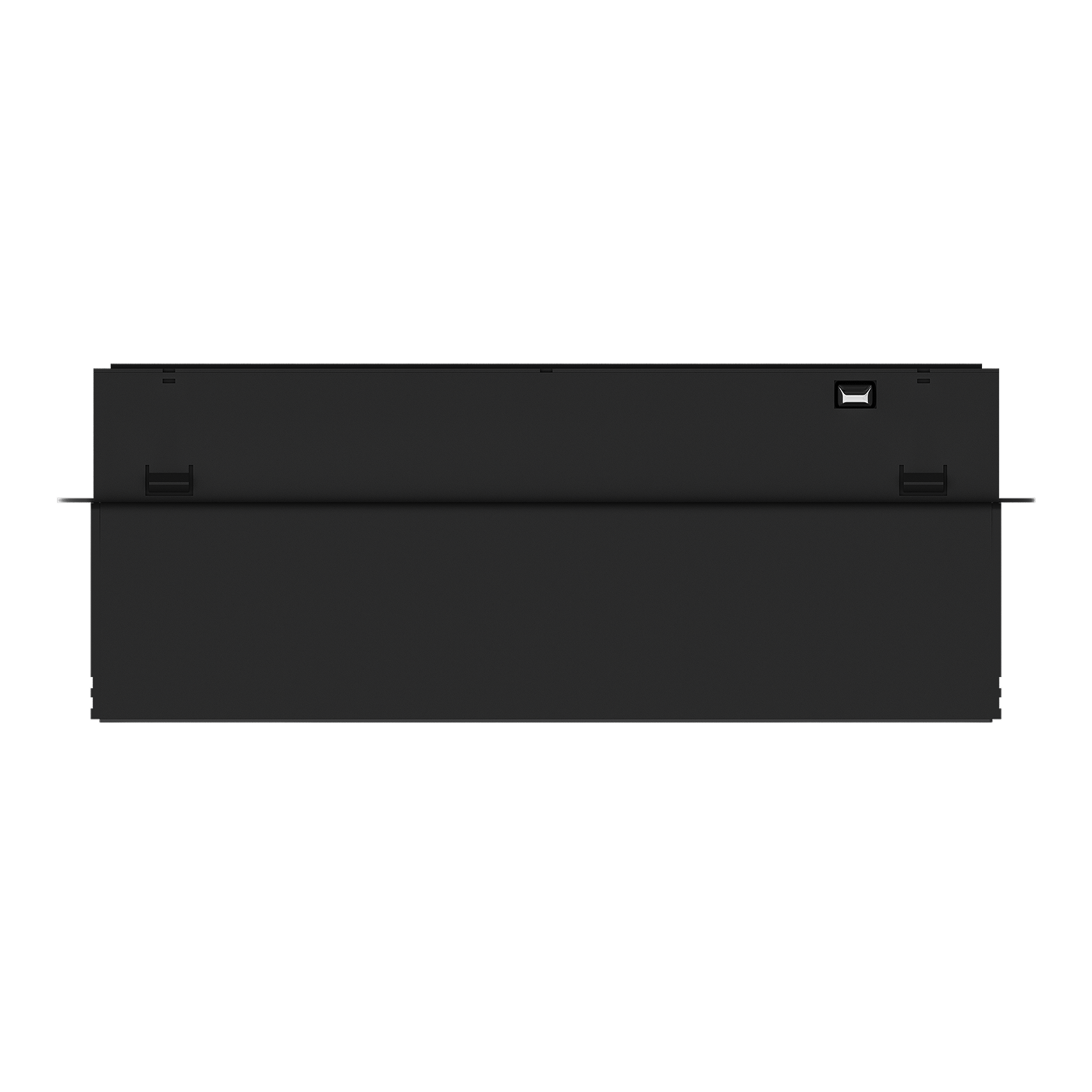

MGN FLAT.DOT/T 6W D24 930 BK

MGN FLAT.DOT/T 6W D24 930 BK
add to favorites
6 Wluminaire power
400 lmlight flow
67 lm/Wenergy efficiency
code1900000200
color temperature3000
beam angleD24
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. accent lights and track systems
  6. magnetic busbar system 48 V
  7. MGN FLAT.DOT/T
  8. MGN FLAT.DOT/T 6W D24 930 BK
options
свернуть все
electricalcommonilluminatingconstructional
rated supply voltage, direct current
48 V
supply voltage, direct current
48 V
luminaire power
6 W
electric shock protection
III
power factor
> 0,95
supply voltage
48 V
electrical
rated supply voltage, direct current
48 V
supply voltage, direct current
48 V
luminaire power
6 W
electric shock protection
III
power factor
> 0,95
supply voltage
48 V
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
code
1900000200
illuminating
color rendition index (CRI)
>90
light flow
400 lm
flickering factor
<5%
energy efficiency
67 lm/W
beam angle
D24
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Металл, пластик
weight
0.06 kg
length, mm
112 mm
width, mm
22 mm
height, mm
45 mm
housing color
Черный
installation width, mm
16 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Без драйвера
model files
model files

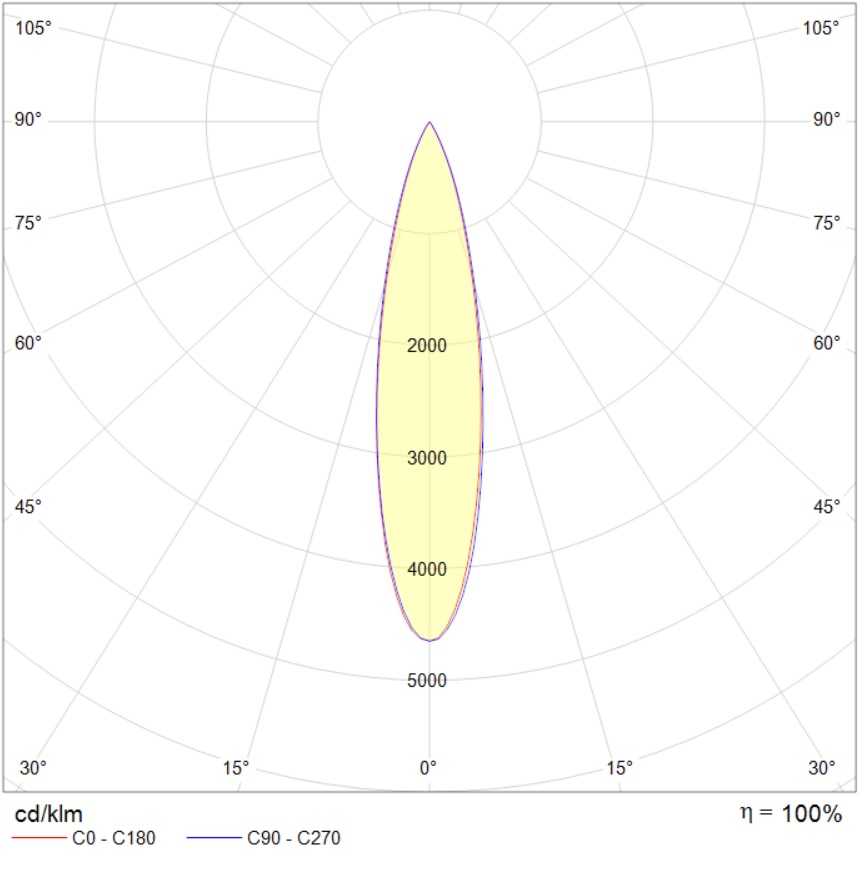

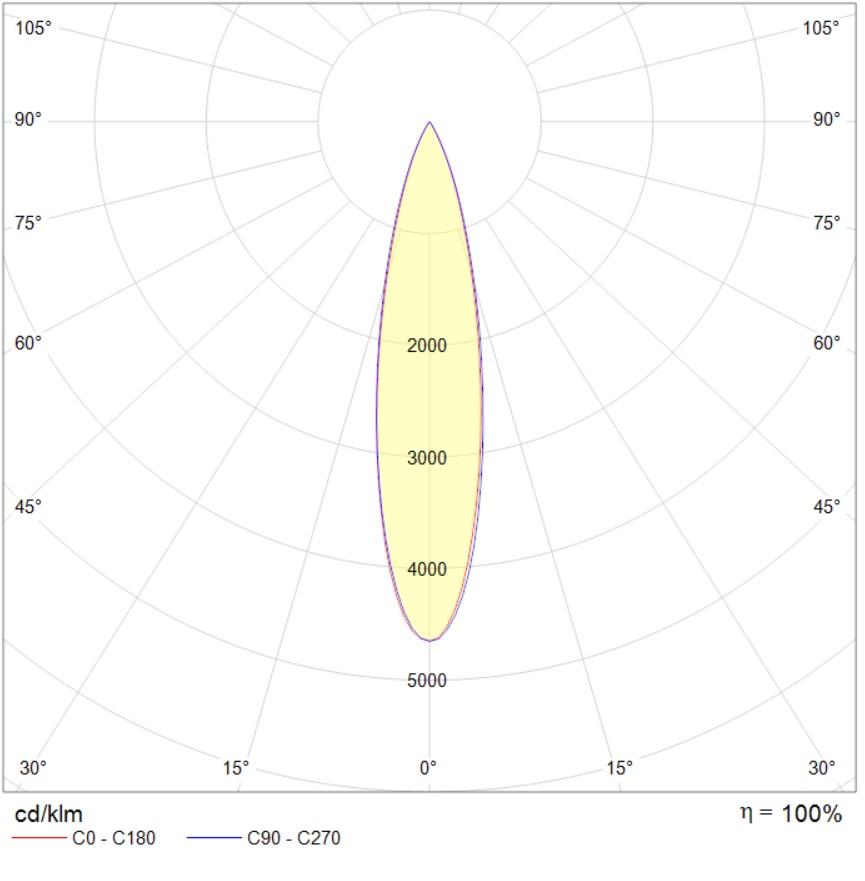

photometric files
ies656 kB
jpg79 kB
ldt420 kB
documents
passport620 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
photometric files
ies656 kB
jpg79 kB
ldt420 kB
documents
passport620 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
