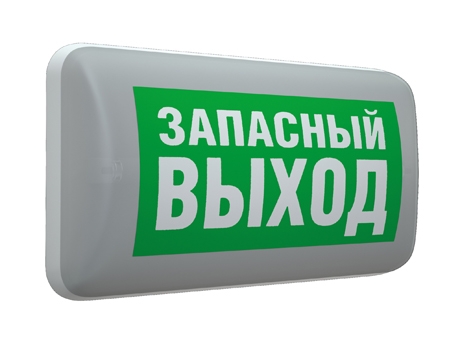

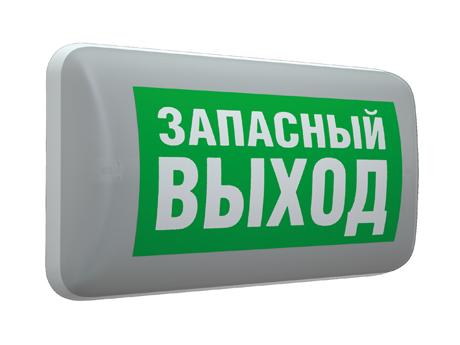

MARS 2200-4 LED 24V
MARS 2200-4 LED 24V
4 Wluminaire power
220 kd/m2average luminance
code4502003520
battery / battery Ni-CdНет аккумулятора
type of operation / type of operation of the emergency luminaireцентрализованного электропитания
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
150 lmaverage luminance
220 kd/m2light source type
LEDenergy efficiency
38 lm/Wemission color
Белыйilluminating
light flow
150 lm
average luminance
220 kd/m2
light source type
LED
energy efficiency
38 lm/W
emission color
Белый
electrical
supply voltage
24 V
constructional
material
Поликарбонат
ballast
Драйвер
weight
0.43 kg
length
255 mm
width
137 mm
height
60 mm
shock resistance (IK)
IK02/0,2 Дж
ingress protection (IP)
IP22
climatic performance
УХЛ4
emergency
battery / battery Ni-Cd
Нет аккумулятора
type of operation / type of operation of the emergency luminaire
централизованного электропитания
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
B
code
4502003520
model files
model files

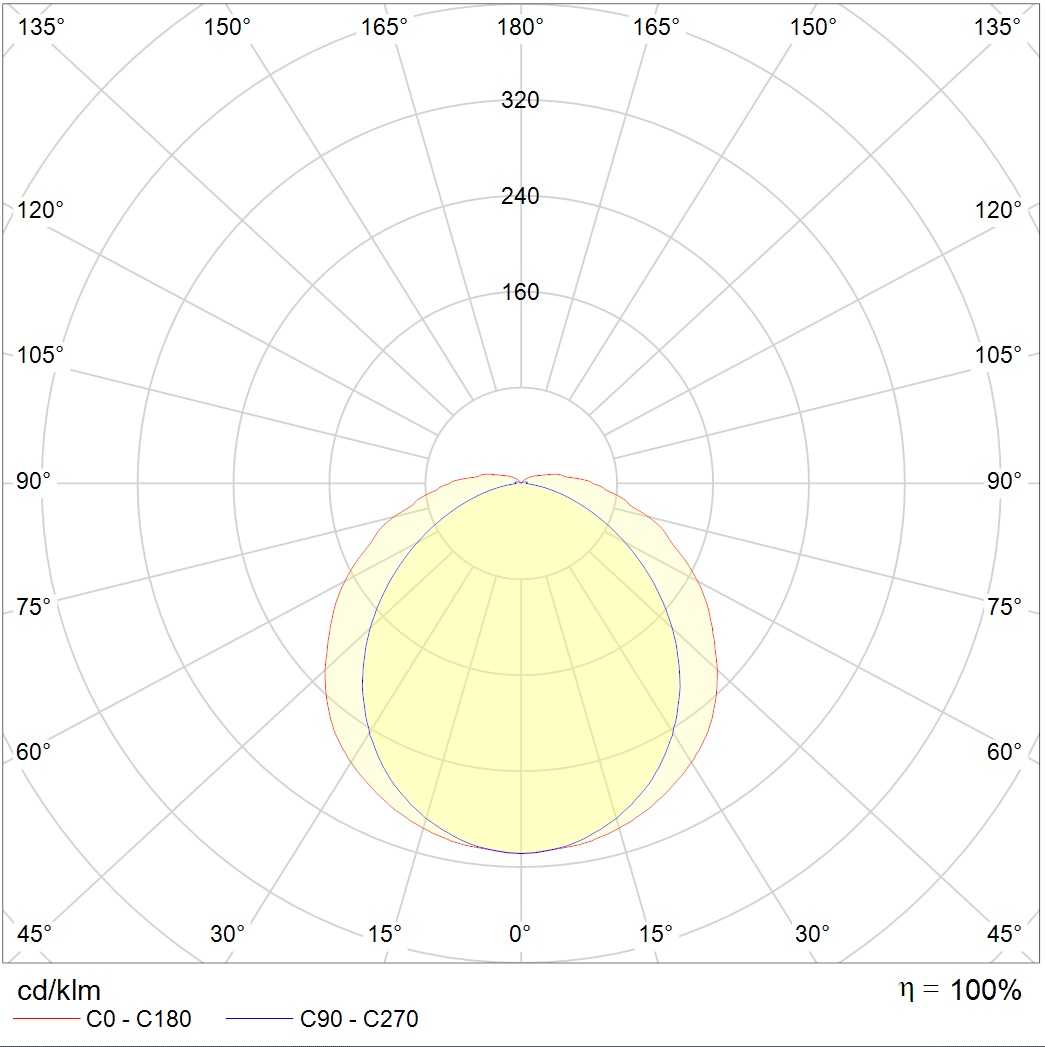

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg153.6 kB
ldt109.1 kB
documents
passport340.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016291.1 kB
accessories
%20%D0%A0%D0%A1-M%20%D0%BA%D0%BE%D0%BC%D0%BF%D0%BB%D0%B5%D0%BA%D1%82%2C%202%D1%88%D1%82..jpg&w=360&q=75)
PEU 003 Pointer arrow (210х105) LUNA/MARS0.006kgarticle: 2501002260
PEU 092 Right-hand door indicator (210х105) LUNA/MARS0.006kgarticle: 2502001690
PPB 0003 Fire extinguisher (105х105)0.0049kgarticle: 2502001130
