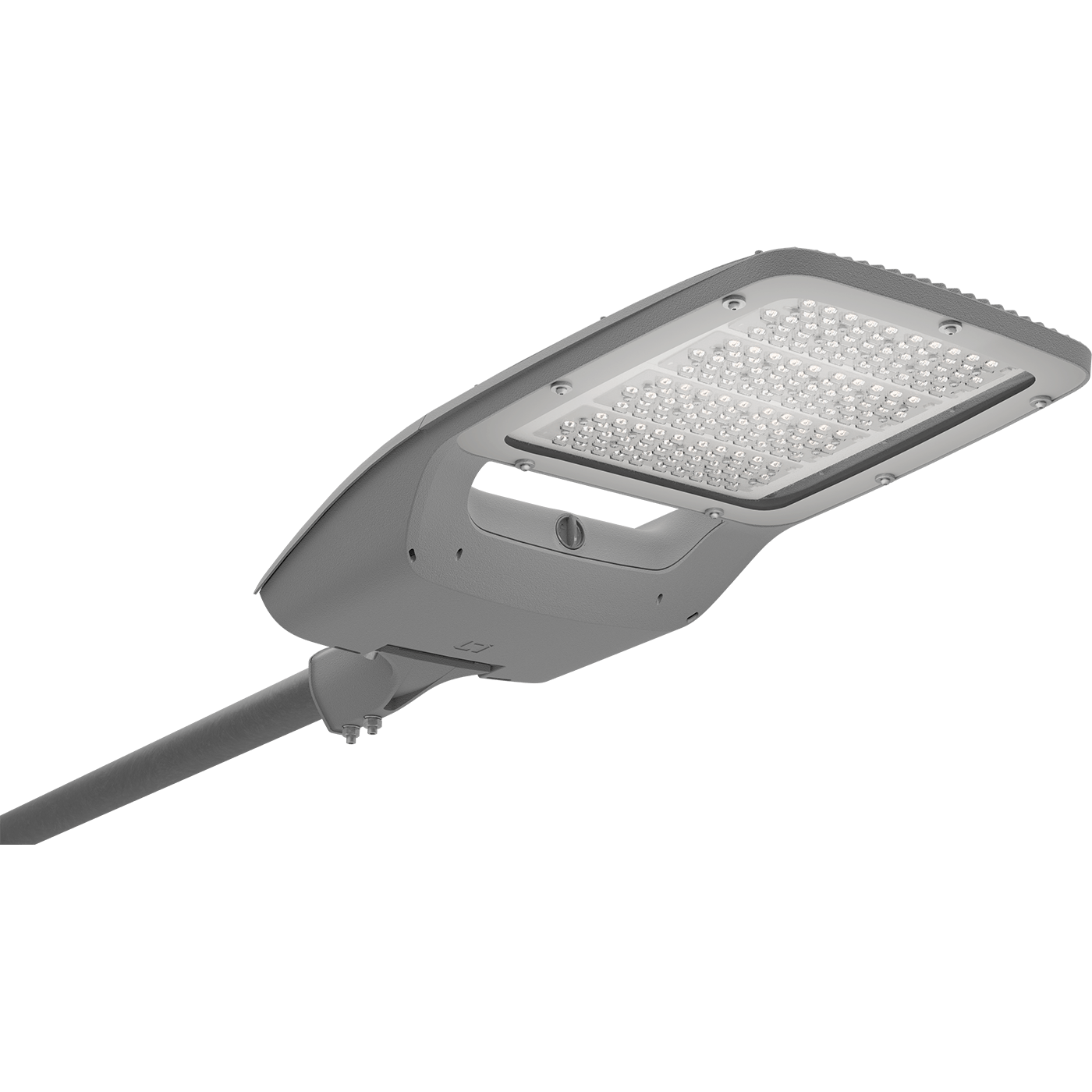

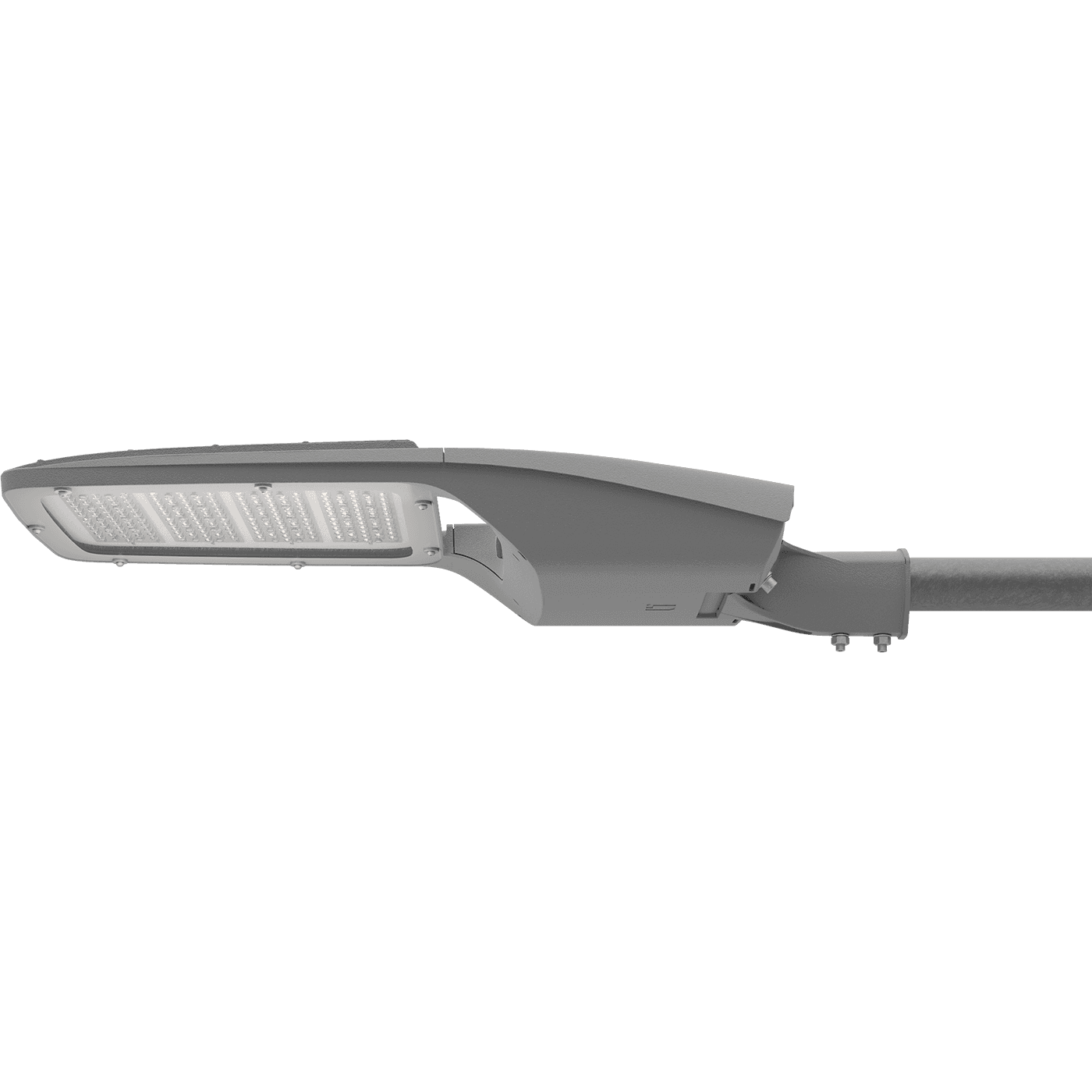

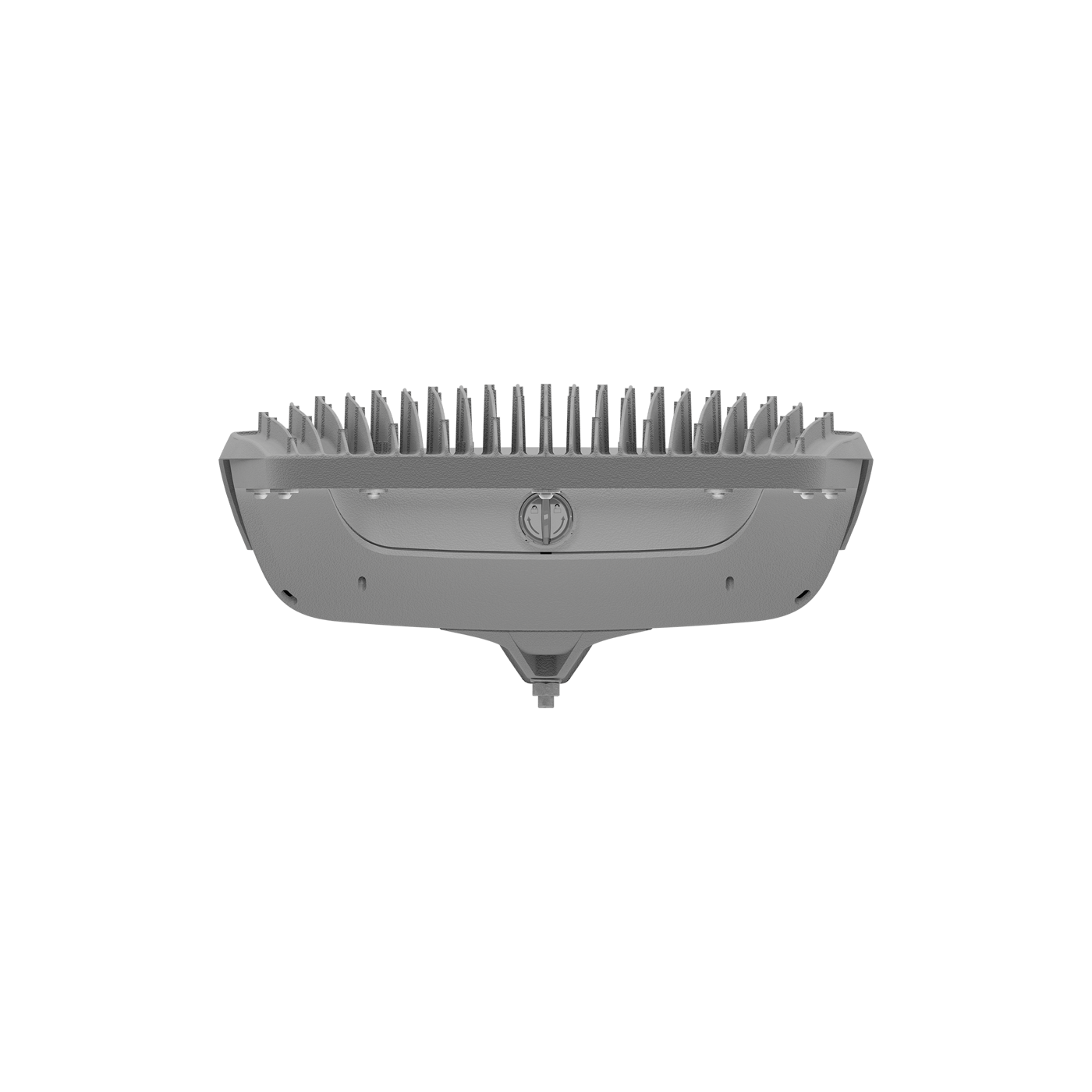

MAGISTRAL LED 300W DW 740 RAL9006 CR
MAGISTRAL LED 300W DW 740 RAL9006 CR
290 Wluminaire power
39800 lmlight flow
137 lm/Wenergy efficiency
code1680000390
beam angleD120
color temperature4000
weight16 kg
options
свернуть все
constructionalelectricalcommonilluminatingLMS options
ingress protection (IP)
IP66housing color
Металликlength, mm
956 mmwidth, mm
410 mmheight, mm
188 mmweight
16 kgfire safety class
П-ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
5 Джlamp socket
LEDnumber of lamps
1ballast
Драйвер 0-10Вconstructional
ingress protection (IP)
IP66
housing color
Металлик
length, mm
956 mm
width, mm
410 mm
height, mm
188 mm
weight
16 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
electrical
electric shock protection
I
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
290 W
power factor
> 0,95
supply voltage
230 V
common
code
1680000390
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>70
light flow
39800 lm
energy efficiency
137 lm/W
flickering factor
<1%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
0-10 V
model files
model files

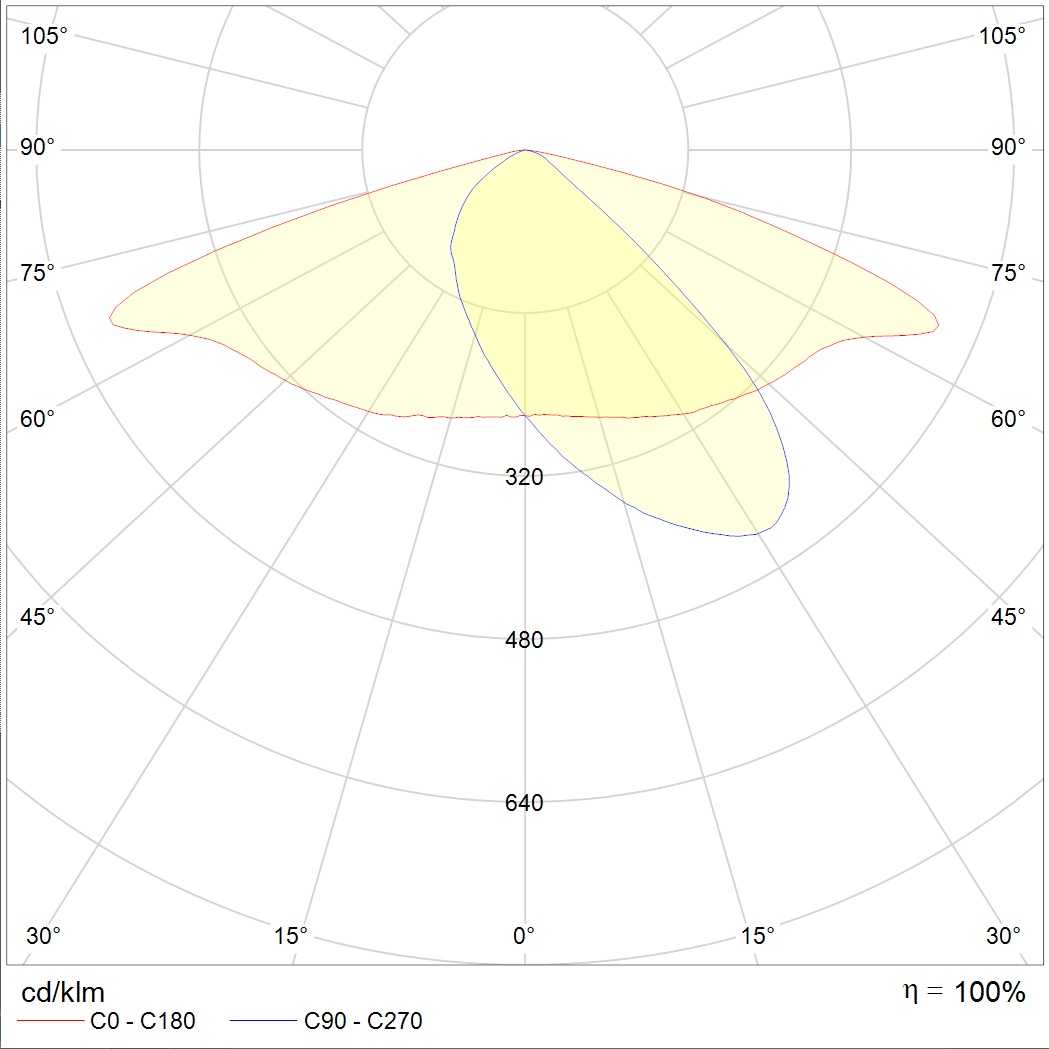

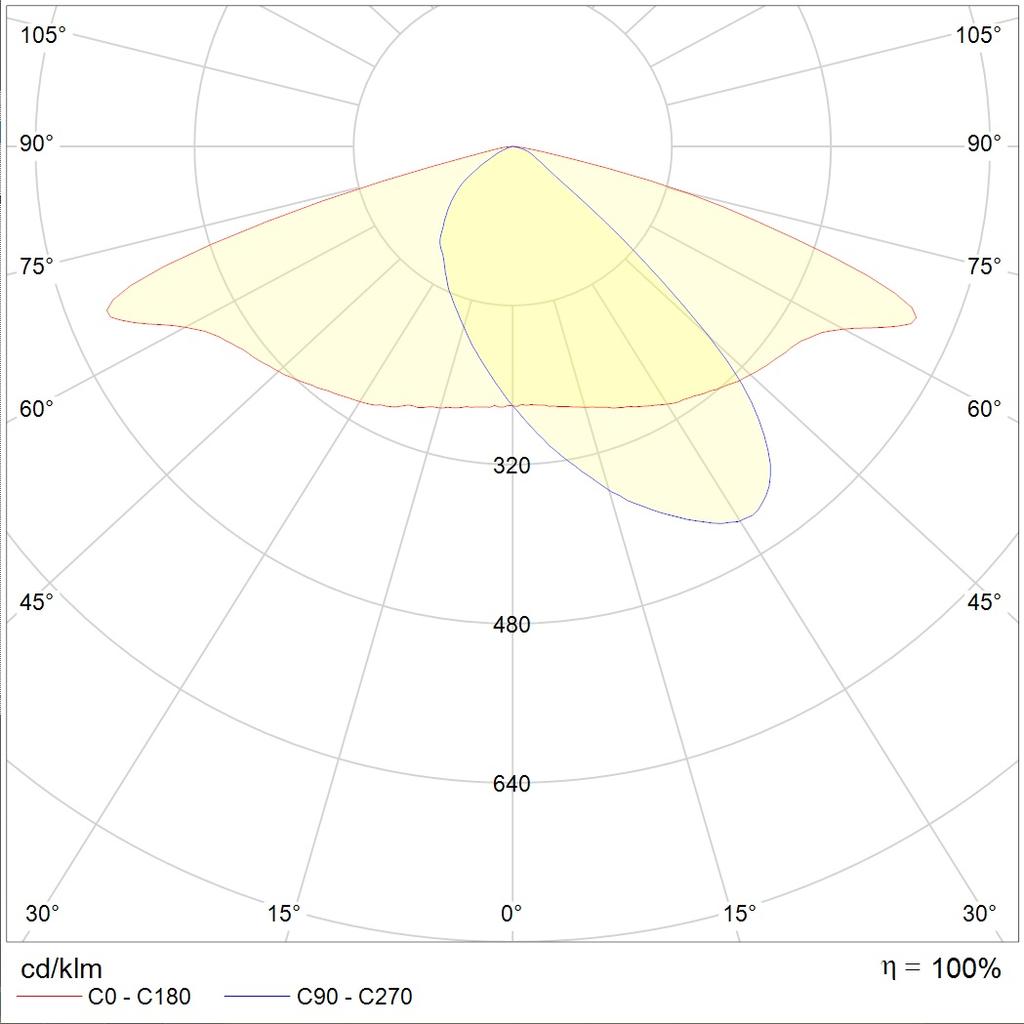

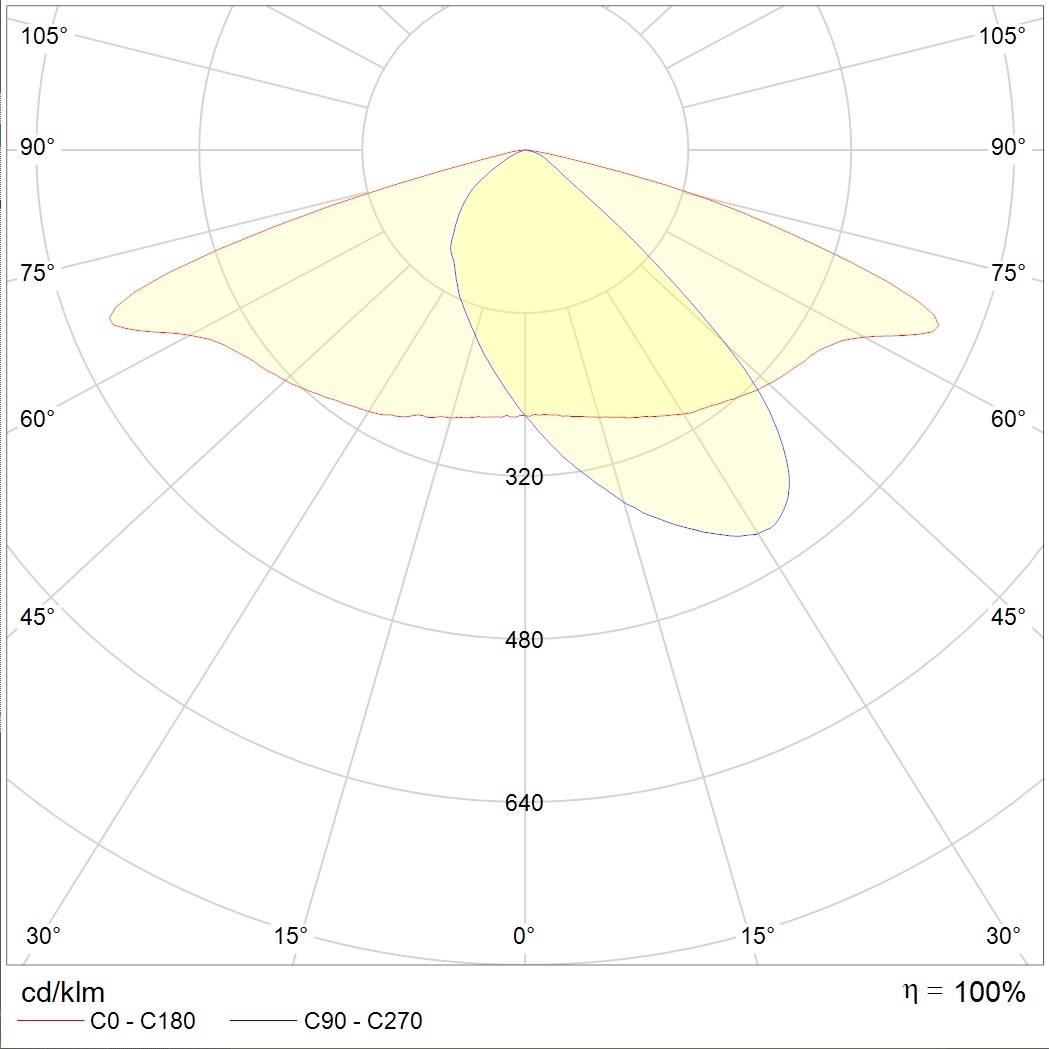

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg126 kB
ldt154.9 kB
documents
passport5.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
