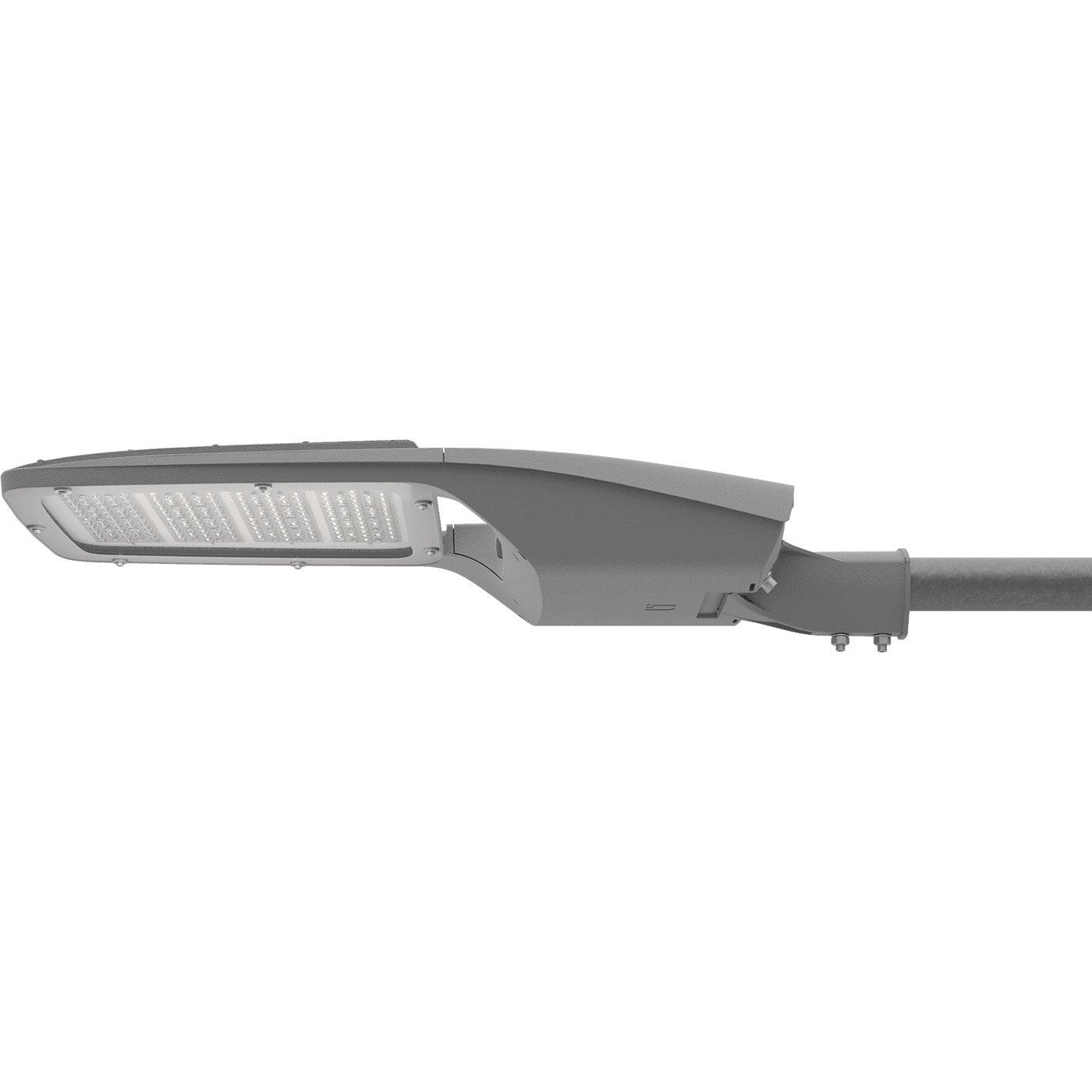

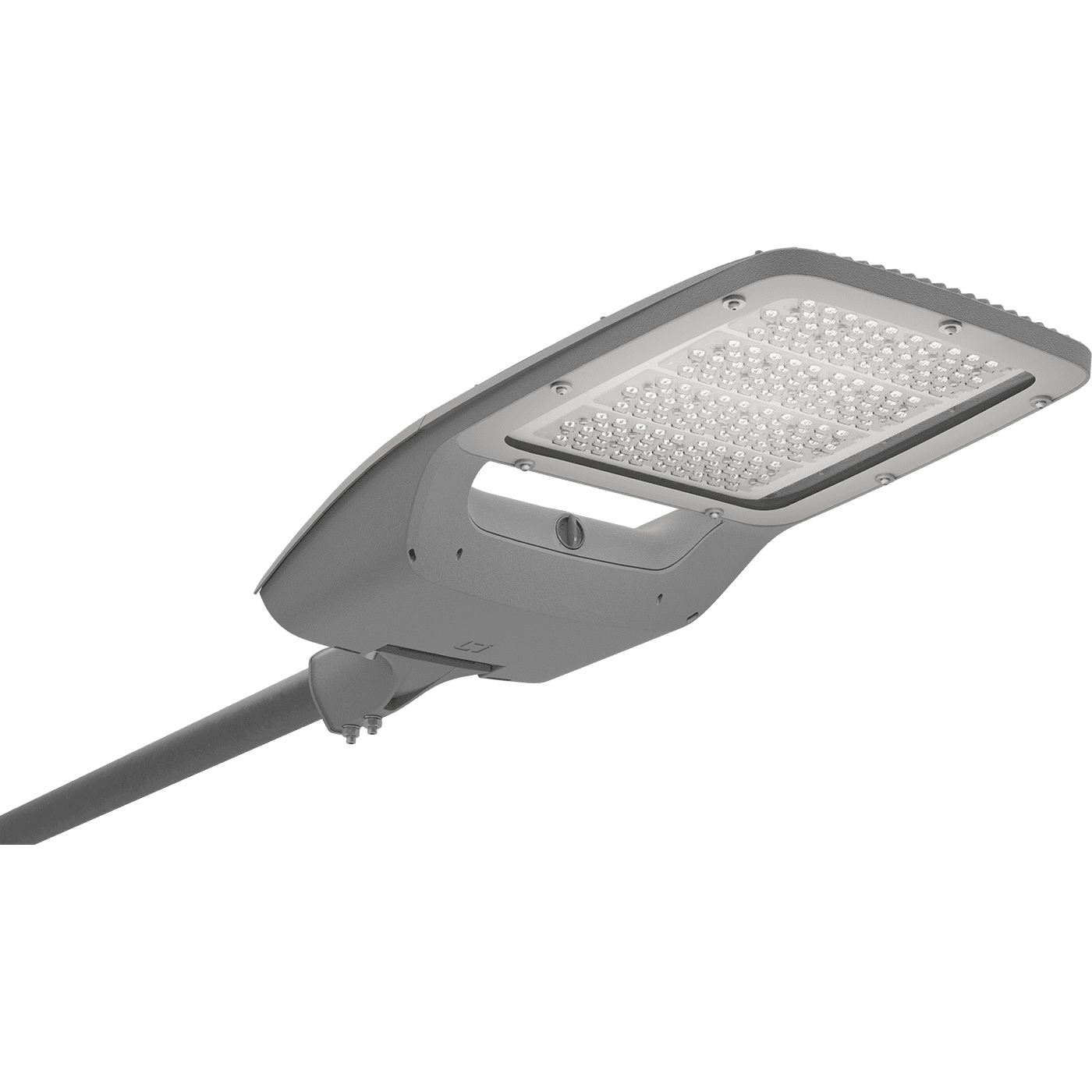

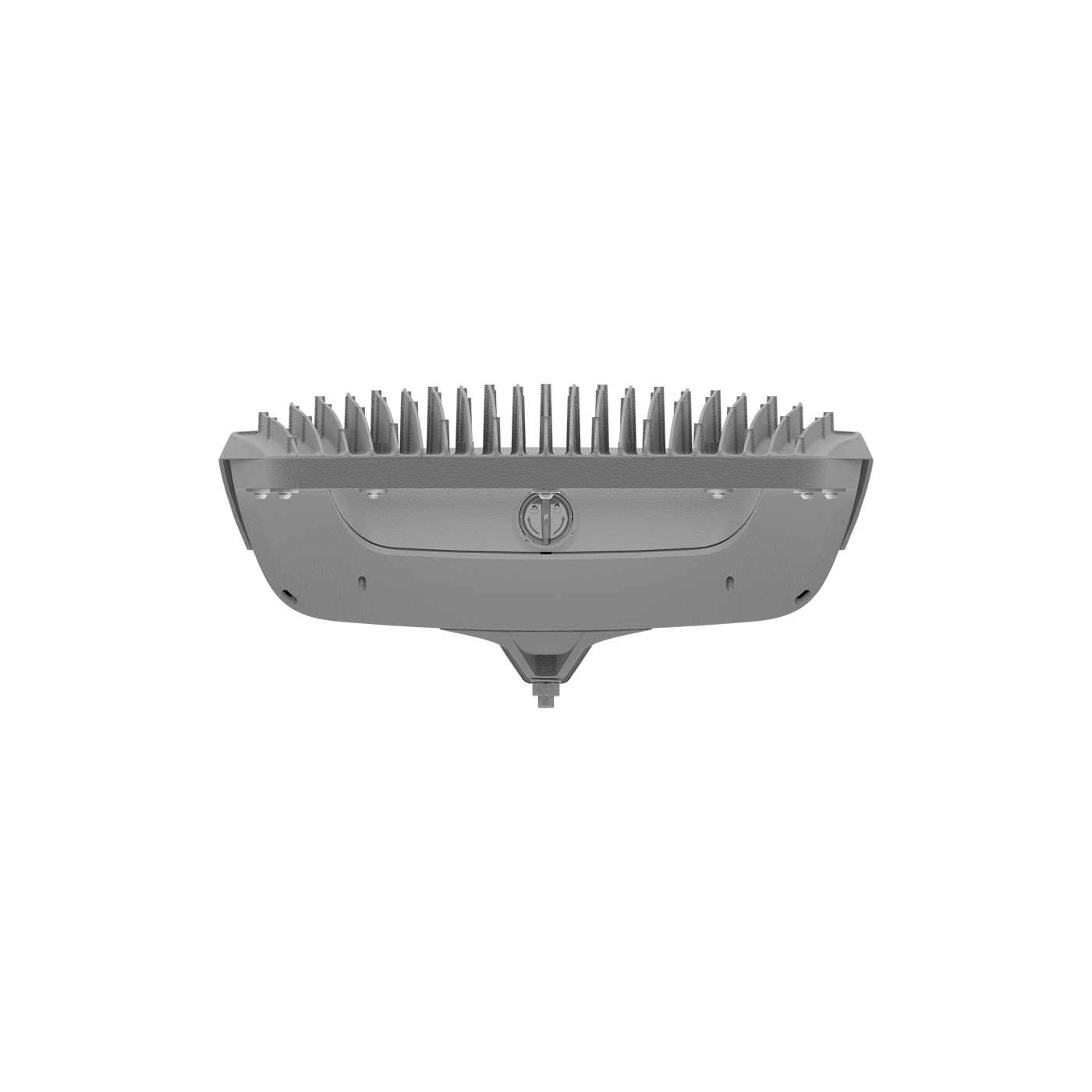

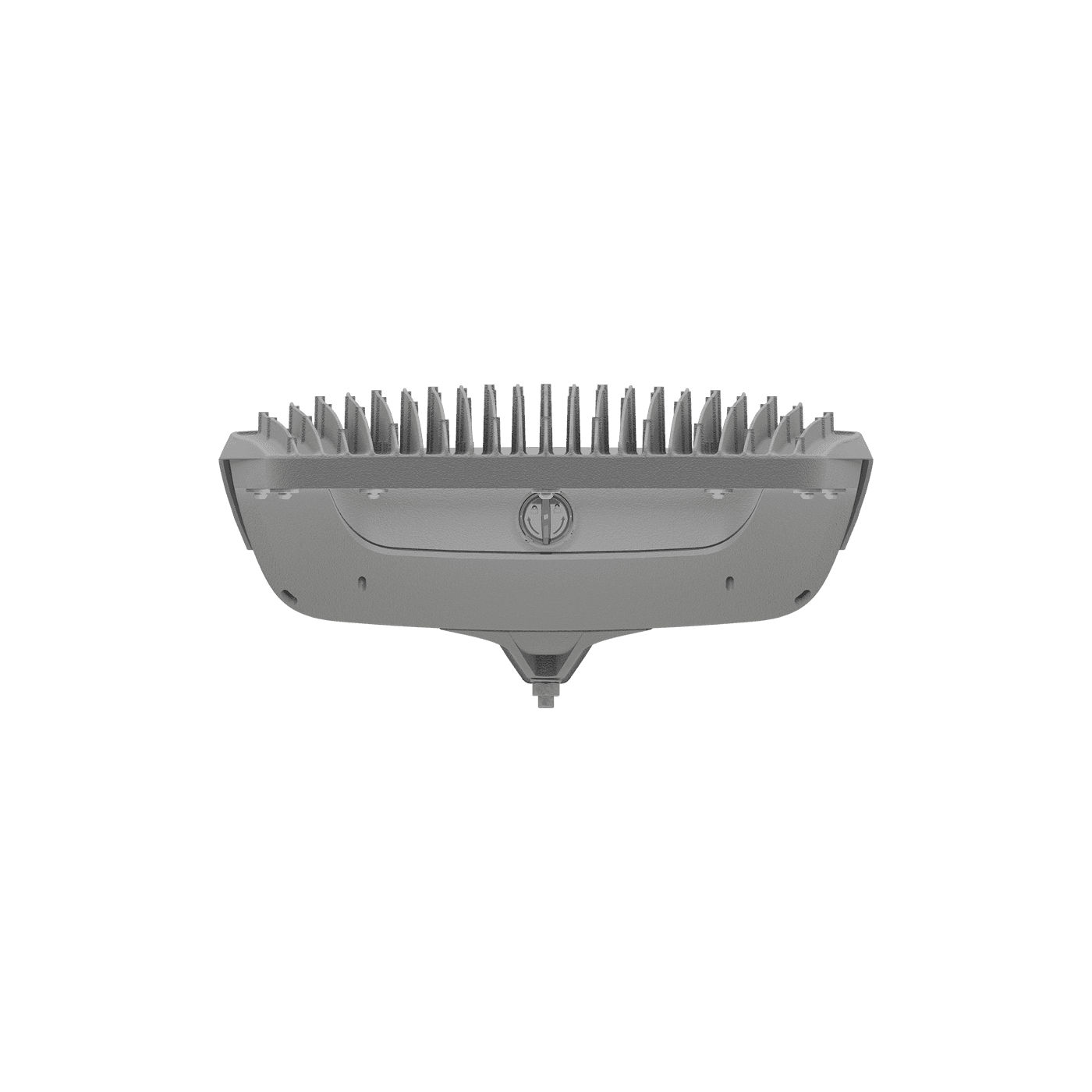

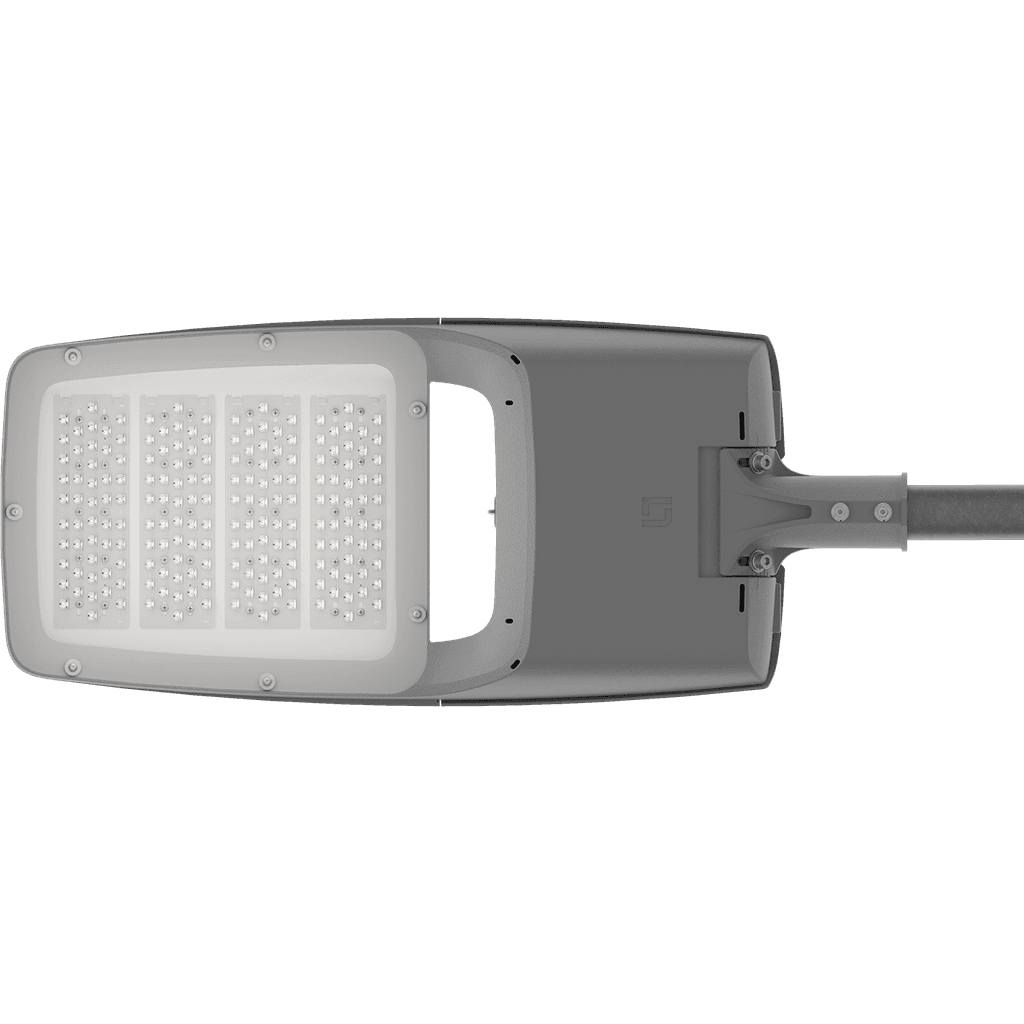

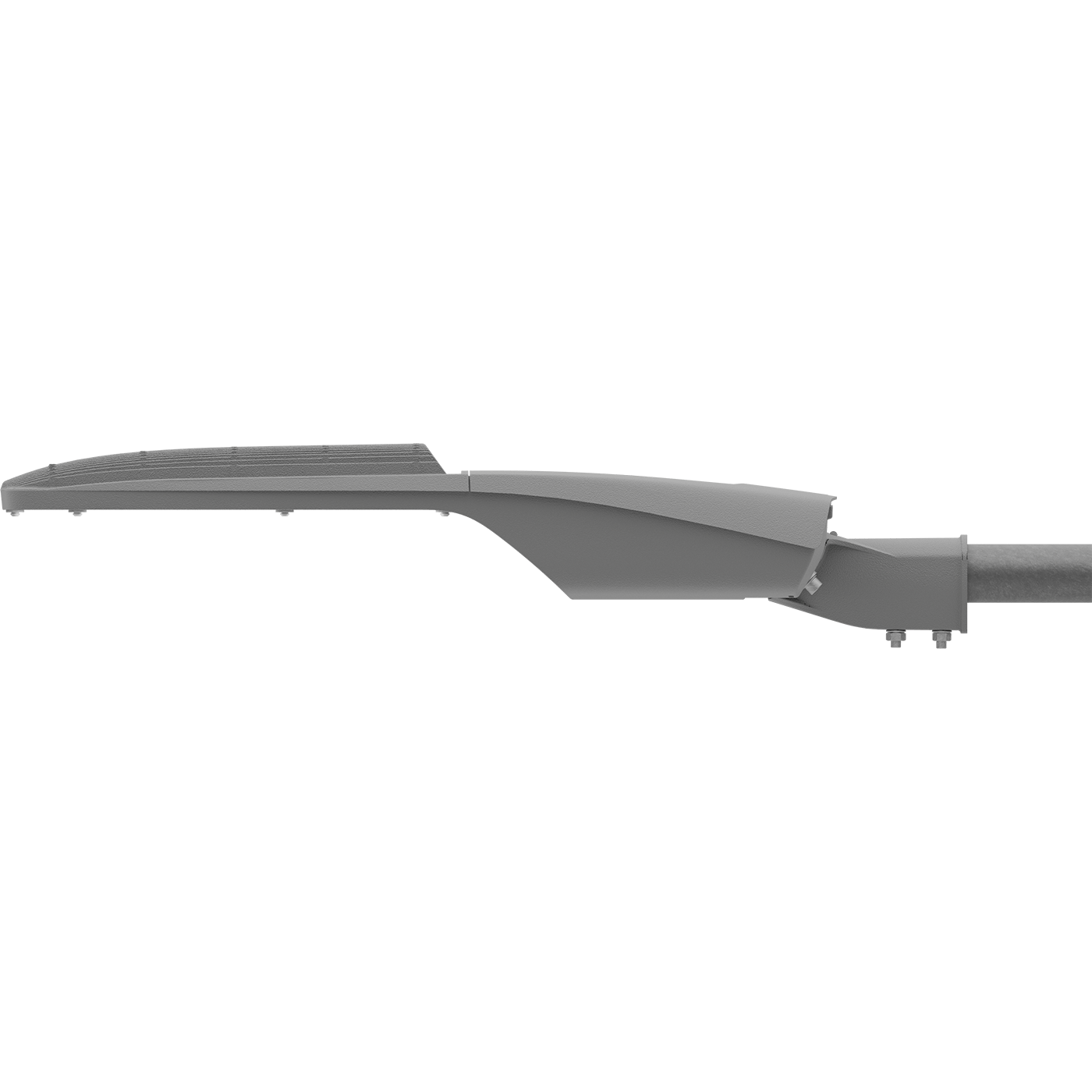

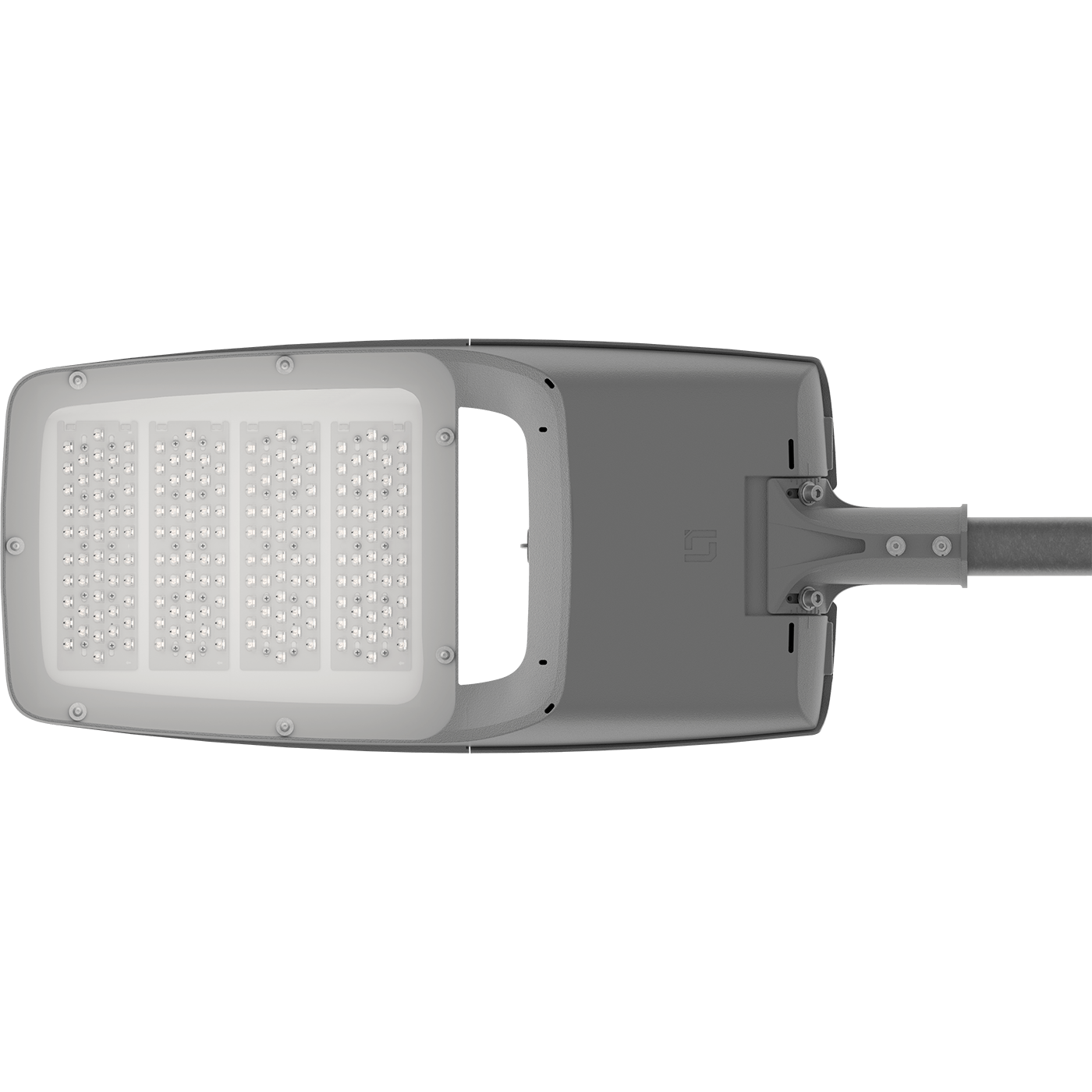

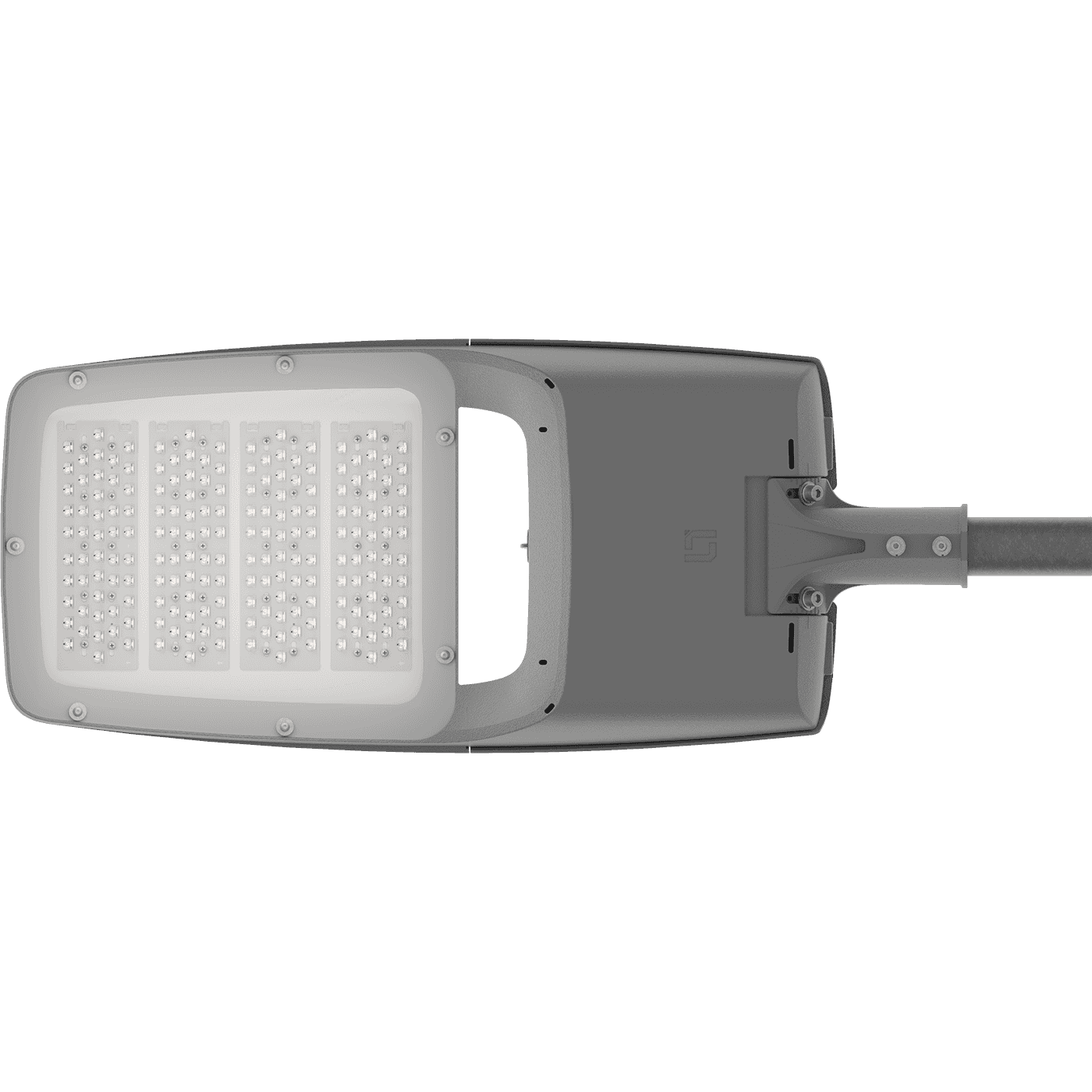

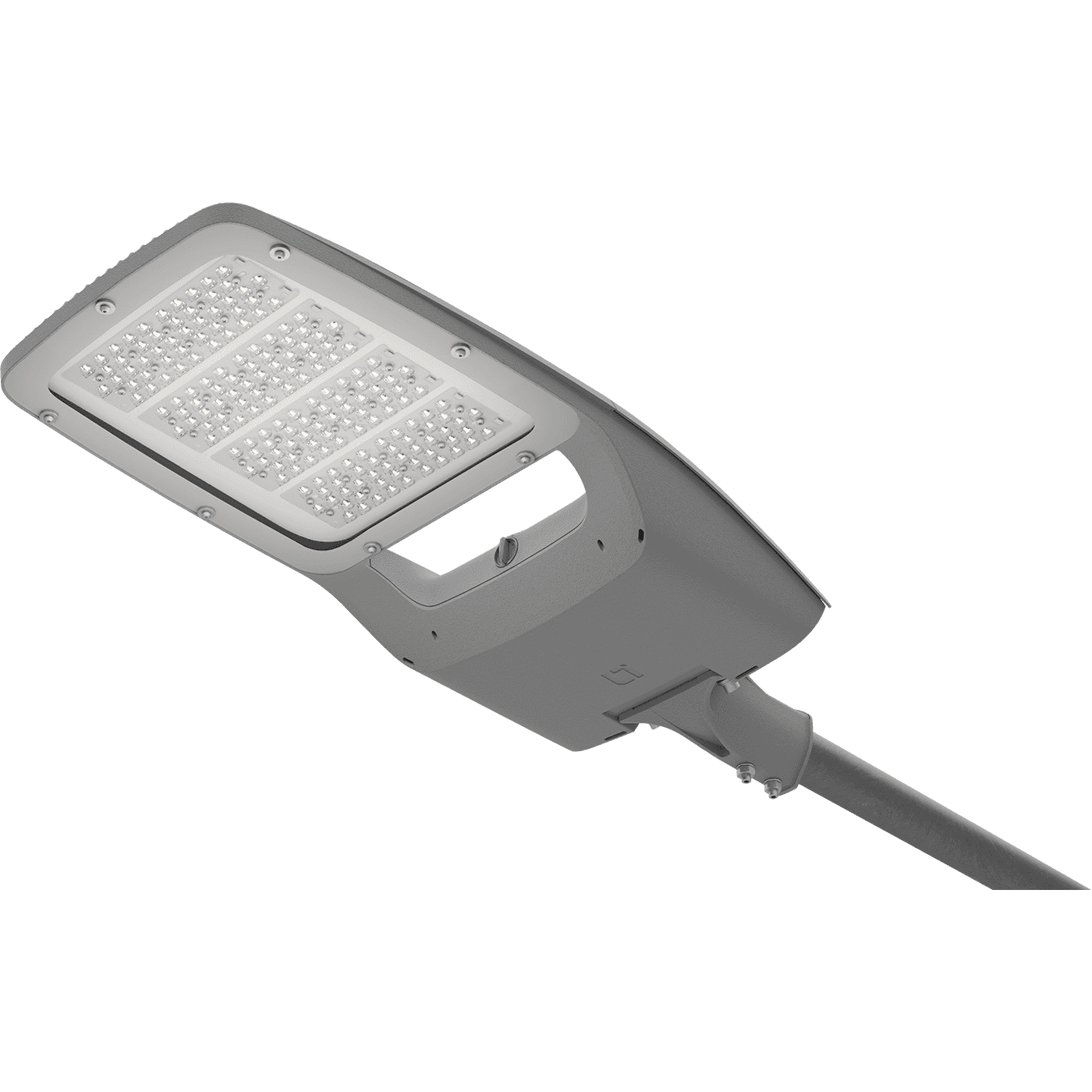

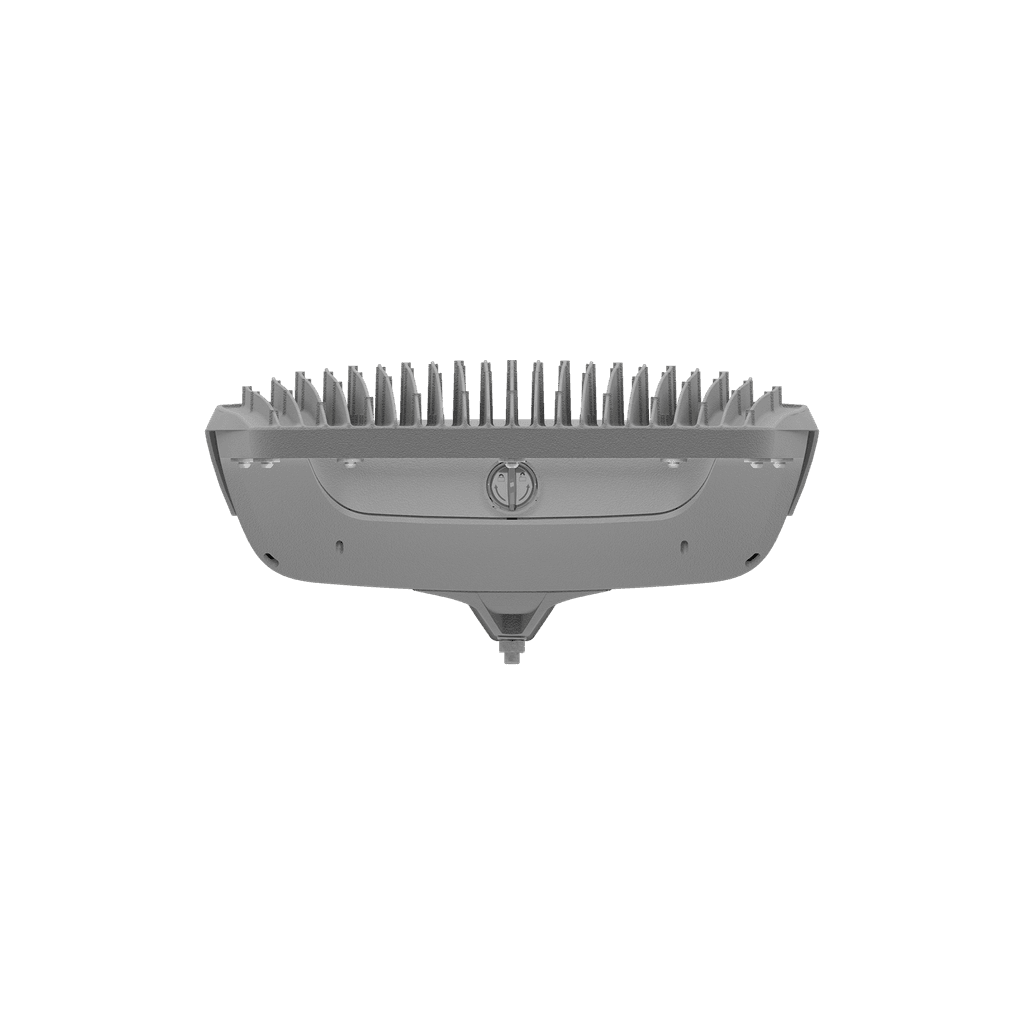

MAGISTRAL LED 240W DW 750 RAL9006 QUL
add to favorites
225 Wluminaire power
31000 lmlight flow
138 lm/Wenergy efficiency
code1680000330
beam angleD150/50
color temperature5000
weight16.5 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. console
  6. магистральные
  7. MAGISTRAL LED
  8. MAGISTRAL LED 240W DW 750 RAL9006 QUL
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
75 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
225 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
75 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
225 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
16.5 kg
length, mm
956 mm
width, mm
410 mm
height, mm
188 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1680000330
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
138 lm/W
color rendition index (CRI)
>70
light flow
31000 lm
flickering factor
<5%
beam angle
D150/50
color temperature
5000
light source type
LED
emission color
Белый
LMS options
dimming
PLC
model files
model files
CAD/BIM files
CAD model 3DS333.3 kB
model 3dMax2.2 mB

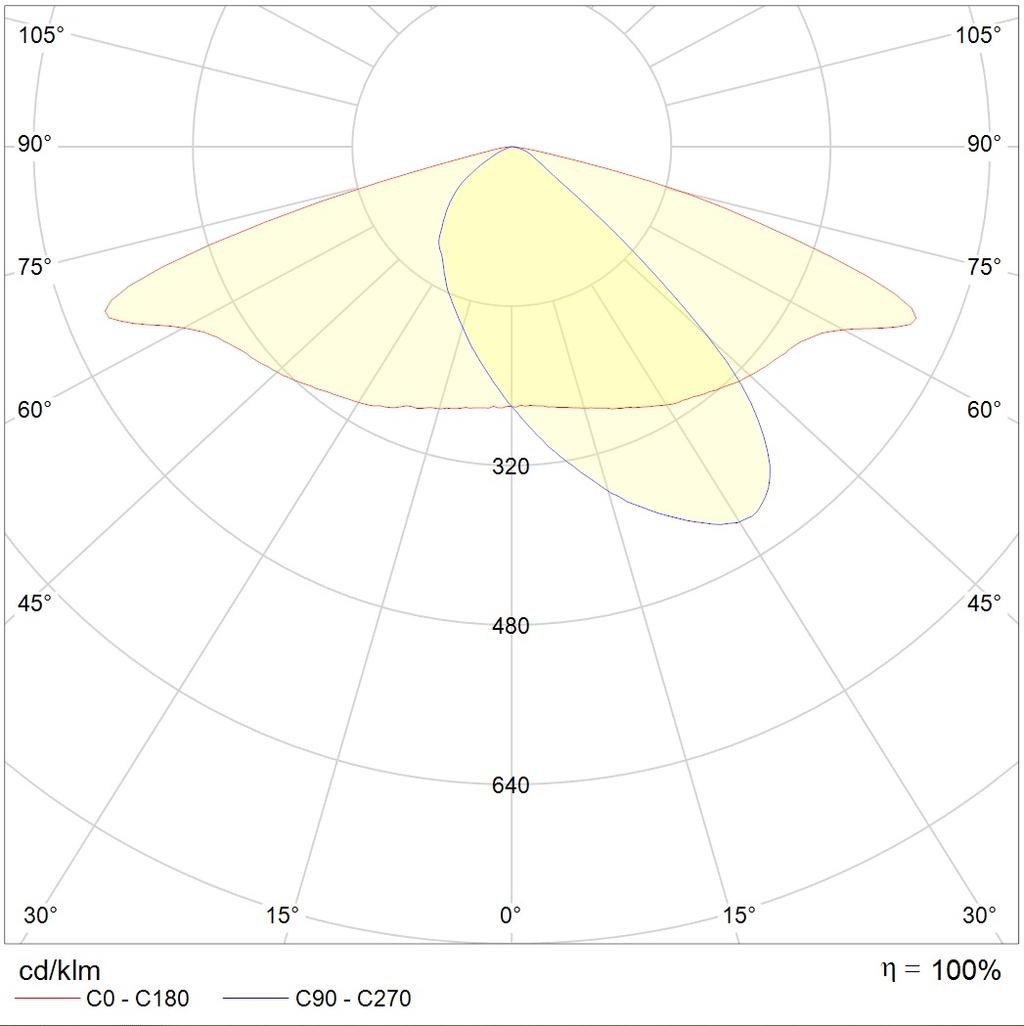

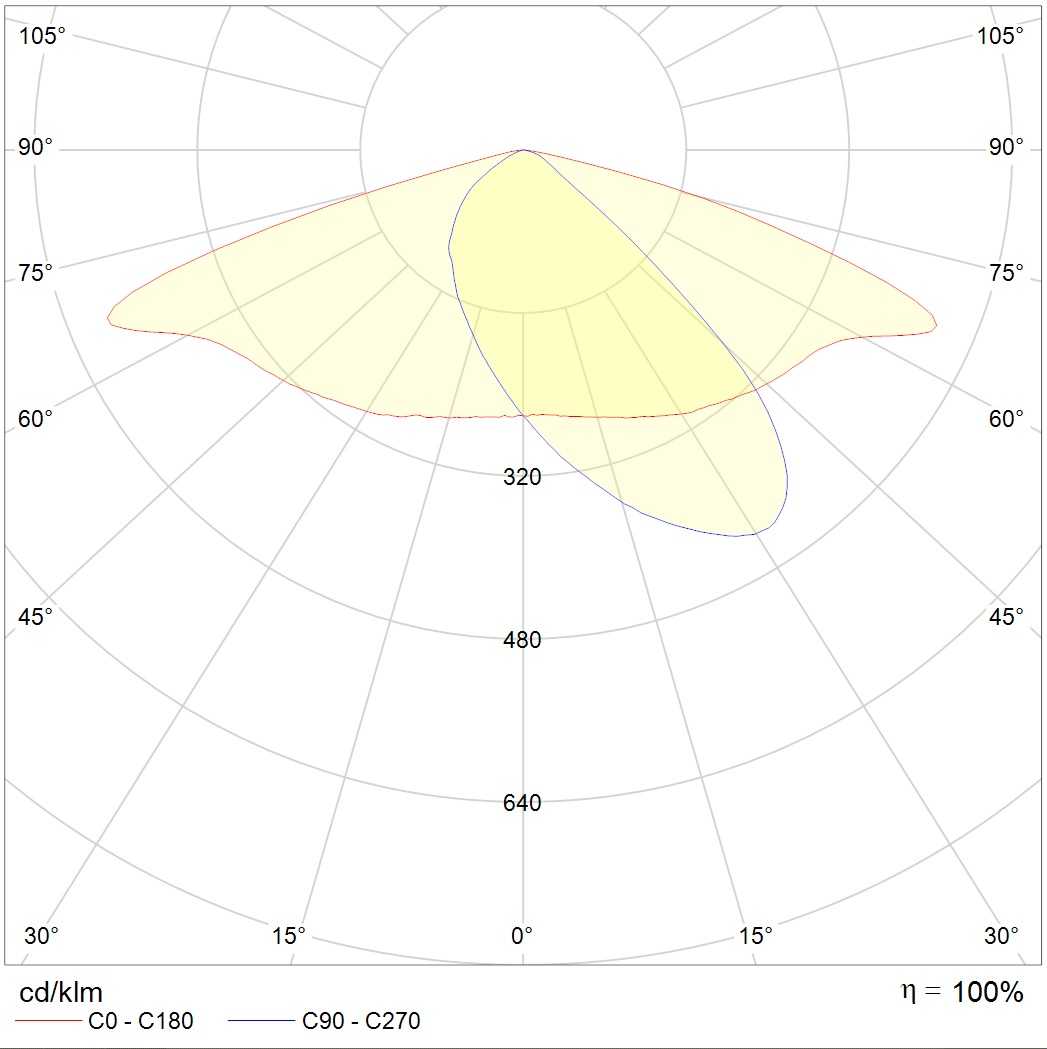

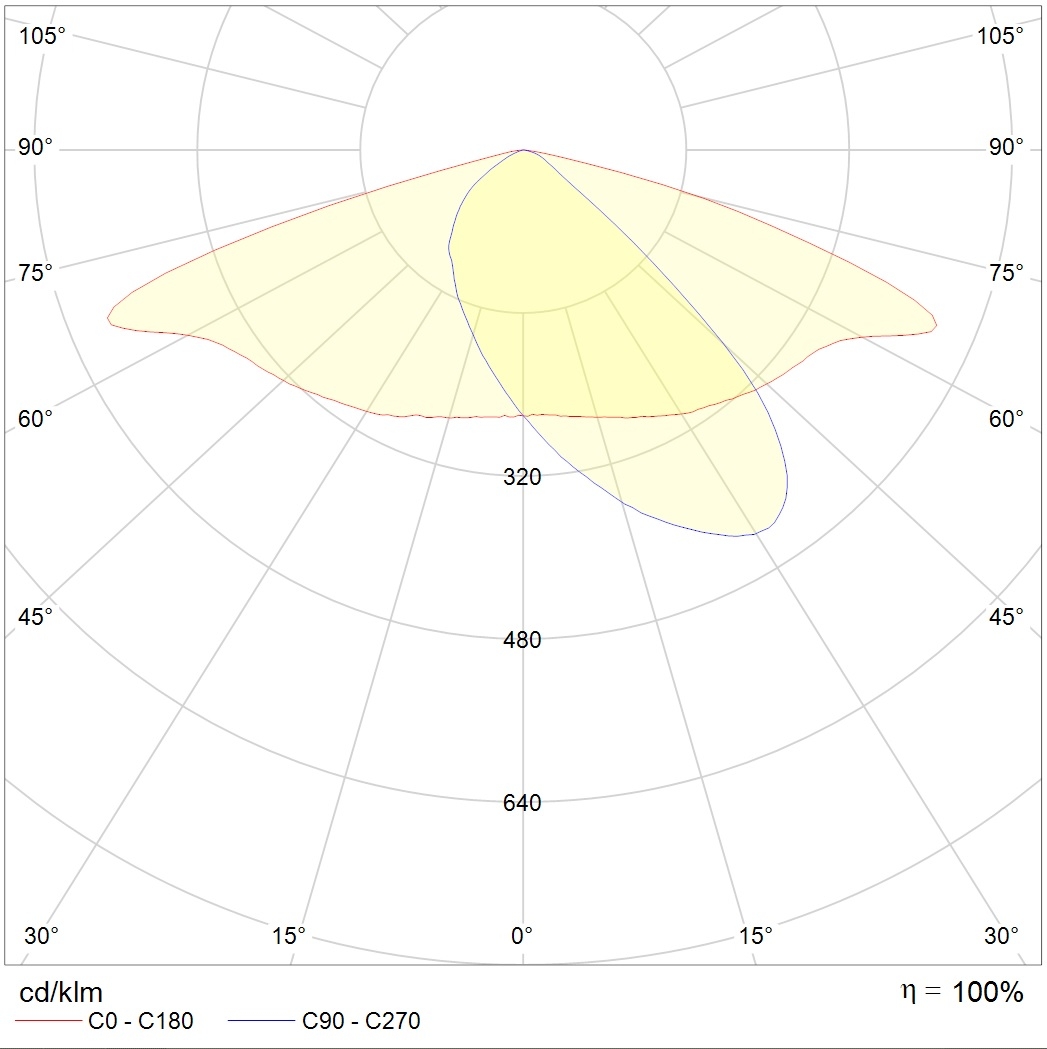

photometric files
ies263.2 kB
jpg120.7 kB
ldt154.9 kB
documents
passport5.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
CAD/BIM files
CAD model 3DS333.3 kB
model 3dMax2.2 mB
photometric files
ies263.2 kB
jpg120.7 kB
ldt154.9 kB
documents
passport5.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
