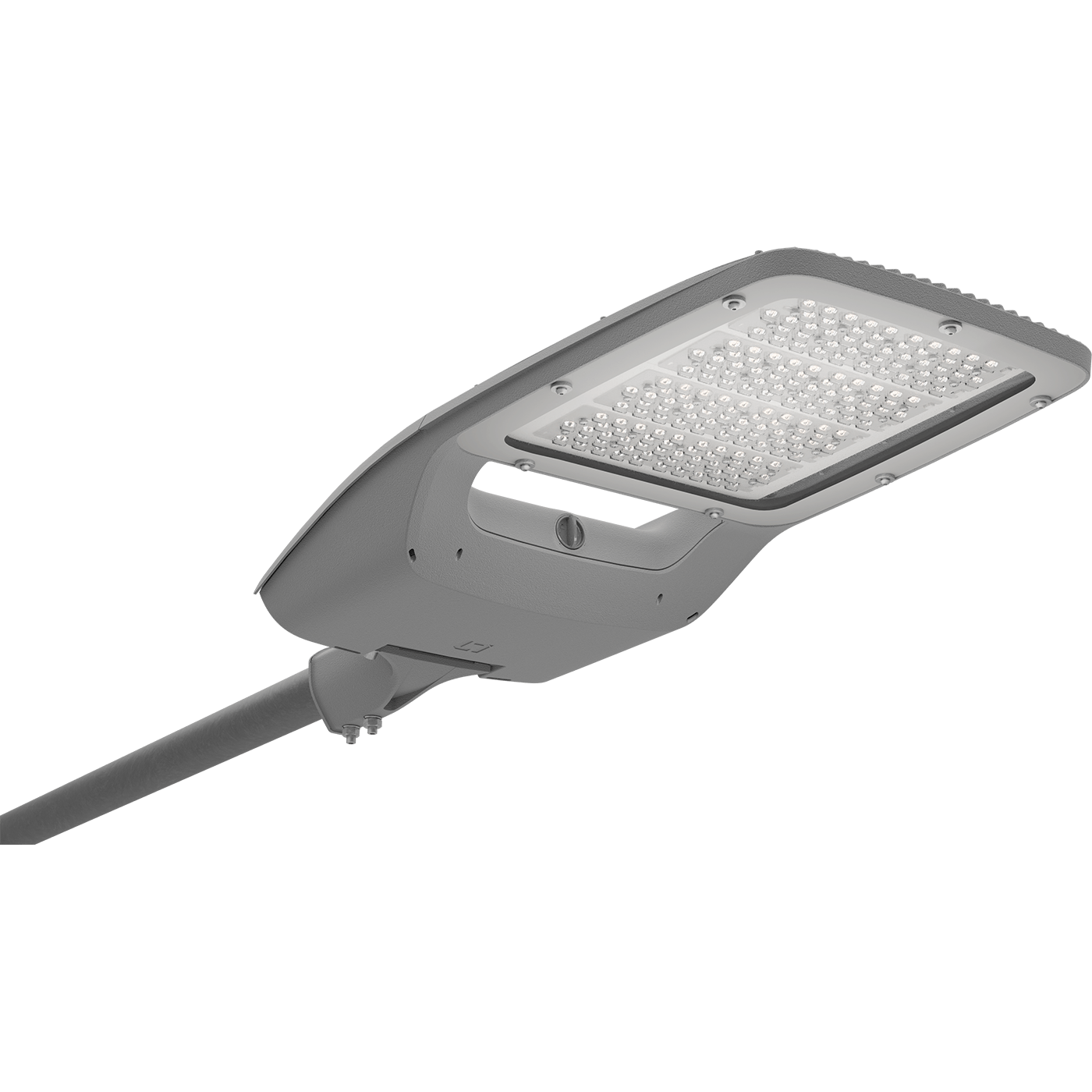

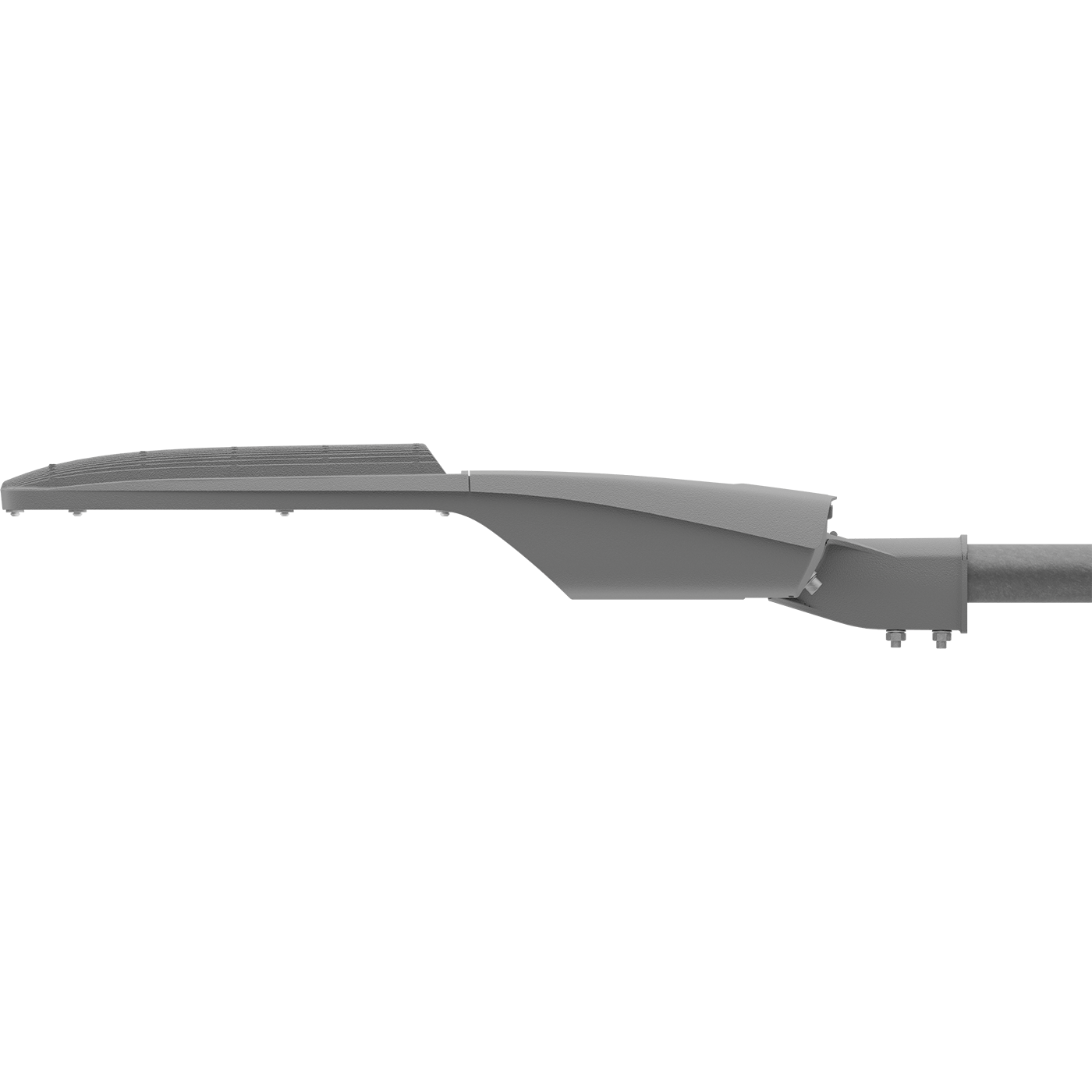

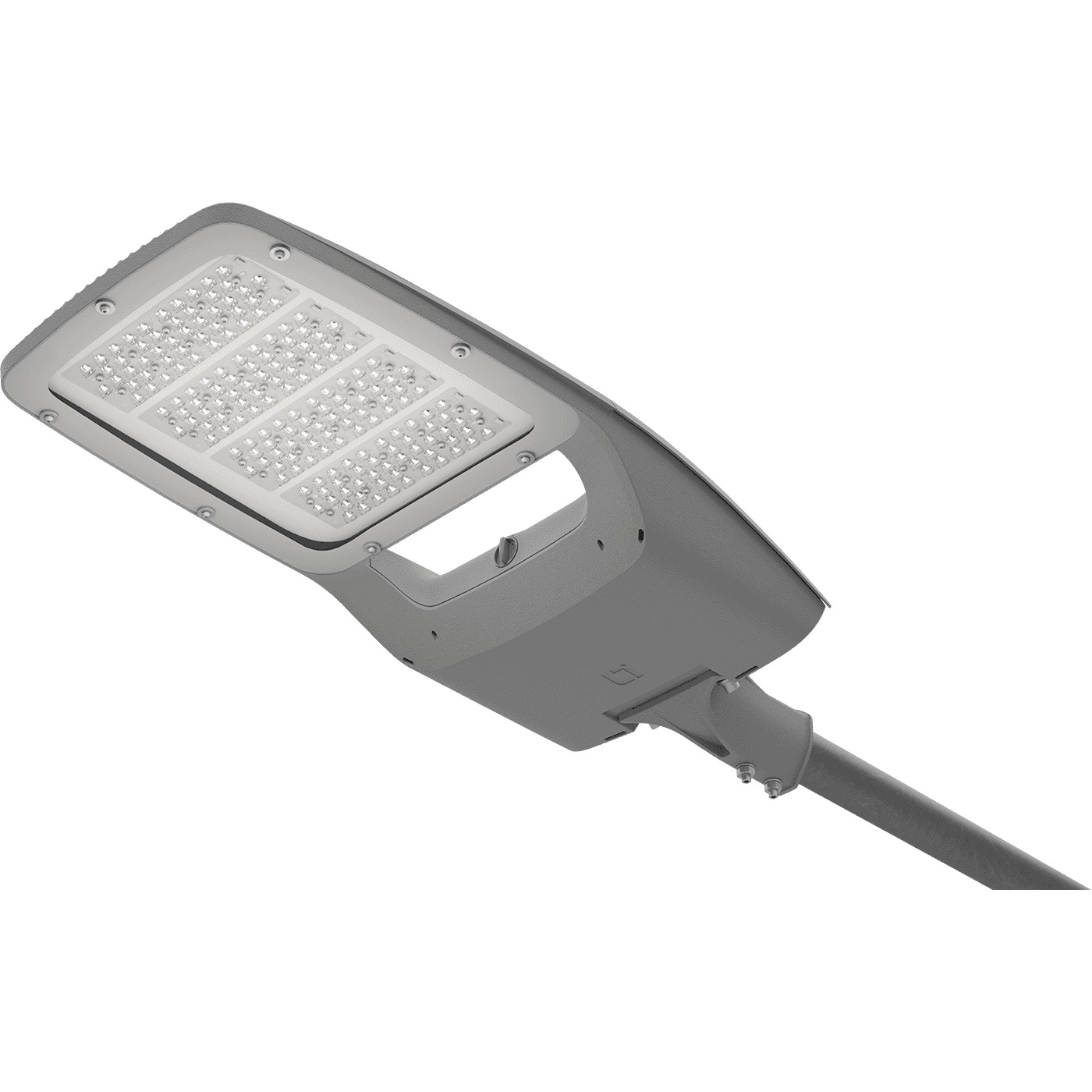

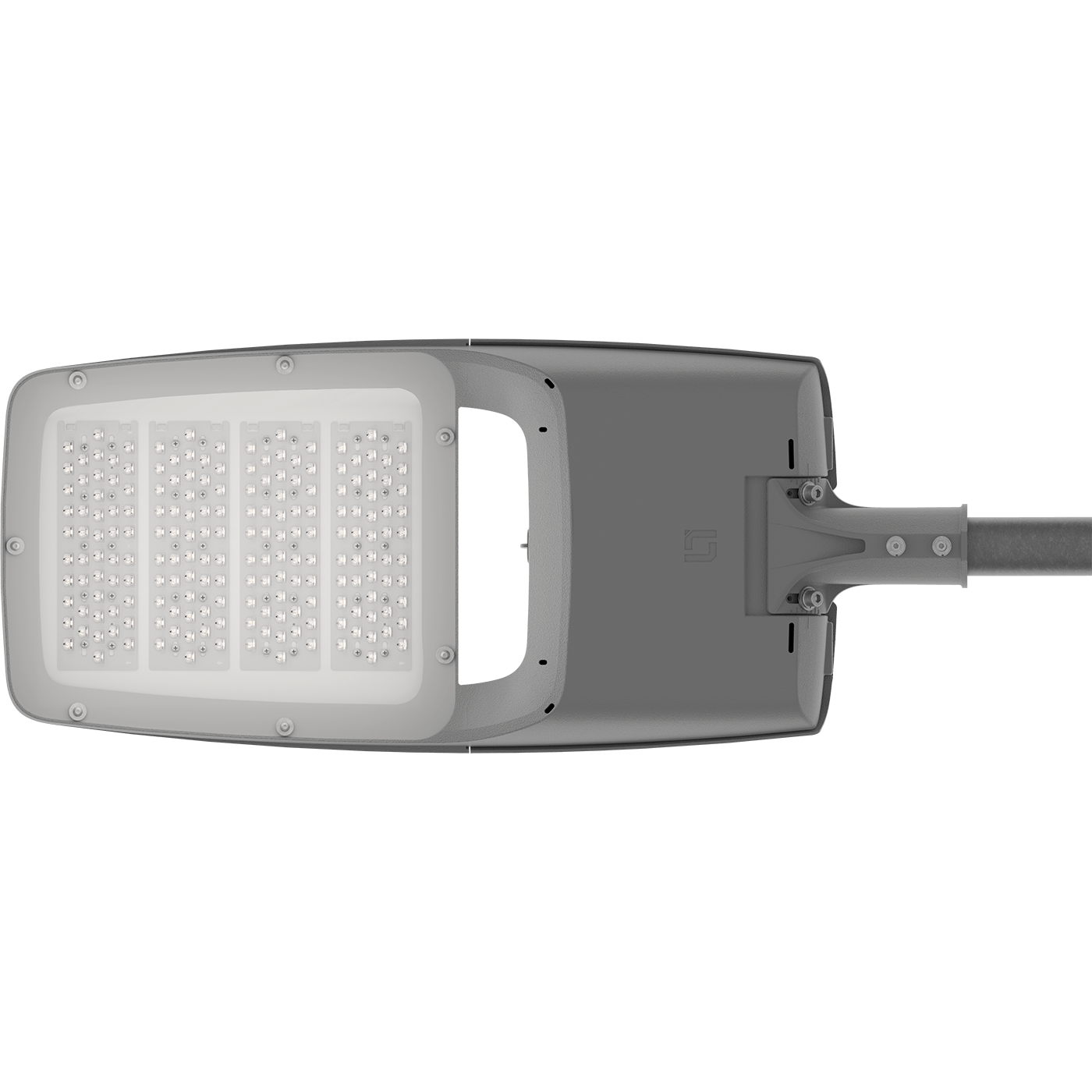

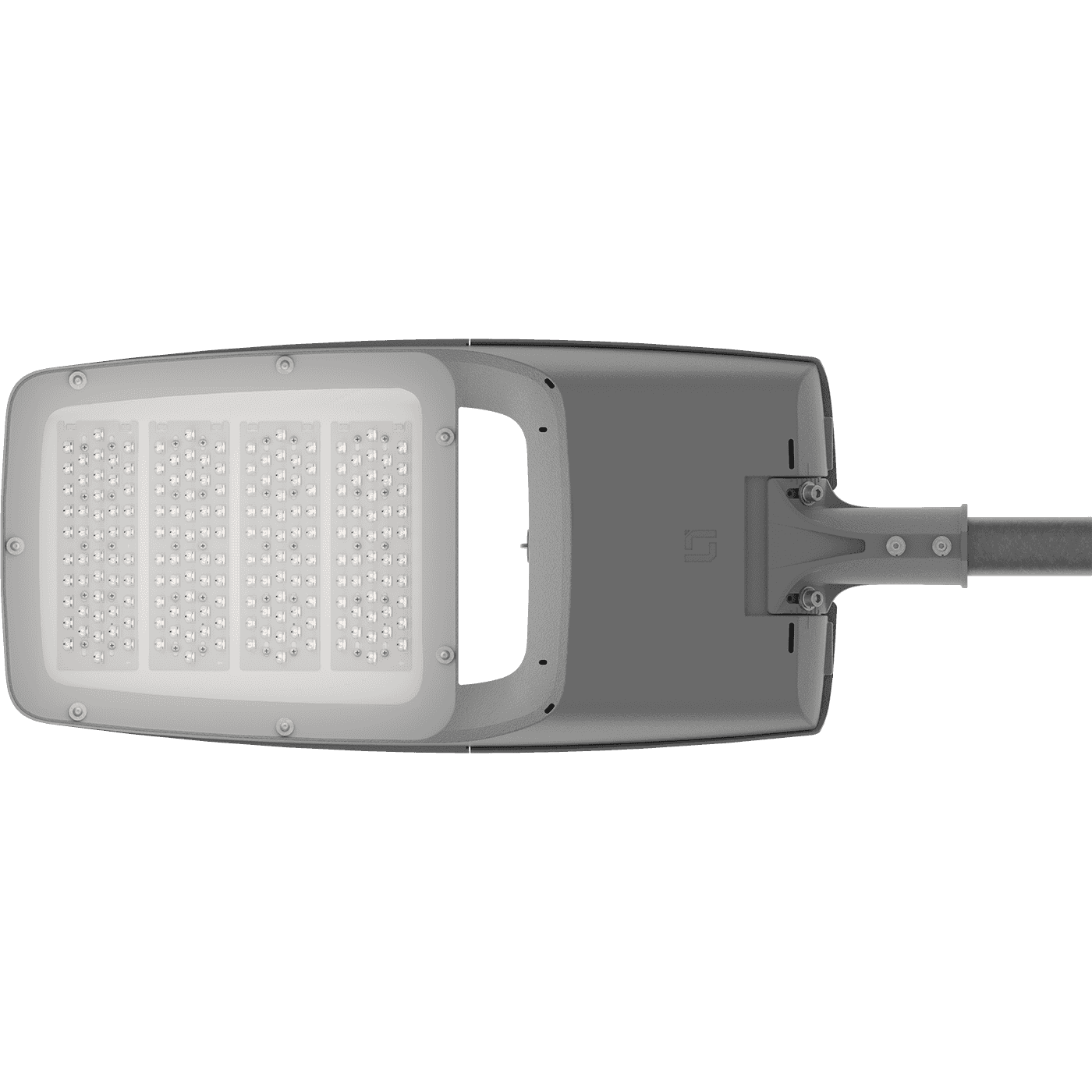

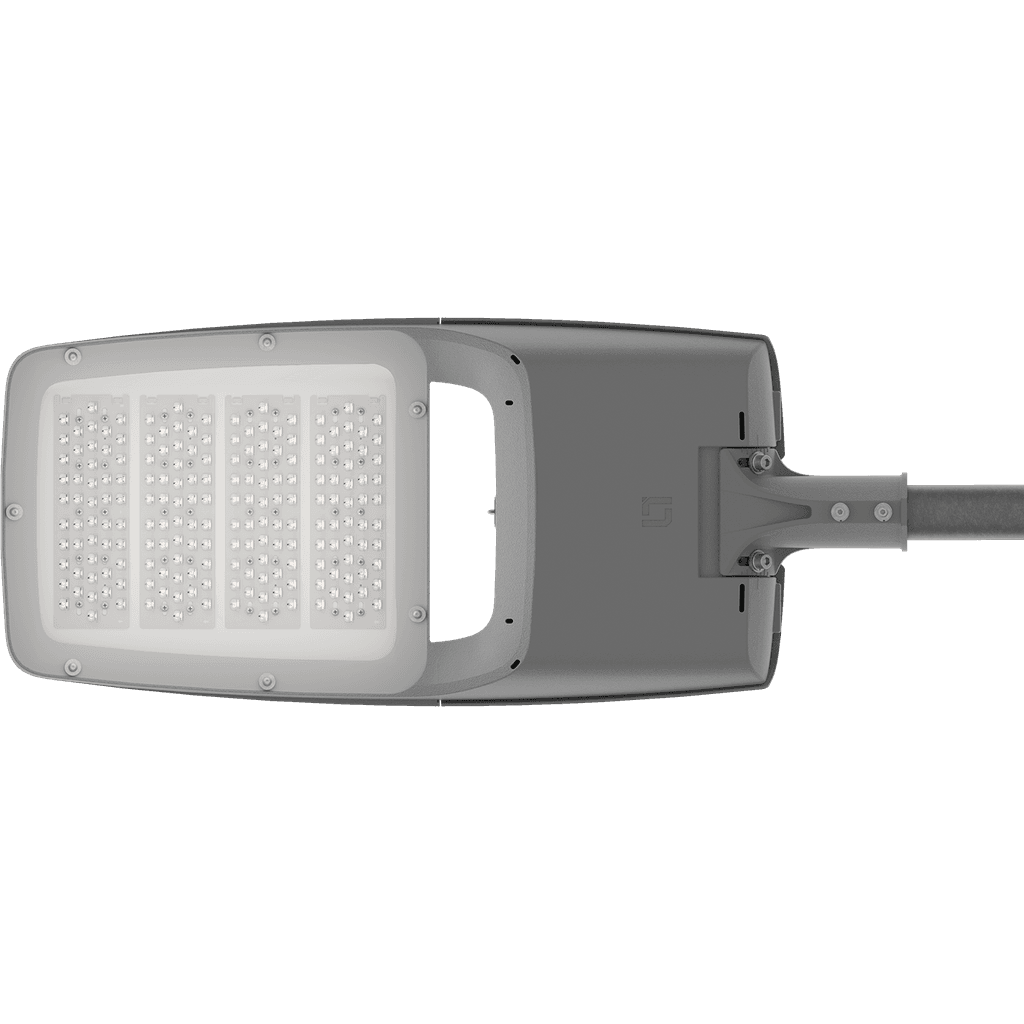

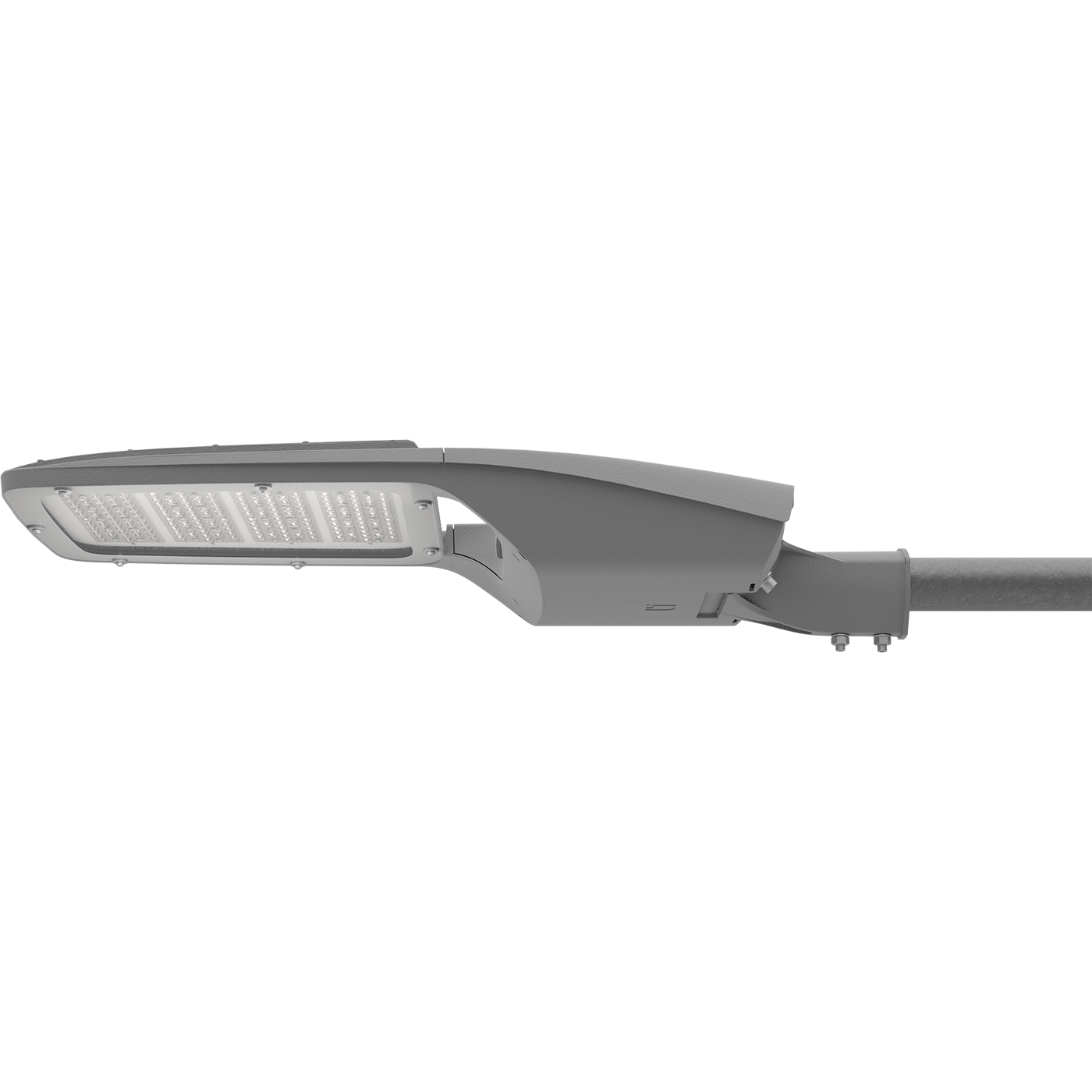

MAGISTRAL LED 240W DS 750 RAL9006 PLCM
MAGISTRAL LED 240W DS 750 RAL9006 PLCM
225 Wluminaire power
31000 lmlight flow
138 lm/Wenergy efficiency
code1680001470
beam angleD150/50
color temperature5000
weight16 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
225 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
225 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
16 kg
length, mm
956 mm
width, mm
410 mm
height, mm
188 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1680001470
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
138 lm/W
color rendition index (CRI)
>70
light flow
31000 lm
flickering factor
<1%
beam angle
D150/50
color temperature
5000
light source type
LED
emission color
Белый
LMS options
dimming
PLC
model files
model files

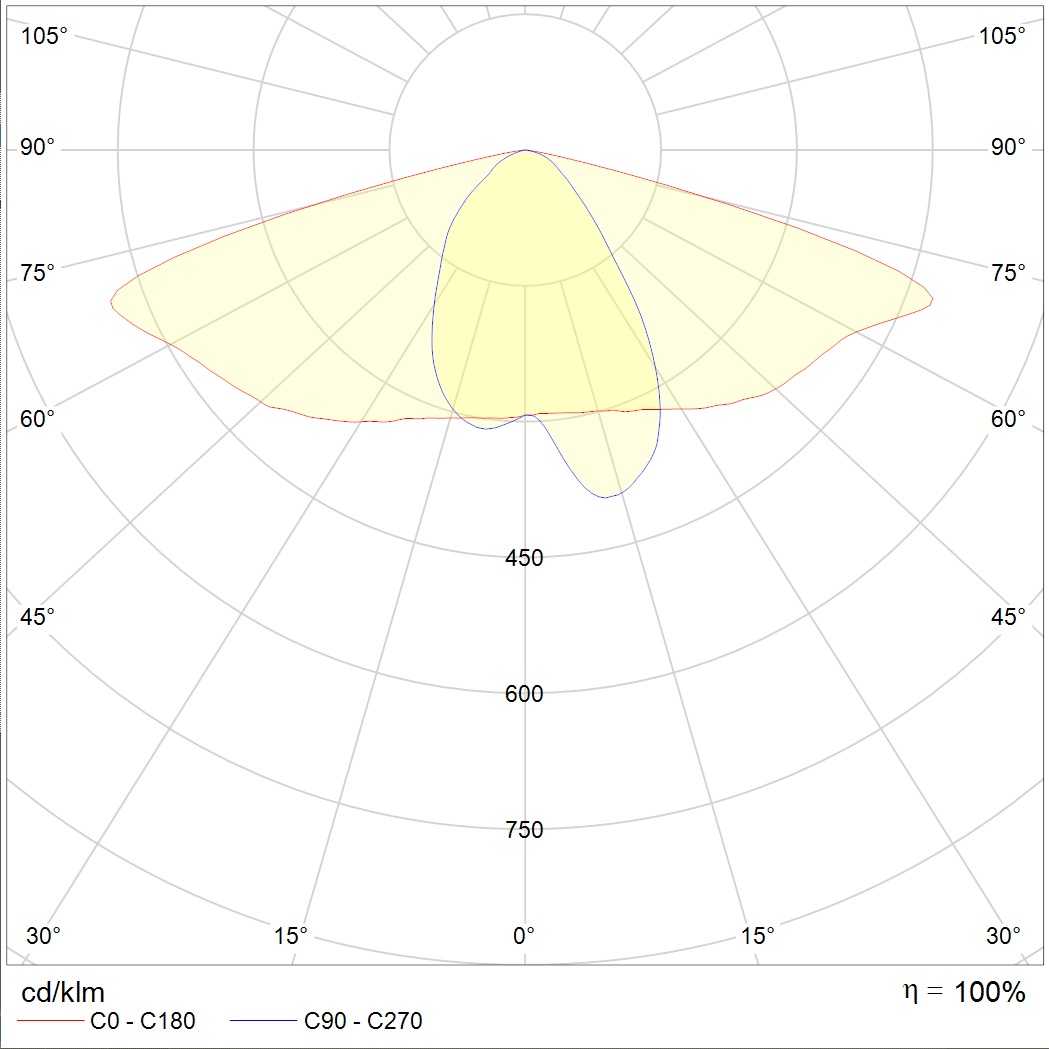

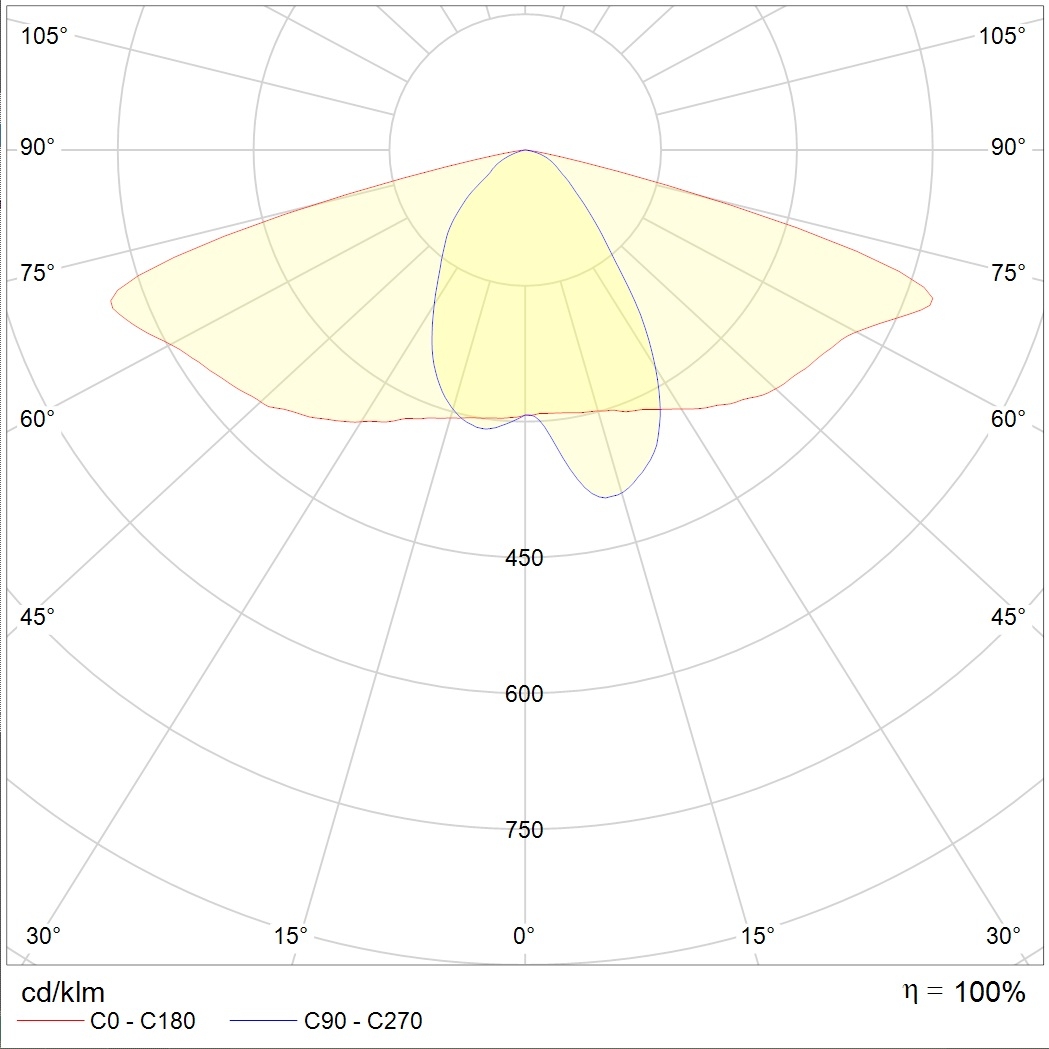

photometric files
сертификаты
photometric files
ies263.2 kB
jpg128.8 kB
ldt156.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
