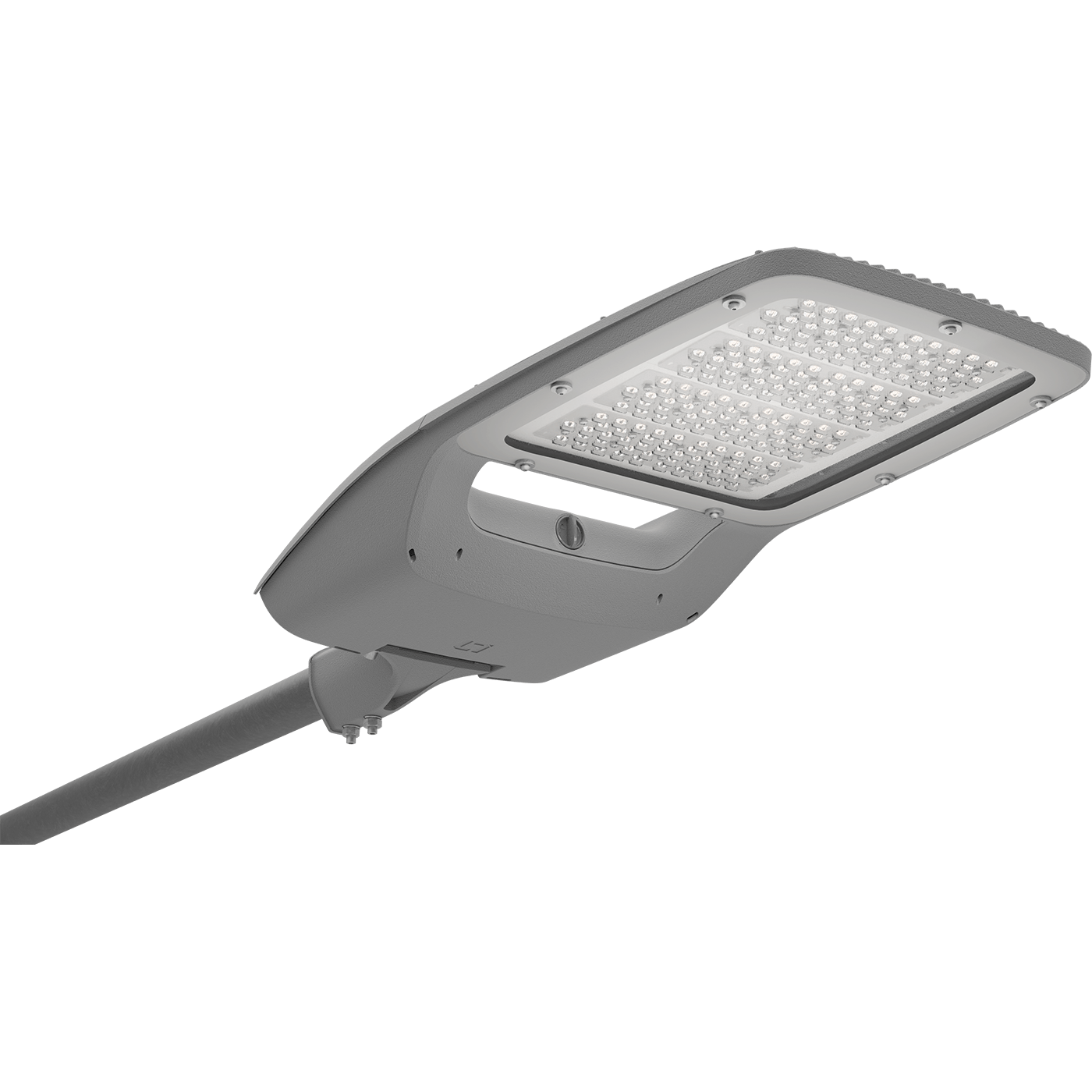

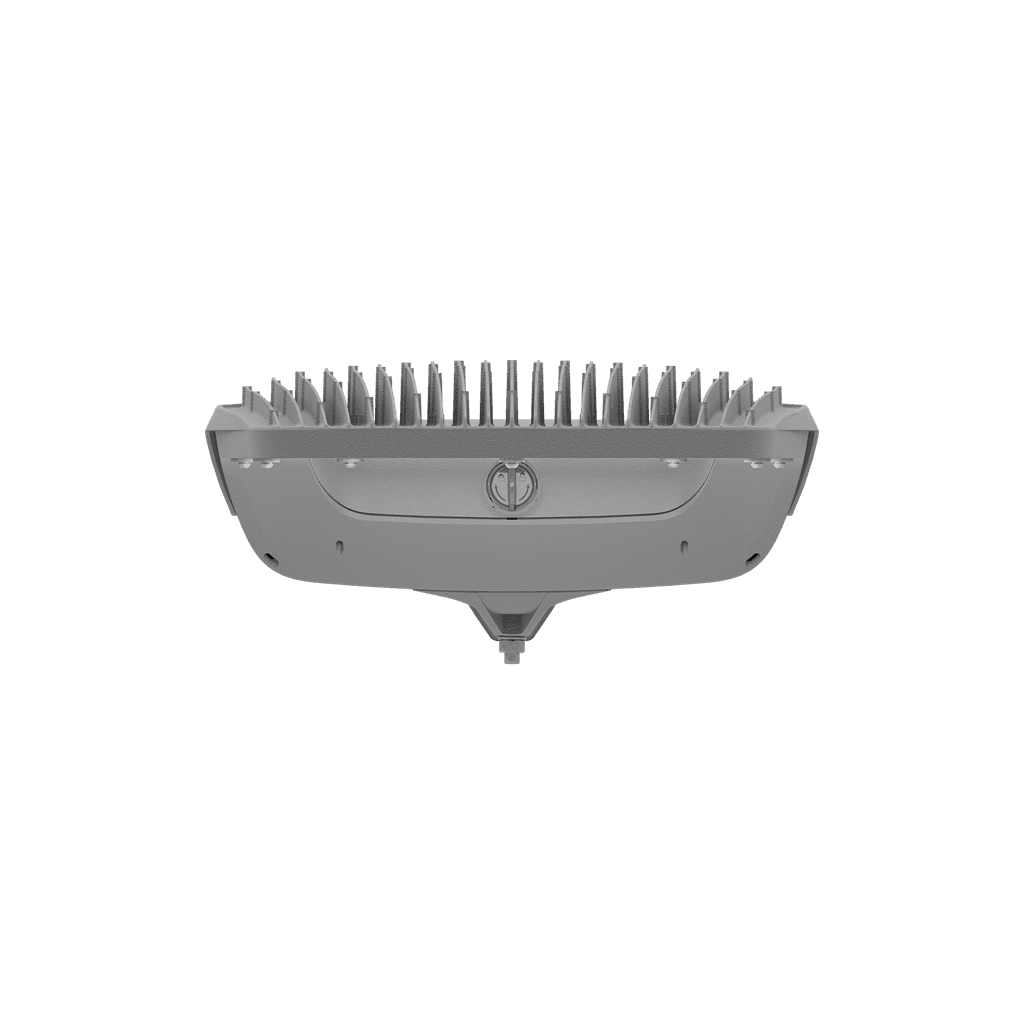

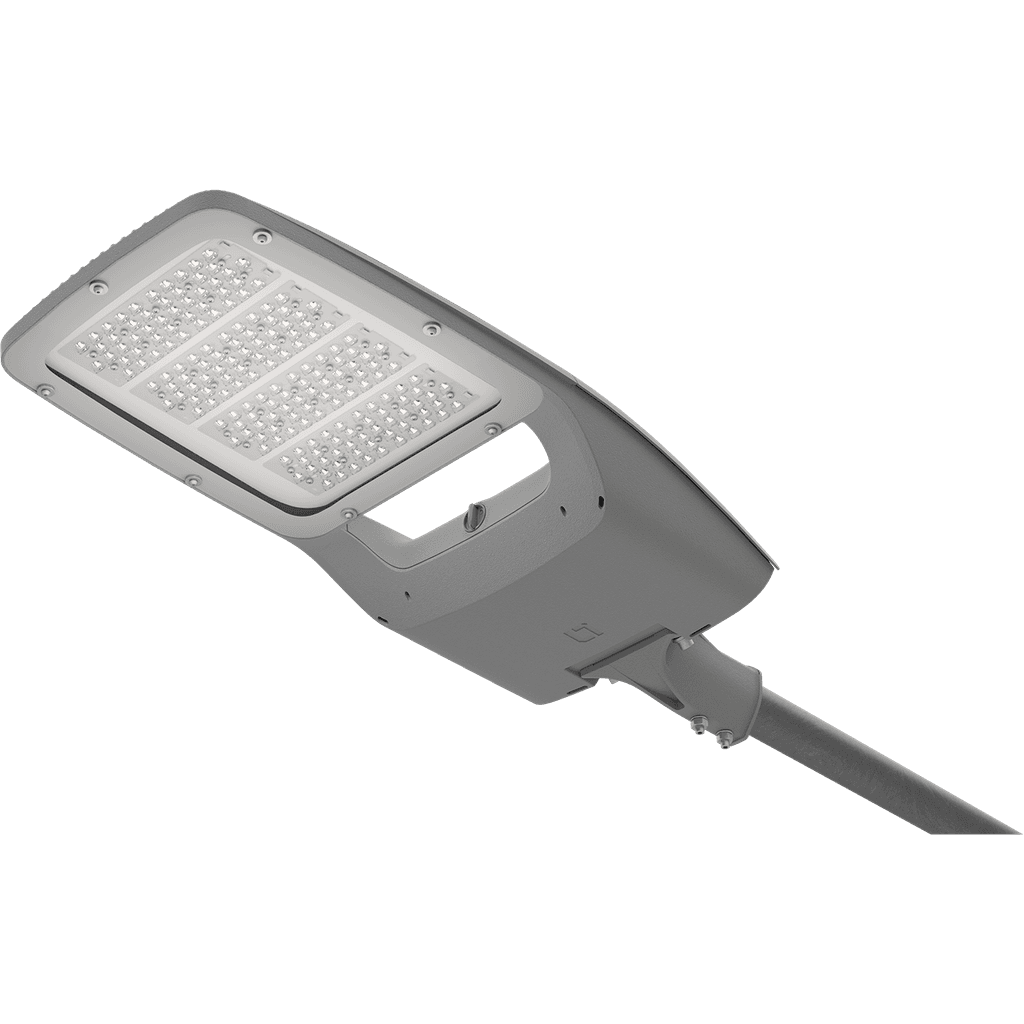

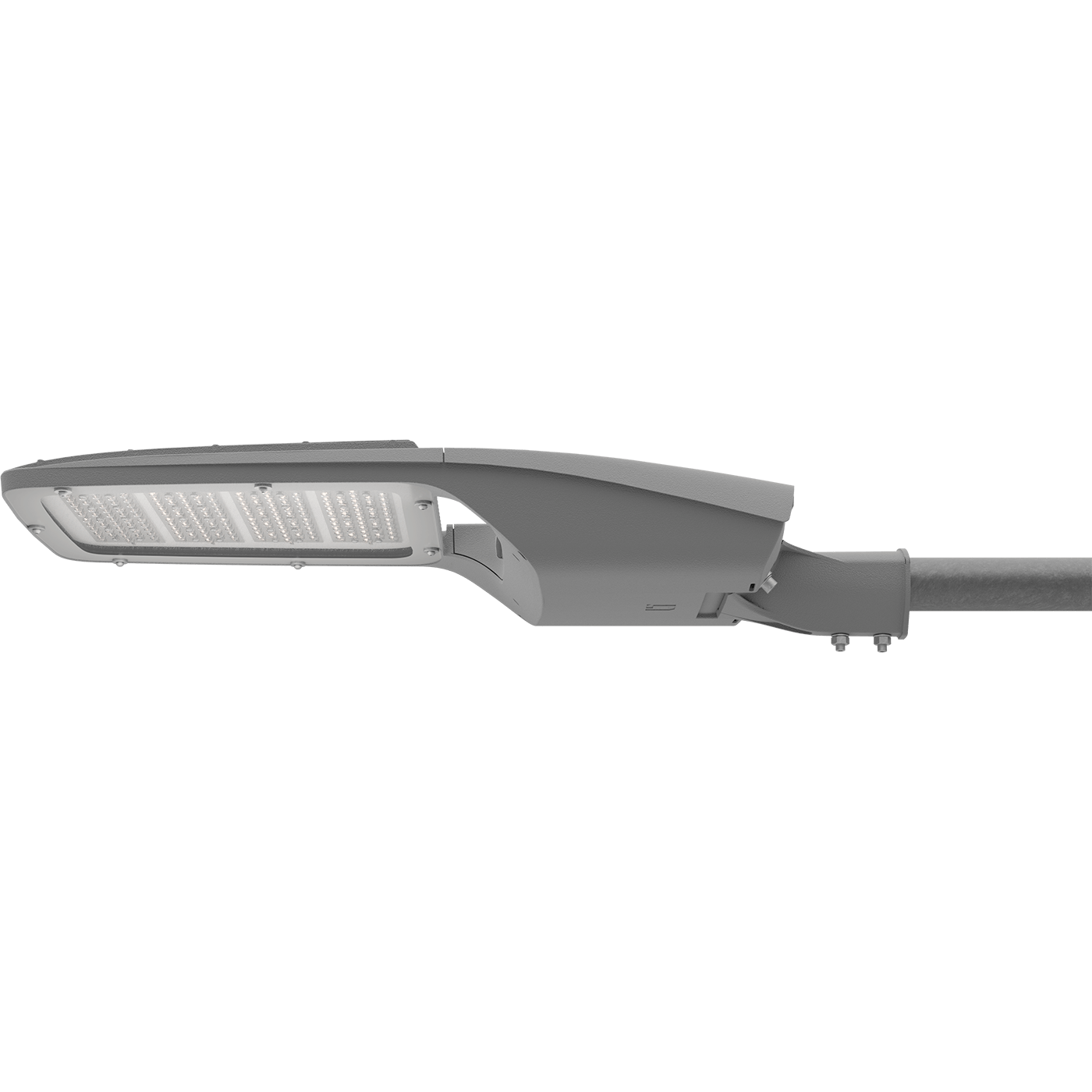

MAGISTRAL LED 240W DS 740 RAL9006 PLCM

model is discontinued
model is discontinued
MAGISTRAL LED 240W DS 740 RAL9006 PLCM
225 Wluminaire power
31000 lmlight flow
138 lm/Wenergy efficiency
code1680000860
beam angleD120
color temperature4000 K
weight16 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
138 lm/W
color rendition index (CRI)
>70
light flow
31000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
138 lm/W
color rendition index (CRI)
>70
light flow
31000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
225 W
electric shock protection
I
starting current pulse time
600 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
54 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, alternating current
90-305 V
power factor
> 0,98
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
410 mm
height
188 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
956 mm
material
Алюминий
installation diameter
48-60 mm
ingress protection (IP)
IP66
shock resistance (IK)
5 Дж
weight
16 kg
LMS options
dimming
PLC
common
code
1680000860
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
