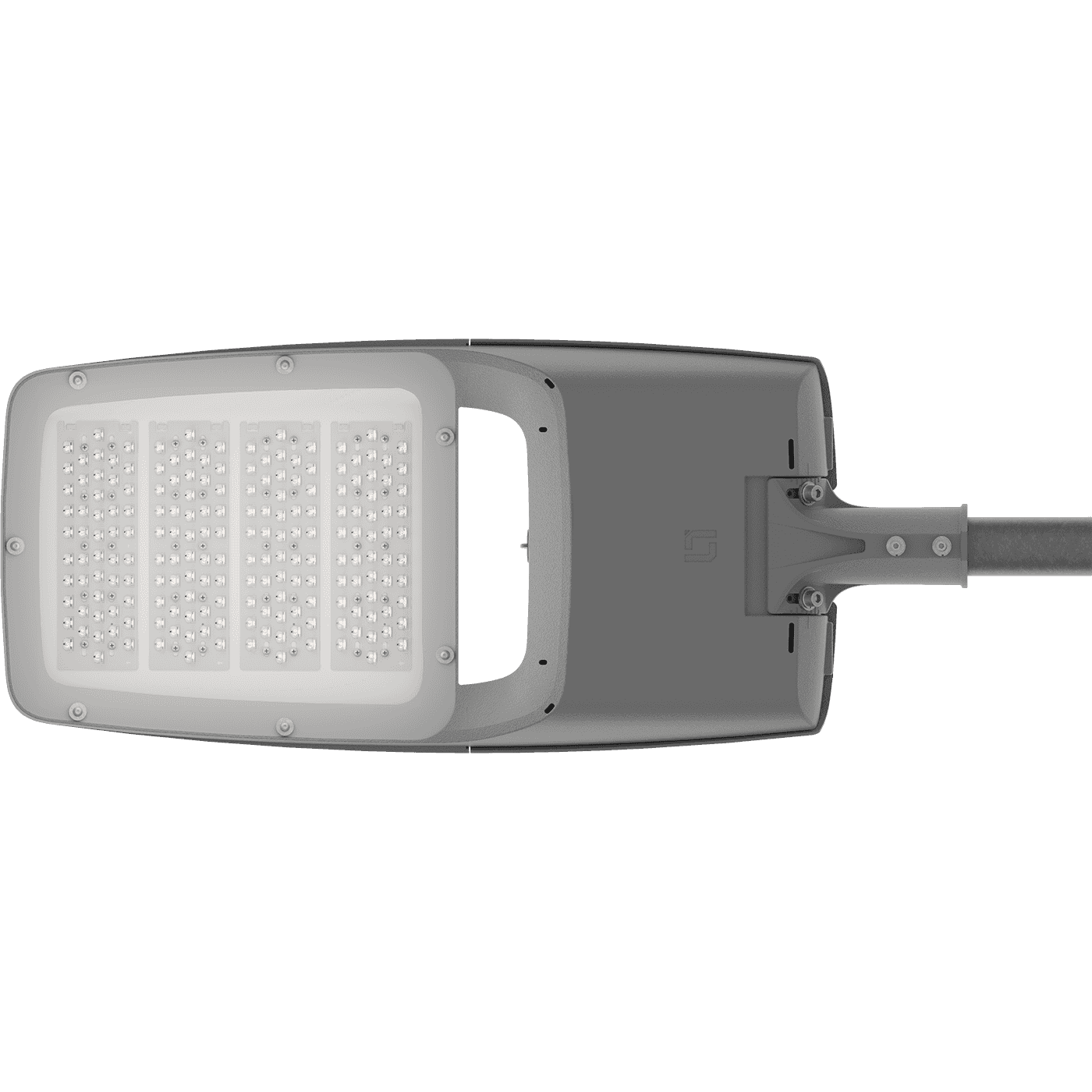

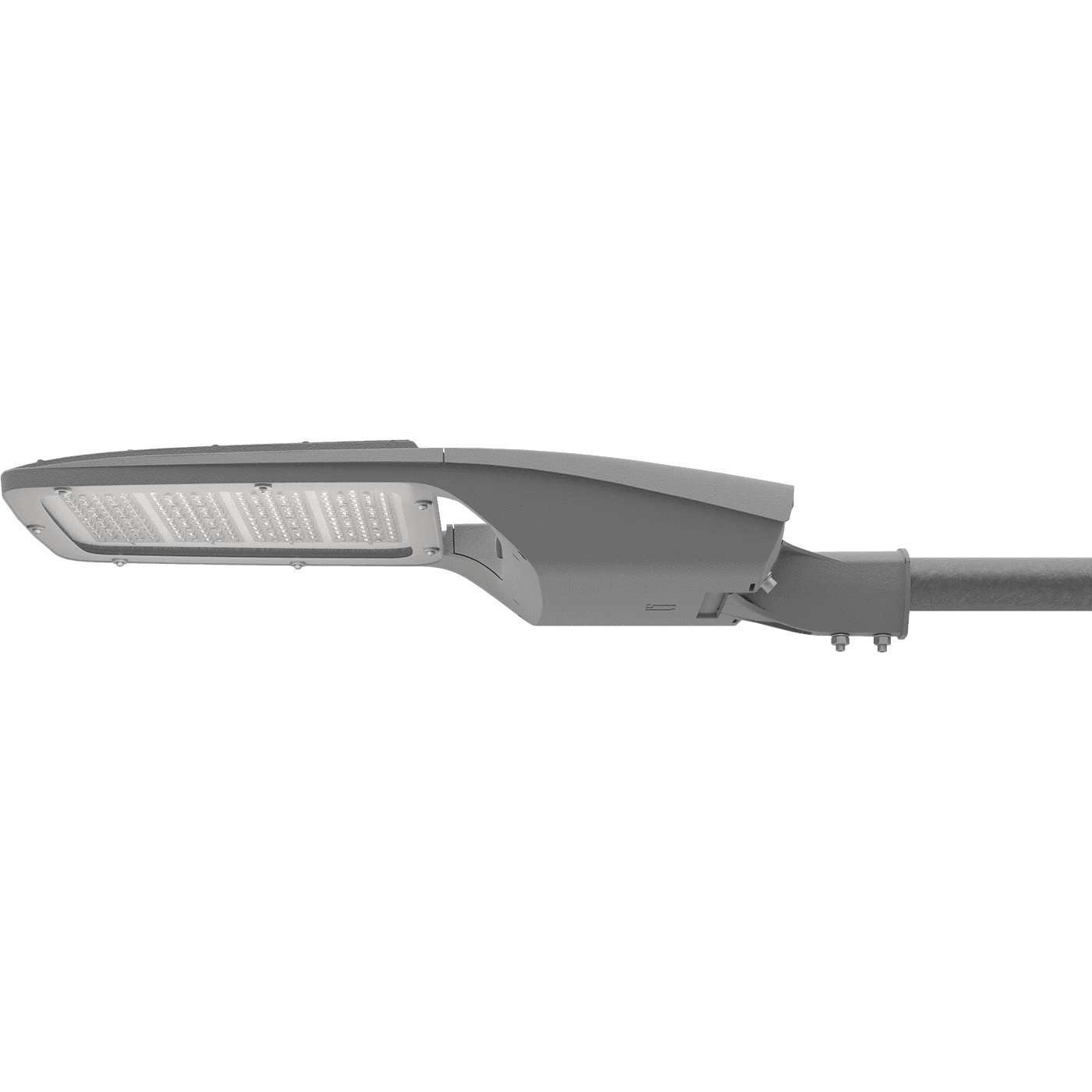

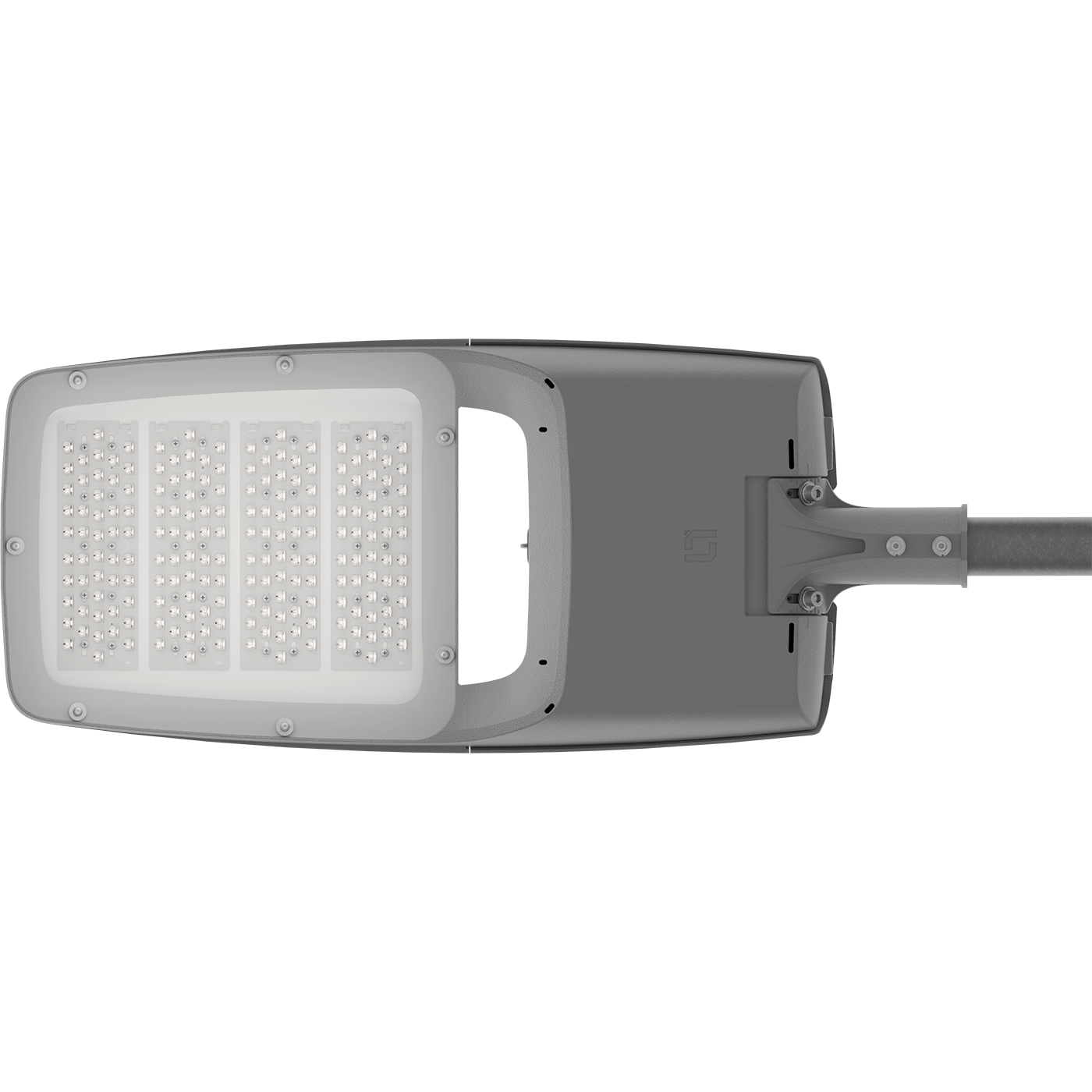

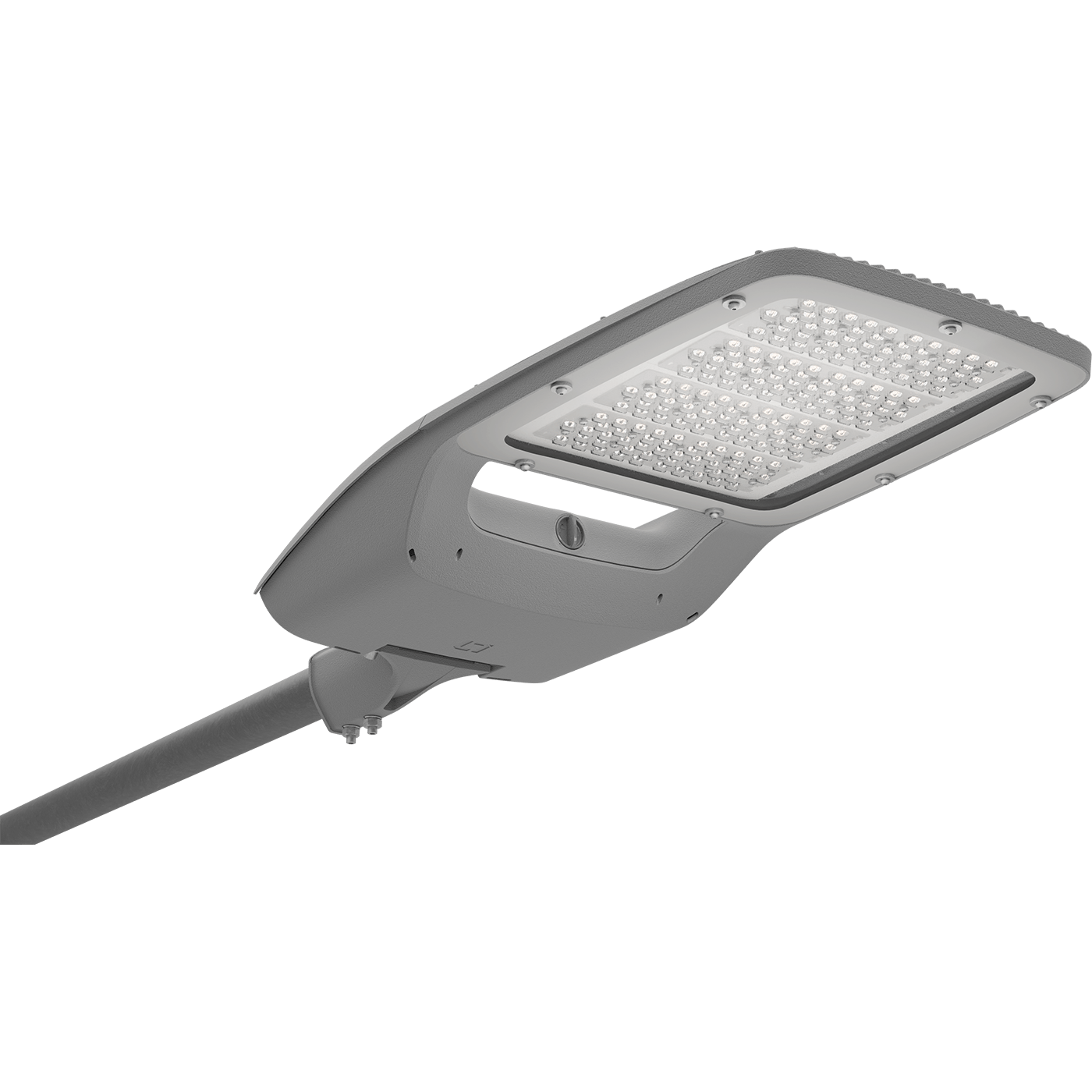

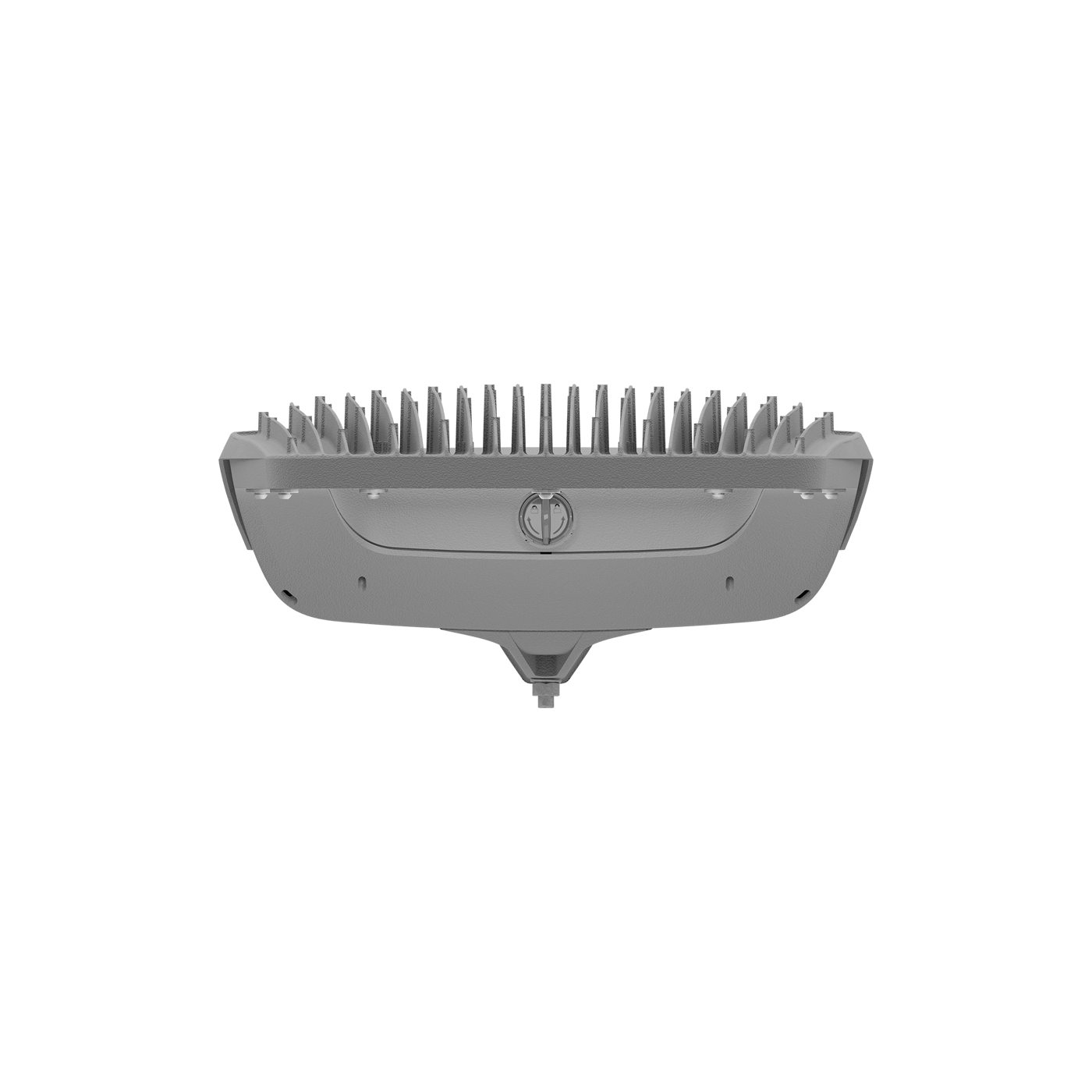

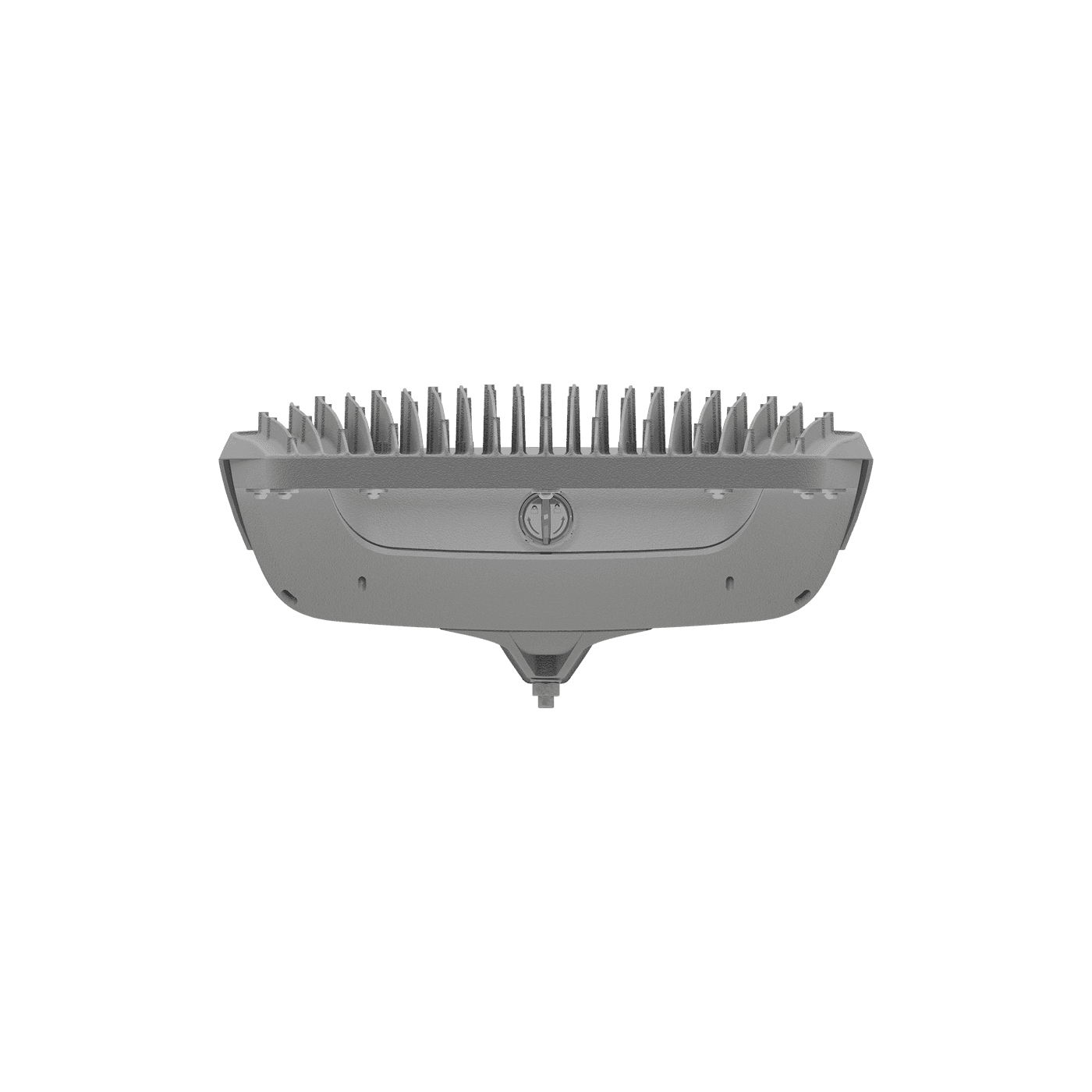

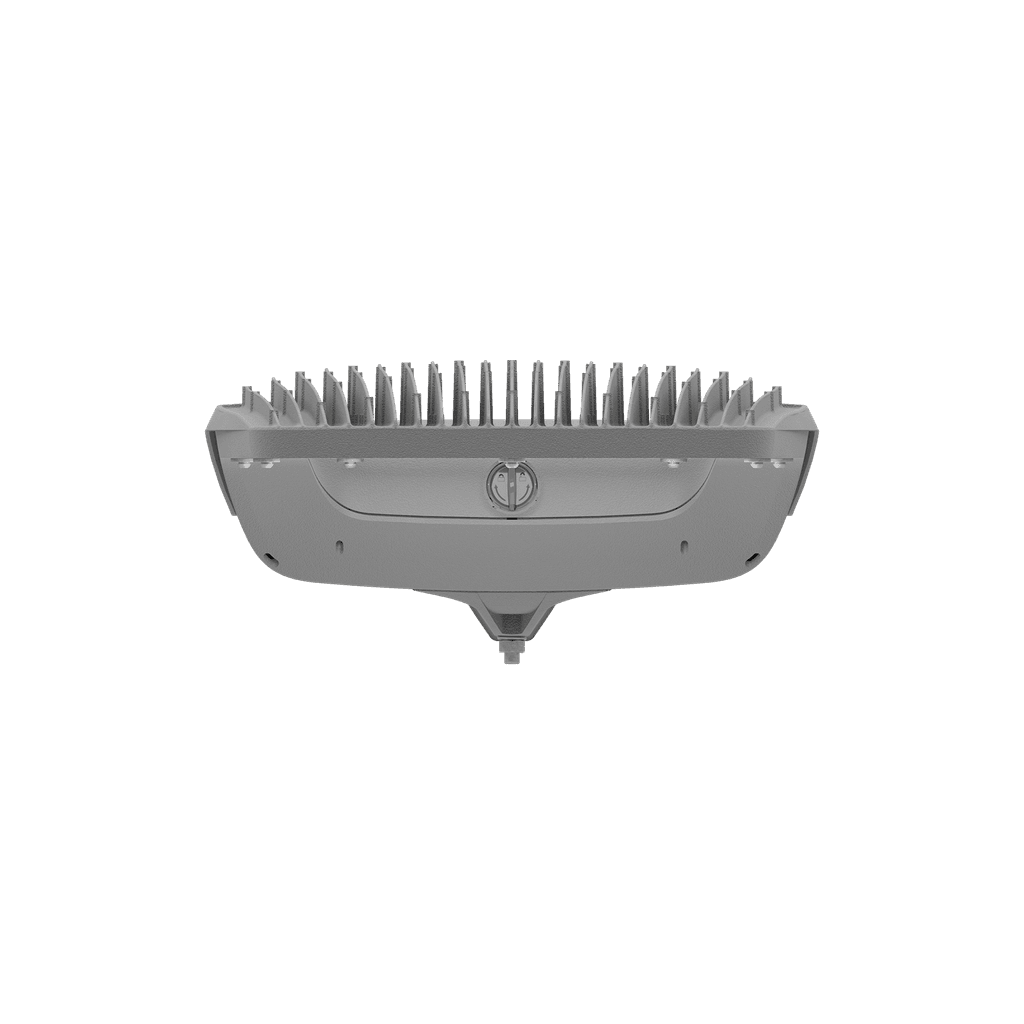

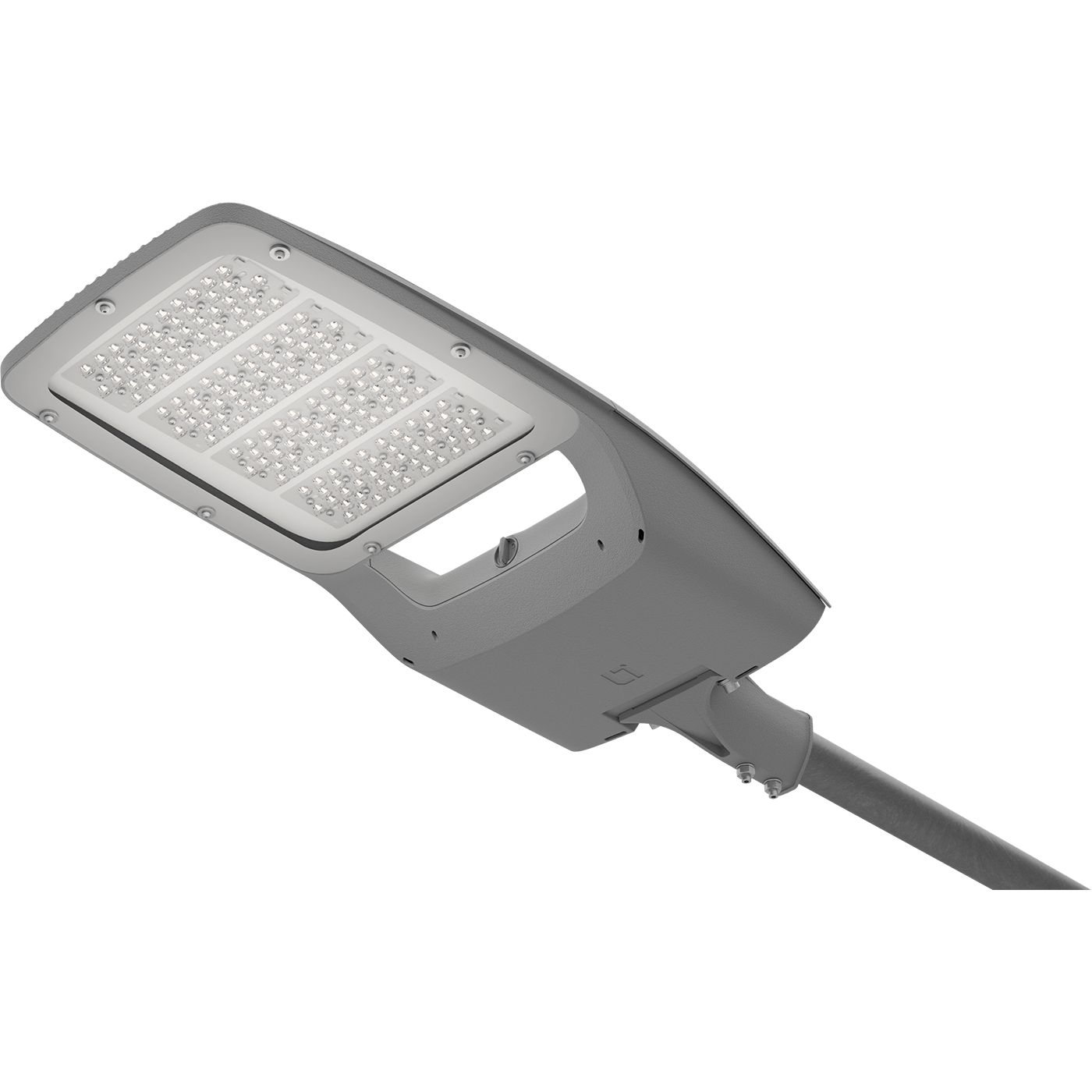

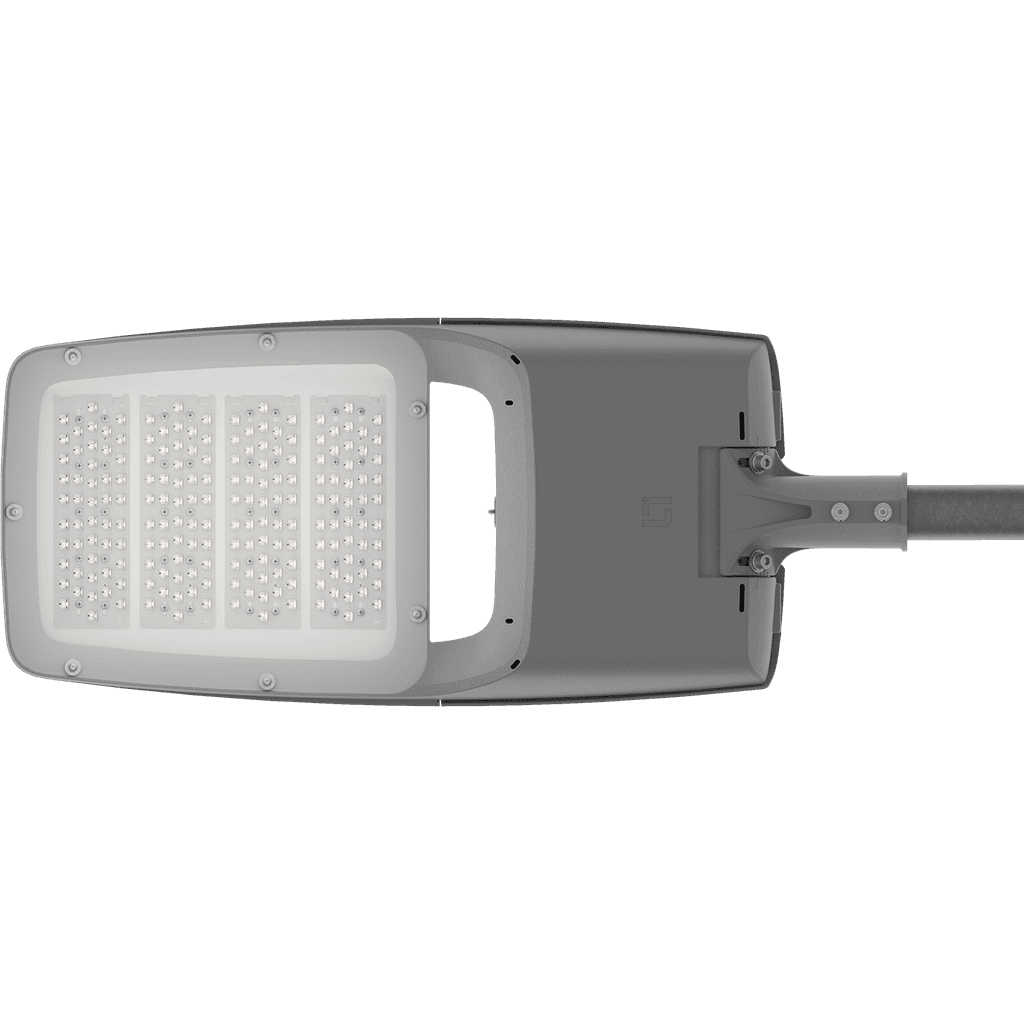

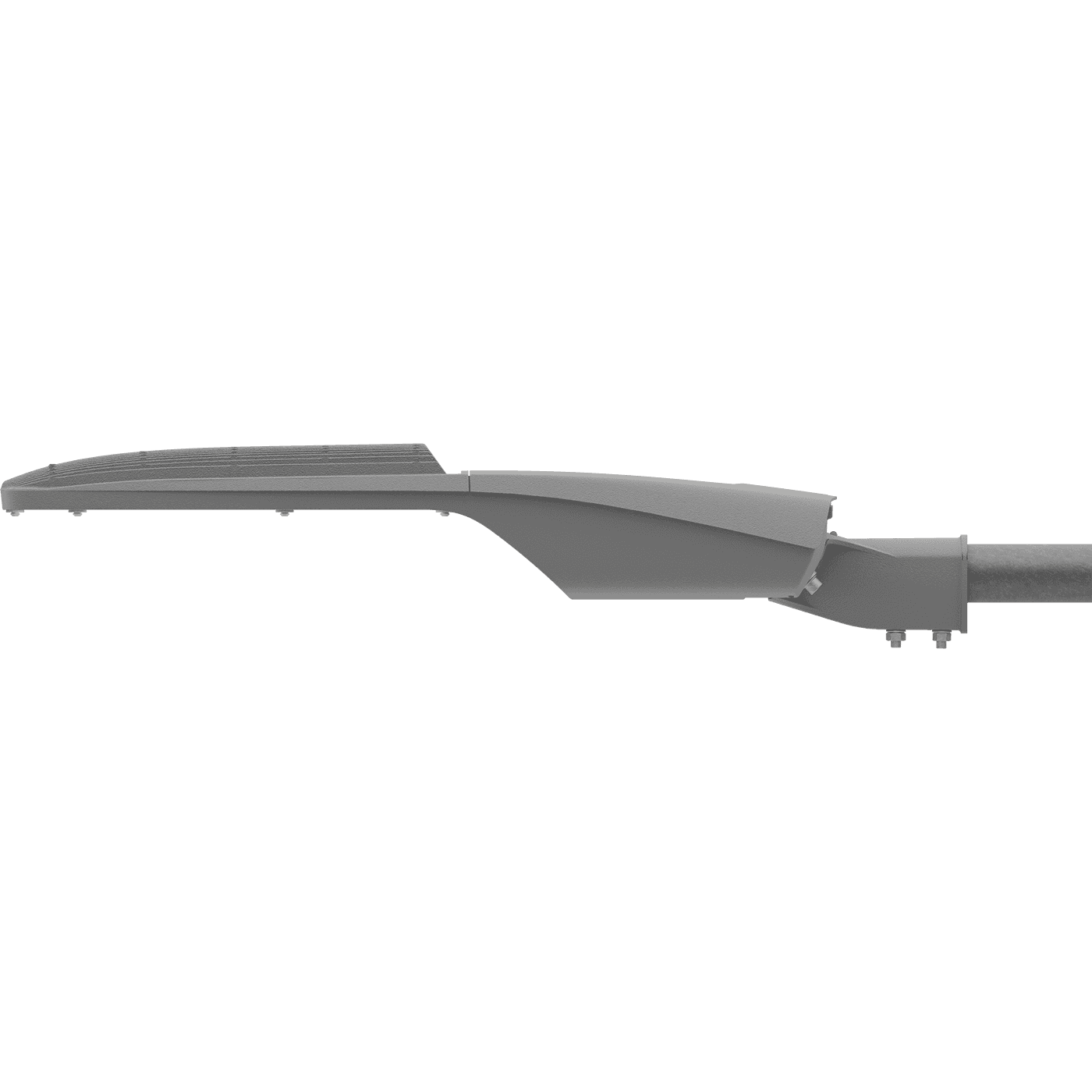

MAGISTRAL LED 150W DW 740 RAL9006 QUL
MAGISTRAL LED 150W DW 740 RAL9006 QUL
155 Wluminaire power
20800 lmlight flow
134 lm/Wenergy efficiency
code1680000290

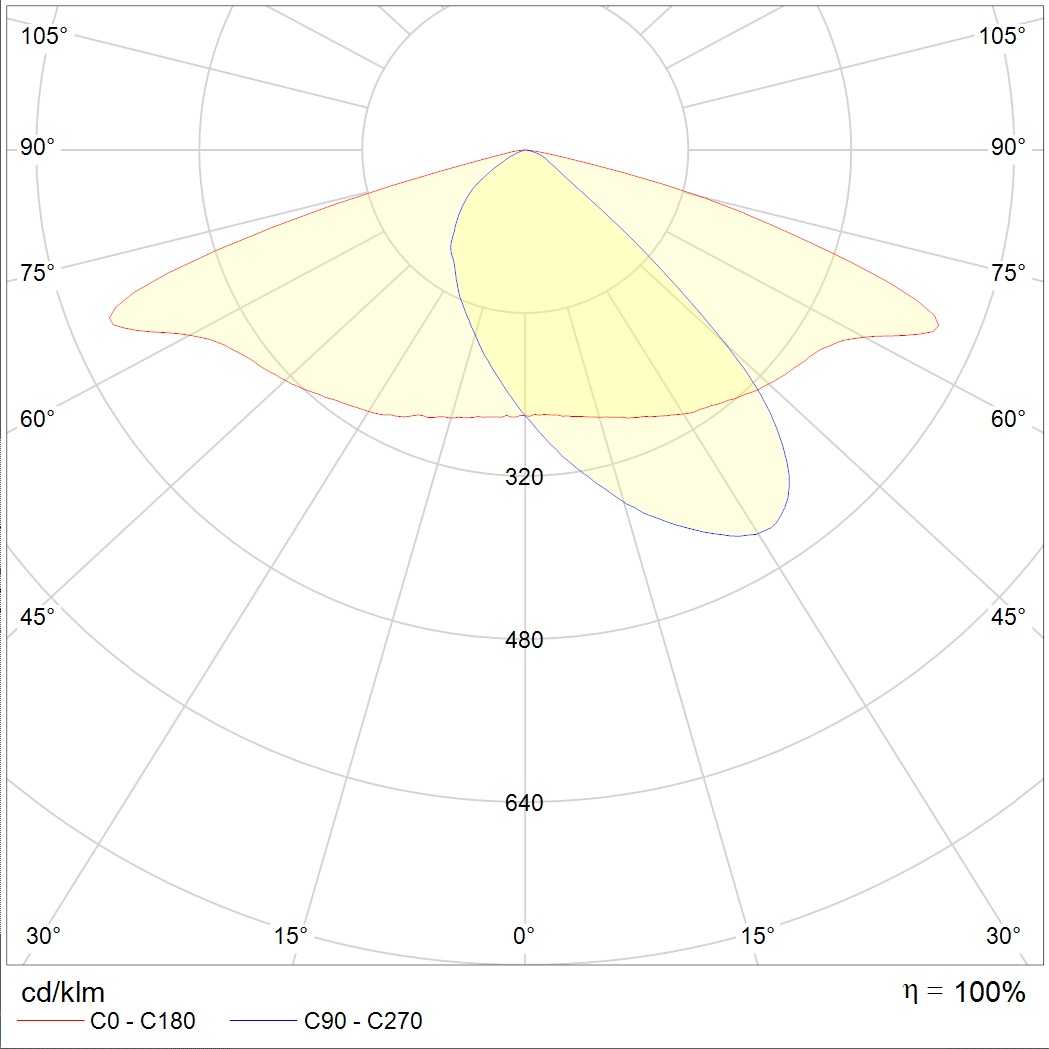

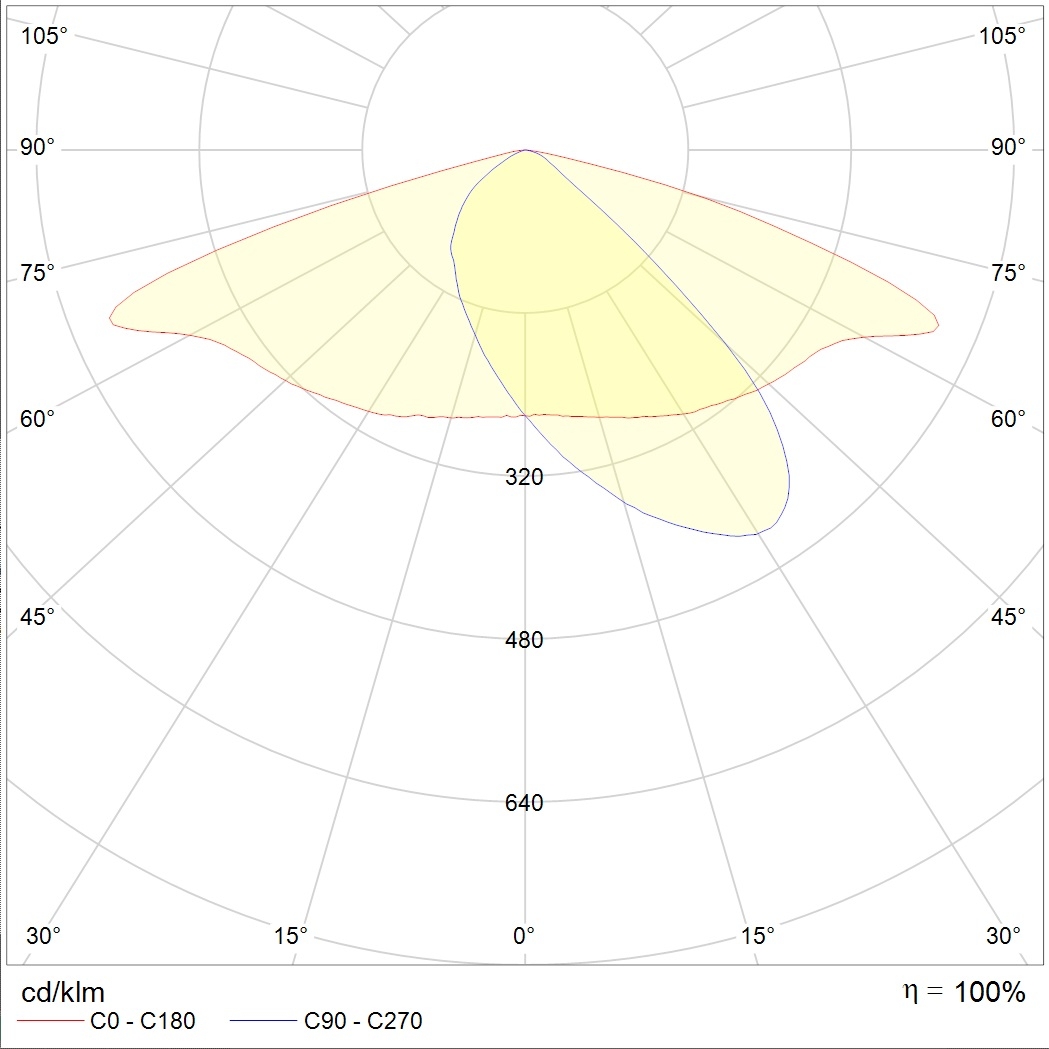

beam angleD150
color temperature4000
weight16 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
155 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
155 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
16 kg
length, mm
956 mm
width, mm
410 mm
height, mm
188 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1680000290
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
134 lm/W
color rendition index (CRI)
>70
light flow
20800 lm
flickering factor
<1%
beam angle
D150
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
PLC
model files
model files
CAD/BIM files

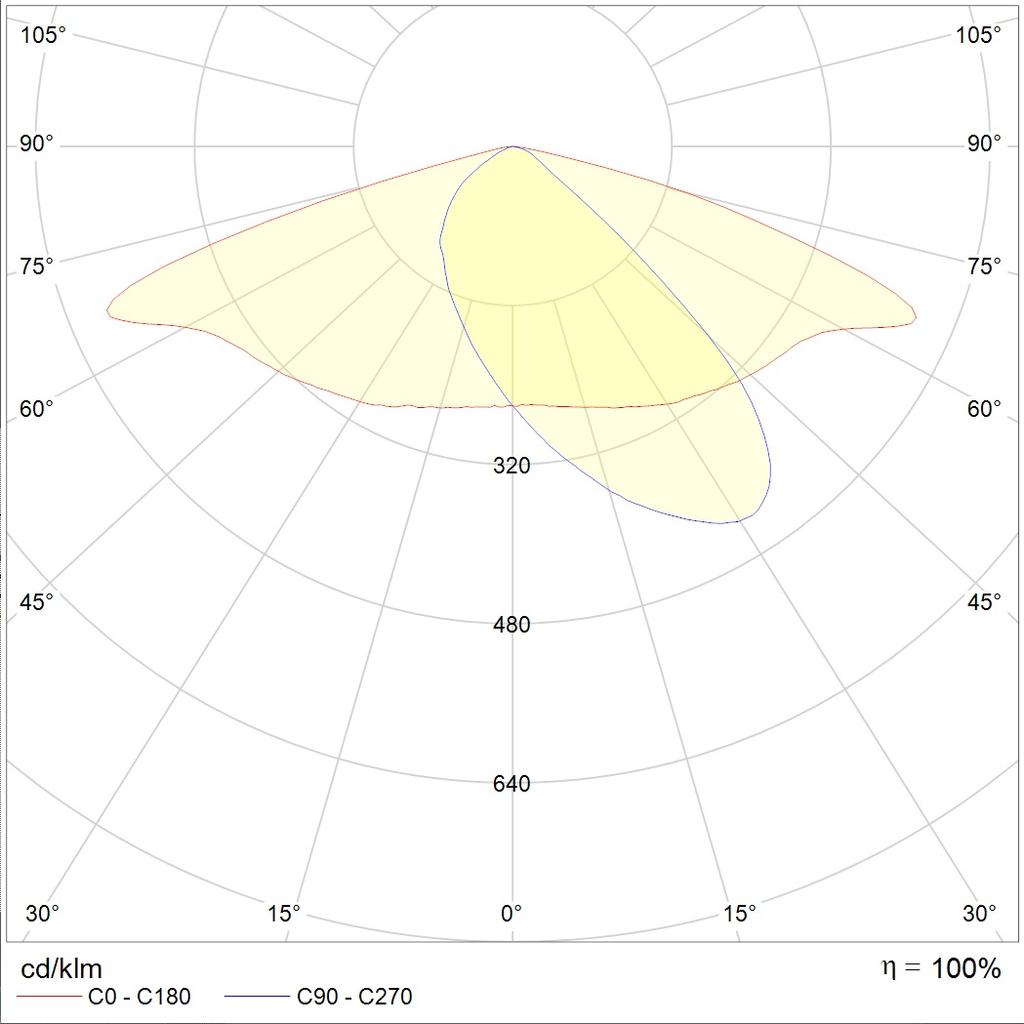

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS333.3 kB
model 3dMax2.2 mB
photometric files
ies263.2 kB
jpg125.8 kB
ldt155 kB
documents
passport5.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
