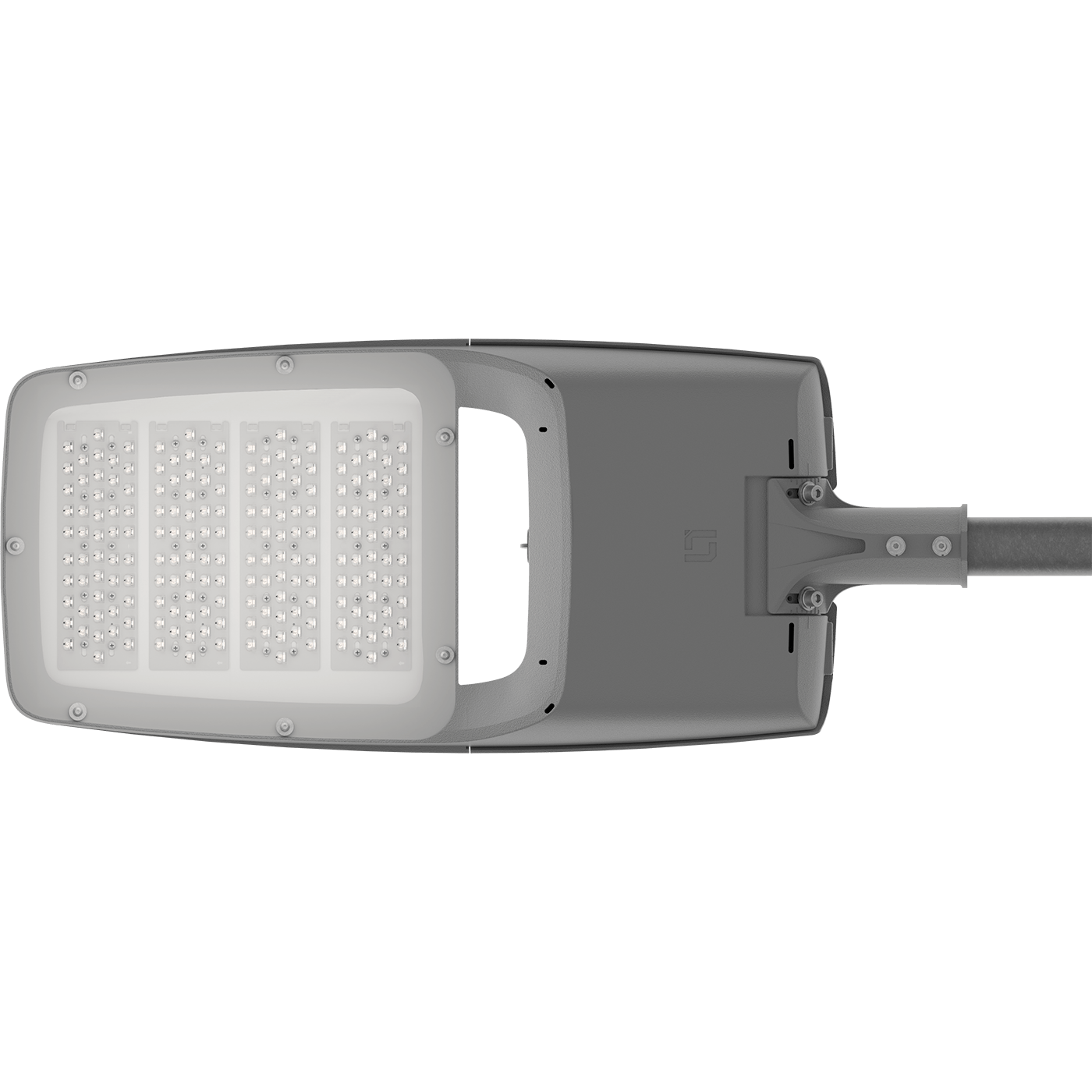

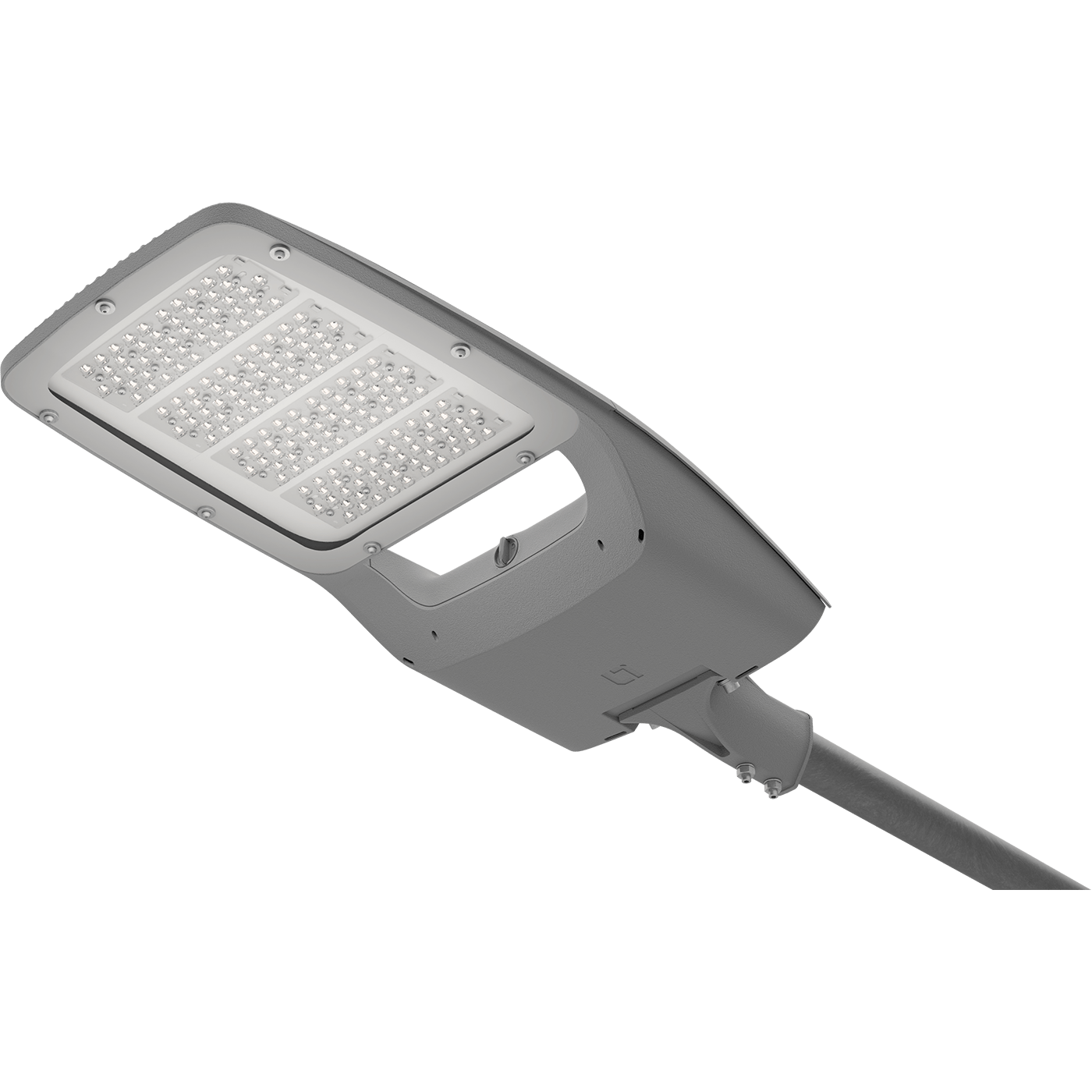

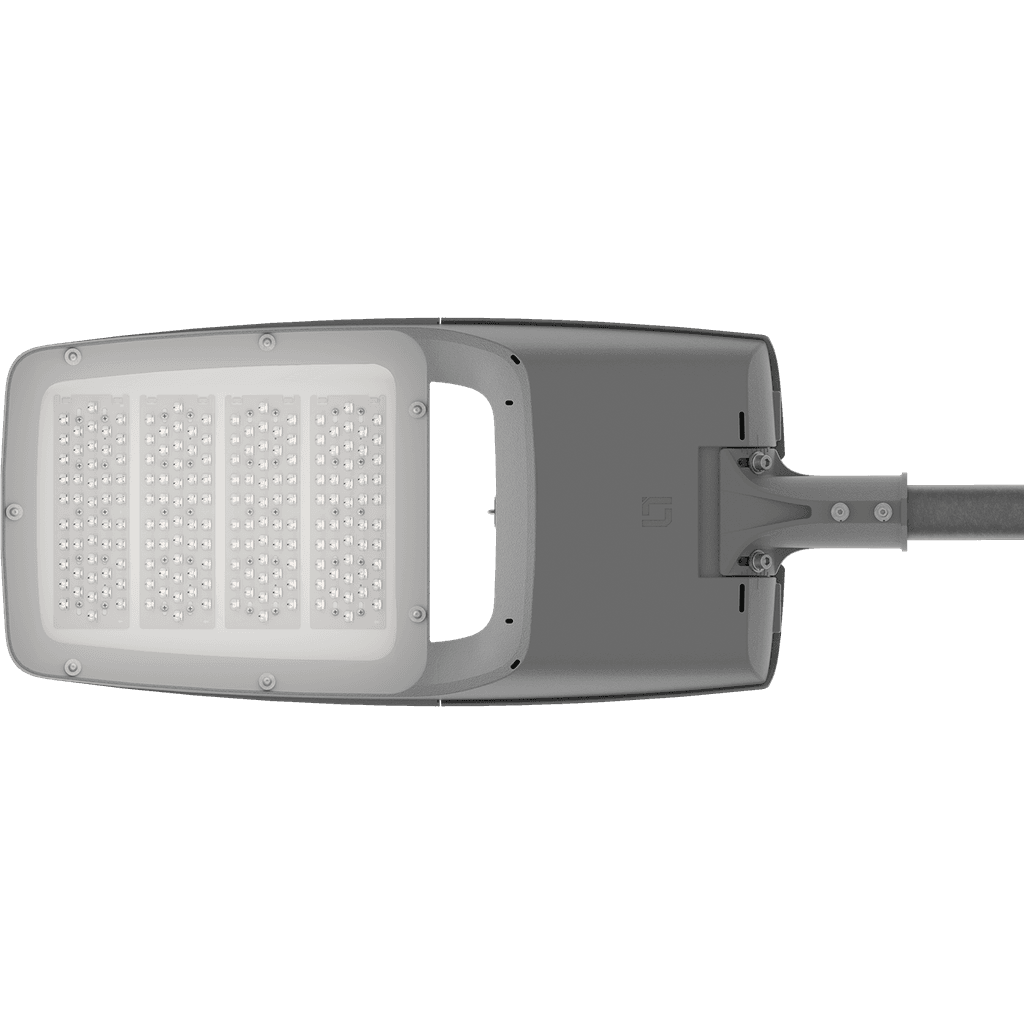

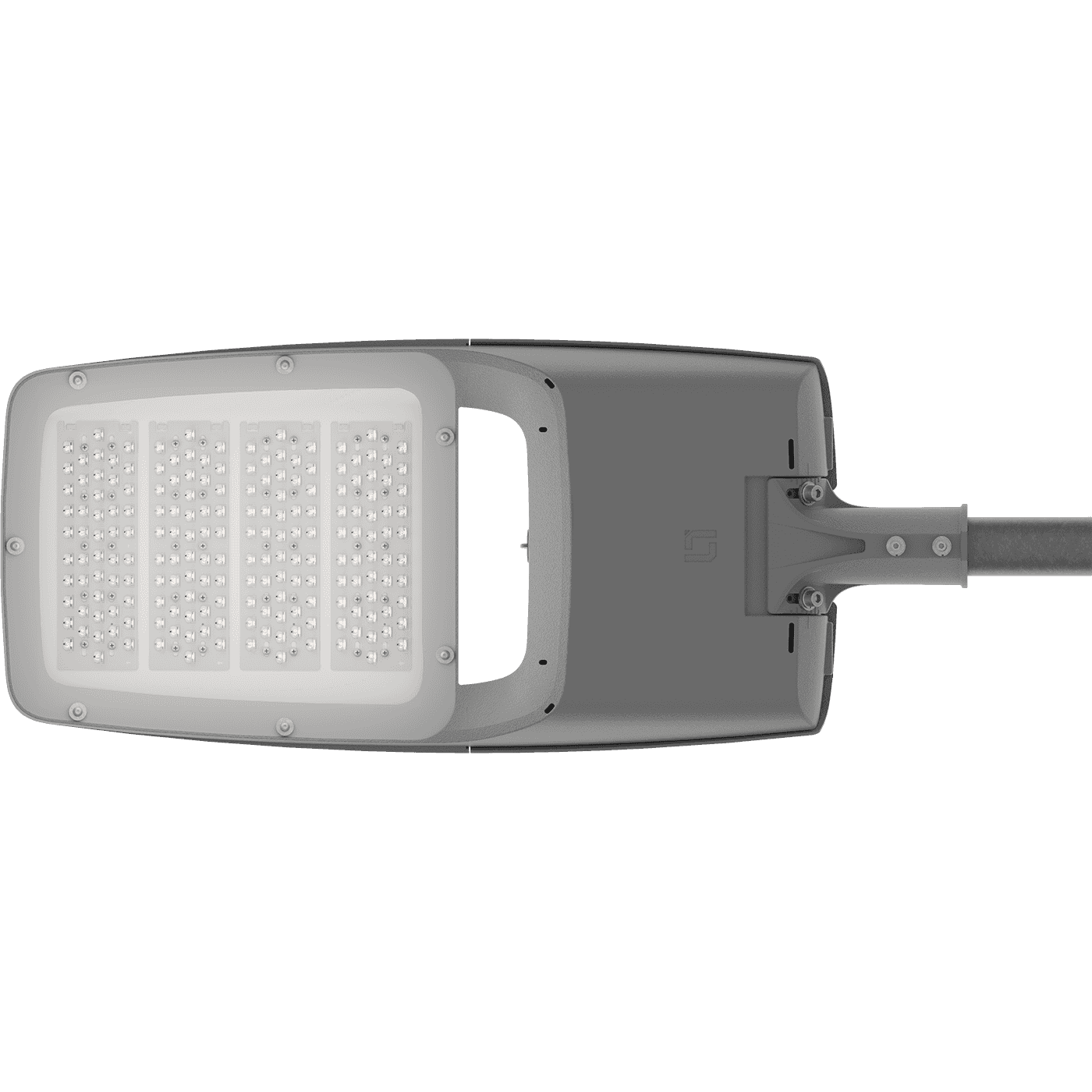

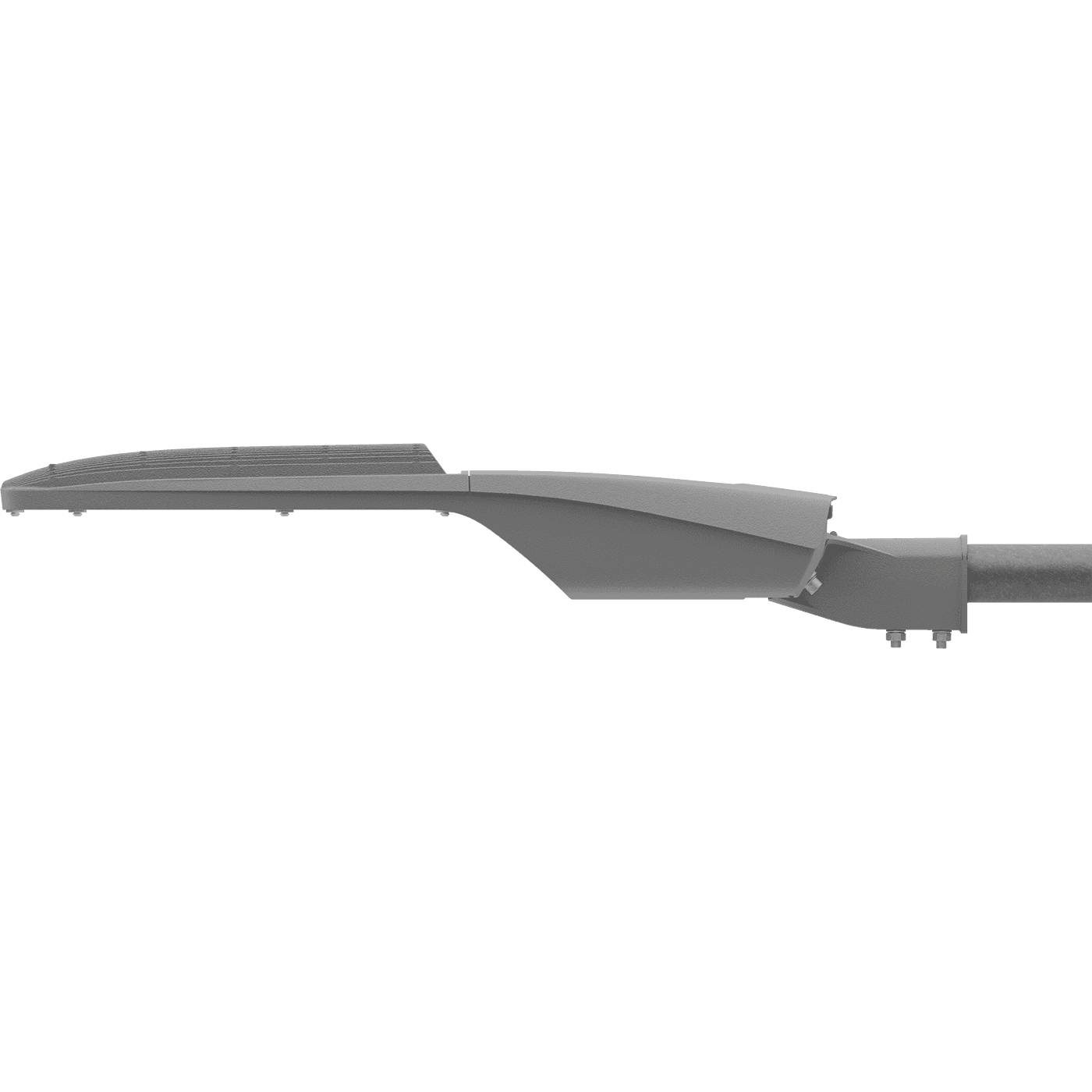

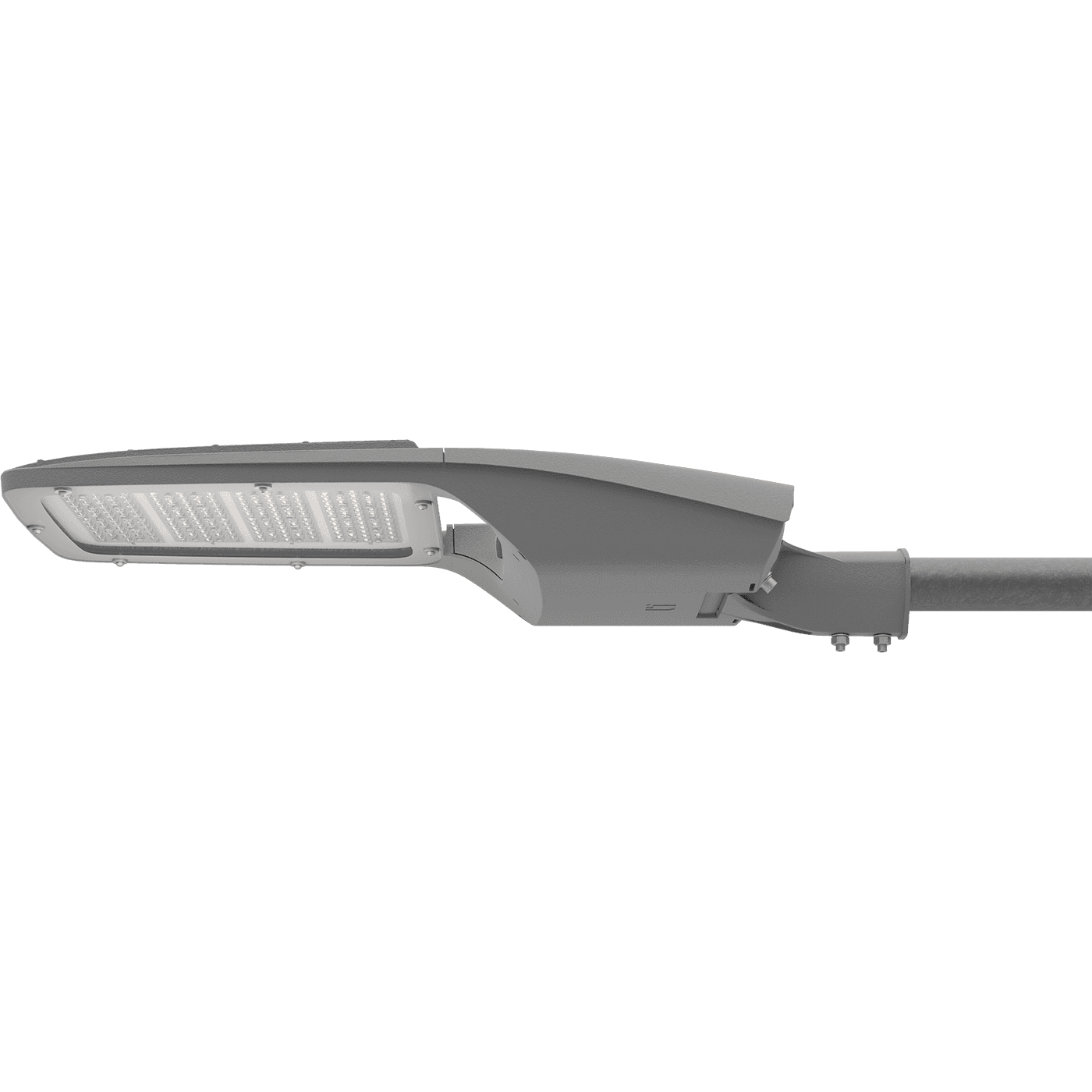

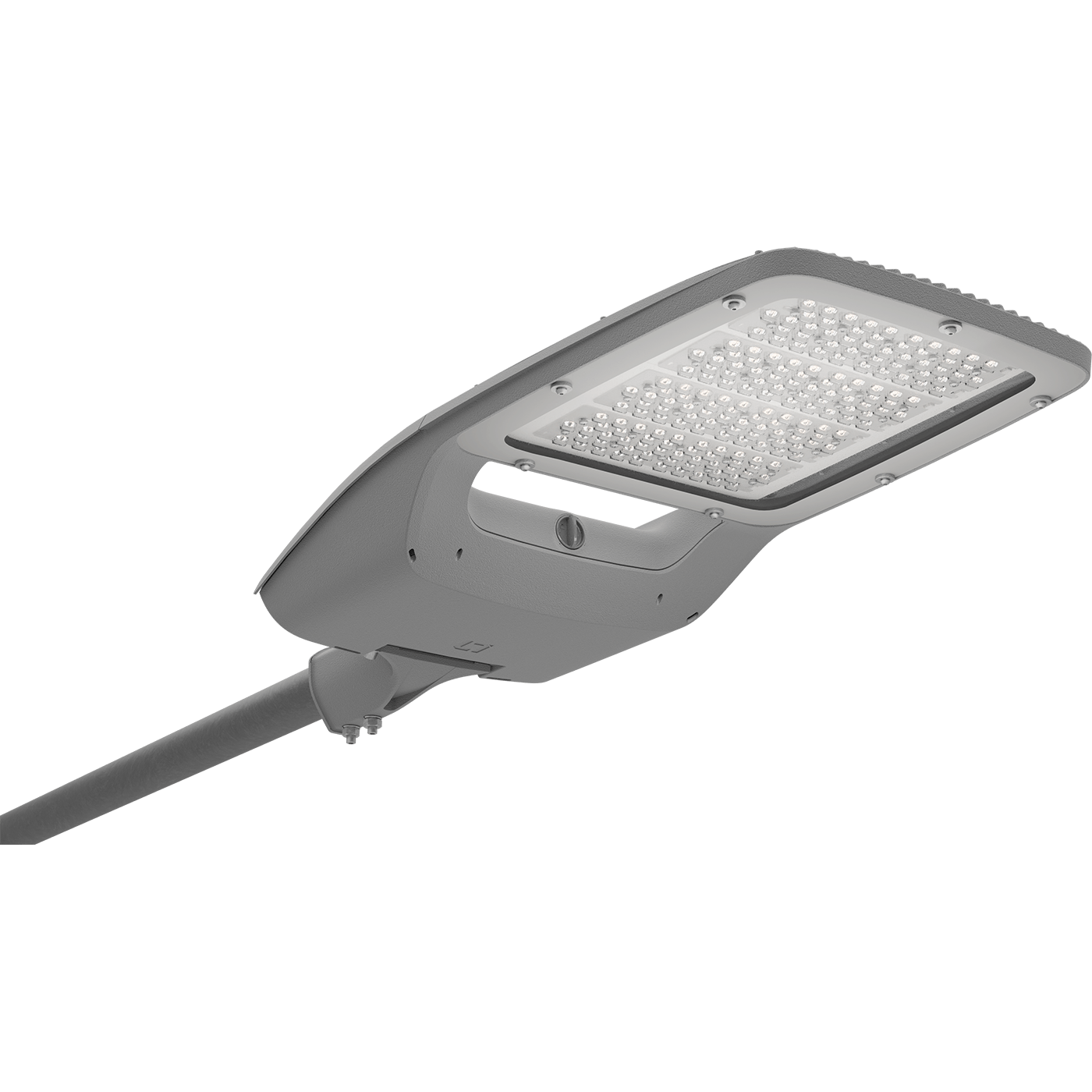

MAGISTRAL LED 150W DS 740 RAL9006 PLCM
MAGISTRAL LED 150W DS 740 RAL9006 PLCM
155 Wluminaire power
20800 lmlight flow
134 lm/Wenergy efficiency
code1680001440
beam angleD150/50
color temperature4000 K
weight16 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
134 lm/Wcolor rendition index (CRI)
>70light flow
20800 lmflickering factor
<1%beam angle
D150/50color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
134 lm/W
color rendition index (CRI)
>70
light flow
20800 lm
flickering factor
<1%
beam angle
D150/50
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
155 W
electric shock protection
I
starting current pulse time
500 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
100-305 V
power factor
> 0,98
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
410 mm
height
188 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
956 mm
material
Алюминий
installation diameter
48-60 mm
ingress protection (IP)
IP66
shock resistance (IK)
5 Дж
weight
16 kg
LMS options
dimming
PLC
common
code
1680001440
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files

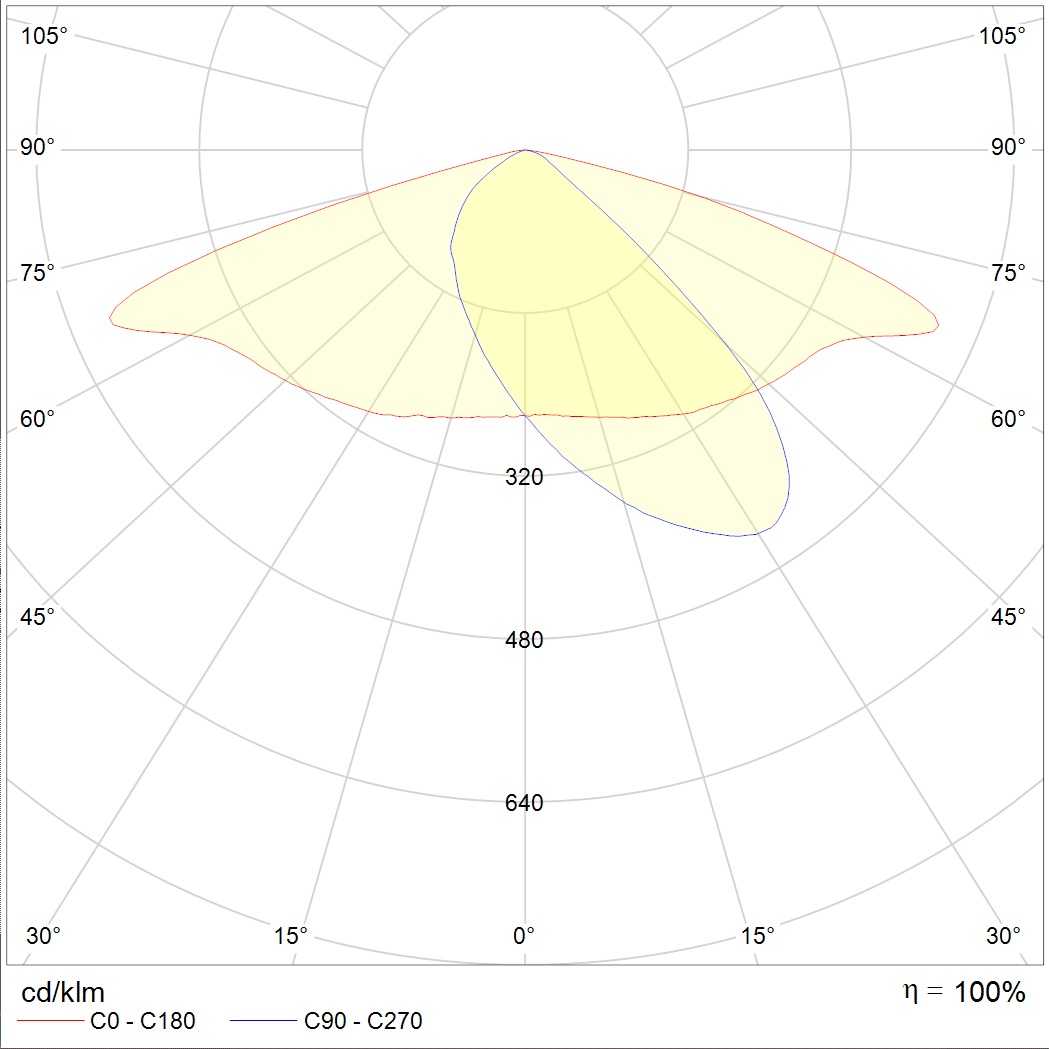

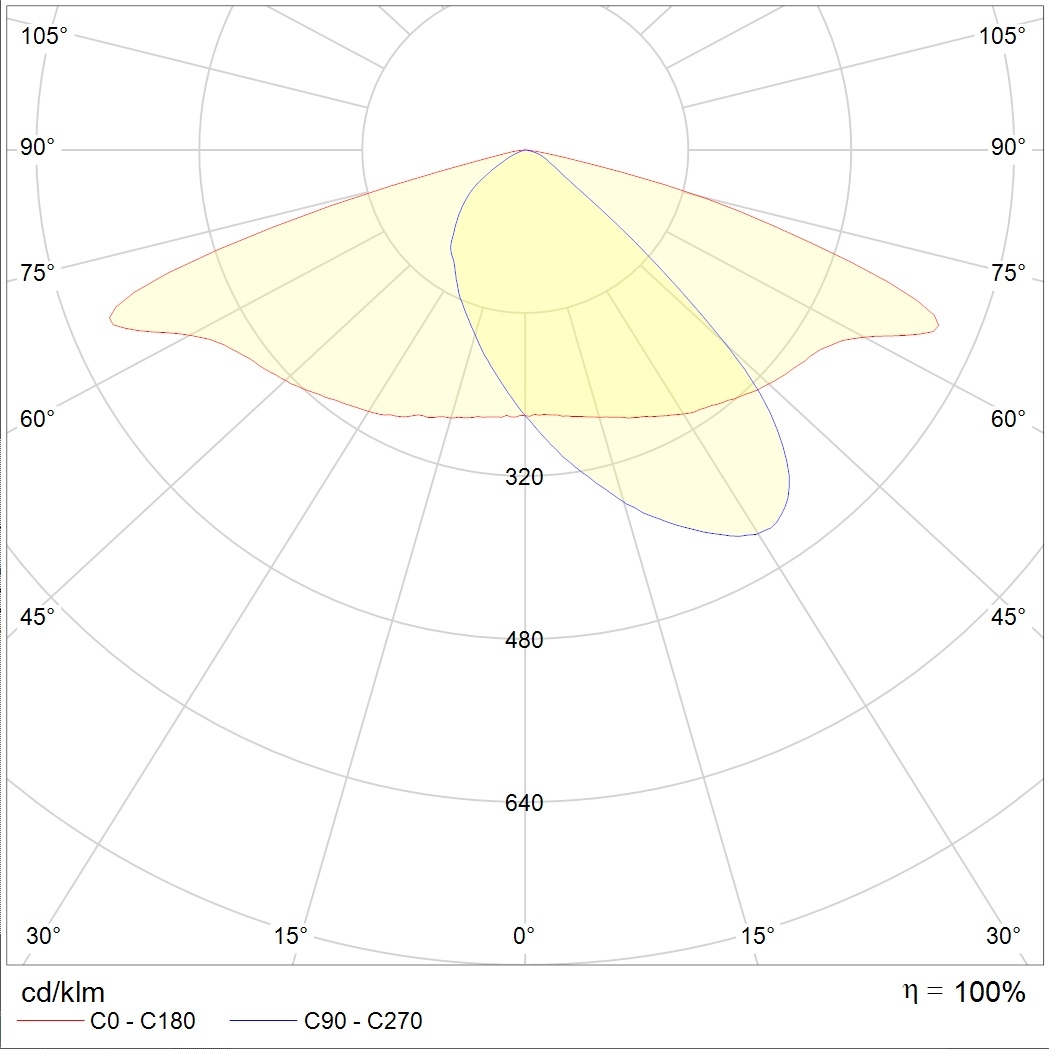

photometric files
сертификаты
photometric files
ies263.2 kB
jpg125.8 kB
ldt154.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
