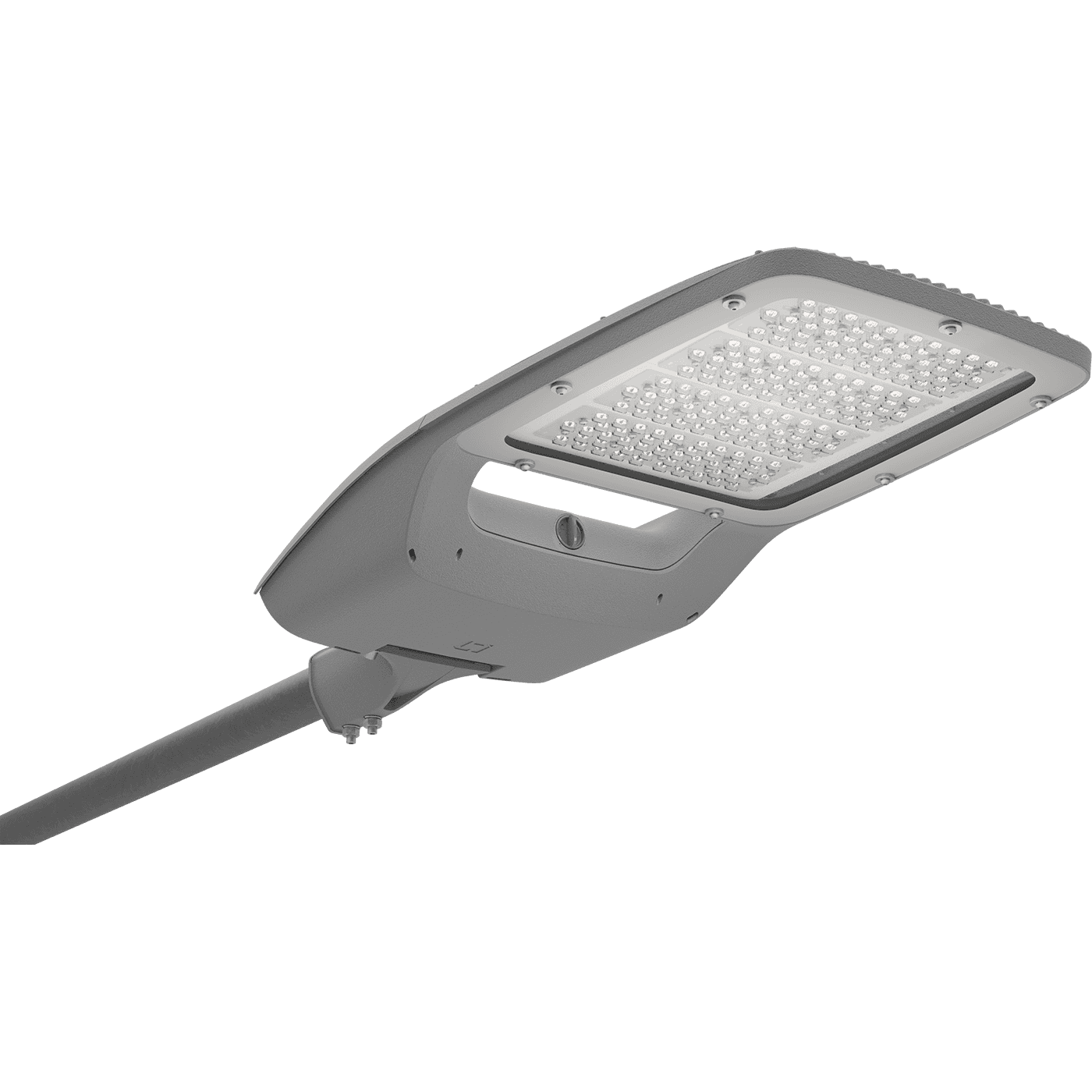

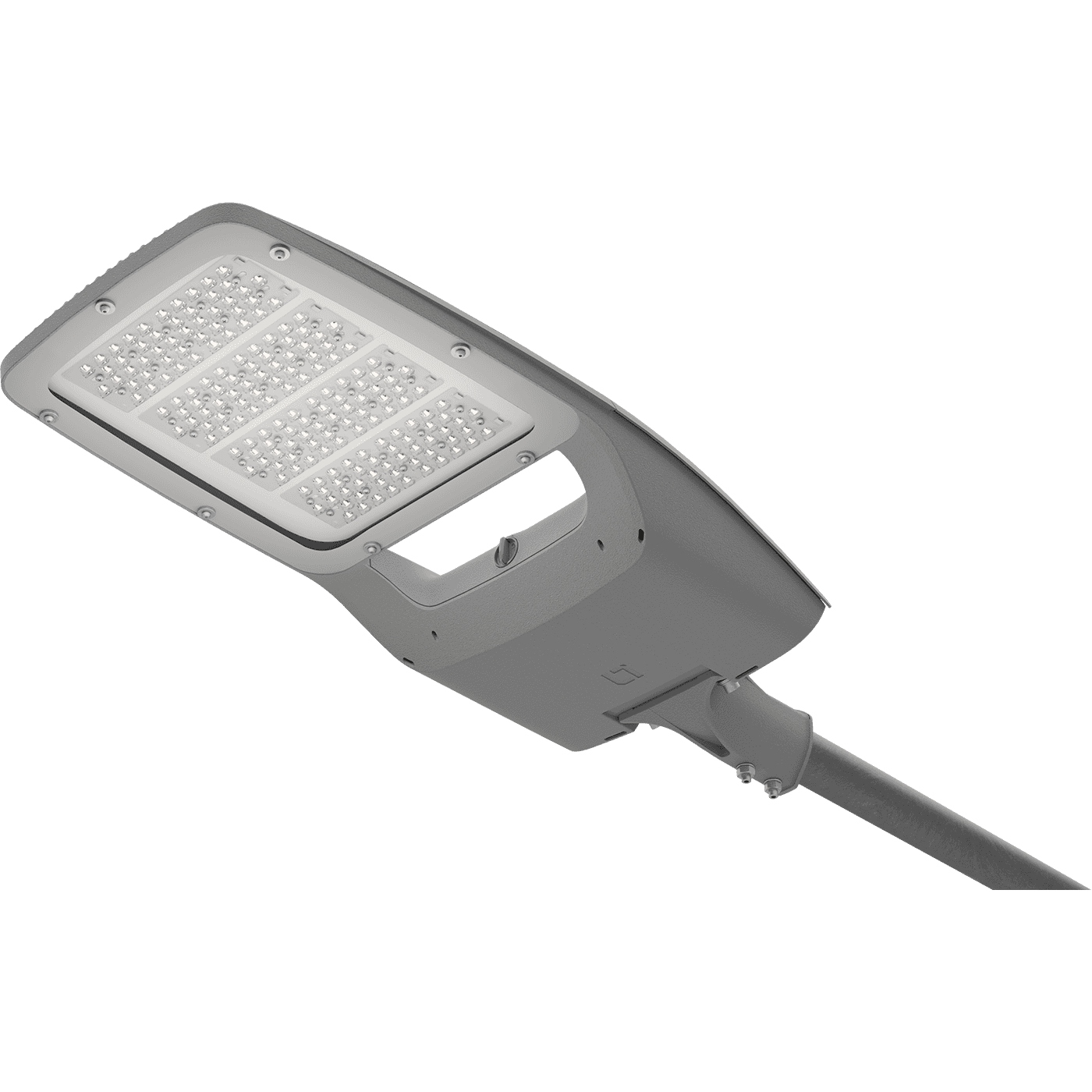

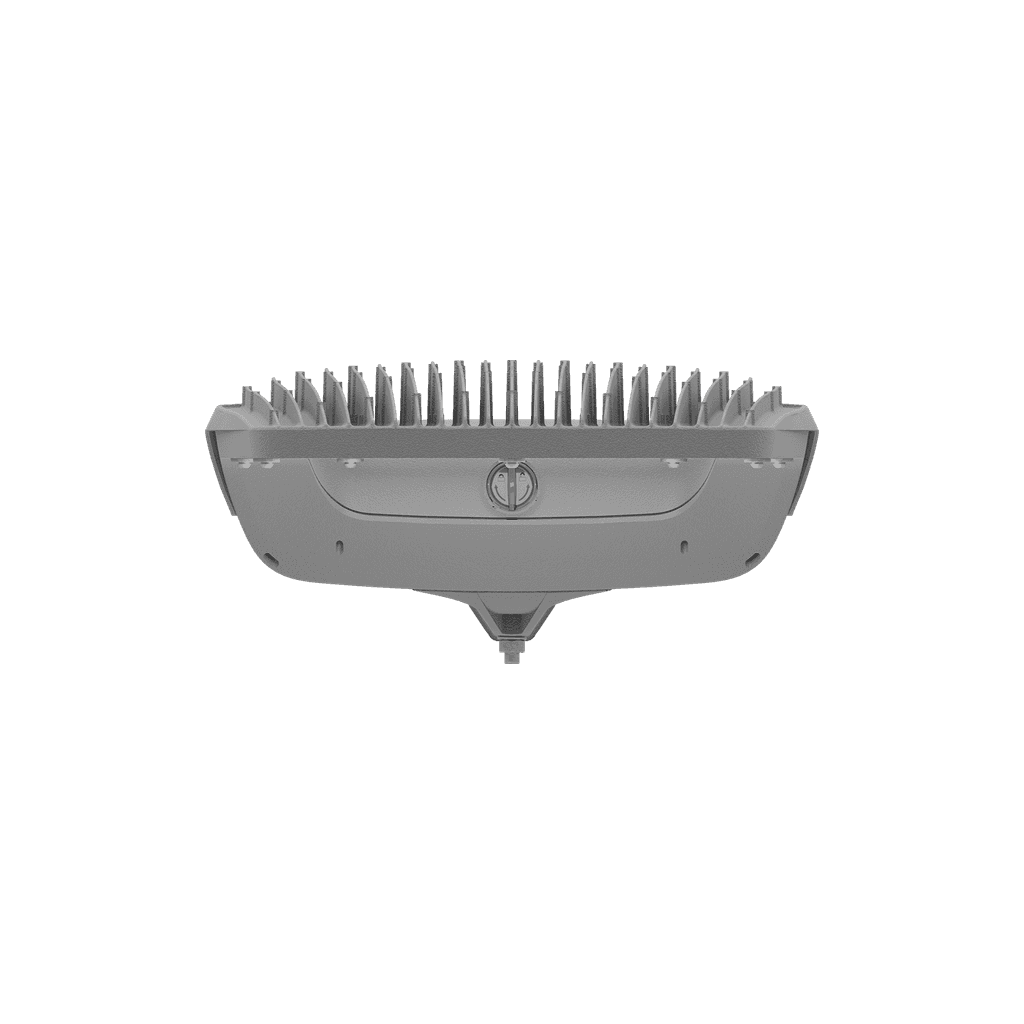

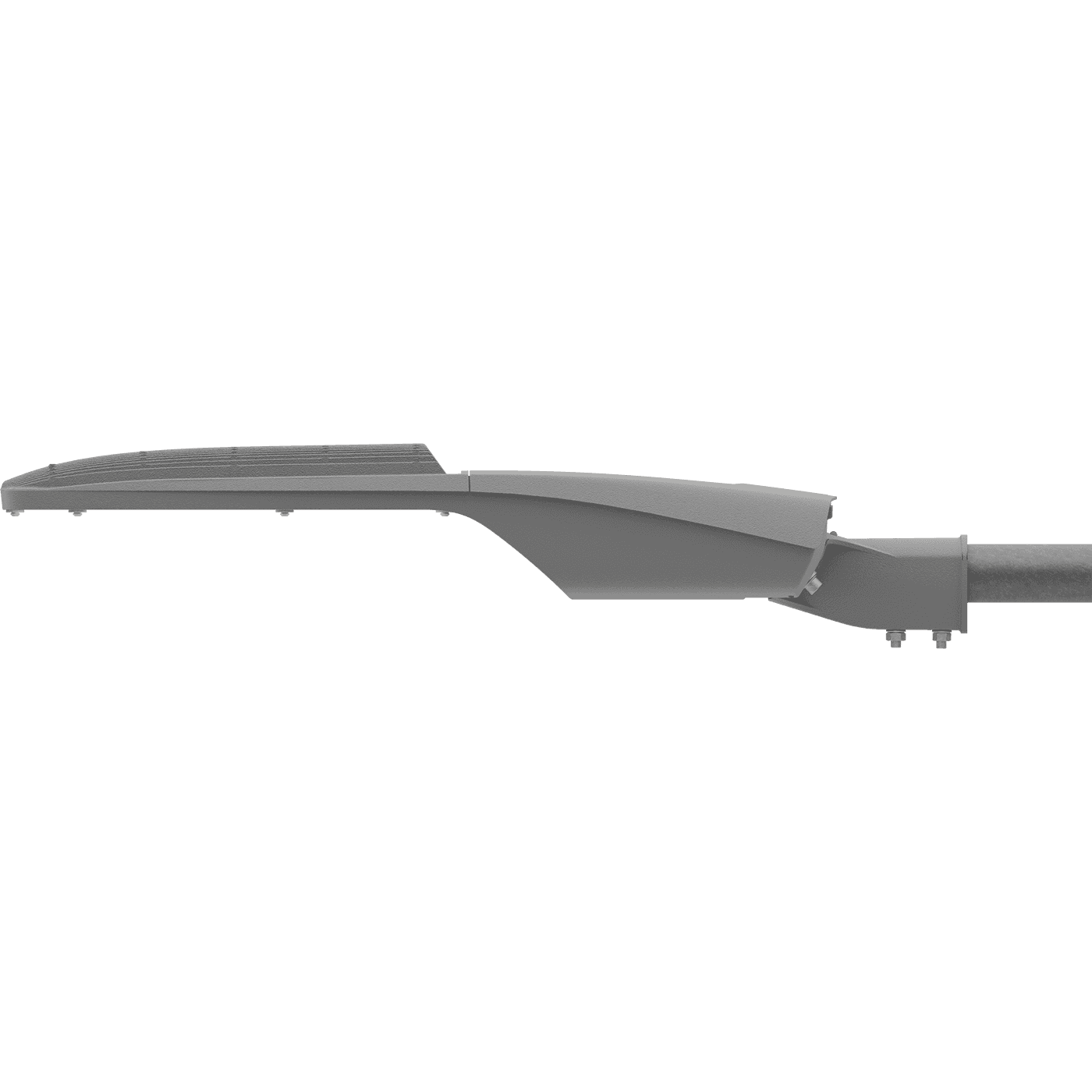

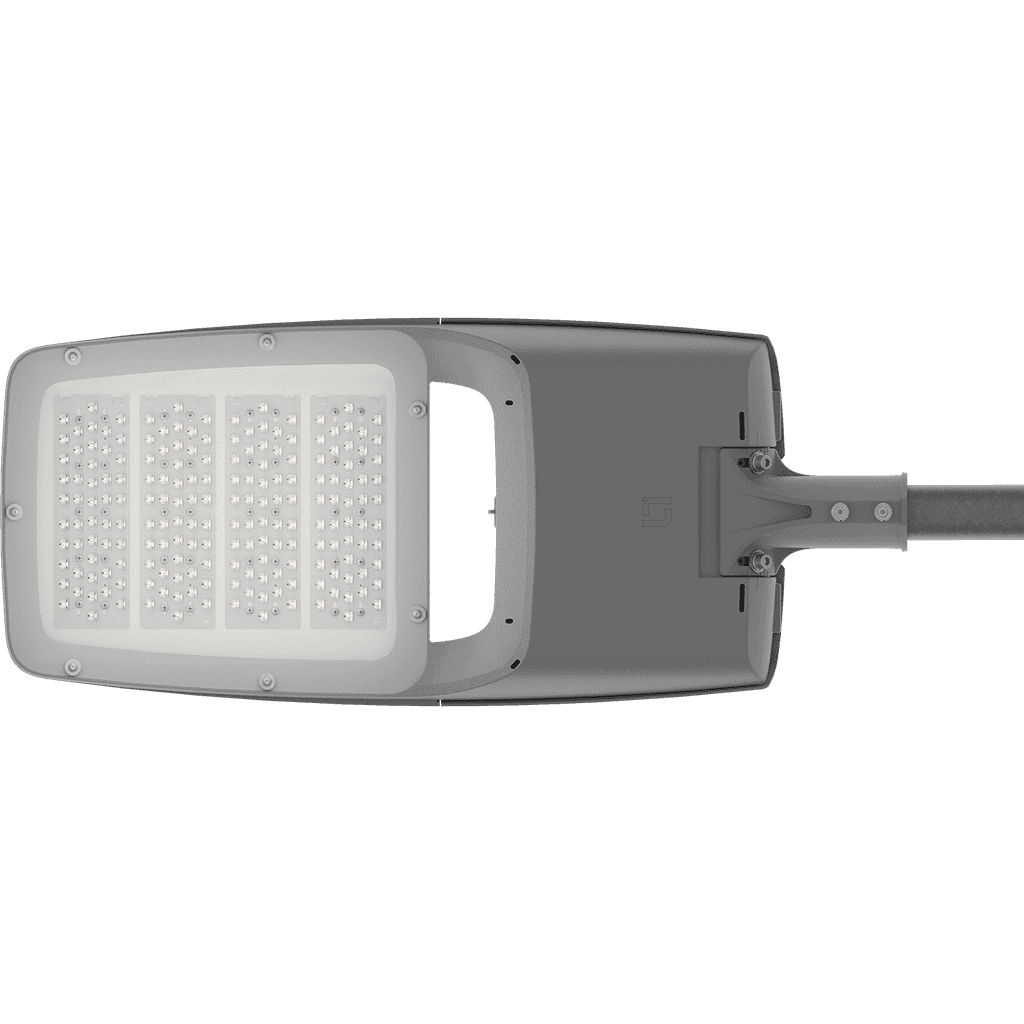

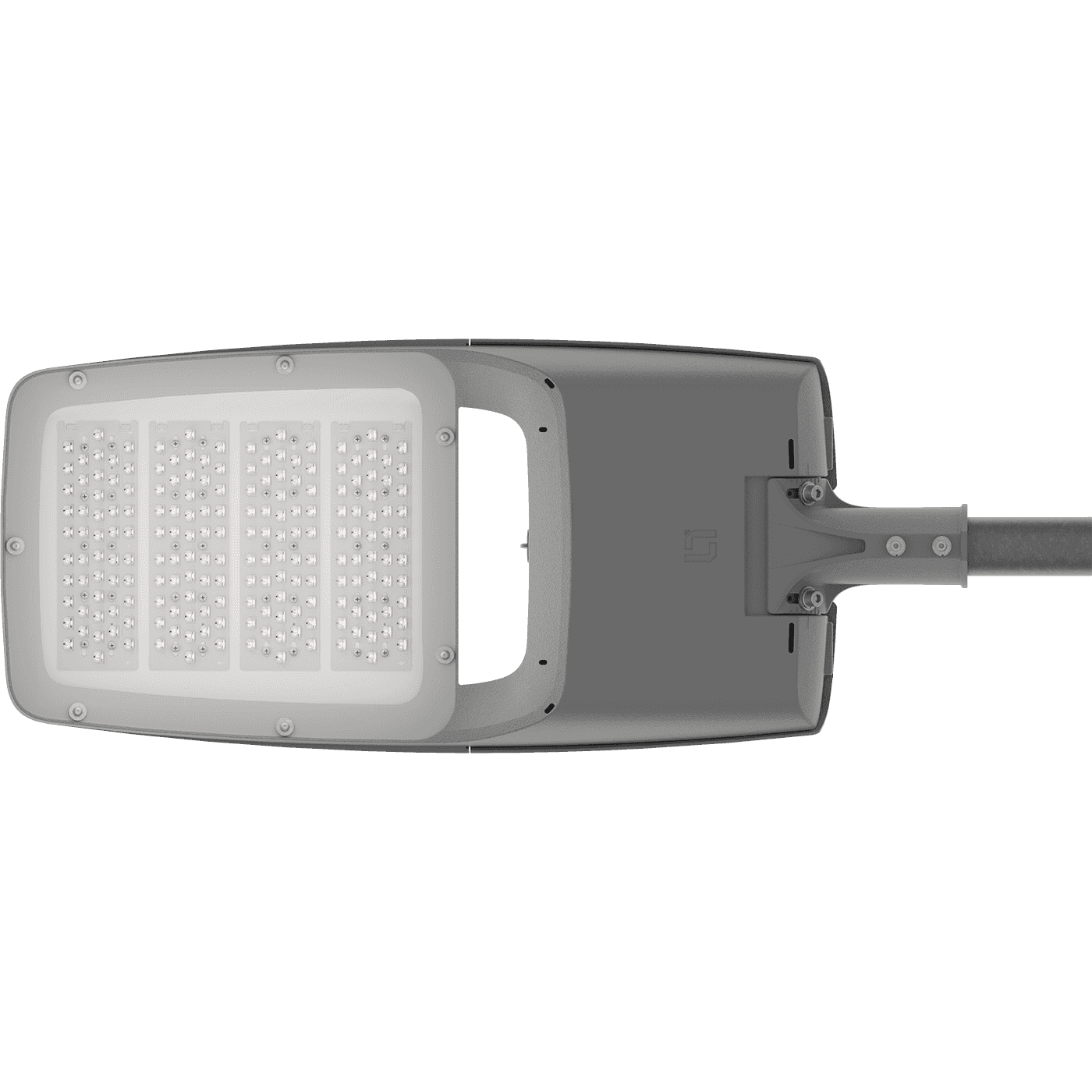

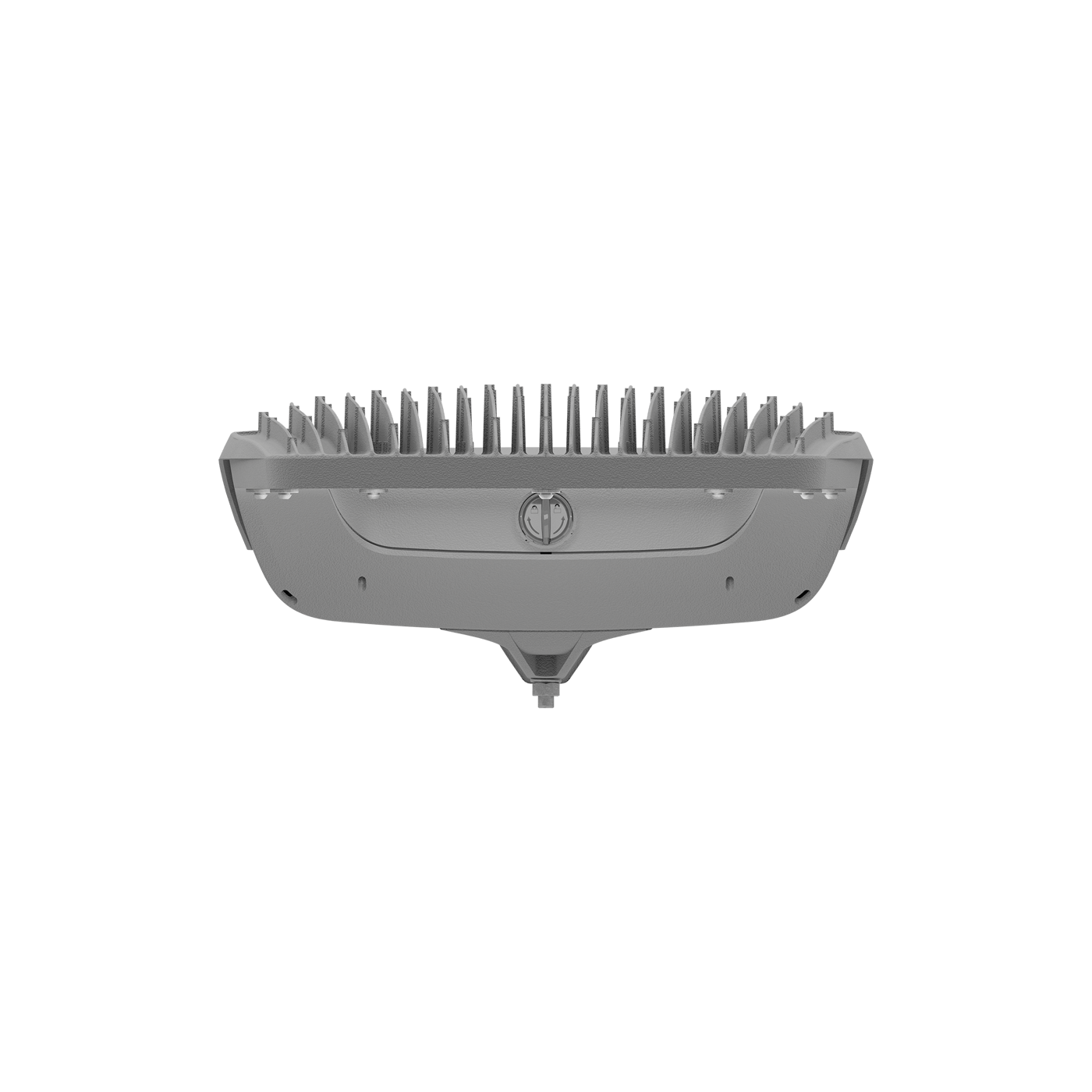

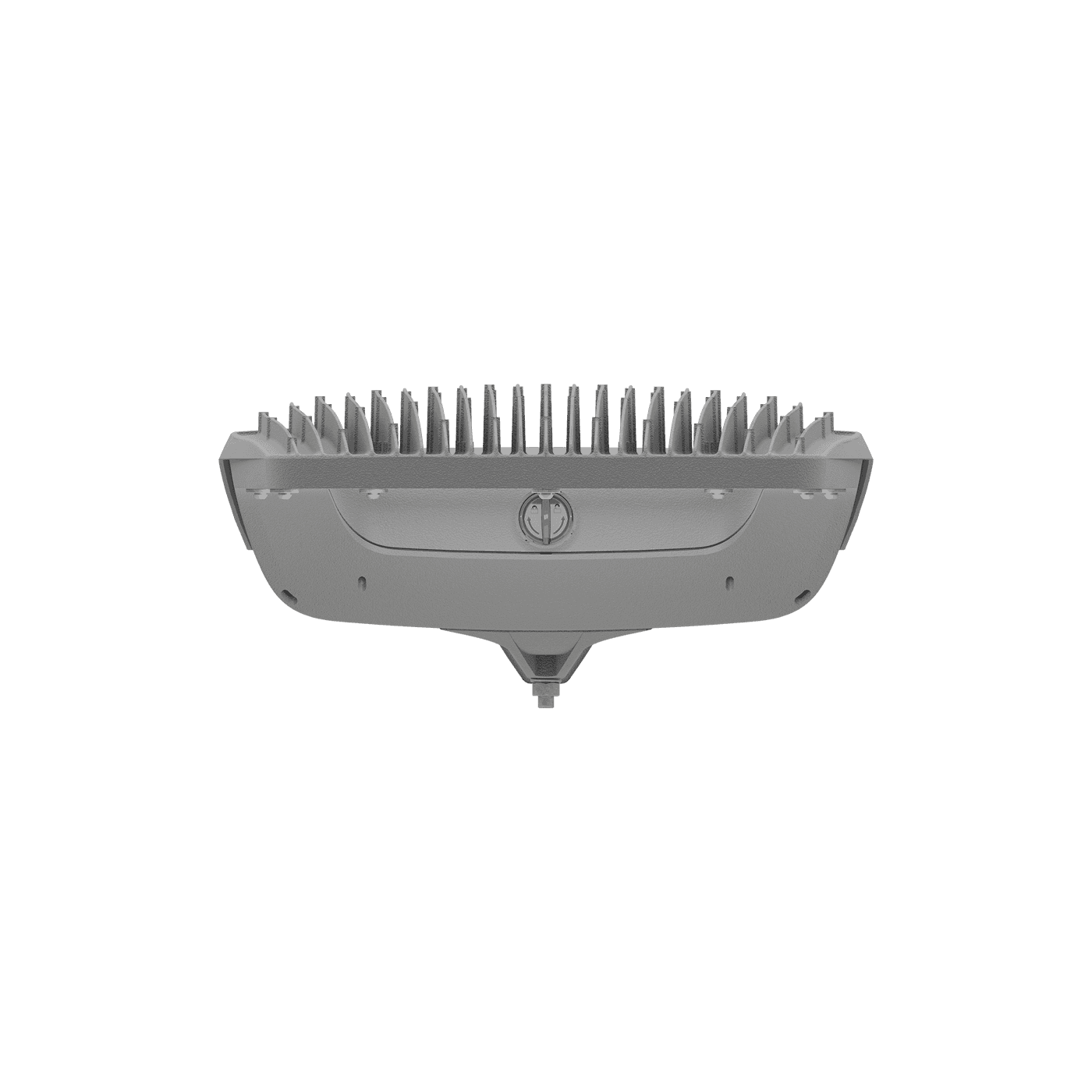

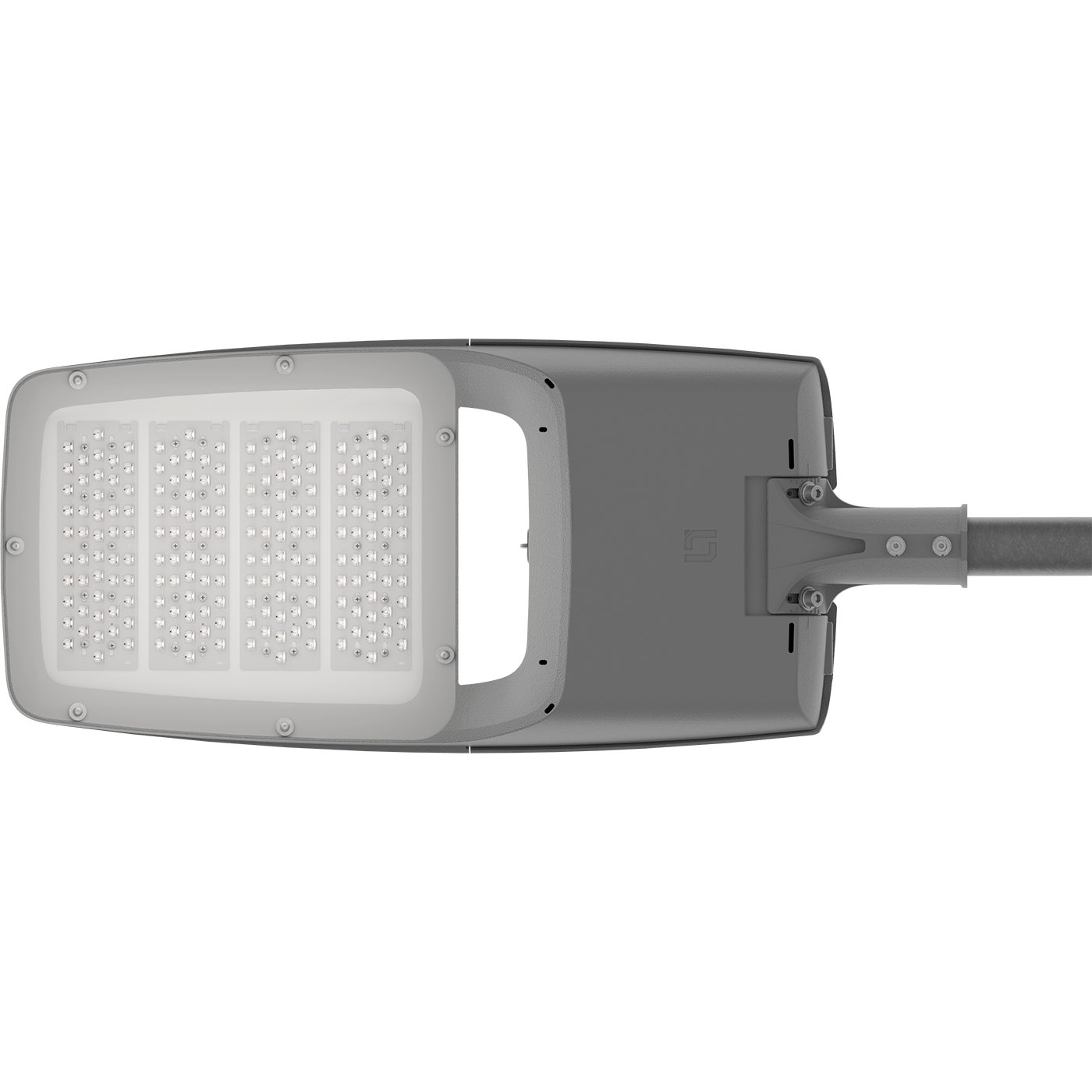

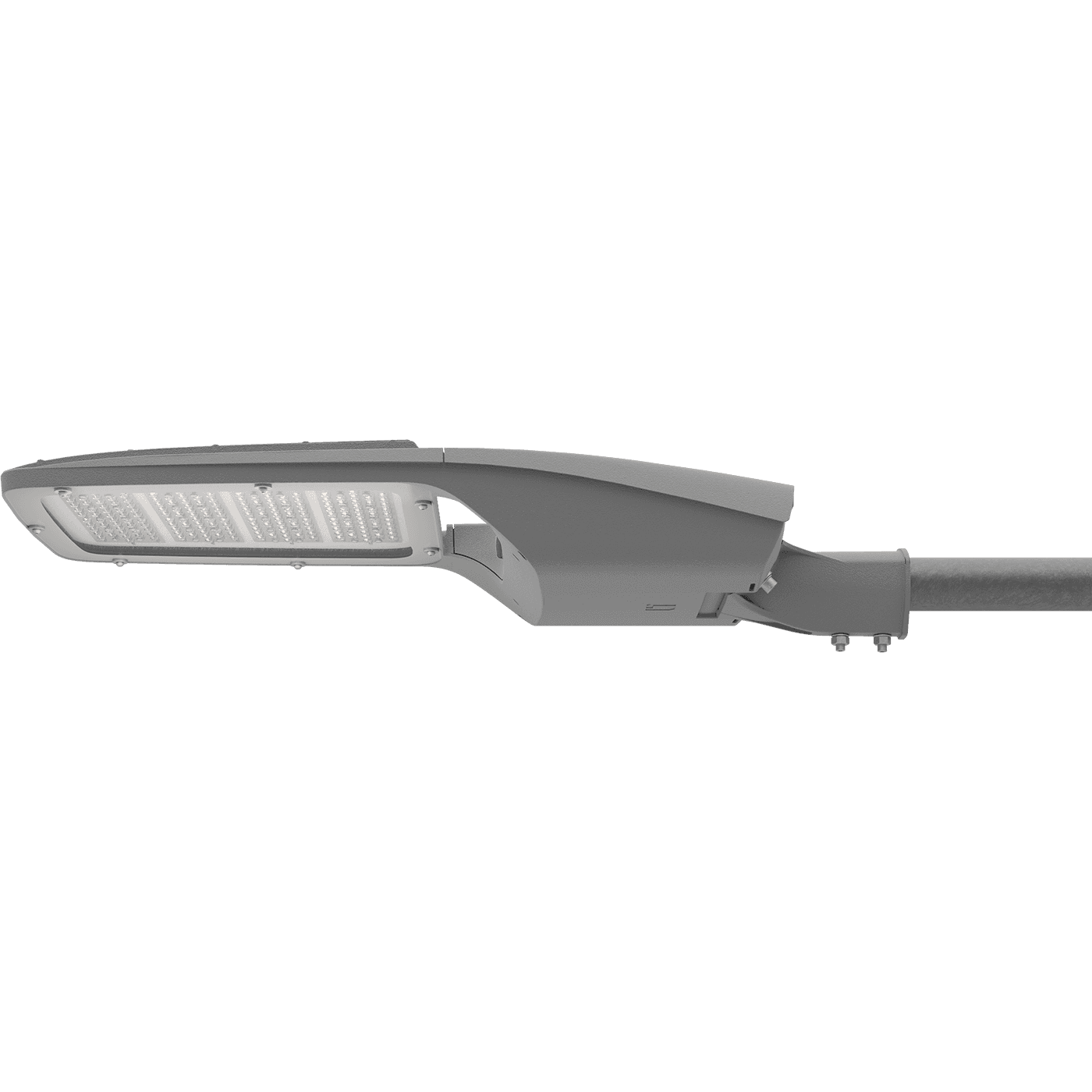

MAGISTRAL LED 150W DS 740 RAL9006 CR RU
model is discontinued
model is discontinued
MAGISTRAL LED 150W DS 740 RAL9006 CR RU
150 Wluminaire power
20800 lmlight flow
139 lm/Wenergy efficiency
code1680000830
beam angleD120
color temperature4000
weight16 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
139 lm/Wcolor rendition index (CRI)
>70light flow
20800 lmflickering factor
<1%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
139 lm/W
color rendition index (CRI)
>70
light flow
20800 lm
flickering factor
<1%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
luminaire power
150 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,98
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width, mm
410 mm
height, mm
188 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length, mm
956 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
5 Дж
weight
16 kg
LMS options
dimming
0-10 V
common
code
1680000830
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +50 C
service life, hour
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
