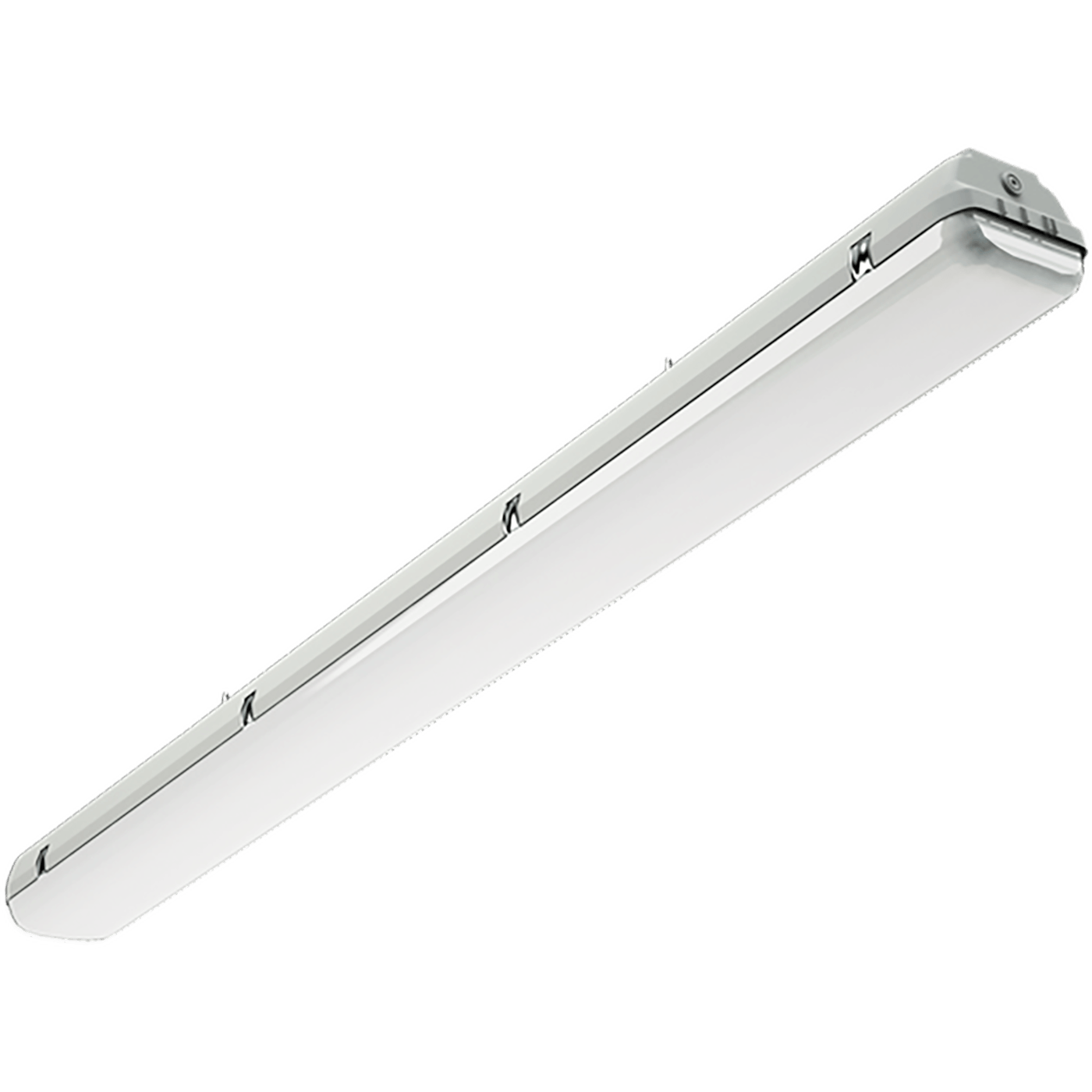

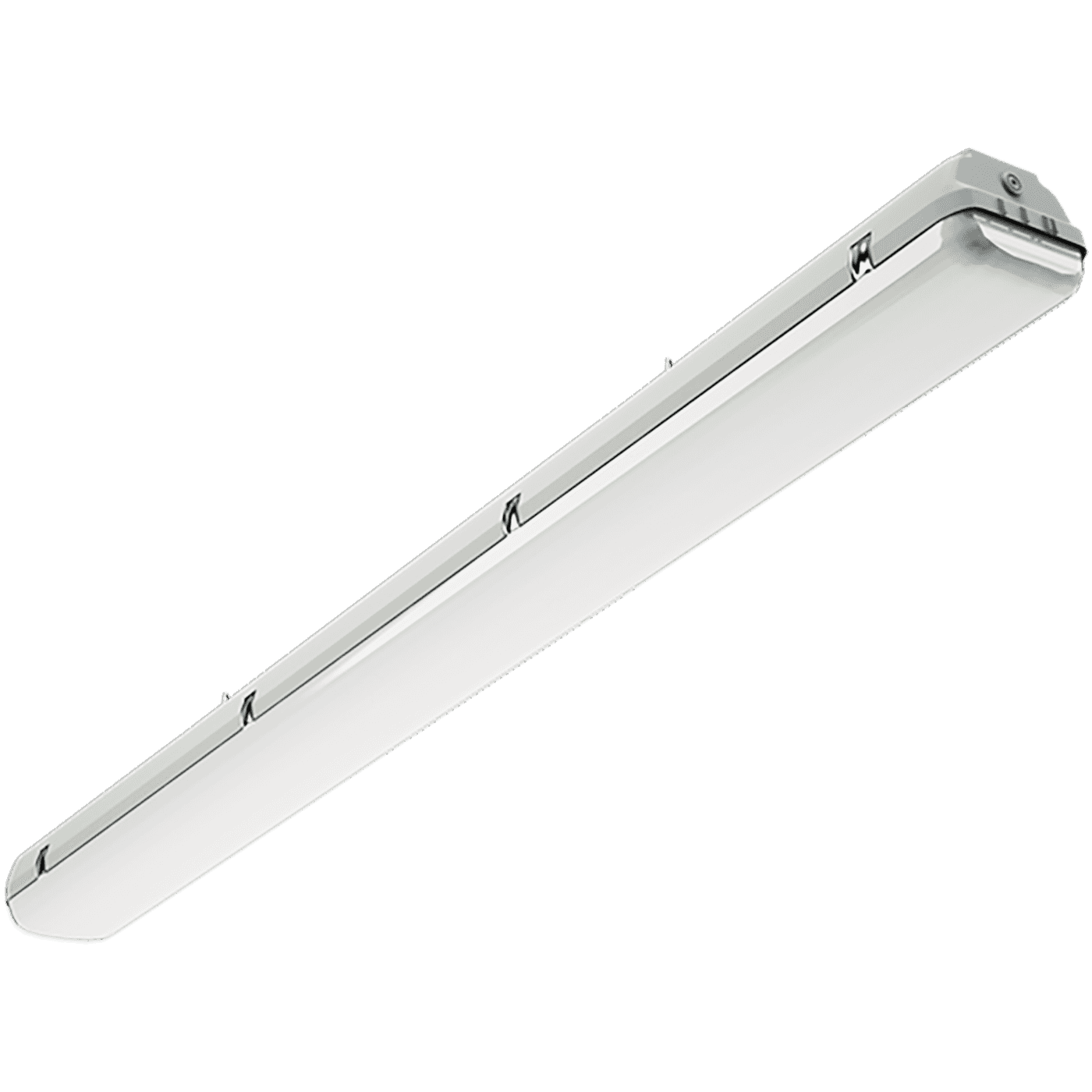

LZ.OPL ECO LED 1200 5000K

зарегистрирована в реестре российской промышленной продукции
LZ.OPL ECO LED 1200 5000K
add to favorites
48 Wluminaire power
6000 lmlight flow
125 lm/Wenergy efficiency
code
1074000470
number from the register of Russian industrial products
10586906
color temperature
5000 K
beam angle
D120
performance factor
100
weight
3.7 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. LZ.OPL ECO LED
  8. LZ.OPL ECO LED 1200 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
125 lm/W
color rendition index (CRI)
>80
light flow
6000 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
125 lm/W
color rendition index (CRI)
>80
light flow
6000 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,96
luminaire power
48 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1272 mm
width
173 mm
height
103 mm
installation length
800 mm
weight
3.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Поликарбонат
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1074000470
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт. Установочные пластины - 2 шт. Скобы подвеса - 2 шт.
model files
model files
CAD/BIM files
model 3dMax932 kB

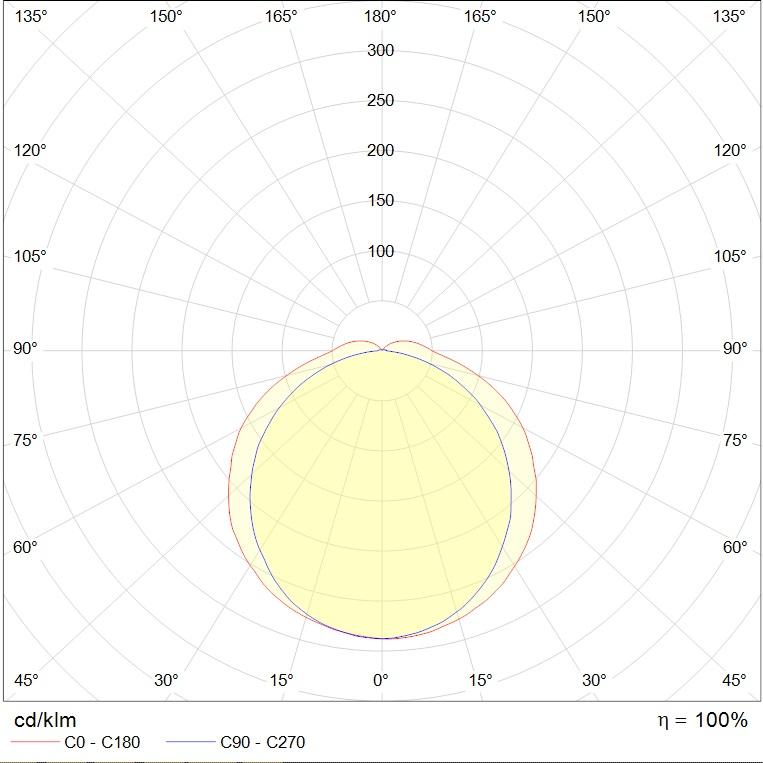

photometric files
ies107 kB
jpg108.7 kB
ldt84.7 kB
csv424 B
documents
passport2.3 mB
сертификаты
Russian origin243.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011300.7 kB
Declaration of Conformity EAEU TR 037/2016300.5 kB
CAD/BIM files
model 3dMax932 kB
photometric files
ies107 kB
jpg108.7 kB
ldt84.7 kB
csv424 B
documents
passport2.3 mB
сертификаты
Russian origin243.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011300.7 kB
Declaration of Conformity EAEU TR 037/2016300.5 kB
