LYRA 6521-4 LED AT
LYRA 6521-4 LED AT
4 Wluminaire power
300 kd/m2average luminance
code
4502002440
performance factor
100
operating time in emergency mode
1 h
battery / battery Ni-Cd
RB 6,0 V 0,8 A*h Ni-Cd
type of operation / type of operation of the emergency luminaire
постоянного действия
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
light flow
200 lmaverage luminance
300 kd/m2flickering factor
<5%light source type
LEDenergy efficiency
50 lm/Wemission color
Белыйilluminating
light flow
200 lm
average luminance
300 kd/m2
flickering factor
<5%
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
electrical
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
supply voltage, alternating current
230-240 V
constructional
material
Поликарбонат
ballast
Без драйвера
weight
1 kg
length
342 mm
width
158 mm
height
74 mm
материал рассеивателя
Поликарбонат
ingress protection (IP)
IP65
mounting type
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
emergency
operating time in emergency mode
1 h
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 6,0 V 0,8 A*h Ni-Cd
emergency power supply
Нет
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
code
4502002440
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Комплект креплений - 1 шт.
model files
model files
CAD/BIM files

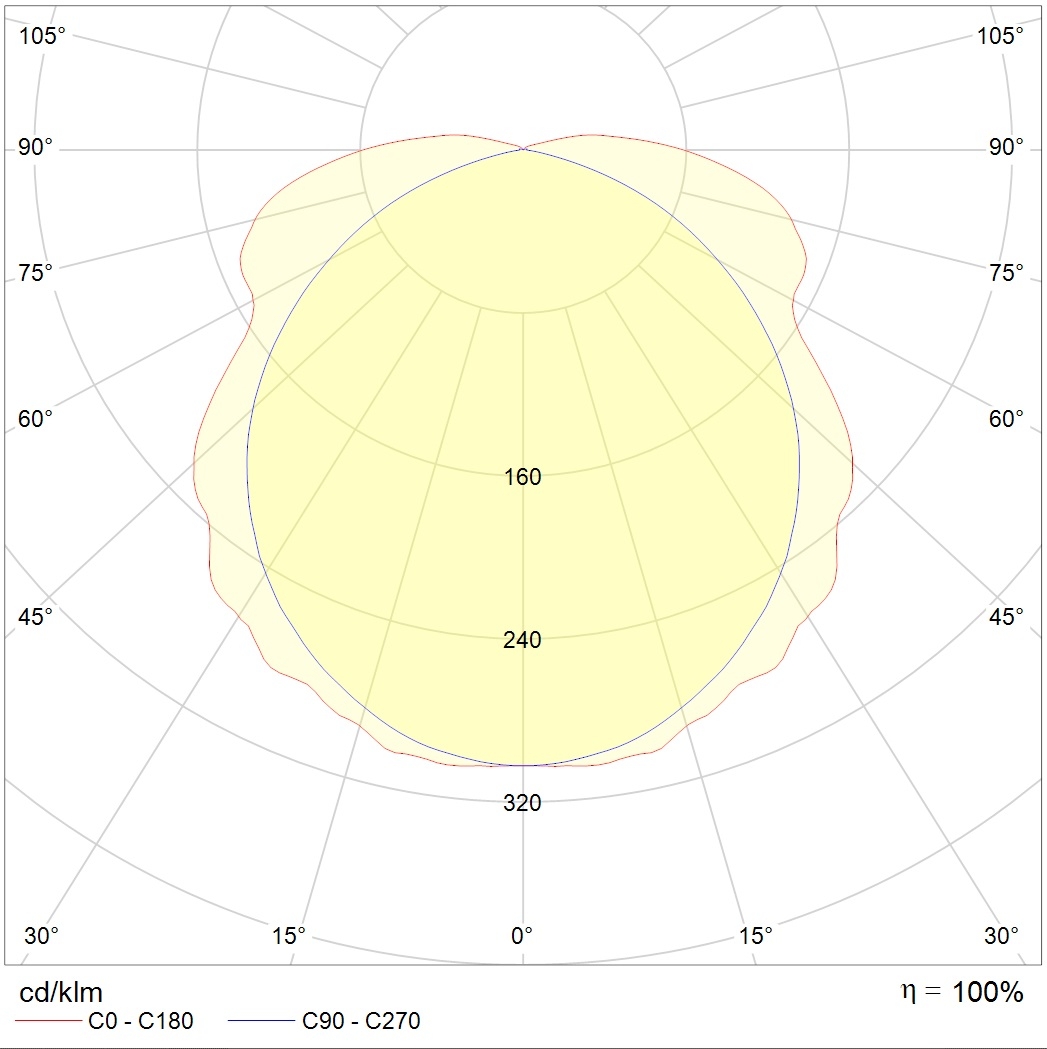

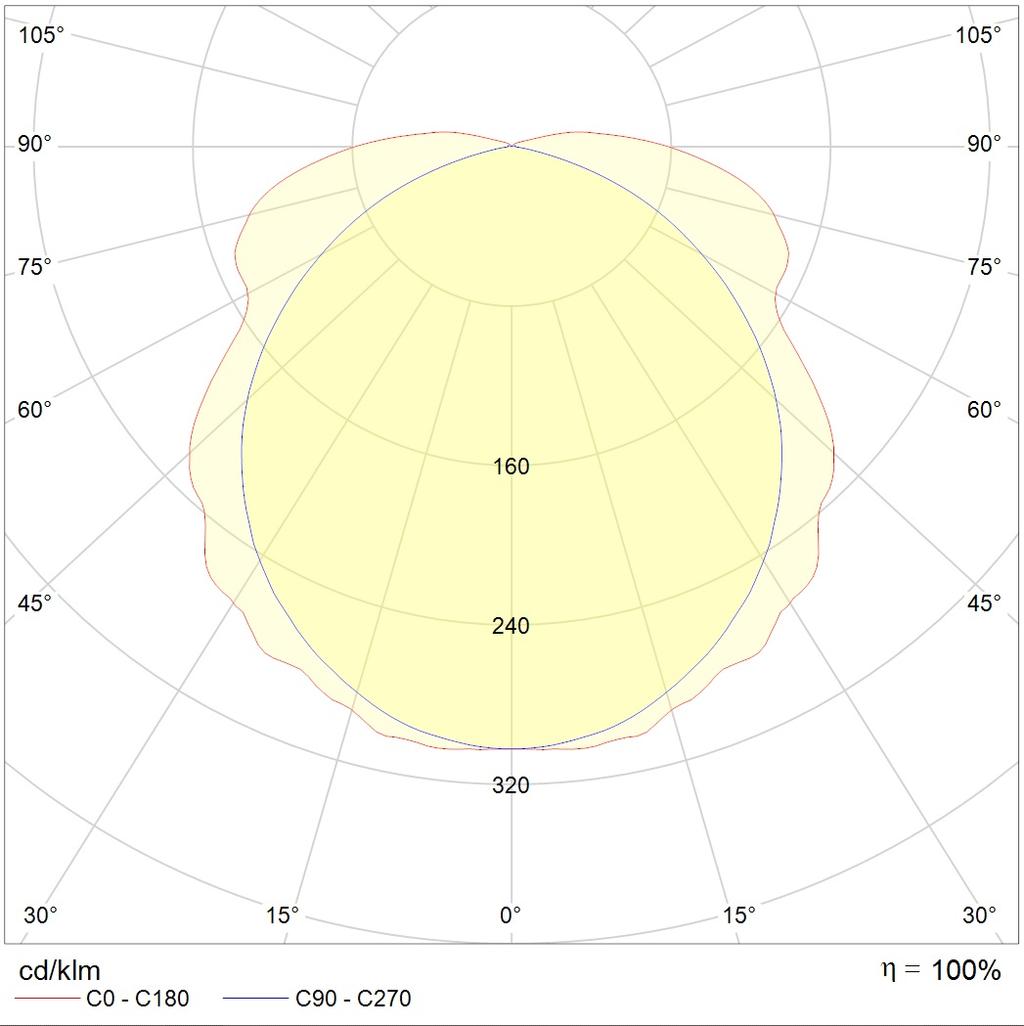

photometric files
сертификаты
CAD/BIM files
model 3dMax228 kB
photometric files
ies134.1 kB
jpg128.1 kB
ldt110.9 kB
csv419 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011307.5 kB
Declaration of Conformity EAEU TR 037/2016302.7 kB
accessories
PEU 008 Emergency exit (335х165) РС-L LYRA0.0182kgarticle: 2502000180
PEU 093 Left-hand exit straight (335х165) РС-L LYRA0.0182kgarticle: 2502001290
PEU 005 Down the stairs to the left (335х165) PC-L LYRA0.0182kgarticle: 2502000900
