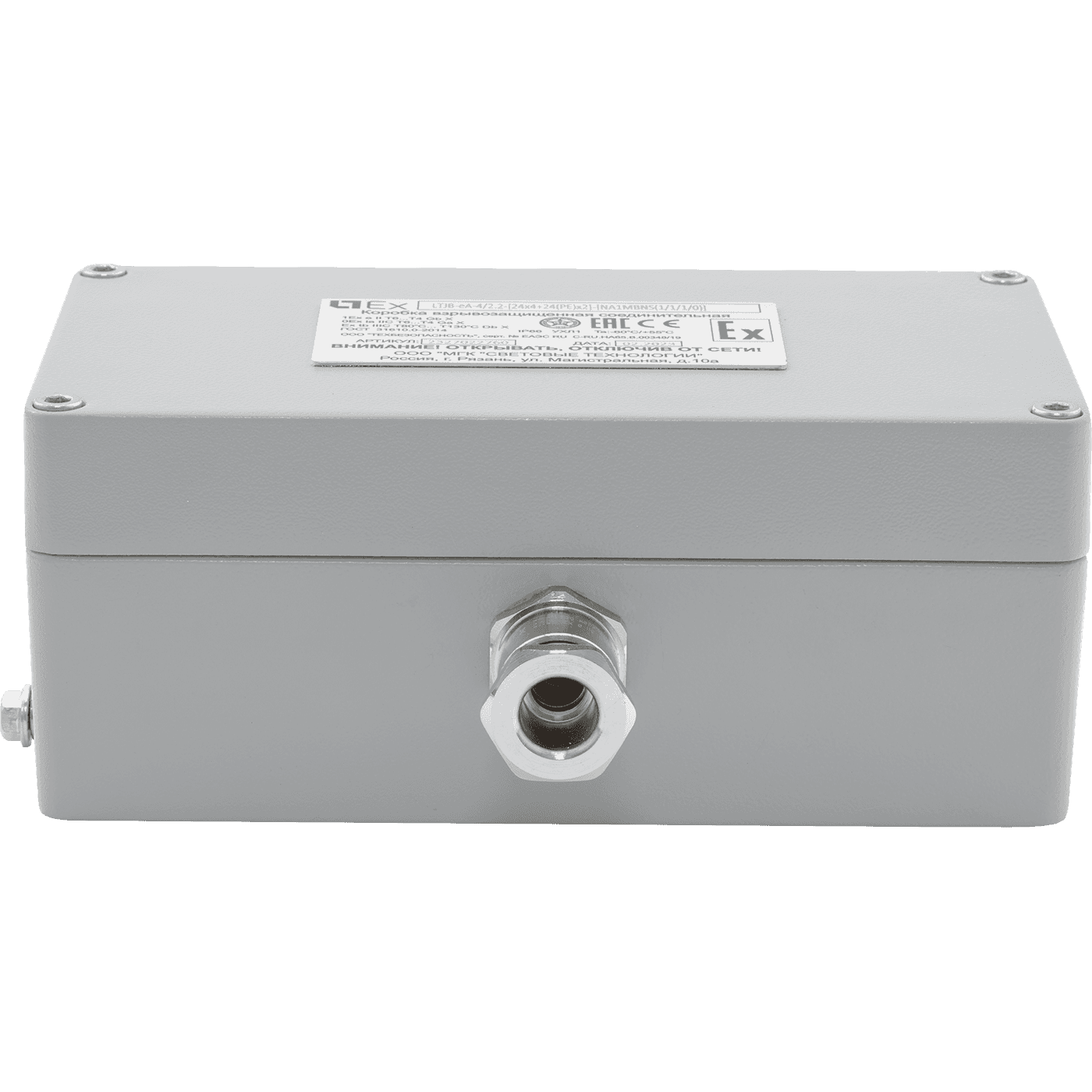

Коробка соединительная взрывозащищенная LTJB-eA-6/2.1-[24(is)x16+BPEx1]-[NAP4M4MBNS(0/0/0/1)+NAP2M2MBNS(0/0/4/0)]
archive
archive
Коробка соединительная взрывозащищенная LTJB-eA-6/2.1-[24(is)x16+BPEx1]-[NAP4M4MBNS(0/0/0/1)+NAP2M2MBNS(0/0/4/0)]
IP66 ingress protection (IP)
от -60 до +55 Ctemperature range
code2327013910
gas marking1 Ex e II T6…T4 Gb X
materialСплав алюминиевый
weight3.2 kg
options
свернуть все
constructionalelectricalcommonexplosion-proof
ingress protection (IP)
IP66material
Сплав алюминиевыйhousing color
Серыйlength, mm
205 mmwidth, mm
320 mmheight, mm
90 mmweight
3.2 kgclimatic performance
УХЛ1maximum cross-section of the connected cable, sq. mm
2.5shock resistance (IK)
IK08/7 Джinstallation length, mm
240 mminstallation width, mm
110 mmconstructional
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый
length, mm
205 mm
width, mm
320 mm
height, mm
90 mm
weight
3.2 kg
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
240 mm
installation width, mm
110 mm
electrical
electric shock protection
I
common
ETIM class
Клеммная распределительная коробка/бокс
warranty
36 month
temperature range
от -60 до +55 C
code
2327013910
explosion-proof
gas marking
1 Ex e II T6…T4 Gb X
dust marking
Ex tb IIIC T80…T130 C Db X
gas explosion-proof (type)
Ex e
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
model files
model files
documents
сертификаты
documents
passport957 kB
сертификаты
Certificate of Russian maritime register of shipping1.7 mB
Certificate of conformity TRTS 012/2011413.4 kB
Certificate of seismic resistance255.1 kB
Declaration of Conformity EAEU TR 037/2016277.5 kB
Document229.1 kB
Fire Safety Certificate1.2 mB
