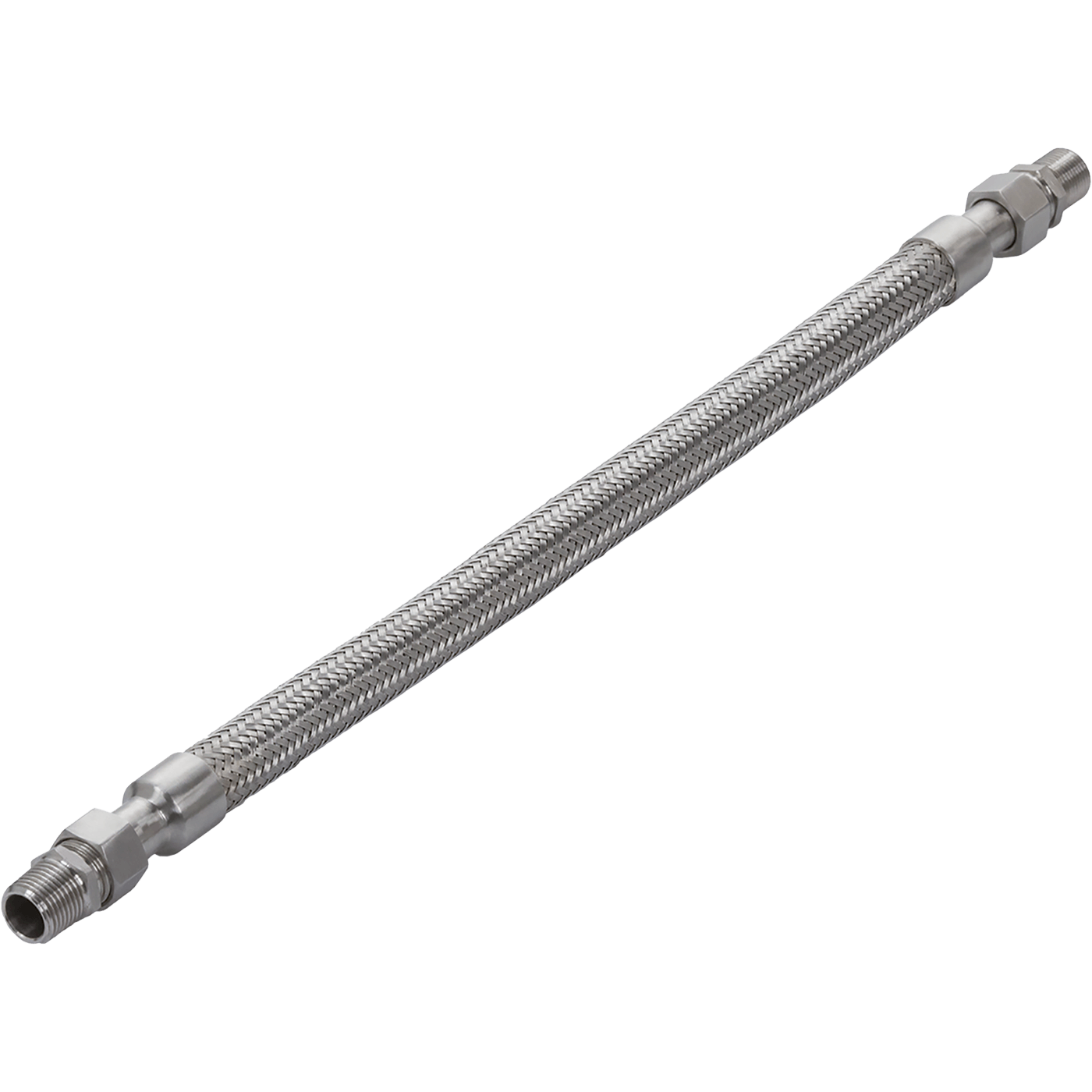

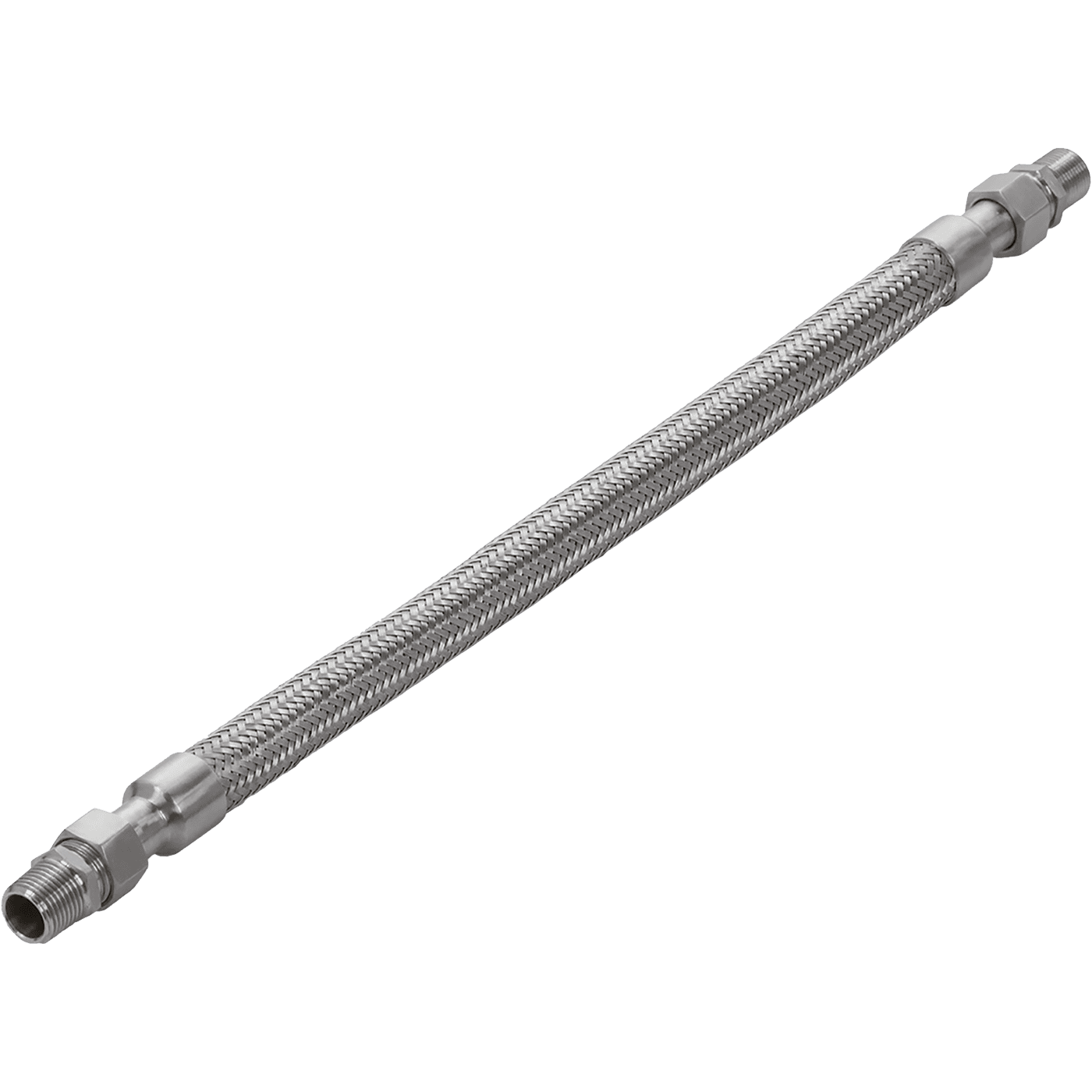

Соединитель гибкий взрывозащищенный LT-FC-1000х1M(M)/1M(F)
Соединитель гибкий взрывозащищенный LT-FC-1000х1M(M)/1M(F)
Сталь нержавеющаяmaterial
code2327007390
options
свернуть все
constructionalexplosion-proofcommon
shock resistance (IK)
IK08/7 Джingress protection (IP)
IP66climatic performance
УХЛ1housing color
Серыйweight
1.5 kgmaterial
Сталь нержавеющаяlength, mm
1000 mmwidth, mm
20 mmheight, mm
20 mmconstructional
shock resistance (IK)
IK08/7 Дж
ingress protection (IP)
IP66
climatic performance
УХЛ1
housing color
Серый
weight
1.5 kg
material
Сталь нержавеющая
length, mm
1000 mm
width, mm
20 mm
height, mm
20 mm
explosion-proof
gas marking
Ex d IIC Gb U
dust marking
Ex tb IIIC Db U
gas explosion-proof (type)
Ex d
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
common
temperature range
от -60 до +60 C
warranty
36 month
ETIM class
Защитный металлический шланг (металлорукав)
code
2327007390
model files
model files
documents
сертификаты
documents
passport575.6 kB
сертификаты
Certificate of conformity TRTS 012/2011396.3 kB
