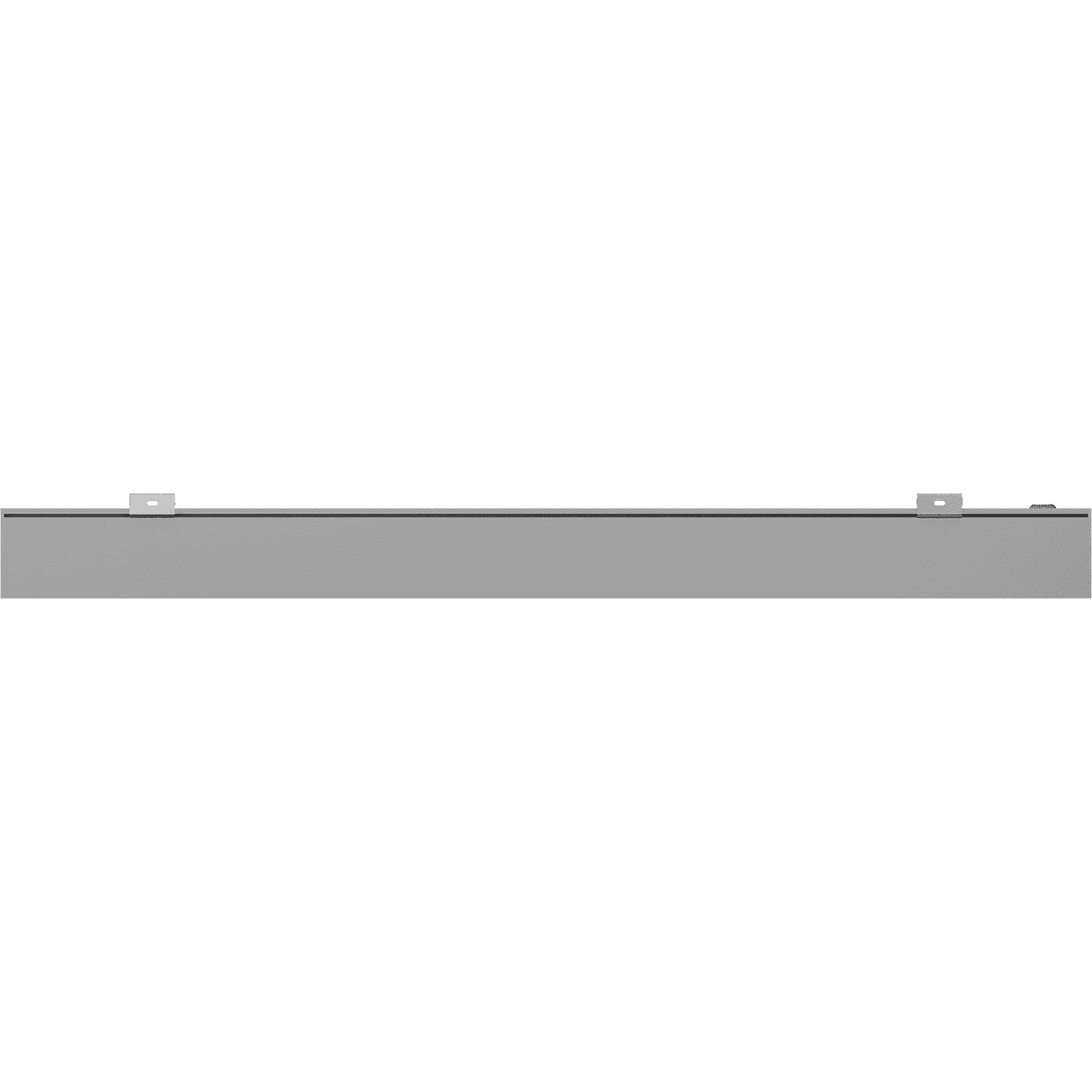

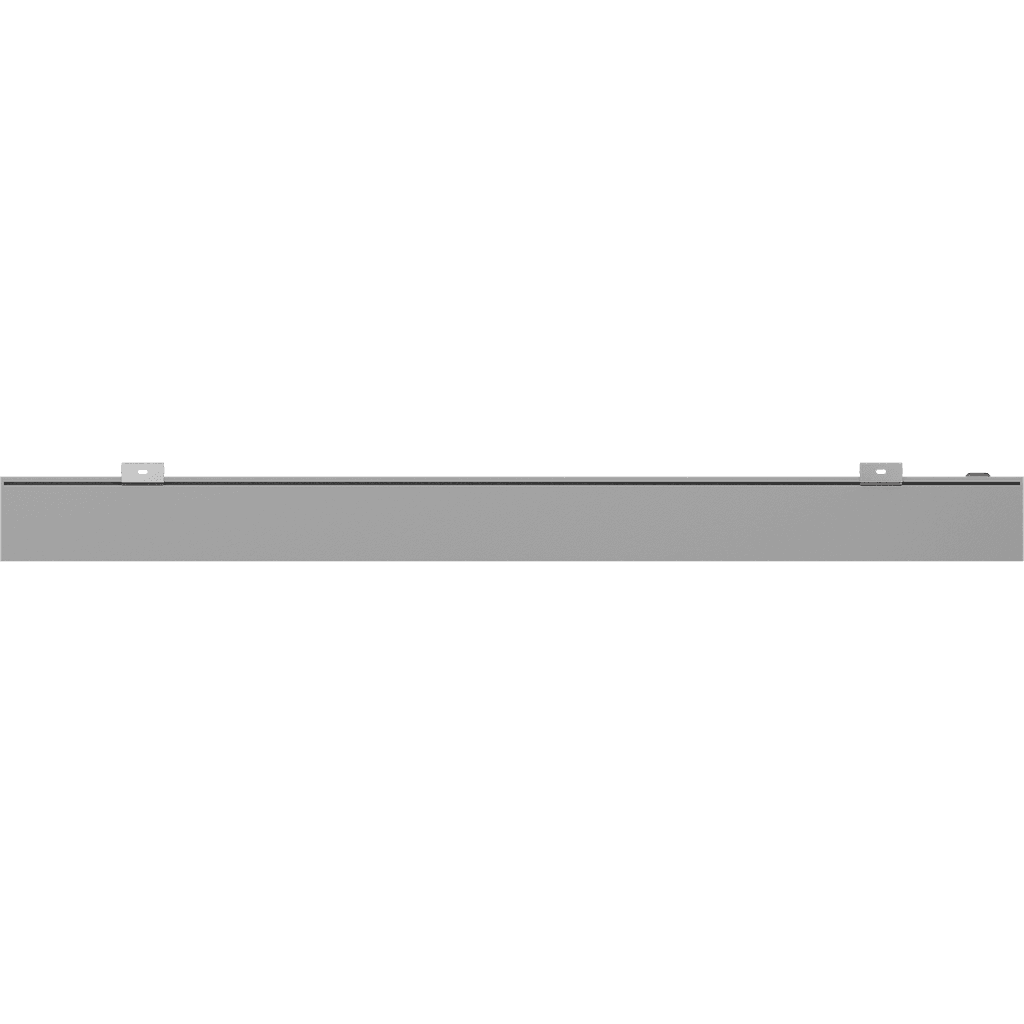

LINER STANDARD 50/S (1200) 26W OPL 840 WH
LINER STANDARD 50/S (1200) 26W OPL 840 WH
26 Wluminaire power
2700 lmlight flow
104 lm/Wenergy efficiency
code1473007370
color temperature4000 K
beam angleD120
old nameLINER STANDARD 50/S (1200) 26W OPL 840 BK
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
104 lm/Wcolor rendition index (CRI)
>80light flow
2700 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
104 lm/W
color rendition index (CRI)
>80
light flow
2700 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
150 µs
power factor
> 0,95
luminaire power
26 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A

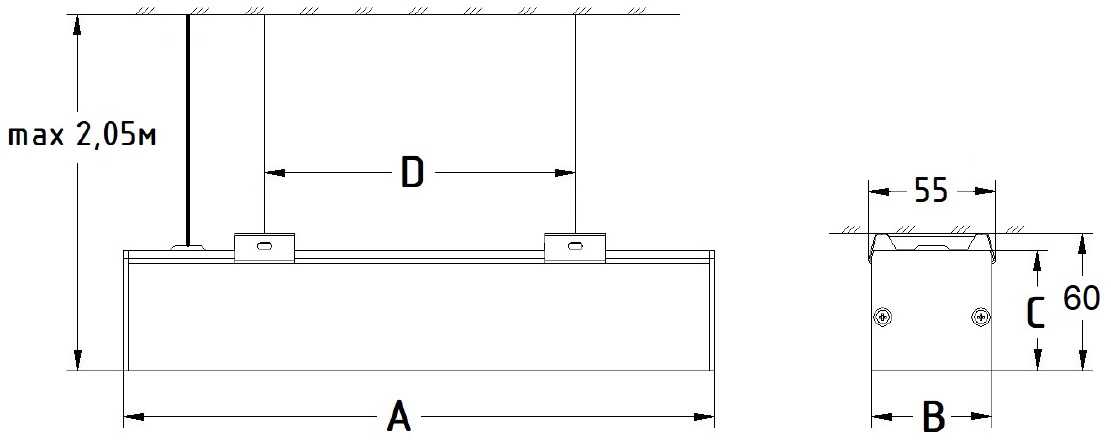

constructional
length
1200 mm
width
50 mm
height
50 mm
installation length
1050 mm
weight
1.4 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1473007370
model files
model files

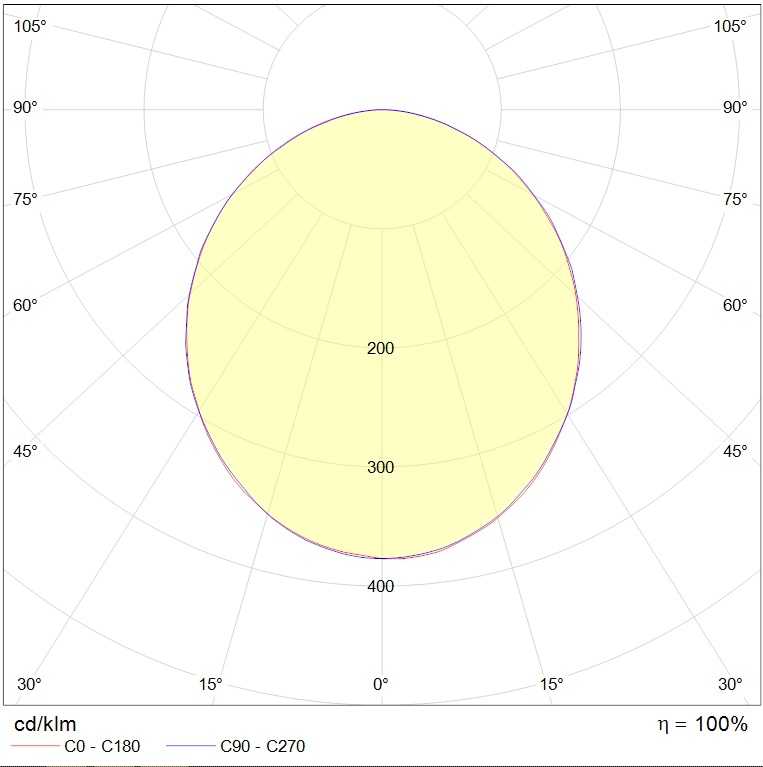

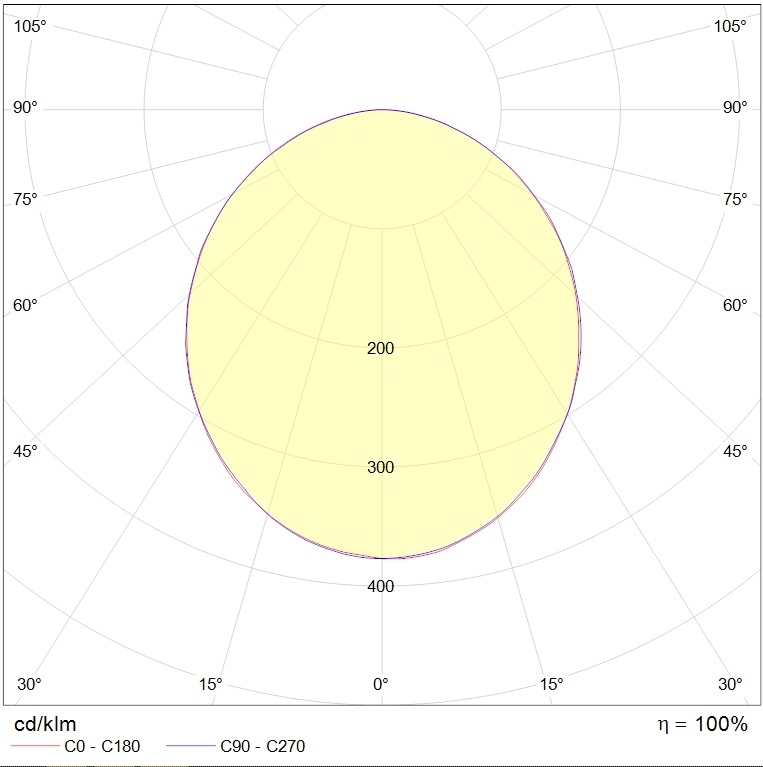

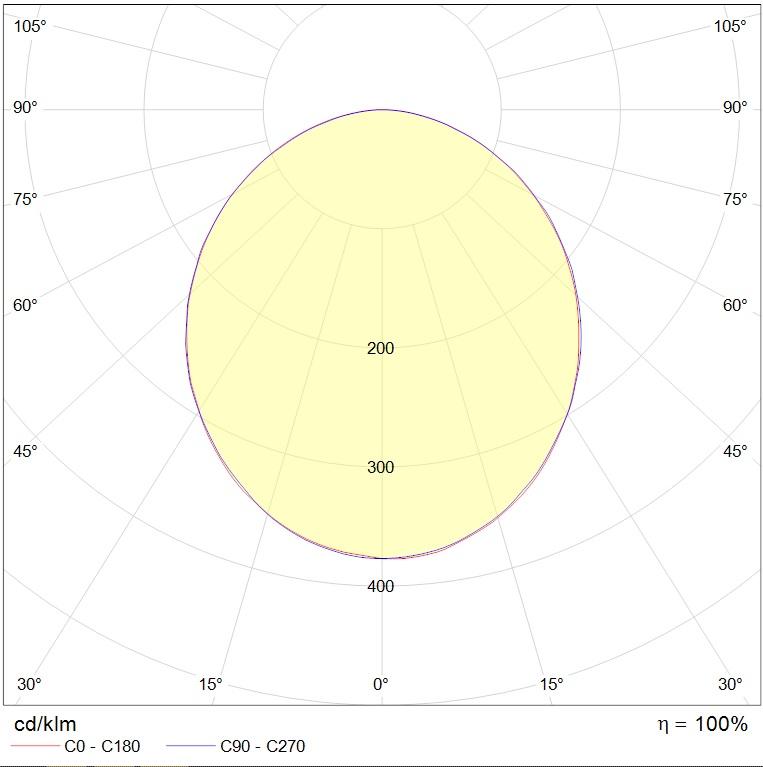

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg76.3 kB
ldt68.8 kB
documents
passport886 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016535.6 kB
accessories
Комплект подвеса LINER STANDARD 50 (1 шт)0.05kgarticle: 2473000600
