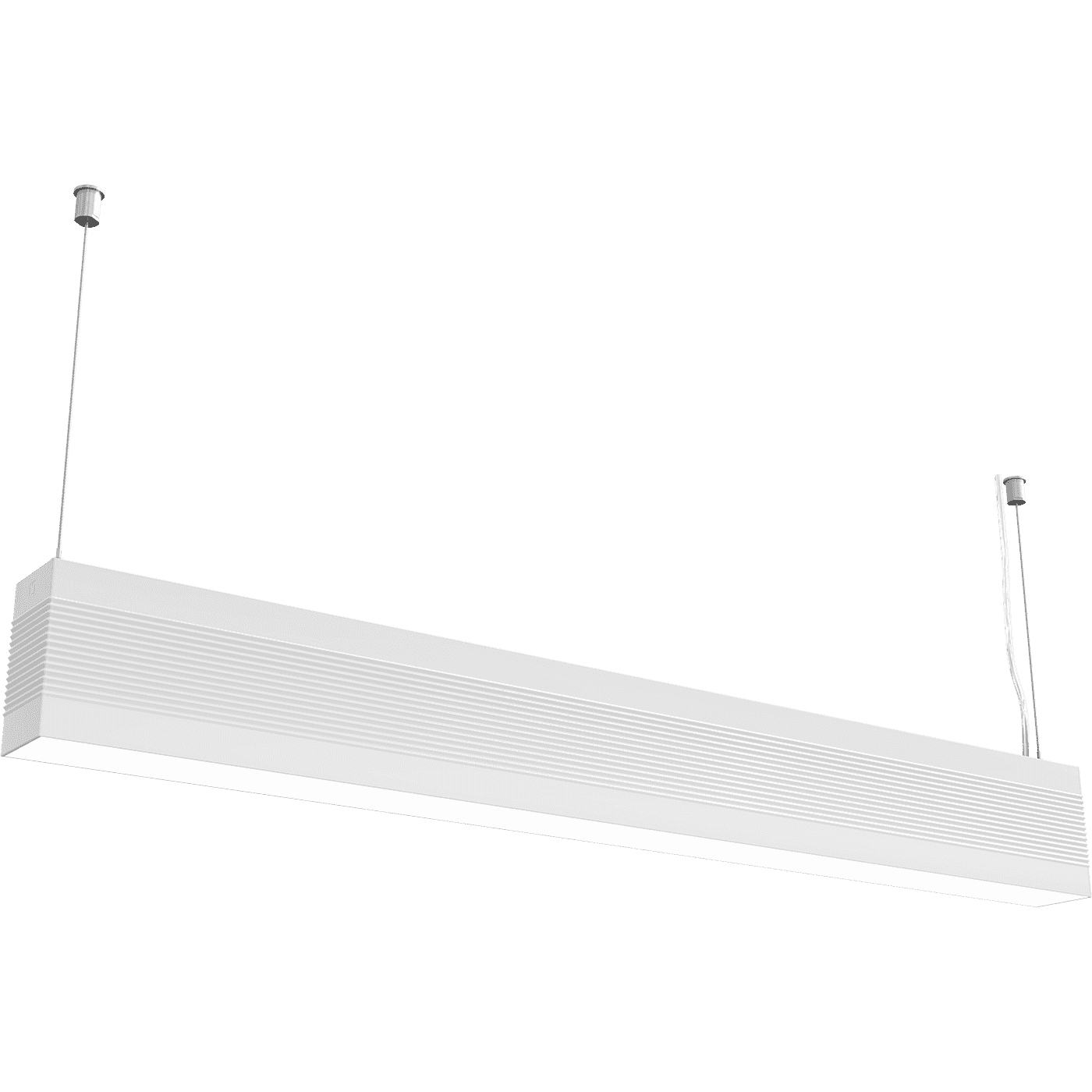

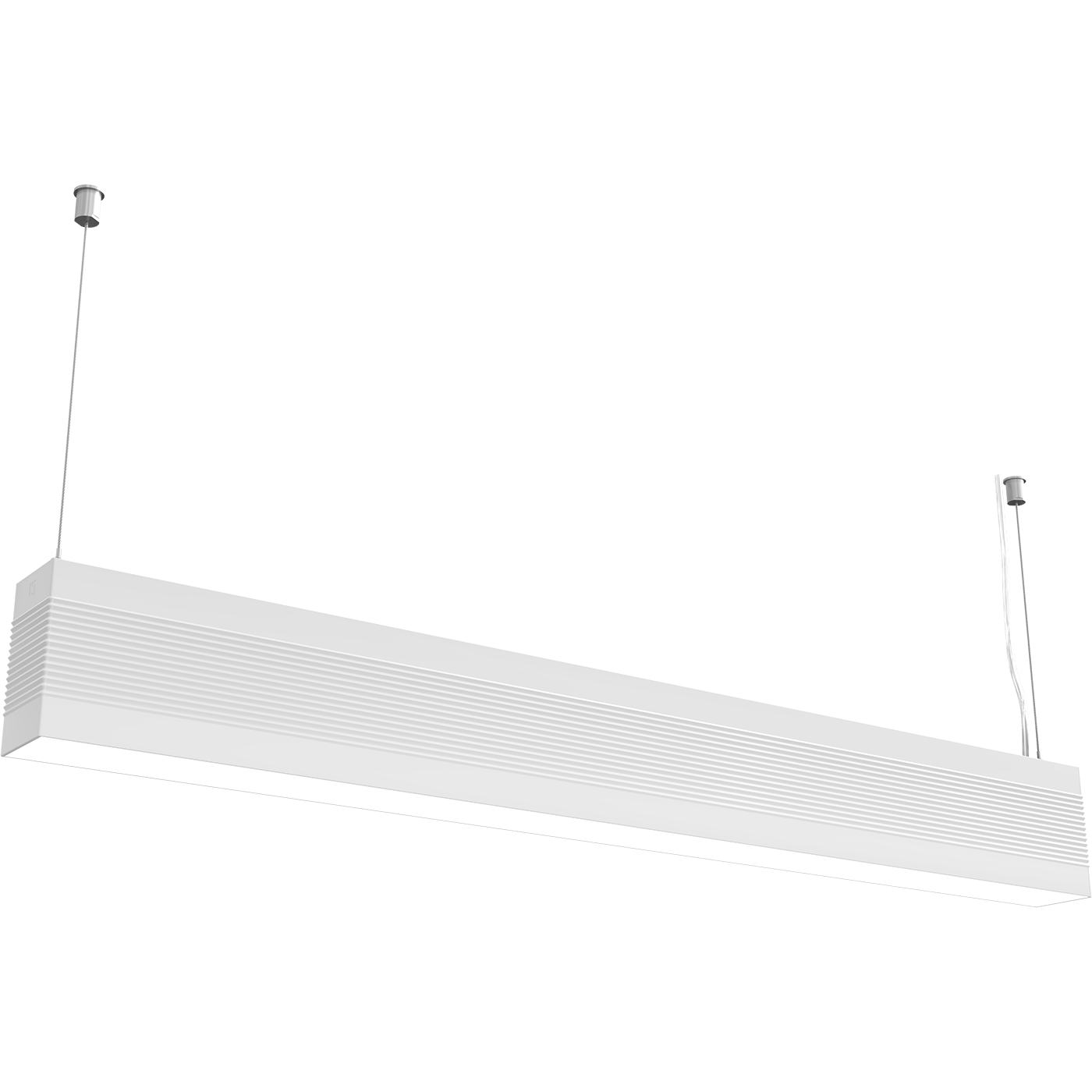

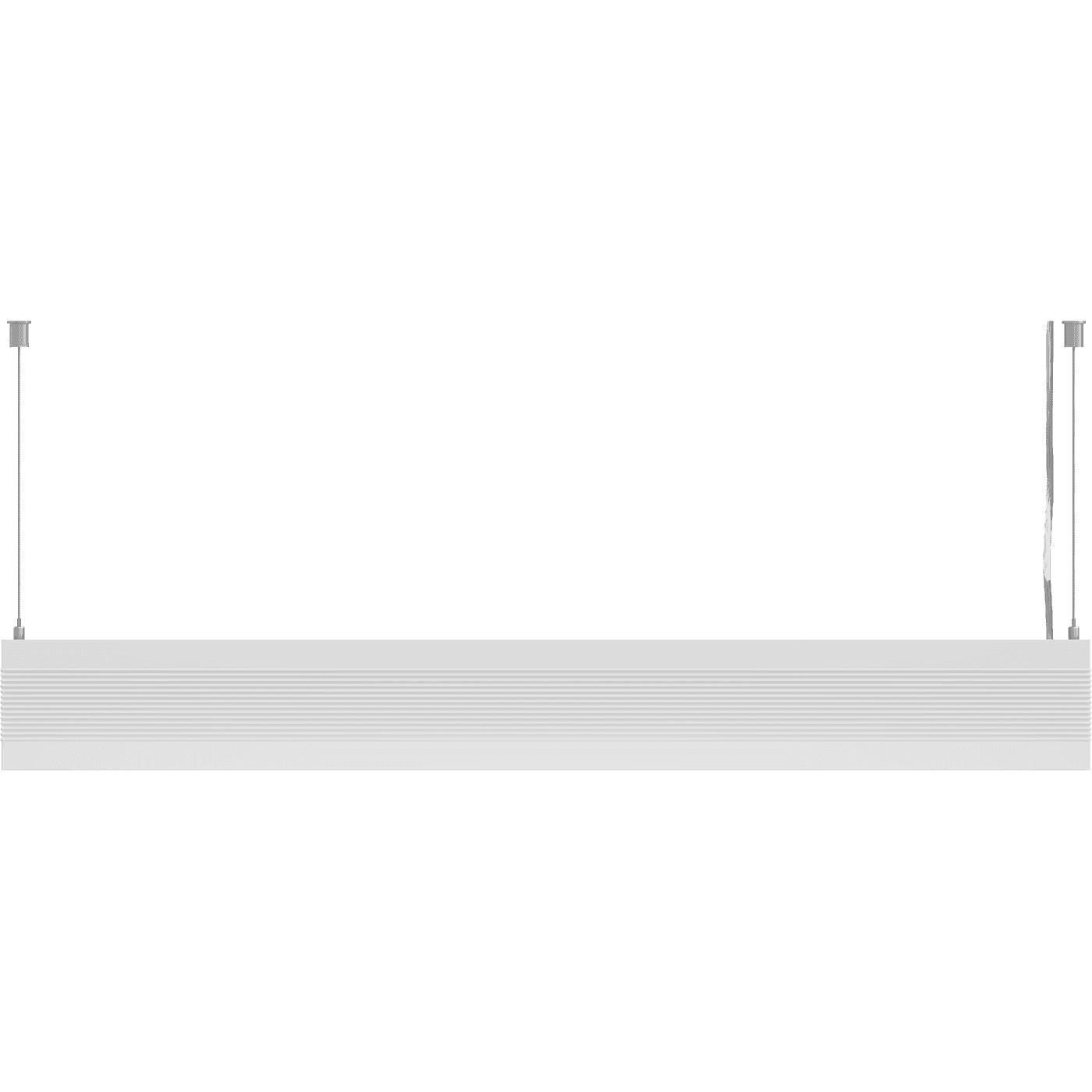

LINER/S DR LED 900 TH S 4000K
LINER/S DR LED 900 TH S 4000K
26 Wluminaire power
2200 lmlight flow
85 lm/Wenergy efficiency
code1477001130
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
26 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
26 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
3 kg
length, mm
843 mm
width, mm
60 mm
height, mm
110 mm
housing color
Металлик
installation length, mm
583 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
50 000 h
code
1477001130
illuminating
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
energy efficiency
85 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
