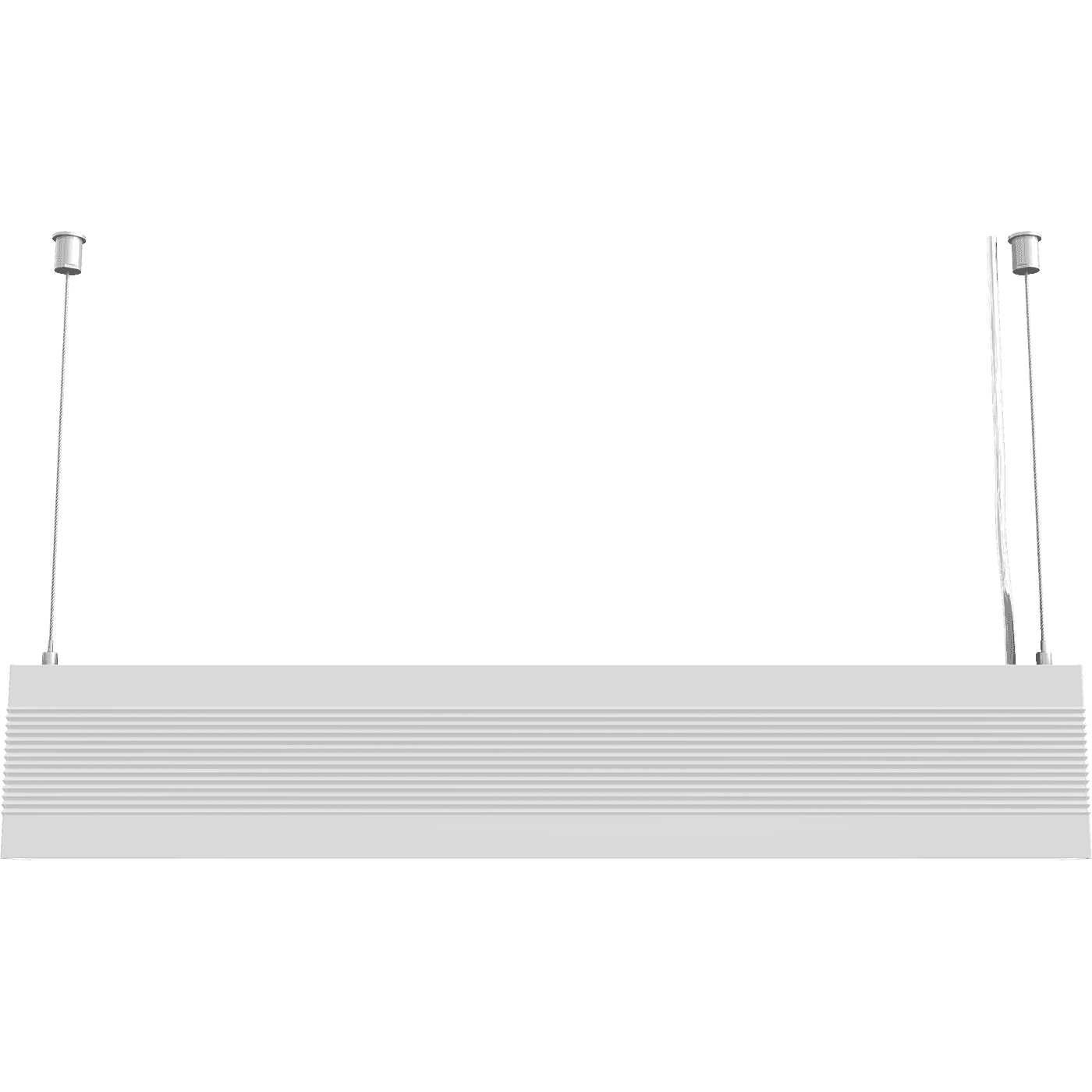

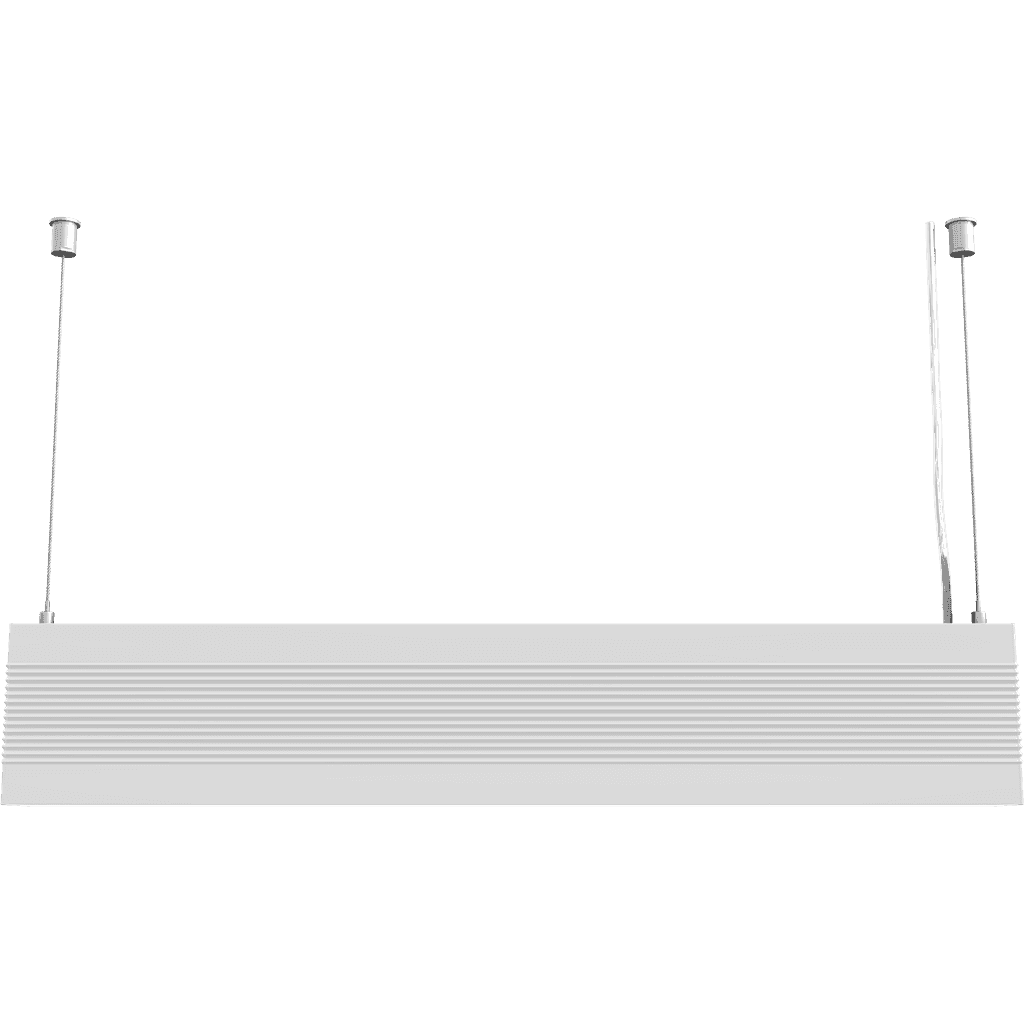

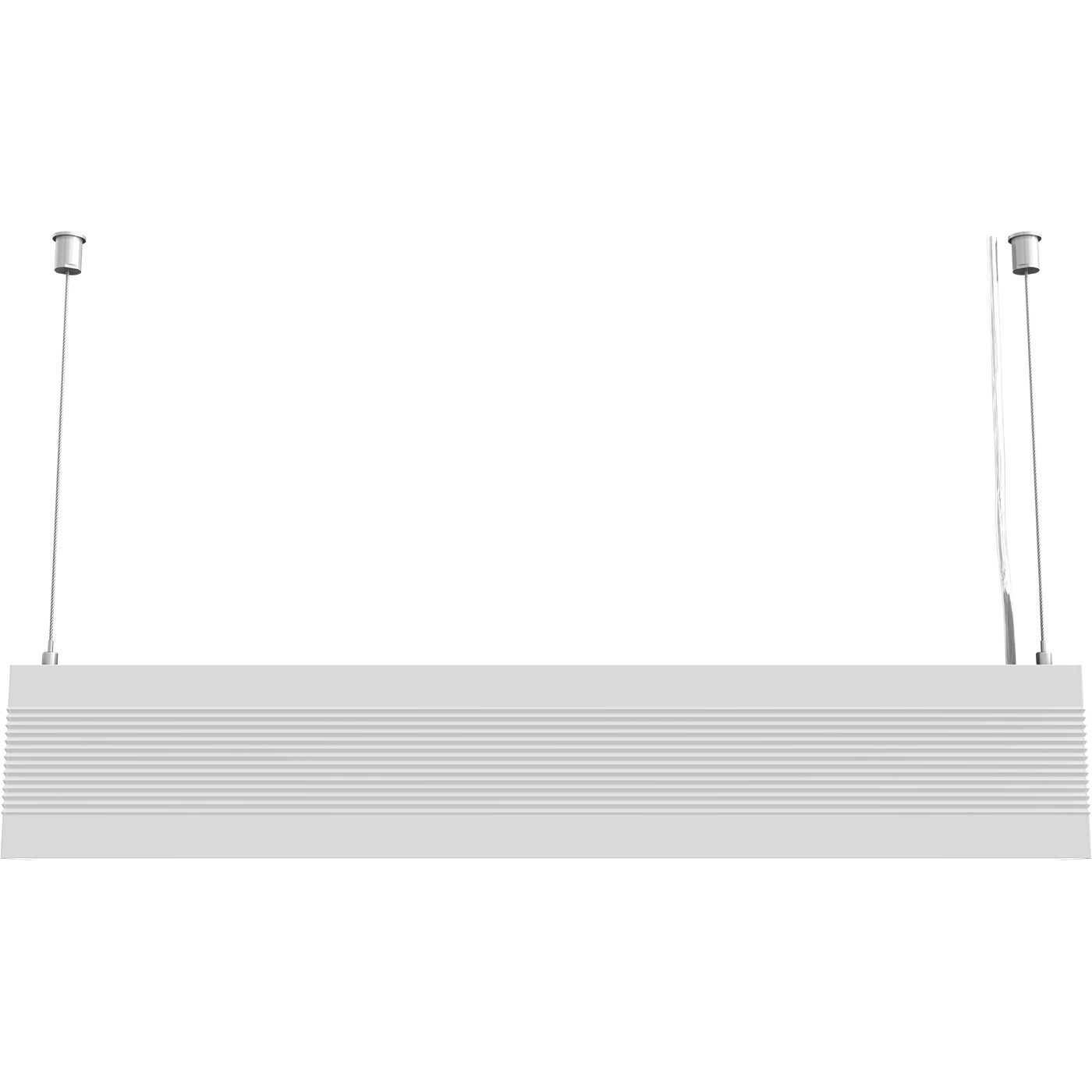

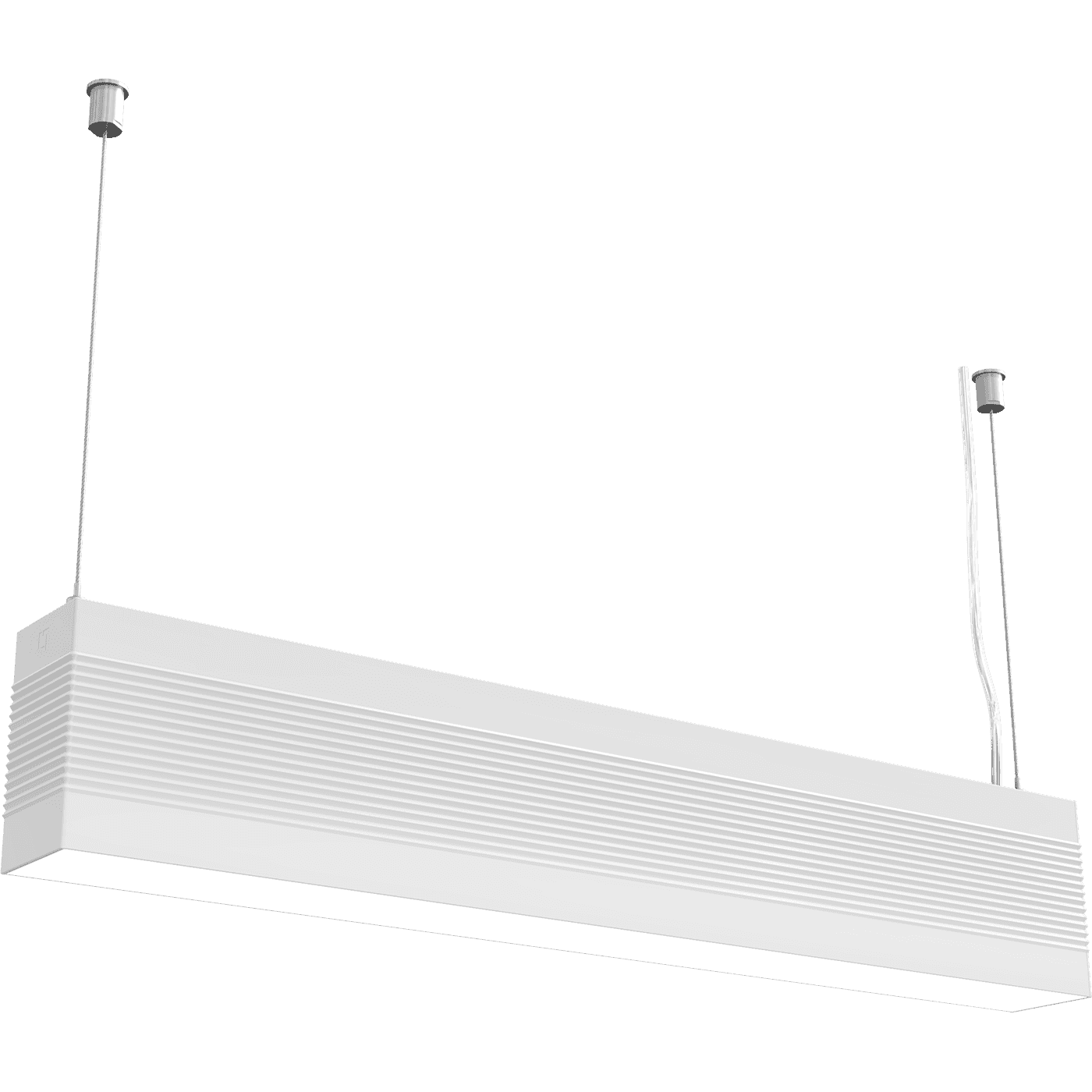

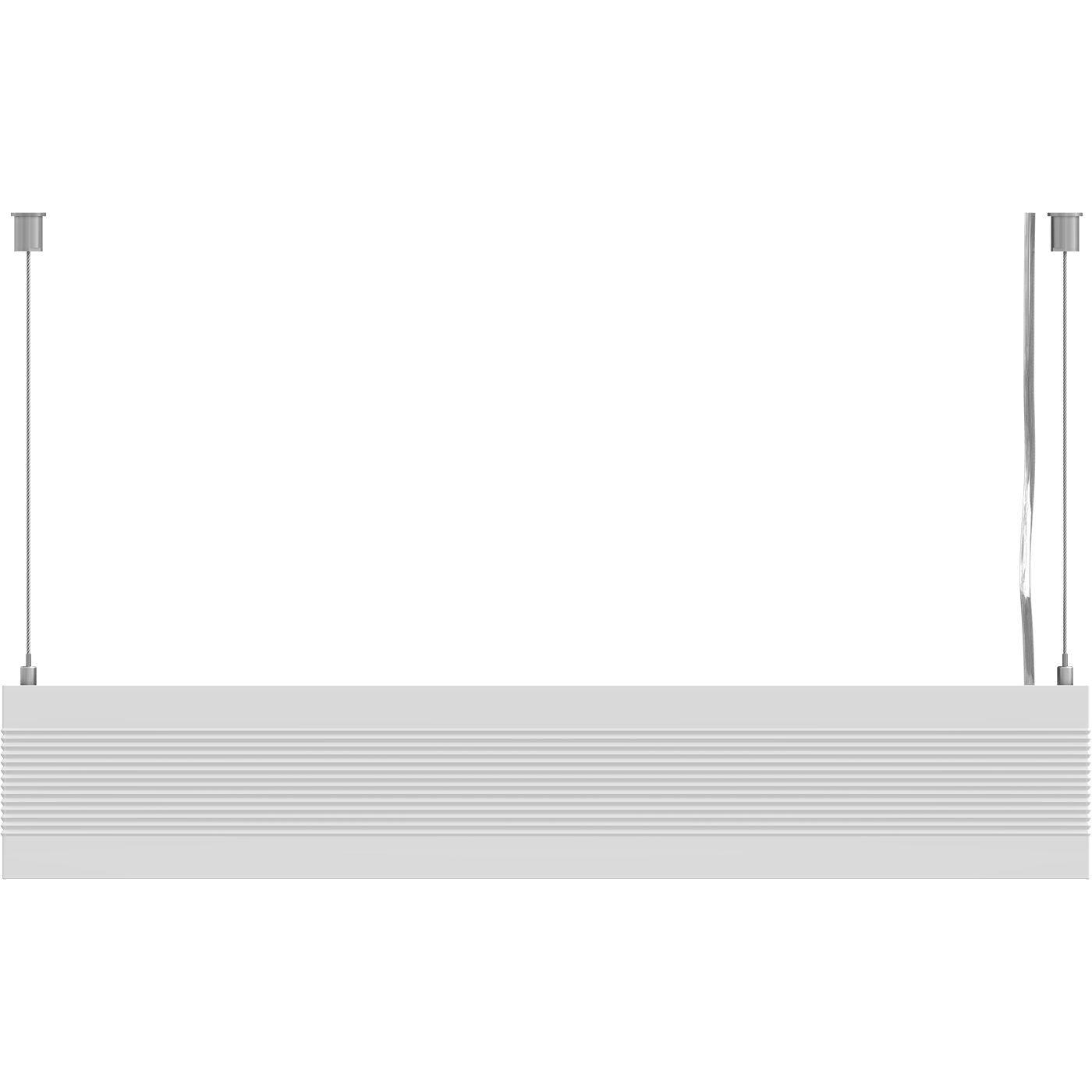

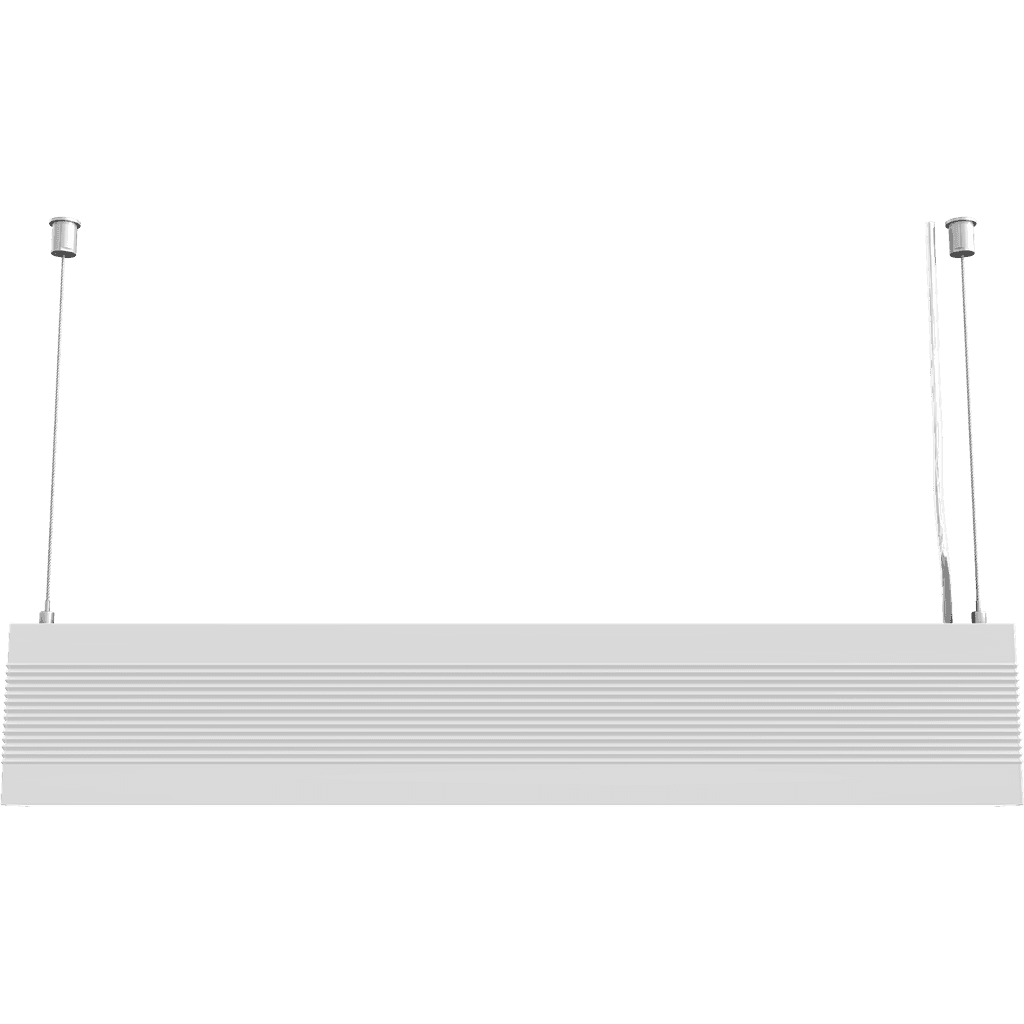

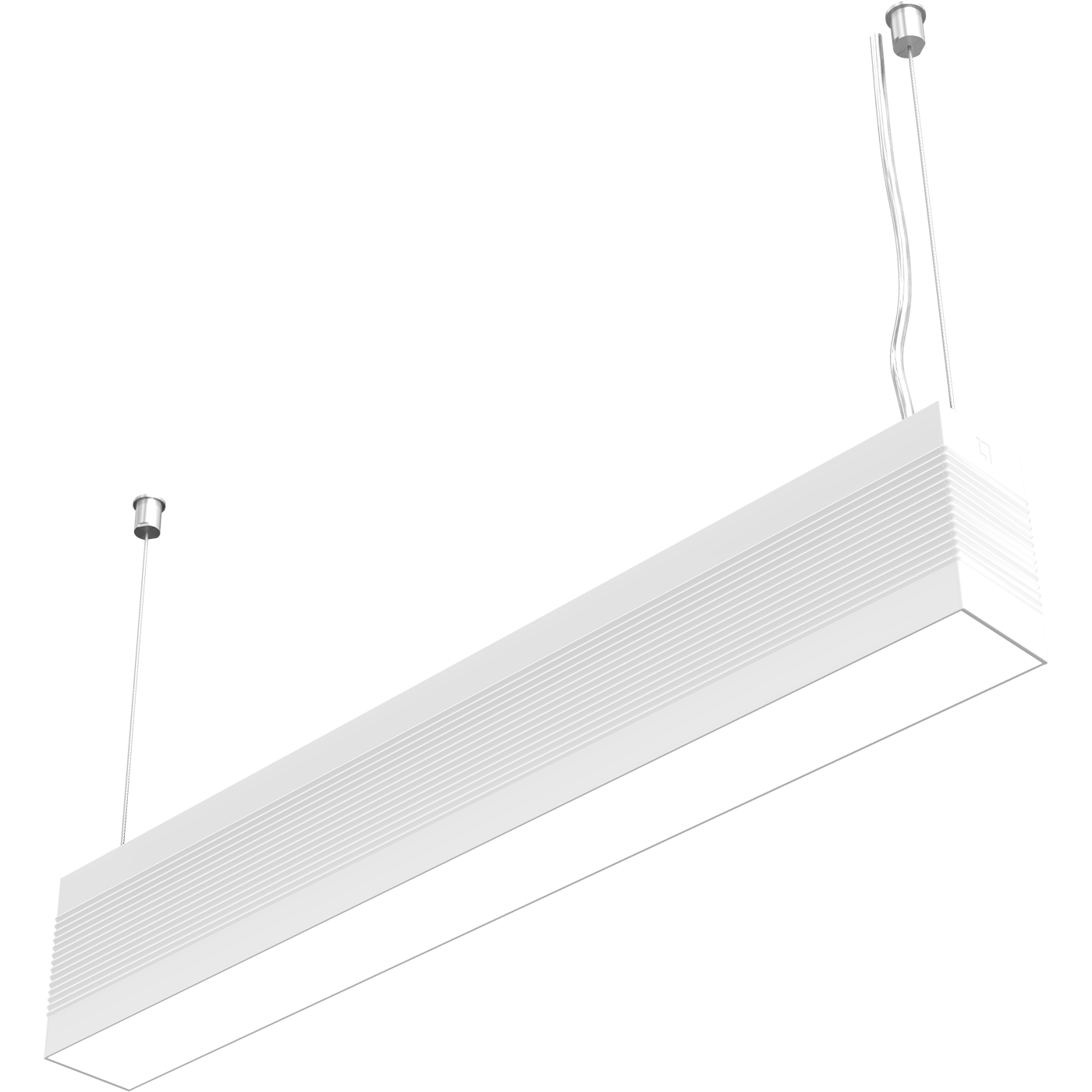

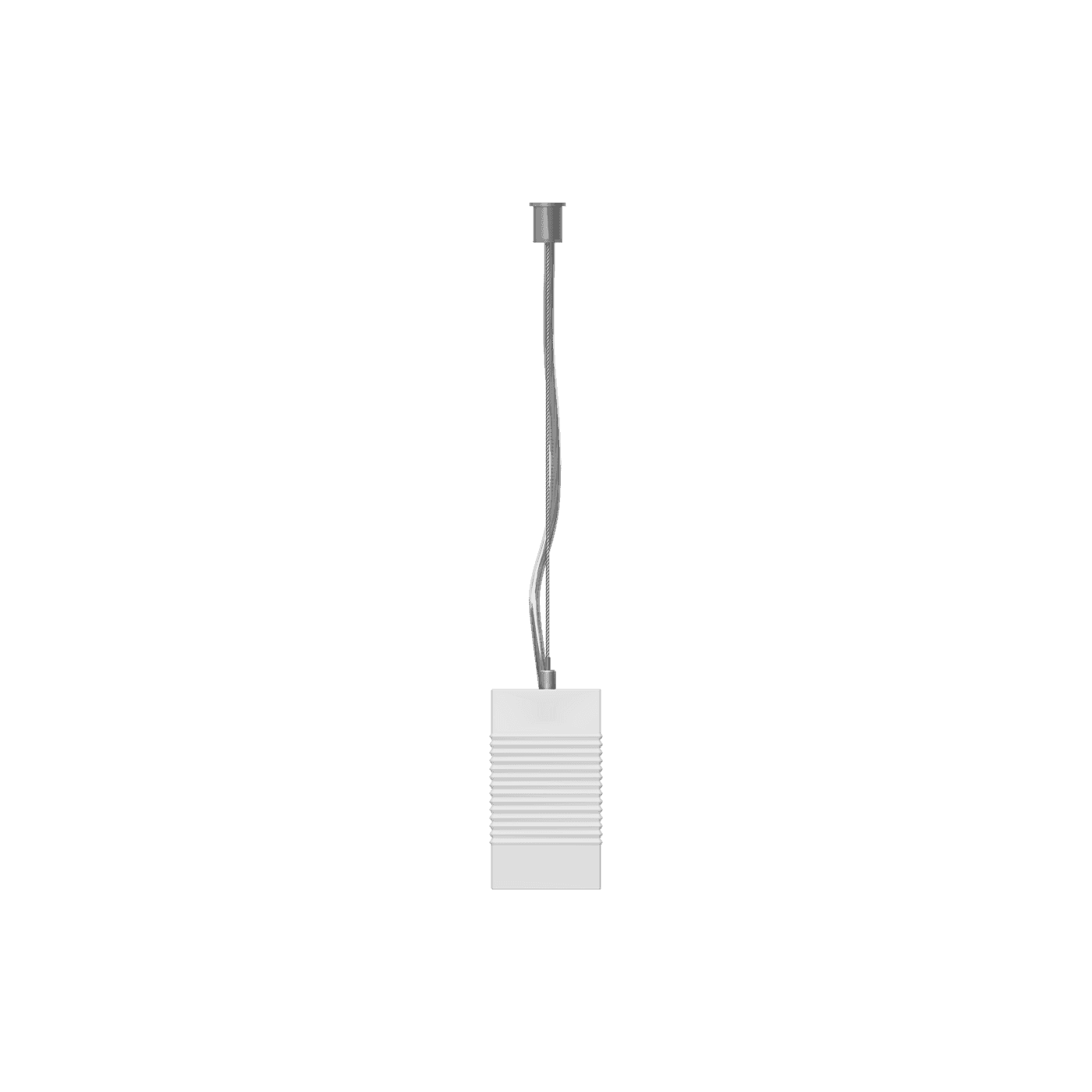

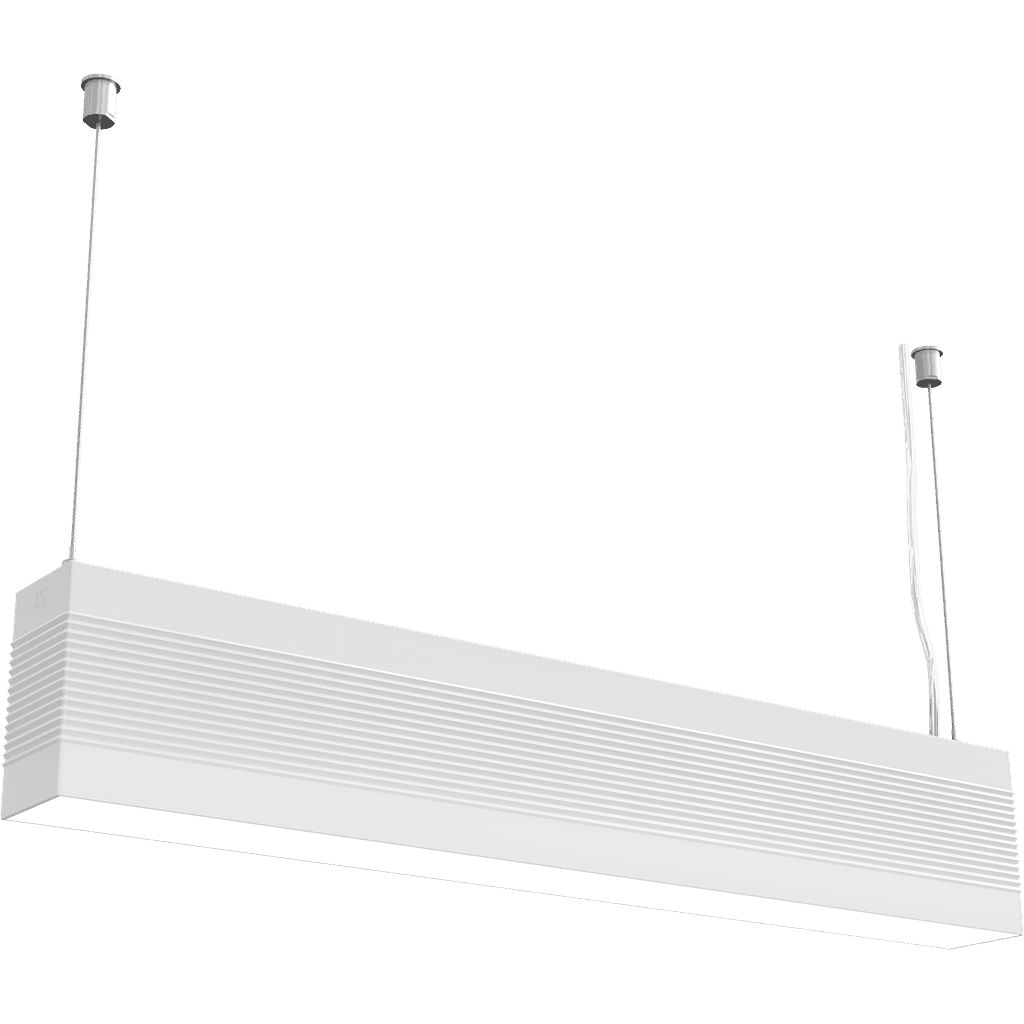

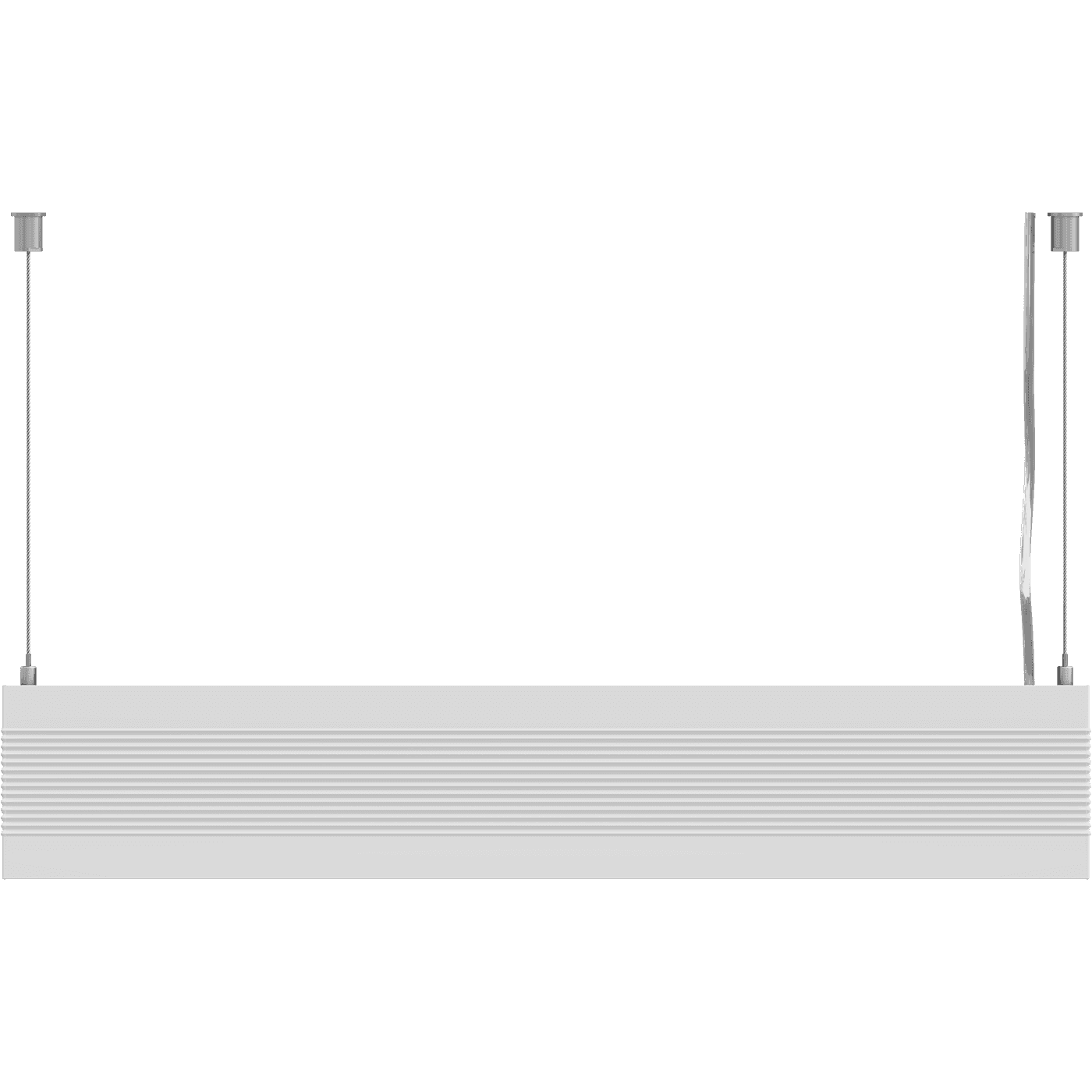

LINER/S DR LED 600 TH B 4000K
model is discontinued
model is discontinued
LINER/S DR LED 600 TH B 4000K
16 Wluminaire power
1400 lmlight flow
88 lm/Wenergy efficiency
code1473001170
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
88 lm/Wcolor rendition index (CRI)
>80light flow
1400 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
88 lm/W
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
16 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
length, mm
562 mm
width, mm
60 mm
height, mm
110 mm
installation length, mm
350 mm
weight
1.6 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1473001170
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax624 kB
photometric files
ies134.1 kB
jpg120.2 kB
ldt83.6 kB
csv423 B
documents
passport3 mB
сертификаты
Russian origin631.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
