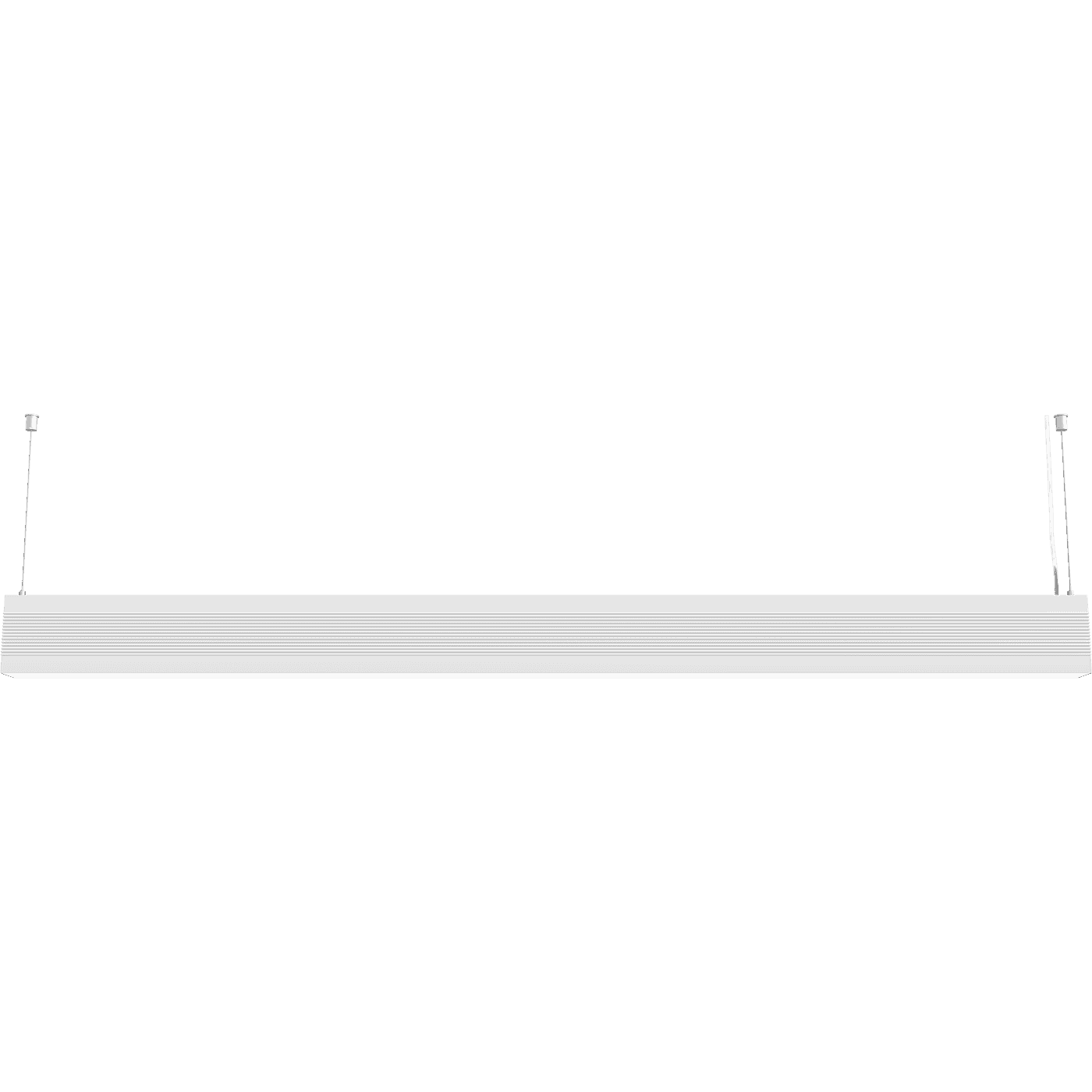

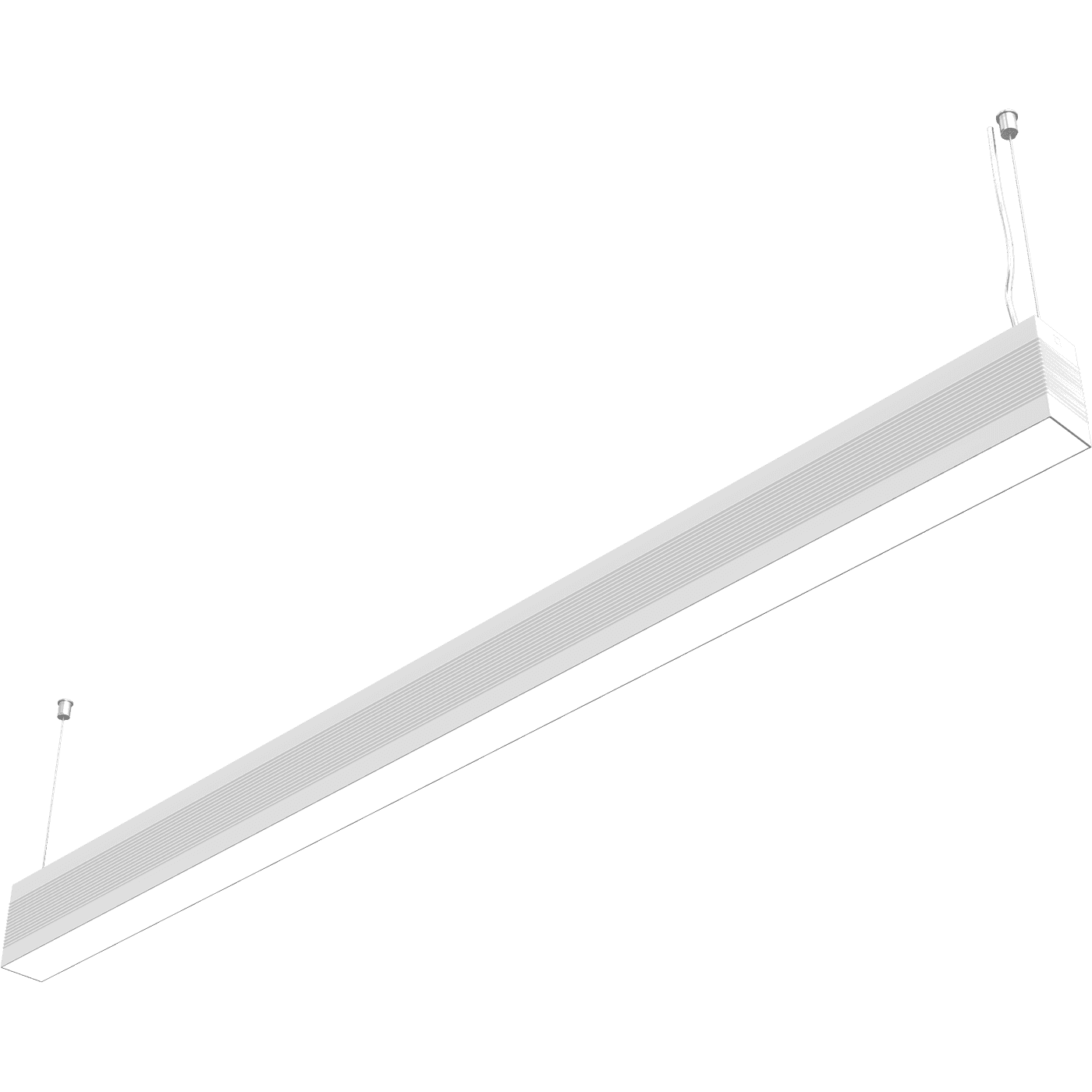

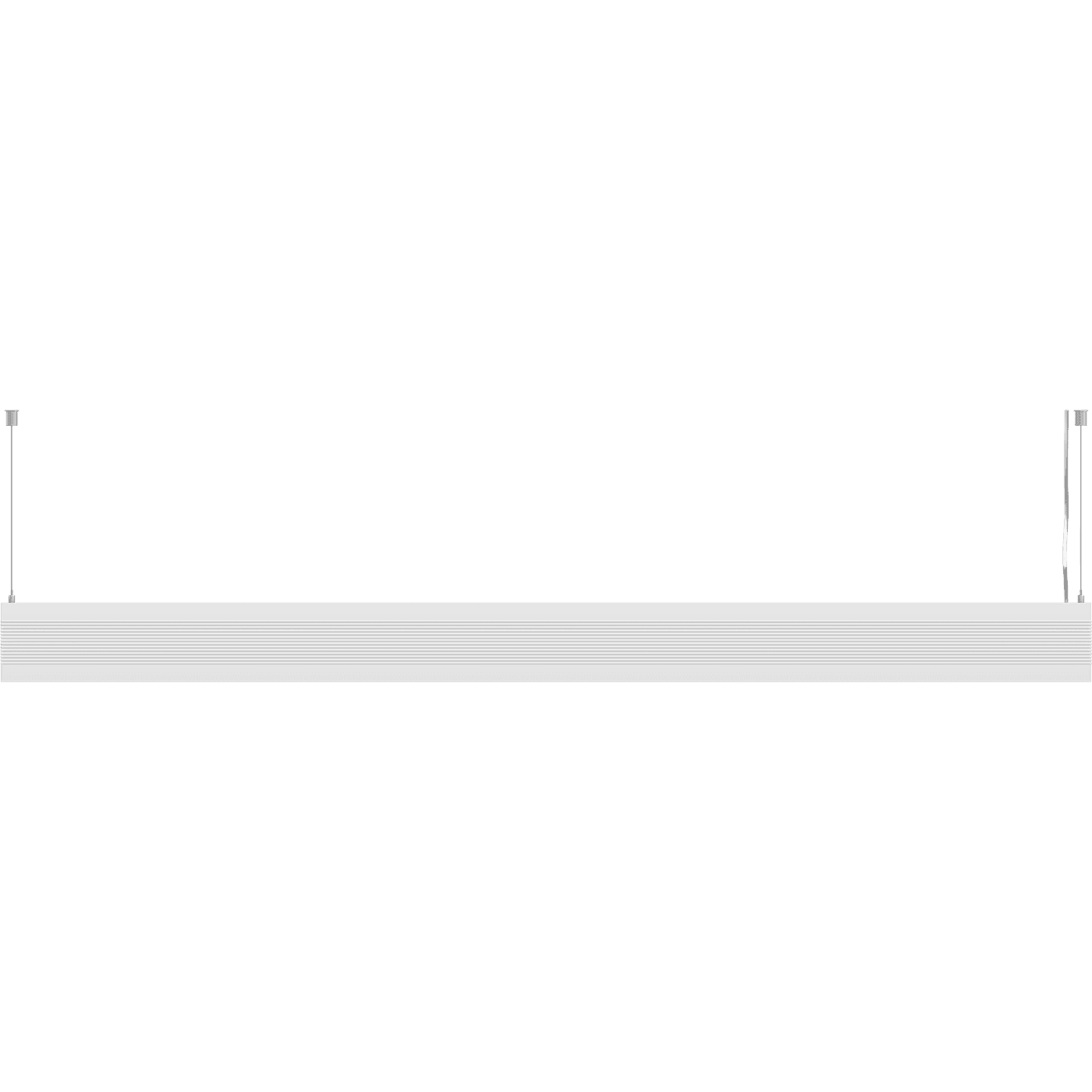

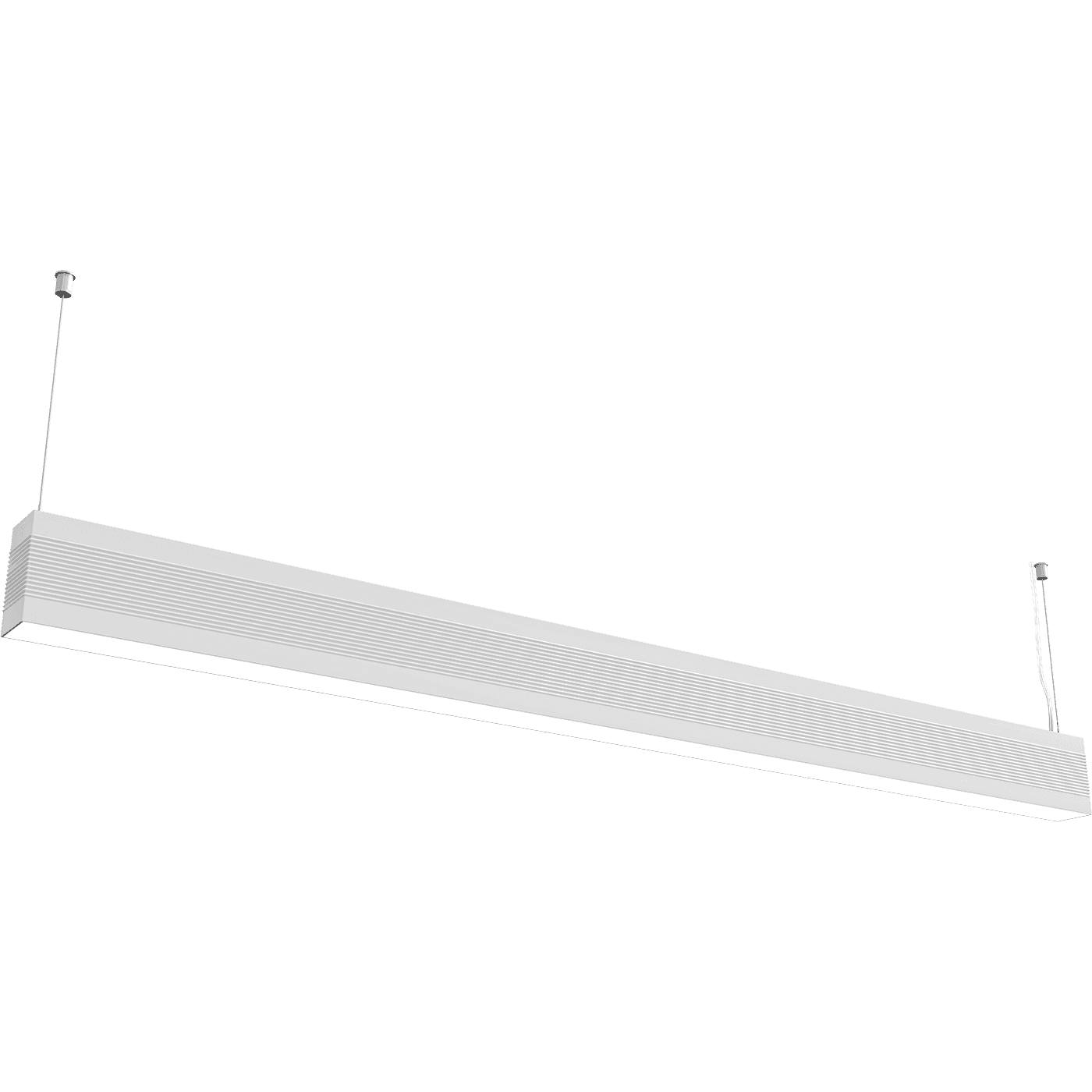

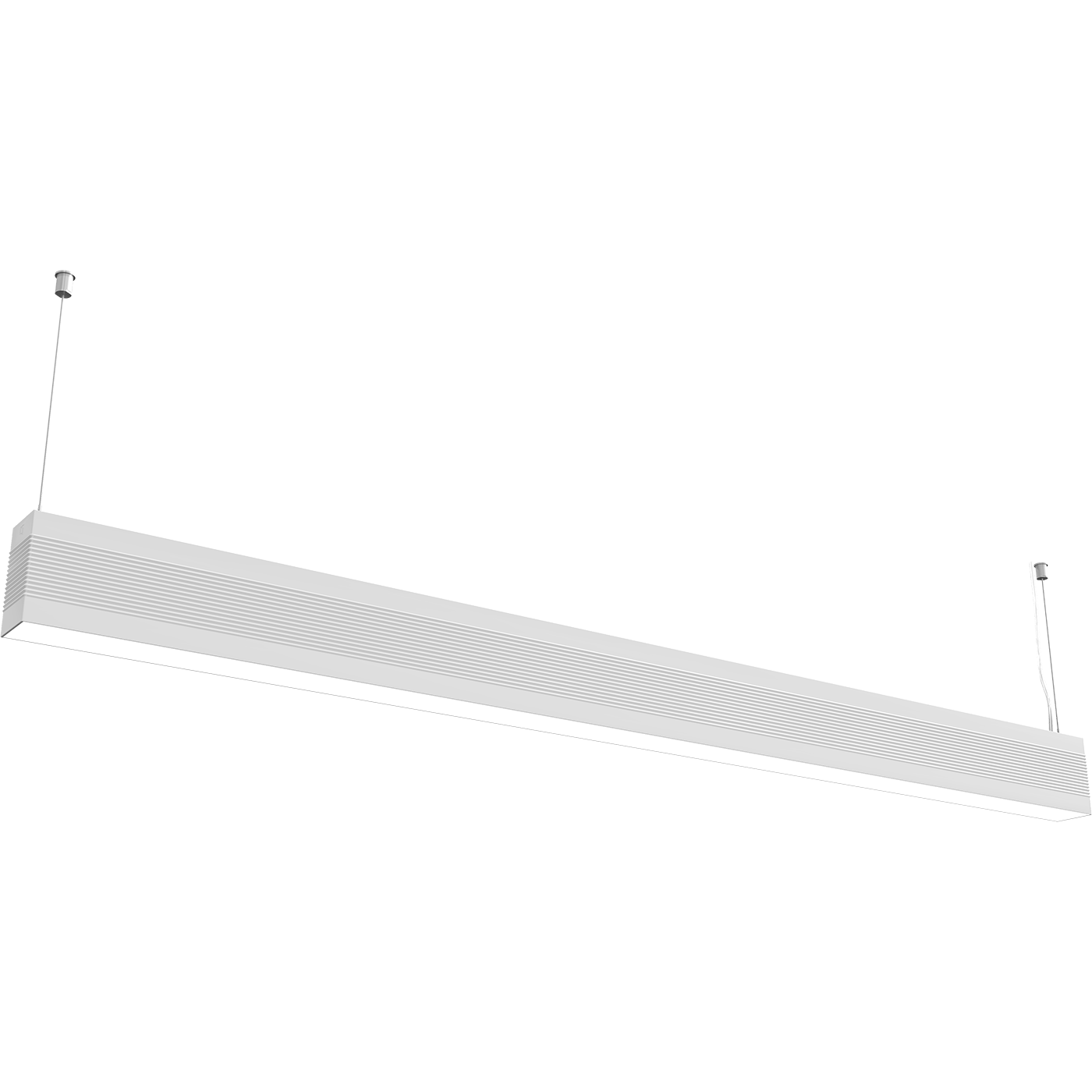

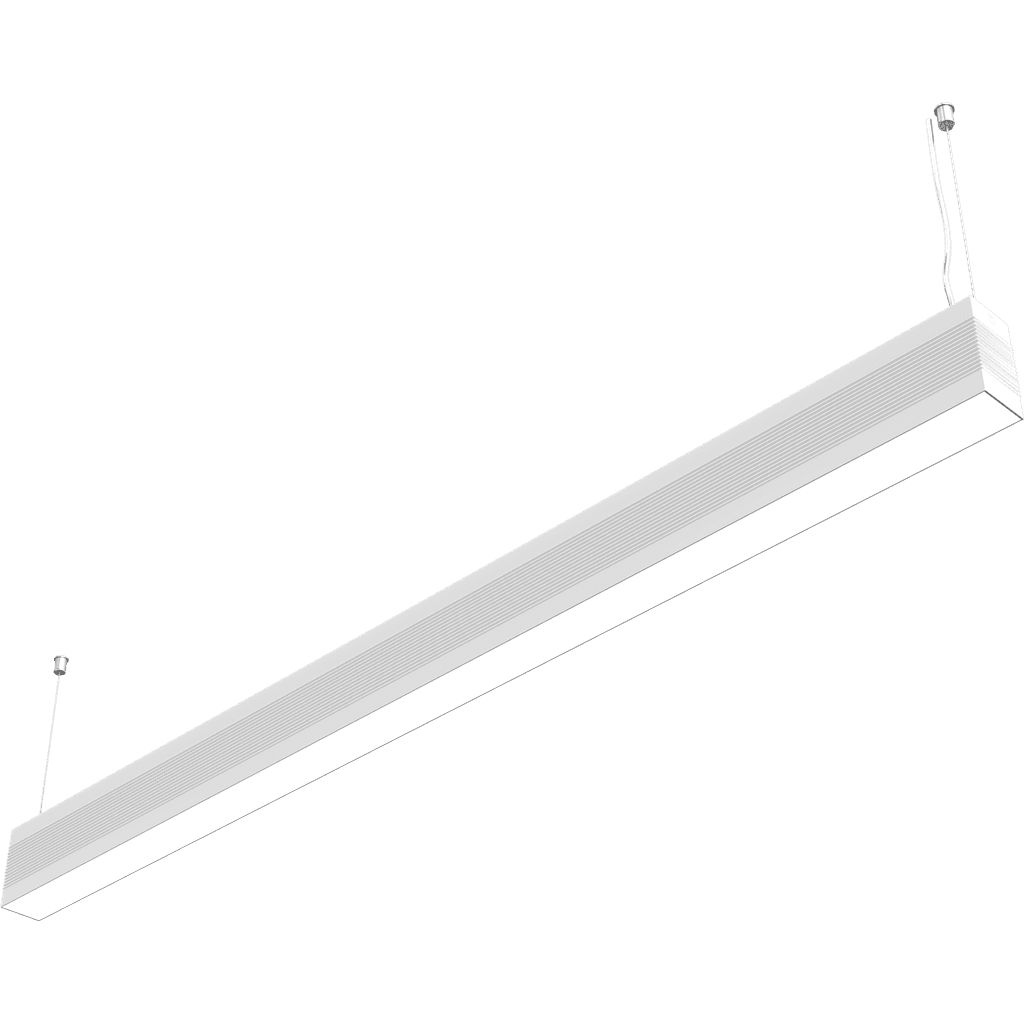

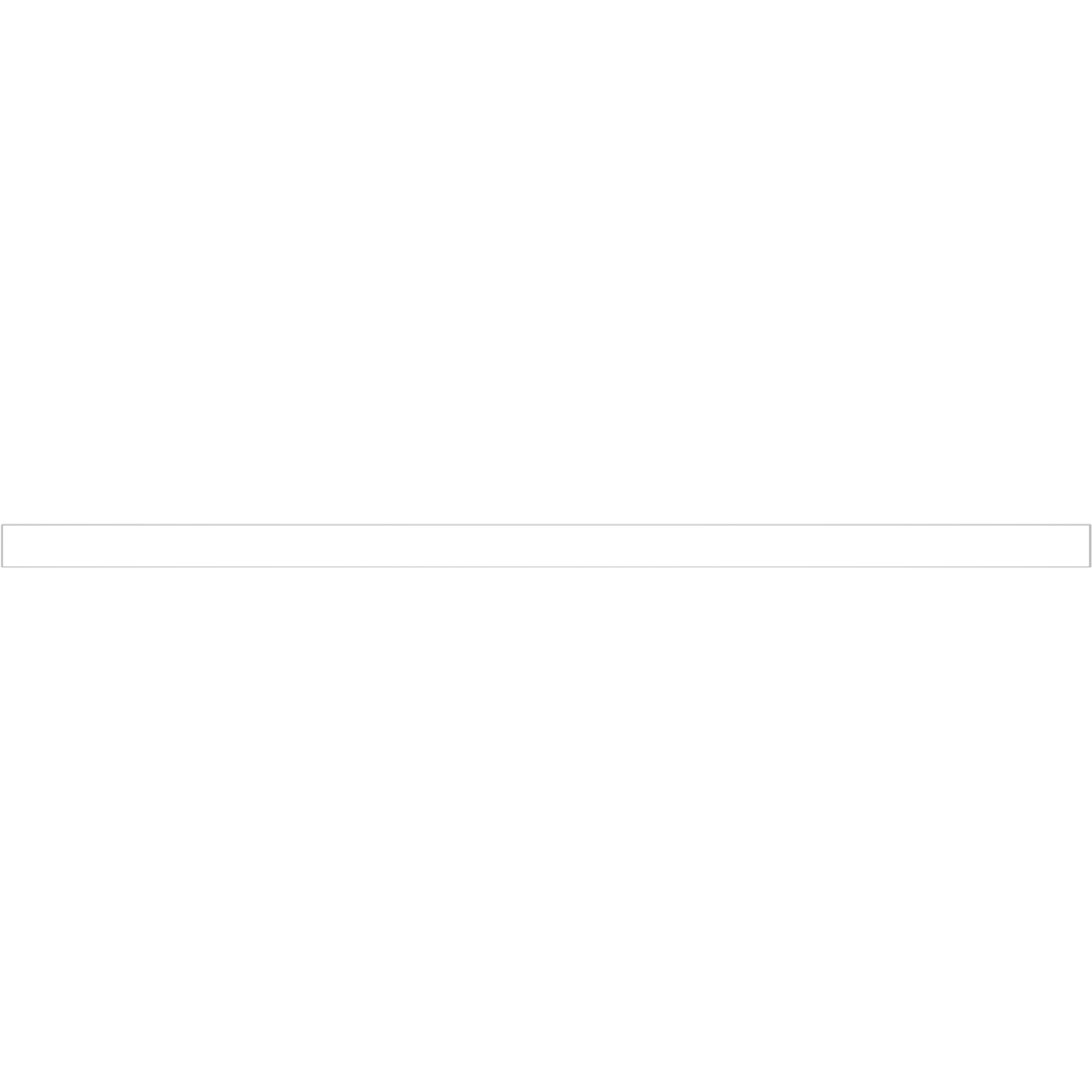

LINER/S DR LED 1500 TH B 3000K
LINER/S DR LED 1500 TH B 3000K
36 Wluminaire power
3800 lmlight flow
106 lm/Wenergy efficiency
code1473001450
color temperature3000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
36 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
5.3 kg
length, mm
1404 mm
width, mm
60 mm
height, mm
110 mm
housing color
Черный
installation length, mm
1310 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1473001450
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<2%
energy efficiency
106 lm/W

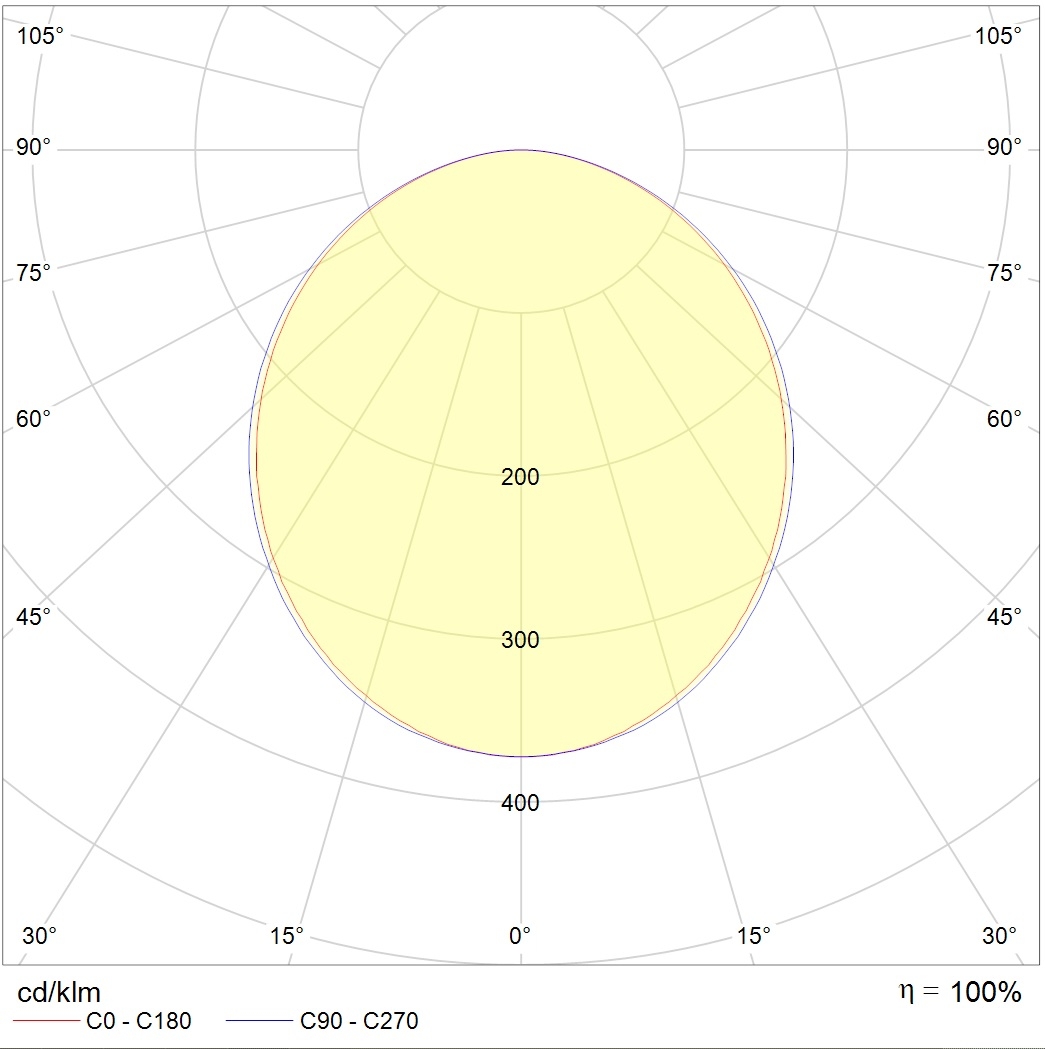

beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg120 kB
ldt84.3 kB
csv424 B
documents
passport3 mB
сертификаты
Russian origin631.4 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
