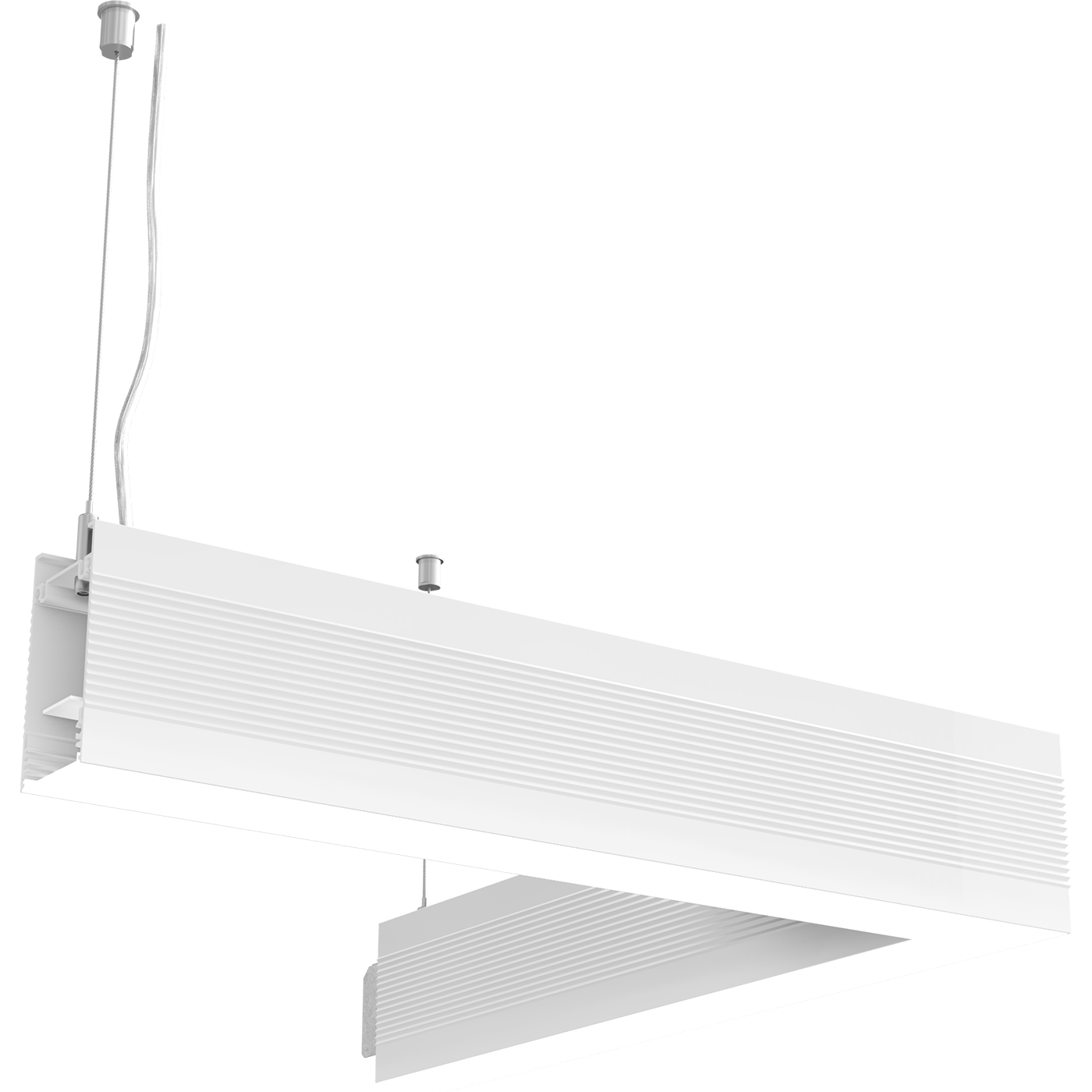

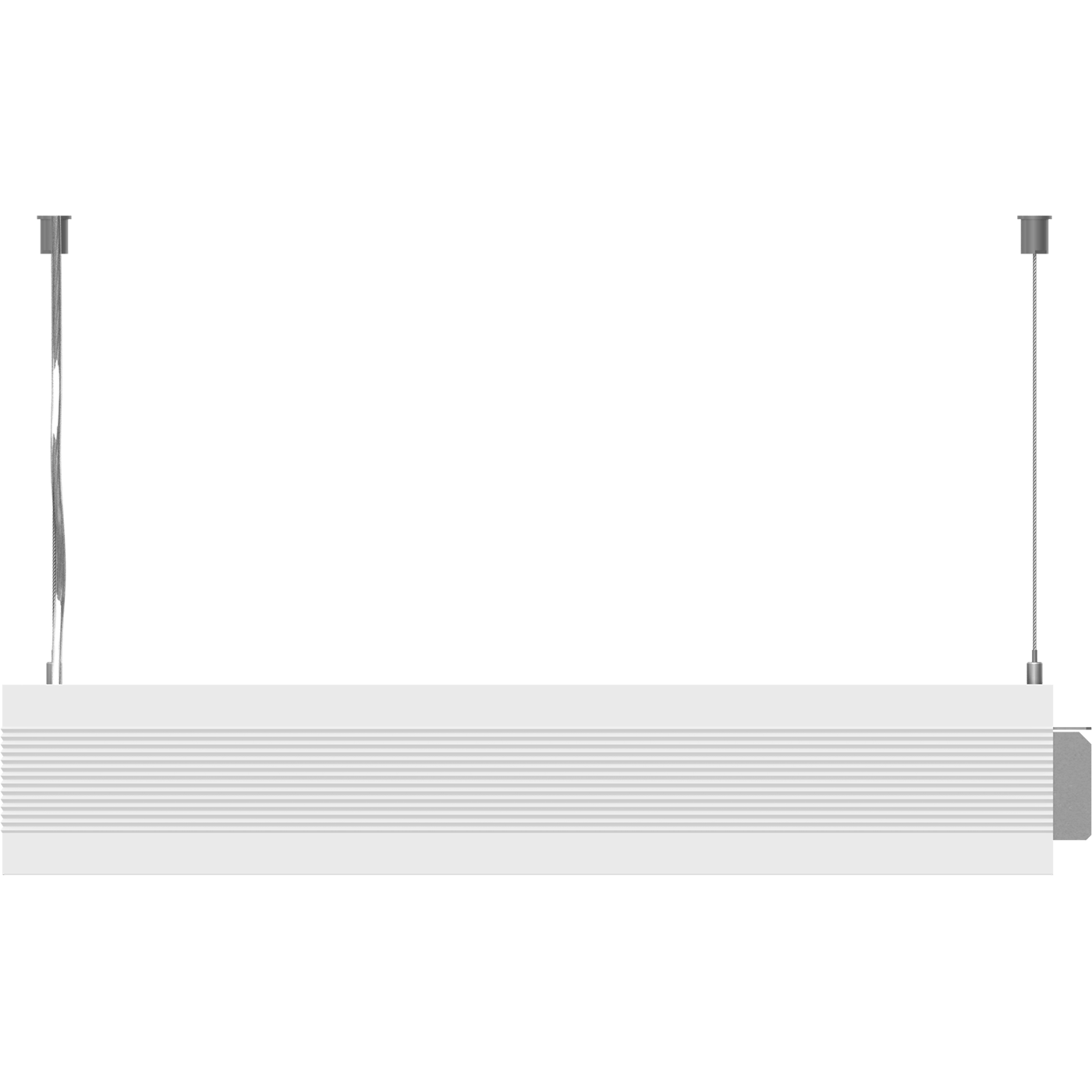

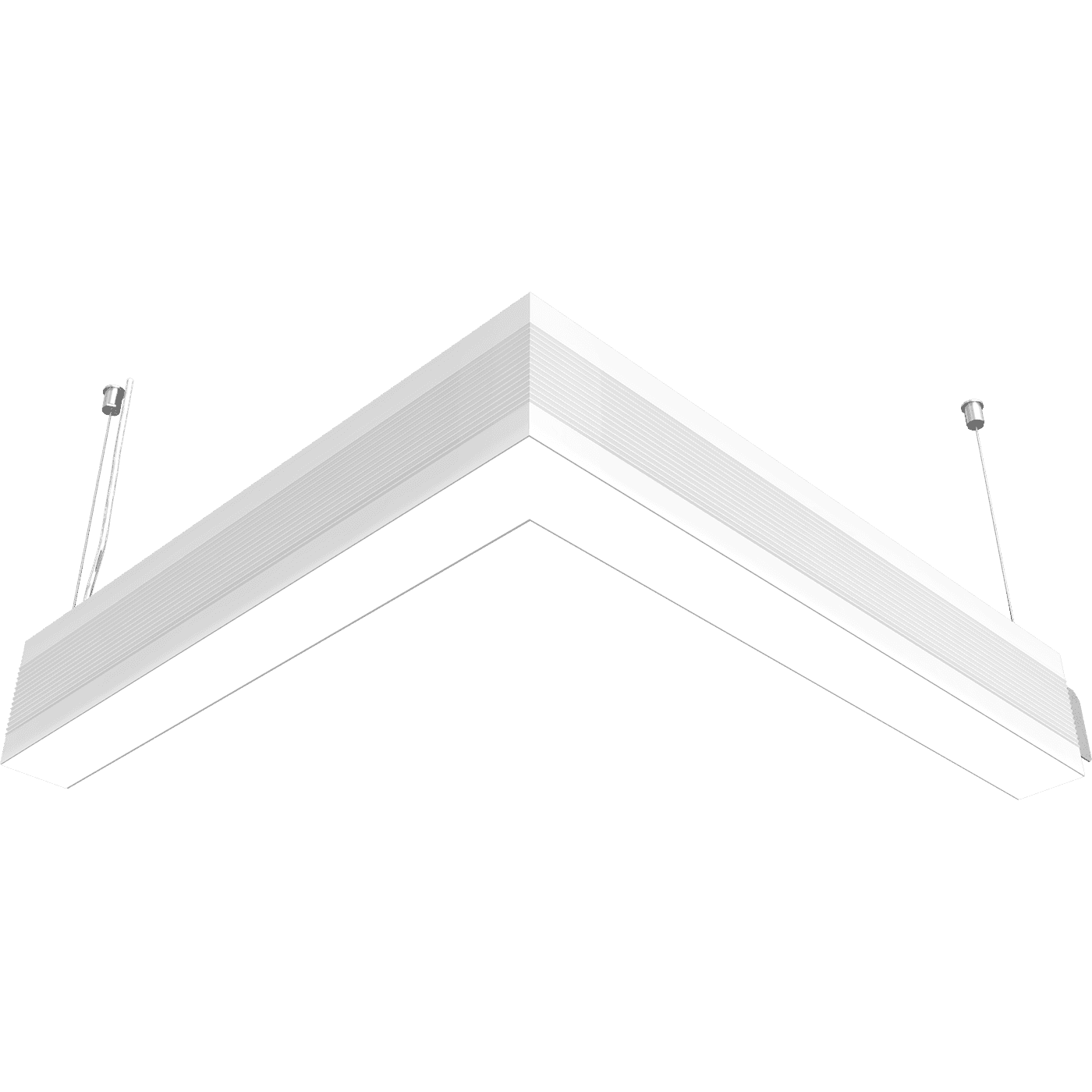

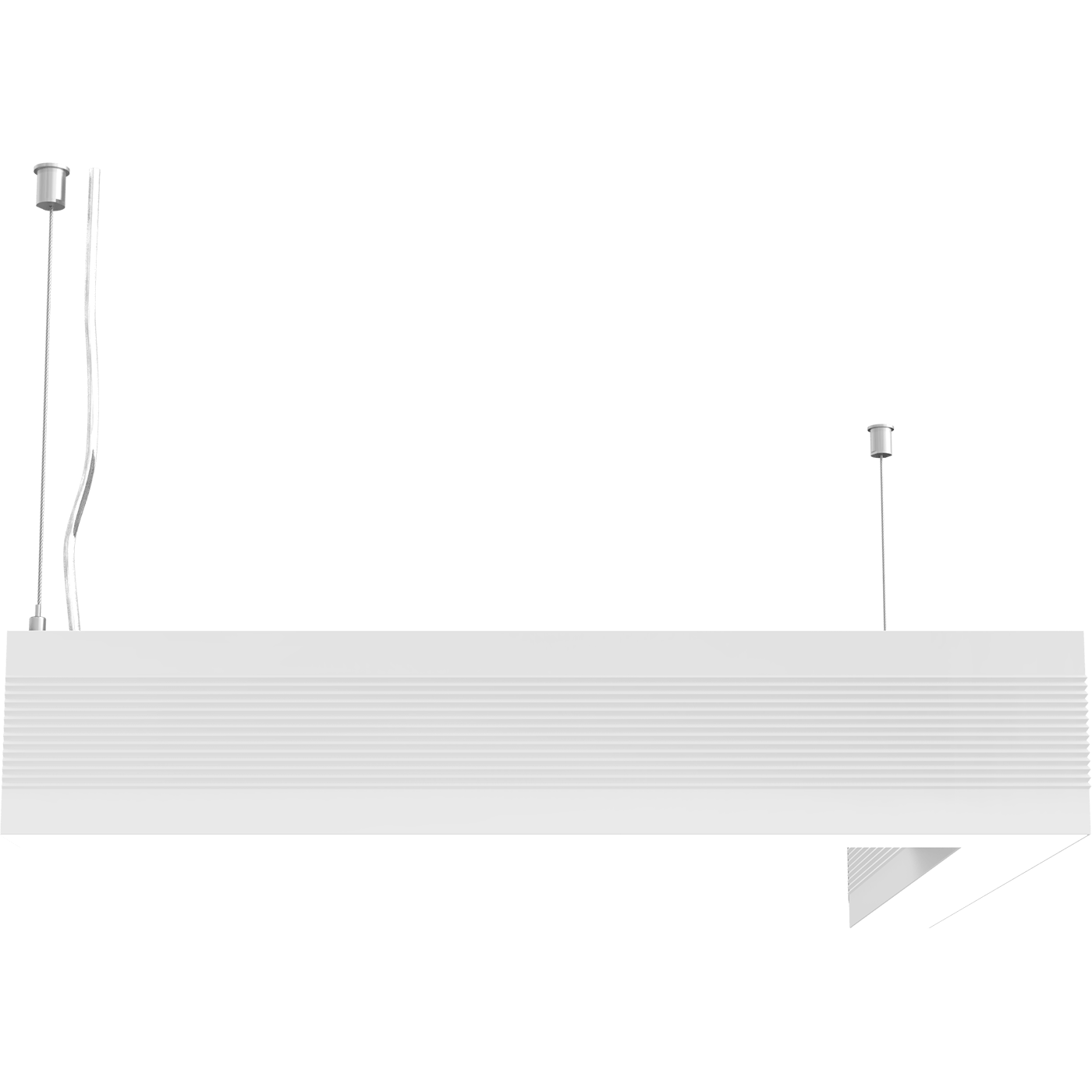

LINER/S CC LED 600 TH W HFD 4000K
LINER/S CC LED 600 TH W HFD 4000K
32 Wluminaire power
2800 lmlight flow
88 lm/Wenergy efficiency
code1473000560
color temperature4000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
electric shock protection
Istarting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
32 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
material
Алюминий
housing color
Белый
length, mm
607 mm
width, mm
579 mm
height, mm
110 mm
weight
3.4 kg
climatic performance
УХЛ4*
installation length, mm
400 mm
installation width, mm
350 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1473000560
energy efficiency class
A
illuminating
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
88 lm/W
LMS options
dimming
DALI
model files
model files
CAD/BIM files
documents
сертификаты
CAD/BIM files
CAD model 3DS15.1 kB
model 3dMax652 kB
documents
passport3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
