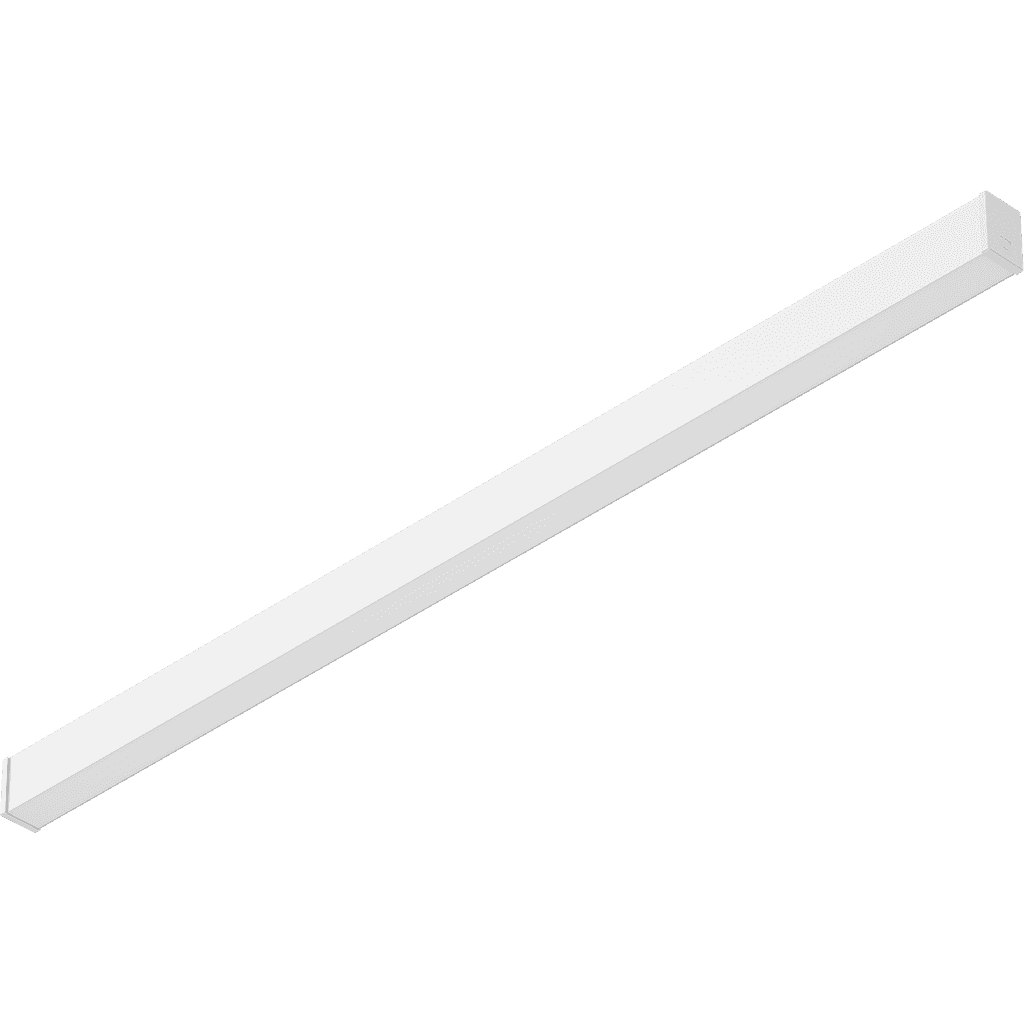

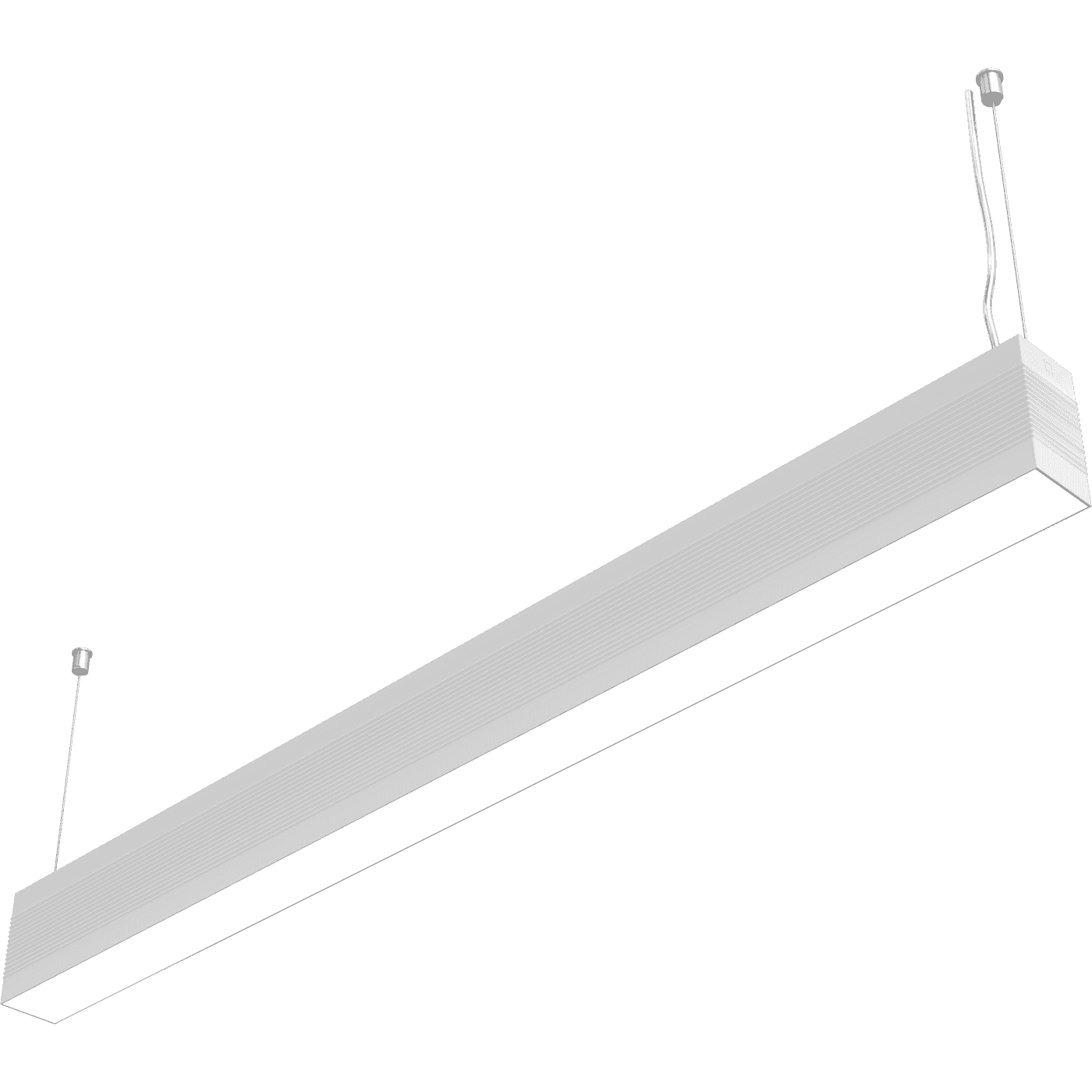

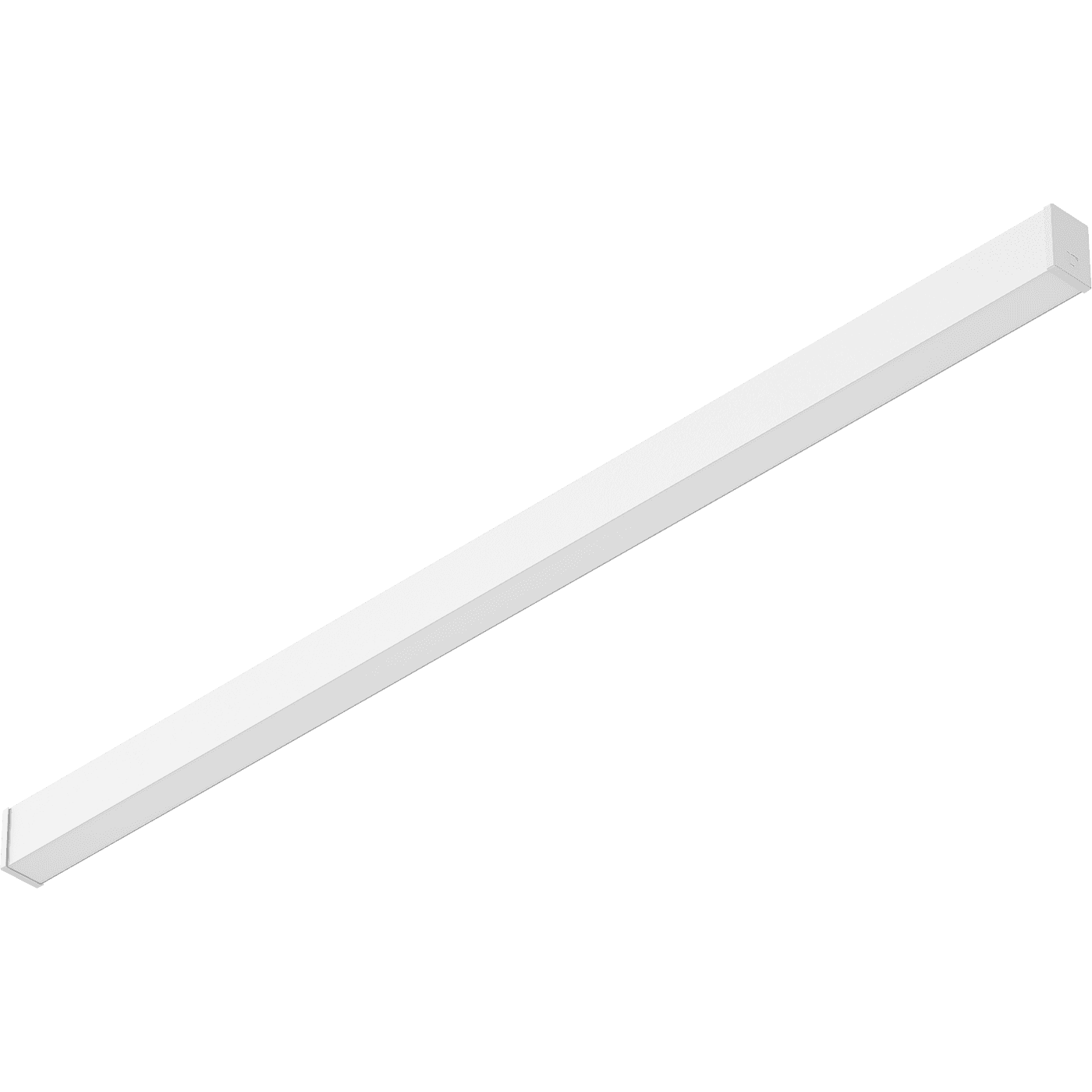

LINER/S 60 LED (1800) 840 WH DR
archive
archive

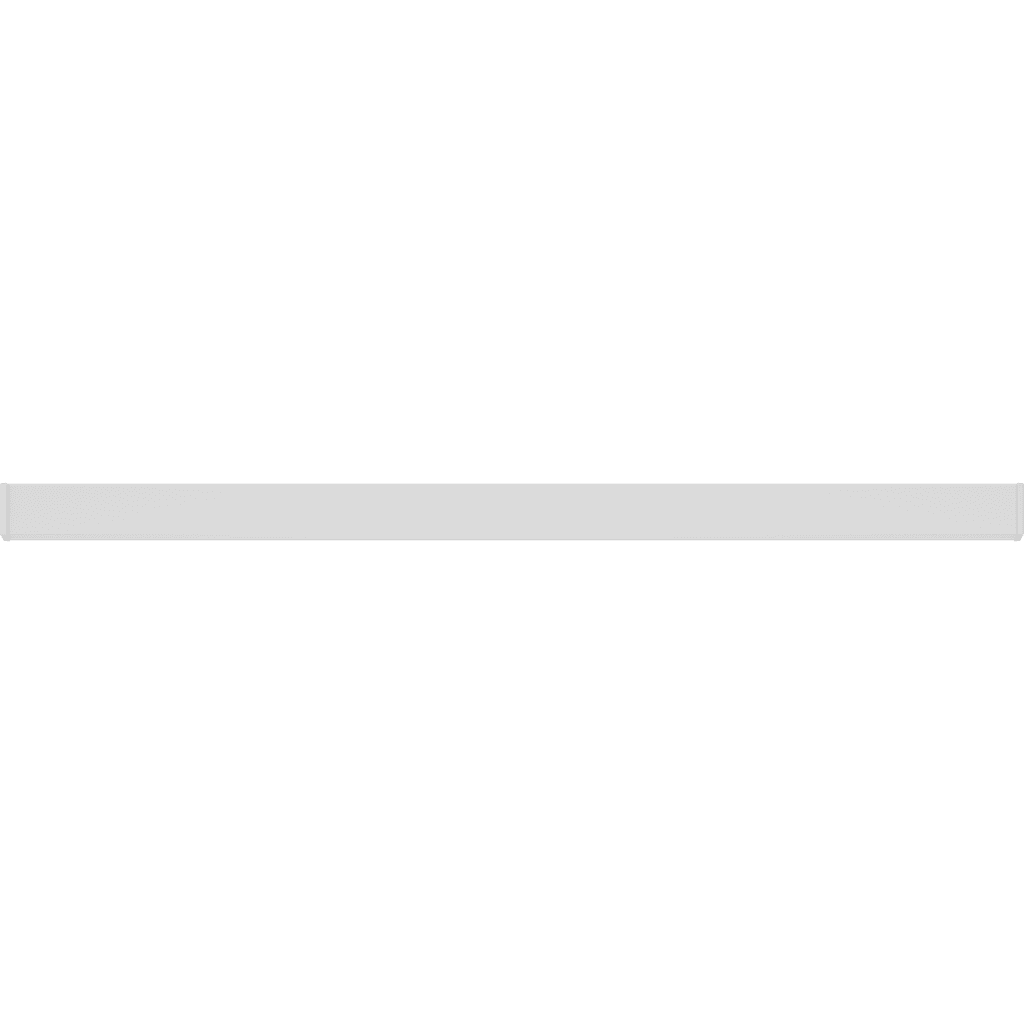

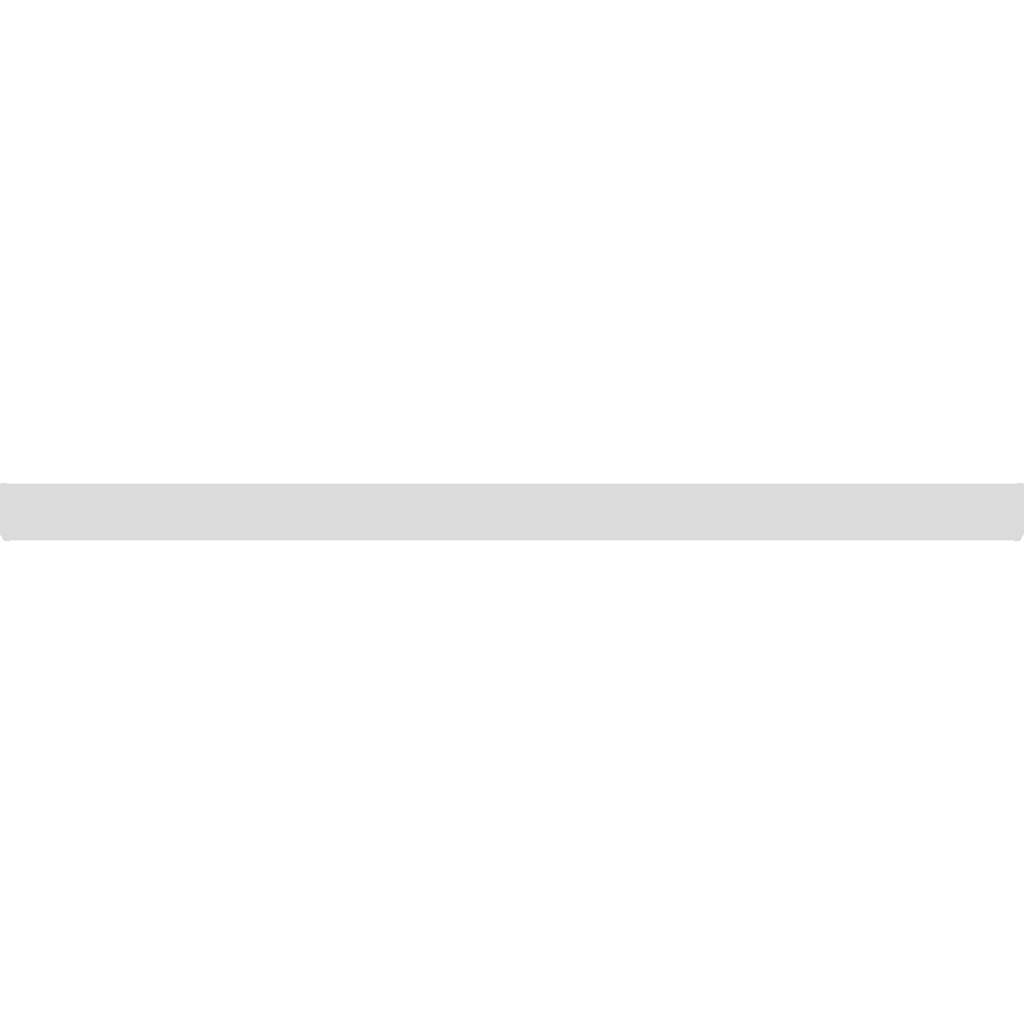

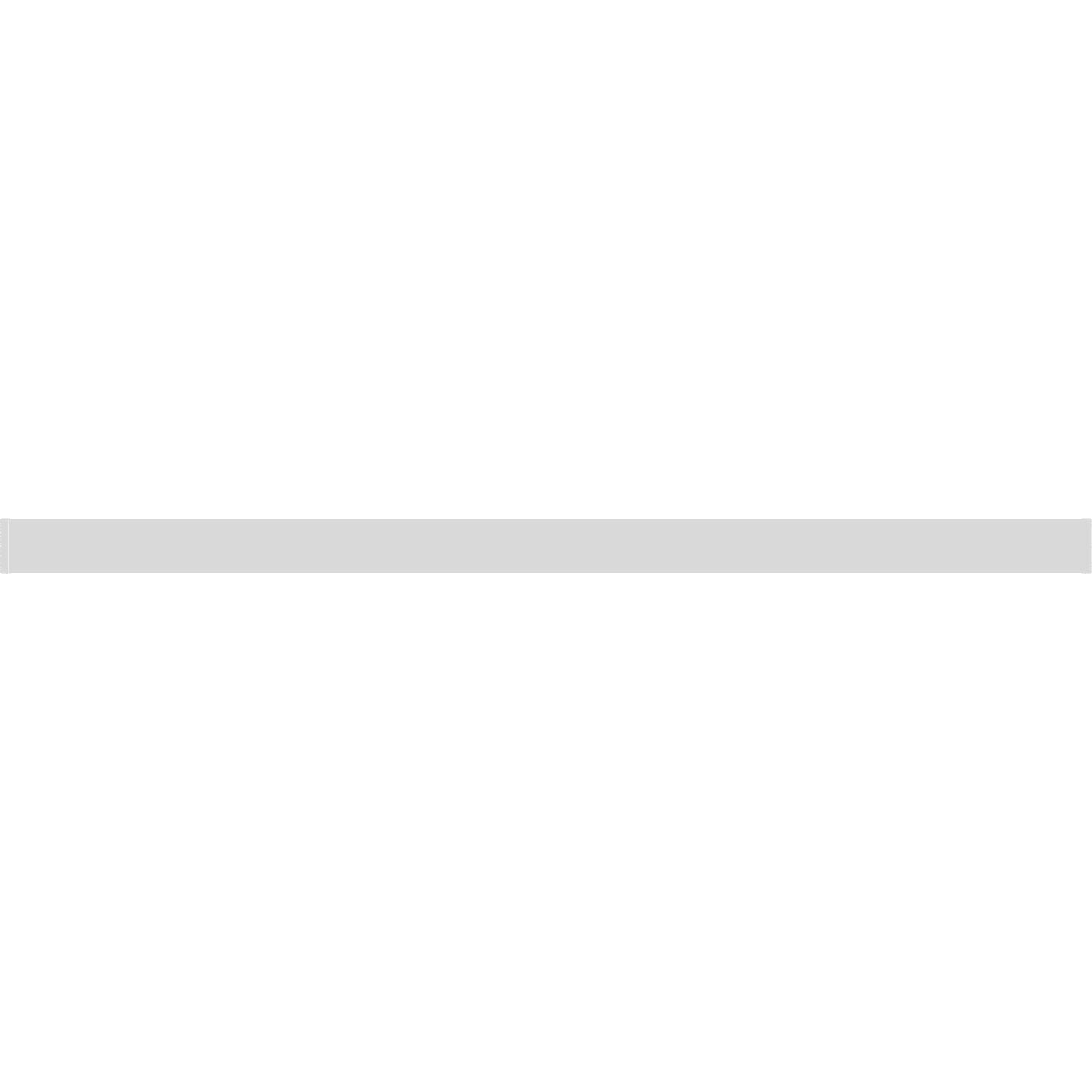

LINER/S 60 LED (1800) 840 WH DR
39 Wluminaire power
3750 lmlight flow
96 lm/Wenergy efficiency
code1473002780
color temperature4000.0000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
39 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
39 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
Clm App4
fire safety class
ІІІ
material
Aluminum
weight
5.2 kg

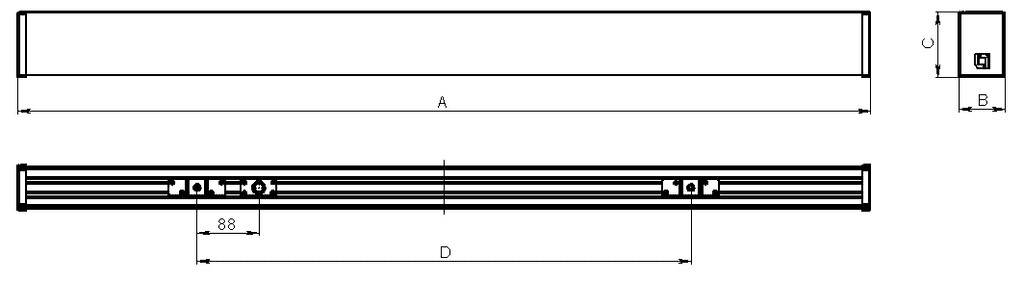

length, mm
1805 mm
width, mm
60 mm
height, mm
90 mm
housing color
White
installation length, mm
650 mm
shock resistance (IK)
IK02/0,2 J
lamp socket
LED
number of lamps
1
ballast
Driver
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
+5 to +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1473002780
illuminating
color rendition index (CRI)
>80
light flow
3750 lm
flickering factor
<3%
energy efficiency
96 lm/W
beam angle
D120
color temperature
4000.0000
light source type
LED
emission color
White
model files
model files
photometric files
documents
сертификаты
photometric files
ies856.3 kB
ldt549.8 kB
documents
passport5.7 mB
сертификаты
Voluntary certificate21.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/201112.7 mB
Declaration of Conformity EAEU TR 037/20164.6 mB
Fire Safety Certificate20.2 mB
