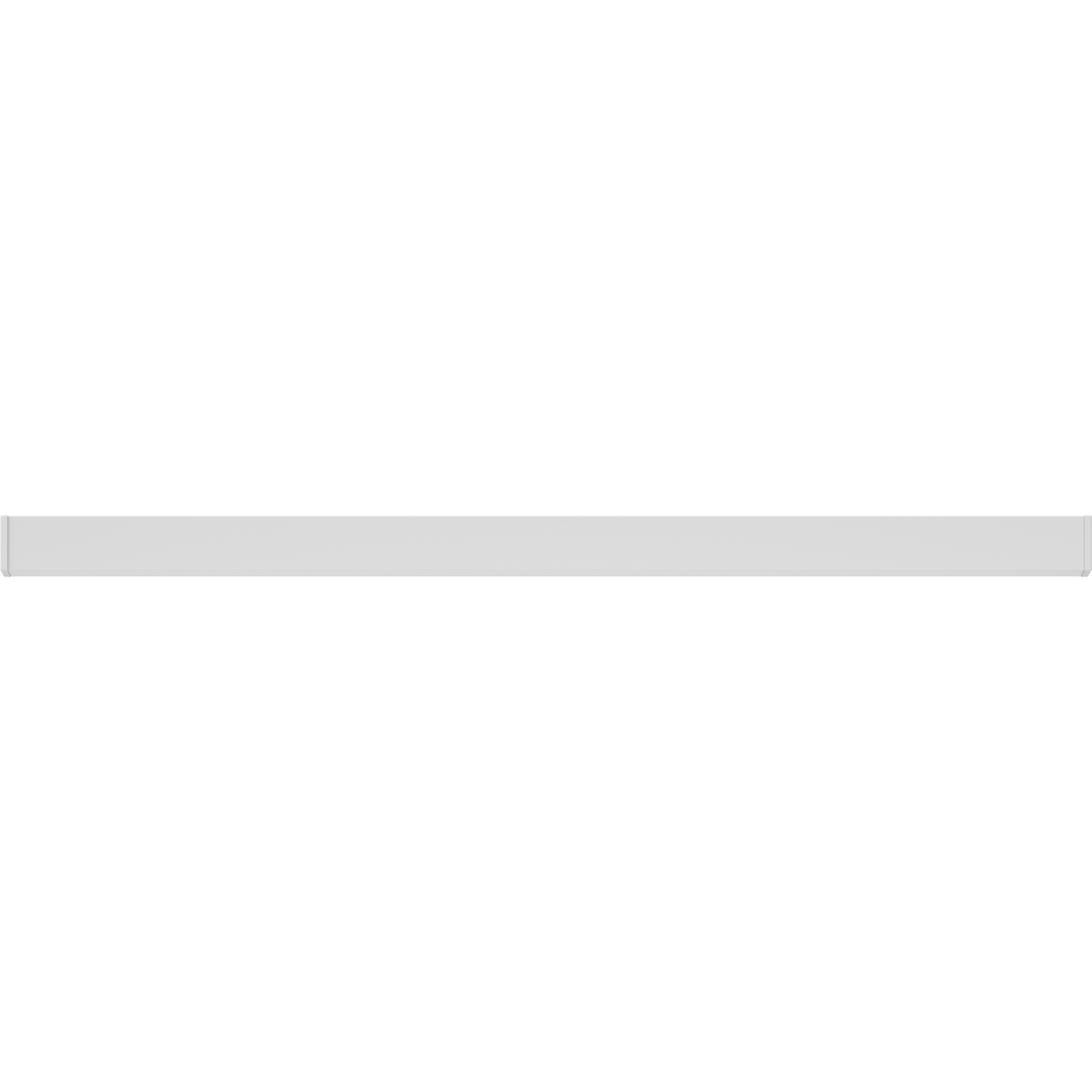

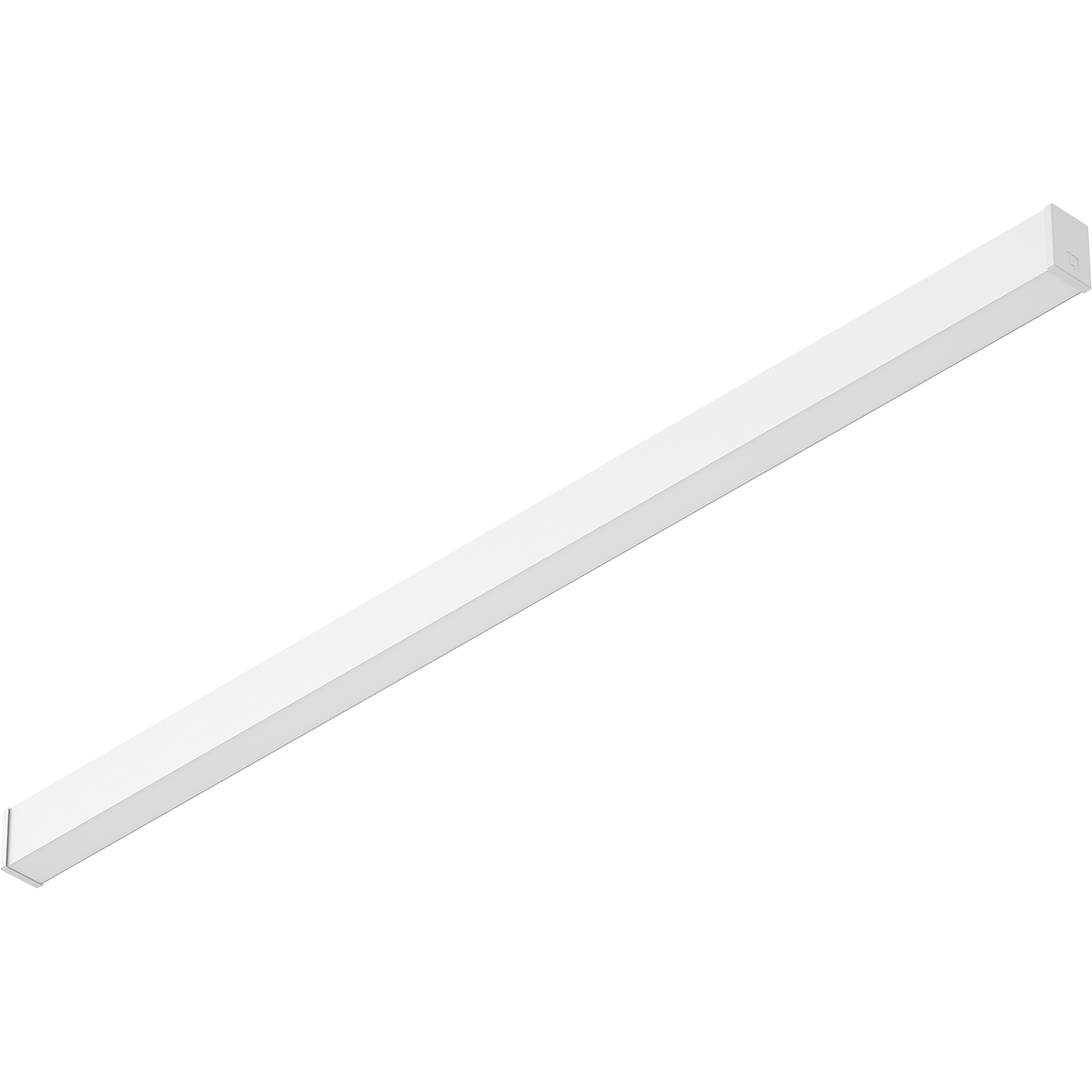

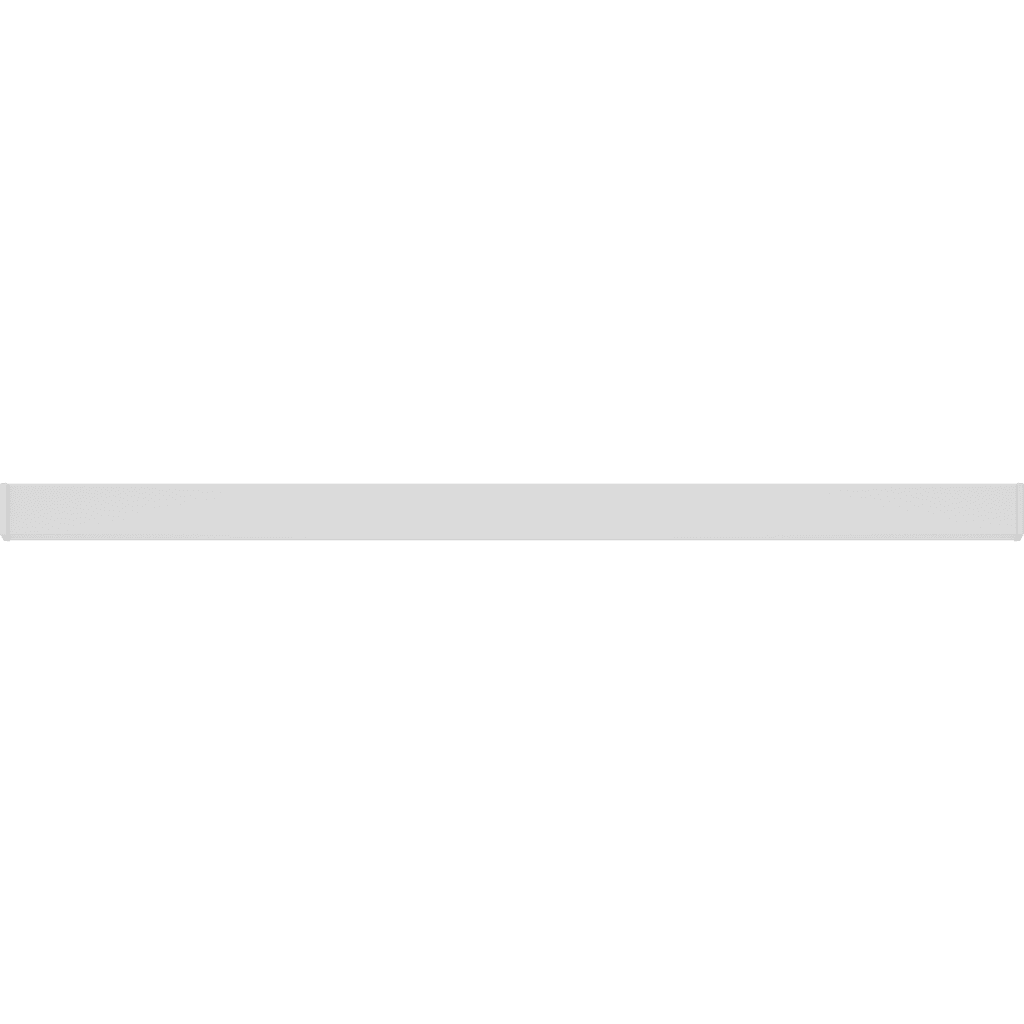

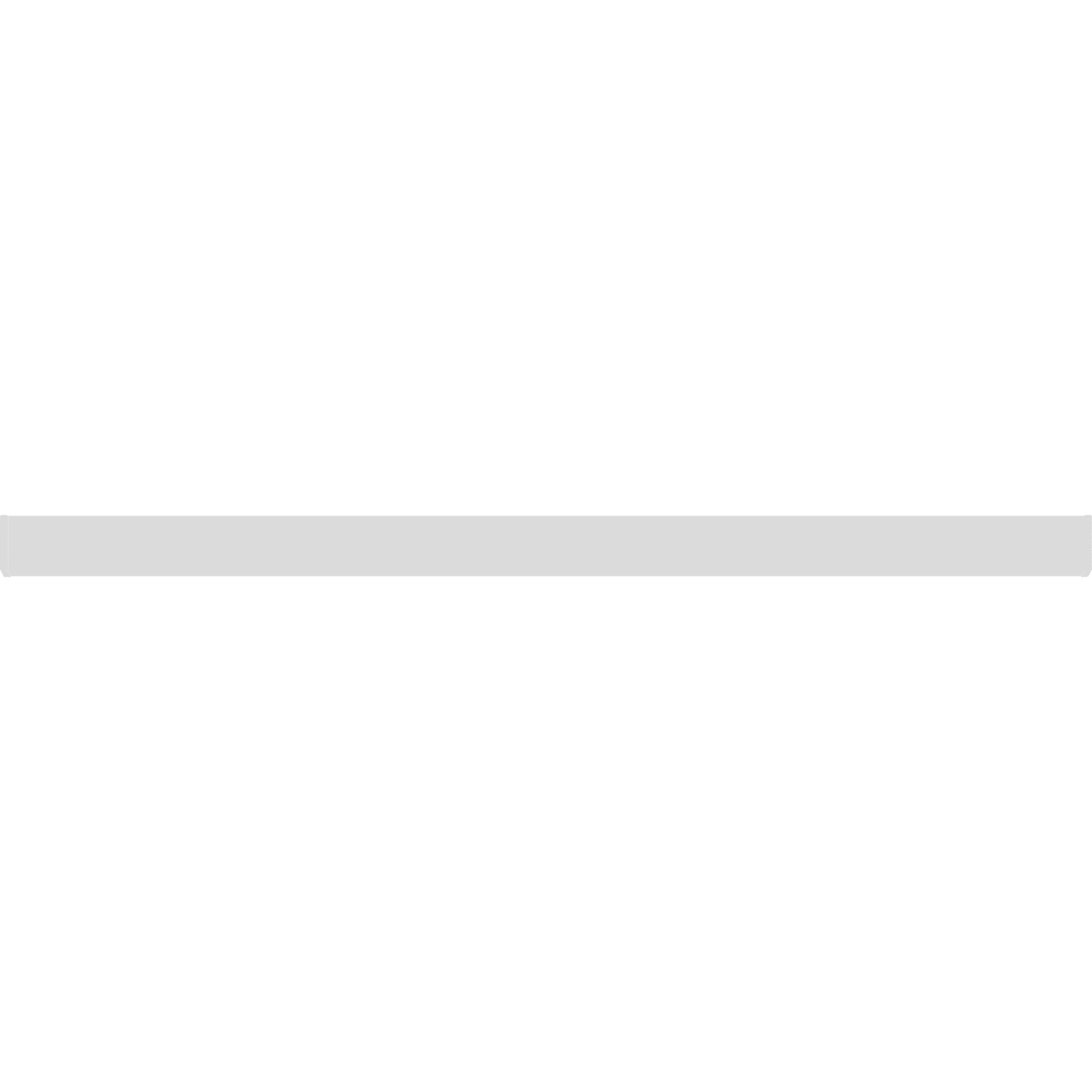

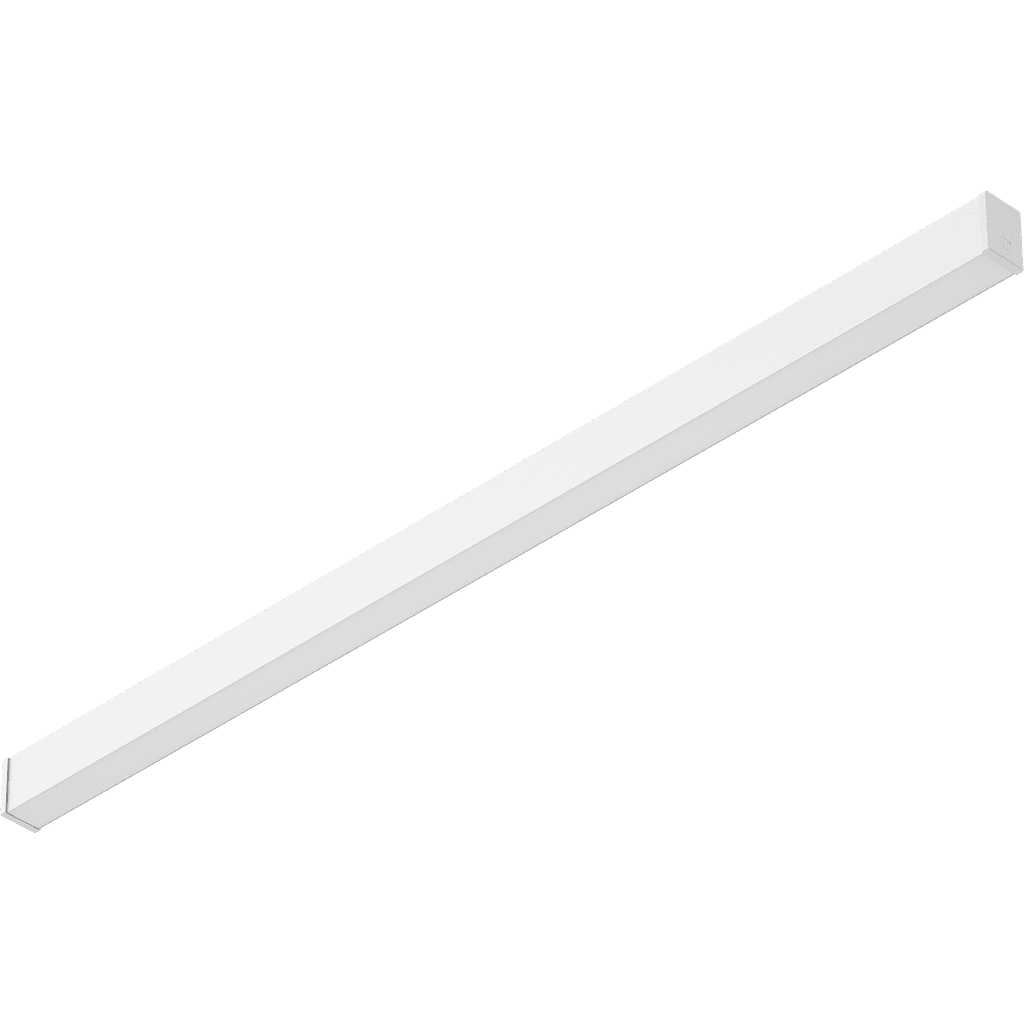

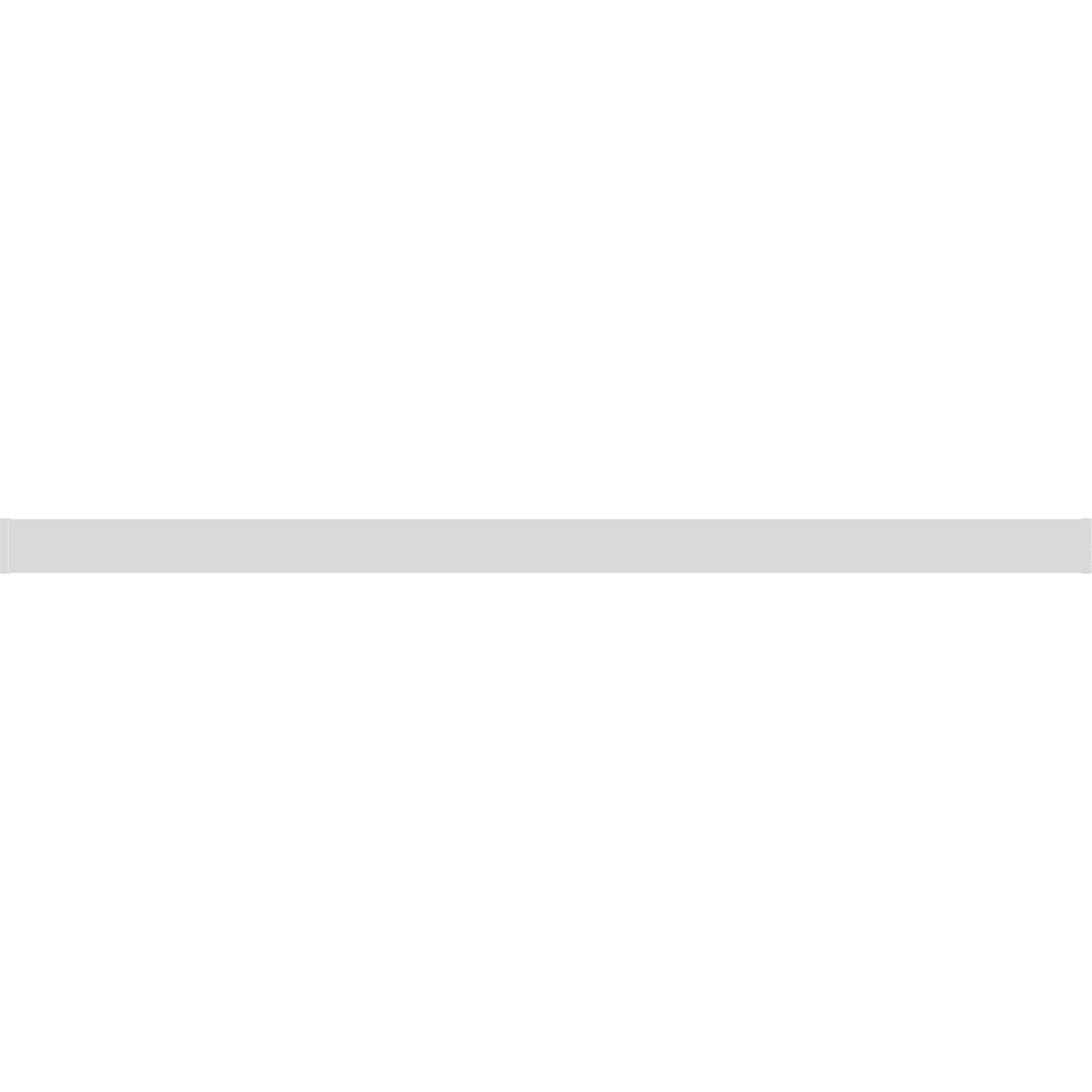

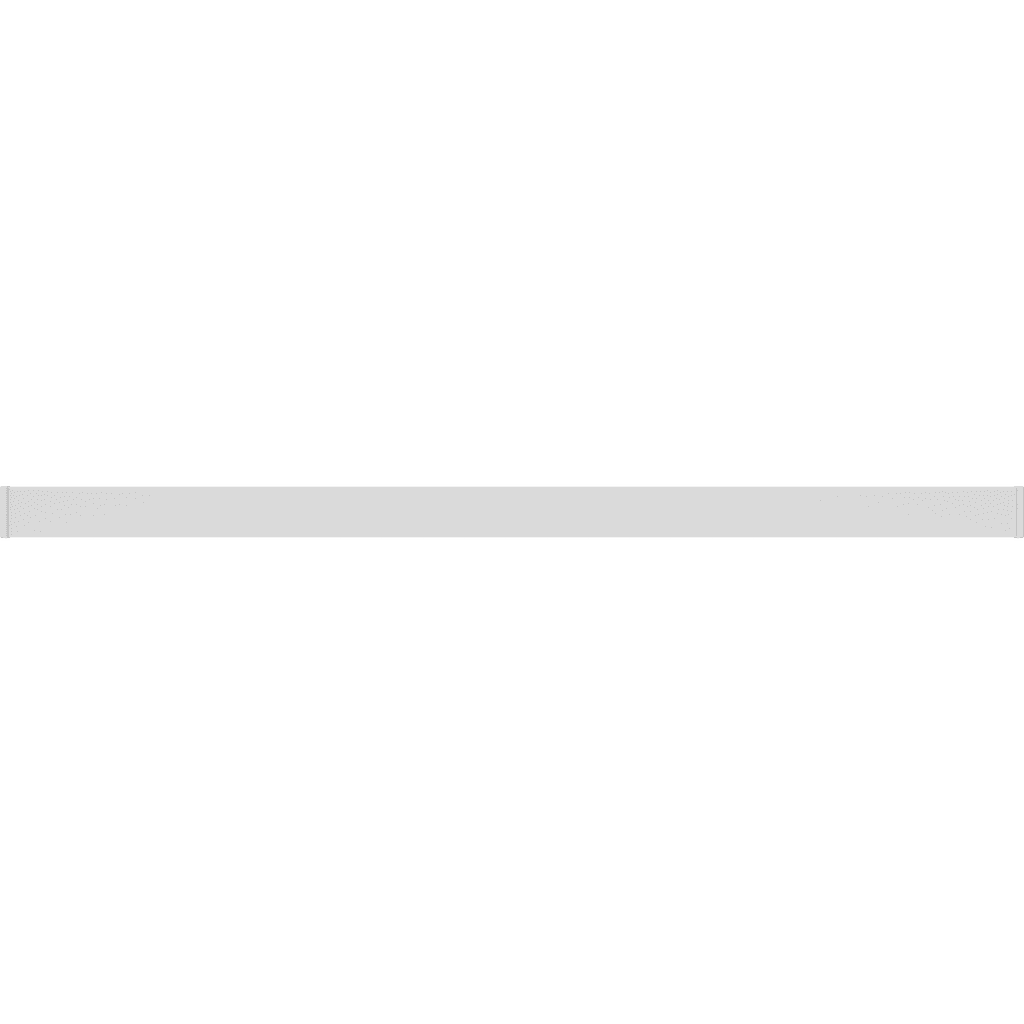

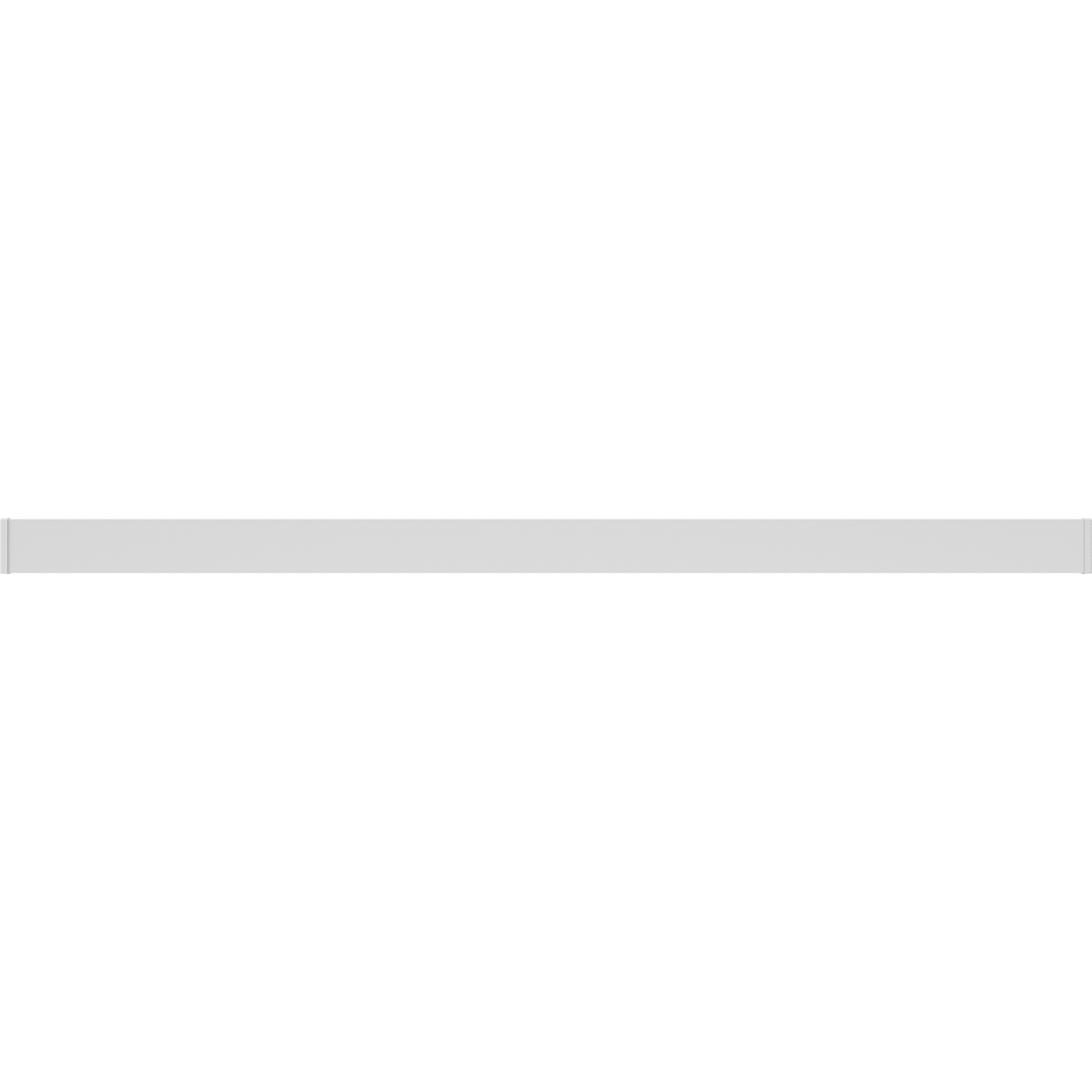

LINER 60 DR/S (2500) 840 WH

archive
archive
LINER 60 DR/S (2500) 840 WH
add to favorites
51 Wluminaire power
5000 lmlight flow
98 lm/Wenergy efficiency
code1473002790
color temperature4000.0000
beam angleD120
old nameLINER/S 60 LED (2400) 840 WH DR
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LINER 60/S
  7. LINER 60 DR/S (2500) 840 WH
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
51 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
luminaire power
51 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
Clm App4
fire safety class
ІІІ
material
Aluminum
weight
6.8 kg
length, mm
2405 mm
width, mm
60 mm
height, mm
90 mm
housing color
White
installation length, mm
950 mm
shock resistance (IK)
IK02/0,2 J
lamp socket
LED
number of lamps
1
ballast
Driver
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
+5 to +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1473002790
illuminating
color rendition index (CRI)
>80
light flow
5000 lm
energy efficiency
98 lm/W
beam angle
D120
color temperature
4000.0000
light source type
LED
emission color
White
model files
model files
photometric files
ies856.3 kB
ldt549.8 kB
сертификаты
Voluntary certificate21.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.3 mB
Declaration of Conformity EAEU TR 037/20162.3 mB
photometric files
ies856.3 kB
ldt549.8 kB
сертификаты
Voluntary certificate21.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.3 mB
Declaration of Conformity EAEU TR 037/20162.3 mB
accessories
Suspension kit LINER 60/S (1 pcs)0.1kgarticle: 2473000290
