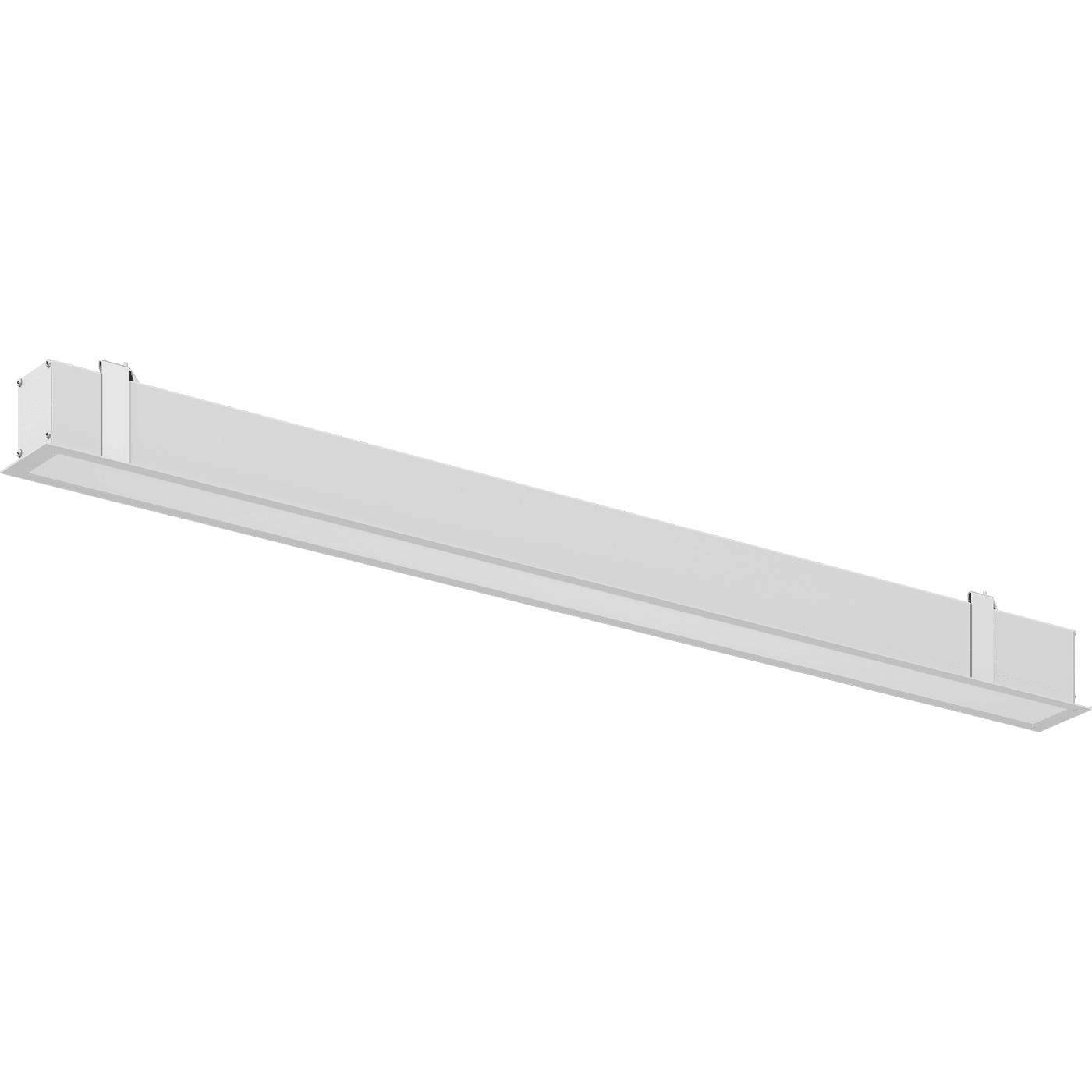

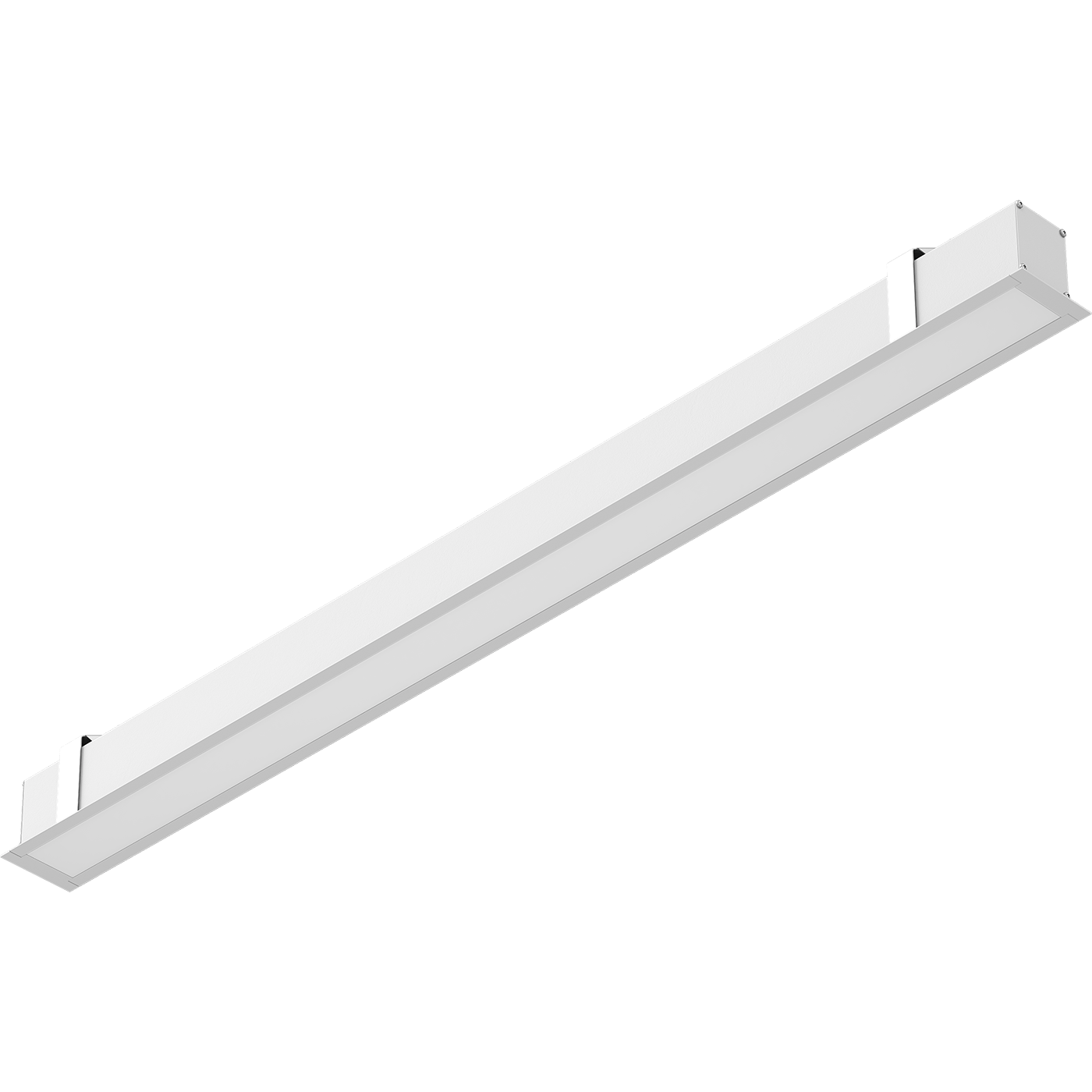

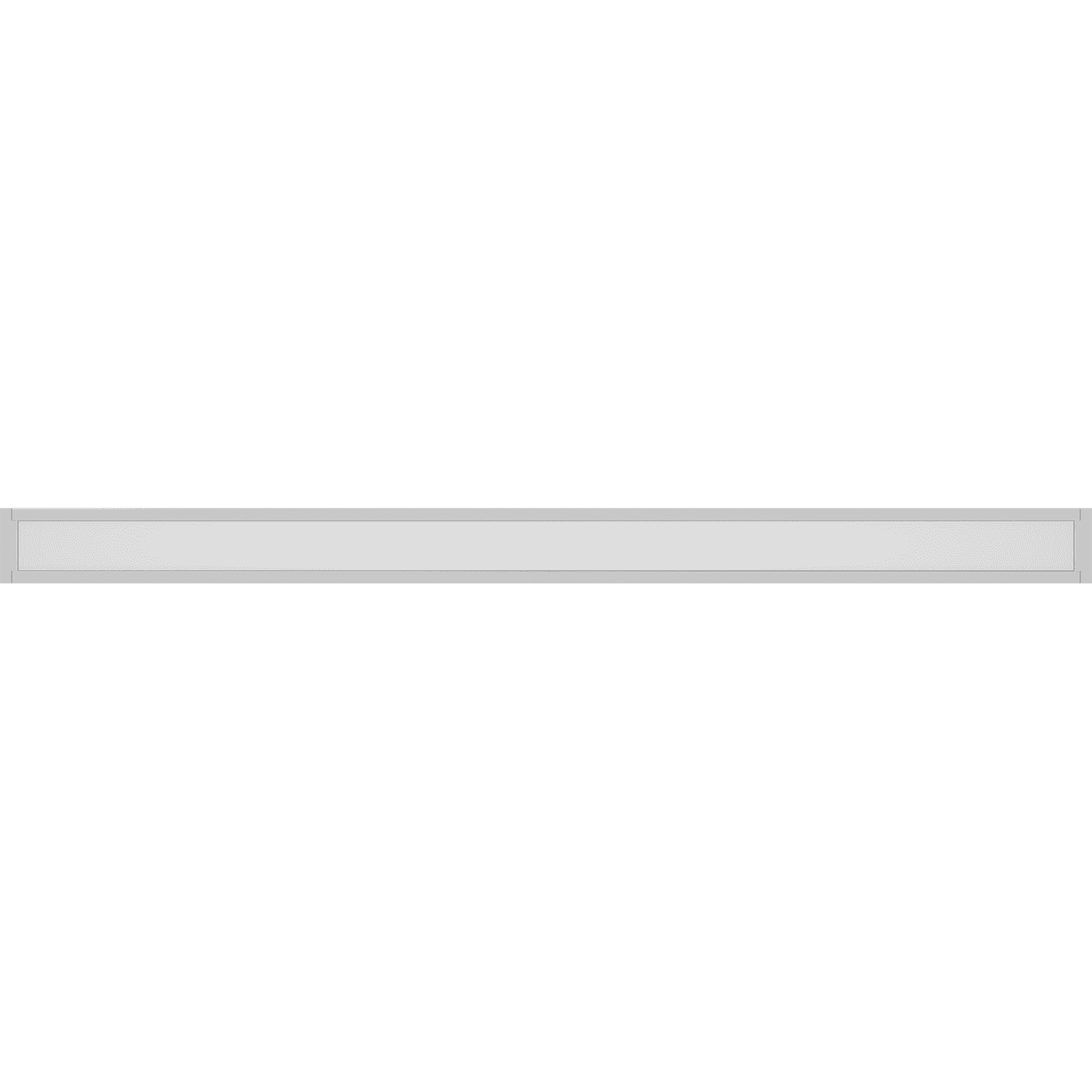

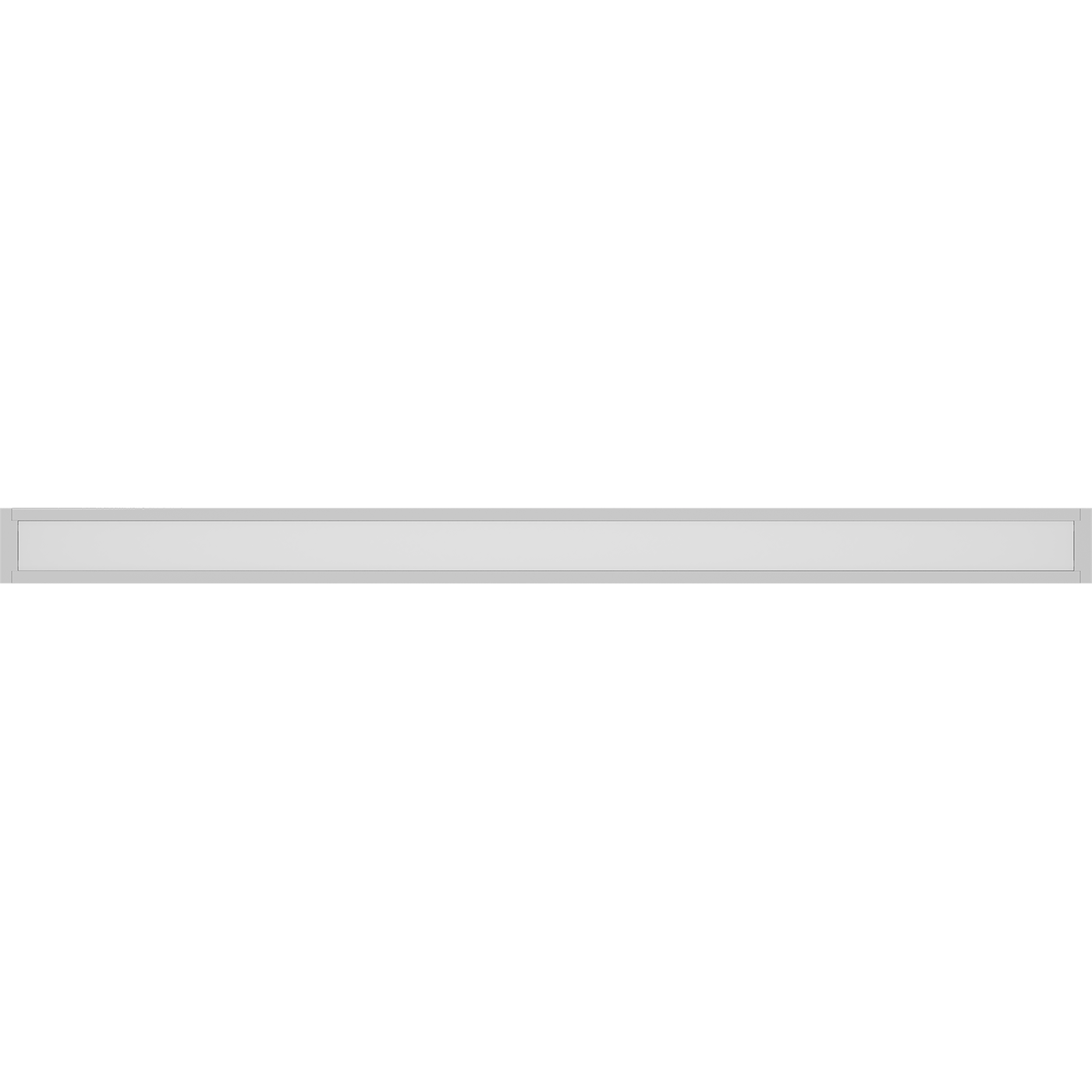

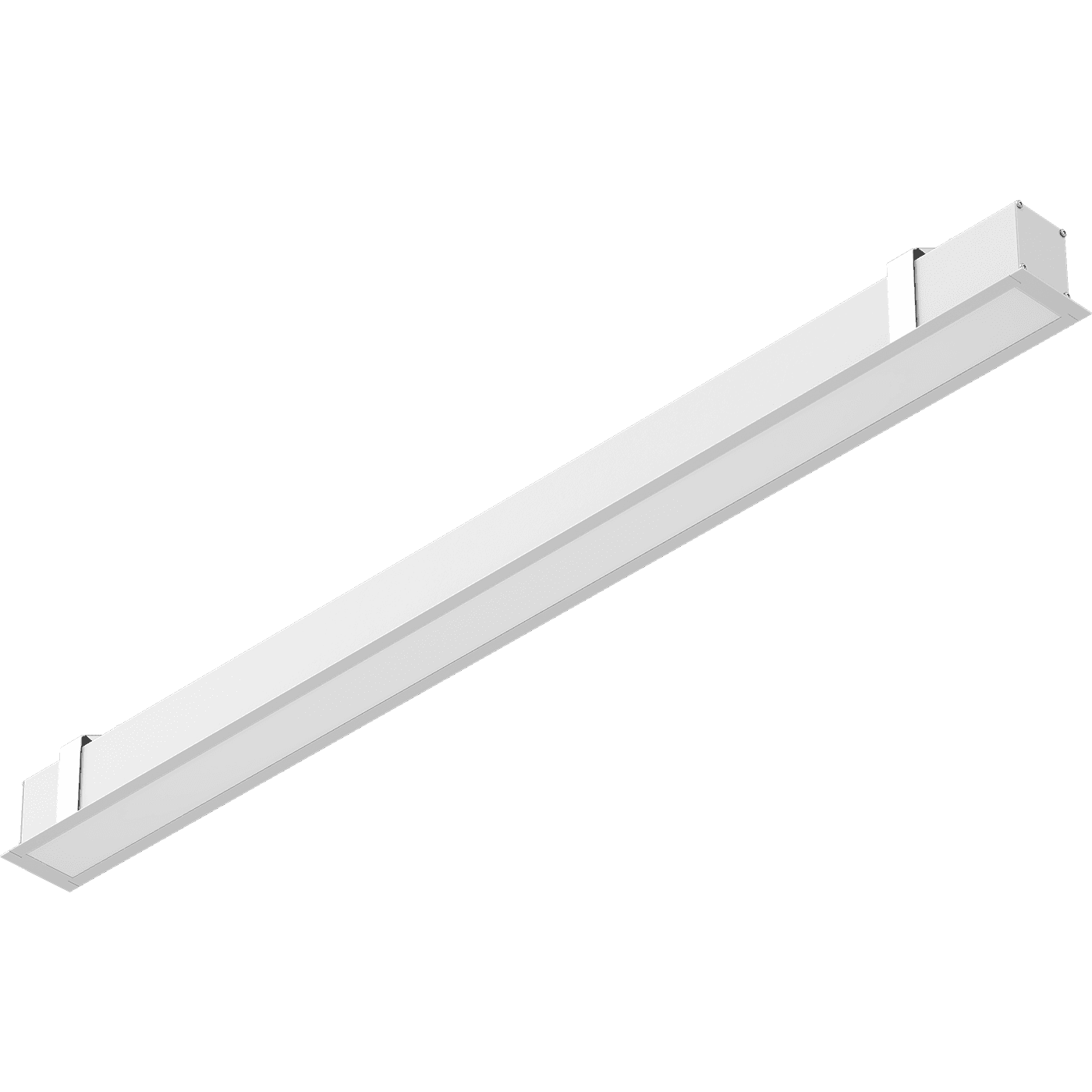

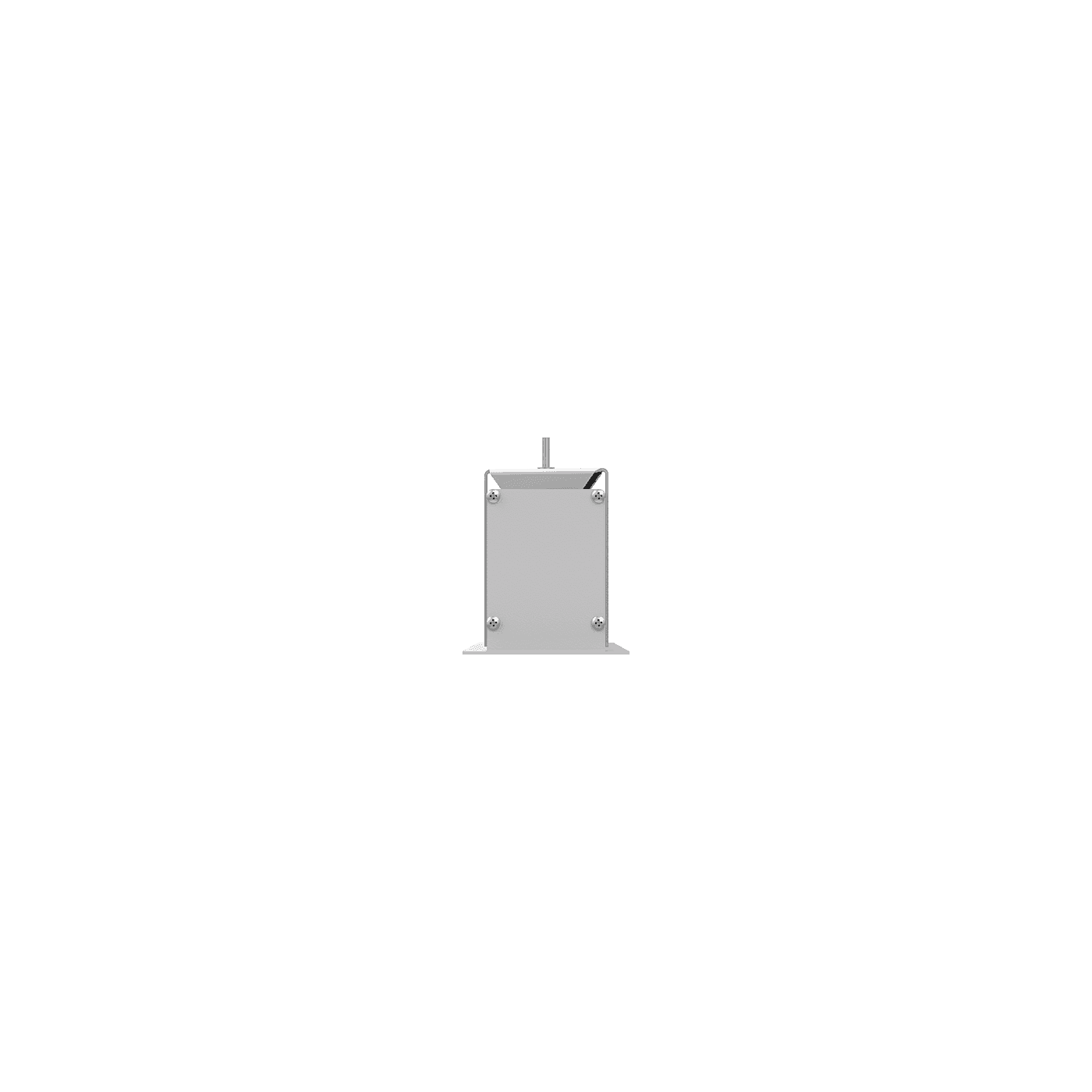

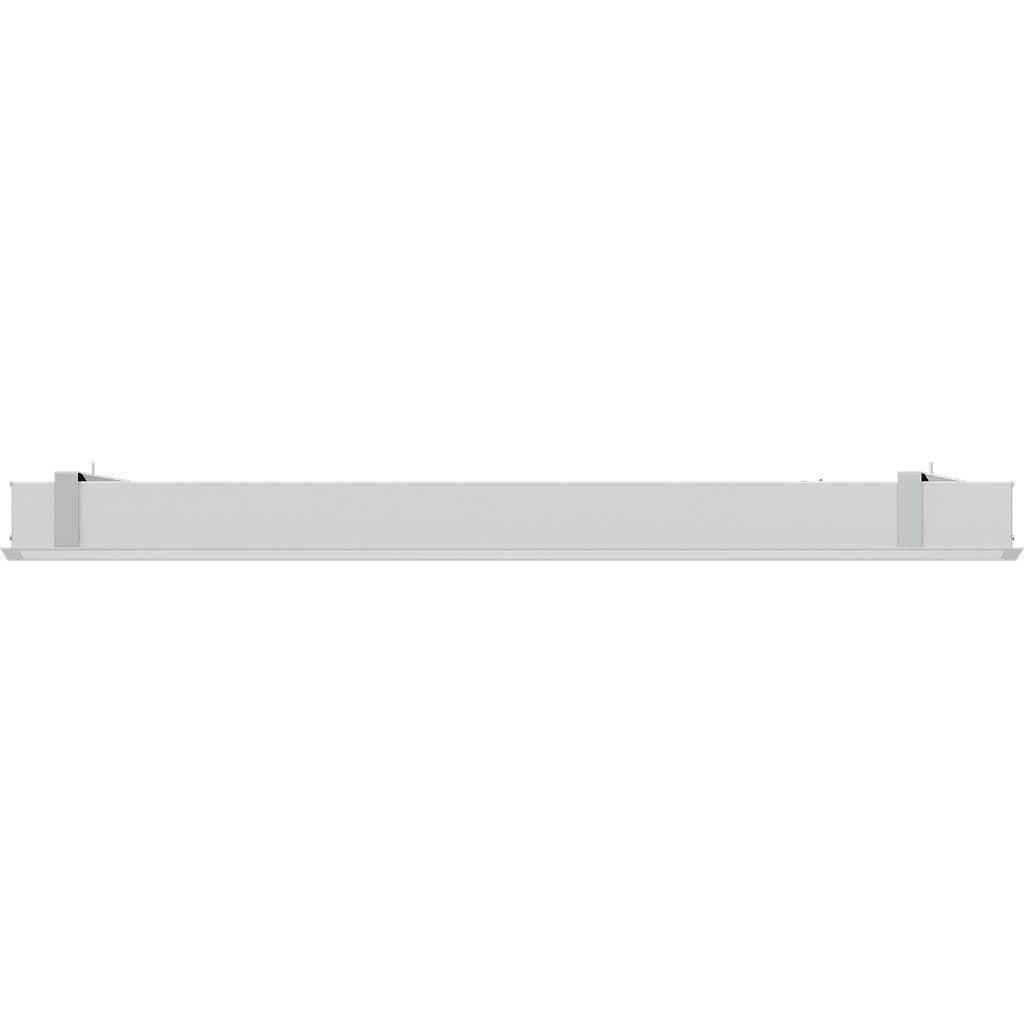

LINER 60/R (1200) 840 SL
26 Wluminaire power
2500 lmlight flow
96 lm/Wenergy efficiency
code1474002190
color temperature4000
beam angleD120
old nameLINER/R 60 LED (1200) S 4000K
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Iluminaire power
26 Wpower factor
> 0,96supply voltage
230 Velectrical
electric shock protection
I
luminaire power
26 W
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
material
Алюминий
housing color
Металлик
length, mm
1238 mm
width, mm
85 mm
height, mm
85 mm
weight
4 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
installation length, mm
1216 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1474002190
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
2500 lm
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
96 lm/W
model files
model files

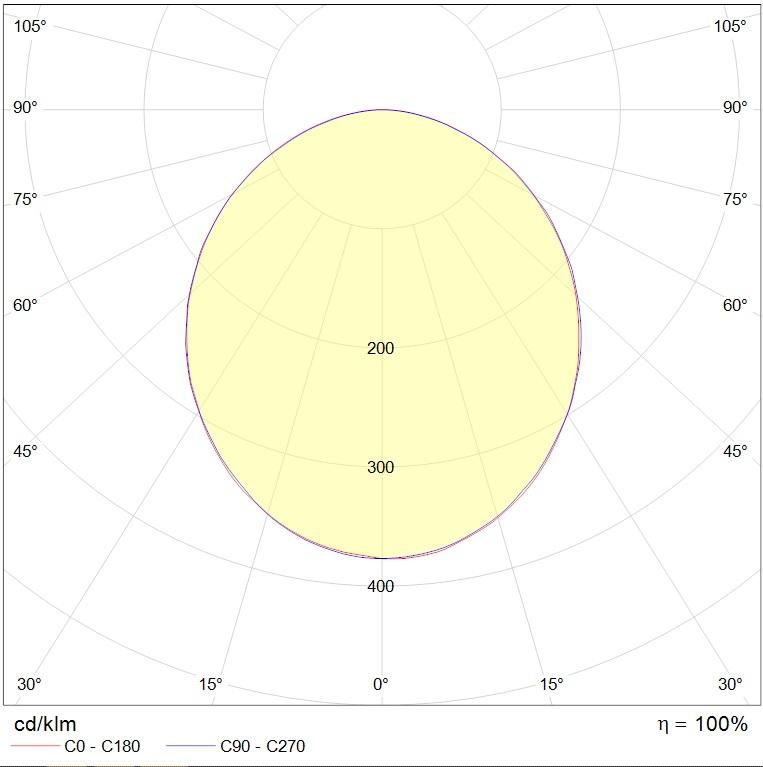

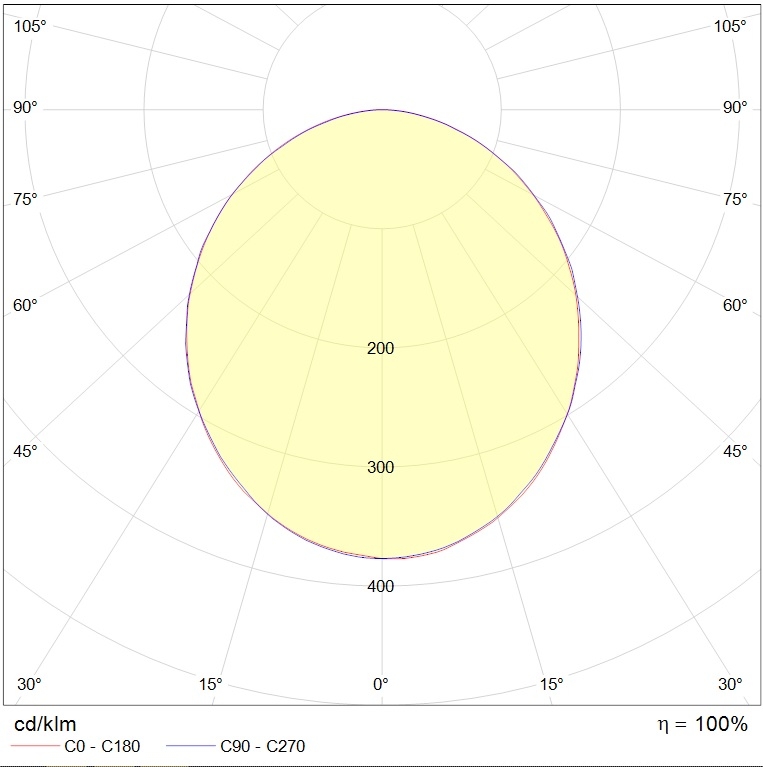

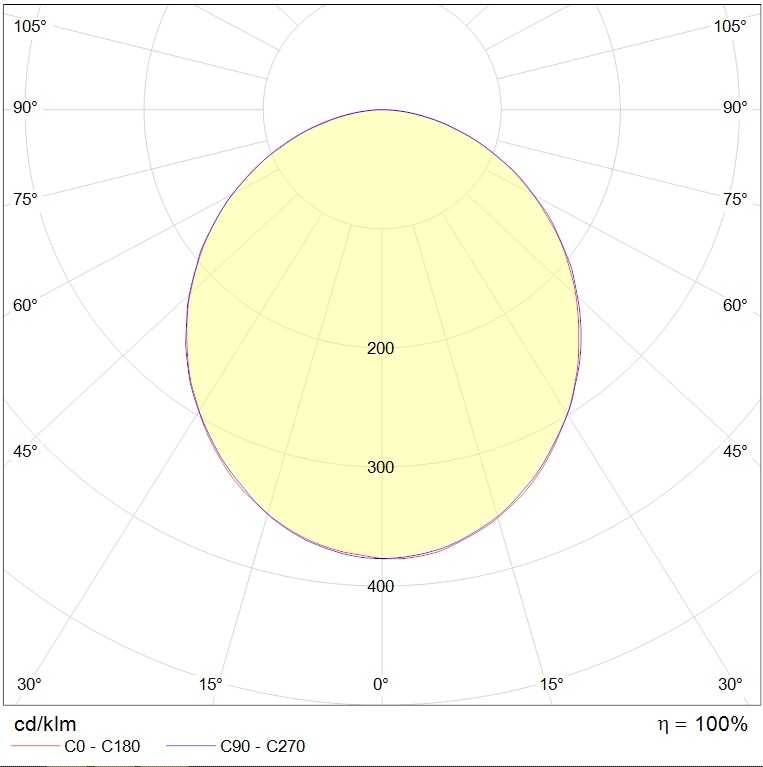

photometric files
сертификаты
photometric files
ies107 kB
jpg76.3 kB
ldt68.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011511 kB
Declaration of Conformity EAEU TR 037/2016508.6 kB
Fire Safety Certificate1.7 mB
