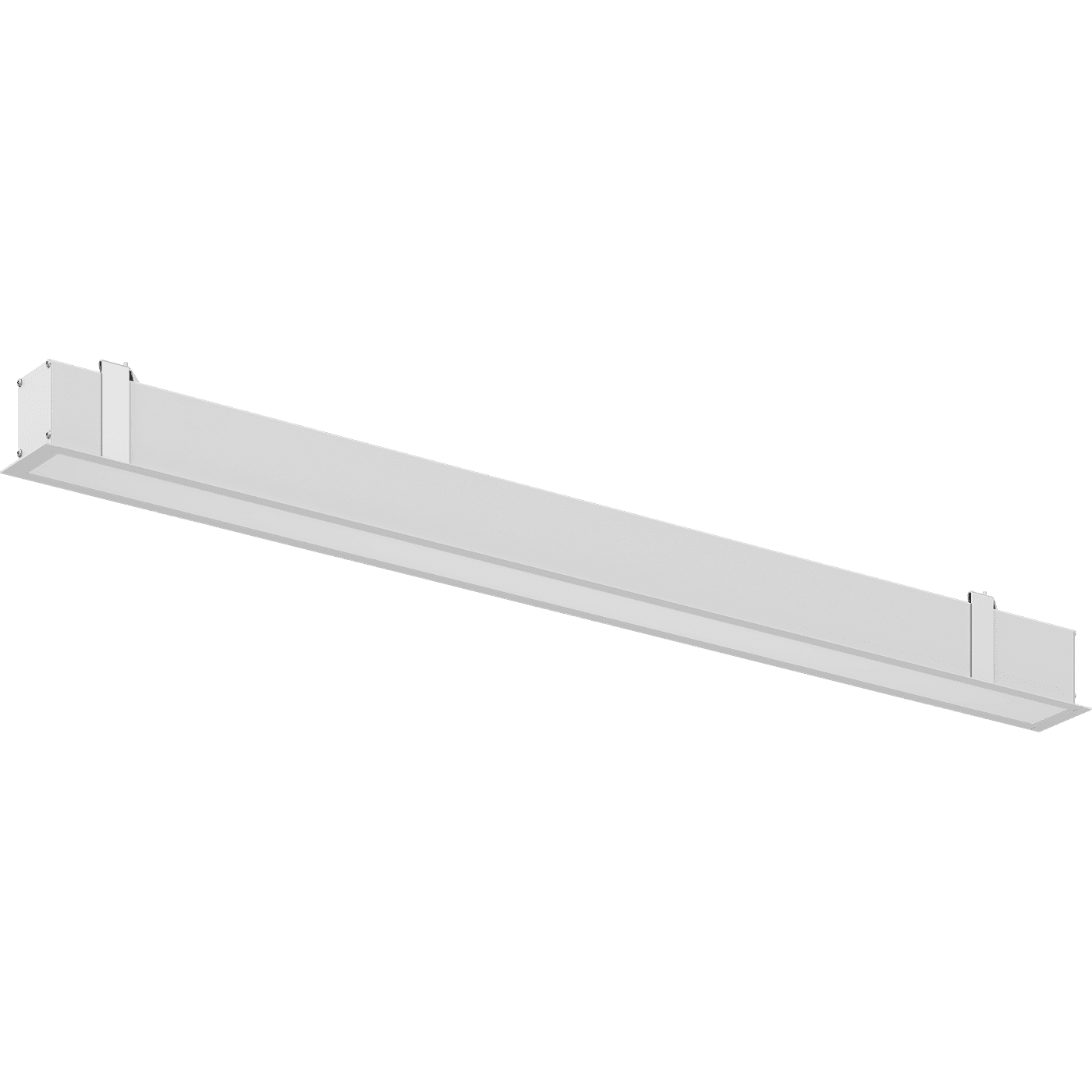

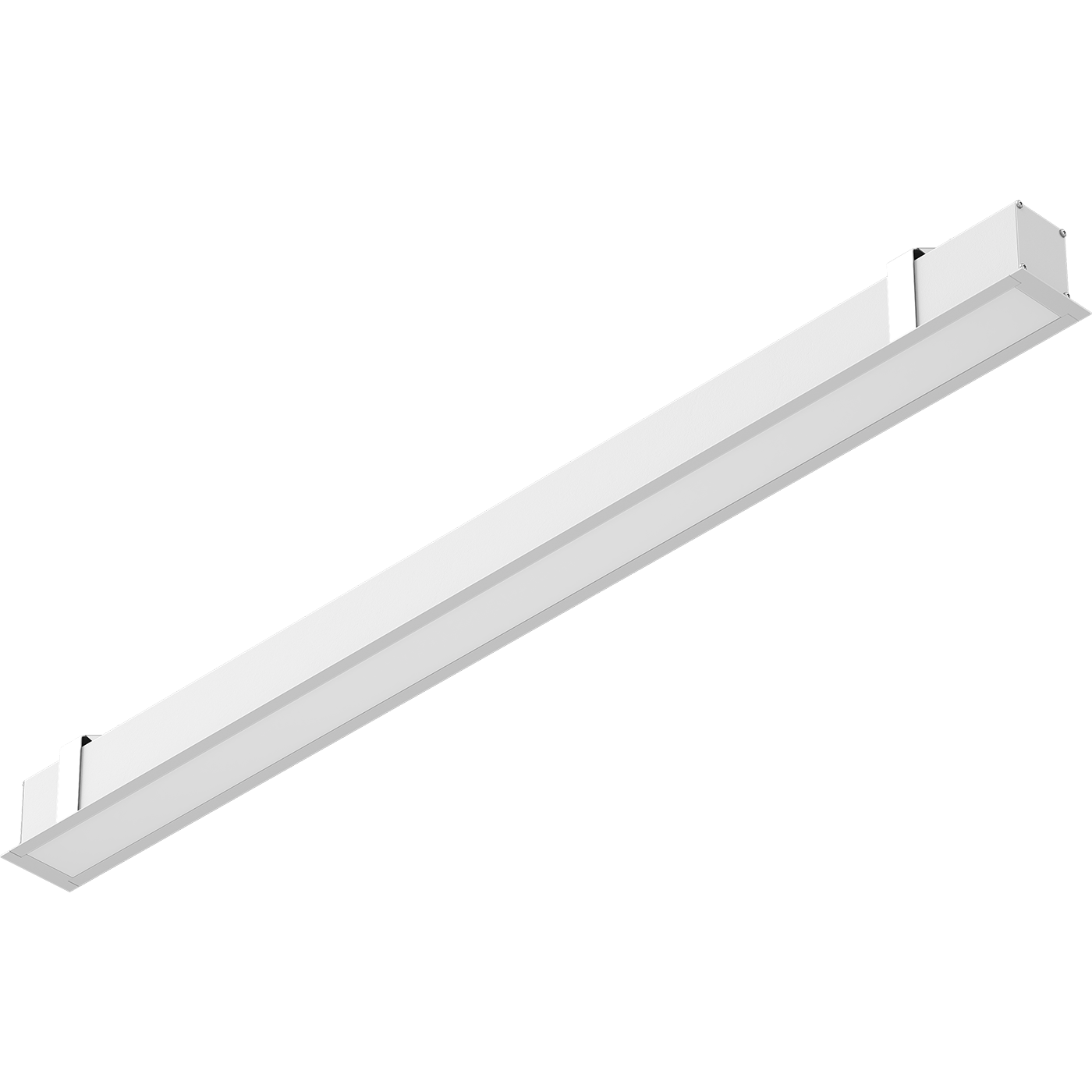

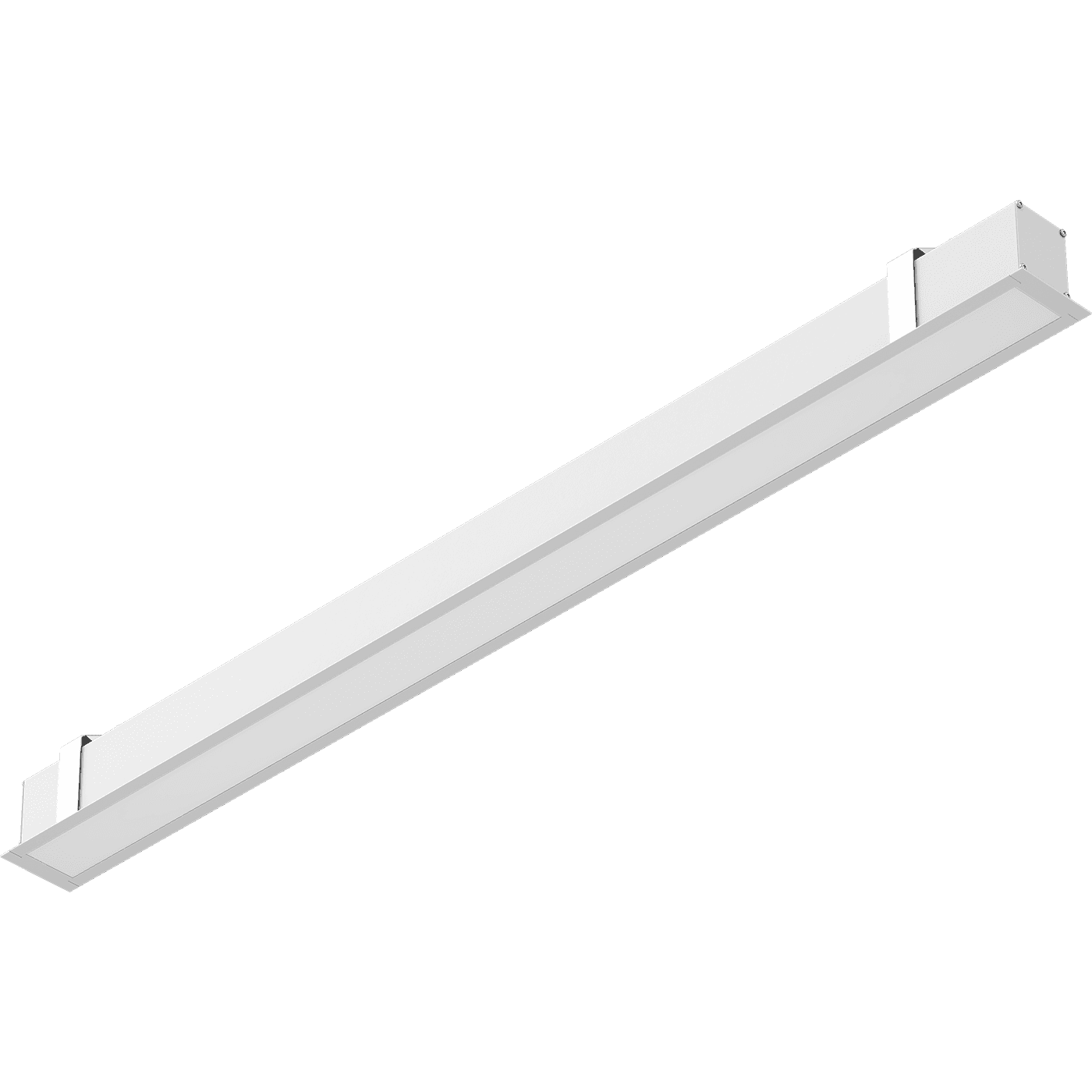

LINER 60/R (1000) 24W OPL 840 WH
LINER 60/R (1000) 24W OPL 840 WH
24 Wluminaire power
2400 lmlight flow
100 lm/Wenergy efficiency
code1474003630
color temperature4000 K
beam angleD120
old nameLINER 60/R (1000) 840 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
2400 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<5%

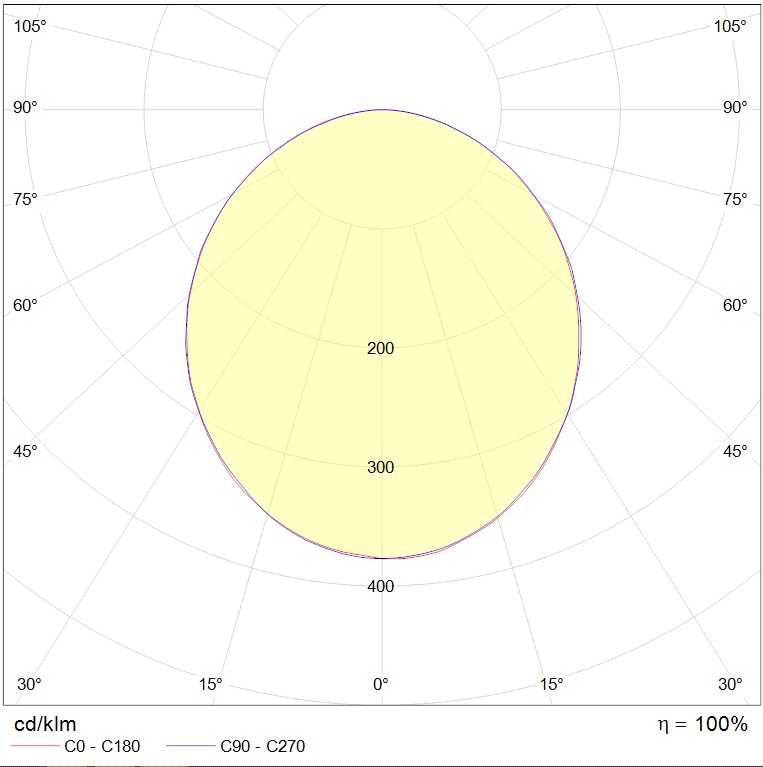

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
24 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1038 mm
width
85 mm
height
84 mm
installation length
1020 mm
installation width
65 mm
weight
3.2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1474003630
model files
model files

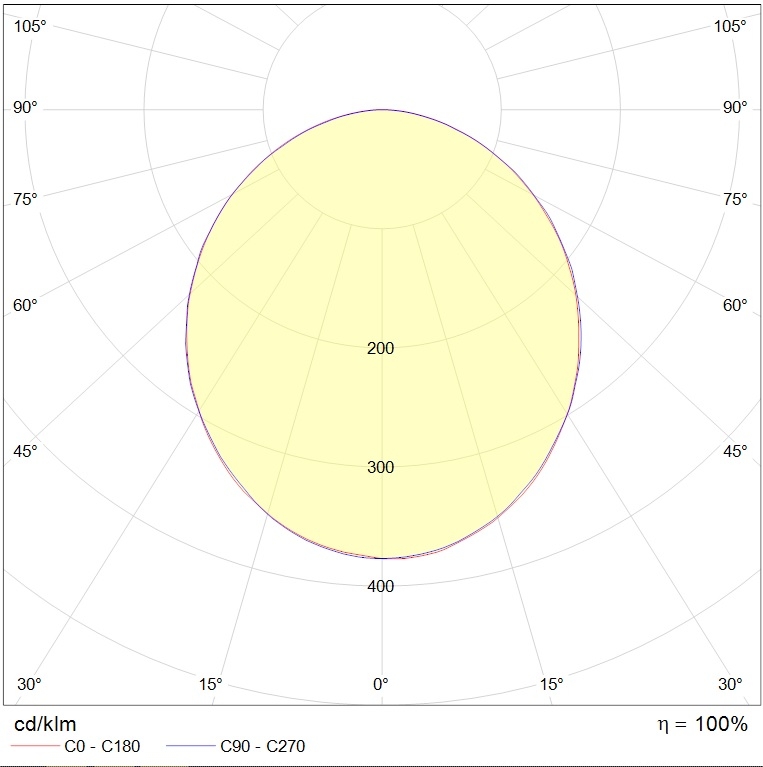

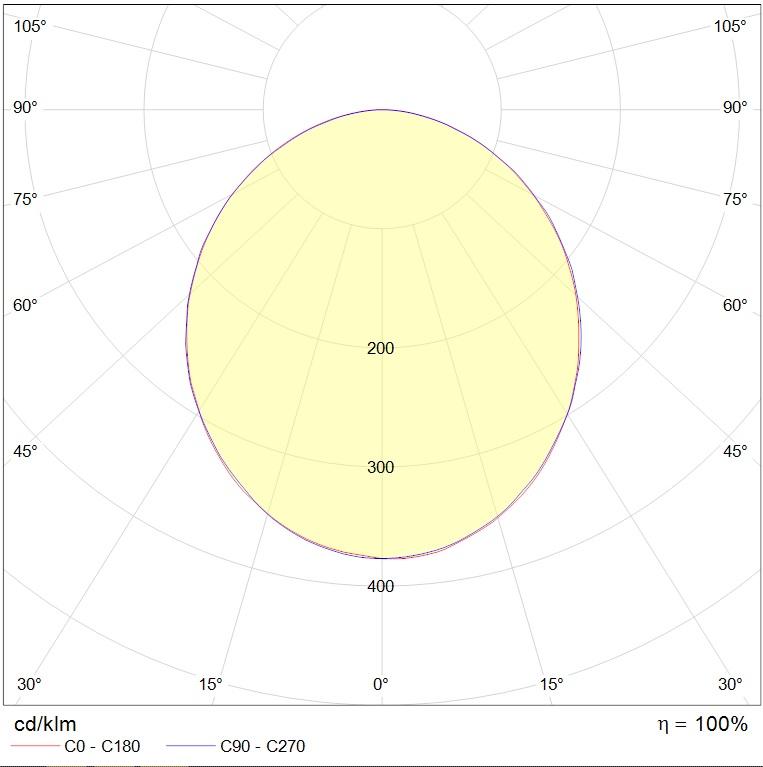

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg76.3 kB
ldt68.7 kB
documents
passport853.5 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016598.8 kB
Fire Safety Certificate1.7 mB
